ToolPRO 553026 User manual

1100W DIGITAL INVERTER
Instruction Manual
03738 05/18
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457 N.Z. 0800 474 876
PLU 553026

2
3
SUGGESTED APPLICATIONS
These are some suggestions of appliances which could
be powered by this generator. These suggestions cannot
be run at the same time, please read page 13 for full
details:
• Laptop computers up to 350W
• Televisions up to 150W
• DVD/Video players up to 300W
• TV and DVD/Video player combination up to 350W
• AC/DC Camping fridges up to 100W
• Lighting up to 900W
• Mobile phone/hand held games charging up to 300W
Never exceed 800W in total when using multiple devices.
CONTENTS
Section Page
Contents 2
Suggested Applications 2
Introduction 3
Warranty 3-4
General Safety Instructions 5-6
Specific Safety Instructions 7
Electrical Information 8
Fuel & Oil Information 8
Components & Controls 9
Operating Instructions 10-15
Maintenance Chart 16
Maintenance 17-18
Fault Chart 19-20
Service Log 21
Specifications 22
Please take note of serial number and write here for
ease of reference:
Serial Number: _______________________________ _
Date of Purchase: ____________________________ _
Place of Purchase: ___________________________ _
Receipt Number: _____________________________ _

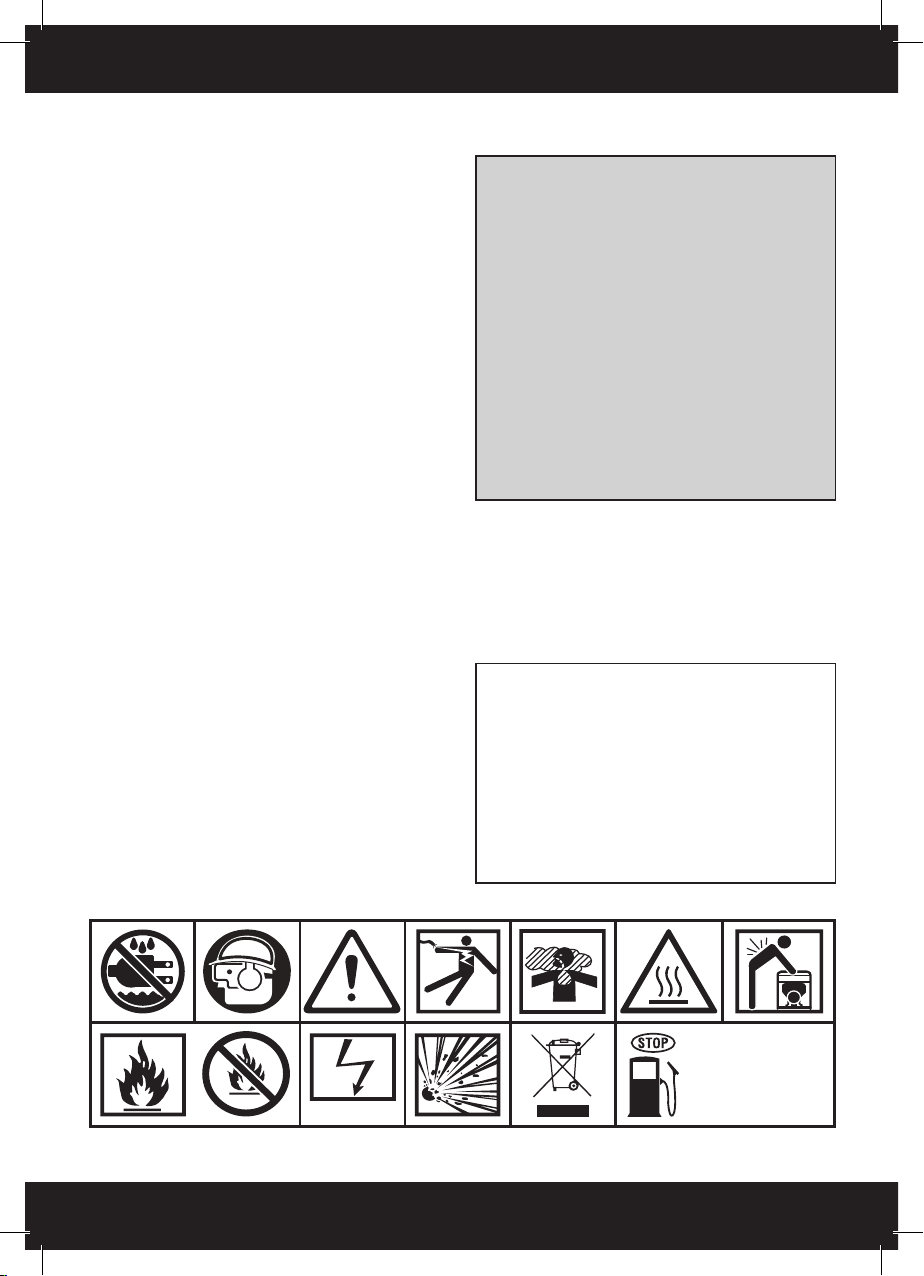

UNLEADED 91
PETROL ONLY
NO ETHANOL
ELECTRIC SHOCK
HAZARD

2
3
INTRODUCTION
Dear Customer,
Thank you for purchasing this generator which has
passed through our extensive quality assurance
processes. Every care has been taken to ensure that it
reaches you in perfect condition. However, in the unlikely
event that you should experience a problem, or if you
require any assistance please do not hesitate to contact
us;
If you have a problem, call customer service do
not return this generator to the place of purchase.
Note: For convenience we suggest taking a photocopy of
your purchase receipt as the orginal may fade.
Due to continual product development, the actual
product may differ slightly from the product pictured.
CUSTOMER SERVICE
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT
GENERATORS
You are not required to do anything to register your
generator purchase. Please attach the purchase receipt
to this manual and ensure both are kept safe. We hope
you enjoy your new generator, and if you have any
problems call customer service on the above phone
numbers. Do not return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that
this generator will be free from manufacturing faults
or defects for 12 months from the date of purchase,
providing original purchase receipt is kept and shown
when needed and is subject to the terms and conditions
below.
If a warranty fault appears within the warranty period,
SMG reserves the right to replace or repair the product.
In the event that SMG chooses to replace the product,
this original warranty will expire at the original date. If the
product includes various accessories or components,
only the defective accessory or component will be
replaced or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than being
repaired. Refurbished parts may be used to repair the
products.
What is covered
• Manufacturing fault or defect.
How to claim under this warranty
• Call customer service, phone number to the left.
• Ensure you have the following: Original purchase
receipt, Model of generator, Serial number of
generator.
• Discuss the issue.
• Customer service will advise which authorised service
agent to take the generator to provided the issue is a
warranty one.
• Take generator to authorised service agent for repair.
What is not covered
• Commercial use of generator.
• Use of Generator for hire.
• Use of generator in a commercial premises.
• Damage caused by incorrect oil.
• Damage caused by incorrect fuel or use of E10
ethanol fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or
accident or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Generators with serial number defacement,
modification or removal.
• Generators which have been serviced by anyone
other than an authorised SMG service agent.
• Generators with no original purchase receipt.
• Generators which have been on sold, not original
purchaser.
• Damage due non-servicing of generator as is required
by this manual.
• Blockages / damage caused by dust, dirt, spiders
webs or insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading, overworking the
generator.
• Damage to attached equipment or third party
accessories.
• Damage caused by attached equipment or third
party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[email protected]

4
5
As soon as you have purchased the generator, we
recommend that you check to make sure it is intact and
that you read the operating instructions carefully before
using it. The purchase receipt for this product is to be
retained and must be presented if making a claim under
the terms of the Smart Marketing Group (SMG) warranty.
Bank account statements are not acceptable for proof of
purchase.
This warranty does not cover generators intended for
hire or use in commercial applications or in commercial
premises. The warranty will under no circumstances
extend to reimbursement or payment of damages,
whether direct, indirect or consequential. The warranty
is void if there is evidence the generators has been
modified or tampered with in any way or used with
unauthorised accessories without our consent.
SMG declines any responsibility or liability whatsoever
arising from misuse or abuse, negligent handling of
the generators or if the product has not been installed
or failure to comply with the relevant safety, operating,
setting and maintenance instructions (see further in this
manual).
The warranty does not extend to installation or
disconnection costs.
Any item sent freight forward/collect for repair will be
refused. Warranty repairs are free of charge, provided
the appliance is delivered to our service department or
authorised service agent. The generator will need to be
returned, adequately protected in a box. SMG will not be
responsible for any in-transit loss or damage. Assistance
under the warranty will only be made available if the
request is made to our customer service team on the
contact numbers listed below and proof of purchase is
provided.
This is a repair only warranty you will need to take the
generator to the authorised service agent after contacting
our customer service centre.
If the product includes various accessories or
components, only the defective accessory or component
will be replaced or repaired.
SMG reserves the right to replace defective parts of the
product with parts and components of similar quality,
grade and composition where an identical part or
component is not available.
Products presented for repair may be replaced by
refurbished products of the same type rather than being
repaired. Refurbished parts may be used to repair the
products.
Damage caused by third party accessories is not
covered under this warranty. Damage caused to attached
equipment or third party accessories will not be covered
under this warranty.
Rust and corrosion are not covered under this warranty.
If a warranty fault is found the freight cost will be credited
to the owner. If no fault is found the product will be
returned and any costs associated with the service will
be charged to the owner.
Blockages caused by spider webs, insects, dirt, or
accumulated dust and incorrect oil are not covered by
warranty. SMG reserves the right to replace or repair the
appliance within the warranty period. Parts found to be
defective due to a manufacturing default will be replaced
free of charge.
In the event of SMG choosing to replace the appliance,
the warranty will expire at the original date of purchase. If
no warranty fault is found the owner will be advised and
the product will be returned and any costs associated
with the service will be charged to the owner.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
The benefits of this warranty are in addition to any rights
and remedies imposed by Australian State and Federal
legislation that cannot be excluded.
In New Zealand, this SMG warranty is in addition to
the conditions and guarantees which are mandatory as
implied by the New Zealand Consumer Guarantee Act
1993. For service, spare parts or product information
please contact customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel [phone]
Fax [phone]
[e-mail]
COMPLETE WARRANTY STATEMENT – GENERATORS

4
5
LUBRICATION OF ENGINE

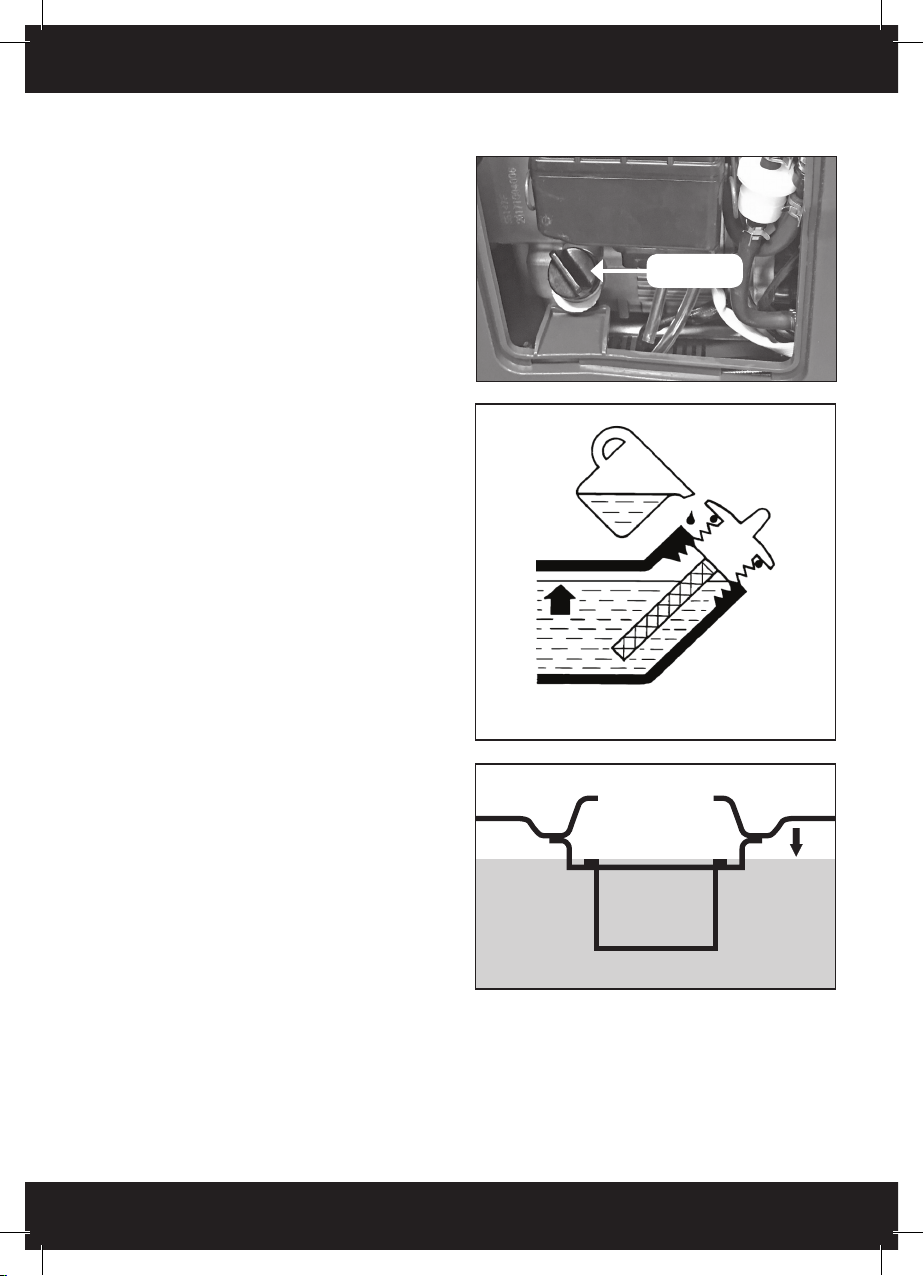

Your engine comes with NO oil in the sump. You will need
to add engine oil, refer to pages 8 and 10 for complete
details and images. Failure to do this may result in
damage to the engine, generator and/or injury to the user.
GENERAL SAFETY INSTRUCTIONS
Before attempting to operate this generator the following
basic safety precautions should be taken to reduce
the risk of fire, electric shock and personal injury. It
is important to read the instruction manual and to
understand applications, limitations and potential hazards
associated with this generator. It is important that you
read, understand and follow these instructions very
carefully. They are designed for the safety of yourself and
others ensuring a long and trouble free service life from
your generator. This generator is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a
person responsible for their safety.
OPERATING ENVIRONMENT
NEVER use your generator indoors. Your generator
produces deadly carbon monoxide and this is harmful
and can caused death. Only use your generator in well
ventilated areas like the outdoors. Do not expose your
generator to rain or use in damp or wet locations. Do
not expose your generator to direct sunlight. Keep the
work area well lit. Do not use your generator in areas
where there is a risk of explosion or fire from combustible
materials, flammable liquids, paint, varnish, petrol, etc
flammable gases and dust of an explosive nature. As a
precaution it is recommended that you consult an expert
on selecting and using a suitable fire extinguisher and
have it available for use in an emergency when operating
the generator.
GUARD AGAINST ELECTRIC SHOCK
Never touch the generator with wet or damp hands as
electric shock may occur. Always ensure your generator
is connected to ground, i.e. Earthed with the supplied
earth stake, see page 11.
BEWARE OF CHILDREN & PETS
Children and pets should be kept out of the operating
area. Children should not be allowed to touch or operate
generators or touch extension cords. All generators
should be kept out of reach of children. When NOT in
use keep the generator preferably stored or locked in a
secure well ventilated cabinet or room with the fuel tank
empty.
SELECT A GENERATOR WITH A SUFFICIENT RATING
Select the right generator for the job. Do not use a
generator to do a job for which it was not designed. Do
not force a small generator to do the job of a heavy duty
generator. Any damage caused by overloading will void the
warranty. Do not use generators for purposes not intended.
PROTECT POWER LEADS FROM DAMAGE
Always disconnect power cords from a power supply
socket by pulling the plug. Never pull on the cord.
Keep the power lead away from heat, oil, solvents and
sharp edges. If a power lead becomes damaged have it
replaced by an authorised service facility.
FUEL - UNLEADED 91 PETROL - NO ETHANOL
Fuel used in this generator is poisonous. Always wear
approved breathing protection when decanting fuel. If
you get any fuel on your skin or clothes wash the affected
area immediately with soap and water and change your
clothes. If you get fuel in your eyes wash immediately
with clean water and seek medical attention. If any fuel
is swallowed DO NOT induce vomiting, seek immediate
medical attention.
HOT COMPONENTS
Beware many of the components will get hot during use.
Never touch any of the metal pipes, pump or motor as
these may burn.
MAINTAIN YOUR GENERATOR WITH CARE
When not using your generator ensure the fuel cock is
‘OFF’. Never leave the fuel cock ‘ON’ as this can damage
the carburettor. Follow the instructions for lubricating and
changing accessories. Keep handles clean, dry and free
from oil and grease. Ensure that ventilation slots are kept
clean and free from dust at all times. Blocked ventilation
slots can cause overheating and damage to the motor.
Ensure that the air and fuel filters are kept clean at all
times.
REMOVE ADJUSTING KEYS AND WRENCHES
Form the habit of always checking to see that any
adjusting keys or wrenches have been removed from the
generator before operating.
FIRE PRECAUTIONS
Always contact your fire authority before using the
generator on fire restricted days. It is not recommended
to use your generator when a total fire ban is in force.
Never refuel your generator while it is still running. Never
connect your generator to a commercial or domestic
power outlet. As a precaution it is recommended that an
expert is consulted on obtaining and using a suitable fire
extinguisher.
CLEANING YOUR GENERATOR
Always stop your generator before you commence
cleaning. Always ensure that your generator has cooled,
about one (1) hour, before cleaning and storing. When
cleaning your generator use only a damp soft cloth.
NEVER use liquid or solvents of any type. All areas can
be wiped down.

6
7
WARNING
Do not attempt to modify the generator in
any way; this will VOID your warranty.
The use of any attachment or accessory other than
those recommended in this instruction manual
could result in damage to the generator and could
cause injuries to the operator.
This petrol generator complies with Australian /
New Zealand and International standards and
safety requirements. Repairs should only be carried
out by qualified persons using original spare parts.
Failure to do so may result in considerable danger
to the operator.
EXTENSION CORDS & REELS
Inspect extension cords periodically and replace if
damaged. Never use damaged extension cord as these
may cause injury. Always unwind any extension cords
fully before plugging into mains power supply. Protect
your extension cord or reel from sharp objects, excessive
heat, damp conditions or wet locations. Always use a
‘3’ core extension cord or reel with this generator. Only
extension cords intended for and marked ‘outdoor’ use,
which are no longer than 10m.
GENERATOR ‘EARTHING’
Always ensure that this generator is “Earthed” correctly
before using. “Earthing” stake and wire has been
supplied with this generator ensure it is used to ensure
your safety, see page 11.
CHECK DAMAGED PARTS
Before using the generator it should be carefully checked
to determine that it will operate properly and perform its
intended function.
Check for broken or missing parts and have them
replaced or repaired at an authorised service facility.
Check any other condition that may affect the operation
of the generator. A guard or any other part of the
generator that is damaged should be properly repaired
or replaced by an authorised service facility unless
otherwise indicated in this instruction manual.
Any switch that does not operate correctly must be
replaced by an authorised service facility.
DO NOT use the generator if the ‘ON / OFF’ motor switch
does not turn the generator ‘ON’ and ‘OFF’.
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything that
could get caught in moving machinery. Gloves may be
worn when filling generator with fuel.
Hair
Long hair should be tied back or contained in a
protective covering.
Eye Protection
The use of safety goggles is highly recommended
(normal glasses are not sufficient for eye protection)
when using or refuelling generators. Prescription glasses
do not have safety lenses.
Footwear
Where there is the risk of heavy objects or if there is a
risk of slipping on wet or slippery floors, suitable non–
slip, covered, safety footwear should be worn. Protect
your feet from dropping accidents.
Ear Protection
The use of ear protection is highly recommended when
using generators. The continual noise may damage your
ears.
Respiratory Protection
Always wear approved breathing protection when
decanting fuel. ALWAYS use this generator in well
ventilated area. Never use indoors.
Warning! Do not breathe in exhaust fumes. Exhaust
fumes are poisonous and may cause drowsiness,
unconsciousness and even death.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain
your balance at all times. Avoid using abnormal stances
and awkward body positions.
Stay Alert
Watch what you are doing, use common sense, and
never operate a generator when you are tired, drinking
alcohol, taking drugs or if taking medication that causes
drowsiness.

6
7
SPECIFIC SAFETY INSTRUCTIONS
Warning! Do not use the generator in areas where there is
a risk of explosion or fire from combustible materials. The
sparks possibly caused when using this generator may
ignite combustible materials as well as flammable liquids,
paint, varnish, petrol, flammable gases and dust of an
explosive nature. As a precaution it is recommended
that you consult an expert on a suitable fire extinguisher
and its use. Ensure that the work area is kept clear of
combustible materials.
Warning! Do not use the generator indoors or in confined
spaces where exhaust gases, smoke or fumes could
reach dangerous concentrations.
• Never connect this generator to a second generator.
• Never connect this generator to Commercial or
Domestic power supply.
• Always use the generator in an open well ventilated
area.
• Unit will become hot during use. Please keep
generator at least one metre (1m) away from buildings,
other equipment, pedestrian areas or flammable
materials.
• Never pull the re-coil starter once the generator
engine has started. Any damage caused will not be
covered by warranty.
• Never start or stop the generator with any appliances
attached.
• Ensure the generator has stopped before servicing, or
lubricating etc.
• Do not attempt to modify the generator, guards or the
supplied accessories in any way.
• Do not touch the exhaust. This can become very hot
during operation and can cause serious burns.
• Always check the generator for damaged parts or fuel
leaks, ensure these are fixed before using it.
• Never refuel while smoking or in the vicinity of an
open flame.
• Always wear safety eye wear, ear and breathing
protection when operating or refuelling the generator.
• To avoid a fire if you spill fuel while refuelling, clean up
before starting the generator.
• Never operate or store the generator on its side,
ALWAYS operate or store in an upright manner on
firm, solid ground.
• Your generator is factory set, NEVER attempt to speed
it up as this could endanger the user and damage the
generator and/or attached appliances.
• Never operate the generator in damp, wet or flooded
conditions.
• Before plugging appliances into the generator allow it
to run up to full speed.
• If the generator makes an unfamiliar sound or vibrates
excessively, switch the generator ‘OFF’ immediately.
Investigate the possible cause or consult your
authorised service agent.
• Do not use ANY type of coolant on the generator as a
fatal electric shock could occur.
• Never use coolant in the generator as damage may
occur.
• Do not touch the generator with wet hands as this
may cause electrocution.
• Never use your generator on highly conductive
surfaces. e.g. Steel walk ways, metal roof or metal
bench, as this could cause an electric shock.
• Always operate your generator at least two (2) metres
away from conductive surfaces.
• Locate this generator in a convenient place, avoid
using long extension leads.
• If an extension lead is used, avoid leaving it where it
may be damaged by pedestrian or vehicular traffic or
cause a trip and fall hazard.
• Always observe normal safety precautions with ALL
appliances used with this generator.
• Never transport the generator with fuel in the tank.
ALWAYS empty the fuel tank.
• All loads must be kept within the ratings stated on the
name plate. Overloading the generator will damage
the unit or shorten its life. This will not be covered
under warranty.
• Do not tamper or alter any parts as this may cause
personal injury or damage the generator.
• Always disconnect any loads before starting or
stopping the generator.
• When storing the generator always store in a secure
well ventilated area.
• Always store in an upright position. NEVER store or
lay this generator on its side.

8
9
IMPORTANT
ELECTRICAL DATA
This generator is fitted with a sealed electrical connection socket that is compatible with the generator. If the
electrical connection socket becomes damaged it must be replaced with a complete assembly that is identical
to the original, and this must be replaced by an authorised service agent. Never connect to an external power
supply. If in doubt always consult a qualified electrician.
FUEL
ONLY USE UNLEADED 91 PETROL (ULP-91RON) - NO ETHANOL
Fuel tank capacity – 3 litres (3 L)
Use of incorrect fuel and/or oil may damage the generator and will not be covered under warranty.
Do not use E10 or any type of ethanol fuel as this will damage the generator and will not be covered under
warranty.
Do not use high octane fuels (greater than 91%) as this will damage the generator and will not be covered under
warranty.
• Ensure you use clean fresh unleaded 91 petrol (ULP) - no ethanol
• Use a clean approved container to store your unleaded petrol (ULP) in before decanting into the fuel tank.
• If contaminated (dirty) or old (stale) fuel is used any damage caused will not be covered under warranty.
OIL
CHECK DAILY - ONLY USE 4-STROKE MOTOR OIL
To operate, this generator requires oil in the sump, not supplied. If the generator does not have the correct level of
oil in the sump, it will not run, see note below.
Oil capacity – approximately four hundred and fifty millilitres (0.45 L or 450 ml)
Oil type – SAE 30W or SAE 15W-40 4-stroke motor oil. Non-detergent or 2-stroke engine oils will damage the
engine and should not be used.
• Always check oil level before using.
• Always use fresh clean oil.
• Change oil every 50 hours or every 3 months.
• If contaminated (dirty) or old (stale) oil is used any damage caused will not be covered under warranty.
NOTE: This generator is fitted with an oil cut out switch and red warning light. If the oil level is empty or low then
the generator WILL NOT start or run and the low oil light will glow when the recoil is pulled.
Always check the oil level before starting the generator.
Never check or add oil while the generator is running.

8
9
COMPONENTS & CONTROLS (PIC.1)
1. Low oil level indicator (yellow): this light is off when
the engine is off or when in normal operation with
adequate oil.
A. If the engine is low on oil when you shut it down, the
engine will fail to start up. The yellow light will turn
on when you attempt to pull-start the engine (usually
visible at the moment of start up).
B. If the engine runs low on oil during operation, the
engine will automatically stop running within 10
seconds.
2. Output indicator (green): This light is on when power
supply is normal.
In any of the cases, when the red light turns on the power
supply will be disconnected automatically. The user needs
to stop the engine and resolve the problem before the
power supply will be restored.
3. Overload indicator (red): This indicator light is on when
the generator is overloaded, check attached products
power, refer to page 13.
4. Earth bolt point for earth lead
5. 5V USB socket
6. AC socket
7. Air filter and oil sump access panel
8. Recoil starter grip
9. 12V DC cigarette lighter socket
10. Fuel cap and vent lever
11. Fuel valve
12. Choke lever
13. DC circuit breaker
14. ECO
15. Engine switch
16. Spark plug panel
10712 16
118
214
13
9
5
15
3
1
4
6
PIC. 1

10
11
OPERATING INSTRUCTIONS
UNPACKING
Carefully unpack your generator. This generator is heavy
(19kg) and may require two (2) people to lift. Dispose of
all packing material in an environmentally responsible
manner.
Open carton, gently lift the generator clear of the carton
and packaging, this may require 2 people. Remove from
plastic bag.
NOTE: Plastic bags can be a danger to young children,
dispose of immediately. Always dispose of packaging in
a responsible manner.
ASSEMBLY
This generator requires no assembly, however the motor
requires oil, SAE 30W or SAE 15W-40, to be added to
the sump before you can use, refer to page 8 for specific
details.
ADDING LUBRICATING OIL
Always use clean fresh oil as specified on page 8.
Incorrect or old oil can cause the generator to run rough
and damage the motor; this will not be covered by
warranty.
1. Ensure that engine is OFF when filling oil.
2. Remove access panel screw and then remove panel.
3. Use oil as detailed on page 8, SAE 30W
or SAE 15W-40 4-stroke motor oil.
4. Ensure generator is level when filling with oil.
DO NOT TIP - USE A FUNNEL (NOT SUPPLIED)
5. Remove oil filler cap, Pic. 2.
6. Only fill oil to the top of the thread, Pic. 3.
7. Ensure that the oil filler cap is screwed on tightly.
8. Fit access panel and secure with screw before
attempting to start generator.
WARNING! Over filling the oil can damage the generator,
this damage will not be covered under warranty.
NOTE: Check oil daily and especially before use.
FILLING THE FUEL TANK
UNLEADED 91 PETROL - NO ETHANOL
Always use clean fresh fuel as specified on page 8. Stale
fuel can cause the generator to run rough and damage
the motor; this will not be covered by warranty.
1. Ensure the engine is OFF.
2. Ensure the fuel/engine switch is OFF.
3. Use fresh fuel as detailed on page 8, unleaded petrol.
4. Do not fill fuel tank above the fuel filter, Pic. 4.
5. Ensure that the fuel tank cap is screwed on tightly.
To drain fuel refer to page 18.
PIC. 3
PIC. 4
Oil Filler Cap
PIC. 2
Engine Oil Capacity : 0.45L (450 mL)

10
11
GENERATOR ‘EARTHING’
Always ensure that this generator is “Earthed” BEFORE
starting and using.
1. Ensure that engine is OFF when fitting the “Earth”
stake and wire.
2. Attach the wire to the “Earth” point on the generator,
see Pic. 5.
3. Push the attached stake into the ground. Ensure that
this is not a trip hazard when near the generator.
4. Ensure the generator is OFF and cool before removing
the “Earth” stake and wire.
FUEL CAP BREATHER
This generator is fitted with a sealable fuel cap, Pic. 6A.
Seal the fuel cap for storage or transport - rotate the
lever to OFF.
For using the generator the fuel needs to breathe -rotate
the lever to ON.
STARTING YOUR GENERATOR
Warning! Never start your generator without “earth” stake
attached or with electrical appliances or power leads
attached.
1. Ensure the ”Earth” stake and wire are attached, Pic. 5.
2. Turn the fuel cap breather lever clockwise to ON.
Note: If fuel cap breather is not on generator will not
operate correctly.
3. Turn the fuel tap anti-clockwise to ON, Pic. 6.
4. Turn choke to CLOSED / START by sliding the choke
lever to the right, Pic. 7.
5. Turn the engine switch to ON, Pic. 8.
PIC. 7
PIC. 8
PIC. 5 PIC. 6
Earth Point
Engine Switch
PIC. 6A

12
13
6. Hold down the generator firmly with one hand on the
frame, then pull the recoil starter slowly until engaged,
then pull briskly, Pic. 9. This step may need to be
repeated until generator engine starts, this can take
up to about 12 pulls.
Warning! Never pull the recoil once the engine has
started. Any damage caused will not be covered under
warranty.
7. Allow engine to run up to speed, this usually takes up
to about 5-10 seconds.
8. Slowly turn choke to OPEN / RUN by sliding the
choke lever to the left, Pic. 10.
9. Check that the only illuminated light is the green
output power light. The generator will be running and
ready for use.
WARNING! Before connecting any electrical load to
the generator ensure that the load does not exceed the
maximum load as stated on the rating plate and also
check page 13 for extra details.
Ensure that the mains supply lead is long enough to
reach the generator without any strain.
STOPPING YOUR GENERATOR
Warning! Never stop your generator with electrical
appliances or power leads attached. Always remove
power leads and appliances before stopping your
generator.
WARNING! In case of emergency, the easiest way to
stop the generator is to directly turn engine switch to
OFF position.
Avoid doing so in non-emergency circumstances as it
carries the risk of damaging the generator.
1. Ensure all power leads and appliances have been
switched off and disconnected from the generator
power socket.
2. Allow generator to run for 1-2 minutes, this allows the
generator to cool down.
3. Switch engine switch to OFF, Pic. 11.
4. Turn the fuel tap to OFF, Pic. 12.
PIC. 10
PIC. 11
PIC. 12
PIC. 9
ON
OFF

12
13
USING YOUR GENERATOR
AC OUTLET
Your generator is equipped with a 240V AC power
socket. This will run a range of devices providing they
are with in the limits of the generators output.
NOTE: The peak (surge) power requirements of some
devices e.g. Fridges, Televisions, etc; can be up to
seven (7) times greater than their rated (continuous)
power. Do not over load your generator. The devices
wattage can be found on the data label below.
You can use any combination of items provided that
you do not exceed the limits of your generator. Never
exceed 800W in total when using multiple devices.
NOTE: When using multiple devices only start one
device at a time.
Your Generator AC Limits
Rated (continuous) power - 900W Peak (surge) power - 1100W
Note: Long extension leads may reduce the effectiveness of your generators supply power.
To use the 240V AC outlet
1. Check that the only illuminated light is the green output power. If not turn to page 16 and fix the problem before
using the generator.
2. Lift the flap and plug your appliance into the outlet socket on the face plate.
3. Turn the appliance on and use as per the manufacturers manual.
4. When finished turn your appliance off.
5. Disconnect appliance from the generator and the flap should close automatically.
NEVER leave any appliances plugged into your generator, always disconnect when appliance is not in use.
Suggested Device Maximum Suggested Wattage
Bayonet/Screw in globes (home use) Up to 900W Maximum of 18 x 50W globes
Florescent tubes Up to 560W Maximum of 28 x 20W globes
Halogen lights Up to 600W
Power tools Up to 600W
Laptop computer Up to 350W
DVD/Video players Up to 300W
Portable television Up to 150W
Portable television & DVD/Video player combination Up to 350W
AC/DC Camping fridge Up to 100W
Cooling fans Up to 300W
Heating Up to 500W
Radio/CD player Up to 500W
ipod/MP3 player Up to 500W
Mobile phone charging Up to 300W
Hand held games charging Up to 300W
You can use any combination of items provided that you do not exceed the limits of your generator.
Never exceed 800W in total when using multiple devices.

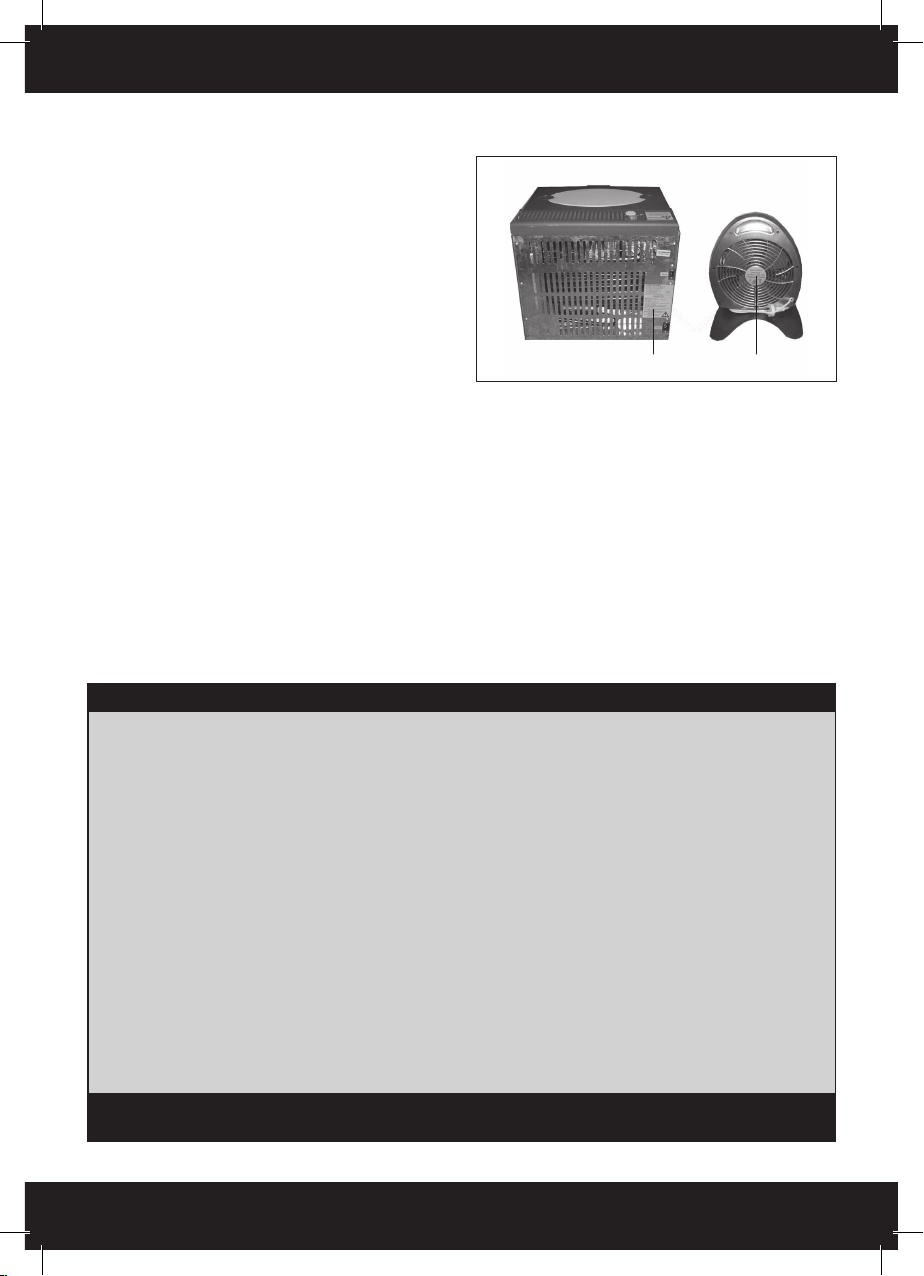

PIC. 13
Data Label Data Label

14
15
OUTPUT POWER ALERT
Green light will always glow when power supply is good.
If it goes out it will generally be due a power overload,
see below.
SAFETY DEVICES
AC OUTLET
Your generator is equipped with an output indicator light,
see above. When this light is goes out then the generator
will produce NO POWER.
To restart the power supply;
1. Remove the appliance.
2. Stop the generator, see page 12.
3. Wait 2 minutes.
4. Start generator, see page 11, ensure the green output
indicator light is illuminated.
5. Re - attach the appliance.
6. If the output indicator light goes out and the output
power stops then the attached appliance is either
faulty or the appliances required power is greater than
the generators output, check the appliances wattage
requirements.
12V DC OUTLET
Your generator is equipped with a DC output circuit
breaker. This circuit breaker will “pop” out if the attached
appliance is either faulty or the appliances required
power need is greater than the generators DC power
output.
To reset the circuit breaker and restart the power supply;
1. Remove the appliance.
2. Stop the generator, see page 12.
3. Wait 2 minutes.
4. Push the circuit breaker back in, it should stay in. If
not the circuit breaker is still over heated, allow to
cool down for another 2 minutes before trying again
to push it in.
5. Start generator.
6. Re - attach the appliance.
7. If the circuit breaker “pop’s” out again and the power
stops then the attached appliance is either faulty
or the appliances required power is greater than
the generators output, check the appliances power
requirements.
LOW OIL LIGHT
If the oil level in the motor sump drops to a dangerously
low level then the generator will automatically stop.
If the oil level in the motor sump is dangerously low, then
the generator will not start, however the low oil light will
flicker only when the recoil starter is pulled.
If your generator will not start always check the oil level
first.
To add oil or check the oil level, refer page 10.

14
15
STORAGE
If the generator is not to be used or is to be stored for
more than one month the following storage procedure
should be carried out. Drain all the fuel from the fuel tank
(refer to page 18) and the carburettor (see below), ensure
that all the fuel has been drained.
Remove the spark plug and pour approximately one
tablespoon full of clean engine oil into the spark plug
hole.
With the ignition turned OFF gently pull on the recoil
starter cord several times. Re-fit the spark plug and
continue to pull the recoil starter cord until the piston is
on the compression stroke (when resistance is felt) then
stop puling.
Store the generator in a dry well ventilated place under a
cover to prevent any dust or debris from accumulating on
the generator.
DRAINING THE CARBURETTOR
1. Start the generator.
2. Turn the fuel switch OFF.
3. Turn the fuel cap breather lever to OFF.
4. Ensure the generator is NOT in “Eco” mode, ECO
switch OFF
5. Keep the generator running until it runs out of fuel
which may take around 3mins.
When preparing the generator for storage, follow the
guidelines below.
Storage Time Prior to Storing
Less than 1 month No special preparation is required
1 to 2 months Empty fuel from fuel tank
Drain fuel from carburettor
2 months to 1 year Empty fuel from fuel tank
Drain fuel from carburettor
1 year or more Empty fuel from fuel tank
Drain fuel from carburettor
Remove spark plug
Put a tablespoon of engine oil into the cylinder through the spark plug hole. Turn the engine
slowly with the pull rope to distribute the oil
Reinstall spark plug
Change engine oil
*Use unleaded fuel stabilisers formulated to extend storage life. For recommendations, contact your nearest authorised service centre.

16
17
MAINTENANCE CHART
Item Remark Pre-operation
check (daily)
Initial 1 month or
20 hours
Every 3 month
or 50 hours
Every 6 month
or 100 hours
Every 12 month
or 300 hours
Spark plug
Check condition
Adjust gap and clean
Replace if required
Engine oil
Check oil level
Replace
Air filter Clean
Replace if required
Fuel filter Clean fuel cock filter
Replace if required
Valve
clearance
Check and adjust
when engine is cold
Fuel line
Check fuel hose for
cracks or damage
Replace if required
Exhaust
system
Check for leakage
Tighten or replace
gasket if required
Check exhaust screen
Clean and replace if
required
Carburettor Check choke operation
Fittings/
Fastenings
Check all fittings and
fixtures and tighten if
required
SERVICE
Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest
Authorised Service Centre or other qualified service organisation. Be sure to provide all pertinent facts when you call
or visit.
Call Smart Marketing Group for your closest centre
Aust. 1300 660 457 N.Z. 0800 474 876.

16
17
MAINTENANCE

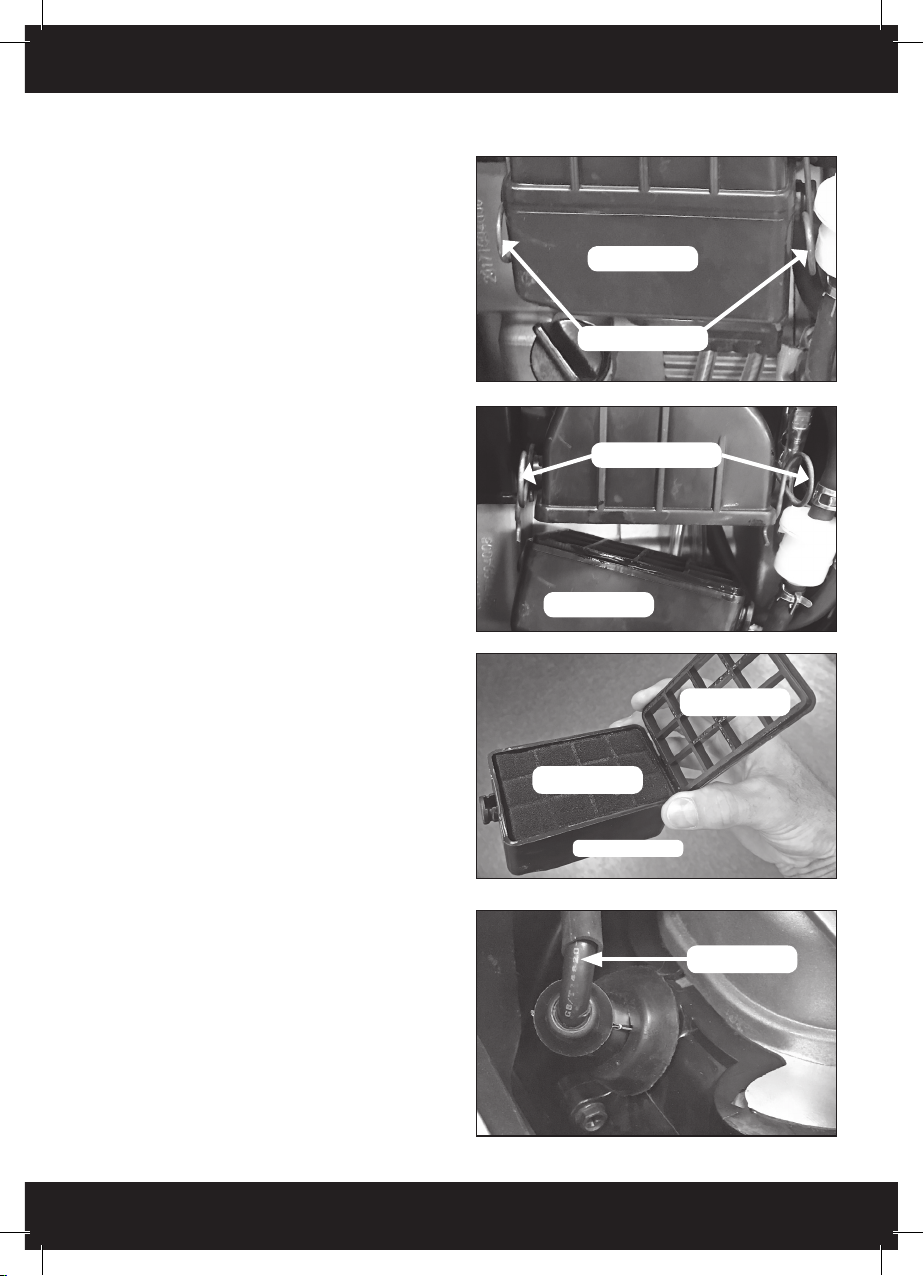

CHECKING/CLEANING THE AIR FILTER
For proper performance and long life, keep air filters clean.
1. Remove access panel screw and remove panel.
2. Lift up both air filter clips (Pic. 15).
3. Remove air filter box (Pic. 16).
4. Remove air filter box cover and air filter
element (Pic. 17).
5. If the filter elements are dirty, clean with warm,
soapy water. Rinse and let dry.
6. Apply a light coat of engine oil to the elements,
then squeeze it out.
7. Replace the element in the air filter box.
8. Replace air filter box cover.
9. Refit air filter box and secure with both air filter clips.
10.Replace access panel and secure with screw.
NOTE: Do not run the generator without the air filter.
Rapid engine wear will result.
SPARK PLUG MAINTENANCE
The spark plug must be properly gapped and free of
deposits in order to ensure proper engine operation.
To check:
1. Remove plug panel screw and remove panel.
2. Remove the spark plug cap (Pic. 18).
3. Clean any dirt from around base of spark plug.
4. Remove spark plug using wrench provided (Pic. 18).
5. Inspect spark plug for damage, and clean with a wire
brush before reinstalling. If insulator is cracked or
chipped, spark plug should be replaced. Make sure
electrode gap is 0.60mm-0.80mm.
NOTE: If replacing, use the following recommended
spark plug: A7RTC.
6. Screw spark plug back by hand, avoid damaging
threads of the cylinder.
7. Put the spark plug back in position and use the spark
plug wrench to tighten it. If spark plug is new, use
1/2 turn to compress washer appropriate amount. If
reusing old spark plug, use 1/8 to 1/4 turn for proper
washer compression.
8. Replace spark plug cap.
9. Replace plug panel and secure with screw.
PIC. 15
PIC. 16
PIC. 17
PIC. 18
AIR FILTER BOX
AIR FILTER CLIPS
AIR FILTER CLIPS
AIR FILTER BOX
AIR FILTER BOX
AIR FILTER
ELEMENT
AIR FILTER
BOX COVER
SPARK PLUG
LEAD

18
19
CLEANING THE EXHAUST PORT & MUFFLER
Depending on the type of fuel used, the type and amount
of oil used, and/or your operating conditions, the exhaust
port and muffler may become blocked with carbon
deposits. If you notice a power loss with your petrol-
powered tool, you may need to remove these deposits
to restore performance. We highly recommend that only
qualified service technicians perform this service.
CLEANING THE FUEL TANK FILTER
1. Remove fuel cap and filter.
2. Clean the filter, replace if broken.
3. Dry the filter and install back on the generator.
REPLACING FUEL FILTER
1. Ensure generator is off and cool.
2. Ensure fuel valve is OFF.
3. Remove access panel screw and panel.
4. Using pliers loosen clamp and unplug fuel filter.
5. Remove and replace fuel filter.
6. Using pliers re tube fuel filter and secure tube with
both clamps.
7. Replace access panel and secure with screw.
PIC. 19
FUEL FILTER
FUEL TUBE
CLAMP

18
19
FAULT CHART
Engine won’t start
Low engine output
Engine runs
erratically
Insufficient
compression
Sufficient
compression
Loose spark plug
Loose cylinder
head bolt
Damaged gasket
Tighten plug
Tighten bolt
Replace gasket
FUEL SYSTEM PROBLEMS
No fuel
supplied to
combustion
chamber
Insufficient pulling
speed for starting
rope
Foreign matter in
fuel tank
Clogged fuel line
No fuel in tank
Fuel tap not open
ELECTRIC SYSTEM PROBLEMS
Combustion
chamber
supplied with
fuel
Poor spark
Pull rope sharply
Clean tank
Clean fuel line with
dealers advice
Fill with correct fuel,
See page 8
Open tap
Spark plug dirty
with carbon or
wet with fuel
Remove carbon
or dry spark plug
Damaged spark
plug
Replace spark plug
Faulty magneto
Consult dealer
Improper
adjustment of
carburetor
Good
spark
Insufficient
pulling speed for
starting rope
Pull rope sharply
Wrong grade
of fuel used
Check grade of fuel,
Unleaded 91 Petrol,
no ethanol
Check the working
conditions
EVITCERROCESUACELBABORPNOITIDNOC ACTION
Fill sump with
correct oil,
See page 8
No oil/ Low oil level
Overloading

20
21
FAULT CHART CONTINUED
IndicatorlightON.
No AC output
Tripped circuit breaker Reset
EVITCERROCESUACELBABORPNOITIDNOC ACTION
Poor connection or faulty lead
Broken recepticle
Faulty circuit breaker
Check and repair
Check and repair
Generator problem
Indicator light OFF.
No AC output
Output power too
high or low Engine RPM set too
high or low
No load speed set
to 3000rpm
Loose dnaetacoLtnenopmoc
tighten
Internal generator
problem
Consult dealer
REPAIRS
Repairs to your generator should only be carried out by
an authorised service agent.
Call Smart Marketing Group for your closest centre
Aust. 1300 660 457 N.Z. 0800 474 876.
