ToolPRO 603752 User manual

35L Wet & Dry Workshop Vacuum Cleaner
PLU 603752

1
WARRANTY
Our product is guaranteed to be free from quality and manufacturing defects for a period
of 12 months.
If your product becomes defective during this period, SRGS PTY LTD will offer you either
a replacement, credit or refund where a product is faulty; wrongly described; different
from the sample shown to you or do not do what they are supposed to do.
This warranty will not cover substantially modified product; misuse or abuse of the
product contrary to user instructions or packaging label; change of mind and normal wear
and tear.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and
failure does not amount to a major failure.
To claim the warranty, take the product to the front Service Desk of your nearest store of
purchase. You will need to show receipt or other proof of purchase. Additional information
may be required to process your claim. Should you not be able to provide proof of
purchase with a receipt or bank statement, identification showing name, address and
signature may be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be
paid by you. For online store purchases, SRGS PTY LTD will pay for the return freight for
any product assessed as having a major failure.
The benets to the customer given by this warranty are in addition to other rights and
remedies of the Australian Consumer Law in relation to the goods or services to which
this warranty relates.
This warranty is provided by SRGS PTY LTD, 6 Coulthards Avenue, Strathpine QLD
4500, Australia. Phone: 1300 175 010.
IMPORTANT SAFEGUARDS
When using an electrical appliance,basic precautions should always be followed,including
the following:
READ ALL INSTRUCTION BEFORE USING THIS VACUUM CLEANER

2
GENERAL SAFETY WARNINGS
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
- The plug must be removed from the socket-outlet before cleaning or maintaining the
appliance

3
SYMBOLS
Warning
Read the operator’s manual
Double insulation
Wear ear protection
Wear dust mask
RCM marking
ABN: Australian Business Number. By this number, business information such as entity
type, status, business location etc. can be found at website http://abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682 357

4
PARTS NAME
Carry handle
On board storage / holders
Flexible hose outlet - Blower
Power cord
Foam filter
Paper dust bag
Appliance head
Filter basket
HEPA filter
Filter basket
Floating safety valve
Carry handle
Appliance head
On board storage / holders
Side locking handle (x2)
Extension tubes (x3)
On board storage / holders
Castor wheels (x4)
Base
ON/OFF switch
AC outlet socket
Flexible hose outlet - Suction
Tank
Extension tubes (x3)
On board storage / holders
Drain screw
Flexible hose Crevice tool Floor tool

5
ASSEMBLY
1
2
3
4

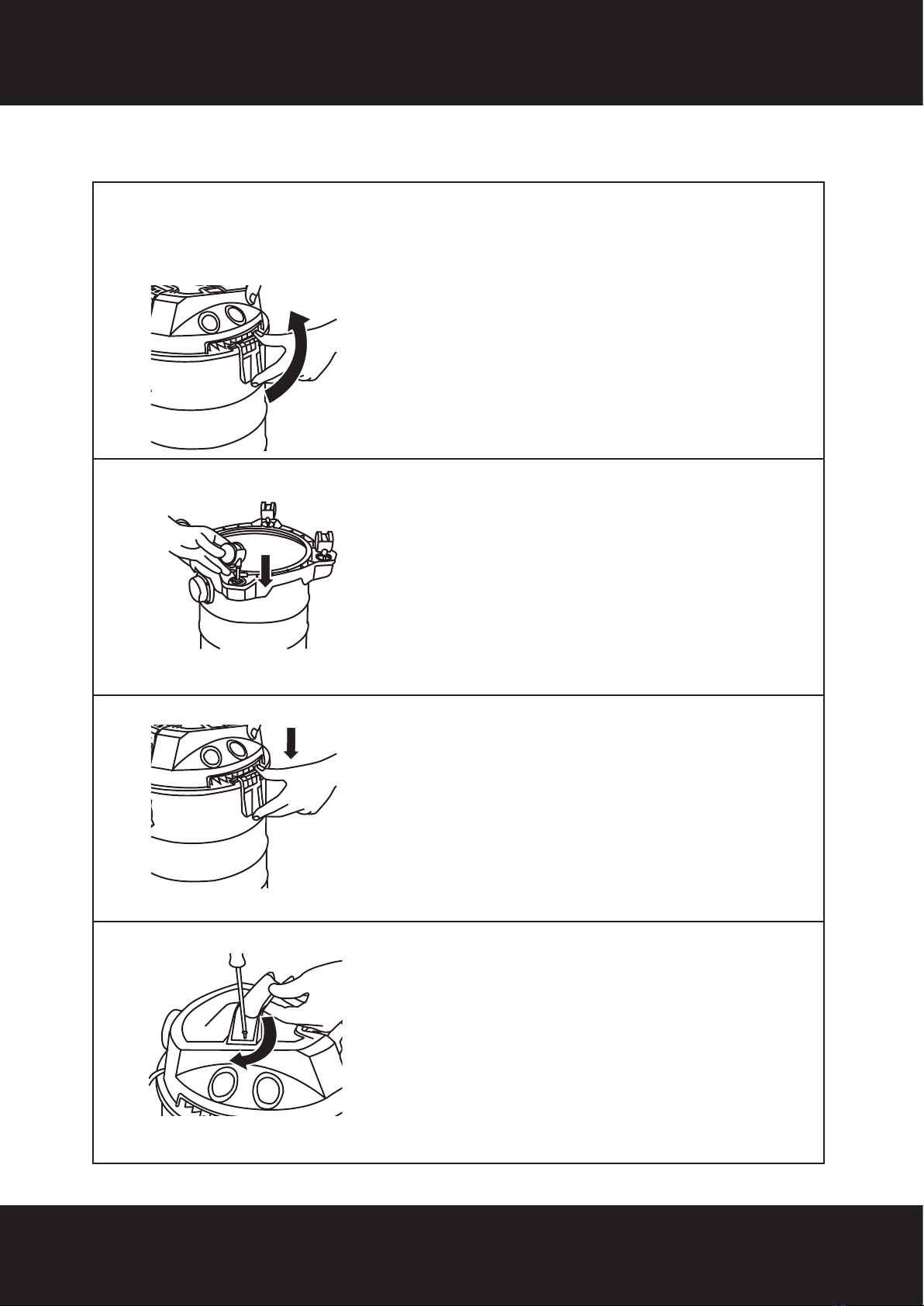

Remove the appliance head from the tank by
unlocking the 2 x side locking handles pulling
them outwards, then upwards.
Then turn the tank upside down.
Fit the 4 x castor wheels by inserting the mounting
pin on the castor wheel into the designated
mounting hole on the underside of the base.
Firmly push the castor wheels into the mounting
holes.
When all 4 x castor wheels are tted, turn
the product the right way up, and re-attach
the appliance head ensuring you align the
notches on the ridge of the tank lip with the
side locking handles, and secure the 2 side
locking handles in position.
1. Place the carry handle in the grooves on the
top of the appliance head so that they are tted
and align correctly.
2. Using a phillips screwdriver, insert and secure
the screws through each side of the handle
until secure.
WARNING: To prevent serious injury from accidental operation, turn
the power switch of the vacuum off and unplug the appliance from its
electrical outlet before performing any procedure in this section.

6
ASSEMBLY
5
6
7
8
9
1. Remove the appliance head from the tank by
unlocking the 2 x side locking handles pulling
them outwards, then upwards.
Place the appliance head upside down onto
a at surface, or on its side (if the carry
handle is already assembled).
2. Remove the HEPA lter (installed upon
purchase) by pulling it away from the
appliance head.
Slip the foam lter over the lter basket.
Ensure the foam lter covers the full lter basket.
Re-assemble the appliance head back onto the
tank, and secure the 2 x side locking handles.
Connect the exible hose to the Flexible Hose
Outlet – Suction by inserting into the outlet and
aligning the arrow and locking pin on the end
of the exible hose, with the arrow and ridge on
the top of the Flexible Hose Outlet – Suction.
This should ensure the locking pin on the
exible hose aligns with the ridge in the Flexible
Hose Outlet – Suction. Rotate the exible hose
to the left to secure the hose into position.
Connect the exible hose to the Flexible
Hose Outlet – Blower by inserting into the
outlet and aligning the arrow and locking pin
on the end of the exible hose, with the ridge
on the top of the Flexible Hose Outlet – Blower.
Rotate the exible hose to the left to secure the
hose into position.

7
ASSEMBLY
10
11
12
To t an extension tube to the end of the exible
hose, apply the larger opening end of an
extension tube over the end of the exible hose.
To add an additional (2 or 3) exible tube/s,
apply the larger opening end of the extension
tube/s over the rst extension tube until
secure.
For vacuuming, either the oor tool, or crevice tool
can be added to the end of the last extension tube
by simply pushing it onto the extensions tube.

8
OPERATION METHOD

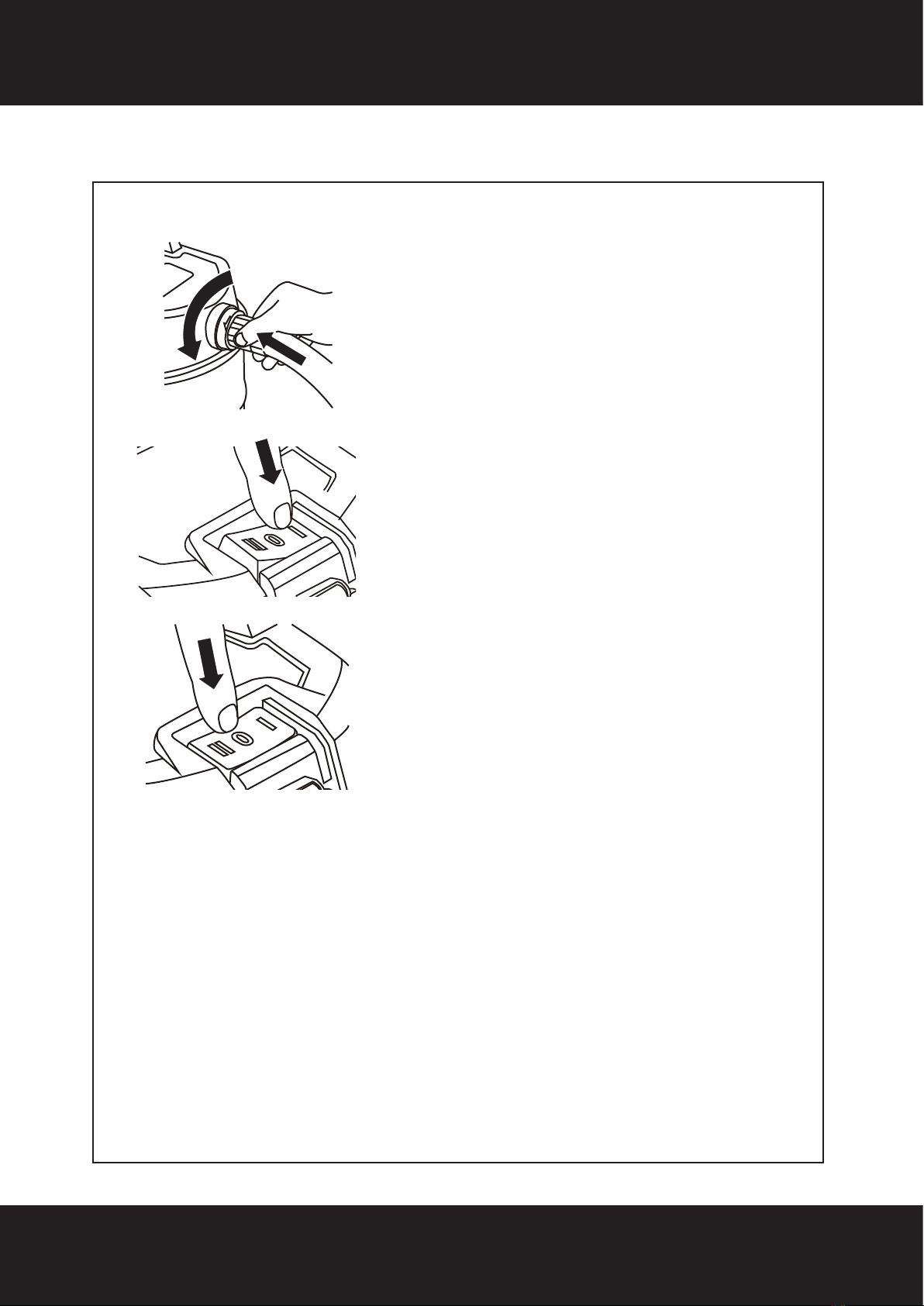

13
14
15

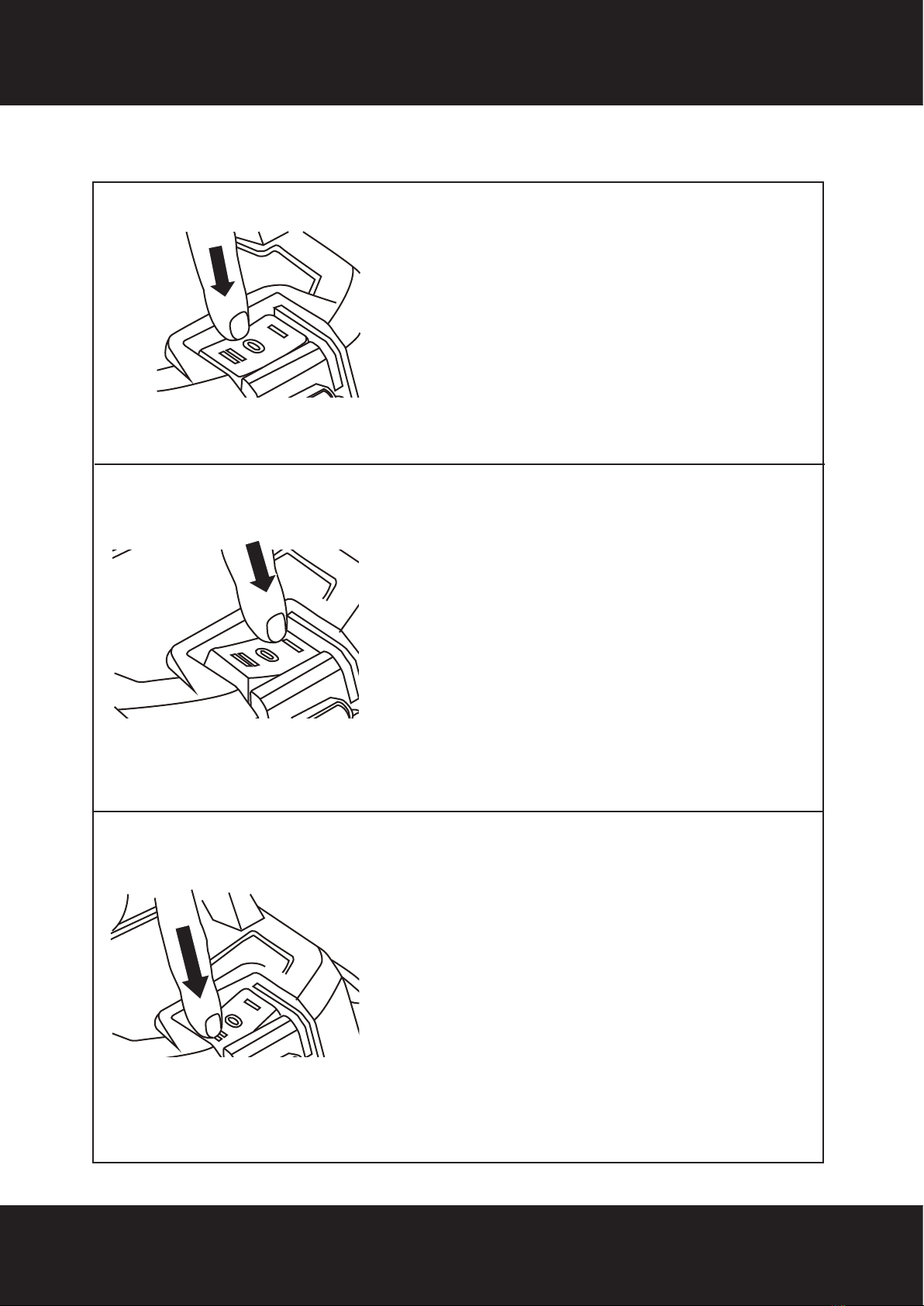

Switch Position 0: OFF (All operations shut off)
Switch Position I: For normal vacuuming
operation (wet or dry)
Switch Position II: Automatic Mode for Power
Tool operation. The vacuum motor will only turn
ON when a power tool, which is plugged into
the AC outlet socket is switched ON. The
vacuum motor will turn OFF when the power
tool is switched OFF.

9
OPERATION METHOD
17 Wet Vacuuming
1. Ensure the tank is completely dry and free
from dust and dirt.
2. Only use the foam lter for wet vacuuming
applications. Ensure you have already tted
the exible hose, extension tubes, and if
required, the oor tool or crevice tool for wet
vacuuming applications.
IMPORTANT: Ensure the foam lter is securely
tted before starting the Wet and Dry Vacuum.
3. Plug the power cord into the mains power
outlet and turn on.
4. To commence vacuum mode operation, press
the “I” on the ON/OFF switch.
5. To turn off vacuum mode, press the “O” on
the ON/OFF switch.
16 Dry Vacuuming
1. Ensure the tank is completely dry and free
from dust and dirt.
2. Only use the HEPA lter for dry vacuuming
applications. Ensure you have already tted
the exible hose, extension tubes, and if
required, the oor tool or crevice tool for dry
vacuuming applications.
IMPORTANT: Ensure the HEPA lter is securely
tted before starting the Wet and Dry Vacuum.
3. Fit the paper dust bag in the tank if required.
NOTE: The paper dust bag is only for dry
vacuum-cleaning.
4. Plug the power cord into the mains power
outlet and turn on.
5. To commence vacuum mode operation, press
the “I” on the ON/OFF switch.
6. To turn off vacuum mode, press the “O” on the
ON/OFF switch.
WARNING: Never use the vacuum without a lter. Check that the lter is
securely tted at all times.
WARNING: DO NOT use the foam lter for dry vacuuming applications.
WARNING: DO NOT use the HEPA lter for wet vacuuming applications.

10
OPERATION METHOD
18
19
20

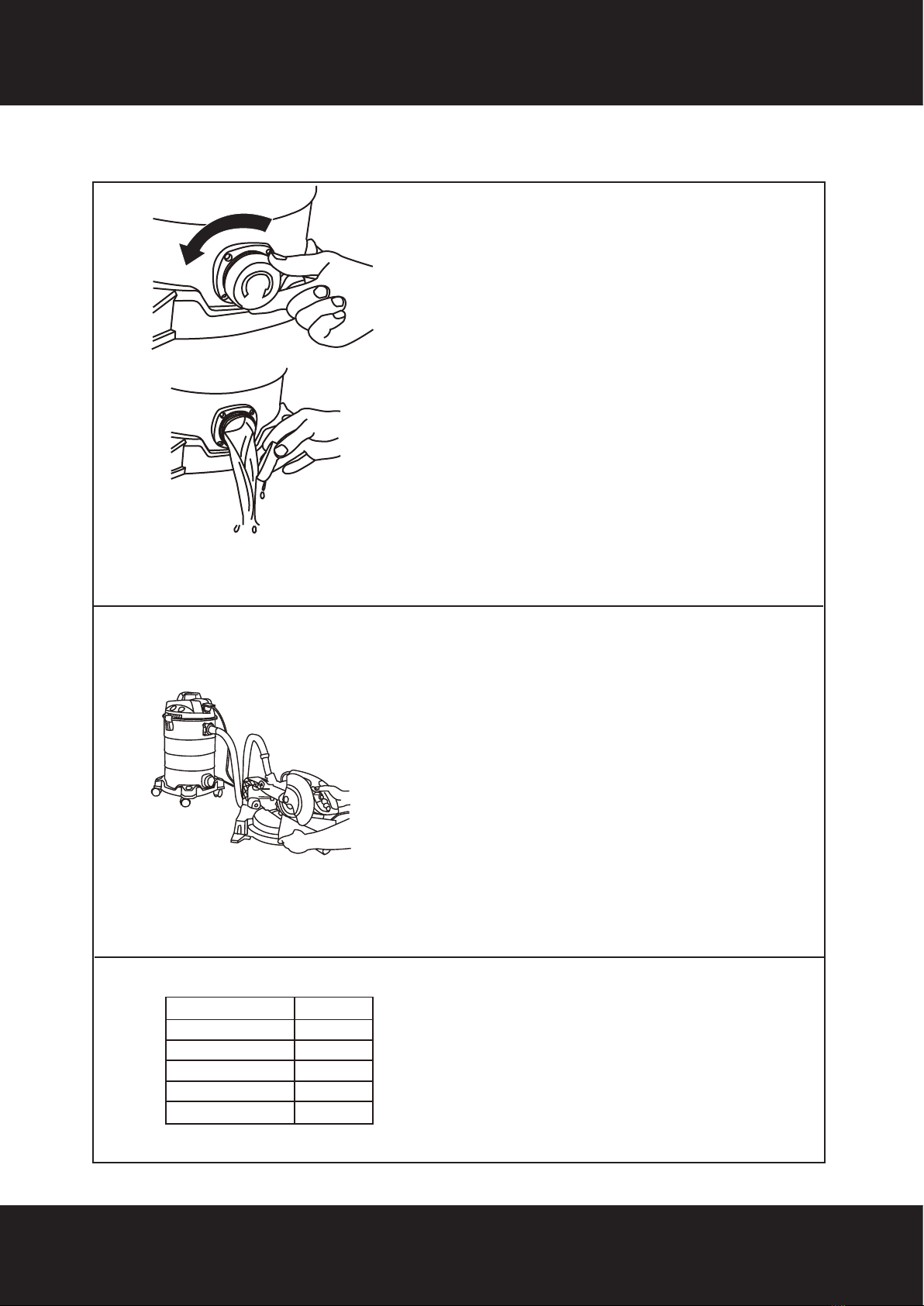

6. When wet vacuuming, the oating safety
valve closes when the maximum tank level is
reached. In doing so, the suction noise of the
vacuum will change and become louder.
When this happens, you must switch off the
vacuum and empty the tank.
7. To empty the tank, rstly ensure you are in an
area where you plan to disperse the waste
water.
8. Open the drain screw by turning it
anticlockwise and then drain the liquid from
inside the tank.
Automatic Mode using the Wet and Dry
Vacuum with an AC / electric power tool
or other product.
The Wet and Dry Vacuum includes an AC outlet
socket for use with an AC / electric power tool
or other device that you want to activate the
vacuum with while the tool is in operation.
The main purpose of using this function is for
dust extraction from electric power tools.
The AC outlet socket will only operate on tools
that have an AC power requirement of 80-1200
Watts and only using one tool connected at a
time.
Product (example): Watts:
Drill / Hammer Drill 80W-1200W
Table Saw 80W-1200W
Circular Saws 80W-1200W
Bench Drills / Drill Press 80W-1200W
Mitre Saw 80W-1200W
To establish the power draw of your AC /
electric power tool, refer to the rating / technical
label on the tool.
WARNING: Check the tank regularly and empty the waste collected when it is
about 2/3 full.

11
OPERATION METHOD
21
22
23
24
Automatic Mode for Electric Power Tools

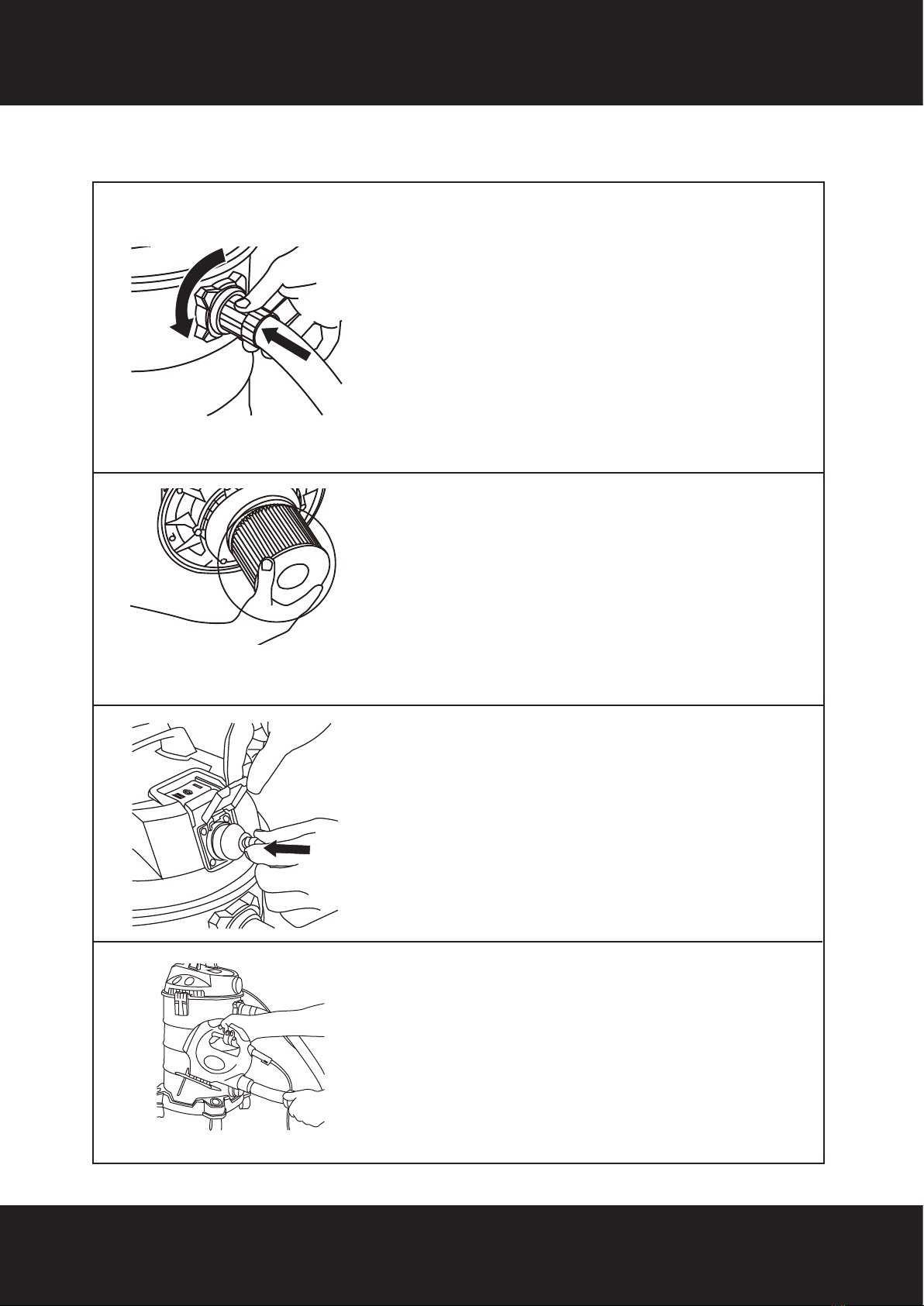

1. Connect the exible hose to the Flexible Hose
Outlet – Suction by inserting into the outlet and
aligning the arrow and locking pin on the end
of the exible hose, with the arrow and ridge on
the top of the Flexible Hose Outlet – Suction.
This should ensure the locking pin on the
exible hose aligns with the ridge in the Flexible
Hose Outlet – Suction. Rotate the exible hose
to the left to secure the hose into position.
2. Ensure the HEPA lter is secured on the
appliance head.
3. Connect the power cable of your AC / electric
power tool to the AC outlet socket. The
automatic AC outlet socket is ideal for power
tools up to 1200W. Check the rating label of
your power tool before connecting to the AC
socket outlet.
4. Connect the opposite end of exible hose
to the dust extractor connector on your AC /
electric power tool. Check that the connections
are secure and airtight. Press the ON/OFF
Switch to position “II” - Automatic Mode.
5. When you have nished your task, press “O”
on the ON/OFF switch.
WARNING: Check the HEPA lter regularly for any blockages which may
reduce the suction and cause motor overheating.

12
OPERATION METHOD
25
Blowing Function
1. Make sure the tank is empty and completely
dry before using it as a blower.
2. Connect the exible hose to the Flexible
Hose Outlet – Blower by inserting into the
outlet and aligning the arrow and locking
pin on the end of the exible hose, with the
ridge on the top of the Flexible Hose Outlet –
Blower. Rotate the exible hose to the left to
secure the hose into position.
3. Select and attach additional extension tubes
if required.
4. Before turning ON, ensure you are rmly
holding the end of the exible hose, or
extension tube/s if added.
5. Press the “I” on the ON/OFF Switch to turn
ON. To turn OFF, press the “O” on the ON/
OFF switch.
WARNING: Wear a dust mask and eye protection if blowing creates dust that
might be inhaled.
WARNING: Keep bystanders clear from blowing debris.
CAUTION: Any material left in the tank may be blown out, causing injury.

13
MAINTENANCE
Cleaning
• Keep all safety devices, air vents and the motor housing and appliance head free
of dirt and dust.
• We recommend that you clean and dry the appliance immediately after each use.
Cleaning the Appliance Head
• Clean the appliance head regularly with a damp cloth and some soap followed by
wiping down and drying before storing away.
• Do not submerse the appliance head in water or allow water to enter the
appliance head.
• Do not use cleaning agents or solvents. These may be aggressive to the
plastic parts on the appliance.
Cleaning the Tank
• The tank can be cleaned with a damp cloth and soap or rinsed under running
water depending on the amount of dirt. Wipe down and dry before storing away.
Cleaning the HEPA Filter
• Clean the HEPA lter regularly by carefully patting it and cleaning it with a ne
brush or hand brush (not supplied).
• Do not submerse the HEPA lter in water. Do not use a damp cloth to clean.
Cleaning the Foam Filter
• Clean the foam lter with a little soap under running water.
• Allow the foam lter to completely air-dry before reinstalling or storing away. Do
not wring dry.
Check the Floating Safety Valve
• Check the oating safety valve often to ensure it moves freely within the lter
basket. To do this, take the appliance head by the handle and tip it carefully so
that the lter basket is facing upwards. The oating safety valve should move
freely up and down.
General Maintenance
• Before each use, inspect the general condition of the appliance and check for the
following:
• Loose hardware or screws.
• Misalignment or binding of moving parts.
• Damaged or electrical wiring.
• Check lters are securely tted.
• Damaged or cracked tank.
• Any other condition that may affect safe operation
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.

14
SPECIFICATION
Mains Voltage: 230-240V ~ 50Hz
Vacuum Rated Power: 1200W
Maximum Power Consumption of AC Socket Outlet: 1200W
Maximum Total Power Consumption: 2400W
Tank Capacity: 35L
IP Rating: IPX4
Weight (NW): 5.6kg
Product Dimensions: 67 x 34 x 34 cm
Airow: 30 L/S

35L Wet & Dry Workshop Vacuum Cleaner
Manufactured and packaged for SRGS PTY LTD ABN 23 113 230 050
6 Coulthards Avenue Strathpine QLD 4500, Australia
Table of contents
Other ToolPRO Vacuum Cleaner manuals
