TOOLSTATION HAWKSMOOR ASYBV01 User manual

SKU: 33103
36V (2 x 18V) Cordless Blower Vac
Original User’s Instructions
READ BEFORE USE
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

2
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
CONTENT
∫WHAT’S IN THE BOX ---------------------------------------------------------- 3
∫SPECIFICATIONS -------------------------------------------------------------- 4
∫EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5
∫IMPORTANT SAFETY WARNINGS -------------------------------------------- 8
∫PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 20
∫ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------21
∫CARE AND CLEANING ------------------------------------------------------- 34
∫TROUBLE SHOOTING -------------------------------------------------------- 35
∫DECLARATION OF CONFORMITY / PERFORMANCE -------------------- 36
∫ENVIRONMENTAL INFORMATION ------------------------------------------37
∫GUARANTEE -------------------------------------------------------------------38
∫CUSTOMER SUPPORT ------------------------------------------------------- 38

3
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
WHAT'S IN THE BOX
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Main body
Rear vacuum tube
Front vacuum tube
with wheels
Rear blower tube
Front blower tube
Charger
Battery x 2
Shoulder strap
Collection bag

4
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
SPECIFICATION
Technical Data
Model Number ASYBV01
Rated voltage 36V (2x18V)
No load speed 7500-14000/min
Max air speed Max. 288km/h
Max suction power Max. 10m³/min
Sound pressure level LpA=86.4dB(A); K=3.0dB(A);
Sound power level LWA=106.4dB(A); K=3.0dB(A)
Guaranteed sound power level LWA=109dB(A)
Collection bag capacity 45L
Battery pack model B0P-SP06-18ZK
Battery capacity 4Ah
Battery charging time Max.120min
Battery charger model B0Q-SP07-2040ZB
Battery charger input 220-240V~, 50/60Hz 120W
Battery charger output 21V d.c. 4A
Charger protection class Class II
Accessories Part Number
AJBB011022 Collection bag
AJBB011023 Shoulder strap
Note: The above specifications are the MAXIMUM capacities of the tool. Voltage measured
without workload. Initial battery voltage reaches 20 Volts. Nominal voltage is 18 Volts.

5
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]

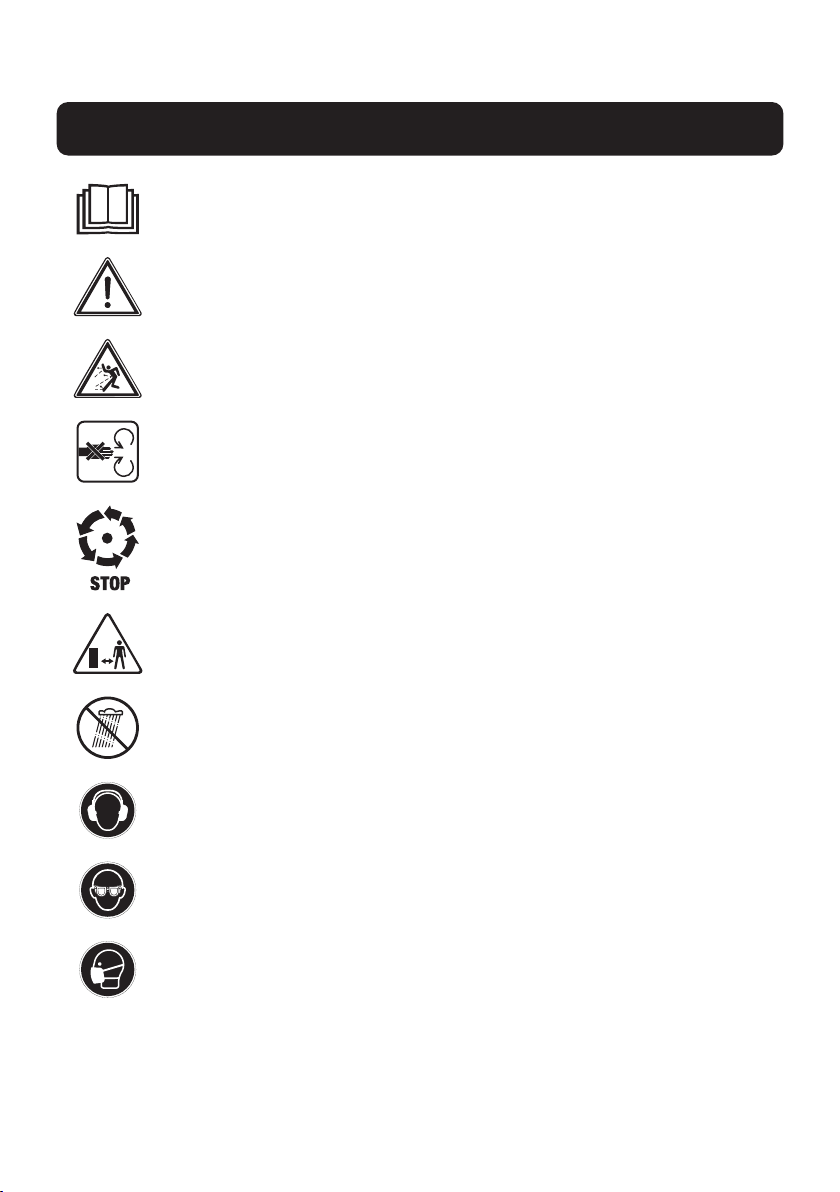

EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS
Read the user's instruction manual and follow all instructions in this manual before
attempting to assemble and operate the machine.
Safety alert – Indicates a precaution, a warning or a danger.
Beware of flying objects and debris.
Risk of injury from rotating impeller. Keep hands away
The rotating part will continuously run for several seconds after you turn off the
machine. Keep hands and feet away from openings while the machine is running.
Keep bystanders and children a safe distance away.
Do not expose the unit to rain or wet conditions.
Wear hearing protection.
Wear eye protection.
Wear a mask.

6
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]

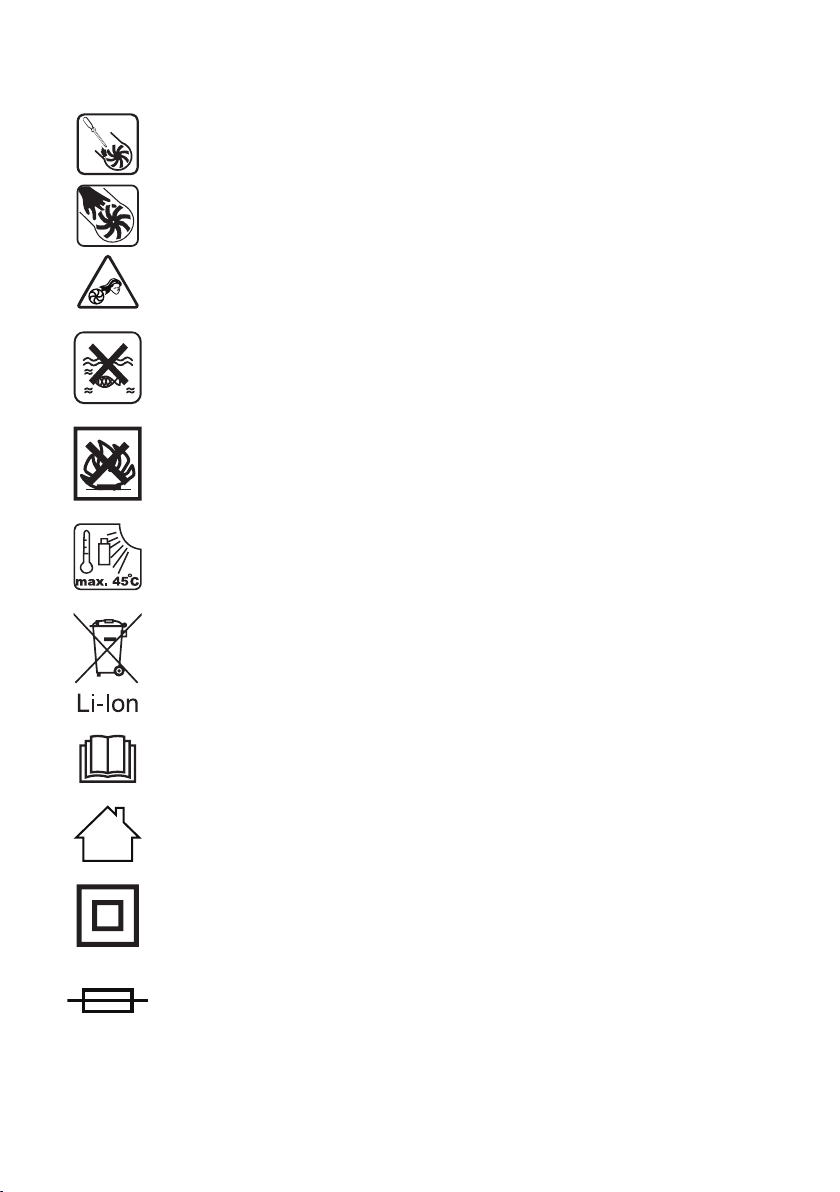

DANGER! Rotating impellers pose a serious risk of injury.
Keep hair, clothing, and all body parts away from the air intake or any openings.
Secure hair above shoulders and behind head. Do not let your hair or clothing get
drawn into the appliance. Failure to keep hair, clothing, or body parts away from air
intake could result in personal injury.
Do not throw into water.
Do not throw on fire.
Do not subject the battery to strong sunlight over long periods of time. Do not leave
on a heater (max.45°C).
Batteries contain Li-ion. Do not dispose of waste batteries in domestic waste.
Contact local authority to find out how to dispose of batteries.
To reduce the risk of injury, user must read instruction manual carefully.
The charger is for indoor use only.
Double insulation.
T
5
A
Protective 5A limited

7
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
WEEE symbol. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority or local
store for recycling advice.
The product complies with the applicable European directives and an evaluation
method of conformity for these directives was done.
UK conformity assessed

8
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
IMPORTANT SAFETY WARNINGS
General Power Tool Safety Warnings
Warning: Please read the following instructions carefully,
failure to do so could lead to serious personal injury. When
using the electric blower vac, basic safety precautions,
including the following, should always be followed to reduce
the risk of fire,electric shock and personal injury. Read all
these instructions before operating this product and save
these instructions.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Become familiar with the owner’s manual before attempting
to operate this machine.
• This machine is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• The machine is only to be used with the power supply unit
provided with the machine.
Important! Read carefully before use, keep for further
reference.

9
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Work Area Safety
• Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Electrical Safety
• Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.

10
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Power tools can produce electromagnetic fields (EMF) that are
not harmful to the user. However, users of pacemakers and
other similar medical devices should contact the maker of their
device and/ or doctor for advice before operating this power
tool.
Personal Safety
• Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
• Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energizing power tools that have
the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep
your hair and clothing away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards.

11
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a
second.
Power Tool Use and Care
• Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and
safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making
any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.
• Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.

12
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a
hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from
oil and grease. Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in unexpected
situations.
• When using the tool, do not wear cloth work gloves which may
be entangled. The entanglement of cloth work gloves in the
moving parts may result in personal injury.
Service
• Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
Product Safety Warnings
Training
• Read the instructions carefully. Be familiar with the controls and
the correct use of the machine.
• Never allow children, persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge or
people unfamiliar with these instructions to use the machine.
Local regulations may restrict the age of the operator.
• Never operate the machine while people, especially children, or
pets are nearby.
• Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their property.

13
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
Preparation
• Always wear substantial footwear and long trousers while
operating the machine.
• Do not wear loose clothing or jewellery that can be drawn into
the air inlet. Keep long hair away from the air inlets.
• Always wear protective goggles to protect your eyes from injury
when using power tools. It is an employer's responsibility to
enforce the use of appropriate safety protective equipment
by the tool operators and by other persons in the immediate
working area.
• To prevent dust irritation the wearing of a face mask is
recommended.
• While operating the machine, always wear non- slip and
protective footwear. Non-skid, closed-toed safety boots and
shoes will reduce the risk of injury.
• Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety
shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
• Always perform a visual check before use to ensure that the
shredder, the bolts of the shredder and other fasteners are
secure, that the housing is not damaged and that the protective
equipment and shields are all in place. If any components
are worn or damaged, replace the complete set to maintain
balance. Replace any damaged or illegible labels.
Cordless Blower Vac Safety Warnings:
• Use the tool only with specifically designated battery packs.
Use of any other battery packs will increase the risk of injury
and fire.

14
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Switch off the machine and remove the battery packs and make
sure that all moving parts have come to a complete stop
∂whenever you leave the machine.
∂before clearing blockages.
∂before checking, cleaning or working on the machine.
∂if the machine starts to vibrate abnormally.
• Only operate the product in daylight or in good artificial light.
• Do not overreach and keep proper balance and footing at all
times.
• Always be sure of your footing on slopes.
• Walk, never run.
• Keep all cooling air inlets clear of debris.
• Never blow debris in the direction of bystanders.
• Operate the machine in a recommended position and on a firm
surface.
• Do not operate the machine at high places.
• Never point the blower tube air outlet or nozzle at anyone in the
vicinity when using the machine.
• Never block blower outlet or vac air inlet.
• Be careful not to block blower outlet or vac air inlet with dust or
dirt when operating in dusty area.
• Do not use the blower to inflate balls,rubber boat or the similar.
• Do not operate the machine near open window, etc.
• Operating the machine only at reasonable hours is
recommended -not early in the morning or late at night when
people might be disturbed.
• Using rakes and brooms to loosen debris before blowing or
vacuuming is recommended.

15
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• If the machine strikes any foreign objects or should start
making any unusual noise or vibration, immediately switch off
the machine to stop it. Remove the battery packs from the
machine and inspect the machine for damage before restarting
and operating the machine.If the machine is damaged, ask
Toolstation Authorised Service Centre for repair.
• Do not insert fingers or other objects into blower outlet or vac
inlet.
• Prevent unintentional starting. Ensure the switch is in the off-
position before inserting battery pack, picking up or carrying the
machine. Carrying the machine with your finger on the switch
may cause an accident.
• Do not operate the device on a cobbled or gravel surface where
discharged material could inflict injury.
• Never blow or vacuum dangerous materials, such as nails,
fragments of glass, stones or blades.
• Do not operate the machine near flammable materials.
• Avoid operating the machine for a long time in low temperature
environment.
Safety Warning For Battery Pack
• Fully charge battery packs before the first use.
• Recharge battery packs when the power output starts to slow.
Do not continue to use product when battery capacity level
is low.
• To prevent serious damage to the battery pack, charge in
temperatures above 5°C or below 45°C. Longest life and best
performance can be achieved when battery is charged at room
temperature (20 °C ± 5 °C).
• If the battery temperature is hot after use, it must be allowed to
cool before putting it into the charging station.
• If the battery pack becomes too hot during charging, disconnect

16
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
and switch off immediately. Contact the service center directly.
• Do not dismantle, open or shred cells or battery pack.
• Do not short-circuit a battery pack. Do not store battery
packs haphazardly in a box or drawer where they may short-
circuit each other or be short-circuited by conductive materials.
When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
• Do not carry individual battery packs in your pockets or bag as
they could short-circuit against other metal items.
• Do not expose battery pack to heat or fire. Avoid use or storage
in direct sunlight for extended periods of time.
• Do not subject battery pack to mechanical shock.
• In the event of battery leakage, do not allow the liquid to come
into contact with the skin or eyes. If contact has been made,
wash the affected area with copious amounts of water and seek
medical advice.
• Should a Li-ion battery catch fire, ensure to use the correct fire
extinguisher to combat the fire. Do not throw or spray water on
a burning Li-ion battery.
• Keep battery pack clean and dry. Wipe the battery pack
terminals with a clean dry cloth if they become dirty.
• Battery pack needs to be charged before use. Always refer to
this instruction manual and use the correct charging procedure.
• Do not maintain battery pack on charge when not in use.
• After extended periods of storage, it may be necessary to
charge and discharge the battery pack several times to obtain
maximum performance.

17
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Battery pack gives its best performance when it is operated at
normal room temperature (20 °C ± 5 °C).
• When disposing of battery packs, keep battery packs of
different electrochemical systems separate from each other.
• Recharge only with the charger specified by manufacturer. Do
not use any charger other than that specifically provided for use
with the equipment. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another
battery pack.
• Do not use any battery pack which is not designed for use with
the equipment.
• Keep battery pack out of the reach of children.
• Retain the original product literature for future reference.
• Remove the battery from the equipment when not in use.
• Dispose of properly.
• Do not mix cells of different manufacture, capacity, size or type
within a device.
• Do not remove battery pack from its original packaging until
required for use.
Safety Warning For Battery Charger
• Charge only battery pack of the same model provided by
manufacturer and of models recommended by manufacturer.
• Do not use the original charger on other Li-ion batteries or on
any other type of battery as this can increase the risk of fi e or
explosion.
• Check the battery charger, cable and plug before each use.
Do not use the battery charger if damaged. Do not open the
battery charger yourself, charger must be repaired by qualified
personnel using original spare parts.
• The charger is designed to use a standard household 220-240
V~ 50Hz power source, ensure that the plug matches the outlet.

18
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• Never modify the plug in any way, this will reduce the risk of
electric shock.
• Do not abuse the cord of charger. Never use the cord for
carrying, pulling or unplugging the charger. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• Make sure the charger cord is situated so that it will not be
stepped on, tripped over or get damaged.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Keep the battery charger clean. Contamination can increase the
risk of electric shock.
• Protect the battery charger from rain and moisture. If water
accesses the battery charger there is an increased risk of
electric shock.
• Battery will heat up whilst charging. When charging batteries,
ensure that the battery charger is in a well-ventilated area and
to reduce the risk of fire, do not operate battery charger on or
close to inflammable materials such as paper or textiles.
• Do not overcharge any batteries. Ensure that batteries and
chargers are not left unsupervised during charging.
• The temperature range over which the battery pack can be
charged is typically between 5°C-45°C. Attempts to charge out
with the prescribed temperature range may automatically be
blocked by the protection circuitry of the battery pack. Longest
life and best performance can be obtained if the battery pack is
charged at room temperature.
• Disconnect charger from the power supply when not in use.
This will reduce the risk of electric shock or damage to the
charger.

19
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
• This charger can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

20
www.coreservice.co.uk
Hotline: [phone]
Email [email protected]
PRODUCT DESCRIPTION AND IDENTIFICATIONS
1
2
3
4
5
6
7
8
910
11
13
16
17
18
20
19
21
22
14
12
15
1. Handle grip
2. Variable speed control (speed settings 1 to 6)
3. On/Off switch
4. Motor housing
5. Tube release button
6. Rear blower tube
7. Blower tube locking protrusion
8. Front blower tube
9. Front vacuum tube
10. Vacuum tube locking protrusion
11. Rear vacuum tube
Not all the accessories illustrated or described are included in standard delivery.
12. Vacuum tube wheels (2)
13. Shoulder strap
14. Collection bag
15. Collection bag strap
16. Collection bag adapter
17. Battery pack
18. Charger
19. Rear vacuum tube locking clip
20. Vacuum/Shredder inlet cover
21. Auxiliary handle
22. Battery ports
