TOP CAT 41G; 41G+3; 41G+6; 41G-CW Instructions for use

General Operators Instructions
and
Maintenance Manual
41AG Series
Die Grinders
Top Cat ® Air Tools, Manufactured by T.C. Service Co.
38285 Pelton Road, Willoughby, OH 44094 U.S.A.
Ph: [phone] or [phone] ● Fax: [phone] or [phone]
E-Mail: [email protected] ● Web Site: www.tcservice.com
Read Safety Recommendations Before Operating Tool
41AGK (COLLET)
41AGK+3
41AGKCW
41AGK+6
Model
Number
Exhaust
Direction
Throttle
Type
Rated
Speed
Power
Output
Case
Material
Weight Overall
Length Diameter Working Air Consumption
Wheel
capacity
Aluminum Steel
41G
Front
or
Side
(L) Lever
or
(K) Safety
Lever
15000
to
22000
R.P.M.
0.9 H.P.
675 W
Steel
or
Aluminum
1.5 lb/0.7 Kg 2.0 lb/0.9 Kg 6.9 inch 175 mm
1.6 inches
41 mm
25cfm
11.8 L/S
2” (50mm),
3” (75mm) ,
or
4” (100mm)
41G+3 1.6 lb/0.7 Kg 2.0 lb/0.9 Kg 9.3 inch 236 mm
41G+6 1.7 lb/0.8 Kg 2.1 lb/1.0 Kg 12.3 inch 312 mm
41G-CW 1.5 lb/0.7 Kg 2.0 lb/0.9 Kg 5.8 inch 147 mm
41AGK (TYPE 1)
● 2 Inch (50mm), 3 Inch (75mm) or 4 Inch (100mm) Type 1 wheels
● Burrs/Mounted Stones of shank size 1/4 Inch, 3/8 Inch, 6mm or 8 mm
● Any Type 16, 17, 17R or 18R Cone Wheel with 3/8-24 mounting
Capacity*
*The +3 & +6 extended spindle versions of this tool are designed for polishing applications only.

This is meant to highlight sections of safety standards published by the American National Standards
Institute and the Occupational Safety and Health Administration. This is not meant to replace those
standards but only highlight certain areas.
When care is taken to ensure that the right tool is operated properly, and safety and maintenance
procedures are followed, accidents can be avoided. Read and follow all instructions and directions.
Comply with all rules governing the use of power tools, personal protective equipment and equipment
guards.
Remember - machines, attachments and accessories must be used only for the purpose for which
they were designed. Safety reasons and product liability prohibit any modifications to tools. Any
attachments or accessories must be agreed to in advance with an authorized technical representative
of T.C. Service Co.
Operators Instructions and Safety Precautions
The grinding equipment must be approved
for the rated speed of the machine. The rated
speed, marked on the machine, should not be
exceeded. Be sure to learn the proper handling
and storage of abrasive wheels and inserted
tooling.
Inspect the wheel guard for any signs of wear
and that it is properly mounted to the tool. Any
guard showing signs of wear such as bends,
chips, nicks, or cracks should be replaced.
Always wear eye and hearing protection, and when
necessary, other personal protective equipment
such as gloves, an apron, and helmet. Properly
fitted protective clothing cushions the operator from
vibration exposure and help prevent minor scrapes
that might occur as a result of guiding the tool along
the workpiece.
Additional information on eye protection is available
in the following national regulatory standards.
1) Federal OSHA Regulations 29 CFR, Section
1910.133 (Eye and Face Protection)
2) ANSI Z87.1 (Occupational and Educational Eye
and Face Protection)
Check hose size and air pressure. The air pressure at the tool shall not exceed
90 psi (6.2 bar). All hoses should be inspected regularly and kept away from
heat, oil and sharp edges. Be sure the tool is secured to the air hose.
Measure the speed of grinders every 20 hours of actual use or once per week,
whichever comes first.
Measure speed of all types of grinders after maintenance or repair, whenever
a grinder is issued from the tool crib and at each wheel change. Several read-
ings should be taken.
This form of inspection should be made with the grinding wheel or tooling
removed.

Proper mounting of grinding
wheels and inserted tooling is
crucial to safe operation and
efficient working conditions.
Ensure the exhaust air is
directed away from bystanders.
Disconnect the tool from the air
supply before doing any service.
This prevents accidental start-ups.
The safety procedures for operating air tools are everyone’s responsibility. The following lists several
aspects of air tool safety that should be considered during operation. Please be aware of the these
aspects and report any unsafe practice you see to a supervisor or safety officer immediately.
1) Start any new wheel under a bench and away from bystanders. (Run for a minimum of one
minute.)
2) When starting a cold/new wheel, apply to the work slowly, allowing the wheel to warm gradually.
3) Support the work piece properly.
4) When cutting off, support the work piece so that a jamming of the wheel does not occur. (A Slot
shall remain constant or become wider during operation.)
5) If a jamming of the wheel does occur during a cutting off operation, shut the air supply off to the
tool and ease the wheel free. (Inspect the wheel for damage before continuing operation.)
6) Ensure that sparks from the process do not create a hazard to the eyes or will ignite the
environment.
7) Grinders shall not be used in potentially explosive atmospheres.
8) Pneumatically driven tools are not generally insulated from coming in contact with electrical
sources. Be sure to avoid contact with wires or other possible current carrying sources.
9) The operator must check that no bystanders are in the vicinity.
10) Remember that there is a running on after the throttle has been released.
11) If a grinder fitted with an abrasive wheel is dropped, the wheel must be thoroughly examined
before re-use.
12) Disconnect the tool from the air source before servicing and changing wheels.
13) Release the control device in case of interruption of air supply.
14) Always keep the tool in a clean, dry place when not in use.
15) Beware of loose hair and clothing so as not to become tangled or trapped during operation.
16) Unexpected tool movement, or breakage of wheel or inserted tooling, may cause injury.
17) Unsuitable postures may not allow counteracting of normal or unexpected movement of a power
tool. (A working position shall be adopted which remains stable in the event of a break up of inserted
tooling.)
18) Do not hold the tool near the body when operating.
19) Keep a firm grip on the tool body during operation.
Safety in Operation
Airborne particulate resulting
from the grinding process can
cause hazards. Wear appropriate
protective equipment.

Maintenance
Disassemble
1. Disconnect air and remove all burrs, wheels and accessories.
2. Secure tool in vise vertically with output of tool oriented toward upward direction.
Clamp onto the flats toward the rear of the motor housing.
3. Unscrew motor retainer (410-S-38-S) from motor housing (402-132{S}). Lift off
exhaust deflector (410-G-17-S), exhaust screen (402-134) and o-ring (400-51) from
motor housing. Remove motor from housing. Remove from vise.
5. Remove snap ring (404-39) from rear endplate (404-19) with snap ring pliers.
6. Lift out bearing cover (404-38) and o-ring (594016).
7. Slip retaining ring (592016) from groove of spindle (400-G-14-TS).
8. Install brass jaws on vise. Secure motor assembly into vise vertically with output
toward downward direction. Clamp lightly the outside diameter of the cylinder (400-2G)
and endplate (404-19).
9. Use a 3/16” punch to tap spindle out of rear bearing (404-9). Be careful not to drop
the motor assembly when it is free. Remove from vise.
10. Use a small punch to press the rear bearing from the rear endplate.

11. Remove 5 blades (400-6), rotor (400-5) and key (400-10).
12. Remove front endplate (400-7).
13. Remove snap ring (400-46) from spindle with snap ring pliers.
13. Support the spindle assembly vertically on a suitable drill block. Press spindle
through front bearing (400-G-11) with an arbor press.
14. To check throttle valve unscrew throttle valve cap (869311).
15. Lift out valve spring (400-G-34) and throttle valve (400-G-29). Remove and replace
o-ring (844302) if cracked or worn.
Assembly
1. Be sure that all parts are clean and free of any abrasive.
2. Support bearing (400-G-11) on a suitable drill block.
3. Press spindle (400-G-14-TS) through bearing until it bottoms on shoulder.
4. Place retaining ring (400-46) into groove in spindle.
5. Slide front endplate (400-7) over spindle and onto front bearing.
6. Place key (400-10) into keyway in spindle.
7. Slide rotor (400-5) over spindle.
8. Place 5 blades (400-6) into slots.
9. Slip cylinder (400-2G) over rotor. (be sure the alignment pin is oriented away from
the front for the motor assembly.
10. Install rear endplate (404-19) locating cylinder pin in smaller hole of the rear
endplate.
11. Place bearing (404-9) in rear endplate. Tap in place with bearing driver (1100-803).
12. Place snap ring (592016) in spindle groove.
13. Place o-ring (594016), washer (404-38) and snap ring (404-39) into rear of end
plate.
13. Secure motor housing (402-132[A][S][AS]) in vise vertically with output of tool
toward upward direction. Clamp onto the flats toward the rear of the motor housing
14. Place o-ring (400-51), exhaust screen (402-134) and exhaust deflector (410-G-17-
S) onto motor housing.
15. Slide front motor assembly into motor housing. Install motor retainer (410-S-38-S)
and tighten.
16. Check the operating speed with a reliable tachometer. The speed must be at
or below the stamped speed on the tool.
17. Install all required guards and safety devices before returning tool to service.

Tool Parts Listing
PART DESCRIPTION
200-16 O-RING
400-G-11 FRONT BEARING
400-G-11A SEALED FRONT BEARING
400-G-14-TS SPINDLE
400-G14-TS-LH LEFT HAND SPINDLE
400-G14-TS+2.5 2.5” EXTENDED SPINDLE
400-G14-TS+2.5-LH 2.5” LEFT HAND EXTENDED SPINDLE
400-G14-TS+3 3” EXTENDED SPINDLE
400-G14-TS+3-LH 3” LEFT HAND EXTENDED SPINDLE
400-G14-TS+6 6” EXTENDED SPINDLE
400-G-26 THROTTLE LEVER
400-G-29 THROTTLE VALVE-INCLUDES 844302
400-G-34 SPRING
400-G-39 REGULATOR
400-G-40 REGULATOR LOCK
400-G-42 FLANGE FOR 2”-3” WHEELS
400-G-47 3/8-24 NUT
400-G-47-LH 3/8-24 LEFT HAND NUT
400-2G CYLINDER
400-2GC CHROME CYLINDER
400-2GR REVERSE ROTATION CYLINDER
400-5 ROTOR
400-6 BLADE (5 REQ)
400-7 FRONT ENDPLATE
400-10 KEY
400-44 ROLL PIN
400-46 SNAP RING
400-51 O-RING
402-126 SAFETY LEVER
402-127 SAFETY LEVER PIN
402-128 LOCKOUT LEVER
402-129 SAFETY LEVER SPRING
402-132 ALUMINUM CASE (SPECIFY SPEED)
402-132-A ADJ. ALUM. CASE (SPECIFY SPEED)
402-132-AS ADJ. STEEL CASE (SPECIFY SPEED)
402-132-FT ALUM. FLOW THRU CASE (SPECIFY SPEED)
402-132-S STEEL CASE (SPECIFY SPEED)
402-132-S-FT STEEL FLOW THRU CASE (SPECIFY SPEED)
402-134 MUFFLER
404-9 REAR BEARING
404-9A SEALED REAR BEARING
404-19 REAR ENDPLATE
404-19R REVERSE ROTATION REAR ENDPLATE
404-38 BEARING COVER
404-39 SNAP RING
410-G-17F-S STEEL FRONT EXHAUST SLEEVE
410-G-17-S STEEL SIDE EXHAUST SLEEVE
410-S-38-S STEEL MOTOR RETAINER
500-G-44 FLANGE FOR 4” WHEELS
700-37B THROTTLE LEVER PIN
592016 SNAP RING
594016 O-RING
832636 GASKET
841552 3/8 NPT TO 3/8 NPT BUSHING
841553 3/8 NPT TO 1/4 NPT BUSHING
841553-M 3/8 NPT TO 3/8 BSP BUSHING
844302 O-RING
869311 THROTTLE VALVE CAP
TOOLS
PART DESCRIPTION
490-3 PIN SPANNER
1100-050 1/2” WRENCH
1100-056 9/16” WRENCH
1100-075 3/4” WRENCH
1100-638 SPINDLE HOLDER
1100-806 404-9 BEARING DRIVER
1100-814 400-G-11 BEARING DRIVER
541134 REGULATOR LOCK WRENCH
GUARDS
PART DESCRIPTION
4502-01 2” TYPE 01 GUARD
4503-01 3” TYPE 01 GUARD
4504-01 4” TYPE 01 GUARD
ASSEMBLIES
PART DESCRIPTION
510240 REPAIR KIT
402-26 SAFETY LEVER ASSY.
AA-402-132 ALUMINUM CASE ASSY.
AA-402-132-A ADJUSTABLE ALUMINUM CASE ASSY.
AA-402-132-AK ADJ. ALUM. SAFETY CASE ASSY.
AA-402-132-AS ADJUSTABLE STEEL CASE ASSY.
AA-402-132-ASK ADJ. STEEL SAFETY CASE ASSY.
AA-402-132-K ALUMINUM SAFETY CASE ASSY.
AA-402-132-S STEEL CASE ASSY.
AA-402-132-SK STEEL SAFETY CASE ASSY.
SPECIFY SPEED FOR CASE ASSY.

TOOLS
PART DESCRIPTION
490-3 PIN SPANNER
1100-050 1/2” WRENCH
1100-056 9/16” WRENCH
1100-075 3/4” WRENCH
1100-638 SPINDLE HOLDER
1100-806 404-9 BEARING DRIVER
1100-814 400-G-11 BEARING DRIVER
541134 REGULATOR LOCK WRENCH
GUARDS
PART DESCRIPTION
4502-01 2” TYPE 01 GUARD
4503-01 3” TYPE 01 GUARD
4504-01 4” TYPE 01 GUARD
ASSEMBLIES
PART DESCRIPTION
510240 REPAIR KIT
402-26 SAFETY LEVER ASSY.
AA-402-132 ALUMINUM CASE ASSY.
AA-402-132-A ADJUSTABLE ALUMINUM CASE ASSY.
AA-402-132-AK ADJ. ALUM. SAFETY CASE ASSY.
AA-402-132-AS ADJUSTABLE STEEL CASE ASSY.
AA-402-132-ASK ADJ. STEEL SAFETY CASE ASSY.
AA-402-132-K ALUMINUM SAFETY CASE ASSY.
AA-402-132-S STEEL CASE ASSY.
AA-402-132-SK STEEL SAFETY CASE ASSY.
SPECIFY SPEED FOR CASE ASSY.
ACCESSORIES
PART DESCRIPTION
400-76J 9/16 UNTHREADED SPACER
400-76J-3/8 3/8 UNTHREADED SPACER
400-77 3/8-24 THREADED 9/16 SPACER (FOR CONE WHEEL)
400-77J 3/8-24 THREADED 3/8 SPACER
400-78 3/8-24 TO 5/8-11 ADAPTER
1100-346 3/8-24 THREAD TO 1” WIDE WHEEL ADAPTER
530196 1/8” ROUNDED TAPER BURR
530198 1/8” TAPER BURR
530200 1/8” FLAME BURR
530202 1/8” BALL BURR
530204 1/8” CYLINDRICAL BURR
530208 1/4” BALL BURR
530210 1/4” CYLINDRICAL BURR
530212 1/4” TREE BURR
530214 1/4” FLAME BURR
OTHER SIZE BURRS AVAILABLE
COLLET ASSEMBLIES
PART DESCRIPTION
AA-209-1/8 3/8-24 ERICKSON 3 PIECE--1/8” INSERT
AA-209-3/16 3/8-24 ERICKSON 3 PIECE--3/16” INSERT
AA-209-1/4 3/8-24 ERICKSON 3 PIECE--1/4” INSERT
AA-209-5/16 3/8-24 ERICKSON 3 PIECE--5/16” INSERT
AA-209-3/8 3/8-24 ERICKSON 3 PIECE--3/8” INSERT
AA-209-6MM 3/8-24 ERICKSON 3 PIECE--6MM INSERT
TC-1010 3/8-24 TO 1/4” I.D.- 2 PIECE HEAVY DUTY
TC-1010-3/8 3/8-24 TO 1/4” I.D.- 2 PIECE HEAVY DUTY
TC-1010-6MM 3/8-24 TO 6MM I.D.- 2 PIECE HEAVY DUTY
TC-1010-8MM 3/8-24 TO 8MM I.D.- 2 PIECE HEAVY DUTY
OTHER SIZES AVAILABLE
ERICKSON COLLET PARTS
PART DESCRIPTION
209-B 3/8-24 COLLET BODY
209-1 COLLET NUT
209-1/8 1/8” INSERT
209-3/16 3/16” INSERT
209-1/4 1/4” INSERT
209-5/16 5/16” INSERT
209-3/8 3/8” INSERT
209-6MM 6MM INSERT
209-8MM 8MM INSERT
OTHER SIZE INSERTS AVAILABLE
Tool Parts Listing
Tool Parts Listing
T.C. Service Co.
38285 Pelton Rd.
Willoughby, OH 44094
U.S.A.
Ph: 440-954-7500
Fax: [phone]

The following suggestions will help reduce or moderate the effects of repetitive work motion and/or
extended vibration exposure:
1) Do not over-grip the machine/tool. Use only the force required to maintain control.
2) Keep hands and body dry and warm. (Blood flow is important - exercise hands and arms as often
as necessary.)
3) Keep wrists as straight as possible. (Avoid hand positions that require the wrist to be flexed, hyper
extended or turned side-to-side.)
4) Avoid anything that may inhibit blood circulation such as smoking tobacco or cold temperatures.
5) Do not support body-weight on the tool during operation.
6) Maintain a stress-free posture for the entire body.
Prolonged exposure to vibrations created by vibrating sources may cause health hazards. There are
gloves, handle wraps and other forms of protective measures available to help reduce the hazard.
The fit and condition of any vibration abatement measure must be monitored.
Ergonomics - Work Healthy

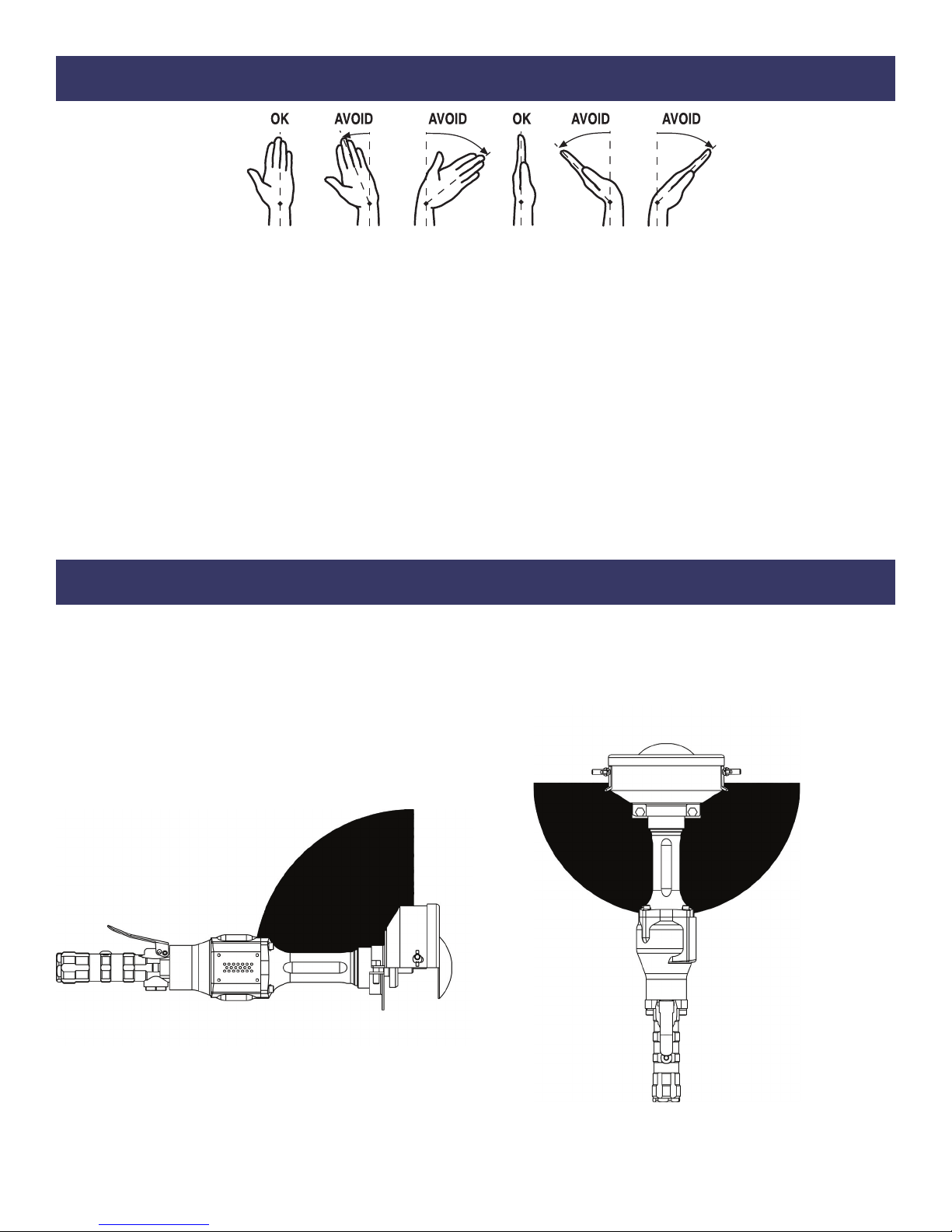

Guarding
Always make sure the wheel guard is positioned between the operator and the wheel. Flying debris
from the workpiece and/or the wheel can cause a hazard. The guard should be positioned so to
deflect debris from the grinding surface away from the operator. The diagram below details the
proper positioning of the guard to protect any handles the operator might grip and the area where the
operator stands.
Area of
Protection

Following the guidelines will help you to ensure the pneumatic tools your company uses are operating and are
maintained in the very best of condition.
Initial Inspection of a New Tool
When a new tool is delivered to your facility, it is important to inspect the tool for any signs of damage that may
have occurred during shipping. Here is a list of things to inspect:
● With the tool disconnected from the air supply, depress the throttle lever or trigger. The device should move
freely and not become caught.
● Inspect the guard of the tool, if so equipped. The guard should be free of any chips, nicks or dents.
● Inspect the spindle of the tool. The threads should show no signs of bends or chips. Grasp the spindle by
hand and spin. The spindle should turn freely with no resistance.
Plumbing Installation
The tool must have fittings and connectors installed into the air inlet in order to connect with your companies
air system. Your choice of fittings can greatly affect the performance of the tool.
Fitting Size
The size of the air inlet of the tool is the minimum size of fitting that will allow for proper airflow into the tool.
Should a smaller fitting size be used such as reducers or adapters, this will constrict the
airflow into the tool and reduce the overall performance.
Coupling Size and Installation
The coupling size should be equal to or larger than the inlet size of the tool. If a smaller size coupling is
used then the air supply volume may be reduced which may lead to reduced performance from the tool. The
coupling should be installed near to the tool. It is important that the tool receive internal
lubrication on a regular basis. Having the connection closer to the tool will promote regular lubrication, as the
connection is easily accessible. Hose whips are often used between the tool and the coupling.
Use thread sealant on all pipe threads and ensure a tight fit.
Operating Speed Test
After your initial inspection and installation of the plumbing connections, it is important to test for the operating
speed of the tool. This test should be performed before you install any abrasive or tooling. Each tool is
stamped with a maximum operating speed. This speed determines the highest rotational speed in R.P.M.’s
that the tool will turn when it is functioning properly. This speed was set from the factory and is closely related
to the operating speed of the abrasive used with the tool. This relationship will be discussed in the “mounting
abrasives” section.
Find the maximum operating speed stamped onto the tool. Connect the tool to an air supply that provides
90 psi and secure the tool in a vise. A lower or higher air pressure will result in a false speed test and may
create a hazardous situation. Depress the throttle lever or trigger and run the tool. Use a properly calibrated
tachometer to determine the actual operating speed of the tool. The actual operating speed on the tachometer
should be no greater then 95% of the maximum free speed stamped on the tool. If this is not the case then
contact the distributor or tool manufacturer immediately. The tool must not be put into service if the actual
speed is over 95% of the stamped maximum speed.
Example:
Tool rated at 6000 R.P.M.
95% of 6000 (.95 x 6000) = 5700
The tool should run no more then 5700 R.P.M. when tested with a tachometer.
Installation and Maintenance Tips

Mounting Abrasives
The mounting of the abrasive used with the tool is very important to ensure safety for the operator and proper
functioning of the tool. There are strict rules for mounting wheels that are outlined in ANSI B7.1-2000. The
following diagrams briefly describe the methods and equipment for mounting most abrasives.
Each wheel/mounted stone is labeled with a maximum operating speed. It is extremely important to compare
this rating with the maximum operating speed of the tool. Never mount a wheel on a tool where the maximum
operating speed of the tool is higher than the maximum operating speed of the wheel. This can cause an over
speed situation and can result in injury.
DIE GRINDERS FOR USE
WITH CONE WHEELS
Cone Wheel
400-G-47 (3/8 I.D.)
400-G-42 (2-3 Inch Wheels)
1100-682 (4 Inch Wheels)
Type 1 Wheel
DIE GRINDER FOR USE
WITH TYPE 1 WHEELS
(+3 & +6 VERSIONS ALSO)

The following list details specific items one should inspect and be aware of when mounting abrasives.
● The maximum operating speed marked on the wheel must be equal to or higher than the rated spindle speed
(free speed) of the tool.
● Check the wheel dimensions so that it fits within the guard properly.
● Do not use any wheel that shows cracks, chips or evidence it has been soaked in fluids.
● Wheel flanges should have flat contact surfaces and be without cracks or burrs.
Testing and Mounted Wheel
Start any new grinder with a new wheel under a bench and away from any bystanders. Run at full speed for
one minute.
Ensure Proper Pressure, Filtration & Lubrication
Properly lubricated pneumatic tools work better, last longer between maintenance intervals and are safer in
general use. The maintenance costs are reduced dramatically when a little time is taken to regularly lubricate
the tools. There are several ways to ensure proper lubrication.
DIE GRINDER FOR USE
WITH MOUNTED STONES
OR BURRS
Mounted Stone
Burr
TC-1010-B - (1/4”)
TC-1010-B-3/8 - (3/8”)

1) Filters, Regulators & Lubricators
These devices should be installed in the air system at each grinding station and inspected regularly to ensure
proper operation. Each device in this set performs a vital task that greatly affects the performance of the tool
and overall longevity of the component parts.
Filters
A filter is a device used to trap/contain particulate and liquid contaminants in the compressed air system. They
generally have a cartridge or screen that requires cleaning or replacement regularly. Without this maintenance,
the filtering device can become clogged and reduce the flow of air to the tool. A loss in performance can result.
Regulators
A regulator adjusts the operating pressure supplied to the tool. This device generally is used with a pressure
gauge that will indicate the current pressure setting. All Top Cat ® pneumatic tools are designed to operate at
90 PSI (6.2 bar) while the tool is running. The tool should never be run if the pressure should exceed 90 PSI
(6.2 bar).
Lubricators
Lubricators are devices that induce a controlled amount of oil into the air supply for pneumatically driven tools.
They generally contain a reservoir that one must keep filled with oil. A light grade oil such as Mobil DTE light
or equivalent is recommended. There is a variable setting on the lubricator that will determine the amount
of oil induced into the air supply. It is important to inspect both the setting and amount of oil in the lubricator
regularly to determine proper functioning of the device. The lack of oil in the air system will greatly reduce the
performance and longevity of the pneumatically driven tool.
2) Direct injection of oil into the tool
A simple and easy way to ensure proper lubrication is to inject the oil directly into the tool air inlet. This should
be performed prior to storage of the tool. To perform this task one must have a small container of the proper
lubricating oil.
● Disconnect the tool from the air supply at the air coupling.
● Place a few drops of oil from the container into the air inlet of the tool directly.
● Reconnect the tool to the air supply.
● Direct the exhaust of the tool away from any bystanders or cover the exhaust with a shop rag.
● Run the tool until the oil has completely passed through the unit.
The best lubrication techniques include both methods.
What Conditions Indicate the Need for Maintenance?.
Pneumatic tools will exhibit several distinct signs that maintenance is required. Higher costs can be avoided
if maintenance is performed when the first signs are evident. The following list details conditions that may
indicate the necessity for service.
1) With the tool disconnected from the air supply, grasp the spindle and spin in the direction of operation. The
spindle should spin freely with no resistance.
2) With the tool disconnected from the air supply, grasp the spindle by hand. Attempt to move the spindle from
side to side and back and forth. Excess play can be a sign that service is required.
3) A reduction in power may indicate the necessity for maintenance.
4) Should the tool not maintain a uniform operating speed, servicing may be required.
For More Information
1) General Industry Safety & Health Regulations 29 CFR, Part 1910 and where applicable Construction
Industry Safety & Health Regulations 29 CFR, Part 1926 available from Superintendent of Documents, Gov’t.
Printing Office, Washington, D.C. 20402.
2) Safety Code For Portable Air Tools, ANSI B186.1, B7.1 and Z87.1, available from American National
Standards Institute, Inc. 1430 Broadway, New York, NY 10018
© Copyright 2007
All Rights Reserved
