TOP GUN WELDING TIG180D User manual

THANKS FOR PURCHASING OUR PRODUCT
ASSEMBLY AND OPERATING INSTRUCTIONS
INVERTER
DC TIG/PULSE TIG/DC MMA
WELDING MACHINE
(be suitable for 1x220~240V)

SAFETY PRECAUTIONS
Follow these precautions carefully. Improper use of any welder can
result in injury or death.
1. ONLY CONNECT WELDER TO A POWER SOURCE FOR WHICH IT WAS
DESIGEND. The specification plate on the welder lists this information. When welding outdoors
only use an extension cord intended for such use.
2. ONLY OPERATE WELDER IN DRY LOCATIONS and on cement or masonry floor. Keep
area clean and uncluttered.
3. KEEP ALL COMBUSTIBLES AWAY FROM WORK SITE.
4. DO NOT WEAR CLOTHING THAT HAS BEEN CONTAMINATED with grease or oil.
5. KEEP CABLES DRY AND FREE FROM OIL AND GREASE and never coil around
shoulders.
6. SECURE WORK WITH CLAMPS or other means; don't over reach when working.
7. NEVER STRIKE AN ARC ON A COMPRESSED GAS CYLINDER
8. DON'T ALLOW THE INSULATED PORTION OF THE ELECTRODE HOLDER TO
TOUCH THE WELDING GROUND WHILE CURRENT IS FLOWING.
9. SHUT OFF POWER AND UNPLUG MACHINE WHEN REPAIRING OR ADJUSTING.
Inspect before every use. Only use identical replacement parl.
10. FOLLOW ALL MANUFACTURER'S RULES on operating switches and making
adjustments.
11. ALWAYS WEAR PROTECTIVE CLOTHING when welding . This includes: long sleeved
shirt(leather sleeves), protective apron without pockets, long protective pants and boots. When
handing hot materials, wear asbestos gloves.
12. ALWAYS WEAR A WELDER'S HELMET WITH PROTECTIVE EYE PIECE when
welding. Arcs may cause blindness. Wear a protective cap underneath the helmet.
13. WHEN WELDING OVERHEAD, BEWARE OF HOT METAL DROPPINGS. Always
protect the head, hand, feet and body.
14. KEEP A FIRE EXTINGUISHER CLOSE BY AT ALL TIMES.
15. DO NOT EXCEED THE DUTY CYCLE OF THE MACHINE. The rated cycle of a welding
machine is the percentage of a ten minute period that the machine can operate safely at a given
output setting.
16. KEEP ALL CHILDREN AWAY FROM WORK AREA. When storing equipment, make
sure it is out of reach of children.
17. GUARD AGAINST ELECTRIC SHOCK. DO not work when tired. Do not let body come
In'contact with grounded surfaces.

1. MAIN USAGE AND THE RANGE OF USAGE(APPLICATIONS):
TIG180D inverse argon arc welder with international advanced technology is a new variety
of welding machine using MOSFET(or IGBT). It has performance and high efficiency that the
traditional welder can not be compared with. TIG180D welder is triple functional machine
used as MMA/DC TIG,PULSE TIG welder. The welding current and pulse frequency is all
infinitely and independently adjustable. All ferrous metal, copper and stainless steel material can
be omnibearing welding in all position.The welding current is stable. The welding seam is
nice.few spatters and low noise occurs during welding.It has high frequency arc striking.
The welder has outstanding feature of minimum current. The minimum current can be up to
5A.Protection measures of the welder are perfect. The welder is reliable,light in weight and
easy to use. It is particularly suitable for enterprise of plant and mine, build, decoration and
maintenance sectors.
2. MAIN TECHNICAL SPECIFICATIONS
3. OPERATING CONDITION AND WORK SURROUNDING
1. Operating condition:
±
Voltage of power source: AC220/230/240V 10%
Model TIG180D
Power Supply Voltage AC 220/230/240V 50Hz
No-load Voltage 70V
Rated Output Current 180A
Rated Duty Cycle 35%
Peak Cur. Adjusting Range 5-180A(TIG)
5-160A(Stick)
base Amps 5-180A
Start current 5~150A
End current 5~150A
Pulse Width Ratio 5%-95%
Pulse Frequency 0.5 - 500Hz
TIG Arc starting mode high frequency arc striking
Up-slope,Down-slope time 0-25 S
Pre Flow Time 0~10S
Post Flow Time 0~25S
Mass 9.8kg
Protection Class of enclosure I P21S

Frequency: 50/60Hz
Reliable grounding protection
2. Work surrounding
≤≤℃
(1) relative humidity: 90%(average monthly temperature 20 )
℃℃
(2) ambient temperature: -10 - 40
(3) The welding site should have no harmful gas, chemicals, molds and inflammable matter,
explosive and corrosive medium, no big vibration and bump to the welder.
(4) Avoiding rain water. Operating in rain is not allowed.
4. DESCRIPTION OF THE ERECTION
a. Before welding , the operator should read the operation instructions and uses the welder
correctly according to the process specification.
b. Checking the welder appearance for deformation and damage.
c. For the safety of the equipment and the persons, the customer must correctly make grounding
or protecting according to the power supply system: using 4 mm2lead to connect the protection
grounding of the welder.
d. Welding operation should be carried out in dry and good ventilating area. The surrounding
objects should be not less than 0.5m away from the welder.
e. Checking the welder output connector for tightness.
f. The welder can not be moved or the cover can not be opened during the power is on and
welding operation is carried out.
g. The welder should be cared,used and managed by specialized person.
h. Confirming that the power source is 220/230/240V
It can not be connected with 380V power absolutely.

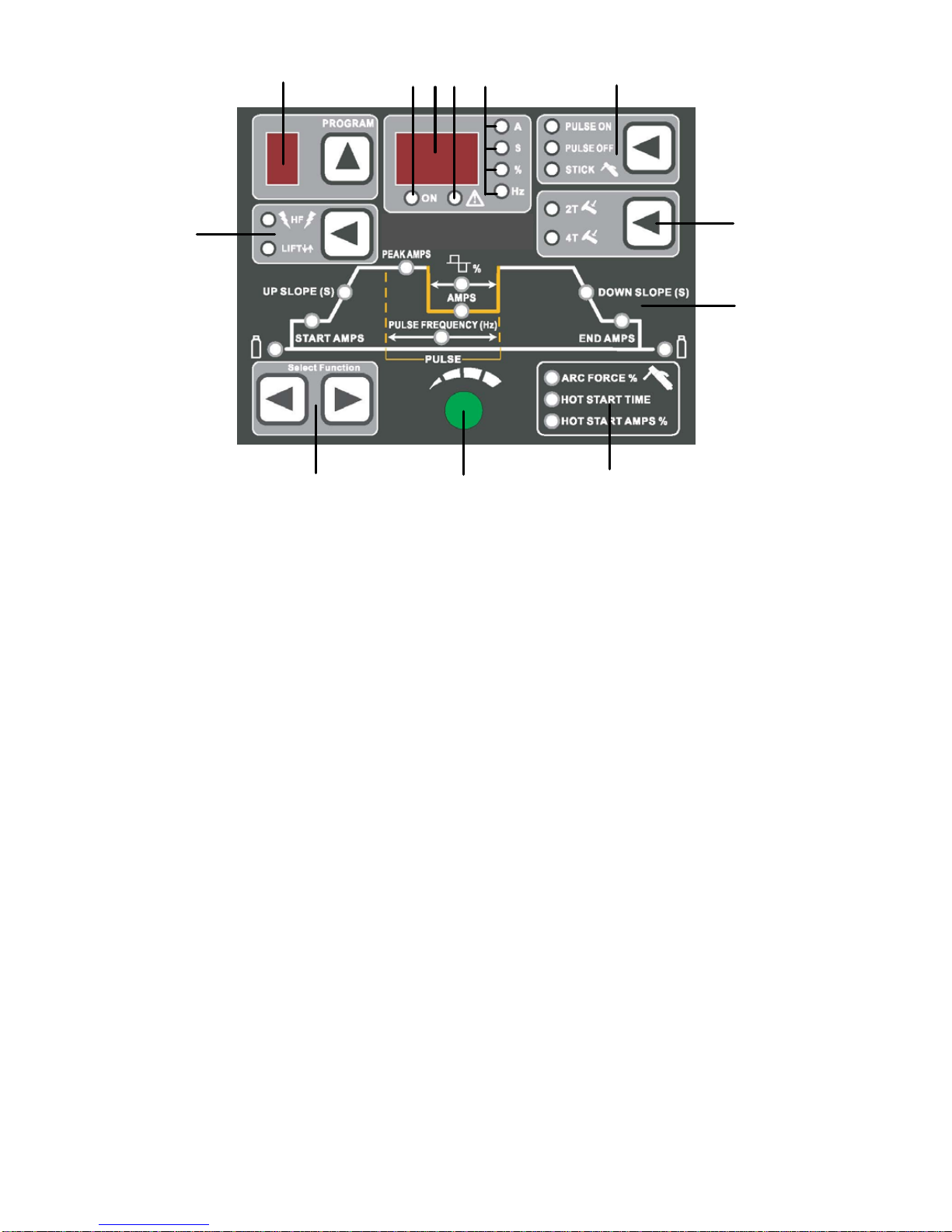

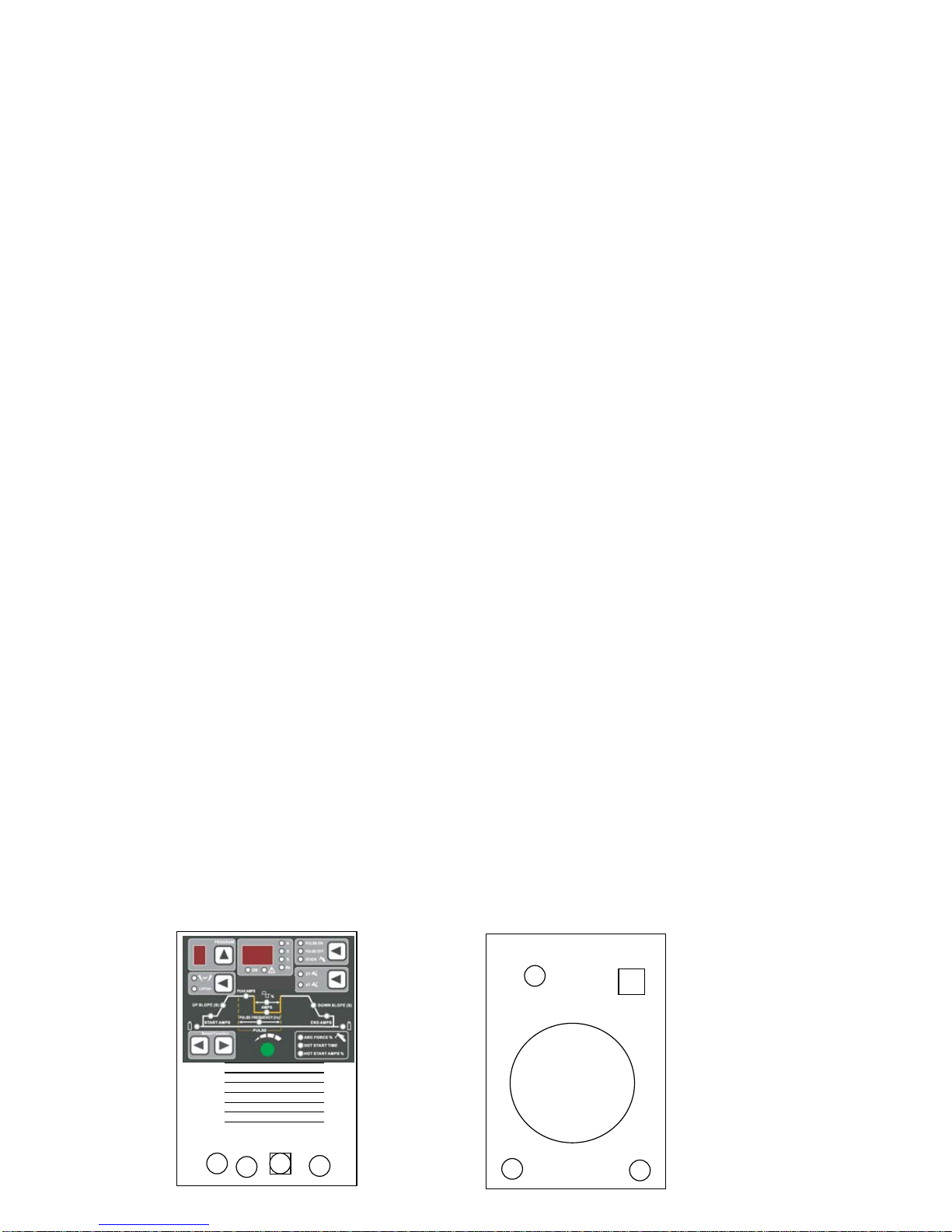

5. SKETCH OF THE PANEL FUNCTION
1. FRONT PANEL 2. BACK PANEL
20
24
21
22
7 8
4
910
1113
3
5
615
15
16
17 18 16
112
19
26
23
TIG180D

1.Memory chanel LED
2. Data Display meter
3. Parameter Select function
4.indicating light of power
5. A --
unit of current
S --unit of up & downslope time & pre& post flow time
% --
unit of peak time on
Hz--
unit ofpulse freq.
（6. indicating light of Parameter Select function Pre-flow /Start current/Up slope/Welding Amps/Pulse peak amps/
peak time on/ pulse freq./down slope/end current/post flow)
8.warning indicating light
（）9.indicating light of MMA Parameter Select function arcforce slector /Hot start time/hot start amp
10.Pulse on /pulse off/MMA slector
11.HF/LIFT slector
12. 2 steps/ 4 steps slector
13.
Data Display Adjustment Knob
（） （ ）15. output"-" Ground clamp 16. output"+" Welding holder
17.argon out 18.argon arc control (or remote control)
19.nameplate 20. power switch
21.argon inlet 22.power supply
23.safety earthing column 24.fan
12
3
4
6
13
10
11 12
8
9
5
TIG180D

6.METHOD OF THE OPERATION
6.1.ARGON ARC WELDING(TIG)
6.1.1 CLEARING BEFORE WELDING
Tungsten argon arc welding is very sensitive to surface contamination of filled metal.
Therefore before welding is carried out,grease, paint and coating on the surface,lubricant for
machining and oxidized film should be removed.
1.2 DC ARGON ARC WELDING
①
.selector "10" onto the position " pulse off " ,Connecting the gas inlet pipe to inlet "21" of the
welding.
②

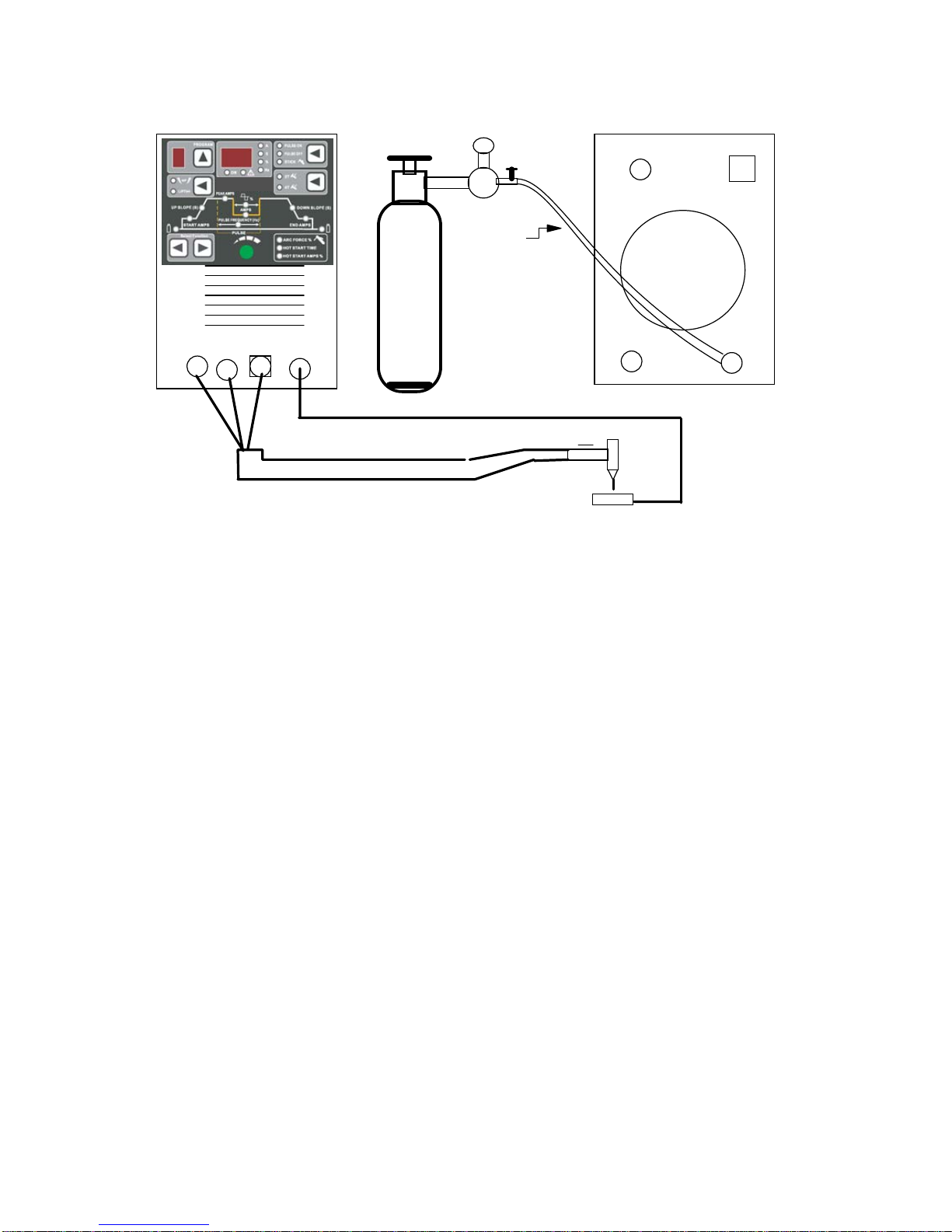

.Connecting gas inlet pipe of the welding torch to argon output of welder "17".
③
.Putting the aerial plug of the welding torch in the argon arc control socket "18".
④
.Testing gas: get the power of the welder ready and switch on the power "2", open the
argon
bottle switch and switch on the flow meter, press the torch switch, select suitable argon flow.
⑤
. .Regulating the base current knob "13". Selecting suitable welding current according to
thickness of the workpiece to be welded.. Selecting suitable current down slope time and
after flow time according to the current.
Notice 1: The current indicating meter on the front panel is used to display the preset output
current level before welding, and actual output level while welding: A lit display indicates input
power is turned on.
Notice 2:
When using
'Adjustable foot control '.regulating the current with sole. welding current
will increase gradually when you step at full tilt the 'Adjustable foot control
' with sole.
⑥
. Tungsten electrode end is 2-3mm away from the welding workpiece. Press the torch
switch,arc striking will occur.
Notice: During welding, when the" 12. 2steps/4steps switch"on "2 steps", switch of the torch
oo
workpiece
torch
21
argon
bottle
switch
flow meter
gas inlet pipe
20
24
23
227 8
4
910
1113
3
5
615
15
16
17 18 16
112
19
26
TIG180D

must be pressed and can not be released.otherwise the arc will be broken.
★
2/4 steps change
⑦.Releasing the switch of the torch, welding current will reduce gradually (time is adjustive)
and arc extinguishes.The welding torch can not be removed as soon as the arc extinguishing. Let
the protection gas cooling down for the welding seam not to be oxidized.
⑧.When the welding operation is finished, turn off argon bottle switch and cut off input power
of the welder.
1.3 PULSE ARGON ARC WELDING
①
. Selection of peak current and base current:
②
. selector "10" onto the position " pulse on ", The frequency changes between 0.5-500Hz.
③
.select peak time on ratio: It can be selected between 5%-95%.
④
.select up-slope&down slope time: It can be selected between 0-25S.
⑤
.Gas connecting and testing,are generating and are blowing off etc. are all the same as DC
are welding.
6.2.Hand welding with electrode
①
.selector "10" onto the position " MMA "
②
.Regulating Current Knob"3" to select right welding current
select empiric formula:I=40d, d is dia. of the electrode.
③
.Notice positive and negative connection during welding.
A. POSITIVE CONNECTION B . NEGATIVE CONNECTION
④
.Connecting input power for the welder, then switch on the power and current indicating
light "2" is on .
⑤
.Pay attention to rated welding current and rated duty cycle of the welder. Overload is not
allowed.
⑥
.After the welding operation is finished, let the welder be ventilated for a few minutes and
then cut off the power switch.

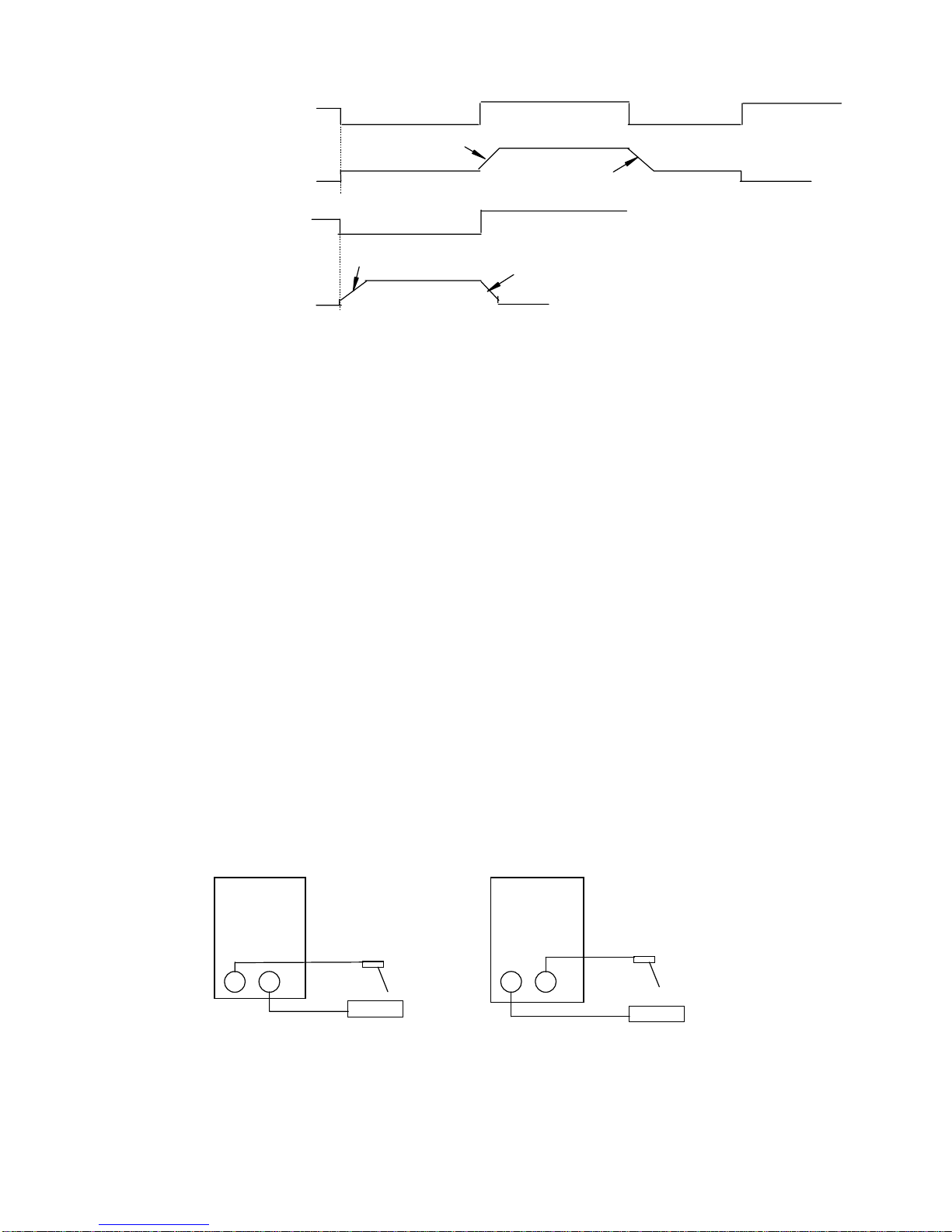

four steps
two steps
switch of torch
welding current
ON
OFF
crater current
press it one time（ON）relex it one time （OFF）
press it second time（ON）
relex it second time（OFF）
switch of torch
welding current
initial current
up-slop time
up-slop time down-slop time
down-slop time
welding current
welding current
ELECTRODE
HOLDER
WORKPIECE
ELECTRODE
HOLDER
WORKPIECE
WELDER WELDER

7.ARGON TUNGSTEN DC ARC WELDING PROCESS (only for reference)
7.1 Current carrying capacity of tungsten electrode(A)
7.2 Relation between end form of tungsten electrode and arc stability
7.3 hand argon tungsten electrode welding specification for stainless steel
8.PULSE ARGON TUNGSTEN WELDING PROCESS(only for reference)
(1) Features and application scope of the process
The pulse type argon tungsten arc welding is different from the continuous(DC) argon arc
welding. The welding current is pulsed. The wave form of the current is shown in the following
sketch.
power
polarity
thickness
of sheet
(mm)
curling butt
connection
butt connection and
filling welding wire
dia. of
welding
wire
(mm)
welding
current(A)
Argon flow
(L/min)
welding
current
argon flow
(L/min)
DC
positive
connec-
tion
0.5 10 - 30 4 15 - 35 4 1.0
0.8 15 - 40 4 35 - 40 4 1.0
1.0 35 - 60 4 40 - 70 4 1.6
1.5 45 - 80 4 - 5 50 - 85 4 - 5 1.6
2.0 75 -120 5 - 6 80 -130 5 - 6 2.0
3.0 110-140 6 - 7 120-150 6 - 7 2.0
form variety current application range electrical arc
cerium or thorium
tungsten electrode
DC
positive
narrow gap welding and
sheet welding stable
tungsten cerium or
thorium electrode
DC
positive
dia. <1mm tungsten elec-
trode continuous welding good
dia. of
tungsten
electroder
(mm)
DC positive connecting DC negative
connecting
pure
tungsten thorium tungsten cerium tungsten pure tungsten
1.0 20 - 60 15 - 80 20 - 80
1.6 40 - 100 70 - 150 50 - 160 10 - 30
2.0 60 - 150 100 - 200 100 - 200 10 - 30

Ip and Ib and their continuous time tp and tb can be regulated according to requirements of the
process. The amplitude value of electric current changes periodically with certain frequency in
case of the pulse current , molten bath will be formed in the workpiece and the molten bath
will be solidified in case of base current. The welding seam is formed by reciprocal overlaps .
Welding heat input can be controlled by regulating pulse frequency, pulse current amplitude,
size of base current, continuous time of pulse current and base current and therefore the
welding seam, size and quality of the zone influenced from heat can be controlled.
(2) Advantages and application scope of pulse argon gas tungsten arc welding
a. Precisely control the size of the bath inputting heat to workpiece to increase penetration
resistance of molten seam and preservation of bath. It is easy to obtain even fusing deepness.
This process is specially applicable to omni - bearing welding of sheet and formation to be
done with both sides through one side welding.
b. Heating and cooling of each welding point is very fast . Therefore, the process is applicable
for the workpiece with great difference of heat conductivity and thickness.
c. Pulse arc can obtain greater fusing deepness with lower heat input. Therefore, under the same
condition, the zone influenced from welding heat and deformation from welding
can be reduced. This is very important for sheet and ultra -thin sheet welding.
d. Fast cooling of the bath metal and short duration time of high temperature during welding can
reduce cracks caused to the thermo-sensitive materials during welding.
(3) Selection of welding parameters
Except for pulse current and the width time(width ratio) as well as pulse frequency,welding
parameters of pulse argon gas tungsten arc welding are same as general tungsten DC argon
arc welding. Pulse current increasing means electric arc can obtain greater penetration ability.
But too much current can cause local melting of tungsten electrode. Generally, welding
CUR.
(A)
T (s)
t1
gas sending
in advance
arcing
up-slope
welding process
down-slope
arcing off
after flow
tp tb
T
Ip
Ib
Ip--pulse current
Ib--base current
tp--width time of pulse current
width time of base current
tb--
tp+tb=T
tp
tb
--- = D pulse width

current required for DC tungsten argon arc welding or greater current is used. Arc holding current
( ie base current) influences cooling and crystallizing of the metal in the bath. The range is
determined by performance of the welding materials.When sheet is welding, smaller arc
holding current (base current) is usually used in order to reduce welding through and
deformation. When pulse width ratio (holding time of pulse current and base current) is
selected, both the heat input and features of pulse welding should be considered. Usually, it can
be selected between 30 -60%. Selection of pulse frequency(periodical change time of pulse
current) mainly depends on thickness of sheet and welding speed and operation custom of the
operator should be also considered.
9. SYSTEMATIC BLOCK DIAGRAM
10. TROUBLES AND PROBLEM SOLVING
+
-
Input
Rectifier
&Filter
Inverse
Circuit
25KHz
output
Rectifier
&Filter
AC220/230/240V
panel
H. F.
Control Circuit
Trouble Causes Problem Solving
Power lamp not light 1.No electricity input
2.Switch of welder fails. 1.Check incoming line 2.Replace the switch
Fan not rotating
1.Fan poer line is off.
2.Enclosure blocks the fan due to defor
mation
3.The fan fails.
1.Reconnect the line
2.Reform the enclosure
3.Replace the fan
Warning lamp lights 1.Over heat(yellow lamp lights)
2.Oer current(Green lamp lights) 1.Welding after cooling. 2.Input voltage too low or the machine fails.
No output of welder 1.Over crrent protection
2. Welder fails
1. Over load using
2. Maintenance in manufacturer or service center
Welding stops, and w
arning light is on
Self-protection has engaged
1.Display "801"
2.Display "802"
3.Display "804"
4.Display "805"
1.over-voltage, lower-voltage
2.over-temperature,
3.over-current,
4.torch switch always close

Output current
decreased 1. Input Voltage is low 2. Input line is too thin 2. Power line is thickened
Current can not be
regulated
1.Connecting line of the potentiometer is of
f
2.Potentiometer for current regulation fails
1.Reconnecting the line
2.Replace potentiometer
High frequency are
can not be generated
1.The switch fails
2.Interval of high frequency discharging is t
oo big
3.Distance of the torch and workpieceis too far
high frequency arc generator fails
1.Replace torch switch
2.Regulating discharging interval
to 0.8-1.0mm
3.Put torch tungsten electrode close to work
piece
4.Replace high frequency arc generator
Arc of argon welding
is broken or
tungsten electrode
is burnt
1.Argon gas flow is not regulated well
2.Tungsten electrode fails
3.Value of current does not match with dia.
of tungsten electrode
4.After flow time too short
1.Regulated well
2.Replace or sharpen
3.Select the electrode dia. and
current correctly
4.Enlarge the time
Welding torch
overheat
1.Not use the water cooling when the
current is more than 160A
2.The argon flow is the low current
1.Use water cooling
2.Enlarge the argon flow

11.ACCESSORIES:SEE PACKING LIST,PLEASE
PACKING LIST
★★★★★★★★★★★★★★★★★★★★★★★★
No.
━━━━━━━━━━━━━━━━━━━━━━━
─────────────────────────────
Certificate of quality
Name of product: PULSE TIG WELDING
Type of product: TIG180D
Packing No:
Test results of this welder fulfils_____________
_________technical requirements and its release
from the works is granted.
Inspector_________ Date
TIG180D Welding machine 1
Welding Holder 1
Ground clamp 1
TIG welding torch 1
gas inlet pipe 1
Adjustable foot control 1 optional accessory
Operation instructions 1
Certificate of quality 1

WARNING
AVISO DE
PRECAUCION
ATTENTION
WARNUNG
ATENÇÃO
Spanish
French
German
Portuguese
Japanese
Chinese
Korean
Arabic
READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE
USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.
SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS
CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.
LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A
ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.
LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HER-
STELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.
●Do not touch electrically live parts or
electrode with skin or wet clothing.
●Insulate yourself from work and
ground.
●No toque las partes o los electrodos
bajo carga con la piel o ropa moja-
da.
●Aislese del trabajo y de la tierra.
●Ne laissez ni la peau ni des vête-
ments mouillés entrer en contact
avec des pièces sous tension.
●Isolez-vous du travail et de la terre.
●Berühren Sie keine stromführenden
Teile oder Elektroden mit Ihrem
Körper oder feuchter Kleidung!
●Isolieren Sie sich von den
Elektroden und dem Erdboden!
●Não toque partes elétricas e elec-
trodos com a pele ou roupa molha-
da.
●Isole-se da peça e terra.
●Keep flammable materials away.
●Mantenga el material combustible
fuera del área de trabajo.
●Gardez à l’écart de tout matériel
inflammable.
●Entfernen Sie brennbarres Material!
●Mantenha inflamáveis bem guarda-
dos.
●Wear eye, ear and body protection.
●Protéjase los ojos, los oídos y el
cuerpo.
●Protégez vos yeux, vos oreilles et
votre corps.
●Tragen Sie Augen-, Ohren- und Kör-
perschutz!
●Use proteção para a vista, ouvido e
corpo.

WARNING
AVISO DE
PRECAUCION
ATTENTION
WARNUNG
ATENÇÃO
Spanish
French
German
Portuguese
Japanese
Chinese
Korean
Arabic
LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS
PRÁTICAS DE SEGURANÇA DO EMPREGADOR.
●Keep your head out of fumes.
●Use ventilation or exhaust to
remove fumes from breathing zone.
●Los humos fuera de la zona de res-
piración.
●Mantenga la cabeza fuera de los
humos. Utilice ventilación o
aspiración para gases.
●Gardez la tête à l’écart des fumées.
●Utilisez un ventilateur ou un aspira-
teur pour ôter les fumées des zones
de travail.
●Vermeiden Sie das Einatmen von
Schweibrauch!
●Sorgen Sie für gute Be- und
Entlüftung des Arbeitsplatzes!
●Mantenha seu rosto da fumaça.
●Use ventilação e exhaustão para
remover fumo da zona respiratória.
●Turn power off before servicing.
●Desconectar el cable de ali-
mentación de poder de la máquina
antes de iniciar cualquier servicio.
●Débranchez le courant avant l’entre-
tien.
●Strom vor Wartungsarbeiten
abschalten! (Netzstrom völlig öff-
nen; Maschine anhalten!)
●Não opere com as tampas removidas.
●Desligue a corrente antes de fazer
serviço.
●Não toque as partes elétricas nuas.
●Do not operate with panel open or
guards off.
●No operar con panel abierto o
guardas quitadas.
●N’opérez pas avec les panneaux
ouverts ou avec les dispositifs de
protection enlevés.
●Anlage nie ohne Schutzgehäuse
oder Innenschutzverkleidung in
Betrieb setzen!
●Mantenha-se afastado das partes
moventes.
●Não opere com os paineis abertos
ou guardas removidas.
