Top Gun Quad-5 User manual

Top Gun Technologies
Tomorrow's Technology Today

Top Gun Technologies
Congratulations
Your new Top Gun Quad-5 all mode 10 Meter Transceiver is engineered to provide you with top performance and
features of radios costing much more. The QUAD-5 can only bring you all this using SMT technology which guarantees
the best stability, reliability ,unprecedented quality and the latest up to date technology components. Your new All Mode
multi-functional QUAD-5 radio is a new step in personal communications providing features not found in radios costing
much more. Although many programable features are accessed through the front panel, we provide the computer to
radio programming cable for advanced programming ability. To ensure you get the most benefit from this radio, please
carefully read this manual before installing and using your QUAD-5 radio.
Go to www.TopGunTec.com for the programming software download.
Thank you for purchasing a Top Gun Technologies product.
CONTENTS
FUNCTIONS & FEATURES................................................................................................................................................................1
WARNING ...........................................................................................................................................................................................1
RESET FUNCTION (Resume Factory Default) ................................................................................................................................1
INSTALLATION..............................................................................................................................................................................2 - 4
HOW TO USE YOUR RADIO ........................................................................................................................................................4 -
-
8
FUNCTION MENU SETUP ............................................................................................................................................................8 11
OPERATING PROCEDURE TO RECEIVE........................................................................................................................................11
OPERATING PROCEDURE TO TRANSMIT.....................................................................................................................................11

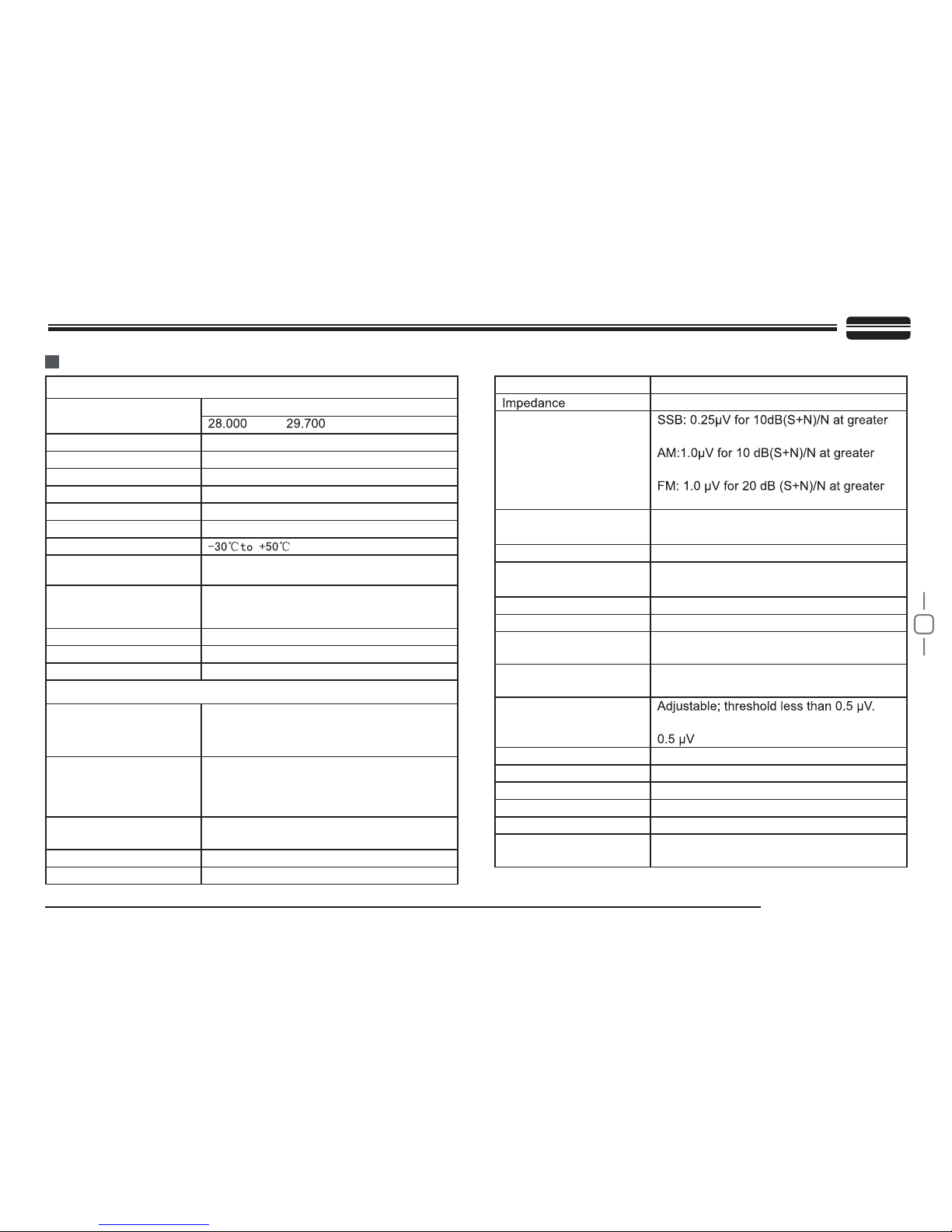

SPECIFICATIONS..............................................................................................................................................................................12

Tomorrow's Technology Today
Congratulations
Your new Top Gun Quad-5 all mode 10 Meter Transceiver is engineered to provide you with top performance and
features of radios costing much more. The QUAD-5 can only bring you all this using SMT technology which guarantees
the best stability, reliability ,unprecedented quality and the latest up to date technology components. Your new All Mode
multi-functional QUAD-5 radio is a new step in personal communications providing features not found in radios costing
much more. Although many programable features are accessed through the front panel, we provide the computer to
radio programming cable for advanced programming ability. To ensure you get the most benefit from this radio, please
carefully read this manual before installing and using your QUAD-5 radio.
Go to www.TopGunTec.com for the programming software download.
Thank you for purchasing a Top Gun Technologies product.
CONTENTS
FUNCTIONS & FEATURES................................................................................................................................................................1
WARNING ...........................................................................................................................................................................................1
RESET FUNCTION (Resume Factory Default) ................................................................................................................................1
INSTALLATION..............................................................................................................................................................................2 - 4
HOW TO USE YOUR RADIO ........................................................................................................................................................4 -
-
8
FUNCTION MENU SETUP ............................................................................................................................................................8 11
OPERATING PROCEDURE TO RECEIVE........................................................................................................................................11
OPERATING PROCEDURE TO TRANSMIT.....................................................................................................................................11
SPECIFICATIONS..............................................................................................................................................................................12

Top Gun Technologies
1
FUNCTIONS & FEATURES

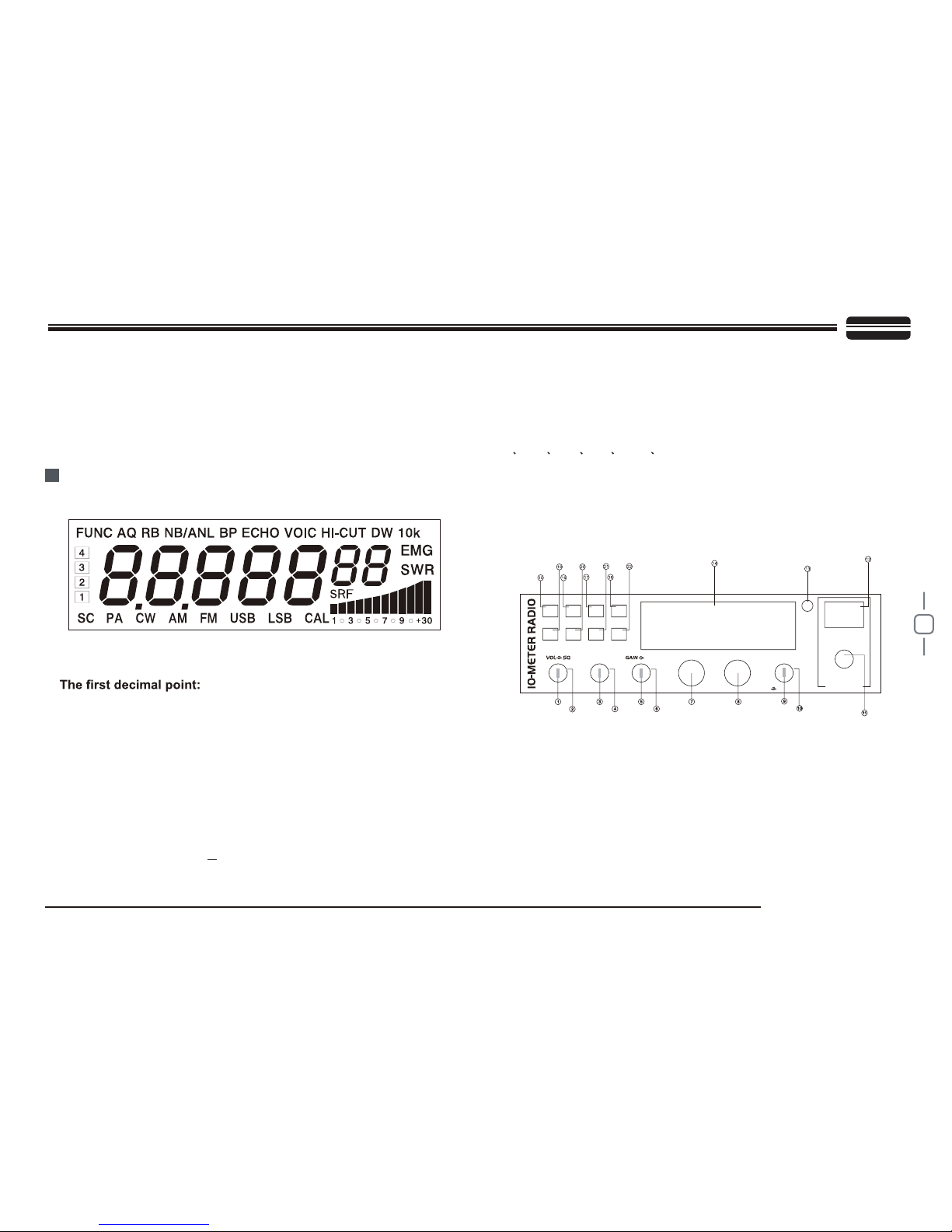

Large LCD which displays frequency and all types of information.
1.
DUAL-DIGITAL LED Readout For CHANNEL DISPLAY.
2.
USES EL (Electro-Luminecent) technology for backlight.
3.
4. All Mode: PA CW AM F M USB L SB modes
A
5. B C D E F , 6 bands in total, with 60 channels at most in
each band to be programmed.
4 Frequency Tuning Steps 10HZ, 100HZ, 1KHZ or 10KHZ.
6.
Multiple CLARIFIER Operating Modes.
7.
8. Flexible menu functions and PC programming software* to meet
varied customer demands. PC - Radio programming cable included.
ECHO Function with adjustable delay and adjustable volume controls.
9.
SQ, ASQ Function (FM and AM mode only)
10.
RF GAIN ADJUSTMENT
11.
RF PWR ADJUSTMENT
12.
SCAN FUNCTION
13.
RB FUNCTION
14.
NB/ANL FUNCTION
15.
DW DUAL-WATCH FUNCTION
16.
BEEP PROMPT
17.
+10KHZ Function
18.
19. SWR S/RF,QSXWDC Voltage display function
TOT function (Transmitter Out Timer)
20.
HI-CUT Receiver Tone FUNCTION
21.
EMG CALL
22.
SWR PROTECTION
23.
POWER SUPPLIED VOLTAGE PROTECTION
24.
Key-Lock Function
25.
WARNING
To use the radio, please connect the antenna to location "B" on the back
panel of the equipment first and then set the antenna SWR
(Standing Wave Ratio) before communicating.
Failure to do so may result in the destruction of the power
amplifier, which is considered abuse and is not covered by
the warranty.
RESET FUNCTION (Resume Factory Default)
This Radio includes a RESET FUNCTION to set all features to
the factory default settings incase some functions are changed
and you do not know how to resume normal settings. The Radio will
resume factory default once this function is activated.
How to Operate:
Step 1: Power off the radio.
Step 2: Press and hold FUNC and SCAN keys at the same time,
followed by powering on the radio.
Step3: Release the two keys when LCD displays "RES".
All former settings will be replaced by Factory Default value when
LCD displays "REND" .
WARNING: All former settings will be replaced by Factory Default
values after operating the RESET FUNCTION.
*
2
INSTALLLATON

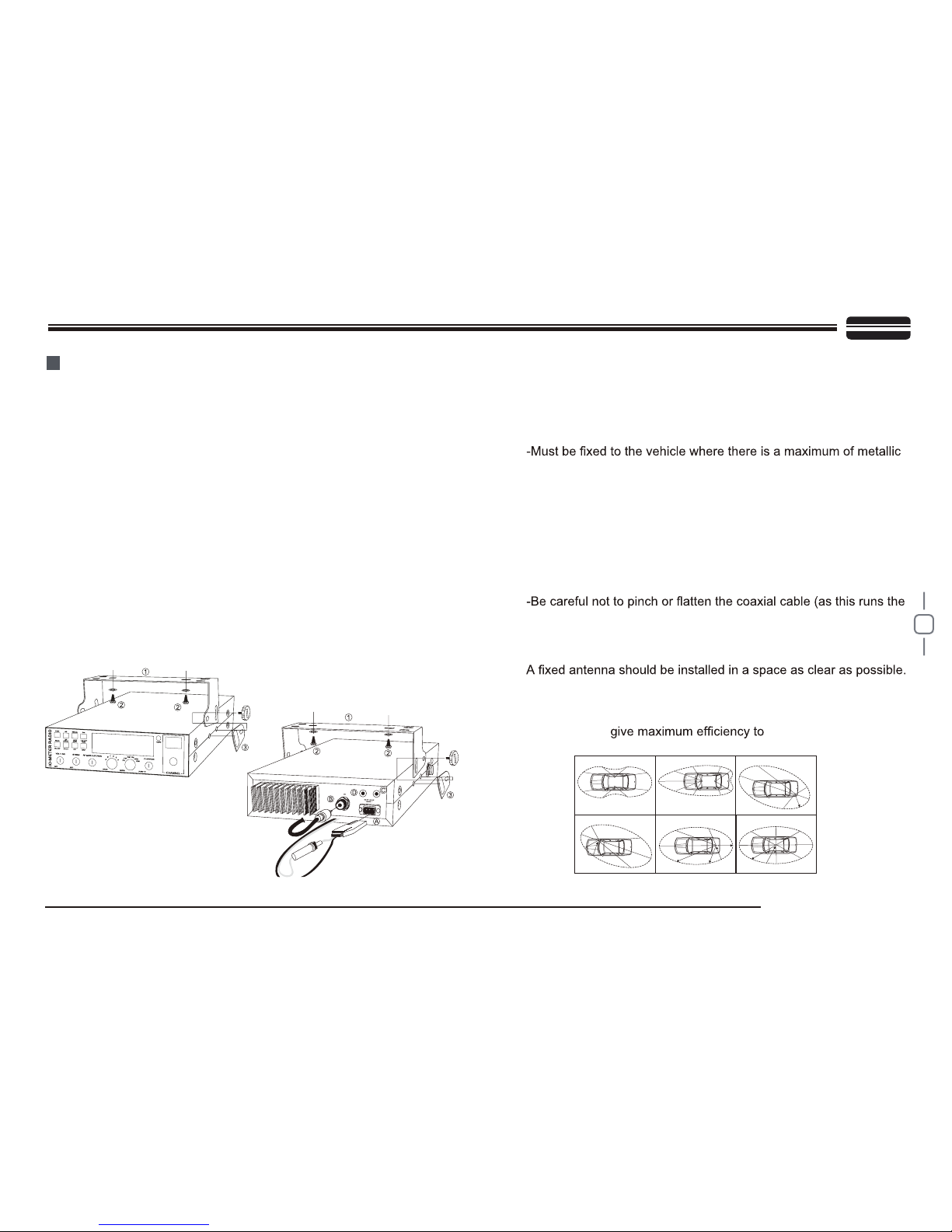

WHERE AND HOW TO MOUNT YOUR RADIO
1.
a)You should choose the most appropriate location from a simple
and practical point of view.
b)Your radio should not interfere with the driver or the passengers.
c) Remember to route wires and cables (e.g.: power, antenna,
accessory cabling) so that they do not in any way interfere with the
driving of vehicles.
d)To install yourequipment, use the supplied bracket (1)and the
self-tapping screws [2] provided(drillingdiameter 5 mm). Take
carenot to damage the vehicle’s electrical system while
drilling the dash board.
e)Do not forget to insert the rubber joints [3] between the radio and
its support as these have a shock-absorbing effect which permits
gentle orientation and tightening of the radio.
f)Choose where to place the microphone hook and remember that
the microphone cordmust stretch to the driver withoutinterfering
with the controls of the vehicle.
ANTENNA INSTALLATION
2.
a) Choosing your antenna:
For radios, the longer the antenna, the better its results. Your
dealer will help you with your choice of antenna.b) Antenna Mobile.
b) Mobile antenna:
surface (ground plane) , away from windshield mountings.
-There are two types of antenna: Pre-Set Antenna which
should be used on a good ground plane (e.g. car roof or lid of
the trunk), and Adjustable Antenna which offer a much larger
frequency range and can be used on a smaller ground plane.
For an antennawhichmust be fixed by drilling, you willneed a
good contact between the antenna and the ground plane. To obtain
this, you shouldlightly scratch the surface where the screw and
tightening star are to be placed.
risk of break down and/or short circuiting).
-Connect the antenna to location (B).
c) Fixed antenna:
If it is fixed to a mast, it willperhaps be necessary to mount it,
according to the laws in your area (you should seek
professional advice). All QUAD-5 antennas and accessories are
designed to each radio within the
range.

Tomorrow's Technology Today
2
INSTALLATION
WHERE AND HOW TO MOUNT YOUR RADIO
1.
a)You should choose the most appropriate location from a simple
and practical point of view.
b)Your radio should not interfere with the driver or the passengers.
c) Remember to route wires and cables (e.g.: power, antenna,
accessory cabling) so that they do not in any way interfere with the
driving of vehicles.
d)To install your equipment, use the supplied bracket (1) and the
self-tapping screws [2] provided (drilling diameter 5 mm). Take
care not to damage the vehicle’s electrical system while
drilling the dash board.
e)Do not forget to insert the rubber joints [3] between the radio and
its support as these have a shock-absorbing effect which permits
gentle orientation and tightening of the radio.
f)Choose where to place the microphone hook and remember that
the microphone cord must stretch to the driver without interfering
with the controls of the vehicle.
ANTENNA INSTALLATION
2.
a) Choosing your antenna:
For radios, the longer the antenna, the better its results. Your
dealer will help you with your choice of antenna.b) Antenna Mobile.
b) Mobile antenna:
surface (ground plane) , away from windshield mountings.
-There are two types of antenna: Pre-Set Antenna which
should be used on a good ground plane (e.g. car roof or lid of
the trunk), and Adjustable Antenna which offer a much larger
frequency range and can be used on a smaller ground plane.
For an antenna which must be fixed by drilling, you will need a
good contact between the antenna and the ground plane. To obtain
this, you should lightly scratch the surface where the screw and
tightening star are to be placed.
risk of break down and/or short circuiting).
-Connect the antenna to location (B).
c) Fixed antenna:
If it is fixed to a mast, it will perhaps be necessary to mount it,
according to the laws in your area (you should seek
professional advice). All QUAD-5 antennas and accessories are
designed to each radio within the
range.

Top Gun Technologies
3
WARNING: Never replace the original fuse (10A) by one of a different
value.
4. BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING
YOUR RADIO FOR THE FIRST TIME (without transmitting or
using the <<Push-To-Talk>> switch on the microphone)
ADJUSTMENT OF SWR (Standing Wave Ratio)
5.
WARNING: This must be carried out when you use your radio for
the first time (and whenever you re-position your antenna). The
adjustment must be carried out in an obstacle-free area.
Adjustment with an external SWR meter
a) To connect the SWR meter
Connect the SWR meter between the radio and the antenna as
close as possible to the radio (use a maximum of 18" cable).
b) To adjust the SWR meter
-Set the radio to channel 20@D band in FM.
-put the switch on the SWR meter to position CAL or FWD.
-Press the <<Push-To-Talk>> switch on the microphone to
transmit.
- Change the switch to position SWR (reading of the SWR level).
The reading on the meter should be as near as possible to 1. If
this is not the case, re-adjust your antenna to obtain a reading
as close as possible to 1.( An SWR reading between 1 and 1.8 is
acceptable, 1.5 or lower is most desirable).
-It will be necessary to re-calibrate the SWR meter after each
adjustment of the antenna.
HOW TO USE INTERNAL SWR METER
6.
a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the volume knob clockwise
d) Turn the squelch knob to minimum
e) Adjust the volume to a comfortable level
f) Go to channel 20@D band by using either the UP or DN key on
the microphone or the rotary knob.
Your RADIO is protected against reverse polarity. However, before
switching it on, you are advised to check all the connections. Your
equipment must be supplied with a continuous voltage of 12
volts (A). Today, most cars and trucks are negative ground. You
can check this by making sure that the negative terminal of the
battery is connected either to the engine block or to the chassis. If
this is not the case, you should consult your dealer.
WARNING: Heavy equipment generally have two batteries to
supply a voltage of 24 volts, in which case it will be necessary to
insert a 24/12 volt converter into the electrical circuit. The
following connection steps should be carried out with the power
cable disconnected from the set.
a)Check whether the battery is of 12 volts.
b)Locate the positive and negative terminals of the battery (+ is red
and – is black). Should it be necessary to lengthen the power
cable, please use the same or a larger guage of cable.
c)It is necessary to connect your radio to a permanent (+) and (-).
We advise you to connect the power cable directly to the battery
(as the connection of the cable to the wiring of the car-radio or
other parts of the electrical circuit may, in some cases, increase
the possibilities of interference).
d)Connect the red wire through a fuse (+) to the positive
terminal of the battery and the black (-) wire to the negative
terminal of the battery.
e)Connect the power cable to your radio.
POWER CONNECTION
3.
4
-Set to channel 20@D band in FM.
-Press <<push-to-talk>> button on the microphone to transmit. -The
LCD will display SWR value which should be as close as possible to
1. If this is not the case, re-adjust your antenna to obtain a SWR
value as close as possible to 1 (an SWR reading between 1 and
1.8 is acceptable, 1.5 or lower is desirable).
HOW TO USE YOUR RADIO
10K: Appears when +10KHZ function is usted.
EMG: Appears when EMG channel is used.
SWR: Appears when SWR is used.
SRF: Appears when S/RF is used.
SC: Appears when SCAN is used.
PA CW AM FM USB LSB: Indicate different operating modes.
Appears when CLARIFIER function is FINE operation.
1.
Appears when CLARIFIER FUNCTION is COARSE operation or
2.
RT operation.
Appears when CLARIFIER FUNCTION is transmitting frequency
3.
regulated.
<FRONT PANEL>
OFF/ON/VOLUME(Inner Dual Concentric)
1.
Turn clockwise to switch on the radio and set desired volume
level. Under normal operating conditions, the VOLUME control is
used to adjust the output volume obtained either by the transceiver
speaker or the external speaker or the external PA speaker, if used.
SQUELCH (Outer Dual Concentric)
2.
This control is used to cut off or eliminate receiver background noise in
the absence of an incoming signal. For maximum receiver sensitivity,
<LCD Display>
7 digits: Display frequency and any other information.
Indicating bars: Indicate RX, RSSI, PA, PWR, SWR.
Appears when current channel is edited with
SCAN DEL.
FUNC:Appears after pressing FUNC key.
AQ:Appears when ASQ function is started (only for AM/FM).
RB:Appears when Roger Beep function is started (enabled).
NB/ANL: Appears when NB/ANL function is started (enabled).
BP:Appears when BP function is started (enabled).
ECHO: Appears when ECHO function is started (enabled).
VOIC: Appears when VOIC function is started. Only available in
the VHF version of this radio.
HI-CUT:Appears when HI CUT receiver tone function is used.
DW: Appears when DW (Dual Watch) function is used.
PUSH
MODE
BAND
TX/RX
CLARIFIER
PA
AM
CW F M USB
LSB
F
E
D
C
B
A
FUNCRB.NB/ANLDW
SCAN BP
+10KHZLOCK
SWR LCDOFF EMG
SC.LIST HI-CUTTOTS/RF
OFF OFF
E-TONE RF FPWR
CHANNEL
RF

Tomorrow's Technology Today
3
WARNING: Never replace the original fuse (10A) by one of a different
value.
4. BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING
YOUR RADIO FOR THE FIRST TIME (without transmitting or
using the <<Push-To-Talk>> switch on the microphone)
ADJUSTMENT OF SWR (Standing Wave Ratio)
5.
WARNING: This must be carried out when you use your radio for
the first time (and whenever you re-position your antenna). The
adjustment must be carried out in an obstacle-free area.
Adjustment with an external SWR meter
a) To connect the SWR meter
Connect the SWR meter between the radio and the antenna as
close as possible to the radio (use a maximum of 18" cable).
b) To adjust the SWR meter
-Set the radio to channel 20@D band in FM.
-put the switch on the SWR meter to position CAL or FWD.
-Press the <<Push-To-Talk>> switch on the microphone to
transmit.
- Change the switch to position SWR (reading of the SWR level).
The reading on the meter should be as near as possible to 1. If
this is not the case, re-adjust your antenna to obtain a reading
as close as possible to 1.( An SWR reading between 1 and 1.8 is
acceptable, 1.5 or lower is most desirable).
-It will be necessary to re-calibrate the SWR meter after each
adjustment of the antenna.
HOW TO USE INTERNAL SWR METER
6.
a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the volume knob clockwise
d) Turn the squelch knob to minimum
e) Adjust the volume to a comfortable level
f) Go to channel 20@D band by using either the UP or DN key on
the microphone or the rotary knob.
Your RADIO is protected against reverse polarity. However, before
switching it on, you are advised to check all the connections. Your
equipment must be supplied with a continuous voltage of 12
volts (A). Today, most cars and trucks are negative ground. You
can check this by making sure that the negative terminal of the
battery is connected either to the engine block or to the chassis. If
this is not the case, you should consult your dealer.
WARNING: Heavy equipment generally have two batteries to
supply a voltage of 24 volts, in which case it will be necessary to
insert a 24/12 volt converter into the electrical circuit. The
following connection steps should be carried out with the power
cable disconnected from the set.
a)Check whether the battery is of 12 volts.
b)Locate the positive and negative terminals of the battery (+ is red
and – is black). Should it be necessary to lengthen the power
cable, please use the same or a larger guage of cable.
c)It is necessary to connect your radio to a permanent (+) and (-).
We advise you to connect the power cable directly to the battery
(as the connection of the cable to the wiring of the car-radio or
other parts of the electrical circuit may, in some cases, increase
the possibilities of interference).
d)Connect the red wire through a fuse (+) to the positive
terminal of the battery and the black (-) wire to the negative
terminal of the battery.
e)Connect the power cable to your radio.
POWER CONNECTION
3.
4
-Set to channel 20@D band in FM.
-Press <<push-to-talk>> button on the microphone to transmit. -The
LCD will display SWR value which should be as close as possible to
1. If this is not the case, re-adjust your antenna to obtain a SWR
value as close as possible to 1 (an SWR reading between 1 and
1.8 is acceptable, 1.5 or lower is desirable).
HOW TO USE YOUR RADIO
10K: Appears when +10KHZ function is usted.
EMG: Appears when EMG channel is used.
SWR: Appears when SWR is used.
SRF: Appears when S/RF is used.
SC: Appears when SCAN is used.
PA CW AM FM USB LSB: Indicate different operating modes.
Appears when CLARIFIER function is FINE operation.
1.
Appears when CLARIFIER FUNCTION is COARSE operation or
2.
RT operation.
Appears when CLARIFIER FUNCTION is transmitting frequency
3.
regulated.
<FRONT PANEL>
OFF/ON/VOLUME(Inner Dual Concentric)
1.
Turn clockwise to switch on the radio and set desired volume
level. Under normal operating conditions, the VOLUME control is
used to adjust the output volume obtained either by the transceiver
speaker or the external speaker or the external PA speaker, if used.
SQUELCH (Outer Dual Concentric)
2.
This control is used to cut off or eliminate receiver background noise in
the absence of an incoming signal. For maximum receiver sensitivity,
<LCD Display>
7 digits: Display frequency and any other information.
Indicating bars: Indicate RX, RSSI, PA, PWR, SWR.
Appears when current channel is edited with
SCAN DEL.
FUNC:Appears after pressing FUNC key.
AQ:Appears when ASQ function is started (only for AM/FM).
RB:Appears when Roger Beep function is started (enabled).
NB/ANL: Appears when NB/ANL function is started (enabled).
BP:Appears when BP function is started (enabled).
ECHO: Appears when ECHO function is started (enabled).
VOIC: Appears when VOIC function is started. Only available in
the VHF version of this radio.
HI-CUT:Appears when HI CUT receiver tone function is used.
DW: Appears when DW (Dual Watch) function is used.
PUSH
MODE
BAND
TX/RX
CLARIFIER
PA
AM
CW F M USB
LSB
F
E
D
C
B
A
FUNCRB.NB/ANLDW
SCAN BP
+10KHZLOCK
SWR LCDOFF EMG
SC.LIST HI-CUTTOTS/RF
OFF OFF
E-TONE RF FPWR
CHANNEL
RF

Top Gun Technologies
5
RF POWER (Outer Dual Concentric)
6.
Adjustment of the output power is for AM and FM mode only. Reducing
the power is allowed when communicating with a person who has no
RF GAIN. The normal position of this function is set to maximum, fully
clockwise.
BAND SELECTOR
7.
Rotate this switch to select A, B, C, D, E, F band of operation
MODE(PA/CW/AM/FM/USB/LSB)
8.
This switch allows selecting the modulation mode PA, CW, AM, FM,
LSB or USB. Your modulation mode has to correspond with the one
of your correspondent. The mode selector changes the mode of
operation of both transmitter and receiver simultaneously.
Frequency Modulation/FM: for nearby communications on a flat
Amplitude Modulation/AM:
obstacles in distance.
Upper and Lower Side Band/USB-LSB:Used for long distance
communications (according to the propagation conditions).
This is frequency tuning knob which can be set as different modes
PUSH
10.
This is PUSH Key which can be set as different modes (refer to PSH
CHANNEL SELECTOR
11.
Rotate this switch to select any desired channelThe selected
channel appears on the LED directly above the channel selector
knob.
CHANNEL INDICATOR
12.
Numbered LED indicates the selected channel to operate on.
RECEIVER/TRANSMIT INDICATOR
13.
When it is receiving, the LED will be green. The LED will be red when
it is transmitting.
LCD DISPLAY
14.
Display frequency, all of information and icons.
FUNC
15.
This is function key. Press and hold this key for 2 seconds to enter
into Functions Menu Setup (refer to Functions Menu for more details).
Press FUNC key and other individual key to realize the second
functions silk-screened under the button. For example, press FUNC
key followed by pressing RB key to realize the BP function. Press
FUNC key followed by DW to realize the LCD OFF function.
Detail operations are as llows:
Press FUNC key, "FUNC" icon will appear on LCD display. Release
This is used to control intervals of echo sound
RF GAIN ( Inner Dual Concentric)
5.
This switch is for adjusting sensitivity during reception. For long
distance communications RF GAIN should be set to maximum. RF
GAIN can be reduced to avoid distortion, when your correspondent is
close by and when he does not have RF POWER. The normal setting
of this function is on maximum (fully clockwise).
CLARIFIER
9.
it is desir that the control be adjusted only to the point where
the receiver background noise or ambient background noise is
eliminated. Turn fully clockwise then slowly clockwise until
the receiver noise disappears. Any signal to be received must now
be slightly stronger than the average received noise. Further
clockwise rotation will increase the threshold level which a signal
must overcome in order to be heard. Only strong signals will be
heard at a maximum clockwise setting.
ECHO (Inner Dual Concentric)
3.
This is used to control echo effect
TONE (Outer Dual Concentric)
4.

Tomorrow's Technology Today
6
the FUNC key, and then press other keys to realize the second
functions silk-screened under the button. "FUNC+ Keypad name" is
to be used in the following operating instruction.
ROGER BEEP OR BEEP FUNCTION
16.
RB
Press "RB" key to enable "ROGER BEEP" function with "RB" icon
appearing on LCD display. Press the key repeatedly to switch on/off
the function.
When RB function is enabled, the radio will automatically transmit the
audio signal at the end of your transmission. The listener can note
easily that your transmission is over through the signal.
FUNC+RB
Press FUNC+RB to realize BP Function. It is a prompting function with
"BP" icon appearing on LCD display. Speaker will emit a BEEP for
prompting when press any key. press FUNC+RB repeatedly to switch
on/off the function.
NB/ANL or LOCK
17.
Press NB/ANL key to enable NB/ANL function with "NB/ANL" icon
appearing on the LCD display. Press the key repeatedly to switch on/
off the function.
Noise Blanker/Automatic Noise Limiter. These filters allow
reducing background noises and some reception interferences.
FUNC+NB/ANL
Press FUNC+NB/ANL to realize the Keyboard Lock function. When
this function is enabled, all keys are invalid except PTT, BAND
SWITCH, and MODE SWITCH. When pressing any key except PTT,
BAND SWITCH, MODE SWITCH, the LOCK icon will display on the
LCD. This indicates that the keyboard has been locked. Press
FUNC+NB/ANL repeatedly to switch on/off the function.
DW or LCD OFF
18.
The DW (dual watch) function allows automatic alternate
monitoring of two channels. Refer to the following procedures to
enable this function.
To enable the DW function, first turn the SQ control clockwise
until the background noise is cut out. Select the first channel to be
monitored by using the CHANNEL SELECTOR knob or the channel
selector keys on the microphone. Press the DW key and the DW icon
to select second channel to be monitored. Finally, press the DW key
again and the two monitoring channels will be alternately indicated on
the LCD. Radio will automatically start monitoring (scanning) the two
channels. When a signal is detected on one of the channels, scanning
stops and it is possible to listen the communications on that channel.
Press PTT to transmit on this channel. If there is no transmission
or detected signal on that channel within 5 seconds(time to resume
scanning can be programmed by PC software), radio will resume
scanning. When the DW function is enabled, the DW icon appears on
the LCD. To exit the DW function, press the DW key or the PTT key.
The scan Type above is the SQ mode under SCA Selection in
Function Menu. If TI mode is selected and valid signal is detected, the
radio will still start scanning when it is time to resume scanning,
whether there is signal or not in current channel.
F UNC+DW
When this function is enabled, LCD display will be switched
OFF(LCD OFF).
Repeat this operation to switch ON/ OFF the function.
SCAN OR Scan.list
19.
SCAN
Automatic Scanning of busy channels.
Press the SCAN key to enable the SCAN function. Before enabling the
un
nnoise is cut out. Then press the SCAN key, radio will
automatically scan all channels continuously in the scan list and the
SC icon will appear on the LCD. When a signal is detected on a
channel, scanning stops on this channel.

Top Gun Technologies
7
You will receive and also, can transmit on this channel by pressing
PTT key. If there is no transmission or detected signal on that
channel within 5 seconds (time to resume scanning can be
programmed by PC software), radio will start scanning again. To
exit the SCAN function, press the SCAN key or the PTT key.
The Scan Type above is the SQ mode under SCA Selection in
Function Menu. If TI mode is selected and valid signal is detected, the
radio will still start scanning when it is time to resume scanning,
whether there is signal or not in current channel.
FUNC+SCAN
SC.LIST (Scan ADD or Delete). Press FUNC+SCAN to delete current
channel from scan list. The first digit on LCD will display. When
Scan function is enabled, the radio will skip the deleted channel.
Repeat this operation to Add or Delete channels from scan list.
20. +10KHz or HI-CUT
+ 10KHz Press this key to shift frequency up by 10KHz.
When pressing this key, 10KHz will appear on LCD and frequency
of channels is shifted up by 10 KHz. Repeat this operation to switch
ON/OFF this function.
F UNC+ +10KHz
Press FUNC+10KHz to realize HI-CUT function. Once this function is
enabled, the radio will cut out high frequency interference. Its use
depends on reception conditions.
When this function is enabled, "HI-CUT" will appear on LCD.Repeat
this operation to switch ON/OFF the function
SWR OR TOT
21.
SWR
When pressing this key, “SWR” icon will appear on the LCD. When
transmitting, SRF bars indicate SWR value other than PA or PWR
value. One bar displaying on the LCD indicates that SWR value is
1.0. Each additional bar indicates every 0.1 added value. Repeat this
operation to switch ON/OFF the function.
FUNC+ SWR
When pressing this key, TOT ON or TOT OFF will display on the
LCD for 2 seconds. Repeat this operation to switch ON/OFF the
function. When ON appears on the LCD, users can press PTT
to transmit. Then, the radio will time the transmitting duration.
Once the duration is beyond the set TOT time (programmable),
the radio will emit sound prompt and stop transmitting and back
to receiving state automatically. This function aims to protect the
radio against power transistor damage from superheating caused by
long transmission or microphone malfunction.
<Rear Panel>
Accept13.8V DC power cable with built-in fuse (10 Amp) to be
connected.
POWER
23.
EMG OR S/RF
22.
EMG realizes Emergency Channel Call. When emergent situation
happens, the radio will switch to the channel set in advance to
communicate immediately. Then the "EMG" icon will display on the
LCD . Press EMG key again to return to previous channel.
F UNC + S/RF
S/RF is the switch of TX's or RX's S/RF indicating bar. When this
function is enabled, "SRF"icon will display on the LCD. Repeat the
this operation to switch ON/OFF the function.

Tomorrow's Technology Today
8
EXT SP or PA SP
24.
EXT SP
Accept 4 to 8 ohm, 4 watt or higher external speaker to be
connected. When external speaker is connected to this jack, the
built-in speaker is automatically disconnected.
PA SP
It is used to connect a PA speaker. Before operating PA, you must
ANTENNA
25.
Accept 50 ohm coaxial cable with a type PL-259 plug to be connected.
CW KEY
26.
<PRESS—TO—TALK—MICROPHONE>
The receiver and transmitter are controlled by the Press-To-Talk
switch on the microphone.
Press the switch to transmit and then release it to receive. When
transmitting, hold the microphone two inches from the mouth and
speak clearly in a normal “voice”. The radios come complete with low-
impedance (150 ohm) dynamic microphone.
PTT
1.
Transmitting key, Press to speak and release to receive a message.
UP/DN
2.
These keys allow increasing or decreasing a channel number.
AQ
3.
When the radio is receiving a call, press this key to enable ASQ
(Automatic Squelch Control) function. Then, "AQ" will appear on the
LCD. Press this key repeatedly to switch on/off the function.
When the radio is receiving a call, press and hold this key for
over 2 seconds to enable signal monitoring function. At the moment,
whether the radio receive signal or not, the radio will detect current
channel to check whether current channel has weak signal.
Release AQ key to exit this function.
Pressing PTT and AQ key at the same time, the radio will
emit a single-tone. This tone is to help and remind two sides of
communication to adjust frequency. The frequency of this tone is
adjustable.
ASQ (Automatic Squelch Control)
ASQ control setting.It has same function with AQ button on the
microphone.
This jack is for Morse code operation; To operate, connect a CW
key to this jack and place the MODE switch in the CW position (LCD
display icon "CW")
MICROPHONE
4.
The radios come complete with low-impedance (150 ohm) dynamic
microphone.
FUNCTION MENU SETUP
The initial functions and parameters can be changed via the following
settings and operations. Please read the following instruction before
making any desired amendments.
To enter Function Menu: With the radio on, press and hold FUNC key
for more than 2seconds, and then release the FUNC key to enter into
the Function Menu Setup. Under this condition, press FUNC key to
select different functions menu, use the CHANNEL SELECTOR
switch to change the data of Function Menu.

Top Gun Technologies
9
(1) ICG
This menu refers to MIC GAIN function.
Users can set the value by software. The
higher value goes to higher sensitivity.
64 in total (OFF,0-63).
Default: 31
(2) NOG
It refers to TX MON function. Users can set the volume of the
TX MON by software. ouder TX MON. 64
in total (OFF,0-63)
Default: 15
(3) CSU
This menu is to adjust the side of CW SIDE VOL CW. 64 grades
in total. Default: 31.
(4) BEU
This menu is to set the volume of prompt . 64 grades
in total (OFF,0-63).
Default: 31
(5) STP (Frequency Tuning Step)
This menu is to set tuning step when adjusting frequency by
CLARIFIER knob
Options: 10HZ 100HZ 1KHZ 10KHZ
Default: 10HZ
(6) CLA (CLARIFIER knob functions setting)
This menu is to set functions turned by CLARIFIER knob. Options are
as follows:
FIN: Fine regulation. When this option is selected, users can fine
tune the receiving frequency by rotating the CLARIFIER
knob. In tuning process, the transmitting frequency can not be
regulated by the knob and “1” icon will appear on the LCD.
RT: When this option is selected, users can regulate the frequency of
both transmitting and receiving. In tuning process, “2” icon will
appear on the LCD.
T: When this option is selected, users can only regulate the
transmitting frequency. In tuning process, “3” icon will appear on
the LCD.
Default: RT
(7) PUS (PUSH Function Setting)
This menu is to set functions realized via PUSH knob. Options are as
follows:
COA: When this option is selected, press PUSH and turn CLARIFIER
knob to COARSE function.
When pressing this key, "2" icon will appear on far left of the
LCD. Under this condition, rotate the CLARIFIER knob to change
frequency of both transmitting and receiving.
T: When this option is selected, press PUSH and turn CLARIFIER
knob to change transmitting frequency. When pressing this key,
"3" icon will display
rotate the CLARIFIER knob to change the transmitting frequency
only.
on the far left of the LCD. Under this condition,

Tomorrow's Technology Today
10
knob to change transmitting frequency. When pressing this key
,
"3" icon will display on the far left of the LCD. Under this condition,
rotate the CLARIFIER knob to change the transmitting frequency
only.
STP:When this option is selected, PUSH function will change
Frequency Tuning Step of CLARIFIER knob. Press this key, then
the corresponding frequency bit will blink.
Default: STP
(8) ASQ (Automatic Squelch Control)
ASQ control setting. It has same function with AQ button on the
microphone.
Default: OFF
(9)TOT (Transmitting Time-Out-Timer)
This menu is to set transmitting TOT time. When pressing PTT key
at a single time longer than the due time setup in advance, the radio
wstop transmitting automatically and loudspeaker will emit
prompt till PTT key is released. Then, the radio can transmit again.
Options: 30-600s Step: 30s
Default: 180s
(10) SC Scanning Type Selection
This menu is to set Scan Type. Options are as follows:
SQ: When SQ is selected, scan stop when a valid signal
is detected. The radio resume scanning after signal
disappears for 5 s .
TI: When TI is selected, scan stop when a valid signal is
detected. The radio resume scanning 5 seconds later,
whether signal disappears or not.
Default: SQ
(11)TSR (Transmitting SWR Protection)
This menu is to choose whether to enable Transmitting SWR
Protection function or not.
ON: When ON is selected, the radio will detect the SWR of antenna.
Once the SWR is beyond the SWR set in advance, the radio
will prohibit transmitting automatically and loudspeaker will
emit prompt. Then, “HI S” icon will display on the LCD
to remind you that the antenna SWR is too high or antenna
OFF: When OFF is selected, SWR Protection function is disabled.
NOTE: To protect the radio from long transmission under high SWR,
the radio w automatically start SWR Protection once the
SWR Value is higher than 20:1.
Default: ON (SWR=<10:1)
(12) TDC (Power Supplied Voltage Protection)
STP:When this option is selected, PUSH function will change
Frequency Tuning Step of CLARIFIER knob. Press this key, then
the corresponding frequency bit will blink.
Default: STP

Top Gun Technologies
11
OPERATING PROCEDURE TO RECEIVE
Be sure that power supply, microphone and antenna are
1.
connected to the proper connectors before going to the next
step.
Turn the radio on by tuning VOLUME control clockwise.
2.
Rotate the VOLUME knob to set a comfortable listening level.
3.
SET the MODE switch to the desired mode.
4.
Set the CHANNEL selector switch to select the desired channel.
5.
Set the RF gain control full clockwise to maximum RF gain.
6.
Listen to the background noise from the speaker. Turn the
7.
SQUELCH control clockwise slowly until the noise disappears (no
sound should be present). Leave the control at this setting. The
Squelch is now properly adjusted. The receiver will remain quiet
until a signal is actually received. Do not advance the control too
far, or some of the weaker signals will not be heard.
OPERATING PROCEDURE TO TRANSMIT
Select the desired channel of transmission.
1.
Press the Push-To-Talk switch on the microphone and speak in a
2.
normal voice.

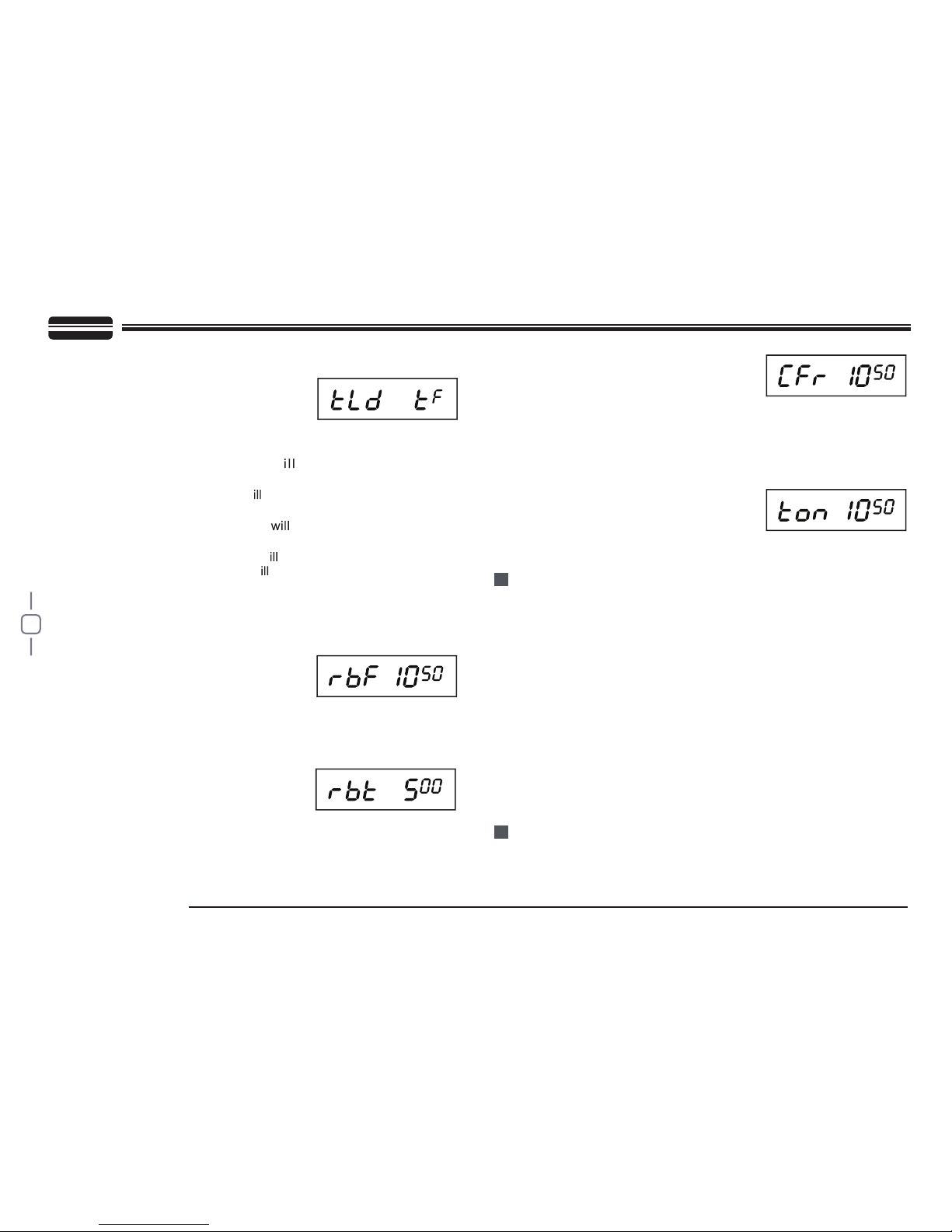

(13) TLD (Content displayed on the LCD when transmitting)
This menu is to set the content displayed on the LCD when
transmitting.
TF: Wh en TF i s se l e cted,L C D w di s p la y t ran s m i tt i n g
frequency when transmitting.
SR: When SR is selected, LCD w display SWR value of antenna
when transmitting, for example: "1.2" on the LCD.
BAT: When BAT is selected, LCD display Supplied Voltage
when transmitting, for example: "13.8DC" on the LCD.
TOT: When TOT is selected, LCD w display TOT remaining time
when transmitting. And TOT w count down till remaining time is
0, for example: "170" displayed on the LCD display.
Default: TF
(14) RBF (ROGER BEEP Frequency Setting)
This menu is to select frequency of Roger Beep. The frequency range
is 300Hz—3KHz. The shift step is 10Hz.
Default: 1050HZ
(15) RBT (ROGER BEEP Holding Time)
This menu is to select Roger Beep Holding Time from 50ms—1000ms.
The shift step is 50ms.
Default: 500ms
(16) CFR (CW Side Tone Frequency)
This menu is to select CW Side Tone Frequency from 300HZ-3KHZ,
the shift step is 10HZ.
Default: 1050HZ
(17) TON (Transmitting Single-Tone Frequency)
This menu is to select Transmitting Single-
Tone Frequency from 300HZ-3KHZ. The
shift step is 10HZ.
Default: 1050HZ

Tomorrow's Technology Today
12
SPECIFICATIONS
Frequency Range
Frequency Band
Channel
Frequency Control
Frequency Step
General
28.000MHz—29.700MHz
MHz— MHz (Programmable)
A/B/C/D/E/F
60 channels (programmable) in each band
Phase-Locked-Loop Synthesizer
10Hz 100Hz 1KHz 10KHz
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Temperature Range
Microphone Plug-in dynamic; with push-to-talk /UP/DN/
ASQ switch and coiled cord
Input Voltage
DC 13.8V normal, 15.9V max; 11.7V
min Transmit: AM full mod 5A Receiver:
Squelched 0.6A SSB 30W PEP output 9A
Size (11*9.8*2.4 inches)28*25*6CM
Weight (6.2 pounds)2.8KG
Antenna Connector UHF,SO239
TRANSMITTER
Power Output
AM/CW:1-12W(adjustable)
FM:2-40W(adjustable)
USB/LSB:0-30W(adjustable)
Modulation
High and low level class B
Amplitude Modulation: AM
Varied Capacitance Frequency Modulation:
FM
Inter-modulation
Distortion
SSB: 3rd order, more than -25dB; 5th
order, more than -35dB
SSB Carrier Suppression 55dB
Unwanted Sideband 50dB
AM and FM: 450 to 2500HzFrequency Response
50ohms, unbalanced
Sensitivity
than 1/2-watt of audio output.
than 1/2watt of audio output.
than 1/2 watt of audio output.
Selectivity AM/FM:6dB@3KHz,50dB @9KHz
SSB: 6 [email protected],60dB @3.3KHz
Image Rejection More than 65dB
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
SSB: 10.695 MHz
Adjacent-Channel 60dB AM/FM &70 dB SSB
Rejection
RF Gain Control 45 dB adjustable for optimum signal
reception
Automatic Gain
Control(AGC)
Less than 10 dB change in audio output
for inputs from 10 to 100,000 microvolt.
Squelch Automatic Squelch Control(only AM/FM)
ANL Switchable
Noise Blanker RF type, effective on AM/FM and SSB
Audio Output Power 4 watts into 8 ohms
Frequency Response 300 to 2800 Hz
Built-in Speaker 8 ohms, round.
External Speaker(Not
Supplied)
8 ohms; disables internal speaker when
connected.

TG1.0-7/04
Top Gun Technologies Co.
www.TopGunTec.com
Top Gun Technologies
Tomorrow's Technology Today
www.TopGunTec.com
