Analog Devices ADRV9029 Manual

SW ver 5.0.0.68
ADRV9029 DPD
GUI setup
18 February 2022 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
1

DPD setup

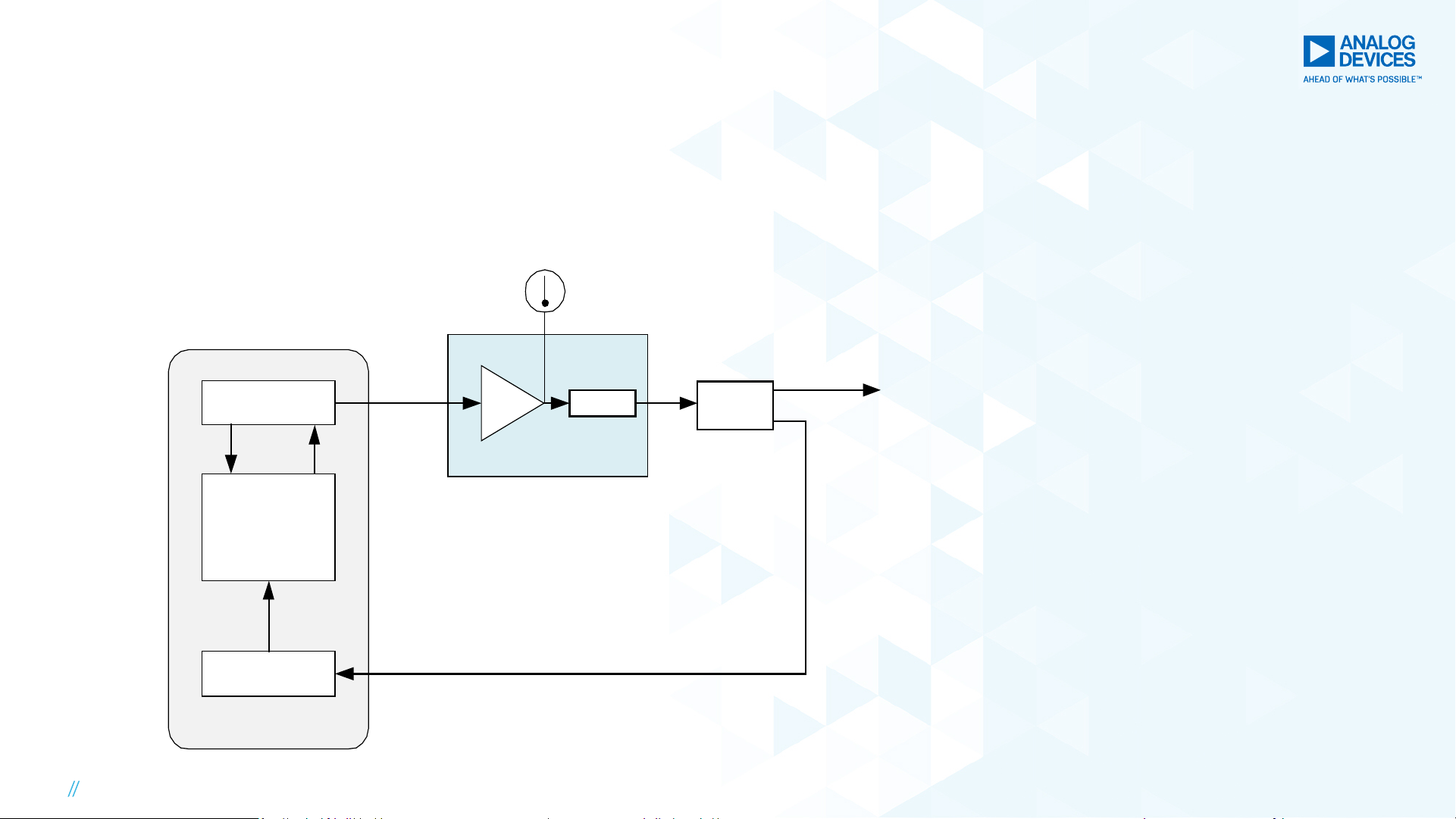

►Typical DPD set up is as shown below.
►The ORX power should be around -20 to -25 dBm , You can add attenuators after Splitter to get the
required level as needed.
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
218 February 2022
TX1
ORX1
ADRV9010 DPD
PA
ATTN SPLITTER
DPD Output
Tx DPD / Ext LOL
ADRV9010 EVAL
Power Meter

GUI setup

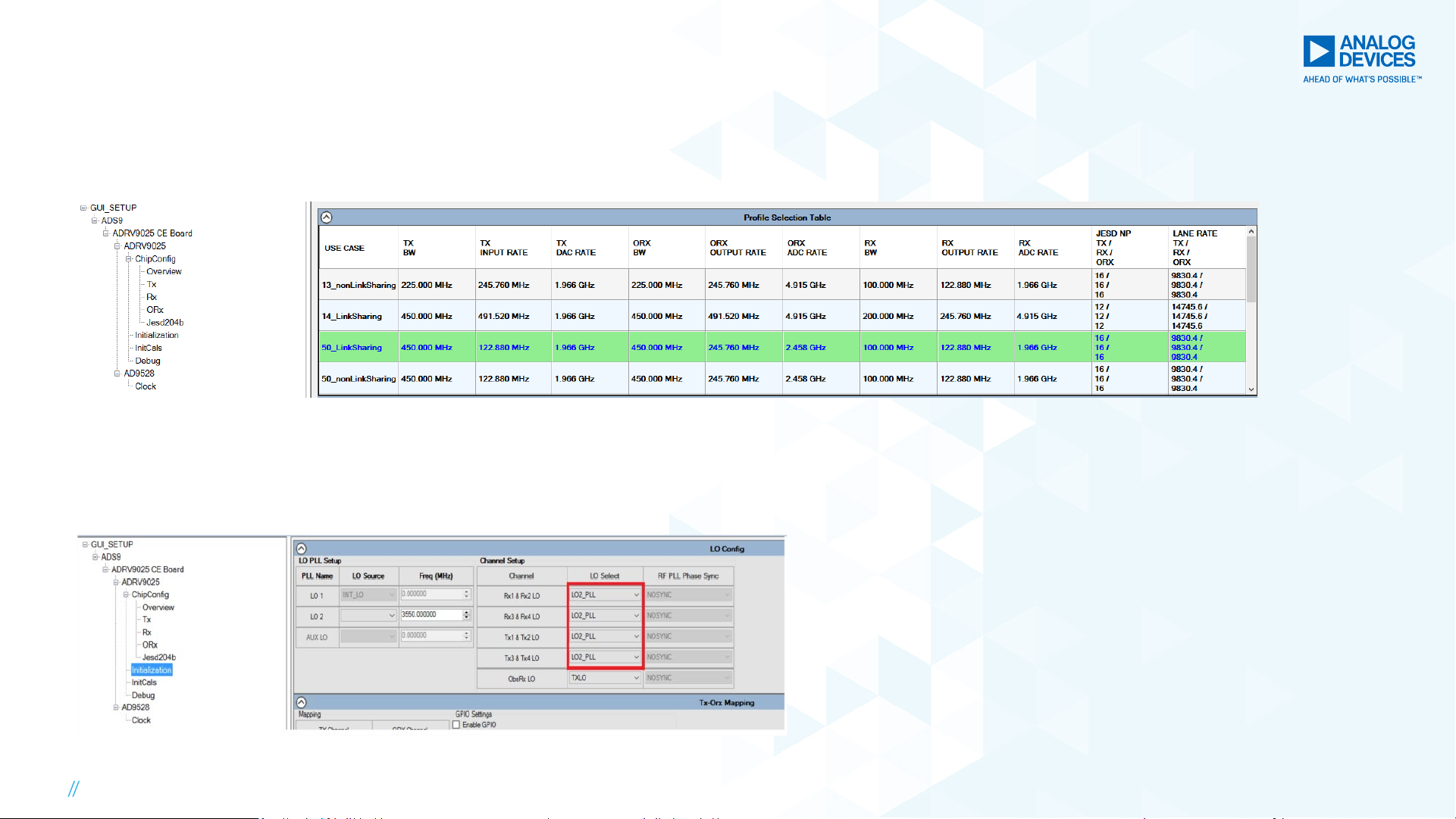

►Use use cases with a DPD Actuator rate of 491.52MSPS. for lower sampling rate like 122.88MHz ,
make sure profile uses DPD HB1 and DPD HB2 filters.
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
318 February 2022
►While programming the device, ensure that all Tx, Rx channels are running off same LO. It is
recommended to turn off the PA during the course of programming to avoid any damage from high
amplitude data transmitted during intial calibration(For TxQEC etc.).

GUI setup
►Program the chip with DPD use case. (For ex. UC50 NLS)
►Make sure Tx-ORx mapping is correct and ORx LO is configured as TX LO in GUI.
►From Transmit tab send signal and check in ORX tab whether signal is reaching ORX with sufficient
levels (-20 to -25 dBm).

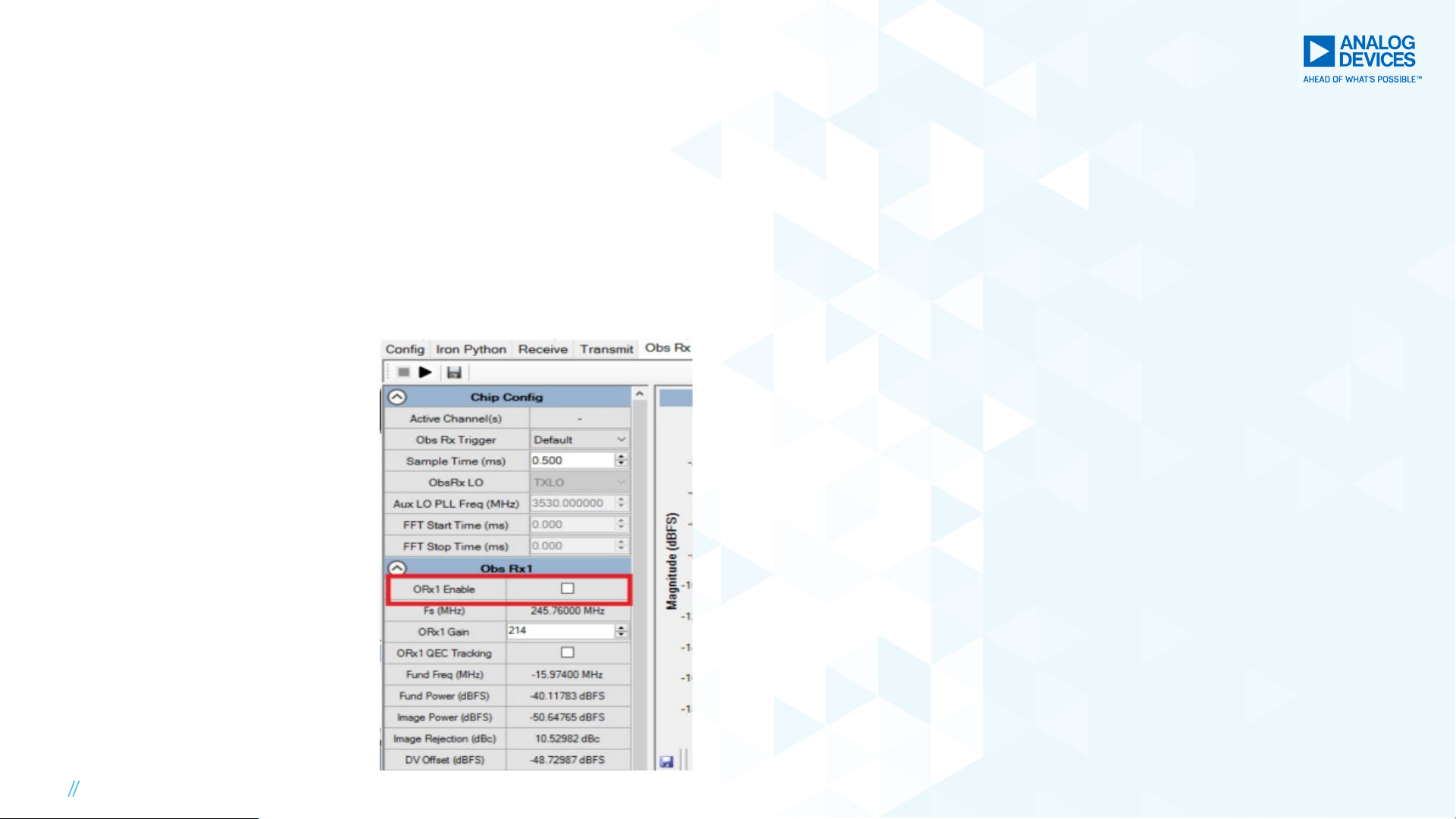

►Uncheck ORx Enable in the GUI so that it is not in user mode anymore, and it is available for DPD
tracking calibration.
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
418 February 2022

Madura DPD sequence
18 February 2022 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
5

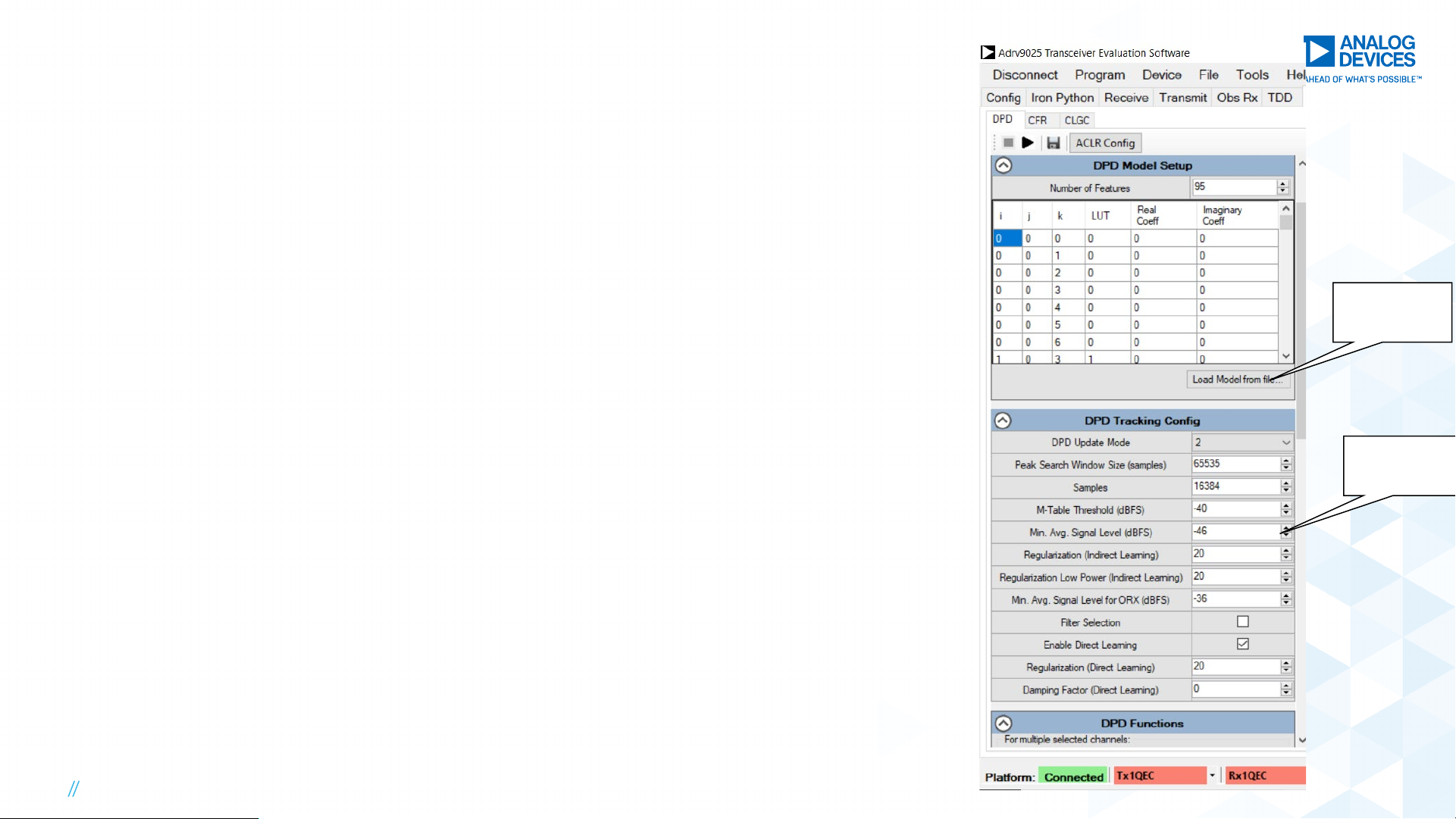

1. Step 1: Load model file from PC
2. Step 2 : Configure DPD tracking parameters. (start with default).
Step 1
Step 2

Madura DPD configuration
Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
618 February 2022
Step 7
Step 8
Step 3
Step 5
Step 10
Step 12
Step 9

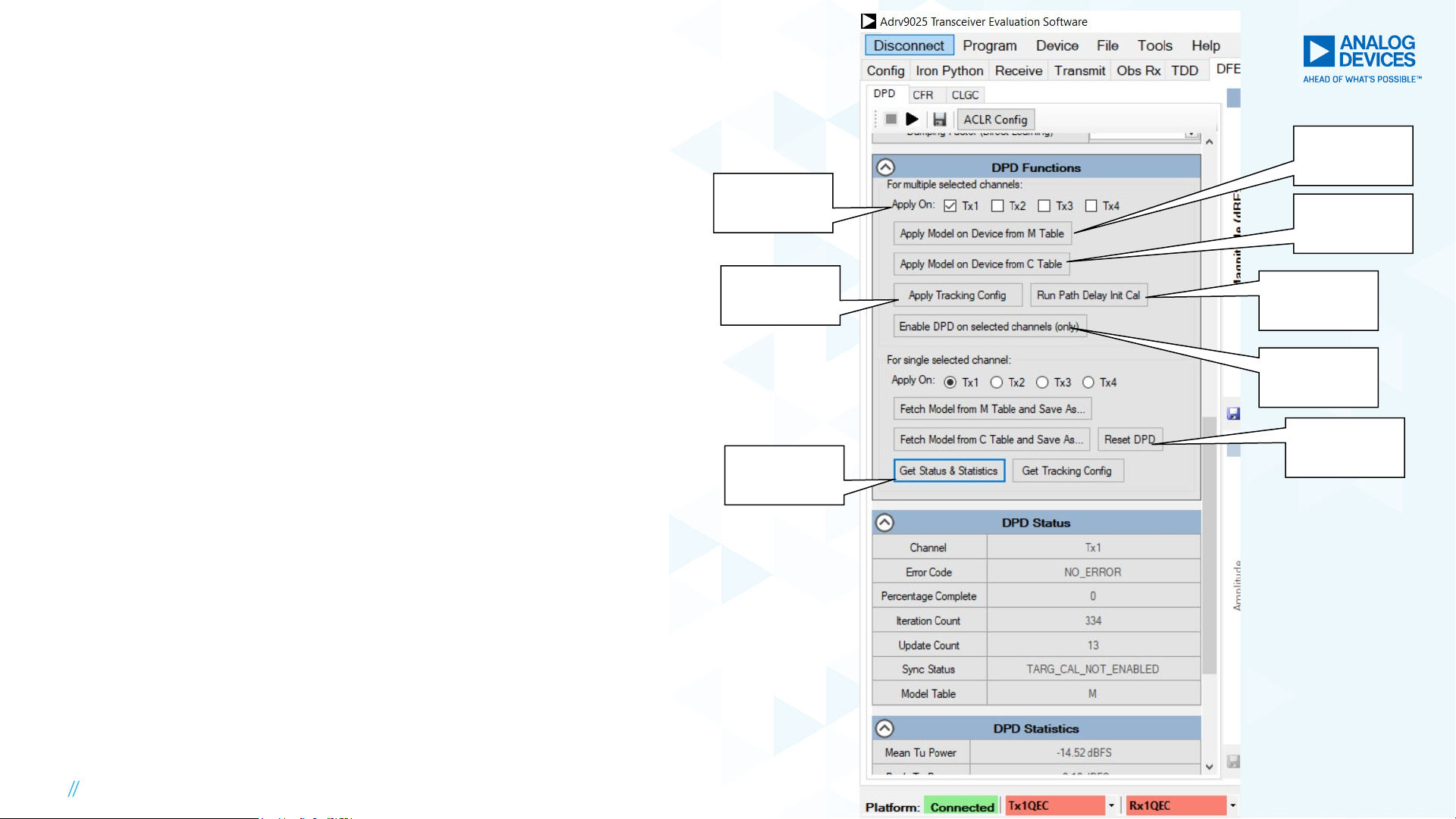

1. Step 3: Select connected Tx channels.
2. Step 4: Apply tracking config
3. Step 5 : Run path delay cal.
4. If signal level too low is reported check ORx
connection. Try programming the chip again and follow
same steps.
5. Step 6: Switch off Tx transmit and go to
DFE tab DPD
6. Step 7: Apply model M table
7. Step 8: Apply model C table
8. Step 9: Enable DPD on select channels.
9. Step 10 . Reset DPD
10. Step 11 Go to Tranmsit tab and send data.
11. Step 12. Get status.
►Step 11 send Tx data
From Transmit tab of G
Step 4
►Step 6 stop Tx data
From Transmit tab of GUI
