INSTRUCTION MANUAL
OPERATION MICROSCOPE
OMS-800

1
INTRODUCTION
Thank you for purchasing the TOPCON OMS-800 Operation Microscope.
This product is an operation microscope for operations, treatment or observation.
This product is classified in five types according to the difference in the combination of the
microscope unit with the base unit. Each of five types is classified into two different types: one
type is equipped with a beam splitter of the fixed spectral ratio and the other with a
changeable beam splitter which can alternate two spectral ratios to each other.
•OFFISS : The microscope unit with the front lens is combined with the inverter and the
base unit with the electromagnetic lock and the rough focusing unit.
•OFFISS Lite : The microscope unit with the front lens is combined with the inverter and the
base unit with the electromagnetic lock and without the rough focusing unit.
•Pro : The microscope unit without the front lens is combined with the base unit
with the electromagnetic lock and the rough focusing unit.
•Pro Lite : The microscope unit without the front lens is combined with the base unit
with the electromagnetic lock and without the rough focusing unit.
•Standard : The microscope unit without the front lens is combined with the base unit
without the electromagnetic lock and the rough focusing unit.
This product has the following features.
•OFFISS* is mounted to greatly enhance the glass body operation. (Only in OFFISS, OFFISS Lite.)
•Compact base and long arm provide a comfortable and extensive operation area.
•Electromagnetic lock is used to set it correctly at the required position. (Only in OFFISS,
OFFISS Lite, Pro and Pro Lite.)
•The 45°~90° variable eyepiece lens is used to set the optimum operation position.
This Instruction Manual describes the TOPCON OMS-800 Operation Microscope, and
includes outline, operations, troubleshooting, maintenance and cleaning.
To get the best use from the instrument, read "DISPLAY FOR SAFE USE" and "SAFETY
CAUTIONS". Keep this manual at hand for future reference.
*OFFISS is an abbreviation of Optical Fiber Free Intravitreal Surgery System.
[Warning]
Before using this instrument, make sure that the components are set and fixed securely.
[Falling components may cause injury or death.]
Before using this instrument, adjust the balance of the 2nd arm.
[The microscope may move up and down suddenly, leading to injury.]
When using the coaxial illumination in the ophthalmic operation, use the minimum
illumination sufficient for operation.
[Exposing the patient’s retina to excessive light may lead to retinal trouble.]
To reduce or prevent retinal trouble, use the front lens within 40 minutes (illumination
light intensity display: 0.7)/within 70 minutes (illumination light intensity display: 0.4).
[Using the front lens for a long time may lead to retinal trouble.]
When using the front lens, make sure it does not come into contact with the patient.
[Injury may result from a unit coming into contact with a patient.]

2
CAUTIONS FOR USE
Basic caution
Before using, sterilize the sterilized cap, the front lens unit, the peripheral observation prism and the
anterior eye section observation lens.
Disposal
Dispose of the instrument according to the local government's laws regarding disposal and recycling.
ENVIRONMENT FOR USE
Temperature : 10°C~40°C
Humidity : 30%~75% (without dew condensation)
Air pressure : 700~1060hPa
STORAGE, PERIOD OF USE AND OTHERS
1. Environmental conditions
Temperature: 10°C~40°C
Humidity: 30%~75% (without dew condensation)
Air pressure: 700~1060hPa
2. Storage requirements.
(1)Do not splash this instrument with water.
(2)Make sure this instrument is stored under safe conditions with regard to air pressure,
temperature, humidity, ventilation, sunlight or salty/sulfurous air.
(3)This instrument must be kept stable, without inclination, vibration or shock (not only in storage,
but also during transportation).
(4) Do not store this instrument in a location where chemicals are stored or gas is generated.
3. Limit of period of use
8 years following delivery, only if regular inspection and maintenance have been carried out
(according to self-certification [Topcon's data]).

3
POINTS FOR INSPECTION AND MAINTENANCE
1. After using this instrument, immediately remove any remaining blood, body fluids, tissues, etc.,
and clean and sterilize it.
2. Check the instrument and its parts periodically.
3. When using the instrument again after a long time in storage, make sure beforehand that it is
operating safely and normally.
4. Do not soil the objective lens and the eyepiece lens with fingerprints or dust.
5. Cover the instrument when not in use.
6. If the objective lens or the eyepiece lens is soiled, clean it according to the instructions under
"CLEANING THE OBJECTIVE LENS / THE EYEPIECE LENS" in the instruction manual.
The terms below apply to this manual as follows.
Term Application
OFFISS : Applies to OFFISS only.
OFFISS Lite : Applies to OFFISS Lite only.
Pro : Applies to Pro only.
Pro Lite : Applies to Pro Lite only.
Standard : Applies to Standard only.
OFFISS, OFFISS Lite : Applies to OFFISS and OFFISS Lite.
OFFISS, OFFISS Lite, Pro, Pro Lite : Applies to OFFISS, OFFISS Lite, Pro and Pro Lite.
OFFISS, Pro : Applies to OFFISS and Pro.
OFFISS Lite, Pro Lite, Standard : Applies to OFFISS Lite, Pro Lite and Standard.
Pro, Pro Lite : Applies to Pro and Pro Lite.
Pro, Pro Lite, Standard : Applies to Pro,Pro Lite and Standard.
Common : Applies to OFFISS, OFFISS Lite, Pro, Pro Lite and Standard.

4
DISPLAY FOR SAFE USE
In order to encourage the safe use of the product and prevent any danger to the operator and others or
damage to properties, important warnings are placed on the products and included in the instruction
manuals.
We recommend everyone to grasp the meaning of the following displays and icons before reading the
"SAFETY CAUTIONS" and text.
DISPLAY
ICON
Display Meaning
WARNING Ignoring or disregarding this display may lead to death or
serious injury.
CAUTION Ignoring or disregarding this display may lead to personal
injury or physical damage.
•Injury refers to cuts, bruises, burns, electric shocks, etc.
•Physical damage refers to extensive damage to the building and/or the equipment and
furniture.
Icon Meaning
This icon indicates a Prohibition:
The specific contents are expressed with an icon or with words, either
inserted in the icon itself, or located close to the icon.
This icon indicates a Mandatory Action.
The specific contents are expressed with an icon or with words, either
inserted in the icon itself, or located close to the icon.
This icon indicates a Hazard Alert (Warning).
The specific contents are expressed with an icon or with words, either
inserted in the icon itself, or located close to the icon.

5
SAFETY CAUTIONS
WARNING
Icons Prevention Item Page
Make sure no-one is too close to the instrument before moving the arm.
Anyone touching the instrument may be injured. 32 59
83
Use only the specified lamp.
Otherwise, overheating may cause a fire. 8 33 79 97
Before installing the accessories, make sure all the arms are securely locked.
The 2nd arm may move suddenly, causing an injury. 34 36 41 42 44 48
50
Release the 2nd arm lower limit lock while holding it at the end.
The 2nd arm may move up and down suddenly, causing an injury. 34 36 48 50
Before using this instrument, adjust the balance of the 2nd arm.
The 2nd arm may move up and down suddenly during an operation, causing
an injury.
34 36 42
44 48 50
67 70 103
Do not install/remove the accessories above the patient.
An accessory falling off could cause injury or even death. 34 36
After installing/removing the accessories, make sure that handles, levers,
knobs and rings are securely tightened.
Any of these falling off could cause injury or even death.
34
36
Hold the microscope operation handle while pressing the electromagnetic lock
release switch to unlock it.
The arm may rotate or move up and down suddenly, causing an injury.
41 42
48 70
83
The gas spring in the 2nd arm contains high-pressure gas. Do not
disassemble the 2nd arm or expose it to fire.
You may be injured.
42 44 48
50 103
Always hold the microscope operation handle when loosening either the 2nd
arm vertical movement fixing handle, the 2nd arm rotation fixing handle or the
1st arm rotation fixing handle.
The arm may rotate or move up and down suddenly, causing an injury.
44 50
85
If you need to use the coaxial illumination during an ophthalmic operation,
make sure you use the minimum illumination sufficient for the operation.
Exposing the patient’s retina to excessive light may lead to retinal trouble.
55 68
69 76
To reduce or prevent retinal trouble, use the front lens within 40 minutes
(illumination light intensity display: 0.7)/within 70 minutes (illumination light
intensity display: 0.4). Using the front lens for a long time may lead to retinal
trouble.
55

6
When installing the front lens unit, make sure that the front lens unit fixing lever
is fixed securely at the LOC side.
An injury may be caused by the front lens unit falling off.
57
Before setting the front lens, move the microscope at least 200mm upwards.
Otherwise, the components may come into contact with each other and cause
an injury.
70
Adjust the front lens and the treatment section, taking care not to hit the patient
with the front lens.
This could injure the patient.
70
When setting/storing the front lens unit, make sure that the front lens unit fixing
lever is fixed securely at the LOC side.
An injury may be caused by the front lens unit falling off.
70
Make sure that the front lens unit is securely attached to the optical unit after
connecting the two.
The front lens may move suddenly, causing an injury.
70
Before moving the instrument, make sure that no-one is near. Then, move it
carefully.
Injury could be caused by the instrument touching anything.
83
85
Before using this instrument, make sure that the handles, levers, knobs and
rings with red marks are securely tightened.
Any of these falling off could cause injury or even death.
103
Make sure no error code is displayed in the light intensity display window.
If errors are displayed, the instrument may not operate normally, causing
problems during an operation.
103
While the anterior eye section observation lens is in use, do not operate the
front lens IN/OUT lever and the front lens connecting/disconnecting knob. The
anterior eye section observation lens may fall off, causing an injury.
77
While the peripheral observation prism is in use, do not operate the front lens
IN/OUT lever and the front lens connecting/disconnecting knob.
The peripheral observation prism may fall off, causing an injury.
77
Icons Prevention Item Page

7
CAUTION
Icons Prevention Item Page
Handle the lamp house with care during and immediately following operation.
The lamp house heats up while in operation and can cause burns. 8 33 79 97
Before moving the instrument, make sure there is no-one and nothing within
collision range.
Injury may result from the instrument colliding with anyone/anything.
46
47
Take care when moving this instrument through a door or in a room with a low
ceiling.
If the top of this instrument collides with something, it could break.
83
85
Watch out for devices, beds, walls, etc. in the room.
If the instrument collides with anything, serious breakage could result. 83 85
Watch out for stairs and uneven floors.
The instrument may tip over. 83 85
Watch out for slopes.
Due to its increased speed, the instrument may get away from you on a slope. 83 85
Do not open the instrument as an electric shock may ensue. Ask qualified
service personnel to repair the instrument. -----
Do not open the instrument, as this may lead to an electric shock. 8 34 36
79 98
102 103
Do not install this instrument on an incline.
This may cause it to move unexpectedly. 83 85
Do not use a strong cleaning agent, etc.
This may damage the instrument. 102
The lamp is still hot just after turning off the illumination. Therefore, use heat-
resistant gloves, etc. to replace a lamp.
Otherwise, you may be burned.
87
97

8
MAINTENANCE
USER MAINTENANCE
In order to maintain the safety and performance of the equipment, never attempt to carry out
maintenance of parts other than those specified herein: all other maintenance should be carried out
only by our service personnel. The parts that can be repaired by users are displayed below; for details,
refer to the proper text in this manual.
Replacing with the spare lamp
The illumination lamp can be replaced. (Refer to " REPLACING WITH THE SPARE LAMP" on P.79 in
this manual.)
Operating the circuit breaker
The circuit breaker can be reset. (Refer to "OPERATING THE CIRCUIT BREAKER" on P.98 in this
manual.)
ESCAPE CLAUSE
WARNING Use only the specified lamp.
Otherwise, overheating may cause a fire.
CAUTION Do not open the instrument, as this may lead to an electric shock.
CAUTION Handle the lamp house with care during and immediately following
operation.
The lamp house heats up while in operation and can cause burns.
NOTE Ask your distributor or the Topcon offices stated on the back cover to repair the
instrument.
• TOPCON shall take no responsibility for damage due to fire, earthquakes, actions by third persons
and other accidents, or the negligence and misuse of the user and use under unusual conditions.
• TOPCON shall take no responsibility for damage resulting from the inability to use this equipment,
such as a loss of business profits or the suspension of business.
• TOPCON shall take no responsibility for damage caused by operations other than those described
in this instruction manual.

9

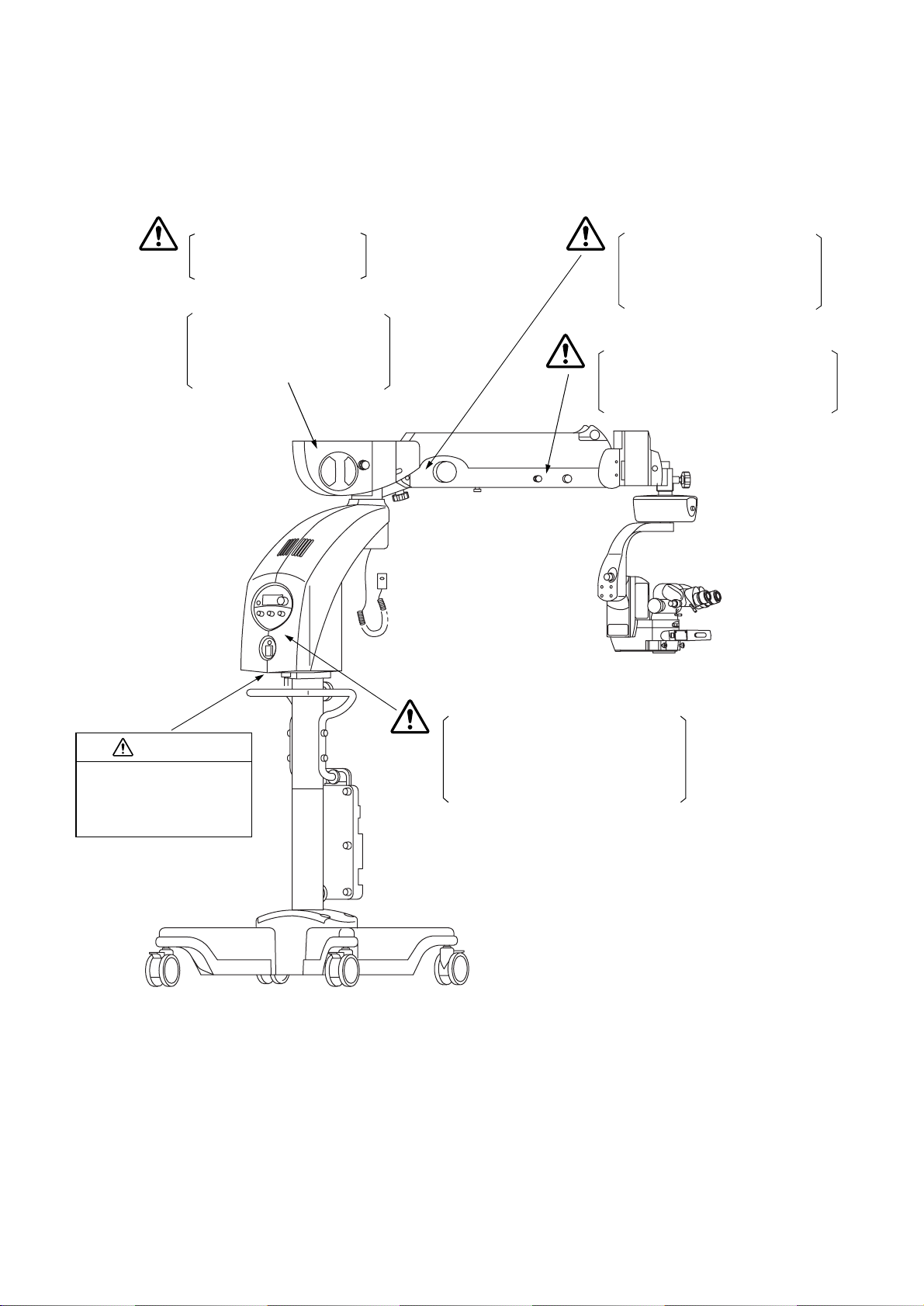

WARNING INDICATIONS AND POSITIONS: OFFISS
This instrument provides warnings to ensure safety.
Use this instrument correctly, following those warning instructions. If any of the following marking labels
are missing, contact your distributor.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Hold the microscope operation handle
while pressing the electromagnetic lock
release switch to unlock it. The arm
may rotate or move up and down
suddenly, causing an injury.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Before setting the front lens, move the
microscope at least 200mm upwards.
Otherwise, the components may come
into contact with each other and cause
an injury.
Make sure that the front lens unit is
securely attached to the optical unit
after connecting the two. The front lens
may move suddenly, causing an injury.

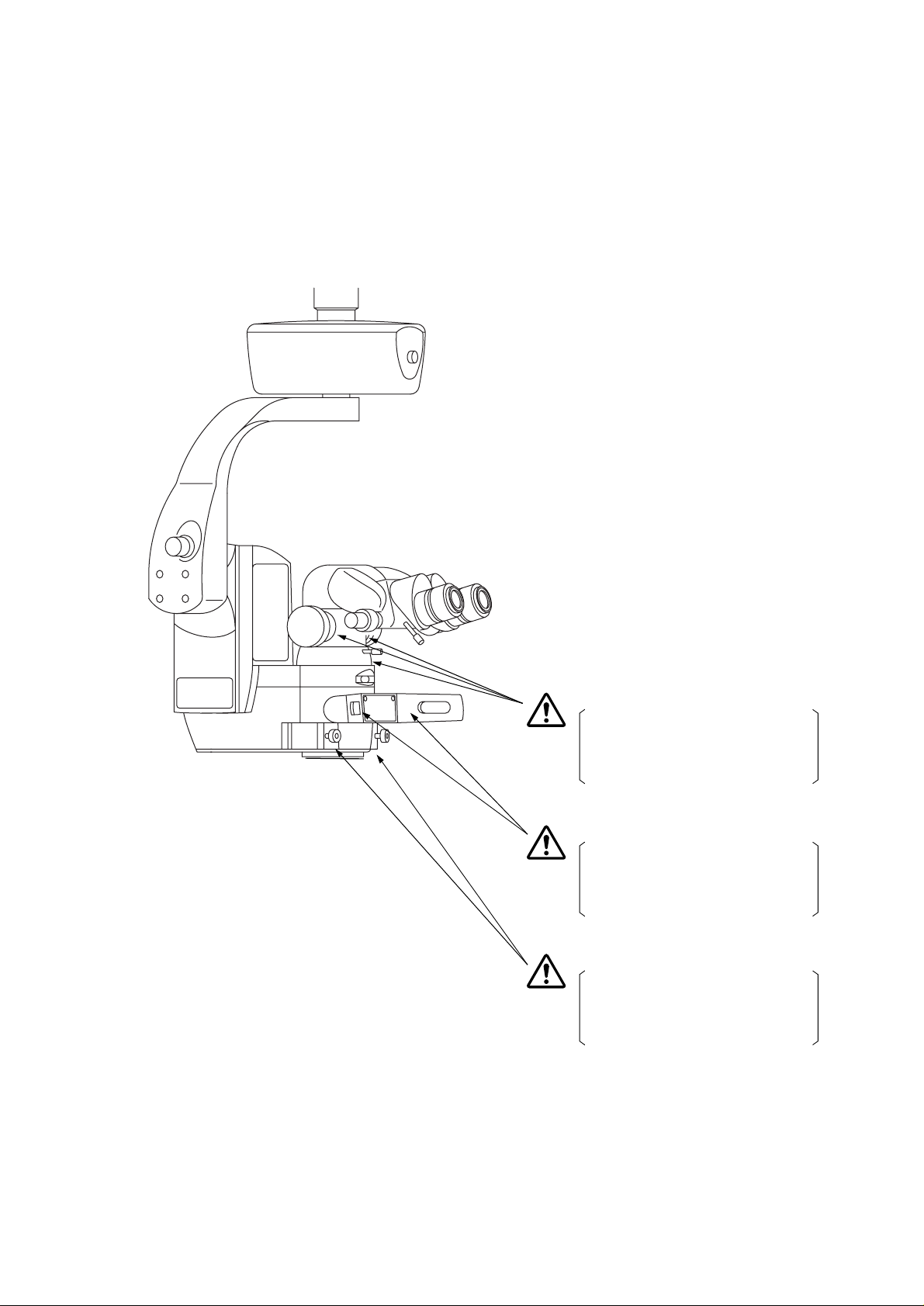

WARNING
When installing the front lens unit, make
sure that the front lens unit fixing lever is
fixed securely at the LOC side. An
injury may be caused by the front lens
unit falling off.
When setting/storing the front lens unit,
make sure that the front lens unit fixing
lever is fixed securely at the LOC side.
An injury may be caused by the front
lens unit falling off.
WARNING
Adjust the front lens and the treatment
section, taking care not to hit the patient
with the front lens. This could injure the
patient.

10
WARNING
Release the 2nd arm lower limit lock
while holding it at the end. The 2nd arm
may move up and down suddenly,
causing an injury.
CAUTION
Do not open the instrument as
an electric shock may ensue.
Ask qualified service
personnel to repair the
instrument.
WARNING
If you need to use the coaxial illumination
during an ophthalmic operation, make
sure you use the minimum illumination
sufficient for operation. Exposing the
patient’s retina to excessive light may
lead to retinal trouble.
WARNING
Before using this instrument,
adjust the balance of the 2nd arm.
The 2nd arm may move up and
down suddenly during operation,
causing an injury.
WARNING
Use only the specified lamp.
Otherwise, overheating may
cause a fire.
CAUTION
Handle the lamp house with care
during and immediately following
operation. The lamp house heats
up while in operation and can
cause burns.

11

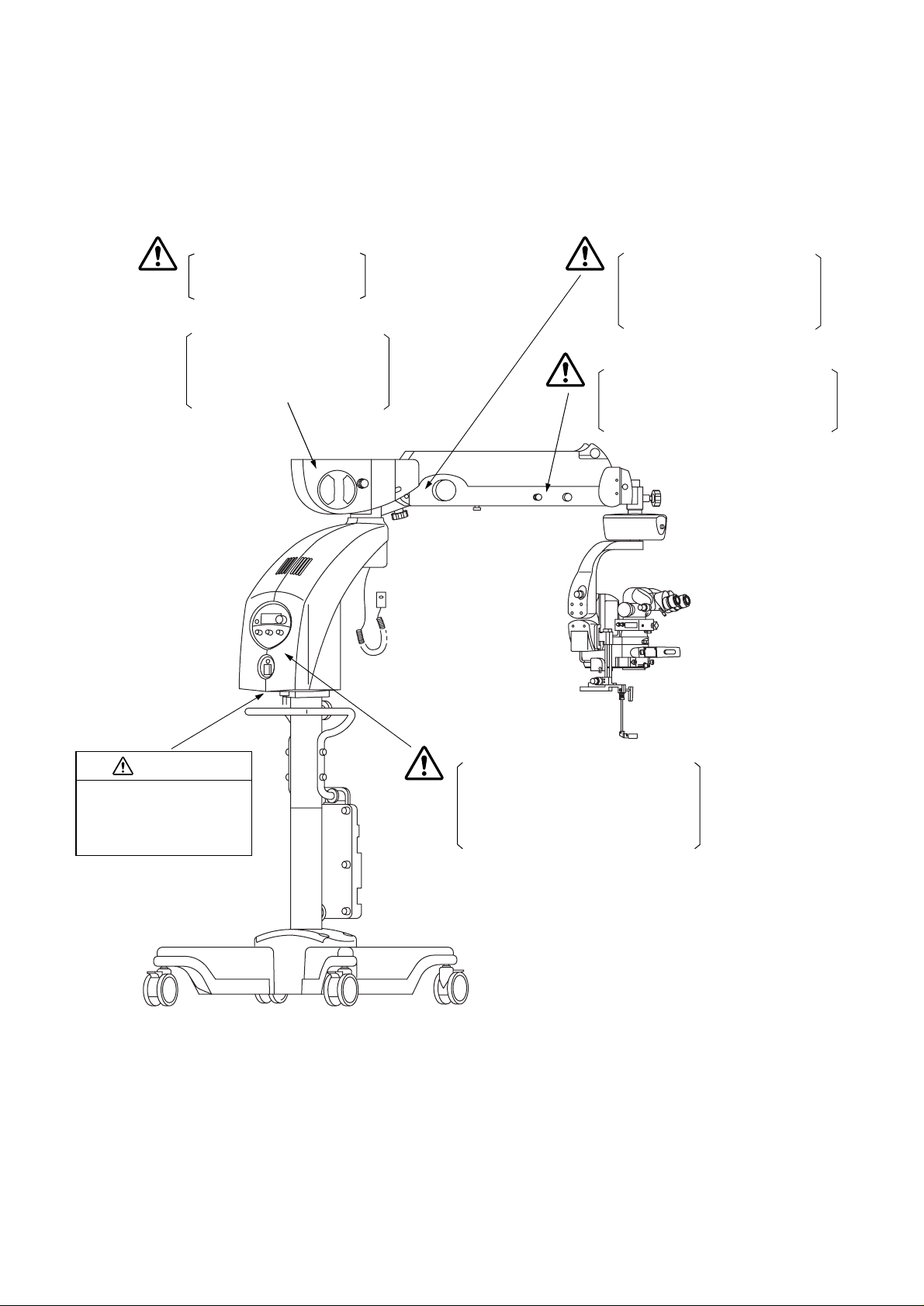

WARNING INDICATIONS AND POSITIONS: OFFISS Lite
This instrument provides warnings to ensure safety.
Use this instrument correctly, following those warning instructions. If any of the following marking labels
are missing, contact your distributor.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Hold the microscope operation handle
while pressing the electromagnetic lock
release switch to unlock it. The arm
may rotate or move up and down
suddenly, causing an injury.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Before setting the front lens, move the
microscope at least 200mm upwards.
Otherwise, the components may come
into contact with each other and cause
an injury.
Make sure that the front lens unit is
securely attached to the optical unit
after connecting the two. The front lens
may move suddenly, causing an injury.
WARNING
When installing the front lens unit, make
sure that the front lens unit fixing lever is
fixed securely at the LOC side. An
injury may be caused by the front lens
unit falling off.
When setting/storing the front lens unit,
make sure that the front lens unit fixing
lever is fixed securely at the LOC side.
An injury may be caused by the front
lens unit falling off.
WARNING
Adjust the front lens and the treatment
section, taking care not to hit the patient
with the front lens. This could injure the
patient.

12
WARNING
Release the 2nd arm lower limit lock
while holding it at the end. The 2nd arm
may move up and down suddenly,
causing an injury.
CAUTION
Do not open the instrument as
an electric shock may ensue.
Ask qualified service
personnel to repair the
instrument.
WARNING
If you need to use the coaxial illumination
during an ophthalmic operation, make
sure you use the minimum illumination
sufficient for operation. Exposing the
patient’s retina to excessive light may
lead to retinal trouble.
WARNING
Before using this instrument,
adjust the balance of the 2nd arm.
The 2nd arm may move up and
down suddenly during operation,
causing an injury.
WARNING
Use only the specified lamp.
Otherwise, overheating may
cause a fire.
CAUTION
Handle the lamp house with care
during and immediately following
operation. The lamp house heats
up while in operation and can
cause burns.

13
WARNING INDICATIONS AND POSITIONS: Pro
This instrument provides warnings to ensure safety.
Use this instrument correctly, following those warning instructions. If any of the following marking labels
are missing, contact your distributor.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Hold the microscope operation handle
while pressing the electromagnetic lock
release switch to unlock it. The arm
may rotate or move up and down
suddenly, causing an injury.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.

14
WARNING
Release the 2nd arm lower limit lock
while holding it at the end. The 2nd arm
may move up and down suddenly,
causing an injury.
CAUTION
Do not open the instrument as
an electric shock may ensue.
Ask qualified service
personnel to repair the
instrument.
WARNING
Before using this instrument,
adjust the balance of the 2nd arm.
The 2nd arm may move up and
down suddenly during operation,
causing an injury.
WARNING
Use only the specified lamp.
Otherwise, overheating may
cause a fire.
CAUTION
Handle the lamp house with care
during and immediately following
operation. The lamp house heats
up while in operation and can
cause burns.
WARNING
If you need to use the coaxial illumination
during an ophthalmic operation, make
sure you use the minimum illumination
sufficient for operation. Exposing the
patient’s retina to excessive light may
lead to retinal trouble.

15
WARNING INDICATIONS AND POSITIONS: Pro Lite
This instrument provides warnings to ensure safety.
Use this instrument correctly, following those warning instructions. If any of the following marking labels
are missing, contact your distributor.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Hold the microscope operation handle
while pressing the electromagnetic lock
release switch to unlock it. The arm
may rotate or move up and down
suddenly, causing an injury.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.

16
WARNING
Release the 2nd arm lower limit lock
while holding it at the end. The 2nd arm
may move up and down suddenly,
causing an injury.
CAUTION
Do not open the instrument as
an electric shock may ensue.
Ask qualified service
personnel to repair the
instrument.
WARNING
Before using this instrument,
adjust the balance of the 2nd arm.
The 2nd arm may move up and
down suddenly during operation,
causing an injury.
WARNING
Use only the specified lamp.
Otherwise, overheating may
cause a fire.
CAUTION
Handle the lamp house with care
during and immediately following
operation. The lamp house heats
up while in operation and can
cause burns.
WARNING
If you need to use the coaxial illumination
during an ophthalmic operation, make
sure you use the minimum illumination
sufficient for operation. Exposing the
patient’s retina to excessive light may
lead to retinal trouble.

17
WARNING INDICATIONS AND POSITIONS: Standard
This instrument provides warnings to ensure safety.
Use this instrument correctly, following those warning instructions. If any of the following marking labels
are missing, contact your distributor.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.
WARNING
Before using this instrument, make sure
that the handles, levers, knobs and
rings with red marks are securely
tightened. Any of these falling off could
cause injury or even death.

18
WARNING
Release the 2nd arm lower limit lock
while holding it at the end. The 2nd arm
may move up and down suddenly,
causing an injury.
CAUTION
Do not open the instrument as
an electric shock may ensue.
Ask qualified service
personnel to repair the
instrument.
WARNING
Before using this instrument,
adjust the balance of the 2nd arm.
The 2nd arm may move up and
down suddenly during operation,
causing an injury.
WARNING
Use only the specified lamp.
Otherwise, overheating may
cause a fire.
CAUTION
Handle the lamp house with care
during and immediately following
operation. The lamp house heats
up while in operation and can
cause burns.
WARNING
If you need to use the coaxial illumination
during an ophthalmic operation, make
sure you use the minimum illumination
sufficient for operation. Exposing the
patient’s retina to excessive light may
lead to retinal trouble.

19
CONTENTS
INTRODUCTION .......................................................................................................................................1
DISPLAY FOR SAFE USE .....................................................................................................................4
SAFETY CAUTIONS ...............................................................................................................................5
MAINTENANCE ........................................................................................................................................8
USER MAINTENANCE .......................................................................................................................8
ESCAPE CLAUSE ...................................................................................................................................8
WARNING INDICATIONS AND POSITIONS: OFFISS ...................................................................9
WARNING INDICATIONS AND POSITIONS: OFFISS Lite .........................................................11
WARNING INDICATIONS AND POSITIONS: Pro .........................................................................13
WARNING INDICATIONS AND POSITIONS: Pro Lite .................................................................15
WARNING INDICATIONS AND POSITIONS: Standard ..............................................................17
NOMENCLATURE
OFFISS .............................................................................................................................................22
STANDARD ACCESSORIES: OFFISS .............................................................................................23
OFFISS Lite .......................................................................................................................................24
STANDARD ACCESSORIES: OFFISS Lite ......................................................................................25
Pro .....................................................................................................................................................26
STANDARD ACCESSORIES: Pro ....................................................................................................27
Pro Lite ..............................................................................................................................................28
STANDARD ACCESSORIES: Pro Lite .............................................................................................29
Standard ............................................................................................................................................30
STANDARD ACCESSORIES: Standard ...........................................................................................31
PREPARATIONS BEFORE USE
STERILIZED CAP: Common .............................................................................................................32
PREPARATIONS FOR STERILIZING THE FRONT LENS UNIT: OFFISS, OFFISS Lite ................32
TURNING ON THE POWER: Common ............................................................................................32
CHECKING THE SPARE LAMP: Common .......................................................................................33
SETTING ACCESSORIES: OFFISS, OFFISS Lite, Pro, Pro Lite .....................................................34
SETTING THE ACCESSORIES: Standard .......................................................................................36
INSTALLING THE INVERTER: OFFISS, OFFISS Lite .....................................................................38
REMOVING THE INVERTER: OFFISS, OFFISS Lite .......................................................................39
ADJUSTING THE 2ND ARM BALANCE: OFFISS, OFFISS Lite, Pro, Pro Lite ................................41
ADJUSTING THE 2ND ARM BALANCE: Standard ..........................................................................41
SETTING THE 2ND ARM LOWER LIMIT POSITION: OFFISS, OFFISS Lite, Pro, Pro Lite ............42
SETTING THE 2ND ARM LOWER LIMIT POSITION: Standard ......................................................44
INITIALIZATION: OFFISS, Pro .........................................................................................................46
INITIALIZATION: OFFISS Lite, Pro Lite, Standard ...........................................................................47
LOCKING/UNLOCKING THE 2ND ARM LOWER LIMIT: OFFISS, OFFISS Lite, Pro, Pro Lite .......48
LOCKING/UNLOCKING THE 2ND ARM LOWER LIMIT: Standard .................................................50
ADJUSTING THE DIOPTRIC POWER: Common ............................................................................52
INSTALLING THE STERILIZED CAP: OFFISS, OFFISS Lite ..........................................................53
INSTALLING THE STERILIZED CAP: Pro, Pro Lite .........................................................................53
INSTALLING THE STERILIZED CAP: Standard ..............................................................................54
ADJUSTING THE PUPILLARY DISTANCE: Common .....................................................................54
