INSTRUCTION MANUAL

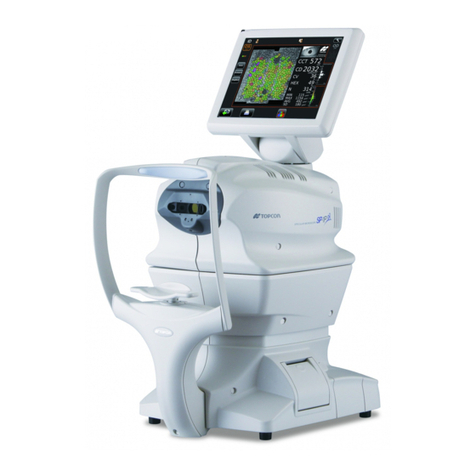

SPECULAR MICROSCOPE
SP-3000P

1
INTRODUCTION
Thank you for purchasing the TOPCON SP-3000P Specular Microscope.
This instrument is used to photograph and evaluate the corneal endothelium.
This instrument has the following features:
•Photography of the corneal endothelium and the measurement of the corneal thick-
ness can be performed at the same time.
•The auto-alignment function ensures quick and easy centering and measurement.
•Simplified cell analysis enables the user to easily understand the rough value of the
cell density.
This manual outlines the SP-3000P Specular Microscope, its operating procedures,
trouble shooting, maintenance and cleaning.
Before using this instrument, carefully read the "DISPLAY FOR SAFE USE" and the
"SAFETY CAUTIONS" to familiarize yourself with the features of the SP-3000P Specu-
lar Microscope and to ensure that you operate it efficiently and safely.
Always keep this instruction manual at hand.
[Warning]
Care should be taken not to hit the patient's eye or nose with the instrument during
operation.
(The patient may be injured.)
This symbol is applicable for EU member countries only.
To avoid potential negative consequences for the environment and possibly human
health, this instrument should be disposed of (i) for EU member countries - in
accordance with WEEE (Directive on Waste Electrical and Electronic Equipment),
or (ii) for all other countries, in accordance with local disposal and recycling laws.

2
CAUTIONS FOR USE
Basic caution
When moving the chinrest up and down, be careful not to catch the patient's hand.
The patient may be injured.
To avoid electric shock, do not open the instrument.
Request service from an authorized Topcon distributor.
Electric shock may cause burns or a possible fire. Turn the power switch OFF and unplug the power
cord before replacing the fuses.
Replace only with fuses of the correct rating.
Disposal
Dispose of the instrument according to local disposal and recycling laws.
ENVIRONMENTAL CONDITIONS FOR USE
Temperature : 10°C ~ 40°C
Humidity : 30% ~ 75% (without dew condensation)
Air pressure : 700hPa ~ 1060hPa
STORAGE, USAGE PERIOD AND OTHERS
1. Environmental conditions for installation (without package)
Temperature : 10°C ~ 40°C
Humidity : 30% ~ 75% (without dew condensation)
Air pressure : 700hPa ~ 1060hPa
2. When storing the instrument, ensure that the following conditions are met:
(1) The instrument should not be splashed with water.
(2) Store the instrument where air pressure, temperature, humidity, ventilation, sunlight, dust, salty/
sulfurous air, etc. do not give any negative side effect.
(3) Do not store or transport the instrument on a slope or uneven surface or in an area where it is
subject to vibrations or instability.
(4) Do not store the instrument where chemicals are stored or gas is generated.
3. Usage period
8 years from delivery providing regular maintenance is performed (according to the self-certification
[Topcon data])
ENVIRONMENTAL CONDITIONS FOR PACKAGING IN TRANSPORTATION / STORAGE
Temperature : -20°C ~ 50°C
Humidity : 10% ~ 95%
CHECKPOINTS FOR MAINTENANCE
1. Periodically inspect the instrument and its parts.
2. Before using the instrument after a long period of inactivity, make sure that it operates safely and
normally.
3. Be careful not to stain the photography window with fingerprints or dirt. This may affect picture quality.
4. If the photography window is stained, clean it according to the "CLEANING THE PHOTOGRAPHY
WINDOW" instructions on P. 74 in this manual.

3
DISPLAY FOR SAFE USE
To encourage safe and proper use and to prevent danger to the operator and others or potential damage
to property, important cautionary messages are placed on the instrument body and inserted in the instruc-
tion manual.
We suggest that everyone using the instrument understands the meaning of the following displays, icons
and text before reading the "SAFETY CAUTIONS" and observe all listed instructions.
DISPLAYS
ICONS
Display Meaning
WARNING Incorrect handling by ignoring this display may lead to a risk of
death or serious injury.
CAUTION Incorrect handling by ignoring this display may lead to per-
sonal injury or physical damage.
•Injury refers to cuts, bruises, burns, electric shock, etc. which do not require hospitaliza-
tion or extended medical treatment.
•Physical damage refers to extensive damage to the building, nearby equipment and/or
surrounding furniture.
Icon Meaning
Prohibition:
Specific content is expressed with words or a picture near the
icon.
Mandatory Action:
Specific content is expressed with words or a picture near the
icon.
Caution:
Specific content is expressed with words or a picture near the
icon.

4
SAFETY CAUTIONS
WARNING
Icon Prevention item Page
To avoid fire and electric shock in case of leakage, be sure to use a power supply
equipped with a 3-plug AC receptacle for proper grounding. 16
Electric shock may cause burns or a possible fire. Turn the power switch OFF
and unplug the power cord before replacing the fuses. Replace only with
fuses of the correct rating. 71
CAUTION
Icon Prevention Item Page
To avoid injury and/or damage to the instrument, hold the instrument in the
specified position. Be careful not to shake or move the instrument suddenly. 15
When carrying the instrument, be careful not to drop or tip it over. Be careful
to prevent your hand from being pinched by the instrument. If not, you may be
injured. 15
To avoid electric shock, do not handle the plugs with wet fingers. 16
To avoid injury, do not let the patient put his/her hand under the chinrest. 34
Don't put your hand under the measuring head.
* Instruct the patient properly.
When the measuring head is lowered, it may injure you by pinching your hand. 37
To avoid injury during operation, be careful not to hit the patient's eye or nose
with the instrument. 36, 41 45
Before handling the chinrest manually in the case of a malfunction, remove the
power cord from the instrument. If not, your finger may be pinched and injured
by a wrong operation. 58
To avoid damage to the instrument or electric shock, turn the power switch
OFF and unplug the power cord before replacing the xenon lamp. Do not use
any other types of xenon lamps except those specified in this manual. 69

5
To avoid damage to the instrument or electric shock, turn the power switch
OFF and unplug the power cord before maintenance. 73
To avoid electric shock, do not open the instrument. Request service from an
authorized Topcon distributor. -----
This instrument has been tested (with 120V/230V) and found to comply with
IEC60601-1-2: 2001.
This instrument radiates radio frequency energy within standard and may affect other
devices in the vicinity.
If you have discovered that turning on/off the instrument affects other devices, we rec-
ommend you change its position, keep a proper distance from other devices, or plug it
into a different outlet.
Please consult your authorized dealer if you have any additional questions.
-----
Icon Prevention Item Page

6
USAGE AND MAINTENANCE
USAGE
USER MAINTENANCE
To ensure the safety and performance of the instrument, all maintenance work, unless specified in this
manual, shall be conducted by trained service personnel. The following maintenance tasks may be
done by the user.
For details, see the appropriate part of this manual.
Replacing the fuse
The fuse in the instrument body may be replaced by the user. For details, refer to P.71.
Replacing the xenon lamp
The xenon lamp for photography may be replaced by the user. For details, refer to P.69.
Cleaning the photography window
The lens surface and glass surface of the photography window may be cleaned by the user. For
details, refer to P.74.
ESCAPE CLAUSE
Usage
• The SP-3000P Specular Microscope is an electronic instrument for medical use. Use this instru-
ment under a doctor's guidance.
• TOPCON shall not take any responsibility for damage due to fire, earthquakes, actions by third per-
sons and other accidents, or damage due to negligence and misuse by the user and any use under
unusual conditions.
• TOPCON shall not take any responsibility for damage derived from inability to properly use this
instrument, such as loss of business profit and suspension of business.
• TOPCON shall not take any responsibility for damage caused from using this instrument in a man-
ner other than that described in this instruction manual.
• Diagnoses made shall be the responsibility of the pertaining doctors and TOPCON shall not take
any responsibility for the results of such diagnoses.

7
WARNING DISPLAYS AND POSITIONS
To ensure safety, the instrument provides warning displays.
Use the instrument correctly by observing the display instructions. If any of the following display labels
are missing, contact your dealer or TOPCON at the address on the back cover.
CAUTION
To avoid injury, be careful not to
pinch the patient's hand when
operating the chinrest up/down
switches.
WARNING
Electric shock may cause burns
or a possible fire. Turn the power
switch OFF and unplug the power
cord before replacing the fuses.
Replace only with fuses of the
correct rating.
CAUTION
To avoid electric shock, do not
open the instrument. Request
service from an authorized
Topcon distributor.
NOTICE
When the room temperature is 10°C
or less, turn on the power 30 min-
utes before using the instrument to
maintain the detection accuracy.
CAUTION
To avoid injury during operation,
be careful not to hit the patient's
eye or nose with the instrument.

8
CONTENTS
CAUTIONS FOR USE .......................................................................................................................... 2
ENVIRONMENTAL CONDITIONS FOR USE ...................................................................................... 2
STORAGE, USAGE PERIOD AND OTHERS ...................................................................................... 2
ENVIRONMENTAL CONDITIONS FOR PACKAGING IN TRANSPORTATION / STORAGE ............. 2
CHECKPOINTS FOR MAINTENANCE ................................................................................................ 2
DISPLAY FOR SAFE USE ................................................................................................................... 3
SAFETY CAUTIONS ............................................................................................................................ 4
USAGE AND MAINTENANCE .............................................................................................................. 6
USAGE ................................................................................................................................................. 6
USER MAINTENANCE ......................................................................................................................... 6
ESCAPE CLAUSE ................................................................................................................................ 6
WARNING DISPLAYS AND POSITIONS ............................................................................................. 7
NOMENCLATURE ........................................................................................................................... 10
MAIN COMPONENT NAMES .................................................................................................... 10
COMPOSITION OF PARTS WHICH CONTACT THE HUMAN BODY ...................................... 10
CONTROL PANEL ..................................................................................................................... 11
MONITOR SCREEN ................................................................................................................... 11
STANDARD ACCESSORIES ..................................................................................................... 14
PREPARATONS BEFORE USE ................................................................................................... 15
INSTALLING THE INSTRUMENT .............................................................................................. 15
CONNECTING THE POWER CORD ......................................................................................... 16
CONNECTING THE MOUSE ..................................................................................................... 16
CONNECTING THE EXTERNAL INPUT/OUTPUT TERMINAL ................................................ 17
DEFAULT SETTING ................................................................................................................... 19
A VARIETY OF SETTINGS ........................................................................................................ 27
RESET FROM POWER SAVE STATUS .................................................................................... 33
BASIC OPERATION ....................................................................................................................... 34
PREPARATION BEFORE PHOTOGRAPHY ............................................................................. 34
PHOTOGRAPHY IN AUTO MODE ............................................................................................ 35
PHOTOGRAPHY IN SEMI-AUTO MODE .................................................................................. 40
PHOTOGRAPHY IN MANUAL MODE ....................................................................................... 44
DISPLAY AND DELETION OF IMAGES .................................................................................... 48
OPERATION BY OBJECTS .......................................................................................................... 50
SIMPLIFIED CELL ANALYSIS ................................................................................................... 50
OUTPUT TO THE IMAGEnet system ......................................................................................... 53
OUTPUT TO THE IMAGE PROCESSING UNIT ........................................................................ 53
INPUT/OUTPUT THROUGH RS-232C ...................................................................................... 54
TROUBLE SHOOTING ................................................................................................................... 57
TROUBLE SHOOTING GUIDE .................................................................................................. 57
OPERATING THE CHINREST MANUALLY IN THE CASE OF A MALFUNCTION .................. 58
SPECIFICATIONS & PERFORMANCE ....................................................................................... 59
SPECIFICATIONS ...................................................................................................................... 59
ELECTROMAGNETIC COMPATIBILITY ................................................................................... 60
Information about the optical radiation hazard for the user ........................................................ 64
ELECTRIC RATING ................................................................................................................... 65
SYSTEM CLASSIFICATION ...................................................................................................... 65
DIMENSIONS AND WEIGHT ..................................................................................................... 65
PURPOSE OF USE .................................................................................................................... 65
OPERATION PRINCIPLE .......................................................................................................... 66
RELATED PRODUCT ................................................................................................................66
RS-232C COMMUNICATION SPECIFICATIONS ...................................................................... 67

9
MAINTENANCE AND INSPECTION ............................................................................................ 69
MAINTAINING ACCURACY ....................................................................................................... 69
MAINTENANCE AND INSPECTION .......................................................................................... 72
MAINTENANCE ...............................................................................................................................73
CLEANING THE DUST COVER, CONTROL PANEL, MONITOR SCREEN, ETC. ................... 73
CLEANING THE PARTS WHICH COME INTO CONTACT WITH THE PATIENT .................... 73
CLEANING THE PHOTOGRAPHY WINDOW ........................................................................... 74
REFERENCE MATERIAL .............................................................................................................. 75
OPTIONAL ACCESSORIES ...................................................................................................... 75
TERMINOLOGY ...............................................................................................................................76
DESCRIPTION OF TERMS ....................................................................................................... 76

10
NOMENCLATURE
NOMENCLATURE
MAIN COMPONENT NAMES
COMPOSITION OF PARTS WHICH CONTACT THE HUMAN BODY
Forehead rest : Silicone rubber
Chinrest : Acrylonitrile butadiene styrene resin
Lamp house cover Photography head unit
Color video monitor
Photography switch
Joystick
Power lamp
Power supply unit
Locking knob (for movement)
VIDEO OUT output terminal
Control panel
Brightness volume
Forehead rest
Photography window
Vertical positioning mark
Chinrest tissue pin
Chinrest
Chinrest unit
Power cord
Fuse holder
Power switch
RS-232C input terminal
USB output terminal
Base unit

11
NOMENCLATURE
CONTROL PANEL
Delete switch : Deletes the image being displayed.
Menu switch : Displays the menu.
Clear switch : Deletes all the images in the memory.
Image transfer switch : Transfers the image data through USB.
Image selector switch: Switches the display from the image display to the eye observation display
and vice versa.
Chinrest down switch : Moves ( ) the chinrest down.
Chinrest up switch : Moves ( ) the chinrest up.
MONITOR SCREEN
Eye observation display
Delete switch
Image transfer switch
Chinrest down switch
Clear switch
Menu switch
Image selector switch
Chinrest up switch
Power LED
R
LA
S
T N
C
I
0001
Flash level
Image capturing mode
Photography serial number
Eye to be photographed
Photography area selector
Alignment frame

12
NOMENCLATURE
Corneal endothelium display
Image display
Image display with analytic values
L
LM
S
N T
C
I
0001
Longitudinal alignment bar
3000
2500
2000
1500
1000
T:
ANALYZE DATA EXIT
0001 05/08/05
0.540 13:38R[C]
Date
Time
Corneal thickness
Image of corneal
Cell chart
endothelium
DATA icon
Used for output to the
IMAGEnet system and for
output in RS-232C.
Eye to be photographed
[Photography point]
Photography serial number
3000
2500
2000
1500
1000
T:
MIN:
MAX:
AVG:
CD:
ANALYZE DATA EXIT
N:
SD:
CV:
HEX:
0
100
200
300
400
500
600
700
800
900
0 50 100 %
0
8
29
25
25
8
4
0
0
0
0001 05/08/05
0.540
164
615
361
2773
24
124
34
66
13:38R[C]

13
NOMENCLATURE
Simplified cell count mode display
Menu display
Notation of mouse operation
This instruction manual is described according to the following notation rule.
Notation
Click: Press the left button on the mouse and release it at once.
•This instrument is made on the assumption that the right-handed mouse is used. So, the left
button which is clicked by the right forefinger should be the primary button.
EXIT
N:
0037 0 L[C]
Magnified image of
corneal endothelium
Number of cells analyzed
Icon
Tab

14
NOMENCLATURE
STANDARD ACCESSORIES
Upon unpacking, make sure that all the following standard accessories are included. Figures in ( ) are
the quantities.
Power cord (1) Chinrest tissue pin (2)
Mouse (1) Emergency chinrest knob (1)
Chinrest tissue (2) Dust cover (1)
Fuse (2) Instruction manual (1)

15
PREPARATONS BEFORE USE
PREPARATONS BEFORE USE
INSTALLING THE INSTRUMENT
1Tighten the locking knob.
2Firmly hold the instrument at the specified positions and install it on the instrument table.
For the instrument table, refer to "OPTIONAL ACCESSORIES" on P.75.
3After installation, loosen the locking knob completely.
This allows the instrument to move.
Use the leveling knobs on the instrument's feet to prevent drifting of the instrument.
4Fine level adjusting can be performed at each foot. Maintain the length within 1cm.
CAUTION To avoid injury and/or damage to the instrument, hold the instrument in
the specified position and be careful not to shake or move it suddenly.
CAUTION When carrying the instrument, be careful not to drop or tip it over. Be
careful to prevent your hand from being pinched by the instrument. If
not, you may be injured.
Locking knob
Proper way to hold the instrumentPlace to be held

16
PREPARATONS BEFORE USE
CONNECTING THE POWER CORD
1Make sure that the switch of the instrument is OFF ( ).
2Attach the power cord to the instrument body.
3Plug the power cord into a grounded outlet of the commercial power supply.
CONNECTING THE MOUSE
1Insert the mouse plug into the mouse connector on the instrument body.
WARNING To avoid fire and electric shock in case of leakage, be sure to use a power sup-
ply equipped with a 3-plug AC receptacle for proper grounding.
CAUTION To avoid electric shock, do not handle the plugs with wet fingers.
POWER
Mouse connector

17
PREPARATONS BEFORE USE
CONNECTING THE EXTERNAL INPUT/OUTPUT TERMINAL
Image output
This instrument can be connected to an image processing unit of the EIA (NTSC) signal method.
1Connect one end of the connection cord to the VIDEO OUT terminal on the instrument.
2Connect the other end to the image processing unit.
The VIDEO OUT of the instrument has a BNC terminal. If necessary, use a connection cable and
a conversion plug commercially available.
IMAGEnet
This instrument can be connected to an IMAGEnet system by the two connecting methods.
Connecting method 1 : When using the CONTROL terminal
1Connect one end of the connection cord to the VIDEO OUT output terminal.
2Connect the other end to the IMAGEnet system.
3Connect one end of the IMAGEnet cord to the CONTROL (IMAGEnet) terminal on the instru-
ment.
4Connect the other end to the IMAGEnet system.
Connecting method 2 : When using the USB output terminal
1Connect the connection cord to the USB output terminal of the instrument.
VIDEO OUT output terminal
CONTROL terminal
VIDEO OUT output terminal

18
PREPARATONS BEFORE USE
2Connect the other end of the connection cord to the IMAGEnet system.
•The connection cord for IMAGEnet is an IMAGEnet optional accessory. Prepare this cord prior
to connection. For details on the IMAGEnet system, contact your dealer (on the back cover).
•Do not insert or remove the USB cable while the power of the instrument is ON.
•Sometimes the connection is not done properly because of the characteristics of the USB hard-
ware. Use the USB cable specified by TOPCON.
•When you use a hub, use the USB hub with power supply.
Data output
This instrument can also be connected to a personal computer, etc. via RS-232C or USB.
1Connect the connection cord to the output terminal of the instrument.
2Connect the other end to a personal computer, etc.
Data input
This instrument can be connected to a bar code reader, etc. via RS-232C.
1Connect the connection cord to the RS-232C input terminal on the instrument.
2Connect the other end to an external device, etc.
For assistance in connecting this instrument, contact your authorized Topcon distributor listed on the
back cover.
USB terminal
USB output terminal
RS-232C output terminal
RS-232C input terminal

19
PREPARATONS BEFORE USE
DEFAULT SETTING
In default setting, it is possible to set the DATA input/output, the power saving time and the video OUT
output, and to check the operation.
Preparation for "default setting"
1Make sure that the power cord is connected properly.
Refer to "CONNECTING THE POWER CORD" on P.16.
2Turn on the switch by pressing the switch on the control panel.
Keep pressing the switches until the buzzer sounds. The "POWER" lamp is lit and the "DATA
OUT" dialog box is displayed.
Returning to the eye observation display
1Move the mouse to fit the mouse pointer to the "EXIT" icon and click it.
2The title display appears and then the eye observation display appears.
POWER MENU
MENU switch
"DATA OUT" dialog box
