TOPMAQ CLWA5500 User manual

Gasoline Engine
Hot Water High
pressure washer
owner’s manual

1
Thanks for purchasing a Multi Power Cleaner . Please strictly follow the
engine/alternator instructions and recommended procedure for installation,
operation and maintenance.
Authorized Sales & Service Distributor:
Model Number:
Engine Serial Number:
Air-Fuel Mixer Serial Number:
Purchase Date:
Purchase Location:
Preface
Introduction
This booklet
Manual covers operation and maintenance of the hot water high pressure
washer. We try our best to improve the quality and once there is any change or
alteration for the content we will inform our all authorized distributors as soon as
possible. We appreciate your understanding if soon update fail.
Please fill the following detailed information seriously so as to get a better
warranty and service from us.

2
Please read these symbols seriously, which concern personal security and safety
operation.
Danger
Danger indicates an imminent risk of serious injury or death if not followed.
Warning
Warning indicates a potential risk of property loss if not followed.
Notice
!
!
Notice indicates some special actions should be taken to prevent from damage.
Operation guidance
Guidance
!

3
Safety rules
·Please read the instructions carefully before use.
·Learn how to stop the engine and release the pressure quickly till master all crucial
control methods and operations entirely.
·Hold tightly the trigger gun with both hands when in use.
·Forbidden to operate in confined or small space.
·Do not operate near inflammable material such as the dry grass.
·Keep at least 1.5 meters distance from house, automobile and plant, otherwise the
heat from the silencer will damage its surface.
·High pressure outlet water is dangerous and never shoot at people, animal,
appliance and machine.
·Before use assure the high pressure hose is closely and properly connected. Do not
hold high pressure hose or other parts by hands.
·loadable Pressure of the hose and other accessories should higher than pump’s.
·Please wear necessary special protecting clothes in case of accident.
·Forbidden to use acid, alkaline, dissolving and corrosive chemicals, as well as toxic,
inflammable materials or pesticide, which might cause tremendous harm and
damage to human being and machinery.
·Overheat on pressure washer surface might cause burn, keep it far away from the
children.
·Forbidden to touch the hot surface, otherwise it might cause serious burn.
·Forbidden to leave the pressure washer working unwatched.
·Stay awake and vigilant when in use.
·Forbidden to operate when exhausted, drunk, and after taking some pill.
Caution
!
Danger
!

4
Safety rules
·Forbidden to place it on unsteady ground.
·Hold the trigger gun tightly with both hands when in use.
·Forbidden to incline the machine.
·Open the protector when not in use in case of accident.
·Forbidden to clean electric appliances, and if it is necessary, please cut off the
power first.
·Forbidden to operate near equipment with open fire.
·Forbidden to operate without water flow.
·Forbidden to operate without the strainer, otherwise the dirty water might
damage the sealed parts and valve.
·Forbidden to modify the machine without permission.
Warning
!
Warning
!
·Gas is inflammable and explosive, so stay clear of open fire.
·Switch off the main gas valve if no use.
·Confirm your fuel type is the same as that printed on the water heater nameplate,
otherwise unacceptable; water heaters of manufactured gas or natural gas
shall be applied with designated fuel type of its area, and gas of different fuel
type or same type in different areas shall not be mixed up.
·Check the hose and interface frequently and turn off the gas source immediately
if there be any leakage. Change the hose if any crack appear.
·For LPG user, if you find the water heater’s flames not stable, possibly which is
caused by failure of the gas regulator, please stop the pressure washer right
now and change a new gas regulator or ask for technician help; for pipeline
gas or NG user, if you find the water heater’s flames not stable, possibly
which is caused by unsteady pipeline pressure, please stop the pressure
washer right now, otherwise it maybe damaged and even accident happen.
·Burn warning:
Do not put your nose on the water heater shutter before ignition.
For discontinuous usage or when Temperature Adjustor placed in high
temperature’s position, please be careful the hot water coming out from the
gun.
Whether in use or just finishing use, except for the switch, never touch any parts
of water heater, especially the area of observation window,.

5
Technical Parameters
High pressure washer parameters
Model XY-H02
Rated pressure 2500 PSI
Flow rate 3.0 GPM
Pump XY55
Inlet water Running water（20-75 PSI）
Hose 10 m
water heater parameters
Fuel type LPG，NG
Max heat value 88500BTU/H
Max temperature 75°C
Exhaust Natural
Ignition Water control automatic pulse
Battery DC 2×1.5V
Plug G 1/2
Max fuel consumption 1.7kg/h
Engine parameters
Model Loncin
Fuel type Oil
Max power output 6.5Hp
Displacement 200CC
Starting method Recoil starter
Oil capacity 3.6 L
Working time 4h

6

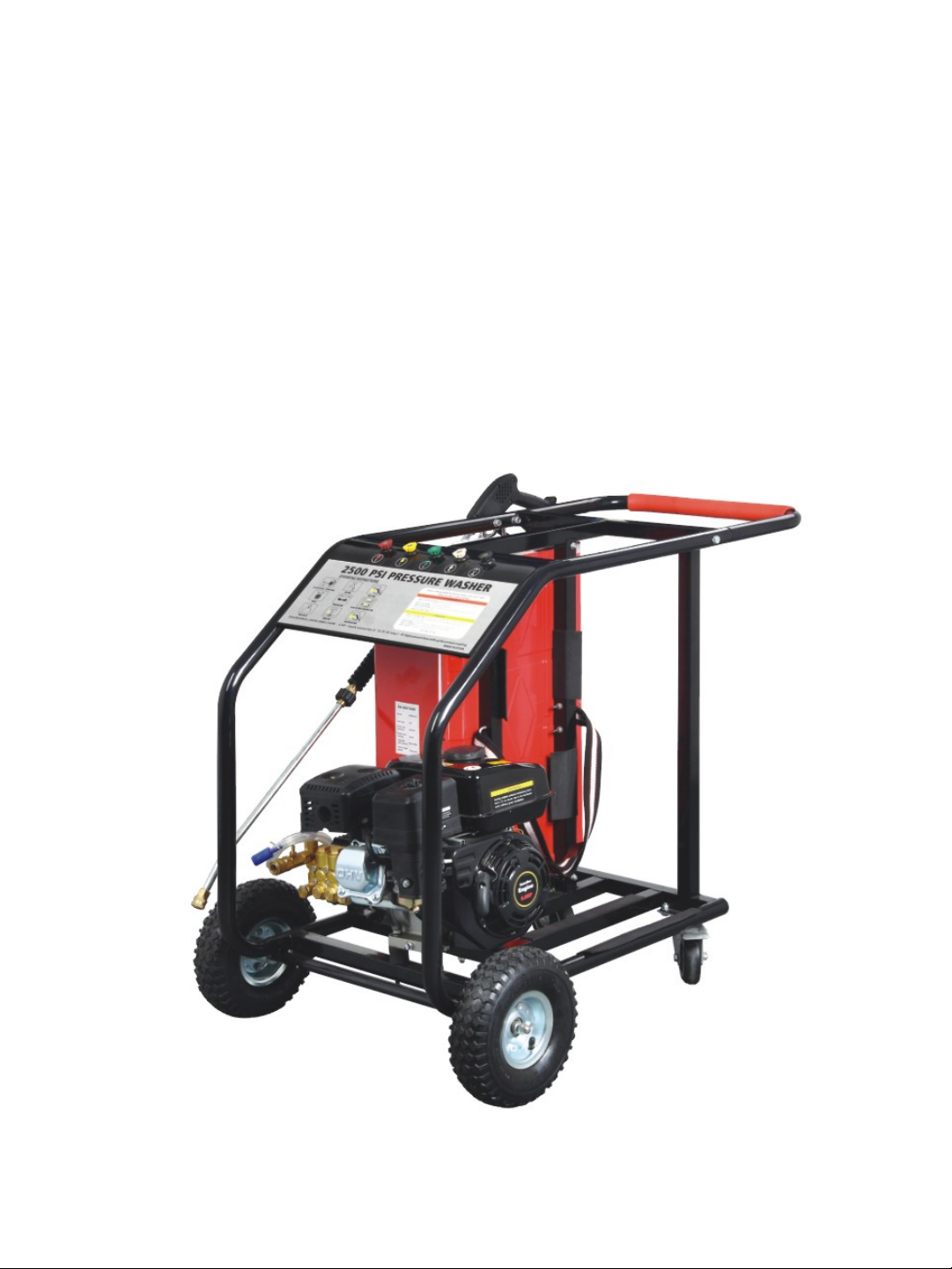

Main Components
Replaced Quick Connecting Tips
LPG Bottle
Engine
Pump
LPG Water Heater
Spray Lance

7
Function
Engine :drives the pump
Pump: Increases water pressure
LPG Water Heater: heats inlet water
Replaced Quick Connecting Tips: work together with spay lance and control
the flow rate, direction and pressure.
Spray lance: there is a rapid interface at the end of the spray lance for replacing
different connecting tips.
LPG Bottle: stores LPG fuel
Assembly

8
Installation
Accessory
Respirator, 1 pieces
Check attached accessories and install as follows:
Handle, 1 pieces; Bracket, 1
pieces; Bolt M8×45 , 1 pieces;
Nut M8, 3 pieces; Washer φ 8, 4
pieces
4 inch wheel, 2 pieces; Bolt M8×18, 8
pieces; Nut M8, 8 pieces; Washer φ 8, 8
pieces
Lance, 1 piece; gun, 1 piece; Water inlet
pipe, 1 piece; high pressure pipe, 1 piece;
Clip, 1 piece
10 inch Wheel, 2 pieces; Shaft,
2 pieces; Nut M10, 2 pieces;
Washer φ10, 2 pieces;

9
Installation
Water source
1. Connect water inlet of pressure washer to running water outlet with water pipe,
and tighten them with clamps
2. Install water strainer if necessary at the pump entrance, conical surface should
be outside
Notice
!
·Use clean water
·Ensure original water pressure not lower than 25PSI
·Ensure original flow rate should be at least 1.2 times of that rated inlet water
flow rate of the pressure washer
Add Engine Oil
1. Place the generator on a flat, level surface.

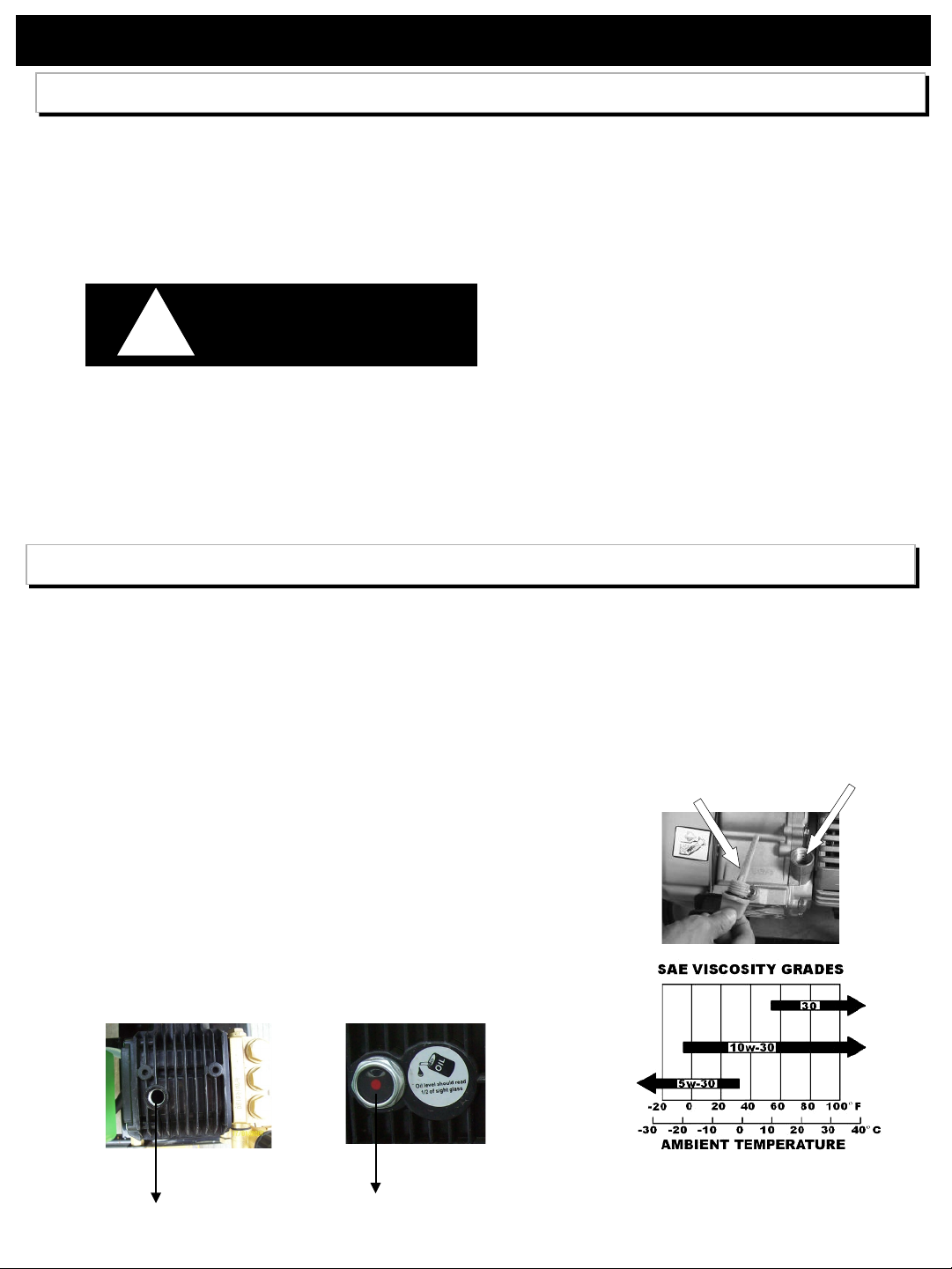

2. Remove OIL FILL CAP / DIPSTICK to add oil, for first use engine oil capacity
added is about 0.9 L.
3. Add engine oil and reinstall OIL FILL CAP / DIPSTICK.
4. Check engine oil level for each use and add as needed.
Oil Fill Cap/ Dipstick Filler Hole
For engine:
For pump:
For first use please put off the protective bolt on
the pump with a 17mm wrench
Add about 0.3L 30 # wear-resistant oil, oil level
to the middle position of observation pole, screw
up with the respirator.
Observation poleHole for adding oil

10
Installation
High pressure hose & nozzles

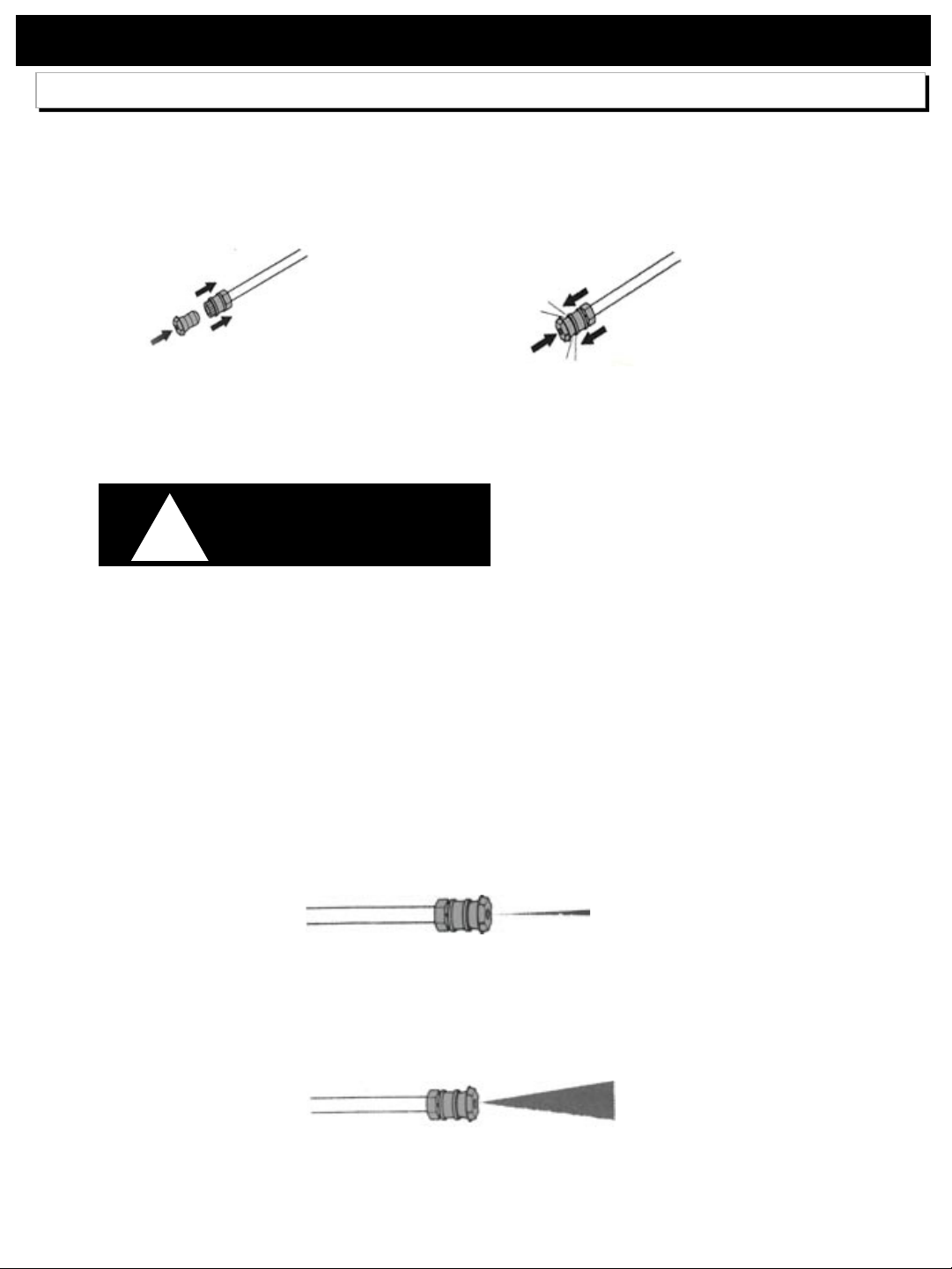

1、Connect spray lance with the trigger gun.
2、Pull quick tie-in backwards on spray lance and install the spray nozzle.
3、Loosen the quick tie-in and push it forwards until hearing the sound of click.
4、Connect hose with the trigger gun.
Please find attached 5 spray nozzles in different colors, spray angles and used for
different occasions. Different spray angles have different sectorial areas and
pressure of spray water.
Red spray nozzle (0º ) the highest pressure and the smallest cleaning area,
only used for surface that can undertake the high pressure, such as metal or
cement, but not for wood.
Yellow spray nozzle (15º ) With a 15 º cleaning angle to strengthen the cleaning
effort in smaller area, only for surface that can undertake the pressure
Warning
!
·High pressure at the hose and improper installation
might cause hurt.
·Cut the water source when installing or uninstalling
hose, spray lance or spray nozzles.

11
Installation
High pressure hose & nozzles

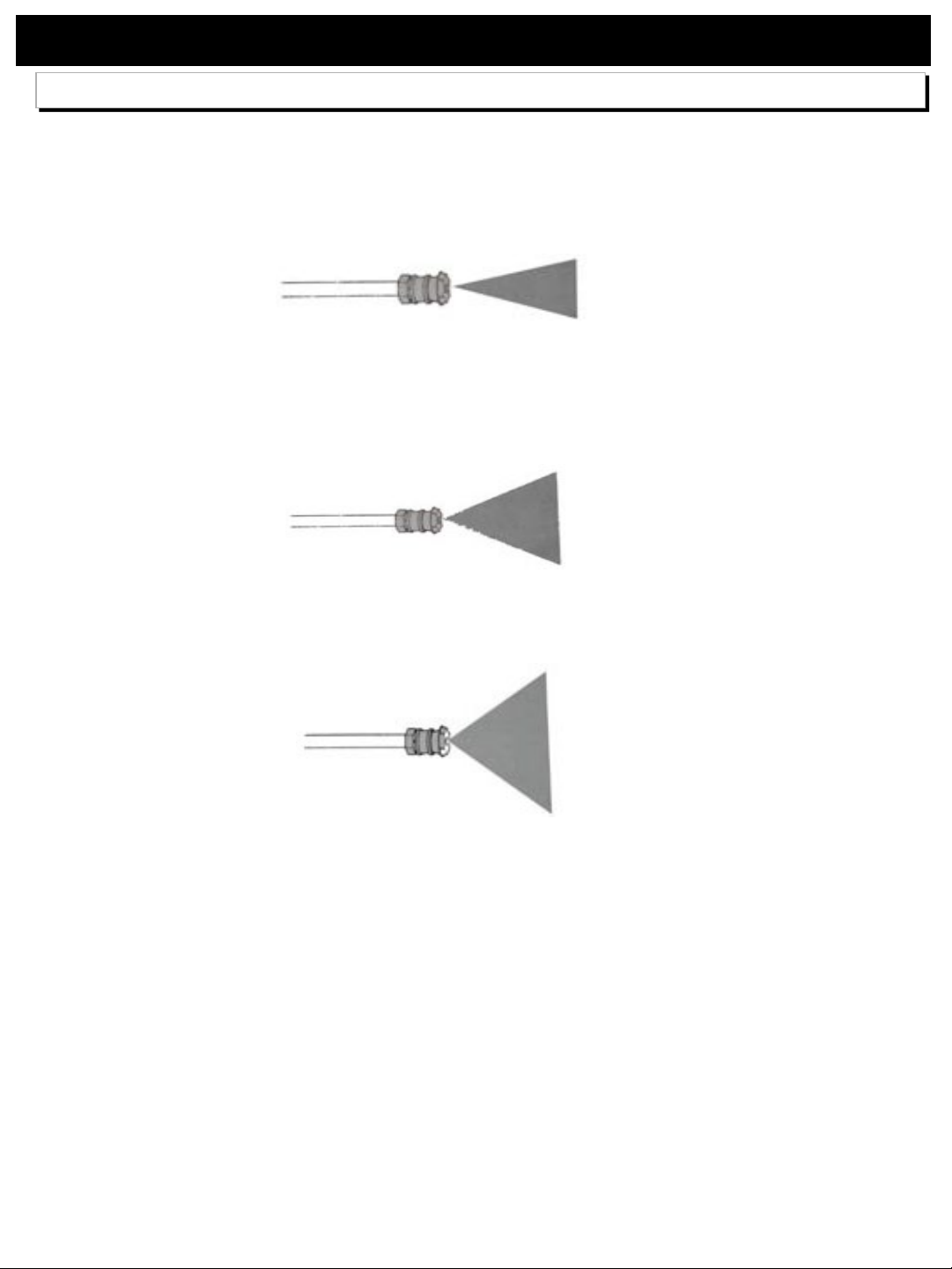

Green spray nozzle (25º ). With a 25 º cleaning angle to strengthen the cleaning effort
in large area, only for surface that can undertake the pressure.
White spray nozzle (40º ). With a 40 º cleaning angle for general purpose, low pressure
and larger area.
Black nozzle. For detergent only, the lowest pressure and the largest area.

12
Pre-operation
Forbidden to turn the pressure washer gun towards unprotected skin, eyes, pets or
animals, otherwise it might cause serious damage. High pressure water is possible to
penetrate flesh of person or animal and even more severe hurt than that. Loose
connection or crack might cause injection hurt. Please see your doctor if it happens.
Warning
!
Oil check
1. Check engine oil and assure it is proper.
2. Check pump oil and assure it is proper.
Gas source check
1. Please check gas source is properly connected with engine and water heater.
2. Open the main gas valve.
Water source check
Please check water source is properly connected and opened.
Warning
!
Do not shut off the water source when in operation , otherwise
might cause damage to pump.

13
Pre-operation
water heater check
Check fuel type is same or not as on nameplate appointed. Install two 1# dry cells for the
water heater.
Notice
!
Water pressure is the switch to turn on the water heater, so when it is lower than
0.02Mpa, water heater can not be started.
If relief valve drops water, it is normal, it is for protecting the water heater from too high
water pressure.
When the outlet water temperature exceeds heat protector appointed temperature value,
the water heater will be shut down automatically, it is normal, please re-adjust the
outlet water temperature and restart.

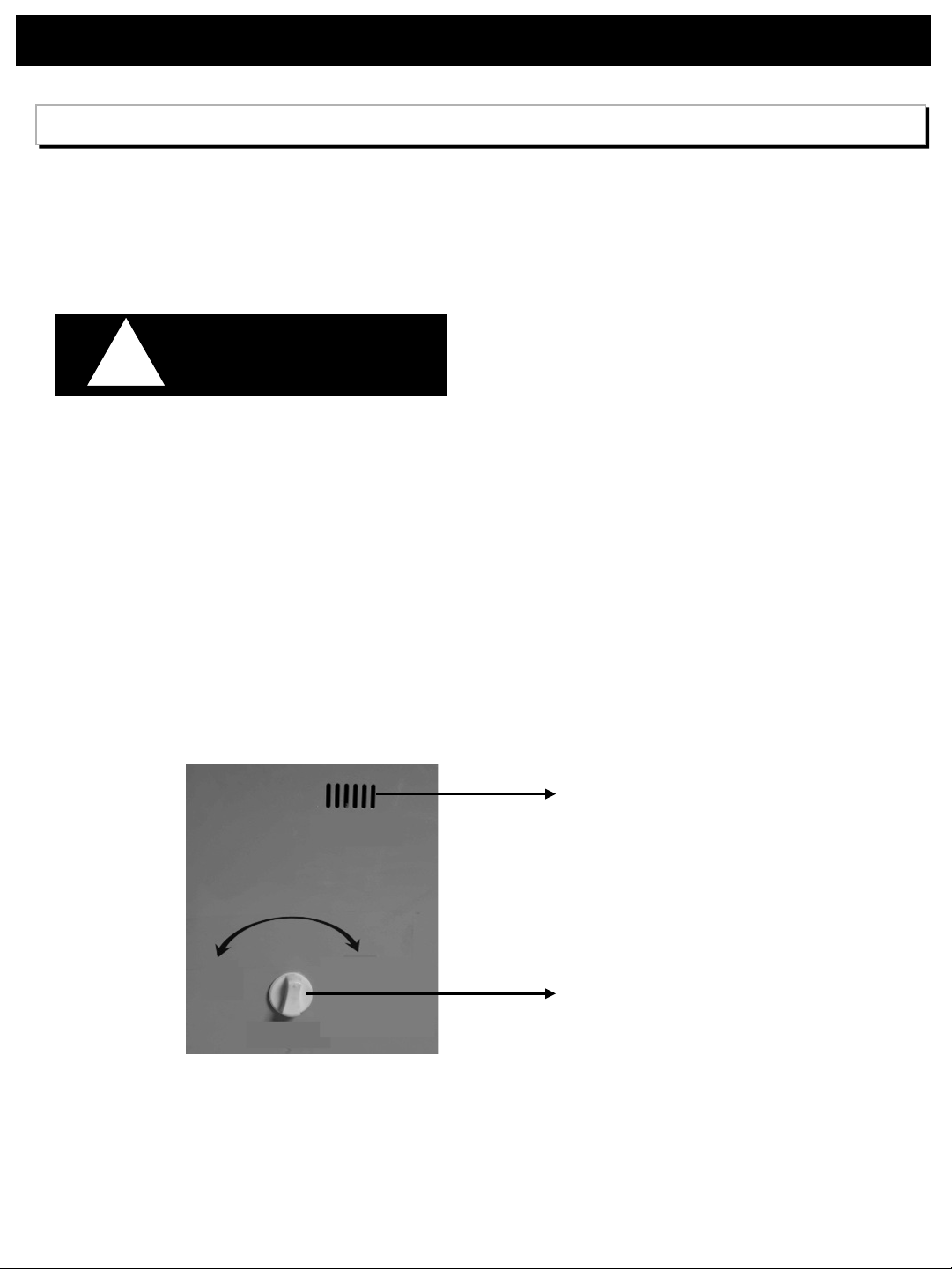

Please check the flame from Flame Observation Window, if no flame please trigger back
the gun, and trigger again till water heater works normally
MIN MAX
Flame Observation Window
Temperature Adjustor

14
How to operate
Start up the engine
Before startup first please trigger the gun to release the pressure in pump, then start the
engine.
Notice
!
Cleaning
1. Trigger the gun and hot water will come out.
2. Trigger back and hot water will stop.
3. Get different water flow rate and pressure by changing different spray nozzles.
Warning
!
·Under by-pass mode, if the gun stay in no triggered state for more than 2 minutes,
hot water will go into the pump and this will damage the pump.

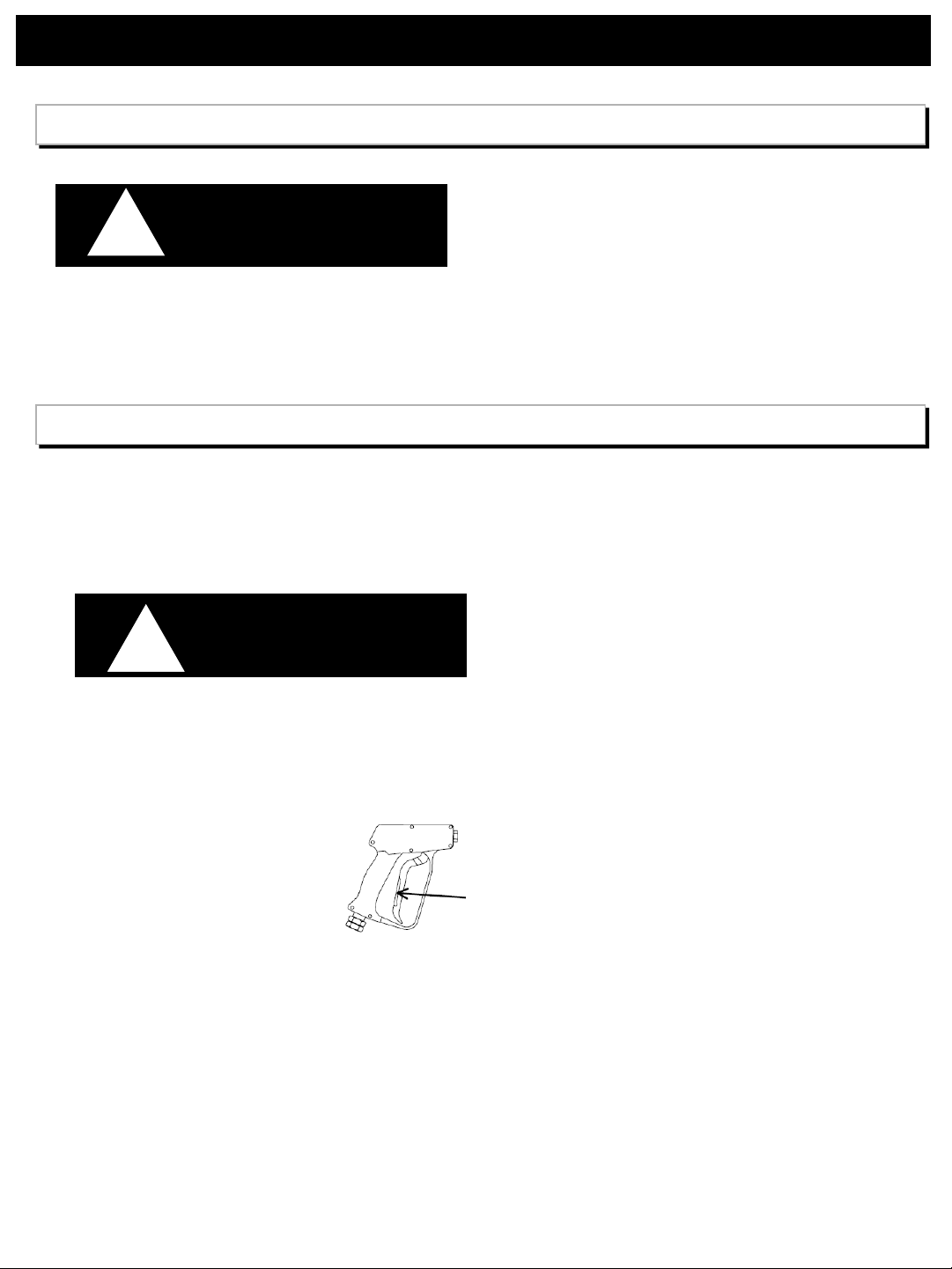

·There is a safety protector in the trigger gun.
Safety protector

15
How to operate
Detergent
Detergent works under low pressure and can not be injected under high pressure.
Notice
!
Adjust the pressure
1. Install the black spray nozzle.
2. Install the injector to the pump.
3. Put injector strainer into the detergent container.
Detergent: water 1:10
4. After use, put the injector into clean water to clean off the detergent because any
remained detergent possibly damages the pump.
1. Far away the gun to the surface you want to clean, longer distance and less water
pressure you will get.
2.Reduce the engine rotating speed, lower engine rotating speed means lower water
pressure.
3. Use the white spray nozzle, larger spray area, and lower spray pressure you will get.
4. Adjust the pressure switch on the pump, turning switch anti-clockwise will reduce the
pressure. Place the switch back after use.
Warning
!
Pressure washer has already been adjusted to the most suitable pressure in factory and
lower pressure can be achieved through following ways:
Do not attempt to increase the pump pressure, otherwise it might damage the machine
and hurt the person.

16
How to operate
Shut down the pressure washer
1. Shut off the main gas valve and engine will stop.
2. Shut off the water source.
3. Trigger the gun back and release the water pressure.
Notice
!
Please assure the main gas valve is off after the engine stopped.

17
1. Correct and regular maintenance can extend the service life of the machine.
2. Any unauthorized adjustment to the machine or unauthorized accessories might
cause damage or injury, and it will void your warranty.
Maintenance
Warning
!
Safety notice
1. Please read carefully this booklet before maintenance.
2. Shut down the engine first till it is cool.
3. Shut off the water source before maintenance or service, otherwise might cause
damage or injury.

18
Maintenance
Engine maintenance schedule
Total running time
Item 50 Hrs 100 Hrs 200 Hrs 300 Hrs
Lube Oil (Change) √
Air Filter (Clean) √
Spark Plug (Check or Change) √
Valve Clearance (Check or Adjust again) √(※)
Combustion Chamber (Clean) √(※)
1. More frequent maintenance is necessary if frequently used.
2. Items with (※) should be finished by professional technician of authorized
agent/distributor.
Notice
!
attentions to water heater
1. In winter, water will freeze and possibly damage the water heater, so please drain
all the water out after use.
2. When hard water is used, please shut off the main gas valve and drain all the hot
water out until it is cold water, and then shut off the water source. This helps to
eliminate the water scale deposit.
3. Hot water is only for general washing, can not be for drinking.
How to change pump oil
1. Unscrew the respirator
2. Place a container under the oil drain plug.
3. Unscrew the oil drain plug.
4. Screw up the oil drain plug after all oil coming out.
5. Remove the respirator and add about 0.3L wear-resistant oil, oil level to the middle
position of observation pole.
6. Screw up the respirator.
Notice
!
Check if the gas source is off after engine shut down.

19
Maintenance
How to clean a nozzle
1. Stop pressure washer and shut off water source
2. Trigger the gun and release the pressure
3. Take off the spray lance
4. Take off the spray nozzle and clear resides in it with a needle.
5. Wash the spray lance for 30 seconds..
6. Reinstall the spray nozzle to the spray lance.
7. Reinstall the spray lance and the trigger gun.
8. Re-start the pressure washer and test.
Notice
!
If the spray nozzle is blocked, pressure will become extremely high, and if spray
nozzle is partly blocked, pressure will become unstable.
How to clean a strainer
1. Unscrew the water inlet and take out the strainer.
2. Wash both sides of the strainer.
3. Reinstall it and assure the conical side is outside.
Notice
!
·Check and wash the strainer regularly.
·Do not operate the pressure washer without the strainer.
