TOPMAQ LC-20ZQ User manual

LC-20ZQ Steam Carpet Cleaner
LC-30ZQ
LC-40ZQ Steam Carpet Cleaner
Steam Carpet Cleaner
STEAM CARPET CLEANER
20L/30L/40L
Subangency
OWNER'S GUIDE
Please read carefully before operation

I.This machine is not intended for use by the physically weak,intellectually obtuse
or mentally disabled people (including children), unless it is safelyused under
the help or instructions of those who are responsible for theirsafety.
II. The children shall be supervised to ensure that they will not play the machine.
III. Be sure to remove the power plug from the socket before cleaning or repairing
the machine.
IV. In the event that the power cables are damaged or loose, please have them
replaced by the manufacturer's service station or qualified technician.
Theconnection is Y-type connection.
V. Remove the power plug after stopping the machine.
VI. Power supply must be matched with the power voltage and frequency of the
machine.
CAUTIONS
Cautions before Operation
Welcome to buy and use LC . Before using, please be
sure to read this User Manual thoroughly. This manual provides important
information on sareoperation and maintenance of the machine. If you try to
operate the machine or perform any maintenance without reading this Manual, it
might cause danger to you or other people,or cause damage to the machine or other
substances.Therefore, the operators must accept adequate training before they are
allowed to operate this machine.
Steam Carpet Cleaner
Safety Considerations
WARNING: Steam outlet mustn't spray at people.
-1-

The LC series steam carpet cleaner is a machine that can not only dry & wet vacuum
independently, but also used for cleaning curtains & carpets.When clean the carpet,
the 3 processes of spraying, rinsing, and drying are completed simultaneously to make
the carpet thoroughly clean.The fuselage design is novel and fashionable, and it is
flexible and convenient to use. It is especially suitable for cleaning and sterilization of
curtains and carpets in corridors, conference halls, restaurants, etc.
Main Structure
1. When steaming, forbidden to spray at people.
2. Don't let children touch or use, please keep the machine away from children when working.
3. When the machine is working, it is not allow to bend or press the steam hose, which will block the
spraying and cause danger.
4. When using steam, only clean water added into the white plastic tank, but any detergent is
forbidden.
5. The machine emits steam with one button. If there is no steam spraying during useage, please turn
off the stam switch immediately, cut off power supply, and check if still enough clean water in the
white plastic tank. And use the machine again after adding clean water.
6. This machine is only adaptable to AC 220V/50Hz, please make sure that the power supply is
perfect matches.
7. After finish steaming operation, please don't remove the steam hose and connector immediately
until they are all cooled down.
8. Please keep the steam hose clean and no objects blocked inside.
9. Please keep machine from flammable, explosive or other dangerous places.
10.The white plastic tank should be cleaned regularly with descaling agent mix with fresh water
proportional.
11.The machine is equipped with anti-dry burning protection. If lack of water, the temperature will
be too high, and it will power off and protect itself. When restarting, should add water, turn on the
water pump to cool the heater,and then press the steam button to produce steam again.
12.Turning off the machine in the middle will cause the internal temperature of the machine to be too
high, which will trigger the power-off protection, and cause the machine can not use immediately
at once. This machine is equipped with a cooling heater function, which starts the water pump to
cool the heater, so it can work continuously without waiting.
13.After each use of steam, the water pump should be turned on, and the machine should be turned
off after whole machine is cooling down, so as not to cause the residual temperature inside the
machine to be too high.
14.The heater does not have a pressure relief device, because it is more smooth than the steam
pipeline and cannot be blocked, so as to avoid safety hazards caused by excessive pressure. So the
switch on the steam gun can't be turned off.
Cautions
1
23
4
5
6
7
8
10
12
13
14
15
16
17
18
19
11
9
Cautions for Daily Operation
1. This machine must not inhale flammable, explosive and corrosive substances.
2. The head of this machine shall not get wet or soaked.
3. It is recommended that users use cleaning agents with a neutral PH.
4. Before using the extraction function, 15-25ml of defoaming detergent must be added to the steel
tank.
5. Before using the extraction function, the dust compartment in the steel tank must be removed.
6. Check the filter on the suction pipe in the clear water tank before use. The filter must be intact and
undamaged or unblocked.
7. The temperature of the cleaning liquid used in this machine should not be higher than 50 degrees
Celsius.
8. When the water pump has been turned on for 1 minute, while the pump has a working sound but no
water is discharged, the pump should be stopped, and the water pump should be turned on after
find out or eliminate the reason for no water.
9. After the extraction operation is over, it should absorb the clean water for 20-30 seconds to flush
the residual detergent in the pump and pipeline.

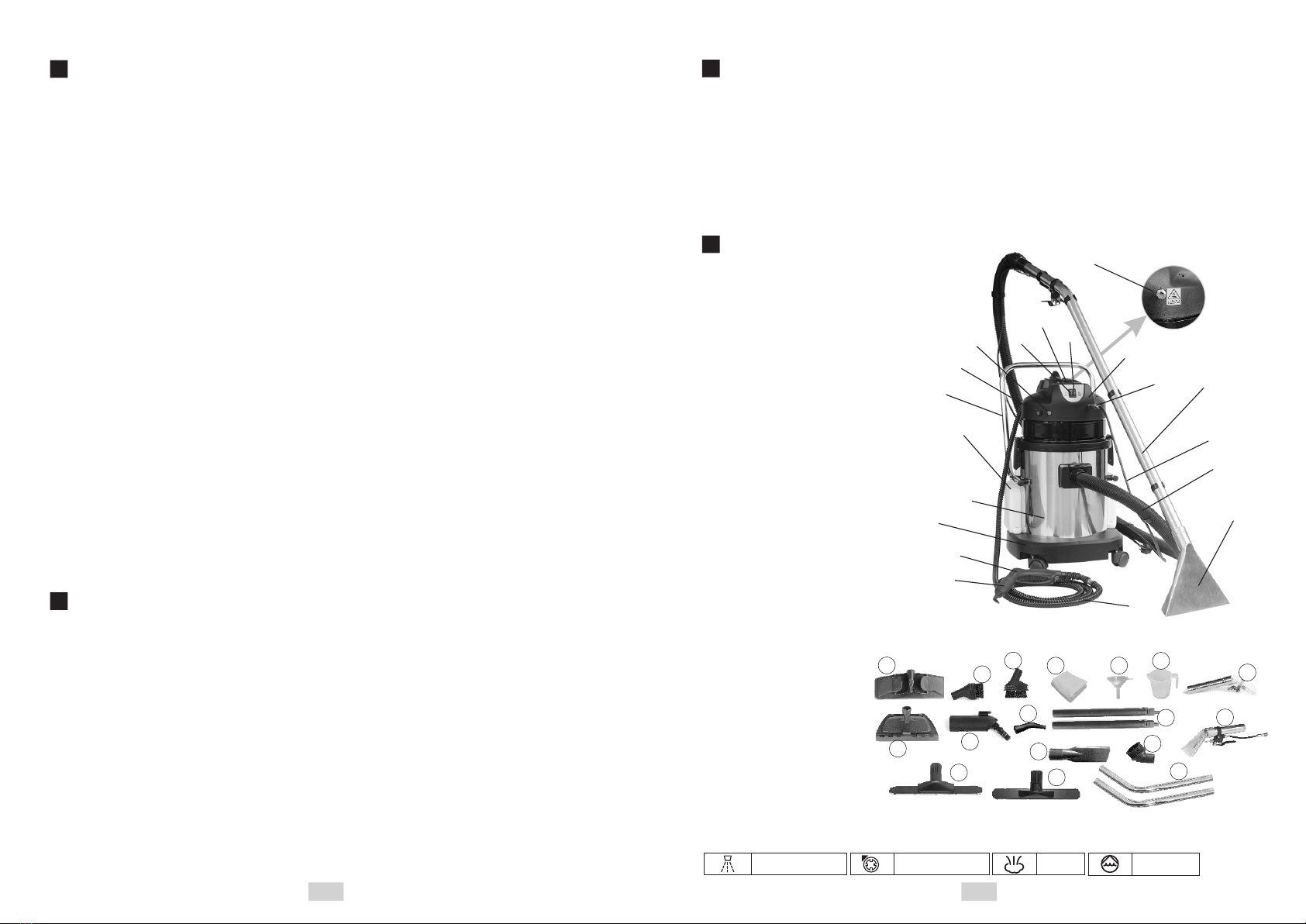

Product Introduction
1.Lift Handle
2.Suction Switch
3.Water pump switch
4.Head Unit
5.Quick Connector
6.Steam pump
7.Steam switch
8.Steam pipe connector
9.Grab Handle
10.Steel Pipe
11.Φ4*8 Black hose with connector(2.75m)
12.Air Suction Pipe
13.Big Water Sucker
14.Liquid Tank
15.Steel drums
16.Base Seat
17.Spraying gun
18.Converting head
19.Steam pipe 3m
20.Floor brush
21.small round brush
22.big round brush
23.plastic small nozzle
24.towel
25.funnel
26.Measuring cup
27.Steam vacuum head
28.Glass brush
29.Floor brush connector
30.Extension rod
31.Water sucker
32.Long flat vacuuming head
33.Round brush
34.Water vacuuming head
35.Dust vacuuming head
36.Curved steel pipe
Water Pump Switch
Suction motor switch
*Switch identification description:
Steam
-3--2-
Steam pump
20
21
22
23
26
27
31
28 29
30
33
32
36
35
34
24 25

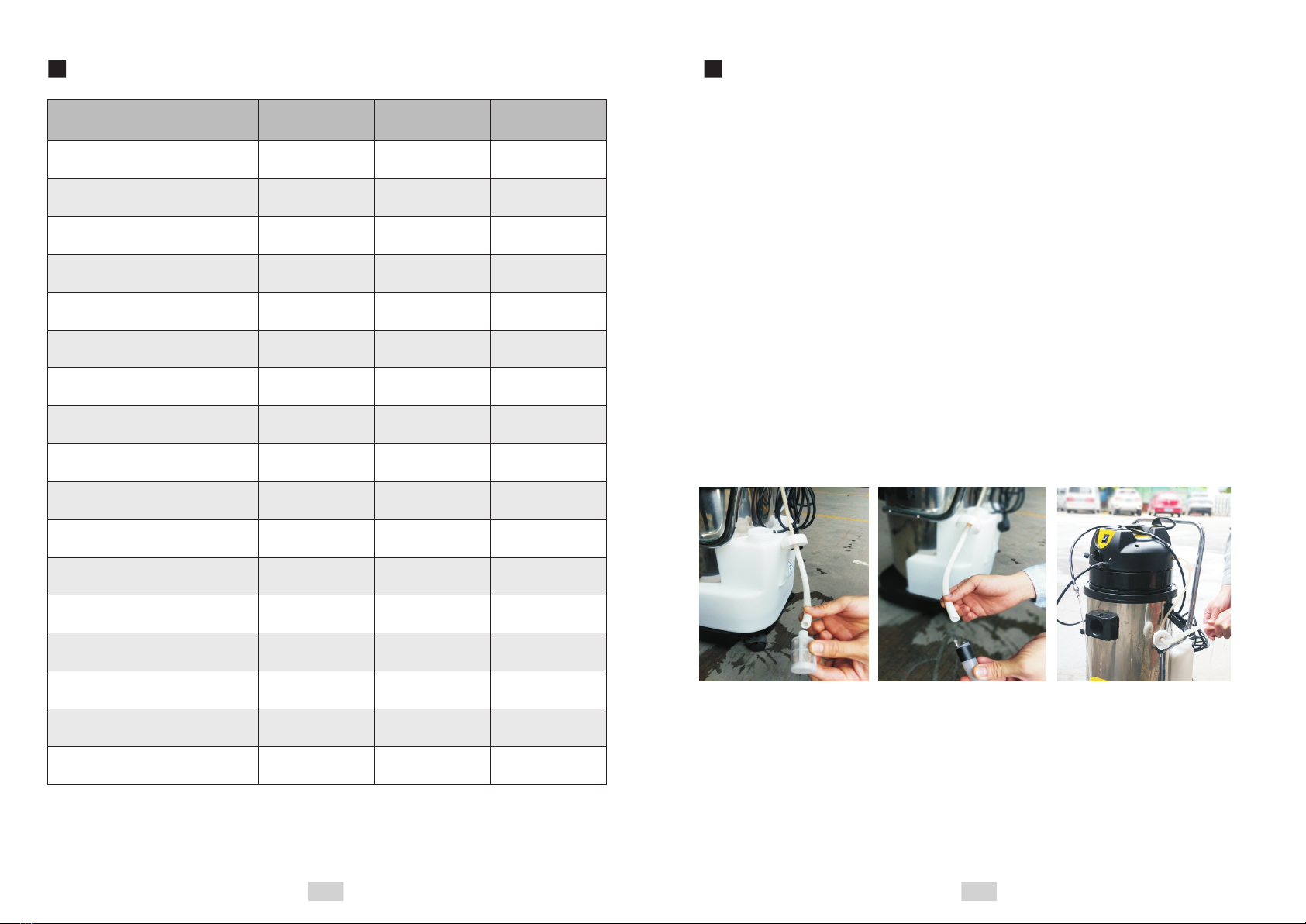

Technical Parameters
220V-240V.AC
50/60Hz
2862W
2000W
34W/28W
800W
720mm
Φ335mm
20L
230mbar
53L/S
87PSI
Φ40mm
250mm
85mm
8m
20L
Voltage
Frequency
Power
Steam heater power
Power of water pump
Power of vacuum motor
Height
Tank diameter
Main body capacity
Vacuum suction
Air flow rate
Mode of cooling
Pressures
Hose diameter
Big water sucker width
Little water sucker width
Cable
220V-240V.AC
50/60Hz
2862W
2000W
34W/28W
800W
890mm
Φ335mm
40L
230mbar
53L/S
87PSI
Φ40mm
250mm
85mm
8m
40L
220V-240V.AC
50/60Hz
2862W
2000W
34W/28W
800W
830mm
Φ335mm
30L
230mbar
53L/S
87PSI
Φ40mm
250mm
85mm
8m
30L
Cycle air-cooled Cycle air-cooled Cycle air-cooled
1. The pump of the LC Steam Carpet Cleaner is a small electromagnetic water
pump. The following situations may cause the pump to be blocked, while
the pump coil may work normally (with working noise) but the pump does
not discharge water.
a. The machine is stopped using for a long time, and the rubber valve in the pump
is stuck to the valve seat.
b . Solid impurities in the cleaning liquid accumulate in the pump.
c. The cleaning liquid remaining in the pump for a long time is gathered, which
makes the rubber valve blocked and invalid.
2. In case of clogging, please dredge it according to the following methods
before starting the machine
a. Open the water tank cover according to Pic 1 and pull out water suction hose
and remove the filter.
b. Connect the water suction hose to the tap water pipe according to Pic 2.
c. Please refer to Pic3,connect the hose with tap water,and turn on the pump
switch,then wait until the water come out from quick connector of machine
head.
Pic1 Pic2 Pic3
Pump Blockage Dredge Method
-5--4-

Breakdown Drawing (1) of Steam Carpet Cleaner
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18 19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
39
40
41
29
1.TAH4.5*40
2.TTH4.5*25
3.X-3/1# handle
4. 1/4 inside and outer teeth through
5.TTH4.5*20
6.Top cover LC-3/2#
7.1/8 inside teeth Φ6 pagoda through
8.Φ10*20*1.5 Washer
9.Φ1/8 inside teeth Φ6 pagoda through
10.Red round switch
10-1.Green button
11.1/8 inside teeth Φ8 straight through
(Quick coupling)
12.Water pump 55DCB
13.4*8 Silicone tube 80cm
14.1/8 outer teeth Φ6 Elbow
(Quick coupling)
15.Pressure switch
16.1/8 inside teeth straight through
17.1/8 outer teeth Φ8 T-connector
(Quick coupling)
18.Φ10*20*1.5 Washer
19.1/8outer teethquick coupling (female)
20.Switch (red)
21.KM5*8
22.Fixed plate of pump
23.PM4*6
24.Air pump mounting plate
25.180℃ Thermostat
26.250℃ Thermostat
27.Internal and external teeth steam pipe
5*10*250mm
28.Steam heater
29.PM5*30
30.PM4*6
31.Heater mounting plate
32.30A Relay
33.TTH4.5*20
34.16A Terminal
35.KM4*14
36.Φ6 T-connector
37.5*8 Transparent tube(60mm)
38.Water pump SP-13A
39.45*20*2mm Iron plate
40.KM4*6
41.DM4*6
4
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
1
1
1
1
2
2
1
1
4
1
2
1
1
1
1
2
2
10-1
Main Troubles and How to Solve Them
Symptom Cause How to Solve
No power supply
The power cord is damaged.
The power supply in the house or
building is disconnected or tripped.
Replace the power cord.
Check, repair or replace.
The power is switched
on, but all the motors
run intermittently.
Power cord problem
The switch is damaged.
The terminal is loose or the
contact is poor.
Repair or replace
No sucking force or
the sucking force is
low.
The drain valve is open.
The gap between the motor head
and tank is unsealed.
The interface between the aspiration
pipe and the interface on the tank
is unsealed.
The water suction pipe is blocked.
There is dirt deposited on
floating ball support.
The aspiration pipe is damaged
The vacuum motor installation is
loose.
Close the drain valve.
Tighten and seal it.
Plug in and seal it.
Clean the aspiration pipe
Remove the dirt.
Replace the aspiration
pipe
Tighten the screws.
The pump is on, the
machine has working
sound, but the nozzle
does not spray the
solution
The nozzle & filter is blocked
The suction pipe filter in the water
tank is blocked
The sealant in the pump is damaged
Foreign material exists in the pump.
Wash the nozzle & filter
Clean the filter
Replace the sealant
Remove the strainer in the water
tank and rinse it with tap water.
B
-7--6-

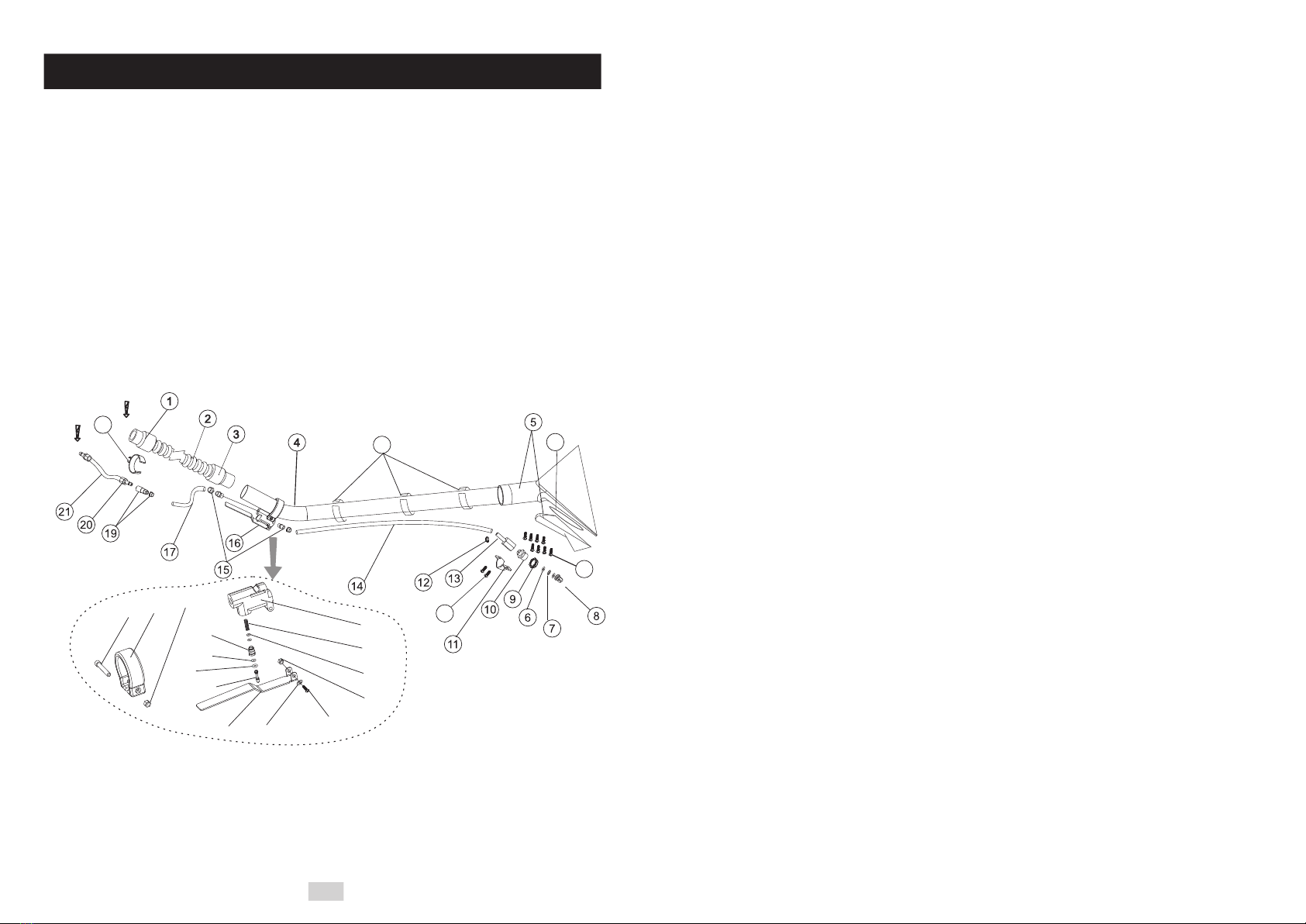

Steam vacuum head
1
2
3
4
56
7
8
9
10 11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
1
1
1
1
6
1
1
1
2
1
1
1
1
1
1
1
2
1
2
4
4
4
4
4
1
1
1
4
1
1
1
1
1
1
1
1

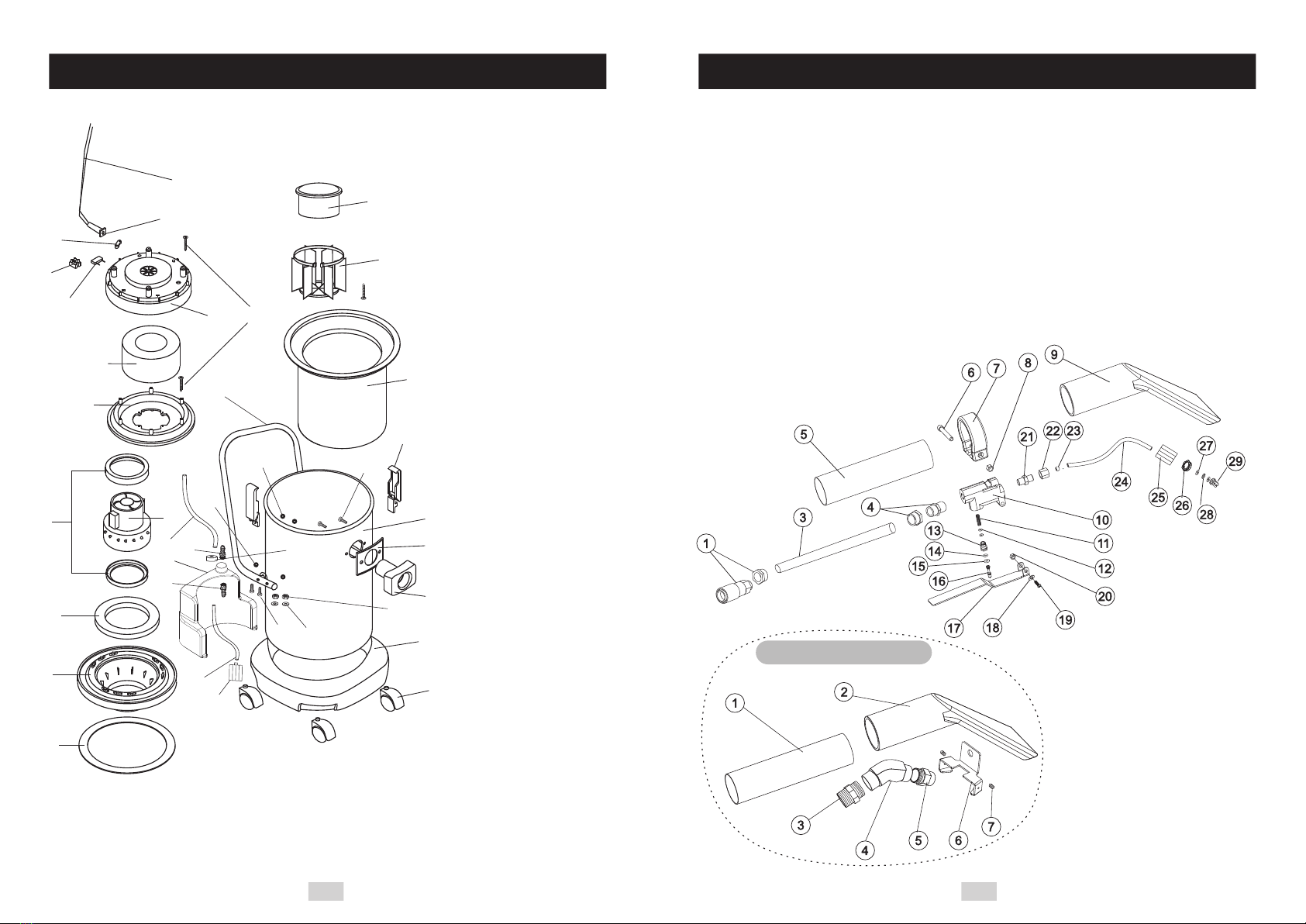

Breakdown Drawing (2) of Steam Carpet Cleaner
1. Power cord
2. Power cord sheath
3. Wire clip
4. Terminal blocks
5. Filter capacitor
6.TAH 4.5*40 screw
7. Surrounding edge
8. Motor soundproof cotton
9. Fixed motor cover
10. Motor washer
11.Motor
12. Dustproof cotton
13. Motor base
14. Base seal ring
15. Ball float
16. Ball float bracket
17. Dust screen
18. Barrel buckle
19. Steel barrel
20.TBH 5*16
21.Tilt vacuum D type
22.Tilt vacuum E type
23.PM 5*50
24.M5 standard nut
25.φ5*10*1.2 washer
26. Square gasket
27. Square connertor
28. Base
29. Wheel
30. Water tank
31. Φ
Φ
36.Water tank cover
37.Handle
1/8 outer teeth 6
pagoda through
32.6*8 silicone tube
33.1/8 inside teeth 10
pagoda through
34.8*12 silicone tube
35.Filter
Breakdown Drawing of Hand-push Sucker (Small)
1.One-point quick coupling (female)
3.Φ4*8 Black rubber tube (12cm)
4.One-point Φ6 outside tooth straightway
5.Stainless steel pipe
6.Steel CM 5*25
7.Fixing ring of spray switch
8.Steel M5 nut
9.Plastic sucker
10.Spray switch base
11.Spray switch spring
12.7*2 O type ring
13.Spray switch copper nut
14.11*2.4 O type ring
15.14*2.4 O type ring
16.Spray switch copper insert stick
17.Spray switch handle
18.Steel Φ4*8*1 washer
19.Lattice 3*3*20*Φ3.4
20.M3 self-locking nut
21.Bolt for spray switch steel pipe
22.Nut for spray switch steel pipe
23.Nut for spray switch steel pipe
24.Φ5 steel pipe (bending)
25.Installation joint for nozzle
of small sucker
26.Φ12 nut
27.Sealant pad
28.Filter
29.Nozzle
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1.Stainless steel pipe
2.Plastic sucker
3.1/8 to 1/4 Double external
teeth straight connector
4.1/8 Double inside teeth
45-degree elbow
5.Nozzle (11015)
6.115*54*2 Fixed steel sheet
7.4*4 Screw
1
1
1
1
1
1
2
-9--8-

Breakdown Drawing of Hand-push Sucker (Large)
Operation Instructions of Handle Sucker
1.Pull out the suction pipe behind the machine body; plug in the straight retractable
hose of handle sucker;
2.Connect the quick coupling hose with the quick coupling below the machine body.
5-2
5-1
4-1
11-1
16-1 16-2 16-3
16-4
16-5
16-6
16-7
16-8
16-9
16-10
16-11 16-12
16-13
16-14
2-1
1.Φ40 Connector A
2.Φ40 Hose
2-1.Hose clamp
3.Φ40 ConnectorB
4.Steel pipe
4-1.Hose clamp
5.Steel sucker
5-1.OM 4*10
5-2.Sealing strip for squeegee
6.Sealing pad
7.Filter
8.Nozzle
9.Φ12 nut
10.One-point Φ12 outside tooth straightway
11.Pressing plate
11-1.PM 4*10
12.Φ7 Hose clamp
13.One-point inside tooth copper joint
14.Φ4*8 black hose(104cm)
15.One-point Φ6 outside tooth straightway
16.Spray switch base assembly
16-1.Steel CM5*25
16-2.Fixing ring of spray switch
16-3.Steel M5 nut
16-4.Spray switch base
16-5.Spray switch spring
16-6.7*2 O type ring
16-7.Spray switch copper nut
16-8.11*2.4 O type ring
16-9.14*2.4 O type ring
16-10.Spray switch copper insert stick
16-11.Spray switch handle
16-12.Steel Φ4*8*1 washer
16-13.Lattice 3*3*20*Φ3.4
16-14.M3 self-locking nut
17.Φ4*8 black hose (20cm)
19.One-point Φ6 quick coupling(female)
20.One-poiot Φ6 quick coupling (male)
21.Φ4*8 black hose (2.7m)
1
1
5
1
1
4
1
8
1
2
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
1
B
C
-10-
