Tornado TWV-FN710WTOA User manual

Washing Machine / User Manual
EN
TWV-FN710WTOA-TWV-FN710SLOA

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS ............................................................................................... .1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use ....................................................................................................................6
1.3 Packaging and Environment...........................................................................................7
1.4 Savings Information........................................................................................................7
1.5 CE Declaration of conformity......................................................................................8
1.6 Disposal of your old machine .....................................................................................8
2.TECHNICAL SPECIFICATIONS...................................................................................... .9
2.1 General Appearance.......................................................................................................9
2.2 Technical Specifications .................................................................................................9
3.INSTALLATION.............................................................................................................. .10
3.1 Removing the Transit Bolts...........................................................................................10
3.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................10
3.3 Electrical Connection....................................................................................................10
3.4 Water Inlet Hose Connection....................................................................................... .11
3.5 Water Discharge Connection........................................................................................12
4.CONTROL PANEL OVERVIEW..................................................................................... .12
4.1 Detergent Drawer .........................................................................................................12
4.2 Sections ...................................................................................................................13
4.3 Program Dial.................................................................................................................13
4.4 Electronic Display.........................................................................................................13
5.USING YOUR WASHING MACHINE............................................................................. .14
5.1 Preparing Your Laundry................................................................................................14
5.2 Putting Laundry in the Machine....................................................................................14
5.3 Adding Detergent to the Machine .................................................................................15
5.4 Operating Your Machine...............................................................................................15
5.5 Selecting a Programme................................................................................................15
5.6 Half-Load Detection System.........................................................................................15
5.7 Auxiliary Functions .......................................................................................................16
5.8 Additional Functions .....................................................................................................18
5.9 Child Lock ...................................................................................................................19
5.10 If you want to pause/cancel a running program or add laundry: ...............................20
5.11 Program End...............................................................................................................20
6.PROGRAMME TABLE................................................................................................... .21
7.1 Warning ...................................................................................................................23
7.2 Water Inlet Filters .........................................................................................................23
7.3 Pump Filter ...................................................................................................................24
7.4 Detergent Drawer .........................................................................................................24
8.Body / Drum .................................................................................................................. .25
9.TROUBLESHOOTING................................................................................................... .26
10.AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .27
11.DESCRIBING THE ENERGY LABEL AND SAVING ENERGY................................... .28

1.SAFETY INSTRUCTIONS
Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0. 1Mpa
Total power (W) 2100
Maximum washing capacity
(dry laundry) (kg) 7
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming
with your machine when making water inlet
connections to your machine. Never use old, used
or damaged water inlet hoses.
• Children should not play with the appliance.
Cleaning and user maintenance should not be
made by children without supervision.
EN - 1

NOTE: For a softcopy of this user
manual, please contact the following address:
“washingmachine@standardtest. info”. In your
e-mail, please provide the model name and serial
number (20 digits) which you can find on the
appliance door.
Read this user manual carefully.
Your machine is for domestic use only.
Using it for commercial purposes will cause
your warranty to be cancelled.
This manual has been prepared for more than
one model therefore your appliance may not
have some of the features described within.
For this reason, it is important to pay particular
attention to any figures whilst reading the
operating manual.
1.1 General Safety Warnings
• The necessary ambient temperature for operation
of your Washing Machine is 15-25 °C.
• Where the temperature is below 0 °C, hoses
may split or the electronic card may not operate
correctly.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects
such as nails, needles, lighters and coins.
• It is recommended that for your first wash,
you select the 90˚ Cotton programme without
laundry and half fill compartment II of the
detergent drawer with a suitable detergent.
• Residue may build up on detergent and softeners
EN - 2

exposed to air for a long period of time. Only
put softener or detergent in the drawer at the
beginning of each wash.
• Unplug your Washing Machine and switch off
the water supply if the Washing Machine is left
unused for a long time. We also recommend that
you leave the door open to prevent build up of
humidity inside the Washing Machine.
• Some water may be left in your Washing Machine
as a result of quality checks during production.
This will not affect the operation of your Washing
Machine.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washing Machine.
• Keep the packaging materials in a place where
children cannot reach them, or dispose of them
appropriately.
• Use pre-wash programs only for very dirty
laundry.
Never open the detergent drawer while the
machine is running.
• In the event of a breakdown, unplug the machine
from the mains supply and turn the water supply
off. Do not attempt to carry out any repairs.
Always contact an authorised service agent.
• Do not exceed the maximum load for the washing
programme you have chosen.
Never force the door open when your Washing
Machine is running.
• Washing laundry containing flour may damage
EN - 3

your machine.
• Please follow the manufacturers’ instructions
regarding the use of fabric conditioner or any
similar products that you intend to use in your
Washing Machine.
• Make sure that the door of your Washing Machine
is not restricted and can be opened fully.
Install your machine in a location that can be
fully ventilated and preferably has constant air
circulation.
Read these warnings. Follow the advice given
to protect yourself and others from risks and
fatal injuries.
RISK OF BURNS
Do not touch the drain hose or any discharged
water while your Washing Machine is running. The
high temperatures involved pose a burn risk.

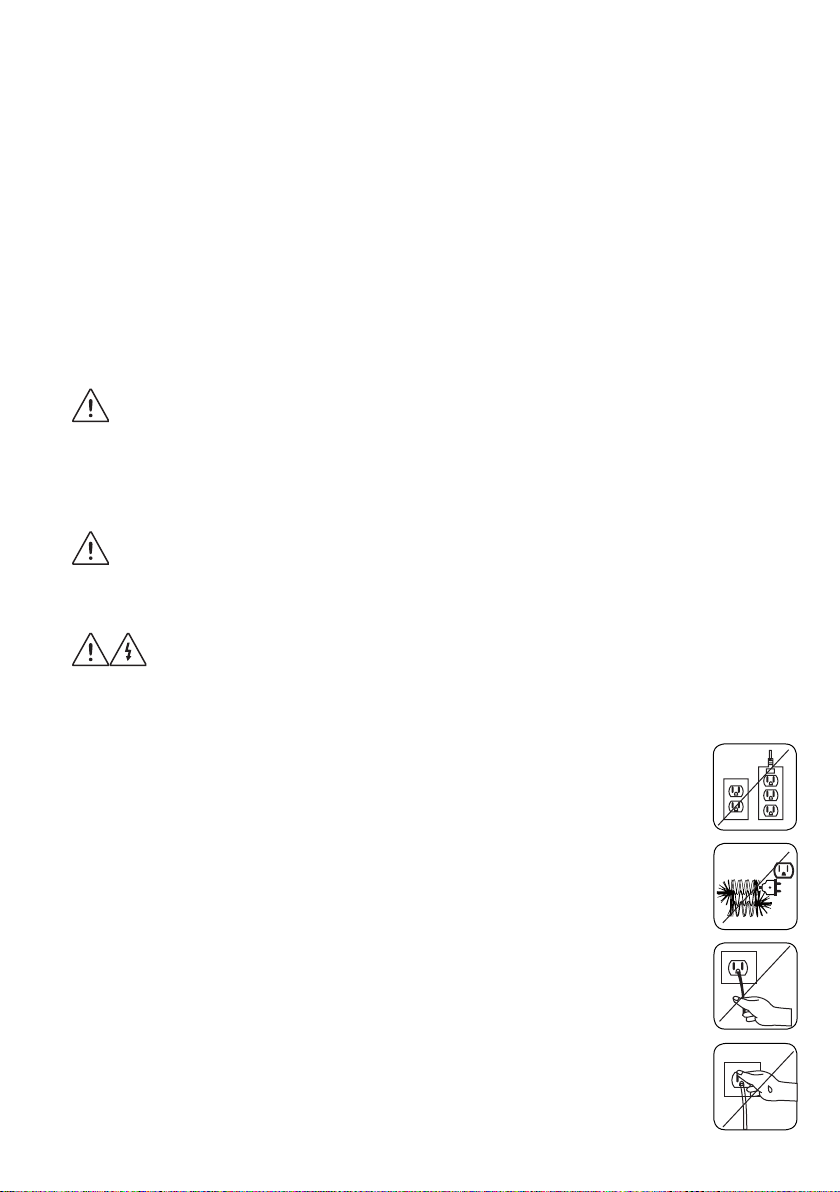

RISK OF DEATH FROM ELECTRICAL
CURRENT
• Do not connect your Washing Machine to the
mains electricity supply using an extension lead.
• Do not insert a damaged plug into a socket.
• Never remove the plug from the socket by
pulling the cord. Always hold the plug.
• Never touch the power cord/plug with wet
hands as this could cause a short circuit or
electric shock.
• Do not touch your Washing Machine if your
hands or feet are wet.
• A damaged power cord/plug can cause fire or
give you an electric shock. When damaged
EN - 4

it must be replaced, this should only be done by
qualified personnel.
Risk of flooding
• Check the speed of water flow before placing the
drain hose in a sink.
• Take necessary measures to prevent the hose
from slipping.
• Water flow may dislodge the hose if it is not
properly secured. Make sure the plug in your sink
does not block the plug hole.
Danger of Fire
• Do not store inflammable liquids near your
machine.
• The sulphur content of paint removers may cause
corrosion. Never use paint removing materials in
your machine.
• Never use products that contain solvents in your
machine.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects
such as nails, needles, lighters and coins.
Risk of fire and explosion
Risk of falling and injury
• Do not climb on your Washing Machine.
• Make sure hoses and cables do not cause a trip
hazard.
• Do not turn your Washing Machine upside down
or on its side.
• Do not lift your Washing Machine using the door
or detergent drawer.
EN - 5

The machine must be carried by at least 2
people.
Child safety
• Do not leave children unattended near the
machine. Children might lock themselves in the
machine resulting in risk of death.
• Do not allow children to touch the glass door
during operation. The surface becomes extremely
hot and may cause damage to skin.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent
and cleaning materials are consumed or
come into contact with the skin and eyes. Keep
cleaning materials out of the reach of children.
1.2 During Use
• Keep pets away from your machine.
• Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed.
Do not operate the machine if it appears damaged
or if the packaging has been opened.
• Your machine must only be installed by an
authorised service agent. Installation by anyone
other than an authorised agent may cause your
warranty to be void.
• This appliance can be used by children aged
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
EN - 6

hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be done by children without supervision.
• Only use your machine for laundry that is labelled
as suitable for washing by the manufacturer.
• Before operating the washing machine,
remove the 4 transit bolts and rubber spacers
from the rear of the machine. If the bolts are
not removed they may cause heavy vibration,
noise and malfunction of the machine and
cause the guarantee to be void.
• Your warranty does not cover damage caused by
external factors such as fire, flooding and other
sources of damage.
• Please do not throw away this user manual; keep
it for future reference and pass it onto the next
owner.
NOTE: Specifications for the machine may vary
depending on the product purchased.
1.3 Packaging and Environment
Removal of packaging materials
Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
1.4 Savings Information
Some important information to get the most efficient
use out of your machine:
EN - 7
