Operator’s Manual
English (EN)
Form No. 3327–404 Rev A
Mid–Size Mower
ProLine Hydro 15 HP with 44 in. Side Discharge
Mower
Model No. 30434—Serial No. 230000001 and Up

2
All Rights Reserved
Printed in the USA
2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
CALIFORNIA
Proposition 65 Warning
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other reproductive
harm.
Warning
Important This engine is not equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate this engine
on any forest–covered, brush–covered or grass–covered
land. Other states or federal areas may have similar laws.
This spark ignition system complies with Canadian
ICES-002.
Ce système d’allumage par étincelle de véhicule est
conforme à la norme NMB-002 du Canada.
The enclosed Engine Owner’s Manual is supplied for
information regarding The U.S. Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance
and warranty.
Keep this engine Owner’s Manual with your unit.
Should this engine Owner’s Manual become damaged
or illegible, replace immediately. Replacements may be
ordered through the engine manufacturer.
Contents
Page
Introduction 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices 3. . . . . . . . . . . . . . . . . . .
Toro Mower Safety 5. . . . . . . . . . . . . . . . . . . . . . .
Slope Chart 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals 9. . . . . . . . . . . . . . .
Gasoline and Oil 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Gasoline 12. . . . . . . . . . . . . . . . . . .
Using Stabilizer/Conditioner 12. . . . . . . . . . . . . . . .
Filling the Fuel Tank 12. . . . . . . . . . . . . . . . . . . . . .
Check Engine Oil Level 12. . . . . . . . . . . . . . . . . . . .
Setup 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Handle Assembly 14. . . . . . . . . . . . . .
Installing the Fuel Tank 14. . . . . . . . . . . . . . . . . . . .
Installing the Control Rods 15. . . . . . . . . . . . . . . . .
Installing the Speed Control Rod 16. . . . . . . . . . . . .
Installing the Hairpin Cotter Pins and Washers 16. .
Page
Checking the Tire Pressure 16. . . . . . . . . . . . . . . . .
Checking the Hydraulic Fluid and Engine Oil 17. .
Setting Up the Hydro Linkage 17. . . . . . . . . . . . . . .
Operation 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 17. . . . . . . . . . . . . . . . . . . . . . . .
Controls 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping the Engine 18. . . . . . . . . . . .
Operating Neutral Locks 19. . . . . . . . . . . . . . . . . . .
Operating the Parking Brake 19. . . . . . . . . . . . . . . .
Operating Mower Blade Control (PTO) 20. . . . . . .
The Safety Interlock System 20. . . . . . . . . . . . . . . .
Driving Forward or Backward 21. . . . . . . . . . . . . . .
Bringing Machine to Neutral Position 21. . . . . . . . .
Stopping the Machine 21. . . . . . . . . . . . . . . . . . . . .
Pushing the Machine by Hand 21. . . . . . . . . . . . . . .
Transporting Machines 22. . . . . . . . . . . . . . . . . . . .
Side Discharge or Mulch Grass 22. . . . . . . . . . . . . .
Adjusting the Height-of-Cut 22. . . . . . . . . . . . . . . .
Adjusting the Gage Wheels 23. . . . . . . . . . . . . . . . .
Adjusting the Handle Height 24. . . . . . . . . . . . . . . .
Using the Mid–Size Weight Kit 25. . . . . . . . . . . . . .
Maintenance 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Maintenance Schedule 26. . . . . . . .
Servicing the Air Cleaner 27. . . . . . . . . . . . . . . . . .
Servicing the Engine Oil 28. . . . . . . . . . . . . . . . . . .
Servicing the Spark Plug 29. . . . . . . . . . . . . . . . . . .
Fuse Service 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Greasing and Lubrication 31. . . . . . . . . . . . . . . . . . .
Cleaning the Cooling System 31. . . . . . . . . . . . . . .
Checking the Tire Pressure 32. . . . . . . . . . . . . . . . .
Adjusting the Electric Clutch 32. . . . . . . . . . . . . . .
Servicing the Fuel Tank 32. . . . . . . . . . . . . . . . . . . .
Servicing the Fuel Filter 33. . . . . . . . . . . . . . . . . . .
Servicing the Hydraulic System 33. . . . . . . . . . . . .
Hydro Linkage Adjustments 35. . . . . . . . . . . . . . . .
Adjusting the Speed Control Linkage 35. . . . . . . . .
Temporary Neutral Stud Adjustment 36. . . . . . . . . .
Adjusting the Hydro Control Linkages 36. . . . . . . .
Adjusting the Neutral Stud 38. . . . . . . . . . . . . . . . .
Adjusting the Control Rod 39. . . . . . . . . . . . . . . . . .
Adjusting the Tracking 40. . . . . . . . . . . . . . . . . . . .
Servicing the Brake 40. . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Electric Clutch 41. . . . . . . . . . . . . . .
Servicing the Cutting Blades 41. . . . . . . . . . . . . . . .
Correcting the Mower Quality of Cut 43. . . . . . . . .
Frame Set Up 43. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Deck Front-to-Rear Pitch 45. . . . . . .
Changing the Deck Front-to-Rear Pitch 45. . . . . . .
Checking the Deck Side-to-Side Leveling 46. . . . .

3
Page
Changing the Side-to-Side Leveling 46. . . . . . . . . .
Matching the Height of Cut 46. . . . . . . . . . . . . . . . .
Replacing the Mower Belt 47. . . . . . . . . . . . . . . . . .
Replacing the PTO Drive Belt 47. . . . . . . . . . . . . . .
Replacing the Caster Wheel Fork Bushings 48. . . .
Caster Wheel and Bearings Service 49. . . . . . . . . . .
Replacing the Grass Deflector 49. . . . . . . . . . . . . . .
Wiring Diagram 50. . . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Diagram 51. . . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Storage 52. . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Toro Total Coverage Guarantee 56. . . . . . . . . . . . .
Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
1
m–6612
Figure 1
1. Locationof the model and serial numbers
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard.
However, regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or
moderate injury if you do not follow the recommended
precautions.
This manual uses two other words to highlight
information. Important calls attention to special
mechanical information and Note: emphasizes general
information worthy of special attention.
Safety
Note: The addition of attachments made by other
manufacturers that do not meet American National
Standards Institute certification will cause noncompliance
of this machine.
Improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury,
comply with these safety instructions and always pay
attention to the safety alert symbol, which means
CAUTION, WARNING, or DANGER—“personal
safety instruction.” Failure to comply with the
instruction may result in personal injury or death.
Safe Operating Practices
The following instructions are from ANSI standard
B71.4—1999.
Training
•Read the Operator’s Manual and other training
material. If the operator(s) or mechanic(s) can not read
English it is the owner’s responsibility to explain this
material to them.
•Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
•All operators and mechanics should be trained. The
owner is responsible for training the users.
•Never let children or untrained people operate or
service the equipment. Local regulations may restrict
the age of the operator.

4
•The owner/user can prevent and is responsible for
accidents or injuries occurring to himself or herself,
other people or property.
Preparation
•Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments
approved by the manufacturer.
•Wear appropriate clothing including hard hat, safety
glasses and hearing protection. Long hair, loose
clothing or jewelry may get tangled in moving parts.
•Inspect the area where the equipment is to be used and
remove all objects such as rocks, toys and wire which
can be thrown by the machine.
•Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.
•Use only an approved container
•Never remove gas cap or add fuel with engine
running. Allow engine to cool before refueling.
Do not smoke.
•Never refuel or drain the machine indoors.
•Check that operator’s presence controls, safety
switches and shields are attached and functioning
properly. Do not operate unless they are functioning
properly.
Operation
•Never run an engine in an enclosed area.
•Only operate in good light, keeping away from holes
and hidden hazards.
•Be sure all drives are in neutral and parking brake is
engaged before starting engine. Only start engine from
the operator’s position.
•Be sure of your footing while using this machine,
especially when backing up. Walk, don’t run. Never
operate on wet grass. Reduced footing could cause
slipping.
•Slow down and use extra care on hillsides. Be sure to
travel side to side on hillsides. Turf conditions can
affect the machine’s stability. Use caution while
operating near drop-offs.
•Slow down and use caution when making turns and
when changing directions on slopes.
•Never raise deck with the blades running.
•Never operate with the PTO shield, or other guards not
securely in place. Be sure all interlocks are attached,
adjusted properly, and functioning properly.
•Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
•Do not change the engine governor setting or
overspeed the engine.
•Stop on level ground, disengage drives, engage
parking brake (if provided), shut off engine before
leaving the operator’s position for any reason
including emptying the catchers or unclogging the
chute.
•Stop equipment and inspect blades after striking
objects or if an abnormal vibration occurs. Make
necessary repairs before resuming operations.
•Keep hands and feet away from the cutting unit.
•Look behind and down before backing up to be sure of
a clear path.
•Keep pets and bystanders away.
•Slow down and use caution when making turns and
crossing roads and sidewalks. Stop blades if not
mowing.
•Be aware of the mower discharge direction and do not
point it at anyone.
•Do not operate the mower under the influence of
alcohol or drugs.
•Use care when loading or unloading the machine into
or from a trailer or truck.
•Use care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
Maintenance and storage
•Disengage drives, set parking brake, stop engine and
remove key or disconnect spark plug wire. Wait for all
movement to stop before adjusting, cleaning or
repairing.
•Clean grass and debris from cutting unit, drives,
mufflers, and engine to help prevent fires. Clean up oil
or fuel spillage.
•Let engine cool before storing and do not store near
flame.
•Shut off fuel while storing or transporting. Do not store
fuel near flames or drain indoors.
•Park machine on level ground. Set parking brake.
Never allow untrained personnel to service machine.
•Use jack stands to support components when required.
•Carefully release pressure from components with
stored energy.
•Remove spark plug wire before making any repairs.

5
•Use care when checking blades. Wrap the blade(s) or
wear gloves, and use caution when servicing them.
Only replace blades. Never straighten or weld them.
•Keep hands and feet away from moving parts. If
possible, do not make adjustments with the engine
running.
•Keep all parts in good working condition and all
hardware tightened. Replace all worn or damaged
decals.
Toro Mower Safety
The following list contains safety information specific to
Toro products and other safety information you must
know.
This product is capable of amputating hands and feet and
throwing objects. Always follow all safety instructions to
avoid serious injury or death.
This product is designed for cutting and recycling grass or,
when equipped with a grass bagger, for catching cut grass.
Any use for purposes other than these could prove
dangerous to user and bystanders.
General Operation
•Allow only responsible adults who are familiar with
the instructions to operate the machine.
•Be sure the area is clear of other people before
mowing. Stop the machine if anyone enters the area.
•Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
backing.
•Be aware of the mower discharge direction and do not
point it at anyone. Do not operate the mower without
either the entire grass catcher or the guard in place.
•Slow down before turning. Sharp turns on any terrain
may cause loss of control.
•Turn off blades when not mowing.
•Keep hands, feet, hair and loose clothing away from
attachment discharge area, underside of mower and
any moving parts while engine is running.
•Stop the engine before removing the grass catcher or
unclogging the chute.
•Mow only in daylight or good artificial light.
•Watch for traffic when operating near or crossing
roadways.
•Do not touch equipment or attachment parts which
may be hot from operation. Allow to cool before
attempting to maintain, adjust or service.
•Use only Toro-approved attachments. Warranty may
be voided if used with unapproved attachments.
Slope Operation
Slopes and ramps are a major factor related to
loss-of-control and accidents, which can result in severe
injury or death. All slopes and ramps require extra
caution. If you feel uneasy on a slope, do not mow it.
DO
•Remove obstacles such as rocks, tree limbs, etc. from
the mowing area.
•Watch for holes, ruts or bumps. Tall grass can hide
obstacles.
•Use slow speed so that you will not have to stop while
on the slope.
•Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
•Keep all movement on slopes slow and gradual. Do
not make sudden changes in speed or direction.
•Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades.
•Check carefully for overhead clearances (i.e. branches,
doorways, electrical wires) before driving under any
objects and do not contact them.
•Mow slopes side to side.
DO NOT
•Do not mow slopes greater than 15 degrees.
•Avoid turning on slopes. If you must turn, turn slowly
and gradually downhill, if possible.
•Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly turn over if a wheel goes
over the edge of a cliff or ditch, or if an edge caves in.
•Do not mow on wet grass. Reduced traction could
cause sliding.
•Do not use a grass catcher on steep slopes. Heavy
grass bags could cause loss of control of the machine.
•Do not mow up and down slopes.
Service
•Never store the machine or fuel container inside where
there is an open flame, such as near a water heater or
furnace.
•Keep nuts and bolts tight, especially the blade
attachment bolts. Keep equipment in good condition.

6
•Never tamper with safety devices. Check safety
systems for proper operation before each use.
•Use only genuine replacement parts to ensure that
original standards are maintained.
•Check brake operation frequently. Adjust and service
as required.
•Hydraulic fluid escaping under pressure can penetrate
the skin and cause injury. Use cardboard or paper to
find hydraulic leaks. Never use your hands.

7
Slope Chart

8

9
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger. Replace any decal that is damaged or lost.
1-523552
43-8480
66-1340
67-5360
68-8340
82-4590
93-1122
95-2814

10
98-0776
98-4387
1. Warning—wearhearing protection.
104-8186
104-2838
104-8569
105-4110
105-4146
106-5532
106-0699
106-5513

11
105-4109
106-0635
106-5515
1. Keep bystanders a safe
distance from the machine.
2. Do not allow bystanders to
be hit by thrown objects.
3. Do not operate the mower
with the deflector up or
removed.
4. Stop the engine and pick up
debris before operating.
5. Cutting of hand or foot,
mower.
6. Engine—stop
7. Engine—run
8. Hour meter
9. To drive forward, move the
controls as illustrated.
10. To place the machine in
neutral, move the controls as
illustrated.
11. To drive in reverse, move the
controls as illustrated.
12. Power take-off (PTO)
13. Fast
14. Continuous variable setting
15. Slow
16. Neutral
106-5501
1. Choke 2. Fast 3. Continuous variable setting 4. Slow

12
Gasoline and Oil
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is not
available.
Important Never use methanol, gasoline containing
methanol, or gasohol containing more than 10% ethanol
because the fuel system could be damaged. Do not mix oil
with gasoline.
Danger
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or
explosion from gasoline can burn you and others
and can damage property.
•Fill the fuel tank outdoors, in an open area,
when the engine is cold. Wipe up any gasoline
that spills.
•Never fill the fuel tank inside an enclosed
trailer.
•Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 1/4 to
1/2 inch (6 to 13 mm) below the bottom of the
filler neck. This empty space in the tank allows
gasoline to expand.
•Never smoke when handling gasoline, and stay
away from an open flame or where gasoline
fumes may be ignited by a spark.
•Store gasoline in an approved container and
keep it out of the reach of children. Never buy
more than a 30-day supply of gasoline.
•Always place gasoline containers on the ground
away from your vehicle before filling.
•Do not fill gasoline containers inside a vehicle
or on a truck or trailer bed because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
•When practical, remove gas–powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the ground.
•If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, rather than from a gasoline
dispenser nozzle.
•If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete.
Gasoline is harmful or fatal if swallowed.
Long–term exposure to vapors can cause serious
injury and illness.
•Avoid prolonged breathing of vapors.
•Keep face away from nozzle and gas tank or
conditioner opening.
•Keep gas away from eyes and skin.
Warning
Using Stabilizer/Conditioner
Use a fuel stabilizer/conditioner in the machine to provide
the following benefits:
•Keeps gasoline fresh during storage of 90 days or less.
For longer storage it is recommended that the fuel tank
be drained.
•Cleans the engine while it runs
•Eliminates gum-like varnish buildup in the fuel
system, which causes hard starting
Important Do not use fuel additives containing
methanol or ethanol.
Add the correct amount of gas stabilizer/conditioner to the
gas.
Note: A fuel stabilizer/conditioner is most effective when
mixed with fresh gasoline. To minimize the chance of
varnish deposits in the fuel system, use fuel stabilizer at
all times.
Filling the Fuel Tank
1. Shut the engine off and set the parking brake.
2. Clean around fuel tank cap and remove the cap. Add
unleaded regular gasoline to fuel tank, until the level is
1/4 to 1/2 inch below the bottom of the filler neck.
This space in the tank allows gasoline to expand. Do
not fill the fuel tank completely full.
3. Install fuel tank cap securely. Wipe up any gasoline
that may have spilled.
Check Engine Oil Level
Before you start the engine and use the machine, check
the oil level in the engine crankcase; refer to Checking the
Engine Oil Level, page 28.

13
Setup
Note: Determine the left and right sides of the machine
from the normal operating position.
Loose Parts
Note: Use the chart below to verify all parts have been shipped.
Step Description Qty. Use
1Handle assembly
Flanged bolt 3/8 x 1 inch
Flanged bolt 3/8 x 1–1/4 inch
Flange nut 3/8 inch
1
2
2
4
Installing the handle assembly
2Fuel tank with studs installed
Bolt, 5/16 x 7/8 inch
Lock washer, 5/16 inch
Washer, 5/16 inch
Spring
Hose clamp
1
2
2
4
2
1
Installing the fuel tank
3E–ring 2 Installing the control rods
4Cotter pin
Washer 1
1Installing the speed control rod
5Hairpin cotter pin 2Installing the hairpin cotter pins and
washers
6No parts needed Checking the tire pressure
7No parts needed 1Checking the hydraulic fluid and engine
oil
8No parts needed 1Setting up the hydro control linkage
9Oil drain hose
Operator’s Manual
Engine Operator’s Manual
Parts Catalog
Registration card
1
1
1
1
1
Use for draining engine oil
Read before operating machine
Read before operating machine
Fill out and return to Toro

14
1
Step
Parts needed for this step:
•1 Handle assembly
•2 Flange bolts, 3/8 x 1 inch
•2 Flange bolts, 3/8 x 1–1/4 inch
•4 Flange nuts, 3/8 inch

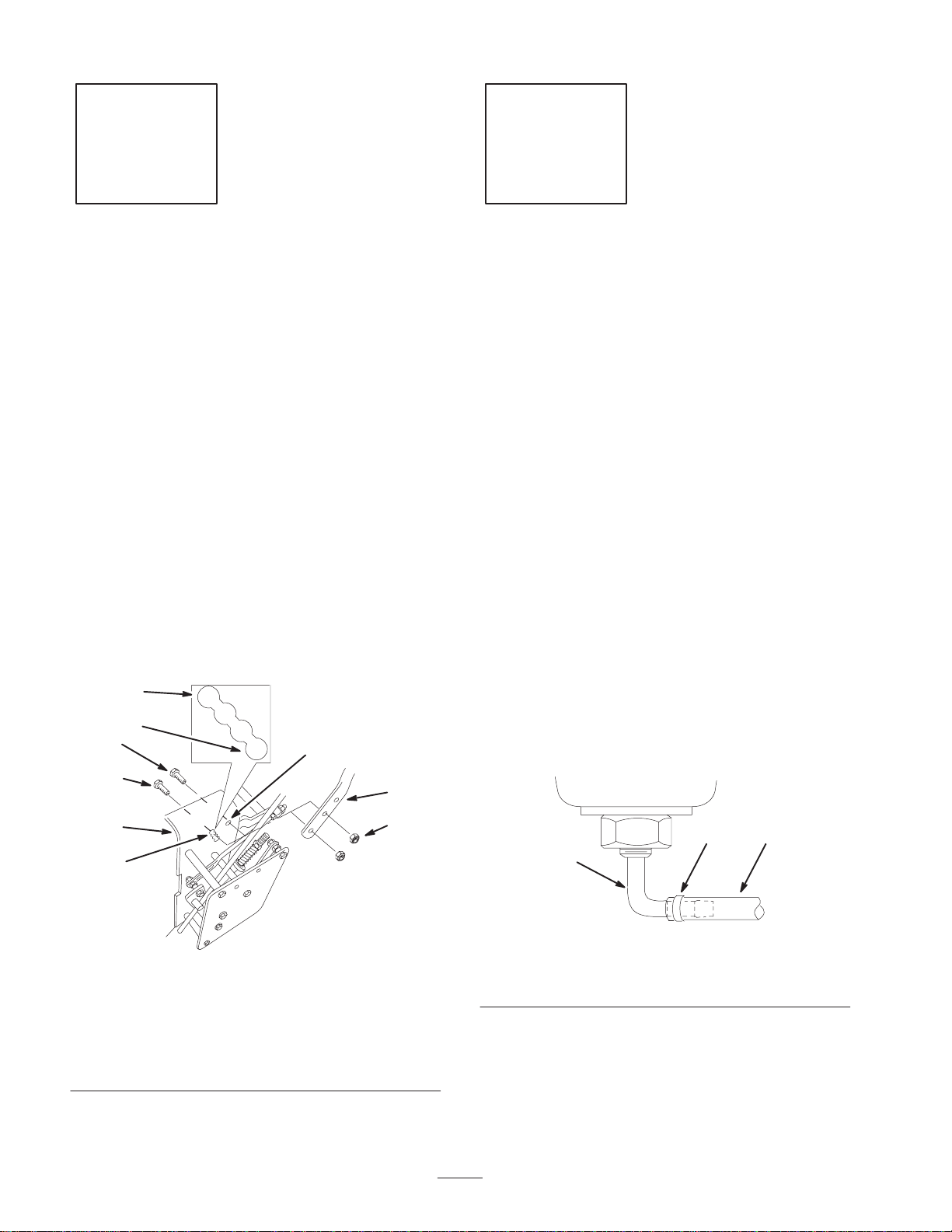

Installing the Handle Assembly
1. Align handle with upper mounting holes in rear frame
(Fig. 2).
2. Secure the handle at each upper mounting hole with a
flange bolt (3/8 x 1–1/4 inch) and flange nut (Fig. 2).
3. Select the low position for the lower mounting hole
(Fig. 2).
4. Secure the handle at each lower mounting hole with a
flange bolt (3/8 x 1 inch) and flange nut (Fig. 2).
Note: The handle position can be adjusted to match the
operator’s height preference.
m–6600
7
8
9
2
1
3
5
6
4
Figure 2
1. Handleassembly
2. Rear frame
3. Flange nut, 3/8 inch
4. Flange bolt, 3/8 x 1 inch
5. Upper mounting hole
6. Lower mounting holes
7. Low position
8. High position
9. Flange bolt, 3/8 x
1–1/4 inch
Note: Handle assembly must be installed before fuel tank
is installed.
2
Step
Parts needed for this step:
•1 Fuel tank with studs installed
•2 Bolts, 5/16 x 7/8 inch
•2 Lock washers, 5/16 inch
•2 Flat washers, 5/16 inch
•2 Springs
•1 Hose clamp
Installing the Fuel Tank
1. Align the fuel tank with the top of the rear frame
(Fig. 4).
2. Push the fuel line through the grommet and hole in the
hydraulic oil filter bracket (Fig. 4).
3. Push the fuel line onto the fuel tank connection and
secure it with the hose clamp that is on the fuel line
(Fig. 3).
Note: To ease assembly of the fuel line to fuel tank
connection, apply a light lubricant, such as WD 40, to the
end of the fuel line.
Note: Make sure the fuel line and clamp are on as shown
in Figure 3.
m–6504
21
3
Figure 3
1. Fuelline
2. Clamp 3. Fuel tank connection
4. Secure the right side of the fuel tank to the rear frame
(Fig. 4) with 2 bolts (5/16 x 7/8 inch), lock washers
(5/16 inch) and washers (5/16 inch) (Fig. 4).
5. Secure the left side of the fuel tank to the rear frame
(Fig. 4) with washers (5/16 inch), springs and locknuts
(5/16 inch) (Fig. 4).

15
Note: Tighten left side of shift lever plate until it is
completely tight and then unscrew the locknut one full
turn. This will allow the spring to work.
5
4
3
2
1
3
76
m–6583
Figure 4
1. Bolt, 5/8 x 7/8 inch
2. Lock washer, 5/16 inch
3. Washer, 5/16 inch
4. Spring
5. Locknut
6. Hose clamp
7. Fuel tank connection
3
Step
Parts needed for this step:
•2 E–clips
Installing the Control Rods
1. For a starting point, make sure the rod fittings are
threaded approximately 2–1/2 inches (63 mm) onto the
control rods (Fig. 5).
2. Install the rod fittings into the and secure them with
E–rings (Fig. 5).
1
3
2
m–6601
4
Figure 5
1. Controlrod
2. Rod fitting 3. 2–1/2 inch (63.5 mm) from
bottom
4. E–ring

16
4
Step
Parts needed for this step:
•1 Cotter pin
•1 Washer
Installing the Speed Control
Rod
1. Install the swivel into the speed control crank and
secure it with a washer and cotter pin (Fig. 6).
Note: If necessary move the speed control lever until the
swivel will go into the speed control crank.
m–6602
1
2
3
4
53
6
Figure 6
1. Speedcontrol rod
2. Swivel
3. Nut
4. Speed control crank
5. Cotter pin
6. Washer
5
Step
Parts needed for this step:
•2 Hairpin cotter pins
Installing the Hairpin Cotter
Pins and Washers
Unused height–of–cut spacers may be stored on posts and
retained by a hairpin cotter.
1. On the opposite side of the muffler, install unused
washers and hairpin cotter pins into front and rear
height–of–cut pins (Fig. 7).
m-6505
3
2
1
Figure 7
1. Hairpincotter
2. Unused spacers 3. Height–of–cut post
6
Step
No parts needed for this step.
Checking the Tire Pressure
Refer to Page 32 for the correct correct tire pressure.

17
7
Step
No parts needed for this step.
Checking the Hydraulic Fluid
and Engine Oil
Check the hydraulic fluid level before the engine is first
started.
Refer to Checking the Hydraulic Fluid on page 33.
Check the engine oil level before the engine is first
started.
Refer to Checking the Engine Oil Level on page 28.
8
Step
No parts needed for this step.
Setting Up the Hydro Linkage
Check the following adjustments when the machine is first
set up and adjust only as needed. Do them in the order that
they are listed here.
Checking the Speed Control Linkage
Refer to Adjusting the Speed Control Linkage on page 35.
Checking the Temporary Neutral Stud
Adjustment
Refer to Temporary Neutral Stud Adjustment on page 36.
Checking the Hydro Control Linkages
Refer to Adjusting the Hydro Control Linkages on
page 36.
Checking the Neutral Stud
Refer to Adjusting the Neutral Stud on page 38.
Checking the Control Rods
Refer to Adjusting the Control Rods on page 39.
Checking the Tracking
Refer to Adjusting the Tracking on page 40.
Operation
Note: Determine the left and right sides of the machine
from the normal operating position.
Think Safety First
Carefully read all the safety instructions and decals in the
safety section. Knowing this information could help you,
your family, pets or bystanders avoid injury.
The use of protective equipment for eyes, hearing, feet
and head is recommended.
This machine produces sound levels in excess of
85dBA at the operator’s ear and can cause
hearing loss through extended periods of
exposure.
Wear hearing protection when operating this
machine.
Caution
12
Figure 8
1. Caution 2. Wear hearing protection
Controls
Become familiar with all the controls (Fig. 9) before you
start the engine and operate the machine.
Throttle control – The throttle control has three
positions: Choke, Fast and Slow.

18
Operator Presence Control (OPC) levers – OPC levers
are used in conjunction with deck engagement switch
(PTO) to release blade brake and engage clutch to drive
mower blades. Release OPC levers to disengage mower
blades.
Blade control switch (PTO) – Pull switch used in
conjunction with OPC levers to release blade brake and
engage clutch to drive mower blades.
Speed control lever – This machine has a variable speed
control with a neutral position. This controls and limits
how fast the machine will travel.
Drive levers – Move the speed control lever to the desired
forward speed, slowly release the drive levers to engage
forward traction operation, and squeeze the drive levers to
neutral or reverse. When moving forward, squeeze the
right drive lever to turn right and the left drive lever to
turn left.
Neutral lock – Squeeze drive levers back and rotate locks
to the rear for neutral lock.
Ignition Switch – Key switch is used in conjunction with
recoil starter. Switch has two positions: Run and Off.
Recoil Starter – Pull recoil starter handle to start engine.
Fuel Shut–off Valve – (Under fuel tank) Close fuel
shut–off valve when transporting or storing mower.
Hour Meter – Shows total hours that machine has been
operated. This operates only when the mower blades are
operating.
The hour meter will flash 3 hours before and after a
service interval.
The service intervals are set for the first 8 hours, every
100 hours there after and every 400 hours.
Perform any recommended maintenance at these intervals.
Refer to Recommended Maintenance Schedule on
page 26.
Note: Make sure maintenance is done at all recommended
intervals shown in the Recommended Maintenance
Schedule on page 26.
2
1
4
59
6
38
7
10 m–6638
Figure 9
1. Throttlecontrol
2. Operator Presence
Control levers (OPC)
3. Blade control switch
(PTO)
4. Drive lever
5. Neutral lock
6. Ignition switch
7. Handle
8. Speed control lever
9. Hour meter
10. Fuel shut–off valve
Starting and Stopping the
Engine
Starting
1. Make sure spark plug wire(s) areinstalled on spark
plug(s) and fuel valve is open.
2. Move the speed control lever to neutral, set the neutral
locks and turn ignition key to Run.
3. Move the throttle control to the Choke position before
starting a cold engine.
Note: A warm or hot engine usually does not require any
choking. To start a warm engine, move throttle control to
the Fast position.
4. Grasp recoil starter handle firmly and pull out until
positive engagement results; then pull handle
vigorously to start engine and allow rope to recoil
slowly.

19
Important Do not pull recoil rope to its limit or let go
of the starter handle when rope is pulled out because rope
may break or recoil assembly may be damaged.
Stopping
1. Move the throttle lever to the Slow position (Fig. 10).
2. Squeeze the drive levers to the Neutral position and set
the neutral locks.
3. Let the engine idle for 30 to 60 seconds before turning
the ignition key Off.
4. Turn the ignition key to Off (Fig. 10).
2
1
m–6638
Figure 10
1. Throttlelever 2. Ignition key
Important Make sure fuel shut off valve is closed
before transporting or storing machine, as fuel leakage
may occur. Before storing machine, pull wire off spark
plug(s) to prevent possibility of accidental starting.
Operating Neutral Locks
Always set the neutral lock when you stop the machine.
Set the parking brake if it is left unattended.
Setting the Neutral Lock
1. Squeeze the drive levers back to neutral position
(Fig. 11).
2. Place thumbs on the upper part of the neutral locks and
rotate them back (Fig. 11).
Releasing the Neutral Lock
1. Squeeze the drive levers back to the grip slightly
(Fig. 11).
2. Place thumbs on the upper part of the neutral locks and
rotate them forward until in forward slot (Fig. 11).
3
7
2
5
4
6
m–6578
18
Figure 11
1. Handle
2. Neutrallock
3. Neutral position
4. Drive lever
5. Full speed forward
6. Reverse position
7. Grip
8. Forward slot
Operating the Parking Brake
Always set the parking brake when you stop the machine
or leave it unattended. Before each use, check brake for
proper operation.
If the parking brake does not hold securely, an adjustment
is required. Refer to Servicing the Brake on page 40.
Children or bystanders may be injured if they
move or attempt to operate the machine while it is
unattended.
Always remove the ignition key and set the
parking brake when leaving the machine
unattended, even if just for a few minutes.
Caution
Setting the Parking Brake
1. Pull the brake handle rearward (Fig. 11).
Releasing the Parking Brake
1. Push the brake handle forward (Fig. 11).

20
1
m–6614
2
Figure 12
1. Parking brake lever
(released position) 2. Parking brake lever (engaged position)
Operating Mower Blade
Control (PTO)
The blade control switch (PTO) in conjunction with the
Operator Presence Control (OPC) levers engage and
disengage power to the electric clutch and mower blades.
Engaging the Mower Blades (PTO)
1. To engage the blade, press the Operator Presence
Control (OPC) levers against handle grips (Fig. 13).
2. Pull blade switch (PTO) up and release while holding
the OPC levers against handle grip.
2
31
4
m–6638
Figure 13
1. Handle
2. OperatorPresence
Control levers (OPC)
3. Blade control switch
(PTO)
4. Drive Lever
Disengaging the Mower Blades (PTO)
1. Release Operator Presence Control (OPC) levers to
disengage blades (Fig. 13).
The Safety Interlock System
If safety interlock switches are disconnected or
damaged the machine could operate unexpectedly
causing personal injury.
•Do not tamper with the interlock switches.
•Check the operation of the interlock switches
daily and replace any damaged switches before
operating the machine.
Caution
Understanding the Safety Interlock
System
The safety interlock system is designed to prevent the
mower from starting unless:
•The blade control switch (PTO) is off.
•The speed control lever is in neutral.
The safety interlock system is designed to kill the engine
when:
•The Operator Presence Control (OPC) levers are
released while the speed control is out of neutral
position and/or the mower is engaged.
•The speed control lever is shifted out of neutral
without holding OPC levers.
•The blade control switch (PTO) is pulled on without
holding the OPC levers.
Testing the Safety Interlock System
Test the safety interlock system before you use the
machine each time. If the safety system does not operate
as described, have an Authorized Service Dealer repair the
safety system immediately.
1. Set the neutral locks and place speed control lever in
neutral. Start the engine; refer to Starting and Stopping
the Engine, page 18.
2. Without holding the Operator Presence Control (OPC)
levers, pull the blade control switch (PTO) up. The
engine should kill.
3. With engine running, hold down the OPC levers. Pull
the blade control switch (PTO) up. The clutch should
engage and the mower blades begin rotating.
4. Release the OPC levers. The engine should kill.
