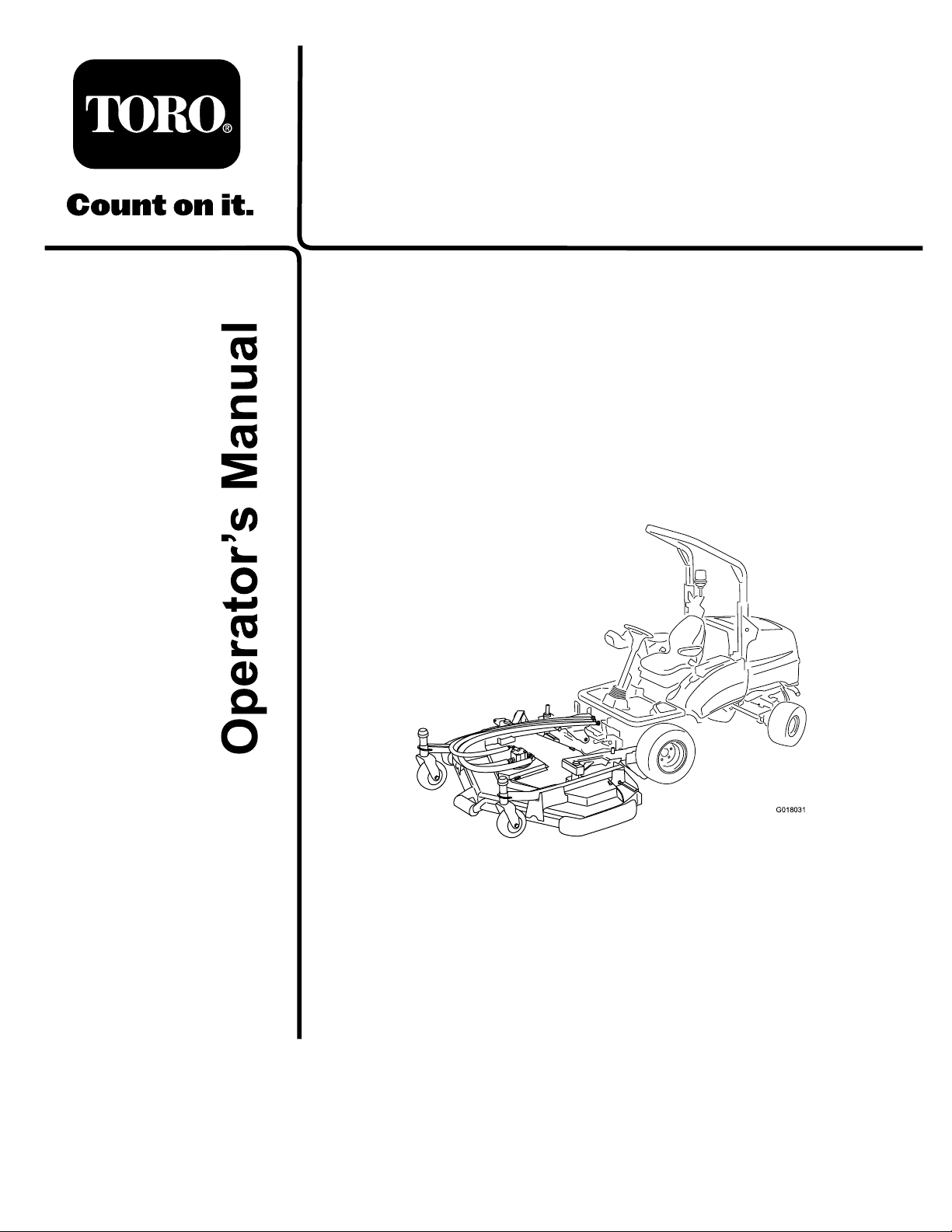

Toro 30651 User manual

FormNo.3372-793RevA
Groundsmaster®3400-D4-Wheel
DriveTractionUnit
ModelNo.30651—SerialNo.312000001andUp
G018031
ToregisteryourproductordownloadanOperator'sManualorPartsCatalogatnocharge,gotowww.Toro.com.OriginalInstructions(EN)

ThisproductcomplieswithallrelevantEuropean
directives,fordetailspleaseseetheseparateproduct
specicDeclarationofConformity(DOC)sheet.
Introduction
Thismachineisaride-on,rotary-bladelawnmower
intendedtobeusedbyprofessional,hiredoperators
incommercialapplications.Itisprimarilydesigned
forcuttinggrassonparks,sportselds,caravanparks,
cemeteriesandcommercialgrounds.Itisnotdesigned
forcuttingbrushorforagriculturaluse.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyforproductandaccessory
information,helpndingadealer,ortoregisteryour
product.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Themodel
andserialnumbersareonaplatemountedontheleft
sideoftheframe.Writethenumbersinthespace
provided.
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure1),
whichsignalsahazardthatmaycauseseriousinjury
ordeathifyoudonotfollowtherecommended
precautions.
Figure1
1.Safetyalertsymbol
Thismanualuses2otherwordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
©2012—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

Contents
Introduction.................................................................2
Safety...........................................................................4
SafeOperatingPractices.......................................4
ToroRidingMowerSafety....................................6
SoundPowerLevel...............................................7
SoundPressureLevel...........................................7
VibrationLevel.....................................................7
SafetyandInstructionalDecals.............................8
Setup.........................................................................10
1CheckingtheTirePressure...............................10
2ReadingtheManual.........................................10
ProductOverview......................................................11
Controls.............................................................11
Specications.....................................................20
Attachments/Accessories...................................20
Operation...................................................................21
CheckingtheEngineOilLevel............................21
CheckingtheCoolingSystem..............................22
AddingFuel.......................................................22
CheckingtheHydraulicFluid..............................23
ChecktheTorqueoftheWheelNuts...................24
OperatorPlatformLatchingMechanism.............24
OperatorPresenceControl.................................24
StartingandStoppingtheEngine........................25
CuttingUnitPositionControl.............................26
EngagingtheCuttingUnitDrive.........................26
UsingWeightTransfer/Traction
Assistance......................................................26
FoldingtheR.O.P .S.............................................27
JackingPoints.....................................................27
RaisingTheMowerOffTheGround..................27
OperatingTips...................................................28
Maintenance...............................................................30
RecommendedMaintenanceSchedule(s)................30
DailyMaintenanceChecklist...............................31
Pre-Maintenance...............................................32
Lubrication.............................................................33
GreasingtheBearings,Bushingsand
Pivots.............................................................33
EngineMaintenance...............................................34
ChecktheEngineOverheatWarning
System............................................................34
ServicingtheAirCleaner....................................34
ServicingtheEngineOilandFilter......................35
FuelSystemMaintenance.......................................36
ReplacingtheFuelFilter.....................................36
BleedingtheFuelSystem....................................36
DrainingtheFuelTank.......................................37
CheckingtheFuelLinesandConnections...........37
ElectricalSystemMaintenance................................37
CheckElectricalSystem......................................37
CheckBatteryCondition....................................37
ServicingtheBattery...........................................38
DriveSystemMaintenance.....................................38
ChangingtheTransmissionOilFilter..................38
ChangingtheHydraulicReturnFilter..................38
CheckRearWheelAlignment.............................39
CoolingSystemMaintenance..................................40
RemovingDebrisfromtheCooling
System............................................................40
BrakeMaintenance.................................................41
TowingtheMower.............................................41
BeltMaintenance....................................................42
TensioningtheAlternatorBelt............................42
ControlsSystemMaintenance.................................43
CheckForward/ReverseTravelPedal
Action............................................................43
OperatorPresenceSeatSwitch...........................43
CuttingUnitInterlockSwitch.............................43
ParkingBrakeInterlockSwitch...........................43
InspectTransmissionControlCableand
OperatingMechanism....................................43
TransmissionNeutralInterlockSwitch................44
HydraulicSystemMaintenance...............................44
ServicetheHydraulicSystem..............................44
ChecktheHydraulicOilOverheatWarning
System............................................................45
CheckingtheHydraulicLinesandHoses.............45
MiscellaneousMaintenance....................................46
WasteDisposal...................................................46
Storage.......................................................................46
PreparingtheTractionUnit................................46
PreparingtheEngine..........................................46
Troubleshooting.........................................................47
Schematics.................................................................49
3

Safety
ThismachinemeetsorexceedsstandardEN
836:1997specicationsineffectattimeof
production.
Improperuseormaintenancebytheoperator
orownercanresultininjury.Toreducethe
potentialforinjury,complywiththesesafety
instructionsandalwayspayattentiontothesafety
alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failureto
complywiththeinstructionmayresultinpersonal
injuryordeath.
SafeOperatingPractices
ThefollowinginstructionsarefromthestandardEN
836:1997.
Training
•Readtheoperator'smanualandothertraining
materialcarefully.Befamiliarwiththecontrols,
safetysigns,andtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwiththese
instructionstouseorservicethemower.Local
regulationsmayrestricttheageoftheoperator.
•Nevermowwhilepeople,especiallychildren,orpets
arenearby.
•Keepinmindthattheoperatororuserisresponsible
foraccidentsorhazardsoccurringtootherpeopleor
theirproperty.
•Donotcarrypassengers.
•Alldriversandmechanicsshouldseekandobtain
professionalandpracticalinstruction.Theowneris
responsiblefortrainingtheusers.Suchinstruction
shouldemphasize:
–theneedforcareandconcentrationwhen
workingwithride-onmachines;
–controlofaride-onmachineslidingonaslope
willnotberegainedbytheapplicationofthe
brake.Themainreasonsforlossofcontrolare:
◊insufcientwheelgrip;
◊beingdriventoofast;
◊inadequatebraking;
◊thetypeofmachineisunsuitableforitstask;
◊lackofawarenessoftheeffectofground
conditions,especiallyslopes;
•Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtohimselforherself,
otherpeople,orproperty.
Preparation
•Whilemowing,alwayswearsubstantialfootwear,
longtrousers,hardhat,safetyglasses,andear
protection.Longhair,looseclothing,orjewelrymay
gettangledinmovingparts.Donotoperatethe
equipmentwhenbarefootorwearingopensandals.
•Thoroughlyinspecttheareawheretheequipment
istobeusedandremoveallobjectswhichmaybe
thrownbythemachine.
•Warning—Fuelishighlyammable.Takethe
followingprecautions:
–Storefuelincontainersspecicallydesignedfor
thispurpose.
–Refueloutdoorsonlyanddonotsmokewhile
refuelling.
–Addfuelbeforestartingtheengine.Never
removethecapofthefueltankoraddfuelwhile
theengineisrunningorwhentheengineishot.
–Iffuelisspilled,donotattempttostartthe
enginebutmovethemachineawayfromthe
areaofspillageandavoidcreatinganysourceof
ignitionuntilfuelvaporshavedissipated.
–Replaceallfueltanksandcontainercapssecurely.
•Replacefaultysilencers/mufers.
•Onlyuseaccessoriesandattachmentsapprovedby
themanufacturer.
•Beforeusing,alwaysvisuallyinspecttoseethatthe
blades,bladeboltsandcutterassemblyarenotworn
ordamaged.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•AlwaysmakesurethatthefoldingR.O.P .Sissecured
initsverticaloperatingpositionbeforeuse.
•Onmulti-bladedmachines,takecareasrotatingone
bladecancauseotherbladestorotate.
•Checkthattheoperator'spresencecontrols,safety
switchesandshieldsareattachedandfunctioning
properly.Donotoperateunlesstheyarefunctioning
properly.
Operation
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Mowonlyindaylightoringoodarticiallight.
•Beforeattemptingtostarttheengine,engagethe
parkingbrake,disengagethecuttingunitdrive
systemandensurethattheforward/reversespeed
controlsareintheneutralposition.
•Donotuseonaslopeofmorethan16degrees.Care
shouldbetakenwhenusingthemoweronanyslope
4

wheregroundconditionsaresuchthattheremaybe
ariskofthemowerrollingover.Therequirements
of89/355/EEC,asamendedby95/63/EEC
‘ProvisionandUseofWorkEquipmentDirective’
shouldbeconsidered.
•Rememberthereisnosuchthingasasafeslope.
Travelongrassslopesrequiresparticularcare.To
guardagainstoverturning:
–donotstoporstartsuddenlywhengoingupor
downhill;
–machinespeedsshouldbekeptlowonslopes
andduringtightturns;
–stayalertforhumpsandhollowsandother
hiddenhazards;
–Donotturnsharply.Usecarewhenreversing.
•Stayalertforholesintheterrainandotherhidden
hazards.
•Watchoutfortrafcwhencrossingornearroadways.
•Stopthebladesrotatingbeforecrossingsurfaces
otherthangrass.
•Whenusinganyattachments,neverdirectdischarge
ofmaterialtowardbystandersnorallowanyonenear
themachinewhileinoperation.
•Neveroperatethemachinewithdamagedguards,
shields,orwithoutsafetyprotectivedevicesinplace.
Besureallinterlocksareattached,adjustedproperly,
andfunctioningproperly.
•Donotchangetheenginegovernorsettingsor
over-speedtheengine.Operatingtheengineat
excessivespeedmayincreasethehazardofpersonal
injury.
•Beforeleavingtheoperator'sposition:
–stoponlevelground;
–disengagethedrivetotheattachment,
–lowertheattachmenttotheground;
–Ensurethetransmissionisinneutralandengage
theparkingbrake;
–stoptheengineandremovethekey.
•Whentransportingthemower:
–disengagethedrivetothecuttingunit,
–raisethecuttingunittothetransportposition.
•Stoptheengineanddisengagedrivetothecutting
unit:
–beforerefuelling;
–beforemakingheightadjustmentunless
adjustmentcanbemadefromtheoperator's
position.
–beforeclearingblockages;
–beforechecking,cleaningorworkingonthe
mower;
–afterstrikingaforeignobjectorifanabnormal
vibrationoccurs.Inspectthemowerfordamage
andmakerepairsbeforerestartingandoperating
theequipment.
•Reducethethrottlesettingduringenginerun-out
and,iftheengineisprovidedwithashut-offvalve,
turnthefueloffattheconclusionofmowing.
•Keephandsandfeetawayfromthecuttingunits.
•Lookbehindanddownbeforebackinguptobesure
ofaclearpath.
•AlwaysweartheseatbeltwhenthefoldingR.O.P .S
isinitsverticaloperatingposition.
•NeverweartheseatbeltwhenthefoldingR.O.P .Sis
NOTinitsverticaloperatingposition.
•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalks.Stopcuttingunitif
notmowing.
•Donotoperatethemowerundertheinuenceof
alcoholordrugs.
•Lightningcancausesevereinjuryordeath.If
lightningisseenorthunderisheardinthearea,do
notoperatethemachine;seekshelter.
•Usecarewhenloadingorunloadingthemachine
intoatrailerortruck.
•Usecarewhenapproachingblindcorners,shrubs,
trees,orotherobjectsthatmayobscurevision.
MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Neverstoretheequipmentwithfuelinthetank
insideabuildingwherefumesmayreachanopen
ameorspark.
•Allowtheenginetocoolbeforestoringinany
enclosure.
•Toreducetherehazard,keeptheengine,
silencer/mufer,batterycompartmentandfuel
storageareafreeofgrass,leaves,orexcessivegrease.
•Keepallpartsingoodworkingconditionandall
hardwareandhydraulicttingstightened.Replaceall
wornordamagedpartsanddecals.
•Ifthefueltankhastobedrained,dothisoutdoors.
•Becarefulduringadjustmentofthemachineto
prevententrapmentofthengersbetweenmoving
bladesandxedpartsofthemachine.
•Disengagedrives,lowerthecuttingunits,setparking
brake,stopengineandremovekeyfromignition.
5

Waitforallmovementtostopbeforeadjusting,
cleaningorrepairing.
•Cleangrassanddebrisfromcuttingunits,drives,
silencers/mufers,andenginetohelppreventres.
Cleanupoilorfuelspillage.
•Usejackstandstosupportcomponentswhen
required.
•Carefullyreleasepressurefromcomponentswith
storedenergy.
•Disconnectbatterybeforemakinganyrepairs.
Disconnectthenegativeterminalrstandthe
positivelast.Reconnectpositiverstandnegative
last.
•Usecarewhencheckingtheblades.Weargloves
andusecautionwhenservicingthem.Onlyreplace
blades.Neverstraightenorweldthem.
•Keephandsandfeetawayfrommovingparts.If
possible,donotmakeadjustmentswiththeengine
running.
•Chargebatteriesinanopenwellventilatedarea,
awayfromsparkandames.Unplugchargerbefore
connectingordisconnectingfrombattery.Wear
protectiveclothinganduseinsulatedtools.
ToroRidingMowerSafety
Thefollowinglistcontainssafetyinformationspecicto
Toroproductsorothersafetyinformationthatyoumust
knowthatisnotincludedinthesafetystandards.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Useofthisproductforpurposesotherthanitsintended
usecouldprovedangeroustouserandbystanders.
WARNING
Engineexhaustcontainscarbonmonoxide,which
isanodorless,deadlypoisonthatcankillyou.
Donotrunengineindoorsorinanenclosedarea.
•Knowhowtostoptheenginequickly.
•Donotoperatethemachinewhilewearingtennis
shoesorsneakers.
•Wearingsafetyshoesisadvisableandrequiredby
somelocalordinancesandinsuranceregulations.
•Handlefuelcarefully.Wipeupanyspills.
•Checkthesafetyinterlockswitchesdailyforproper
operation.Ifaswitchshouldfail,replacetheswitch
beforeoperatingthemachine.
•Beforestartingtheengine,sitontheseat.
•Usingthemachinedemandsattention.Toprevent
lossofcontrol:
–Donotdriveclosetosandtraps,ditches,creeks,
orotherhazards.
–Reducespeedwhenmakingsharpturns.Avoid
suddenstopsandstarts.
–Whennearorcrossingroads,alwaysyieldthe
right-of-way.
–Applytheservicebrakeswhengoingdownhillto
keepforwardspeedslowandtomaintaincontrol
ofthemachine.
•Raisethecuttingunitswhendrivingfromonework
areatoanother.
•Donottouchtheengine,silencer/mufer,or
exhaustpipewhiletheengineisrunningorsoon
afterithasstoppedbecausetheseareascouldbehot
enoughtocauseburns.
•Iftheenginestallsorlosesheadwayandcannotmake
ittothetopofaslope,donotturnthemachine
around.Alwaysbackslowly,straightdowntheslope.
•Whenapersonorpetappearsunexpectedlyin
ornearthemowingarea,stopmowing.Careless
operation,combinedwithterrainangles,ricochets,
orimproperlypositionedguardscanleadtothrown
objectinjuries.Donotresumemowinguntilthe
areaiscleared.
MaintenanceandStorage
•Makesureallhydrauliclineconnectorsaretightand
allhydraulichosesandlinesareingoodcondition
beforeapplyingpressuretothesystem.
•Keepyourbodyandhandsawayfrompinhole
leaksornozzlesthatejecthydraulicuidunder
highpressure.Usepaperorcardboard,notyour
hands,tosearchforleaks.Hydraulicuidescaping
underpressurecanhavesufcientforcetopenetrate
theskinandcauseseriousinjury.Seekimmediate
medicalattentionifuidisinjectedintoskin.
•Beforedisconnectingorperforminganyworkon
thehydraulicsystem,allpressureinthesystemmust
berelievedbystoppingtheengineandloweringthe
cuttingunitsandattachmentstotheground.
•Checkallfuellinesfortightnessandwearona
regularbasis.Tightenorrepairthemasneeded.
•Iftheenginemustberunningtoperforma
maintenanceadjustment,keephands,feet,clothing,
andanypartsofthebodyawayfromthecutting
units,attachments,andanymovingparts.Keep
everyoneaway.
6

•Toensuresafetyandaccuracy,haveanAuthorized
ToroDistributorcheckthemaximumenginespeed
withatachometer.Maximumgovernedenginespeed
shouldbe3000RPM.
•Ifmajorrepairsareeverneededorifassistanceis
desired,contactanAuthorizedToroDistributor.
•UseonlyToro-approvedattachmentsand
replacementparts.Thewarrantymaybevoidedif
usedwithunapprovedattachments.
SoundPowerLevel
Model30651+30645
Thisunithasaguaranteedsoundpowerlevelof104
dBA,whichincludesanUncertaintyValue(K)of2dBA.
Soundpowerlevelwasdeterminedaccordingtothe
proceduresoutlinedinISO11094.
Model30651+30646
Thisunithasaguaranteedsoundpowerlevelof105
dBA,whichincludesanUncertaintyValue(K)of2dBA.
Soundpowerlevelwasdeterminedaccordingtothe
proceduresoutlinedinISO11094.
SoundPressureLevel
Model30651+30645
Thisunithasasoundpressurelevelattheoperator’sear
of93dBA,whichincludesanUncertaintyValue(K)of2
dBA.Soundpressurelevelwasdeterminedaccordingto
theproceduresoutlinedinEN836
Model30651+30646
Thisunithasasoundpressurelevelattheoperator’sear
of94dBA,whichincludesanUncertaintyValue(K)of2
dBA.Soundpressurelevelwasdeterminedaccordingto
theproceduresoutlinedinEN836.
VibrationLevel
Model30651+30645
Hand-Arm
Measuredvibrationlevelforrighthand=1.5m/s2
UncertaintyValue(K)=0.8m/s2
Measuredvibrationlevelforlefthand=1.0m/s2
UncertaintyValue(K)=0.5m/s2
Measuredvaluesweredeterminedaccordingtothe
proceduresoutlinedinEN836.
WholeBody
Measuredvibrationlevel=0.5m/s2
UncertaintyValue(K)=0.3m/s2
Measuredvaluesweredeterminedaccordingtothe
proceduresoutlinedinEN836.
Model30651+30646
Hand-Arm
Measuredvibrationlevelforrighthand=1.5m/s2
UncertaintyValue(K)=0.8m/s2
Measuredvibrationlevelforlefthand=1.0m/s2
UncertaintyValue(K)=0.5m/s2
Measuredvaluesweredeterminedaccordingtothe
proceduresoutlinedinEN836.
WholeBody
Measuredvibrationlevel=0.5m/s2
UncertaintyValue(K)=0.3m/s2
Measuredvaluesweredeterminedaccordingtothe
proceduresoutlinedinEN836.
7

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
70-13-072
1.Jackingpoint
950832
1.Tirepressure
950889
1.Warning—hotsurfaces.
111-0773
1.Warning—crushingofngers,forceappliedfromside.
111-0936
1.Tippinghazard—slowmachinebeforeturning.
2.Tippinghazard—operateonslopeslessthan16degrees,
donotoperateonslopesgreaterthan16degrees.
3.Tippinghazard—alwaysweartheseatbeltwhenarollover
protectionsystem(ROPS)isinuse,donotwearaseatbelt
whentheROPSbarislowered.
4.Warning—readtheOperator'sManual,removetheignition
keybeforeperforminganymaintenance.
5.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
111–5233
1.Slow4.Raisethecuttingunit
2.Continuousvariable
enginespeed
5.Neutralcuttingunit
3.Fast6.Floatthecuttingunitover
theground
8

111-3344
1.Ignitionswitch
111-3562
1.Presspedaltoadjuststeeringwheeltilt.
111-3566
1.Falling,crushinghazard—ensureplatformlatchinengaged
beforeoperating.
111-3567
1.Pedaloperation
111-3901
1.Transmissionoil—readtheOperator'sManualformore
information.
111-3902
1.Warning—cuttinghazardofhand,fan.
2.Hotsurfaces—readtheOperator'sManualformore
information.
9

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Tirepressuregauge(notsupplied)1Checkthetirepressure.
Operator'sManual1
EngineOperator'sManual1
PartsCatalog1
2CEcerticate1
ReadtheOperator'sManualbefore
operatingthemachine.
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
1
CheckingtheTirePressure
Partsneededforthisprocedure:
1Tirepressuregauge(notsupplied)
Procedure
Correctairpressureinthefrontandreartires.Seethe
chartbelowforthecorrectpressure.
Important:Maintaincorrecttirepressuresinall
tirestoensurecorrectcontactwiththeturf.
TiresTireTypeRecommendedTirePressures
Turf
Conditions
Road
Conditions
Max
Pressure
FrontAxle26x12.00
-12BKT
turfpattern
10psi(0.7
bar)
20psi(1.4
bar)
25psi(1.7
bar)
RearAxle20x10.00
-86BKT
turfpattern
10psi(0.7
bar)
20psi(1.4
bar)
25psi(1.7
bar)
2
ReadingtheManual
Partsneededforthisprocedure:
1Operator'sManual
1EngineOperator'sManual
1PartsCatalog
1CEcerticate
Procedure
•ReadtheOperator'sManual.
•Storealldocumentationinasafeplaceforfutureuse.
10

ProductOverview
G018144
1
2 3 4 5
Figure2
1.Cuttingunit4.Operator'sseat
2.Controlarm5.Hood
3.Steeringwheel
Controls
ControlPanelComponents
17
9
5
18 1
2
7
14
11
10
6
12 15 13 16 8
4
3
G018032
Figure3
1.Parkingbrakeswitch10.Hornbutton(suppliedwith
lightkit)
2.Lightswitch(suppliedwith
lightkit)
11.Auxiliary12voltsocket
(suppliedwitha12Vkit)
3.Warningbeaconswitch
(suppliedwithbeaconkit)
12.Oilpressureindicator
4.Hazardwarningswitch
(suppliedwithlightingkit)
13.Transmissiontemperature
indicator
5.Cuttingunitposition
control
14.Hourmeter
6.Throttlecontrollever15.Batterywarningindicator
7.Ignitionswitch16.Enginetemperature
warningindicator
8.Cuttingunitdriveswitch17.Glowplugindicator
9.Directionindicatorswitch
(suppliedwithlightingkit)
18.Transmissionneutral
indicator
11

1
g018033
Figure4
1.Weighttransfercontrol
g014420
1 2
Figure5
1.Reversetravelpedal2.Forwardtravelpedal
BrakingSystem
ParkingBrake
Movetheparkingbrakeswitchtoitsforwardpositionby
depressingthesmallerlockingbuttonandmovingthe
switchforwardtoengagetheparkingbrake(Figure6).
Note:Donotoperatethemowerwiththeparking
brakeengagedanddonotengagetheparkingbrake
whilethemowerismoving.
Thislightilluminateswhentheparkingbrakeisengaged
andtheignitionkeyisturnedtopositionI.
WARNING
Theparkingbrakeoperatesonthefrontwheels
only.Donotparkthemoweronaslope.
P
1
G018029
Figure6
1.Parkingbrake
ServiceBrake
Servicebrakingisachievedbythehydraulictransmission
system.Whentheforwardorreversetravelpedalsare
releasedortheenginespeedreduced,servicebraking
becomeseffectiveandtravelspeedisautomatically
reduced.Toincreasethebrakingeffect,pushthe
transmissionpedalintotheneutralposition.Service
brakingiseffectiveonthefrontwheelsonly.
WARNING
Theservicebrakingsystemwillnotholdthemower
atastandstill.ALWAYSensuretheparkingbrakeis
engagedtoparkthemoweratastandstill.
EmergencyBrake
Intheeventofservicebrakefailure,turntheignitionoff
tobringthemowertoastandstill.
12

WARNING
Takecarewhenusingtheemergencybraking.
Remainseatedandholdontothesteeringwheel
topreventejectionfromthemowercausedbythe
frontwheelbrakesbeingappliedsuddenlywhen
travelling.
ThrottleControl
Operatethethrottlecontrolinaforwarddirectionto
increasetheenginespeed.Operatethethrottlecontrol
inarearwarddirectiontoreduceenginespeed(Figure7).
Note:Theenginespeeddictatesthespeedoftheother
functions,i.e.travel,cuttingbladerotationspeedand
cuttingunitliftspeed.
1
G018034
Figure7
1.Throttlecontrol
Travel
Forwardtravel:Depresstheforwardtravelpedalto
increaseforwardtravelspeed.Releasethepedalto
reducespeed(Figure8).
Reversetravel:Depressthereversetravelpedalto
increasereversetravelspeed.Releasethepedaltoreduce
speed(Figure8).
Stop(Neutral):Releasetheforwardorreversetravel
pedal.
g014420
1 2
Figure8
1.Reversetravelpedal2.Forwardtravelpedal
CuttingUnitDriveSwitch
AlwaysputthecuttingunitdriveswitchintheOff
positionwhentravellingbetweenworkareas.
AdjustableSteeringColumn
WARNING
Neveroperatethemowerwithoutrstcheckingthat
thesteeringcolumnadjustermechanismisingood
workingorderandthat,onceadjustedandlocked,
thesteeringwheelremainssecurelyinposition.
Adjustmentofthesteeringwheelandsteeringcolumn
shouldonlybecarriedoutwhenthemowerisata
standstillwiththeparkingbrakeengaged.
1.Totiltthesteeringwheel,pressthefootpedaldown.
2.Positionthesteeringtowertothemostcomfortable
positionandreleasethepedal(Figure9).
G014549
Figure9
13

OperatorSeat
WARNING
Neveroperatethemowerwithoutrstchecking
thattheoperatorseatmechanismsareingood
workingorderandthat,onceadjustedandlocked,
theseatremainssecurelyinposition.
Adjustmentoftheseatmechanismsshouldonlybe
carriedoutwhenthemowerisatastandstillwith
theparkingbrakeengaged.
.Fore/AftAdjustment:Theseatadjustingleverallows
youtoadjusttheseatforeandaft(Figure10).
Operatorweightadjustment:Rotatethehandle
clockwise,asshown,toincreasesuspensionstiffnessand
counter-clockwisetodecrease(Figure10).
Kg
Kg
CW CCW
G018093
1
2
Figure10
1.Seatadjustmentlever2.Operatorweighthandle
14

WarningSystems
EngineCoolantOverheatingWarning
Light
Theenginecoolantwarninglightilluminatesandthe
hornisactuated(Figure11).
G018035
1
Figure11
1.Enginecoolantoverheatingwarninglight
HydraulicOilOverheatingWarning
Light
Thehydraulicoilwarninglightilluminateswhen
overheatingoccursandthehornisactuatedwhenthe
hydraulicoilinthereservoirexceeds203degreesF(95
degreesC)(Figure12).
G018036
1
Figure12
1.Hydraulicoiloverheatingwarninglight
15

LowBatteryChargeWarningLight
Thebatterychargewarninglightilluminateswhenlow
batterychargeoccurs(Figure13).
G018037
1
Figure13
1.Lowbatterychargewarninglight
LowEngineOilPressureWarningLight
Theengineoilpressurewarninglightilluminateswhen
theoilpressureistoolow(Figure14).
G018081
1
Figure14
1.Lowengineoilpressurewarninglight
16

IgnitionKey
0=Engineoff.
I=Enginerun/Auxiliaryon.
II=Enginepre-heat.
III=Enginestart.
WARNING
Alwaysremovetheignitionkeywhenthemoweris
notinuse.
Important:Alwaysinstalltheprotectivecapwhen
theignitionkeyisremovedtopreventingressof
dirtandmoistureanddamagingthemechanism.
I
II
III
1
G018082
Figure15
1.Ignitionswitch
EnginePre-HeatIndicatorLight
TurntheignitionkeytopositionII.Theenginepreheat
indicatorlightwillilluminateandheattheglowplugs
(Figure16).
Important:Attemptingtostartacoldengine
beforethepre-heatisusedcancauseunnecessary
weartothebattery.
G018083
1
Figure16
1.Enginepre-heatindicatorlight
FuelGauge
Thefuelgaugeshowstheamountoffuelinthetank
(Figure17).
G014558
FUEL
EF
Figure17
17

HourMeter
Thehourmetershowsthetotalhoursthatthemachine
hasbeenoperated(Figure18).
000.0
1
G018084
Figure18
1.Hourmeter
TransmissionNeutralIndicatorLight
Thislightilluminateswhenthetravelcontrolpedalis
intheneutralpositionandtheignitionkeyisturnedto
positionI(Figure19).
Note:Theparkingbrakemustbeengagedforthe
transmissionneutralindicatorlighttoilluminate.
G018085
1
Figure19
1.Transmissionneutralindicatorlight
18

CuttingUnitDriveSwitchIndicator
Light
Thislightilluminateswhenthecuttingunitdriveswitch
isintheforwardpositionandtheignitionkeyisturned
topositionI(Figure20).
1
G018086
Figure20
1.CuttingUnitDriveSwitchIndicatorLight
19

Specications
Note:Specicationsanddesignaresubjecttochangewithoutnotice.
Width58.7inches(1490mm)
Length94.9inches(2410mm)
Height66.2inches(1681mm)withR.O.P .S.folded
92.9inches(2360mm)withR.O.P .S.initsverticaloperatingposition
Weight(withoutcuttingunit)1940lbs(880kg)
Fueltankcapacity12.1gallons(45.7litres)
Maximumforwardspeed15.5mph(25km/h)
Maximumreversespeed8mph(12.5km/h)
Hydraulicsystemcapacity7.04UKGallons(32litres)
Attachments/Accessories
AselectionofToroapprovedattachmentsand
accessoriesareavailableforusewiththemachineto
enhanceandexpanditscapabilities.Contactyour
AuthorizedServiceDealerorDistributor.
20
