Toro 74279TE User manual

FormNo.3358-197RevB
Z593-DZMaster®witha52
TURBOFORCE®RearDischarge
Mower
ModelNo.74279TE—SerialNo.270000001andUp
Registeratwww.Toro.com.OriginalInstructions(EN)

ThissparkignitionsystemcomplieswithCanadian
ICES-002.
Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,
oradditionalinformation,contactanAuthorized
ServiceDealerorToroCustomerServiceandhave
themodelandserialnumbersofyourproductready.
Figure1identiesthelocationofthemodelandserial
numbersontheproduct.Writethenumbersinthe
spaceprovided.
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2otherwordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Introduction.................................................................2
Safety...........................................................................3
SafeOperatingPractices.......................................3
ToroRidingMowerSafety....................................5
SoundPressure.....................................................5
SoundPower........................................................5
Vibration..............................................................5
SlopeChart..........................................................6

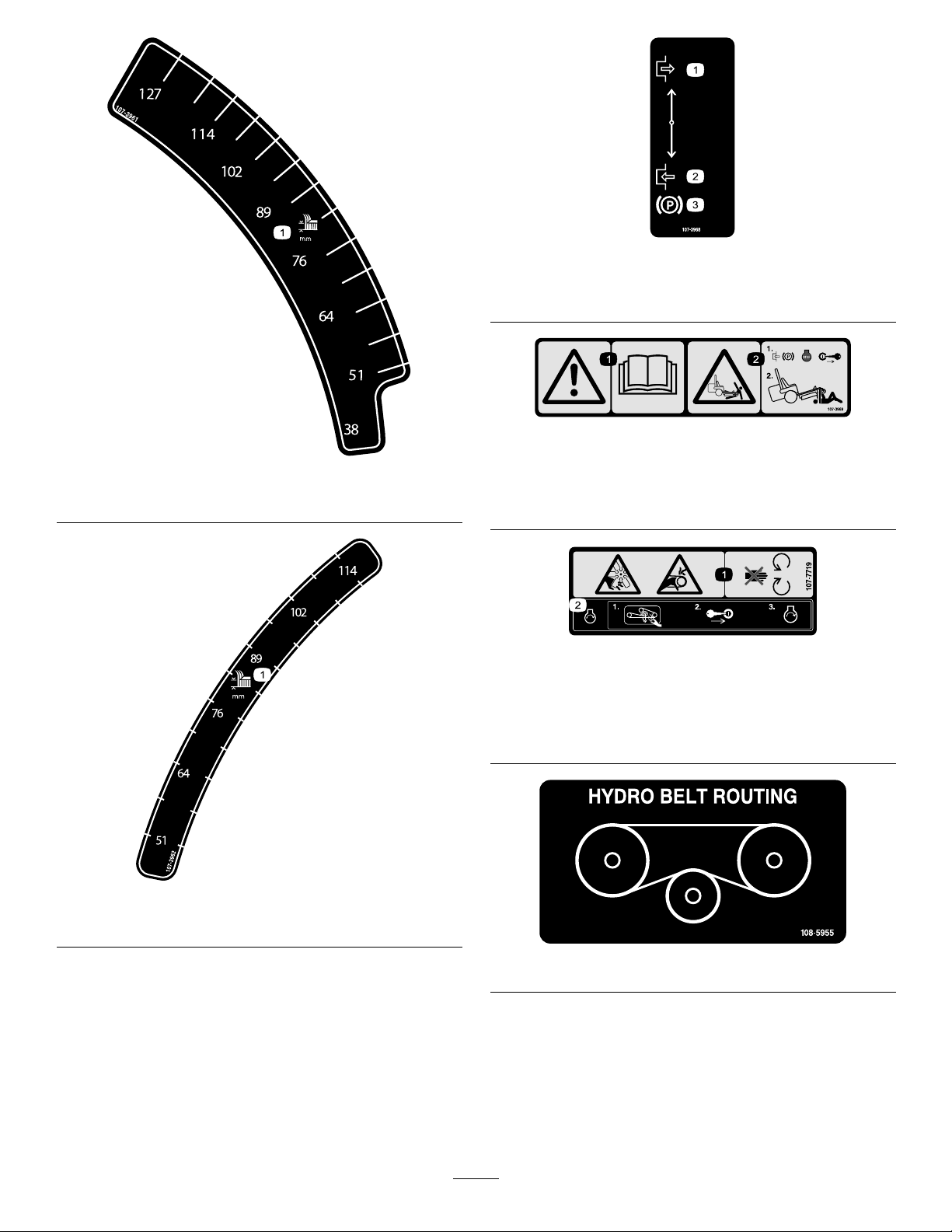

SafetyandInstructionalDecals.............................7
ProductOverview......................................................14
Controls.............................................................14
Operation...................................................................15
AddingFuel.......................................................15
CheckingtheEngineOilLevel............................16
SwitchingtheFuelTanks....................................16
UsingtheRolloverProtectionSystem
(ROPS)..........................................................17
ThinkSafetyFirst...............................................18
OperatingtheParkingBrake...............................19
StartingandStoppingtheEngine........................19
OperatingthePowerTakeOff(PTO).................21
TheSafetyInterlockSystem................................21
DrivingForwardorBackward.............................22
StoppingtheMachine.........................................23
AdjustingtheHeight-of-Cut...............................23
AdjustingtheAnti-ScalpRollers.........................23
PositioningtheSeat............................................24
UnlatchingtheSeat.............................................25
PushingtheMachinebyHand.............................25
TransportingMachines.......................................25
LoadingMachines..............................................26
OperatingTips...................................................26
Maintenance...............................................................28
RecommendedMaintenanceSchedule(s)................28
Lubrication.............................................................29
GreasingandLubrication...................................29
GreasingtheMowerDeckandBelt
Idlers..............................................................29
EngineMaintenance...............................................30
©2007—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

ServicingtheAirCleaner....................................30
ServicingtheEngineOil.....................................31
FuelSystemMaintenance.......................................35
ServicingtheFuelFilters....................................35
ServicingtheFuelTank......................................35
ElectricalSystemMaintenance................................35
ServicingtheBattery...........................................35
ServicingtheFuses.............................................37
DriveSystemMaintenance.....................................38
AdjustingtheTracking........................................38
CheckingtheTirePressure.................................38
CheckingtheWheelHubSlottedNut..................39
AdjustingtheCasterPivotBearing......................39
ServicingtheGearBox.......................................39
CoolingSystemMaintenance..................................40
ServicingtheCoolingSystem..............................40
BrakeMaintenance.................................................42
AdjustingtheParkingBrake................................42
BeltMaintenance....................................................42
InspectingtheBelts............................................42
ReplacingtheMowerBelt...................................42
ReplacingthePTODriveBelt.............................43
ReplacingthePumpDriveBelt...........................44
ReplacingandTensioningtheAlternator
Belt................................................................44
ControlsSystemMaintenance.................................46
AdjustingtheControlHandleNeutral
Position..........................................................46
HydraulicSystemMaintenance...............................47
ServicingtheHydraulicSystem...........................47
SettingtheHydraulicPumpNeutral
Position..........................................................49
MowerDeckMaintenance......................................51
LevelingtheMoweratThreePositions................51
ServicingtheCuttingBlades...............................52
Cleaning.................................................................55
CleaningUndertheMower.................................55
WasteDisposal...................................................55
Storage.......................................................................56
CleaningandStorage..........................................56
Troubleshooting.........................................................57
Schematics.................................................................59
Safety
ThismachinemeetsorexceedsEuropeanStandardsin
effectatthetimeofproduction.However,improper
useormaintenancebytheoperatororownercan
resultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafetyalertsymbol,whichmeans
CAUTION,WARNING,orDANGER-"personalsafety
instruction."Failuretocomplywiththeinstructionmay
resultinpersonalinjuryordeath.
SafeOperatingPractices
ThefollowinginstructionsarefromtheCENstandard
EN836:1997.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Training
•Readtheinstructionscarefully.Befamiliarwiththe
controlsandtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwiththese
instructionstousethelawnmower.Localregulations
canrestricttheageoftheoperator.
•Nevermowwhilepeople,especiallychildren,orpets
arenearby.
•Keepinmindthattheoperatororuserisresponsible
foraccidentsorhazardsoccurringtootherpeopleor
theirproperty.
•Donotcarrypassengers.
•Alldriversshouldseekandobtainprofessional
andpracticalinstruction.Suchinstructionshould
emphasize:
–theneedforcareandconcentrationwhen
workingwithride-onmachines;
–controlofaride-onmachineslidingonaslope
willnotberegainedbytheapplicationofthe
controllevers.Themainreasonsforlossof
controlare:
◊insufcientwheelgrip,especiallyonwet
grass;
◊beingdriventoofast;
◊inadequatebraking;
◊thetypeofmachineisunsuitableforitstask;
◊lackofawarenessoftheeffectofground
conditions,especiallyslopes;
◊incorrecthitchingandloaddistribution.
3

Preparation
•Whilemowing,alwayswearsubstantialfootwearand
longtrousers.Donotoperatetheequipmentwhen
barefootorwearingopensandals.
•Thoroughlyinspecttheareawheretheequipment
istobeusedandremoveallobjectswhichmaybe
thrownbythemachine.
•Warning–Fuelishighlyammable.
–Storefuelincontainersspecicallydesignedfor
thispurpose.
–Refueloutdoorsonlyanddonotsmokewhile
refuelling.
–Addfuelbeforestartingtheengine.Never
removethecapofthefueltankoraddfuelwhile
theengineisrunningorwhentheengineishot.
–Iffuelisspilled,donotattempttostartthe
enginebutmovethemachineawayfromthe
areaofspillageandavoidcreatinganysourceof
ignitionuntilfuelvaporshavedissipated.
–Replaceallfueltanksandcontainercapssecurely.
•Replacefaultysilencers.
•Beforeusing,alwaysvisuallyinspecttoseethatthe
blades,bladeboltsandcutterassemblyarenotworn
ordamaged.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•Onmulti-bladedmachines,takecareasrotatingone
bladecancauseotherbladestorotate.
Operation
•Bealert,slowdownandusecautionwhenmaking
turns.Lookbehindandtothesidebeforechanging
directions.
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Mowonlyindaylightoringoodarticiallight.
•Beforeattemptingtostarttheengine,disengageall
bladeattachmentclutchesandshiftintoneutral.
•Donotuseonslopesgreaterthan15degrees.
•Rememberthereisnosuchthingasasafeslope.
Travelongrassslopesrequiresparticularcare.To
guardagainstoverturning:
–-donotstoporstartsuddenlywhenonaslope;
–-useslowspeedsonslopesandduringtight
turns;
–-stayalertforhumpsandhollowsandother
hiddenhazards;
•Usecarewhenpullingloadsorusingheavy
equipment.
–-Useonlyapproveddrawbarhitchpoints.
–-Limitloadstothoseyoucansafelycontrol.
–-Donotturnsharply.Usecarewhenreversing.
•Watchoutfortrafcwhencrossingornearroadways.
•Stopthebladesrotatingbeforecrossingsurfaces
otherthangrass.
•Whenusinganyattachments,neverdirectdischarge
ofmaterialtowardbystandersnorallowanyonenear
themachinewhileinoperation.
•Neveroperatethemachinewithdamagedguardsor
withoutsafetyprotectivedevicesinplace.
•Donotchangetheenginegovernorsettingsor
overspeedtheengine.Operatingtheengineat
excessivespeedcanincreasethehazardofpersonal
injury.
•Beforeleavingtheoperator’sposition:
–disengagethepowertake-offandlowerthe
attachments;
–changeintoneutralandsettheparkingbrake;
–stoptheengineandremovethekey.
•Disengagedrivetoattachments,stoptheengine,
anddisconnectthesparkplugwire(s)orremovethe
ignitionkey
–beforeclearingblockagesoruncloggingchute;
–beforechecking,cleaningorworkingonthe
lawnmower;
–afterstrikingaforeignobject.Inspectthe
lawnmowerfordamageandmakerepairsbefore
restartingandoperatingtheequipment;ifthe
machinestartstovibrateabnormally(check
immediately).
•Disengagedrivetoattachmentswhentransporting
ornotinuse.
•Stoptheengineanddisengagedrivetoattachment
–beforerefuelling;
–beforeremovingthegrasscatcher;
–beforemakingheightadjustmentunless
adjustmentcanbemadefromtheoperator’s
position.
•Reducethethrottlesettingduringenginerun-out
and,iftheengineisprovidedwithashut-offvalve,
turnthefueloffattheconclusionofmowing.
MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Neverstoretheequipmentwithfuelinthetank
insideabuildingwherefumescanreachanopen
ameorspark.
4

•Allowtheenginetocoolbeforestoringinany
enclosure.
•Toreducetherehazard,keeptheengine,silencer,
batterycompartmentandfuelstorageareafreeof
grass,leaves,orexcessivegrease.
•Checkthegrasscatcherfrequentlyforwearor
deterioration.
•Replacewornordamagedpartsforsafety.
•Ifthefueltankhastobedrained,thisshouldbe
doneoutdoors.
•Onmulti-bladedmachines,takecareasrotatingone
bladecancauseotherbladestorotate.
•Whenmachineistobeparked,storedorleft
unattended,lowerthecuttingmeansunlessapositive
mechanicallockisused.
ToroRidingMowerSafety
Thefollowinglistcontainssafetyinformationspecicto
Toroproductsorothersafetyinformationthatyoumust
knowthatisnotincludedintheCENstandard.
•Engineexhaustcontainscarbonmonoxide,whichis
anodorless,deadlypoisonthatcankillyou.Donot
runengineindoorsorinanenclosedarea.
•Keephands,feet,hairandlooseclothingawayfrom
attachmentdischargearea,undersideofmowerand
anymovingpartswhileengineisrunning.
•Donottouchequipmentorattachmentpartswhich
maybehotfromoperation.Allowtocoolbefore
attemptingtomaintain,adjust,orservice.
•Batteryacidispoisonousandcancauseburns.Avoid
contactwithskin,eyesandclothing.Protectyour
face,eyes,andclothingwhenworkingwithabattery.
•Batterygasescanexplode.Keepcigarettes,sparks
andamesawayfrombattery.
•UseonlygenuineTororeplacementpartstoensure
thatoriginalstandardsaremaintained.
•UseonlyToro-approvedattachments.Warrantymay
bevoidedifusedwithunapprovedattachments.
SlopeOperation
•Donotmowslopesgreaterthan15degrees.
•Donotmowneardrop-offs,ditches,steepbanks
orwater.Wheelsdroppingoveredgescancause
rollovers,whichmayresultinseriousinjury,death
ordrowning.
•Donotmowslopeswhengrassiswet.Slippery
conditionsreducetractionandcouldcausesliding
andlossofcontrol.
•Donotmakesuddenturnsorrapidspeedchanges.
•Useawalkbehindmowerand/orahandtrimmer
neardrop-offs,ditches,steepbanksorwater.
•Reducespeedanduseextremecautiononslopes.
•Removeormarkobstaclessuchasrocks,treelimbs,
etc.fromthemowingarea.Tallgrasscanhide
obstacles.
•Watchforditches,holes,rocks,dips,andrisesthat
changetheoperatingangle,asroughterraincould
overturnthemachine.
•Avoidsuddenstartswhenmowinguphillbecause
themowermaytipbackwards.
•Beawarethatlossoftractionmayoccurgoing
downhill.Weighttransfertothefrontwheelsmay
causedrivewheelstoslipandcauselossofbraking
andsteering.
•Alwaysavoidsuddenstartingorstoppingona
slope.Iftireslosetraction,disengagethebladesand
proceedslowlyofftheslope.
•Followthemanufacturer’srecommendationsfor
wheelweightsorcounterweightstoimprovestability.
•Useextremecarewithgrasscatchersorother
attachments.Thesecanchangethestabilityofthe
machineandcauselossofcontrol.
SoundPressure
Thisunithasamaximumsoundpressurelevelatthe
operator’searof89dBA,basedonmeasurementsof
identicalmachinesperEN11094andEN836.
SoundPower
Thisunithasaguaranteedsoundpowerlevelof105
dBA,basedonmeasurementsofidenticalmachinesper
EN11094.
Vibration
Thisunitdoesnotexceedahand/armvibrationlevelof
3.1m/s2,basedonmeasurementsofidenticalmachines
perEN1033.Thisunitdoesnotexceedawholebody
vibrationlevelof0.9m/s2,basedonmeasurementsof
identicalmachinesperEN1032.
5

SlopeChart
6

SafetyandInstructional
Decals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
58-6520
1.Grease
93-7010
1.Thrownobjecthazard—
2.Thrownobjecthazard,mower—keepthedeectorinplace.
3.Cutting/dismembermentofhandorfoot—stayawayfrom
movingparts.
93-7818
1.Warning—readtheOperator’sManualforinstructionson
torquingthebladebolt/nutto115-149N•m(85-110ft-lb).
93-8069
1.Hotsurface/burnhazard—stayasafedistancefromthe
hotsurface.
98-1977
1.Entanglementhazard,belt—stayawayfrommovingparts.
98-4387
1.Warning—wearhearingprotection.
103-1636
104-2449
7

107-1866
1.Slidingandlossofcontrolhazardandtippinghazard,
drop-offs—donotoperatethemachineneardrop-offs,
slopesgreaterthan15degrees,orwater;keepasafe
distancefromdrop-offs;donotturnsharplywhiletraveling
fast,instead,slowdownandturngradually;iftherollbaris
raised,weartheseatbelt;iftherollbarislowered,donot
weartheseatbelt.
107-2114
107-2131
1.Hydraulicoillevel2.Warning—donottouch
thehotsurface.
107-3069
1.Warning–thereisnorolloverprotectionwhentherollbaris
down.
2.Toavoidinjuryordeathfromarolloveraccident,keepthe
rollbarintheraisedandlockedpositionandweartheseat
belt.Lowertherollbaronlywhenabsolutelynecessary;do
notwearthetheseatbeltwhentherollbarisdown.
3.ReadtheOperator’sManual;driveslowlyandcarefully.
8

107-3961
1.Heightofcutinmillimeters
107-3962
1.Heightofcutinmillimeters
107-3968
1.Disengage3.Parkingbrake
2.Engage
107-3969
1.Warning—readtheOperator’sManual.
2.Crushinghazard,mower—engagetheparkingbrake,stop
theengine,andremovetheignitionkeybeforeworking
underthemower.
107-7719
1.Cutting/dismembermenthazard,fanandentanglement
hazard,belt—stayawayfrommovingparts.
2.Beforestartingtheengine,cleangrassanddebrisfromthe
mowerbeltandpulleys,inserttheignitionkey,andstartthe
engine.
108-5955
9

108-5957
108-5981
110-0806
110-3842
110-3852
1.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
2.Continuoustonesignals
theuserthatengineis
overheating.
110-3853
1.Cutting/dismemberment
hazard,fanand
entanglementhazard,
belt.
2.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
110-0305
10

112-2389
1.Pushtoengage6.Engine—start
2.Engine—preheat7.Fast
3.ReadtheOperator’s
Manual.
8.Continuousvariable
setting
4.Engine—stop9.Slow
5.Engine—run10.PTO(Powertakeoff)
112-3858
1.ReadtheOperator’s
Manual.
3.Removetheignitionkey
beforeadjustingtheheight
ofcut.
2.Readtheinstructions
beforeservicingor
performingmaintenance.
4.Heightofcutsettings.
112-8319
114-1826
1.Removetheignitionkey.2.Readtheinstructions
beforeservicingor
performingmaintenance.
Manufacturer’sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
11

BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator’s
Manual.
10.Containslead;donot
discard.
107-9309
1.Warning—readtheOperator’sManualforinformationonchargingthebattery;containslead;donotdiscard.
2.ReadtheOperator’sManual.
12

107-3963
1.Cutting/dismemberment
hazard,mowerblade—do
notcarrypassengersand
keepbystandersaway.
2.Cutting/dismemberment
hazardofhandorfoot,
mowerblade—remove
theignitionkeyandread
theinstructionsbefore
servicingorperforming
maintenance;stayaway
frommovingparts.
3.Thrownobject
hazard—keepbystanders
asafedistancefromthe
machineandkeepthe
deectorinplace.
4.Beforestartingtheengine,
cleangrassanddebrisfrom
themowerbeltandpulleys,
inserttheignitionkey,and
starttheengine.
107-3964
1.Warning—donotusedrugsoralcohol.3.Warning—engagetheparkingbrake,
stoptheengine,andremovethe
ignitionkeybeforeleavingthe
machine.
5.ReadtheOperator’sManual.
2.Warning—readtheOperator’sManual
andreceivetraining.
4.Warning—wearhearingprotection.
13

110-0820
1.Fast5.Warning—readtheOperator’sManual.
2.Slow6.Poisonandcausticliquid/chemicalburnhazard—keep
childrenasafedistancefromthebattery.
3.Neutral7.Explosionhazard—nore,openames,orsmoking;avoid
sparks.
4.Reverse8.Tounlockthetractiondrive,turntheby-passvalve1complete
revolutioncounterclockwiseusinga5/8inchor16mm
wrench.
ProductOverview
Figure3
1.Motioncontrollever5.Controls
2.Parkingbrakelever6.Seatbelt
3.Height-of-cutlever7.Rollbar
4.Fuelcap(bothsides)8.Enginescreen
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure3andFigure4).
Figure4
1.Hourmeter6.Throttlecontrol
2.Ignitionswitch7.PTOSwitch
3.Glowplugswitch8.Audiblealarm
4.Glowpluglight9.Fuelselectorvalve
5.EngineTemperaturelight
HourMeter
Thehourmeterrecordsthenumberofhourstheengine
hasoperated.Itoperateswhentheengineisrunning.
Usethesetimesforschedulingregularmaintenance
(Figure4).
GlowPlugLight
Theglowplugindicatorlightturnsonwhentheglow
plugbuttonisengaged(Figure4).
GlowPlugSwitch
Thisswitchactivatestheglowplugsandisindicatedby
theglowpluglight.Holddowntheglowplugswitchfor
10secondspriortostarting.
14

TemperatureLight
Thetemperaturelightcomesonwhentheengineisover
heating(Figure4).
AudibleAlarm
Thismachinehasanaudiblealarmthatalertstheuser
toturnofftheengineorenginedamagecanoccurfrom
overheating.RefertoServicingtheCoolingSystemin
CoolingSystemMaintenance,page40.
FuelSelectorValve
Thefuelselectorvalveislocatedbehindtheseat.
Closethefuelselectorvalvewhentransportingor
storingmower.
Movetheselectorvalvetothelefthand(LH)or
righthand(RH)positionforoperation.
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
AddingFuel
Theenginerunsonclean,freshdieselfuelwith
aminimumoctaneratingof40.Purchasefuelin
quantitiesthatcanbeusedwithin30daystoensure
fuelfreshness.
Usesummergradedieselfuel(No.2-D)attemperatures
above20°F(-7°C)andwintergradedieselfuel(No.
1-DorNo.1-D/2-Dblend)below20°F(-7°C).Useof
wintergradedieselfuelatlowertemperaturesprovides
lowerashpointandpourpointcharacteristics,
thereforeeasingstartabilityandlesseningchances
ofchemicalseparationofthefuelduetolower
temperatures(waxappearance,whichmaypluglters).
Useofsummergradedieselfuelabove20°F(-7°C)will
contributetowardlongerlifeofthepumpcomponents.
Important:Donotusekeroseneorgasoline
insteadofdieselfuel.Failuretoobservethis
cautionwilldamagetheengine.
Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandgastankor
conditioneropening.
•Keepgasawayfromeyesandskin.
15

Incertainconditions,fuelisextremely
ammableandhighlyexplosive.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanyfuel
thatspills.
•Neverllthefueltankinsideanenclosed
trailer.
•Donotllthefueltankcompletelyfull.Add
fueltothefueltankuntilthelevelis1/4to
1/2inch(6to13mm)belowthebottomof
thellerneck.Thisemptyspaceinthetank
allowsfueltoexpand.
•Neversmokewhenhandlingfuel,andstay
awayfromanopenameorwherefuel
fumesmaybeignitedbyaspark.
•Storefuelinanapprovedcontainerandkeep
itoutofthereachofchildren.Neverbuy
morethana30-daysupplyoffuel.
•Alwaysplacefuelcontainersontheground
awayfromyourvehiclebeforelling.
•Donotllfuelcontainersinsideavehicle
oronatruckortrailerbedbecauseinterior
carpetsorplastictruckbedlinersmay
insulatethecontainerandslowthelossof
anystaticcharge.
•Whenpractical,removegas-powered
equipmentfromthetruckortrailerand
refueltheequipmentwithitswheelsonthe
ground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfromafuel
dispensernozzle.
•Ifafueldispensernozzlemustbeused,keep
thenozzleincontactwiththerimofthefuel
tankorcontaineropeningatalltimesuntil
fuelingiscomplete.
FillingtheFuelTank
1.Shuttheengineoffandsettheparkingbrake.
2.Cleanaroundeachfueltankcapandremovethe
cap.Addfueltobothfueltanks,untilthelevelis
1/4to1/2inch(6to13mm)belowthebottomof
thellerneck.Thisspaceinthetankallowsthefuel
toexpand.Donotllthefueltankscompletelyfull.
3.Installfueltankcapssecurely.Wipeupanyfuelthat
mayhavespilled.
4.Ifpossible,llthefueltankaftereachuse.Thiswill
minimizepossiblebuildupofcondensationinside
thefueltank.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoChecking
OilLevelinEngineMaintenance,page30
SwitchingtheFuelTanks
Important:Donotrunthemachineoutoffuel.
Thismaycauseenginedamageandrequirethe
fuelsystemtobechecked.
Thefuelselectorvalveislocatedbehindtheleftside
oftheseat.
Theunithastwofueltanks.Onetankisontheleft
sideandoneontherightside.Eachtankconnectsto
thefuelselectorvalve.Fromthereacommonfuelline
leadstotheengine(Figure5).
Tousetheleftsidefueltankrotatethefuelselector
valvetotheLH,lefthandlocation.Tousetheright
sidefueltankrotatethefuelselectorvalvetotheRH,
righthandlocation(Figure5)
Closethefuelselectorvalvebeforetransportingor
storingmachine.
16

Figure5
1.Leftsidefueltank2.Fuelselectorvalve
UsingtheRolloverProtection
System(ROPS)
Toavoidinjuryordeathfromrollover:keepthe
rollbarintheraisedlockedpositionanduse
theseatbelt.
Ensurethattherearpartoftheseatissecured
withtheseatlatch.
Thereisnorolloverprotectionwhentherollbar
isinthedownposition.
•Lowertherollbaronlywhenabsolutely
necessary.
•Donotweartheseatbeltwhentherollbaris
inthedownposition.
•Driveslowlyandcarefully.
•Raisetherollbarassoonasclearance
permits.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontact
them.
Important:Lowertherollbaronlywhen
absolutelynecessary.
1.Removethehairpincotterpinsandremovethetwo
pins(Figure7).
2.Lowertherollbartothedownposition.Thereare
twodownpositions.SeeFigure6forthepositions.
3.Installthetwopinsandsecurethemwiththe
hairpincotterpins(Figure7).
Figure6
1.Fulldownposition2.Downpositionwithbagger
installed
Important:Ensurethattherearpartofthe
seatissecuredwiththeseatlatch.
4.Toraisetherollbar,removethehairpincotterpins
andremovethetwopins(Figure7).
5.Raisetherollbartotheuprightpositionandinstall
thetwopinsandsecurethemwiththehairpincotter
pins(Figure7).
17

Important:Alwaysusetheseatbeltwiththe
rollbarintheraisedposition.
G004955
1
2
3
4
Figure7
1.Rollbar3.Pin
2.Raisedposition4.Hairpincotterpin
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthe
safetysection.Knowingthisinformationcouldhelp
youorbystandersavoidinjury.
Operatingonwetgrassorsteepslopescan
causeslidingandlossofcontrol.
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,deathor
drowning.
Thereisnorolloverprotectionwhentheroll
barisdown.
Alwayskeeptherollbarintheraisedandlocked
positionandusetheseatbelt.
Readandfollowtherolloverprotection
instructionsandwarnings.
Toavoidlossofcontrolandpossibilityof
rollover:
•Donotoperateneardrop-offsornearwater.
•Donotoperateonslopesgreaterthan
15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Avoidsuddenturnsorrapidspeedchanges.
Figure8
1.SafeZone-usethe
ZMasterhereonslopes
lessthan15degreesor
atareas.
3.Water
2.Usewalkbehindmower
and/orhandtrimmernear
drop-offsandwater.
18

Thismachineproducessoundlevelsinexcess
of85dBAattheoperatorsearandcancause
hearinglossthroughextendedperiodsof
exposure.
Wearhearingprotectionwhenoperatingthis
machine.
Wearprotectiveequipmentforyoureyes,ears,feet,and
headwhenusingthismachine.
Figure9
1.Warning—wearhearingprotection
OperatingtheParkingBrake
Alwayssettheparkingbrakewhenyoustopthe
machineorleaveitunattended.
SettingtheParkingBrake
1.Movethemotioncontrollevers(Figure15)outto
theneutrallockposition.
2.Pullupandbackontheparkingbrakelevertoset
theparkingbrake(Figure10).Theparkingbrake
levershouldstayrmlyintheengagedposition.
Parkingbrakemaynotholdmachineparked
onaslopeandcouldcausepersonalinjuryor
propertydamage.
Donotparkonslopesunlesswheelsare
chockedorblocked
ReleasingtheParkingBrake
Pushforwardanddownontheparkingbrakelever
toreleasetheparkingbrake(Figure10).Theparking
brakeisdisengagedandtheleverwillrestagainstthe
brakestop.
Figure10
1.Parkingbrake-ON3.BrakeStop
2.Parkingbrake-OFF
StartingandStoppingthe
Engine
StartingtheEngineinNormalWeather
1.RaisetheROPSupandlockintoplace,sitonthe
seatandfastentheseatbelt.
2.Movethemotioncontrolstotheneutrallocked
position.
3.Settheparkingbrake;refertoSettingtheParking
Brake.
4.MovethePTO(powertakeoff)switchtotheoff
position(Figure11).
5.Movethethrottlelevertothemiddleposition
(Figure13).
6.Turntheignitionkeyclockwisetotherunposition
(Figure12).
7.Pushtheglowplugswitchfor10seconds.Thelight
willturnon.
8.Releasetheswitchafter10seconds.Thelightwill
turnoff.
19

Figure11
1.Hourmeter6.Throttlecontrol
2.Ignitionswitch7.PTOSwitch
3.Glowplugswitch8.Audiblealarm
4.Glowpluglight9.Fuelselectorvalve
5.EngineTemperaturelight
9.Turnthekeytothestartpositionandtheglowplug
indicatorlightwillcomebackon.Whentheengine
starts,releasethekey(Figure12).
Important:Usestartingcyclesofnomorethan
30secondsperminutetoavoidoverheatingthe
startermotor.
10.Iftheenginedoesnotstartimmediately,movethe
throttlecontroltofastandturnthekeytothestart
position.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthe
fuelsystemhasbeencompletelywithoutfuel.
Figure12
1.Ignitionswitch3.Run
2.Off4.Start
Figure13
1.Throttle—fast2.Throttle—slow
StartingtheEngineinColdWeather
(Below23°For-5°C)
Note:Usethecorrectengineoilforthestarting
temperature.RefertoServicingtheEngineOilin
EngineMaintenance,page30.
1.StarttheenginewiththethrottleintheFast
position.
2.Turntheignitionkeyclockwisetotherunposition
(Figure12).
3.Pushtheglowplugswitchfor10to15seconds.
Thelightwillturnon.
4.Releasetheswitchafter10to15seconds.Thelight
willturnoff.
5.Turnthekeytothestartpositionandtheglowplug
indicatorlightwillcomebackon.Whentheengine
starts,releasethekey.
Important:Usestartingcyclesofnomorethan
30secondsperminutetoavoidoverheatingthe
startermotor.
Note:Donotusefuelleftoverfromthesummer.
Useonlyfreshwintergradedieselfuel.
StoppingtheEngine
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake(Figure14).
2.Movethethrottlelevermidwaybetweentheslow
andfastpositions(Figure13).
3.Lettheengineidlefor60seconds.
20
