Toro Groundsmaster 360 31200 Series User manual

FormNo.3384-955RevB
Groundsmaster®3604-Wheel
DriveMulti-PurposeMachine
ModelNo.31200—SerialNo.314000001andUp
ModelNo.31200A—SerialNo.314000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3384-955*B

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemical
orchemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orreproductiveharm.
Dieselengineexhaustandsomeofits
constituentsareknowntotheStateof
Californiatocausecancer,birthdefects,
andotherreproductiveharm.
Becauseinsomeareastherearelocal,state,or
federalregulationsrequiringthatasparkarresterbe
usedontheengineofthismachine,asparkarresteris
availableasanoption.Ifyourequireasparkarrester,
contactyourAuthorizedT oroServiceDealer.
GenuineT orosparkarrestersareapprovedbythe
USDAForestryService.
Important:ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperate
theengineonanyforest-covered,brush-covered,
orgrass-coveredlandwithoutasparkarrester
mufermaintainedinworkingorder,ortheengine
constricted,equipped,andmaintainedforthe
preventionofre.Otherstatesorfederalareas
mayhavesimilarlaws.
Introduction
Thismachineisaride-on,rotary-blademachine
intendedtobeusedbyprofessional,hiredoperators
incommercialapplications.Itisprimarilydesigned
forcuttinggrassonwell-maintainedlawnsinparks,
sportselds,andoncommercialgrounds.Itisnot
designedforcuttingbrush,mowinggrassandother
growthalongsidehighways,orforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.T oro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
g014165
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safetyalertsymbol
Thismanualalsouses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

Contents
Safety.......................................................................4
SafeOperatingPractices....................................4
ToroRidingMowerSafety...................................6

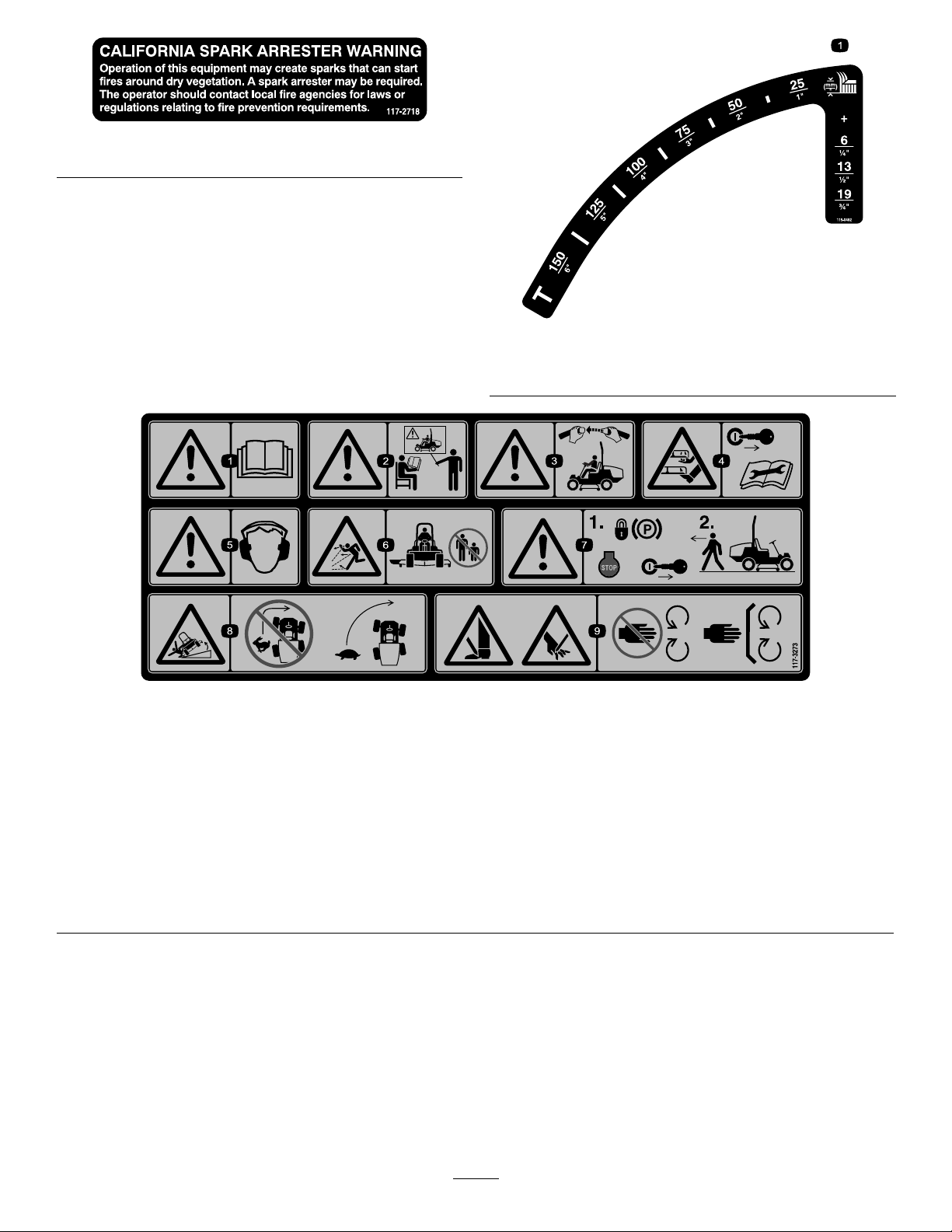

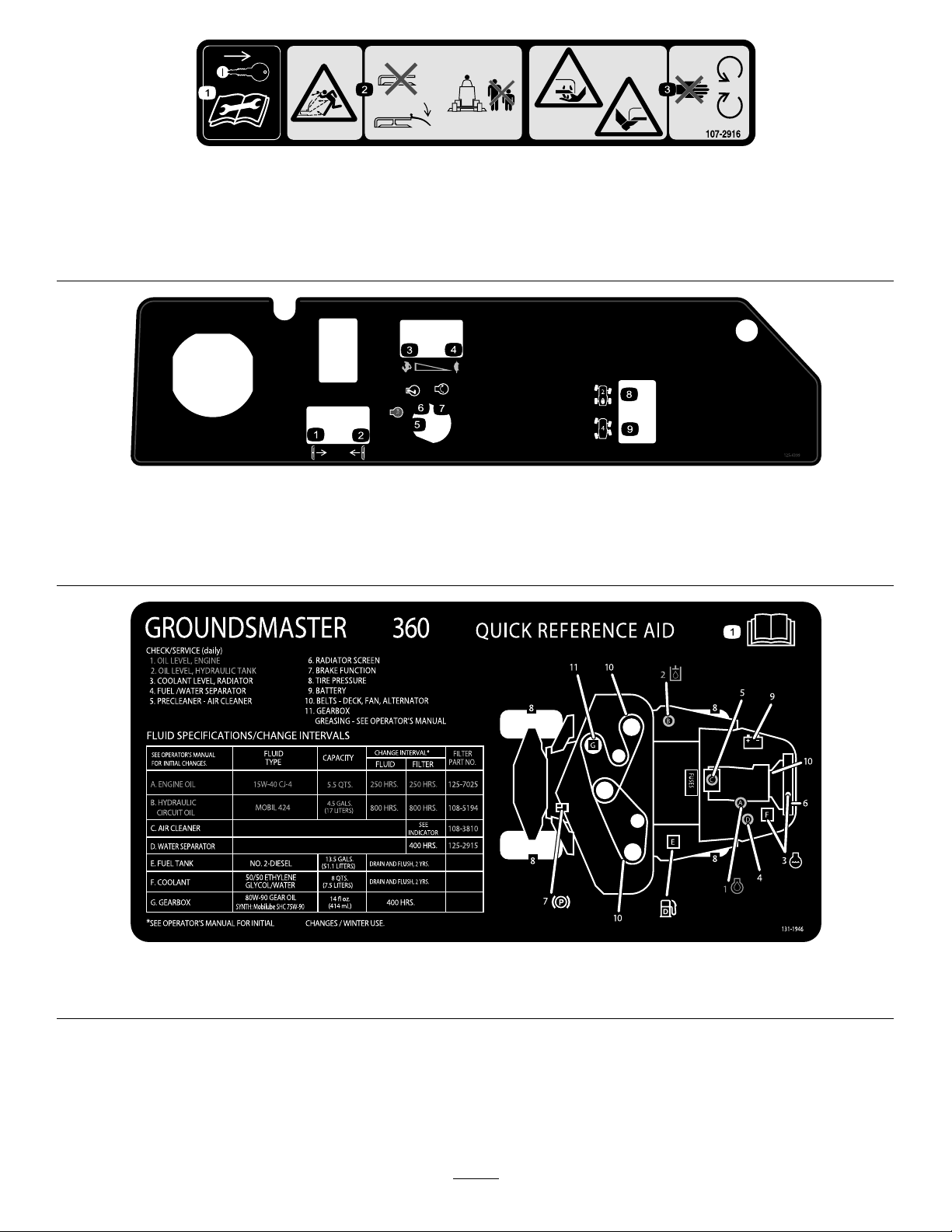

SafetyandInstructionalDecals..........................7
Setup......................................................................12
1AdjustingtheROPS.......................................12
2CheckingtheTirePressure............................12
3CheckingtheFluidLevels..............................13
ProductOverview...................................................13
Controls...........................................................13
Specications..................................................18
Attachments/Accessories.................................18
Operation................................................................18
CheckingtheEngine-OilLevel..........................18
AddingFuel......................................................18
FillingtheFuelTank..........................................19
UsingtheRolloverProtectionSystem
(ROPS).........................................................21
ThinkSafetyFirst..............................................22
StartingandStoppingtheEngine......................22
DrivingtheMachine..........................................23
CuttingGrasswiththeMachine........................23
DieselParticulateFilterRegeneration...............24
SteeringSelection............................................32
StoppingtheMachine.......................................32
OperatingtheMower........................................32
TheSafetyInterlockSystem.............................33
PositioningtheStandardSeat..........................34
PositioningtheDeluxeSeat..............................34
Raising/LoweringtheSeat................................36
PushingtheMachinebyHand..........................36
LoadingMachines............................................37
TransportingMachines.....................................38
OperatingTips.................................................39
Maintenance...........................................................40
RecommendedMaintenanceSchedule(s)...........40
DailyMaintenanceChecklist.............................41
Pre-MaintenanceProcedures..............................42
UsingtheHoodPropRod.................................42
Lubrication..........................................................43
GreasingtheBearingsandBushings................43
EngineMaintenance...........................................44
ServicingtheAirCleaner..................................44
ServicingtheEngineOil....................................44
ServicingtheDiesel-OxidationCatalyst
(DOC)andtheSootFilter..............................46
FuelSystemMaintenance...................................46
ServicingtheWaterSeparator.........................46
ServicingtheEngineFuelFilter........................47
CheckingtheFuelLinesand
Connections..................................................47
FuelPick-upTubeScreen.................................47
ElectricalSystemMaintenance...........................48
CheckingtheFuses..........................................48
ServicingtheBattery.........................................48
StoringtheBattery............................................49
DriveSystemMaintenance..................................49
CheckingtheTirePressure...............................49
CorrectingSteeringMisalignment.....................49
CoolingSystemMaintenance..............................50
CheckingtheCoolingSystem..........................50
CleaningtheRadiator.......................................50
BrakeMaintenance.............................................51
AdjustingtheServiceBrakes............................51
AdjustingtheParkingBrake.............................52
BeltMaintenance................................................52
CheckingtheAlternatorBelt.............................52
ControlsSystemMaintenance.............................53
AdjustingtheTractionDriveforNeutral.............53
AdjustingtheMaximumGroundSpeed.............53
AdjustingtheMowSpeedLimiterLever............54
HydraulicSystemMaintenance...........................55
CheckingtheHydraulicSystem........................55
ChangingtheHydraulicOilAndFilter................55
Cleaning..............................................................56
WasteDisposal.................................................56
Storage...................................................................57
Engine..............................................................57
Machine............................................................57
3

Safety
ThesemachinesmeetorexceedCENstandardEN
ISO5395:2013andANSIB71.4-2012specications
ineffectatthetimeofproduction.
Improperuseormaintenancebytheoperatororowner
canresultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafetyalertsymbol,whichmeans
Caution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeinstructionmay
resultinpersonalinjuryordeath.
SafeOperatingPractices
ThefollowinginstructionsareadaptedfromtheCEN
standardENISO5395:2013andANSIB71.4-2012.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Training
•ReadtheOperator'sManualandothertraining
materialcarefully.Befamiliarwiththecontrols,
safetysigns,andtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwith
theseinstructionstousethelawnmachine.Local
regulationscanrestricttheageoftheoperator.
•Nevermowwhilepeople,especiallychildren,or
petsarenearby.
•Keepinmindthattheoperatororuseris
responsibleforaccidentsorhazardsoccurringto
otherpeopleortheirproperty.
•Donotcarrypassengers.
•Alldriversshouldseekandobtainprofessional
andpracticalinstruction.Suchinstructionshould
emphasize:
–theneedforcareandconcentrationwhen
workingwithride-onmachines;
–controlofaride-onmachineslidingonaslope
willnotberegainedbytheapplicationofthe
brake.Themainreasonsforlossofcontrolare:
◊insufcientwheelgrip,especiallyonwet
grass;
◊beingdriventoofast;
◊inadequatebraking;
◊thetypeofmachineisunsuitableforits
task;
◊lackofawarenessoftheeffectofground
conditions,especiallyslopes;
◊incorrectloaddistribution.
Preparation
•Whilemowing,alwayswearsubstantialfootwear
andlongtrousers.Donotoperatetheequipment
whenbarefootorwearingopensandals.
•Thoroughlyinspecttheareawheretheequipment
istobeusedandremoveallobjectswhichmaybe
thrownbythemachine.
•Replacefaultysilencers/mufers.
•Beforeusing,alwaysvisuallyinspecttoseethat
theblades,bladeboltsandcutterassemblyare
notwornordamaged.Replacewornordamaged
bladesandboltsinsetstopreservebalance.
SafeHandlingofFuels
•Toavoidpersonalinjuryorpropertydamage,use
extremecareinhandlinggasoline.Gasolineis
extremelyammableandthevaporsareexplosive.
•Extinguishallcigarettes,cigars,pipes,andother
sourcesofignition.
•Useonlyanapprovedfuelcontainer.
•Neverremovefuelcaporaddfuelwiththeengine
running.
•Allowenginetocoolbeforerefueling.
•Neverrefuelthemachineindoors.
•Neverstorethemachineorfuelcontainerwhere
thereisanopename,spark,orpilotlightsuchas
onawaterheateroronotherappliances.
•Neverllcontainersinsideavehicleoronatruck
ortrailerbedwithaplasticliner.Alwaysplace
containersonthegroundawayfromyourvehicle
beforelling.
•Removeequipmentfromthetruckortrailerand
refuelitontheground.Ifthisisnotpossible,then
refuelsuchequipmentwithaportablecontainer,
ratherthanfromafueldispensernozzle.
•Keepthenozzleincontactwiththerimofthefuel
tankorcontaineropeningatalltimesuntilfueling
iscomplete.Donotuseanozzlelockopendevice.
•Iffuelisspilledonclothing,changeclothing
immediately.
•Neveroverllfueltank.Replacefuelcapand
tightensecurely.
Operation
•Bealert,slowdownandusecautionwhenmaking
turns.Lookbehindandtothesidebeforechanging
directions.
•Donotoperatetheengineinaconnedspace
wheredangerouscarbonmonoxidefumescan
collect.
4

•Mowonlyindaylightoringoodarticiallight.
•Beforeattemptingtostarttheengine,disengage
allbladeattachmentclutchesandshiftintoneutral.
•Rememberthereisnosuchthingasasafeslope.
Travelongrassslopesrequiresparticularcare.T o
guardagainstoverturning:
–donotstoporstartsuddenlywhenonaslope;
–useslowspeedsonslopesandduringtight
turns;
–stayalertforhumpsandhollowsandother
hiddenhazards;
•Watchoutfortrafcwhencrossingornear
roadways.
•Stopthebladesfromrotatingbeforecrossing
surfacesotherthangrass.
•Whenusinganyattachments,neverdirect
dischargeofmaterialtowardbystandersnorallow
anyonenearthemachinewhileinoperation.
•Neveroperatethemachinewithdamagedguards,
shields,orwithoutsafetyprotectivedevicesin
place.
•Donotchangetheenginegovernorsettingsor
overspeedtheengine.Operatingtheengineat
excessivespeedmayincreasethehazardof
personalinjury.
•Beforeleavingtheoperator'sposition:
–disengagethepowertake-offandlowerthe
attachments;
–settheparkingbrake;
–stoptheengineandremovethekey.
•Disengagedrivetoattachments,stoptheengine,
andremovetheignitionkey:
–beforeclearingblockagesoruncloggingchute;
–beforechecking,cleaningorworkingonthe
machine;
–afterstrikingaforeignobject.Inspectthe
machinefordamageandmakerepairsbefore
restartingandoperatingtheequipment;
–ifthemachinestartstovibrateabnormally
(checkimmediately).
•Donotoperatethemachineundertheinuence
ofalcoholordrugs.
•Lightningcancausesevereinjuryordeath.If
lightningisseenorthunderisheardinthearea,do
notoperatethemachine;seekshelter.
•Disengagedrivetoattachmentswhentransporting
ornotinuse.
•Stoptheengineanddisengagedrivetoattachment
beforerefueling.
RolloverProtectionSystem
(ROPS)-UseandMaintenance
•TheROPSisanintegralandeffectivesafety
device.KeepafoldingROPSintheraised
andlockedpositionandusetheseatbeltwhen
operatingthemachine.
•LowerafoldingROPStemporarilyonlywhen
absolutelynecessary.Donotweartheseatbelt
whenfoldeddown.
•Beawarethereisnorolloverprotectionwhena
foldedROPSisinthedownposition.
•Becertainthattheseatbeltcanbereleased
quicklyintheeventofanemergency.
•Checktheareatobemowedandneverfolddown
afoldingROPSinareaswherethereareslopes,
dropoffsorwater.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontactthem.
•KeeptheROPSinsafeoperatingconditionby
periodicallythoroughlyinspectingfordamageand
keepingallmountingfastenerstight.
•ReplaceadamagedROPS.Donotrepairor
revise.
•DonotremovetheROPS.
•AnyalterationstoaROPSmustbeapprovedby
themanufacturer.
MaintenanceandStorage
•Keepallnuts,boltsandscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Neverstoretheequipmentwithfuelinthetank
insideabuildingwherefumesmayreachanopen
ameorspark.
•Allowtheenginetocoolbeforestoringinany
enclosure.
•Toreducetherehazard,keeptheengine,
silencer/mufer,batterycompartmentandfuel
storageareafreeofgrass,leaves,orexcessive
grease.
•Replacewornordamagedpartsforsafety.
•Ifthefueltankhastobedrained,dothisoutdoors.
•Onmulti-bladedmachines,takecareasmanually
rotatingonebladecancauseotherbladesto
rotate.
•Whenmachineistobeparked,storedorleft
unattended,lowerthemowerdeck.
Hauling
•Usecarewhenloadingorunloadingthemachine
intoatrailerortruck.
5

•Usefullwidthrampsforloadingmachineinto
trailerortruck.
•Tiethemachinedownsecurelyusingstraps,
chains,cable,orropes.Bothfrontandrearstraps
shouldbedirecteddownandoutwardfromthe
machine
ToroRidingMowerSafety
Thefollowinglistcontainssafetyinformationspecic
toToroproductsorothersafetyinformationthatyou
mustknowthatisnotincludedintheCENstandard.
•Engineexhaustcontainscarbonmonoxide,which
isanodorless,deadlypoisonthatcankillyou.Do
notrunengineindoorsorinanenclosedarea.
•Keephands,feet,hairandlooseclothingaway
fromattachmentdischargearea,undersideof
mowerandanymovingpartswhileengineis
running.
•Donottouchequipmentorattachmentpartswhich
maybehotfromoperation.Allowtocoolbefore
attemptingtomaintain,adjust,orservice.
•Batteryacidispoisonousandcancauseburns.
Avoidcontactwithskin,eyesandclothing.Protect
yourface,eyes,andclothingwhenworkingwitha
battery.
•Thismachineisnotdesignedorequippedfor
on-roaduseandisa“slow-movingvehicle.”Ifyou
mustcrossortravelonapublicroad,youshould
beawareofandcomplywithlocalregulations,
suchasrequiredlights,slowmovingvehiclesigns,
andreectors.
•Batterygasescanexplode.Keepcigarettes,
sparksandamesawayfrombattery.
•UseonlygenuineTororeplacementpartsto
ensurethatoriginalstandardsaremaintained.
•UseonlyToroapprovedattachments.Warranty
maybevoidedifusedwithunapproved
attachments.
SlopeOperation
•Donotmowneardrop-offs,ditches,steepbanks
orwater.Wheelsdroppingoveredgescancause
rollovers,whichmayresultinseriousinjury,death,
ordrowning.
•Donotmowslopeswhengrassiswet.Slippery
conditionsreducetractionandcouldcausesliding
andlossofcontrol.
•Donotmakesuddenturnsorrapidspeedchanges.
•Useawalkbehindmowerand/orahandtrimmer
neardrop-offs,ditches,steepbanksorwater.
•Reducespeedanduseextremecautiononslopes.
•Removeormarkobstaclessuchasrocks,tree
limbs,etc.fromthemowingarea.Tallgrasscan
hideobstacles.
•Watchforditches,holes,rocks,dips,andrises
thatchangetheoperatingangle,asroughterrain
couldoverturnthemachine.
•Avoidsuddenstartswhenmowinguphillbecause
themachinemaytipbackwards.
•Beawarethatlossoftractionmayoccurgoing
downhill.Weighttransfertothefrontwheels
maycausedrivewheelstoslipandcauselossof
brakingandsteering.
•Alwaysavoidsuddenstartingorstoppingona
slope.Iftireslosetraction,disengagetheblades
andproceedslowlyofftheslope.
•Followthemanufacturer'srecommendations
forwheelweightsorcounterweightstoimprove
stability.
•Useextremecarewithattachments.Thesecan
changethestabilityofthemachineandcauseloss
ofcontrol.
6

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedorlost.
decal93-6696
93–6696
1.Storedenergyhazard—readtheOperator'sManual.
decal117-4979
117–4979
1.Rotatingbelt—Keepguardinplace
decal117-3276
117-3276
1.Enginecoolantunder
pressure
3.Warning—donottouchthe
hotsurface.
2.Explosionhazard—read
theOperator'sManual.
4.Warning—readthe
Operator'sManual.
decal117-3270
117-3270
1.Warning—donottouchthehotsurface.
2.Cutting/dismembermenthazard,hand;entanglement
hazard,belt—stayawayfrommovingparts,keepallguards
andshieldsinplace.
decal117-3272
117-3272
1.Warning—readtheOperator'sManual;failuretousthe
rolloverprotectionsystem(ROPS)canresultininjuryin
theeventofarollover;wearaseatbeltwhenaROPSisin
place,donotwearaseatbeltwhenROPSislowered.
7

decal106-2353
106-2353
1.Electricalpowerpoint
decal117-4766
117-4766
1.Cutting/dismembermenthazard;fan—stayawayfrom
movingparts,keepallguardsandshieldsinplace.
decal98-4387
98-4387
1.Warning—wearhearingprotection.
decal120-6604
120-6604
1.Thrownobjecthazard—keepbystandersawayfromthe
machine.
2.Cutting/dismembermenthazardofhand,mower
blade—stayawayfrommovingparts,keepallguardsand
shieldsinplace.
3.Cutting/dismembermenthazardoffoot,mowerblade—stay
awayfrommovingparts,keepallguardsandshieldsin
place.
decal107-2908
107-2908
1.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
2.Thrownobjecthazard—donotoperatethemowerwiththe
deectoruporremoved,keepthedeectorinplace.
3.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
decal106-9206
106-9206
1.Wheeltorquespecications
2.ReadtheOperator'sManual.
8

decal117-2718
117–2718
decal115-0492
115-0492
1.Heightofcut(mm)
decal117-3273
117-3273
1.Warning—readtheOperator'sManual.6.Thrownobjecthazard—keepbystandersasafedistancefrom
themachine.
2.Warning—donotoperatethismachineunlessyouaretrained.7.Warning—locktheparkingbrake,stoptheengineandremove
theignitionkeybeforeleavingthemachine.
3.Warning—weartheseatbeltwhenseatedintheoperator's
position.
8.Tippinghazard—lowerthecuttingunitwhendrivingdown
slopes;slowmachinebeforeturning,donotturnathigh
speeds
4.Cutting/dismembermenthazardofhandorfoot—removethe
ignitionkeyandreadtheinstructionsbeforeservicingor
performingmaintenance.
9.Cuttinghazardofhandorfoot—stayawayfrommovingparts;
keepallguardsinplace.
5.Warning—wearhearingprotection.
9

decal107-2916
107-2916
1.Removetheignitionkeyandreadthe
Operator'sManualbeforeservicingor
performingmaintenance.
2.Thrownobjecthazard—donotoperate
themowerwiththedeectorupor
removed,keepthedeectorinplace;
keepbystandersasafedistancefrom
themachine.
3.Cutting/dismembermenthazardof
handorfoot,mowerblade—stayaway
frommovingparts.
decal125-4399
125-4399
1.Lowerthedeck4.Slow7.Engine—start
2.Raisethedeck5.Engine—stop8.Twowheelsteering
3.Fast6.Engine—run9.Fourwheelsteering
decal131-1946
131–1946
1.ReadtheOperator’sManualformoreinformationonservicingthemachine.
10

decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
11

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Nopartsrequired–AdjusttheROPS
2Nopartsrequired–Checkthetirepressure.
3Nopartsrequired–Checkthehydraulicuid,engineoil,
andcoolantlevels.
MediaandAdditionalParts
DescriptionQty.Use
Operator'sManual1Readbeforeoperatingthemachine
EngineOperator'sManual1Readbeforeoperatingthemachine
PartsCatalog1Usereferencepartnumbers
OperatorTrainingMaterial1Viewthevideobeforeoperatingthemachine
1
AdjustingtheROPS
NoPartsRequired
Procedure
1.Removethehairpincotterpinsandthepinsfrom
therollbar(Figure3).
2.Raisetherollbartotheuprightpositionand
installthetwopinsandsecurethemwiththe
hairpincotterpins(Figure3).
Note:Ifyoumustlowertherollbar,pushthebar
forwardtorelievepressureonthepins,remove
thepins,lowerthebarslowly,andsecureitwith
thepinssothatitdoesnotdamagethehood.
g014166
Figure3
1.Rollbar3.Hairpincotterpin
2.Pin
12

2
CheckingtheTirePressure
NoPartsRequired
Procedure
Thetiresareoverinatedforshipping.Therefore,
releasesomeoftheairtoreducethepressure.The
correctairpressurefornon-cabmodelsis103kPa(15
psi)inthefronttiresand172kPa(25psi)intherear
tires.Ifacabisinstalledonthemachine,thefrontand
reartiresshouldbeinatedto172kPa(25psi).
3
CheckingtheFluidLevels
NoPartsRequired
Procedure
1.Checkthehydraulicuidlevelbeforestarting
theengine,refertoCheckingtheHydraulicFluid
LevelintheMaintenanceSection.
2.Checktheengineoillevelbeforestartingthe
engine,refertoCheckingtheEngineOilLevelin
theMaintenanceSection.
3.Checkthecoolingsystembeforestartingthe
engine;refertoCheckingtheCoolingSystemin
theMaintenanceSection.
ProductOverview
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine.
TractionPedal
Thetractionpedal(Figure4)controlstheforwardand
reverseoperation.Pressthetopofthepedaltomove
forwardandthebottomtomoverearward.Ground
speeddependsonhowfaryoupressthepedal.For
noload,maximumgroundspeed,fullypressthepedal
whilethethrottleisintheFastposition.
Tostop,reducefootpressureonthetractionpedal
andallowittoreturntothecenterposition.
g014168
Figure4
1.Parkingbrake4.Tractionpedal
2.Brakepedal5.Mowspeedlimiter
3.Tiltsteeringpedal
MowSpeedLimiter
Themowspeedlimiterlever(Figure4)canbeipped
forwardtolimitthetractionspeedwhileoperating.
BrakePedal
Thebrakepedalisusedinconjunctionwiththebrake
pedallatchtoengageanddisengagetheparking
brake(Figure4)T ostopthemachine,releasethe
tractionpedalandallowittoreturntothecenter
position.Thebrakecanassistinstoppinginan
emergencysituation.
13

ParkingBrake
Toengagetheparkingbrake,pushdownonthebrake
pedalandpressthetopforwardtolatch(Figure4).To
releasetheparkingbrake,pressthebrakepedaluntil
theparkingbrakelatchretracts.
TiltSteeringPedal
Totiltthesteeringwheeltowardsyou,pressthefoot
pedaldown,andpullthesteeringtowertowardyouto
themostcomfortablepositionandthenreleasethe
pedal(Figure4).
EngineSpeedSwitch
Theenginespeedswitch(Figure5)hastwomodes
tochangetheenginespeed.Bymomentarilytapping
theswitch,theenginespeedcanbeincreasedor
decreasedin100rpmincrements.Byholdingthe
switchdowntheenginewillautomaticallymoveto
HighorLowidle,dependingonwhichendofthe
switchisdepressed.
g026098
Figure5
1.InfoCenter5.Powerpoint
2.Powertakeoff(PTO)
Switch
6.Ignitionswitch
3.Enginespeedswitch7.Deckliftswitch
4.Steeringselectorswitch
InfoCenter
TheInfoCenterLCDdisplayshowsinformationabout
yourmachinesuchastheoperatingstatus,various
diagnosticsandotherinformationaboutthemachine
(Figure5).
IgnitionSwitch
Theignitionswitchhasthreepositions:Off,
On/Preheat,andStart(Figure5).
PowerTakeOff(PTO)Switch
Thepowertakeoff(PTO)switchstartsandstopsthe
mowerblades(Figure5).
SteeringSelectorSwitch
Pressthesteeringselectorswitchtotherearto
engage4wheelsteeringandforwardtoreturnto2
wheelsteering(Figure5).
PowerPoint
Thepowerpointisa12voltpowersupplyfor
electronicdevices(Figure5).
Important:Ifthemowerdeckshutsdownandthe
InfoCentertemperaturewarningiconison,push
PTOknobdown,drivetoasafeatarea,move
thethrottlelevertotheSlowposition,allowthe
tractionpedaltomovetotheneutralposition,and
engagetheparkingbrake.Allowtheenginetoidle
forseveralminuteswhileitcoolstoasafelevel.
Stoptheengineandcheckthecoolingsystem;
refertoCheckingtheCoolingSystem.
FuelGauge
Thefuelgauge(Figure6)indicatesthefuellevel
remaininginthefueltank.
g014170
Figure6
1.Fuelgauge2.Fueltankcap
14

UsingtheInfoCenterLCDDisplay
TheInfoCenterLCDdisplayshowsinformationabout
yourmachine,suchastheoperatingstatus,various
diagnostics,andotherinformationaboutthemachine
(Figure7).Thereisasplashscreenandmain
informationscreenoftheInfoCenter.Youcanswitch
betweenthesplashscreenandmaininformation
screenatanytimebypressinganyoftheInfoCenter
buttonsandthenselectingtheappropriatedirectional
arrow.
g020650
Figure7
1.Indicatorlight3.Middlebutton
2.Rightbutton4.Leftbutton
•Leftbutton,menuaccess/backbutton—press
thisbuttontoaccesstheInfoCentermenus.You
canuseittobackoutofanymenuthatyouare
currentlyusing.
•Middlebutton—usethisbuttontoscrolldown
menus.
•Rightbutton—usethisbuttontoopenamenu
wherearightarrowindicatesadditionalcontent.
Note:Thepurposeofeachbuttonmaychange
dependingonwhatisrequiredatthetime.Each
buttonislabeledwithanicondisplayingitscurrent
function.
InfoCenterIconDescription
SERVICEDUEIndicateswhenscheduledservice
shouldbeperformed
Enginerpm/status—indicatesthe
enginerpm
Hourmeter
Infoicon
Fast
Slow
Stationaryregenerationrequired
Glowplugsareactive
AC
2-wheelsteer
4-wheelsteer
Operatormustsitinseat
Parkingbrakeindicator—indicates
whentheparkingbrakeisset
CoolantTemperature-indicatesthe
enginecoolanttemperatureineither
°Cor°F
Temperature(hot)
PTOisengaged
Deniedornotallowed
Enginestart
Stoporshutdown
Engine
Keyswitch
PINcode
CANbus
15

InfoCenterIconDescription(cont'd.)
InfoCenter
Badorfailed
Bulb
OutputofTECcontrollerorcontrol
wireinharness
Switch
Operatormustreleaseswitch
Operatorshouldchangetoindicated
state
Symbolsareoften
combinedtoform
sentences.Some
examplesareshown
below
Operatorshouldputmachinein
Neutral
Enginestartdenied
Engineshutdown
Enginecoolanttoohot
DPFashaccumulation
notication.RefertoServicing
theDiesel-OxidationCatalyst(DOC)
andtheSootFilter(page46)for
details.
Sitdownorengageparkingbrake
UsingtheMenus
ToaccesstheInfoCentermenusystem,pressthe
menuaccessbuttonwhileatthemainscreen.This
bringsyoutothemainmenu.Refertothefollowing
tablesforasynopsisoftheoptionsavailablefrom
themenus:
MainMenu
MenuItemDescription
FaultsTheFaultsmenucontains
alistoftherecentmachine
faults.RefertotheService
ManualoryourAuthorized
ToroDistributorformore
informationontheFaults
menuandtheinformation
containedthere.
ServiceTheServicemenucontains
informationonthemachine
suchashoursofusecounters
andothersimilarnumbers.
DiagnosticsTheDiagnosticsmenu
displaysthestateofeach
machineswitch,sensorand
controloutput.Youcanuse
thistotroubleshootcertain
issuesasitwillquicklytellyou
whichmachinecontrolsareon
andwhichareoff.
SettingsTheSettingsmenuallows
youtocustomizeandmodify
congurationvariablesonthe
InfoCenterdisplay.
AboutTheAboutmenuliststhe
modelnumber,serialnumber,
andsoftwareversionofyour
machine.
Service
MenuItemDescription
HoursListsthetotalnumberofhours
thatthemachine,engine,and
PTOhavebeenon,aswell
asthenumberofhoursthe
machinehasbeentransported
andservicedue
CountsListsnumerouscountsthe
machinehasexperienced
Diagnostics
MenuItemDescription
PTOIndicatestheinputs,qualiers,
andoutputsforenablingthe
PTOcircuit
EngineRunIndicatestheinputs,qualiers,
andoutputsforstartingthe
engine
DecksIndicatestheinputs,qualiers,
andoutputsforliftingand
loweringthedeck
SteerModeIndicatestheinputs,qualiers,
andoutputsforswitching
between2-wheelsteerand
4-wheelsteer
MachineInputIndicatesthestateofother
machineinputssuchas
accessoriesandA/Cclutch
16

Settings
MenuItemDescription
UnitsControlstheunitsusedonthe
InfoCenter;Themenuchoices
areEnglishorMetric.
LanguageControlsthelanguageused
ontheInfoCenter*
LCDBacklightControlsthebrightnessofthe
LCDdisplay
LCDContrastControlsthecontrastofthe
LCDdisplay
ProtectedMenusAllowsapersonauthorized
byyourcompanywiththe
PINcodetoaccessprotected
menus.
AutoIdleControlstheamountoftime
allowedbeforereturningthe
enginetolowidlewhenthe
machineisstationary
Onlyoperator-facedtextistranslated.Faults,Service,
andDiagnosticsscreensareservice-faced.Thetitles
areintheselectedlanguage,butthemenuitemsare
inEnglish.
About
MenuItemDescription
ModelListsthemodelnumberofthe
machine
SNListstheserialnumberofthe
machine
MachineControllerRevisionListsthesoftwarerevisionof
themastercontroller
InfoCenterRevisionListsthesoftwarerevisionof
theInfoCenter
CANBusListsthemachine
communicationbusstatus
ProtectedMenus
Thereare2operatingcongurationsettingsthatare
adjustablewithintheSettingsMenuoftheInfoCenter:
autoidletimedelayandstationaryregeneration.
ThesesettingscanbelockedbyusingtheProtected
Menu.RefertoDieselParticulateFilterRegeneration
(page24).
Note:Atthetimeofdelivery,theinitialpassword
codeisprogrammedbyyourdistributor.
AccessingProtectedMenus
Note:ThefactorydefaultPINcodeforyoumachine
iseither0000or1234.
IfyouchangedthePINcodeandforgotthe
code,contactyourAuthorizedToroDistributorfor
assistance.
1.FromtheMAINMENU,usethecenterbuttonto
scrolldowntotheSETTINGSMENUandpressthe
rightbutton(Figure8).
g028523
Figure8
2.IntheSETTINGSMENU,usethecenterbuttonto
scrolldowntothePROTECTEDMENUandpress
therightbutton(Figure9A).
g028522
Figure9
3.ToenterthePINcode,pressthecenterbutton
untilthecorrectrstdigitappears,thenpress
therightbuttontomoveontothenextdigit
(Figure9BandFigure9C).Repeatthisstep
untilthelastdigitisenteredandpresstheright
buttononcemore.
4.PressthemiddlebuttontoenterthePINcode
(Figure9D).
WaituntiltheredindicatorlightoftheInfoCenter
illuminates.
Note:IftheInfoCenteracceptsthePINcode
andtheprotectedmenuisunlocked,theword
17

“PIN”displaysintheupperrightcornerofthe
screen.
Note:RotatethekeyswitchtotheOFFpositionand
thentotheONpositionlockstheprotectedmenu.
Youhavetheabilitytoviewandchangethesettingsin
theProtectedMenu.OnceyouaccesstheProtected
Menu,scrolldowntoProtectSettingsoption.Usethe
rightbuttontochangethesetting.SettingtheProtect
SettingstoOFFallowsyoutoviewandchangethe
settingsintheProtectedMenuwithoutenteringthe
PINcode.SettingtheProtectSettingstoONhidesthe
protectedoptionsandrequiresyoutoenterthePIN
codetochangethesettingintheProtectedMenu.
AfteryousetthePINcode,rotatethekeyswitchOFF
andbacktotheONpositiontoenableandsavethis
feature.
ToSettheAutoIdle
•IntheSettingsMenu,scrolldowntoAutoIdle.
•Presstherightbuttontochangetheautoidletime
betweenOFF,8S,10S,15S,20S,&30S.
Specications
Note:Specicationsanddesignaresubjectto
changewithoutnotice.
Length241.3cm(95inches)
Width(RearWheels)147.3cm(58inches)
Height(withRollBarUp)144.8cm(78inches)
Height(withRollBarDown)137.2cm(54inches)
Weight1152kg(2540lb)
Attachments/Accessories
AselectionofT oroapprovedattachmentsand
accessoriesisavailableforusewiththemachineto
enhanceandexpanditscapabilities.Contactyour
AuthorizedServiceDealerorDistributororgoto
www.T oro.comforalistofallapprovedattachments
andaccessories.
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
CheckingtheEngine-Oil
Level
Beforeyoustarttheengineandusethemachine,
checktheoillevelintheenginecrankcase;referto
CheckingtheEngine-OilLevel(page45).
AddingFuel
Useonlyclean,freshdieselfuelwithultralow(<15
ppm)sulfurcontentmeetingASTMD975orEN590
specications.Theminimumcetaneratingshouldbe
40.Purchasefuelinquantitiesthatcanbeusedwithin
180daystoensurefuelfreshness.
Fueltankcapacity:51.1iters(13.5USgallons)
Usesummergradedieselfuel(No.2-D)at
temperaturesabove-7°C(20°F)andwinter
grade(No.1-DorNo.1-D/2-Dblend)belowthat
temperature.Useofwintergradefuelatlower
temperaturesprovideslowerashpointandcoldow
characteristicswhichwilleasestartingandreduce
fuellterplugging.
Useofsummergradefuelabove-7°C(20°F)will
contributetowardlongerfuelpumplifeandincreased
powercomparedtowintergradefuel.
Important:Donotusekeroseneorgasoline
insteadofdieselfuel.Failuretoobservethis
cautionwilldamagetheengine.
WARNING
Fuelisharmfulorfatalifswallowed.
Long-termexposuretovaporscancause
seriousinjuryandillness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandfueltank
orconditioneropening.
•Keepfuelawayfromeyesandskin.
BiodieselReady
Thismachinecanalsouseabiodieselblendedfuel
ofuptoB7(7%biodiesel,93%petrodiesel).The
petrodieselportionmustbeultralowsulfur.Observe
thefollowingprecautions:
•Thebiodieselportionofthefuelmustmeet
specicationASTMD6751orEN14214.
•TheblendedfuelcompositionshouldmeetASTM
D975orEN590.
18

•Paintedsurfacesmaybedamagedbybiodiesel
blends.
•Monitorseals,hoses,gasketsincontactwithfuel
astheymaybedegradedovertime.
•Fuellterpluggingmaybeexpectedforatime
afterconvertingtobiodieselblends.
•Contactyourdistributorifyouwishmore
informationonbiodiesel.
DANGER
Incertainconditions,fuelisextremely
ammableandhighlyexplosive.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanyfuel
thatspills.
•Neverllthefueltankinsideanenclosed
trailer.
•Neversmokewhenhandlingfuel,andstay
awayfromanopenameorwherefuel
fumesmaybeignitedbyaspark.
•Storefuelinanapprovedcontainerand
keepitoutofthereachofchildren.Never
buymorethana30-daysupplyoffuel.
•Donotoperatewithoutentireexhaust
systeminplaceandinproperworking
condition.
DANGER
Incertainconditionsduringfueling,static
electricitycanbereleasedcausingaspark
whichcanignitethefuelvapors.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.
•Alwaysplacefuelcontainersontheground
awayfromyourvehiclebeforelling.
•Donotllfuelcontainersinsideavehicle
oronatruckortrailerbedbecauseinterior
carpetsorplastictruckbedlinersmay
insulatethecontainerandslowthelossof
anystaticcharge.
•Whenpractical,removeequipmentfrom
thetruckortrailerandrefueltheequipment
withitswheelsontheground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfromafuel
dispensernozzle.
•Ifafueldispensernozzlemustbeused,
keepthenozzleincontactwiththerimof
thefueltankorcontaineropeningatall
timesuntilfuelingiscomplete.
FillingtheFuelTank
FuelTankCapacity
Fueltankcapacity:51.1L(13.5USgallons)
FuelSpecication
Important:Useonlyultra-lowsulphurdiesel
fuel.Fuelwithhigherratesofsulfurdegrades
thedieseloxidationcatalyst(DOC),whichcauses
operationalproblemsandshortenstheservicelife
ofenginecomponents.
Failuretoobservethefollowingcautionsmay
damagetheengine.
•Neverusekeroseneorgasolineinsteadofdiesel
fuel.
•Nevermixkeroseneorusedengineoilwiththe
dieselfuel.
•Neverkeepfuelincontainerswithzincplatingon
theinside.
•Donotusefueladditives.
19

PetroleumDiesel
Cetanerating:45orhigher
Sulfurcontent:Ultra-lowsulfur(<15ppm)
FuelTable
DieselfuelspecicationLocation
ASTMD975
No.1-DS15
No.2-DS15
USA
EN590EuropeanUnion
ISO8217DMXInternational
JISK2204GradeNo.2Japan
KSM-2610Korea
•Useonlyclean,freshdieselfuelorbiodieselfuels.
•Purchasefuelinquantitiesthatcanbeusedwithin
180daystoensurefuelfreshness.
Usesummer-gradedieselfuel(No.2-D)at
temperaturesabove-7°C(20°F)andwinter-grade
fuel(No.1-DorNo.1-D/2-Dblend)belowthat
temperature.
Note:Useofwinter-gradefuelatlowertemperatures
provideslowerashpointandcoldowcharacteristics
whicheasesstartingandreducesfuellterplugging.
Usingsummer-gradefuelabove-7°C(20°F)
contributestowardlongerfuelpumplifeandincreased
powercomparedtowinter-gradefuel.
Biodiesel
Thismachinecanalsouseabiodieselblendedfuelof
uptoB20(20%biodiesel,80%petroleumdiesel).
Sulfurcontent:Ultra-lowsulfur(<15ppm)
Biodieselfuelspecication:ASTMD6751or
EN14214
Blendedfuelspecication:ASTMD975,EN590,
orJISK2204
Important:Thepetroleumdieselportionmust
beultra-lowsulfur.
Observethefollowingprecautions:
•Biodieselblendsmaydamagepaintedsurfaces.
•UseB5(biodieselcontentof5%)orlesserblends
incoldweather.
•Monitorseals,hoses,gasketsincontactwithfuel
astheymaybedegradedovertime.
•Fuellterpluggingmaybeexpectedforatime
afterconvertingtobiodieselblends.
•ContactyourAuthorizedT oroDistributorifyou
wishformoreinformationonbiodiesel.
AddingFuel
1.Parkthemachineonalevelsurface.
2.Shutofftheengineandsettheparkingbrake.
3.Cleanaroundthefueltankcapandremovethe
cap(Figure10).
g014170
Figure10
1.Fuelgauge
2.Fuel-tankcap
Important:Donotopenthefueltankwhen
parkedonahill.Thefuelcouldspillout.
4.Addfueltothefueltank,untiltheleveliseven
withthebottomofthellerneck.Donotover
llthefueltank.
5.Installthefueltankcapandsecure.Wipeup
anyfuelthatmayhavespilled.
Note:Ifpossible,llthefueltankaftereachuse.
Thiswillminimizepossiblebuildupofcondensation
insidethefueltank.
20
This manual suits for next models
1
Table of contents
Other Toro Lawn Mower manuals

Toro
Toro 21852 User manual

Toro
Toro Verticutter Reelmaster 5010 Series User manual

Toro
Toro Recycler 20372 User manual

Toro
Toro Recycler 22170 User manual

Toro
Toro Z Master 74975 User manual

Toro
Toro TimeCutter HD XS4850 User manual

Toro
Toro TITAN Zero-Turn-Radius Manual

Toro
Toro 29642 User manual

Toro
Toro 74402 User manual

Toro
Toro TimeMaster 21199 User manual
