Operator’s Manual
IMPORTANT: Read this manual carefully. It contains information about your
safety and the safety of others. Also become familiar with the controls and
their proper use before you operate the product.
FORM NO. 3317–979GB Rev. A
ProLine Mid-Size
12.5 HP
Traction Unit
Model No. 30165 – 690001 & Up

The Toro Comany – 1997
All Rights Reserved
Introduction
Thank you for purchasing a Toro product.
All of us at Toro want you to be completely satisfied
with your new product, so feel free to contact your
local Authorized Service Dealer for help with service,
genuine replacement parts, or other information you
may require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
plate located in a unique place on the product as
shown below.
12149
1. Modeland Serial Number Plate
For your convenience, write the product model and
serial numbers in the space below.
Model No:
Serial No.
Read this manual carefully to learn how to operate
and maintain your product correctly. Reading this
manual will help you and others avoid personal injury
and damage to the product. Although we design,
produce and market safe, state-of-the-art products,
you are responsible for using the product properly
and safely. You are also responsible for training
persons, who you allow to use the product, about safe
operation.
The warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by sitting on the seat in the normal operator’s
position.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.

1
Contents
Page
Safety 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slope Chart 4. . . . . . . . . . . . . . . . . . . . . . . . .
Symbols Glossary 5. . . . . . . . . . . . . . . . . . .
Gasoline and Oil 8. . . . . . . . . . . . . . . . . . . . . . . .
Recommended Gasoline 8. . . . . . . . . . . . . . .
Stabilizer/Conditioner 8. . . . . . . . . . . . . . . .
Filling the Fuel Tank 8. . . . . . . . . . . . . . . . .
Check Engine Oil Level 8. . . . . . . . . . . . . . .
Set-up 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 9. . . . . . . . . . . . . . . . . . . . . . . . .
Mount Control Panel and Fuel Tank 10. . . . .
Install Shift Lever 10. . . . . . . . . . . . . . . . . . . .
Install Upper Handle 11. . . . . . . . . . . . . . . . .
Connect Throttle Cable 11. . . . . . . . . . . . . . .
Connect Wire Harness 12. . . . . . . . . . . . . . . .
Install Control Rods 12. . . . . . . . . . . . . . . . . .
Operation 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First 14. . . . . . . . . . . . . . . . . . .
Controls 14. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking Brake 15. . . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping the Engine 16. . . . . . .
Page
Operating Mower Blade Control (PTO) 17. .
The Safety Interlock System 17. . . . . . . . . . .
Driving Forward or Backward 18. . . . . . . . . .
Stopping the Machine 18. . . . . . . . . . . . . . . .
Maintenance 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Interval Chart 19. . . . . . . . . . . . . . . .
Air Cleaner 20. . . . . . . . . . . . . . . . . . . . . . . . .
Engine Oil 21. . . . . . . . . . . . . . . . . . . . . . . . .
Spark Plug 23. . . . . . . . . . . . . . . . . . . . . . . . .
Greasing and Lubrication 24. . . . . . . . . . . . . .
Tire Pressure 24. . . . . . . . . . . . . . . . . . . . . . . .
Brake 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 26. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter 27. . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing the Drive Belt 27. . . . . . . . . . . . . .
Cleaning the Cooling System 27. . . . . . . . . .
Replacing the Traction Belt 28. . . . . . . . . . . .
Adjusting the Electric Clutch 28. . . . . . . . . . .
Wiring Diagram 29. . . . . . . . . . . . . . . . . . . . .
Cleaning and Storage 30. . . . . . . . . . . . . . . . .
Troubleshooting 31. . . . . . . . . . . . . . . . . . . . . . . . .

2
Safety
Training
1. Read the instructions carefully. Be familiar with
the controls and the proper use of the equipment.
2. Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.
3. Never mow while people, especially children, or
pets are nearby.
4. Keep in mind that the operator or user is
responsible for accidents or hazards occurring to
other people or their property.
Preparation
1. While mowing, always wear substantial
footwear and long trousers. Do not operate the
equipment when barefoot or wearing open
sandals.
2. Thoroughly inspect the area where the
equipment is to be used and remove all objects
which may be thrown by the machine.
3. WARNING – Petrol is highly flammable.
•Store fuel in containers specifically
designed for this purpose.
•Refuel outdoors only and do not smoke
while refuelling.
•Add fuel before starting the engine. Never
remove the cap of the fuel tank or add
petrol while the engine is running or when
the engine is hot.
•If petrol is spilled, do not attempt to start
the engine but move the machine away
from the are of spillage and avoid creating
any source of ignition until petrol vapors
have dissipated.
•Replace all fuel tanks and container caps
securely.
4. Replace faulty silencers.
5. Before using, always visually inspect to see that
the blades, blade bolts and cutter assembly are
not worn or damaged. Replace worn or damaged
blades and bolts in sets to preserve balance.
6. On multi–bladed machines, take care as rotating
one blade can cause other blades to rotate.
Operation
1. Do not operate the engine in a confined space
where dangerous carbon monoxide fumes can
collect.
2. Mow only in daylight or in good artificial light.
3. Avoid operating the equipment in wet grass,
where feasible.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. For wheeled rotary machines, mow across the
face of slopes, never up and down.
7. Exercise extreme caution when changing
direction on slopes.
8. Do not mow excessively steep slopes.
9. Use extreme caution when reversing or pulling
the lawnmower towards you.
10. Stop the blade(s) if the lawnmower has to be
tilted for transportation when crossing surfaces
other than grass, and when transporting the
lawnmower to and from the area to be mowed.
11. Never operate the lawnmower with defective
guards, shields or without safety protective
devices in place.
12. Do not change the engine governor settings or
overspeed the engine.

Safety
3
13. Disengage all blade and drive clutches before
starting the engine.
14. Start the engine or switch on the motor carefully
according to instructions and with feet well away
from the blade(s).
15. Do not tilt the lawnmower when starting the
engine or switching on the motor, except if the
lawnmower has to be tilted for starting. In this
case, do not tilt it more than absolutely necessary
and lift only the part which is away from the
operator.
16. Do not start the engine when standing in front of
the discharge chute.
17. Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all
times.
18. Never pick up or carry a lawnmower while the
engine is running.
19. Stop the engine and disconnect the spark plug
wire.
•before clearing blockages or unclogging
chute;
•before checking, cleaning or working on the
lawnmower;
•after striking a foreign object. Inspect the
lawnmower for damage and make repairs
before restarting and operating the
lawnmower;
•if lawnmower starts to vibrate abnormally
(check immediately).
20. Stop the engine
•whenever you leave the lawnmower;
•before refuelling;
21. Reduce the throttle setting during engine shut
down and, if the engine is provided with a
shut-off valve, turn the fuel off at the conclusion
of mowing.
22. Go slow when using a trailing seat.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure
the equipment is in safe working condition.
2. Never store the equipment with petrol in the tank
inside a building where fumes may reach an
open flame or spark.
3. Allow the engine to cool before storing in any
enclosure.
4. To reduce the fire hazard, keep the engine,
silencer, battery compartment and petrol storage
area free of grass, leaves, or excessive grease.
5. Check the grass catcher frequently for wear or
deterioration.
6. Replace worn or damaged parts for safety.
7. If the fuel tank has to be drained, this should be
done outdoors.
Sound Pressure
This unit has an equivalent continous A-weighted
sound pressure at the operator ear of: 100 dB(A),
based on measurements of identical machines per
ANSI B71.5–1984 procedure.
Sound Power
This unit has a power level of: 100 dB(A)/1pW, based
on measurements of identical machines per Directive
84/538/EEC and amendments.
Vibration Level
This unit has a maximum hand-arm vibration level of
6.44 m/s2, based on measurements of identical
machines per ISO 5349 procedures.

Safety
4
Slope Chart
Read all safety instructions on pages 2–7.

Safety
5

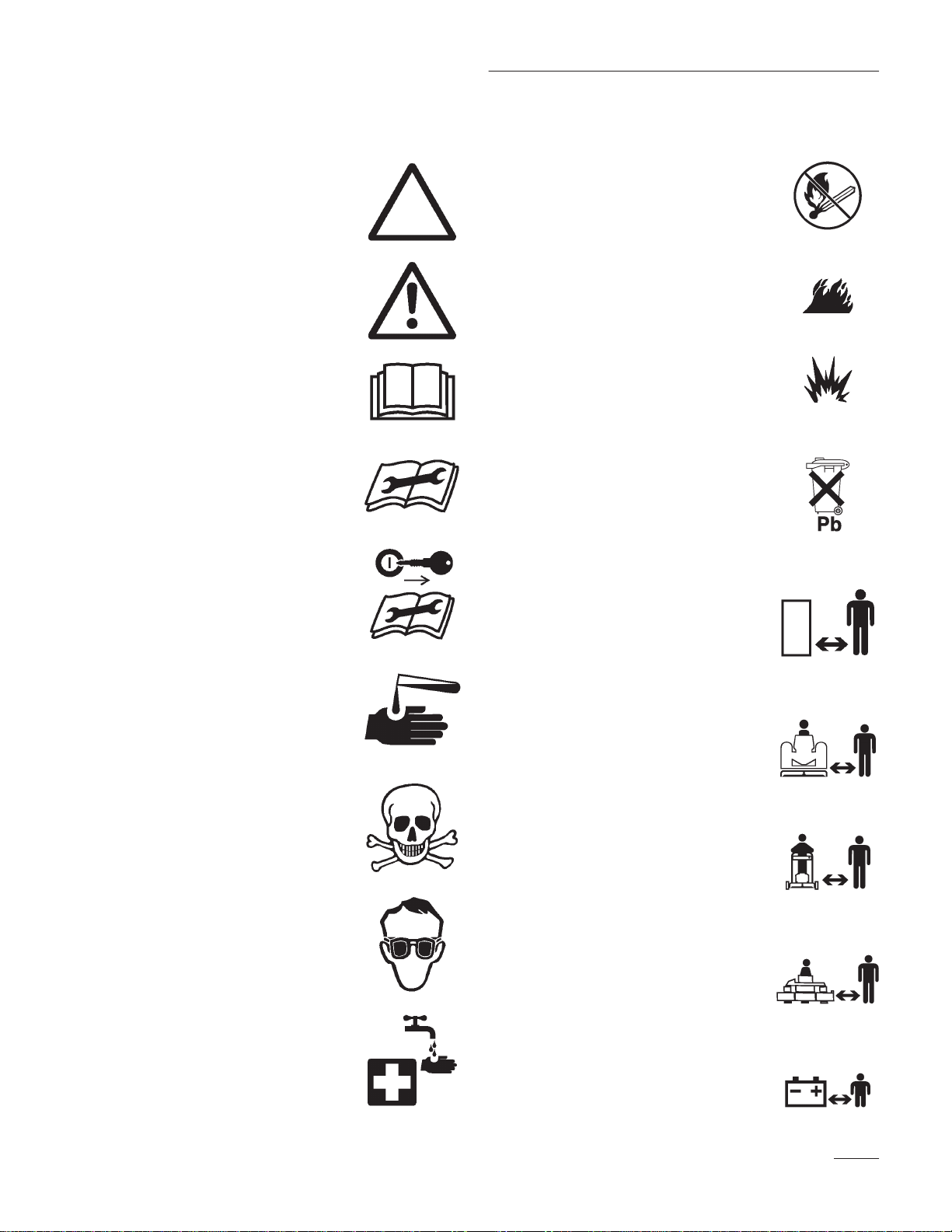

Symbols Glossary
Safety alert triangle–
Read operator’s manual
Caustic liquids, chemical
burns to fingers or hand
First aid, flush with water
Fire, open light & smoking
prohibited
Eye protection must
be worn
Caution, toxic risk
Shut off engine & remove
key before preforming
Safety alert symbol
symbol within triangle
indicates a hazard
Consult technical manual
for proper service procedures
maintenance or repair work
Fire or open flame
Explosion
Do not dispose of lead
battery in garbage
Stay a safe distance
from the machine
Stay safe distance
from machine
Stay safe distance
from machine
Stay safe distance
from machine
Keep children away
from battery

Safety
6

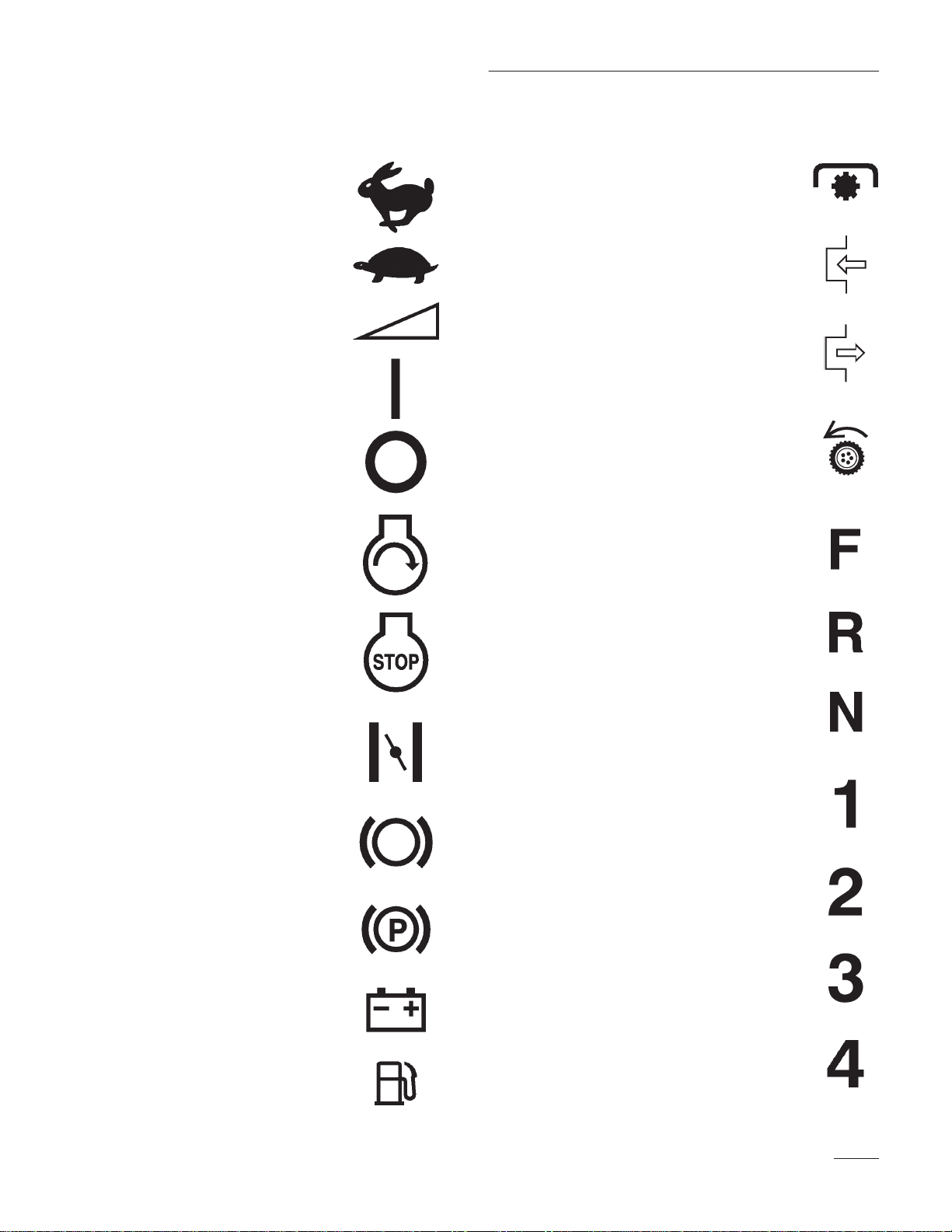

Symbols Glossary
Cutting of foot
Severing of toes & fingers,
Thrown or flying objects,
Do not open or
remove safety shields
w
hile engine is running
Blade retaining bolts must be
Torqued to 115–149 N.m
Cutting of fingers or hand
S
evering of toes or foot,
mower blade
Machine being transported
rotary mower blade
w
hole body exposure
mower blade
Severing of fingers or hand,
Thrown or flying objects,
whole body exposure
Keep guards and safety
sheilds in place
Discharge door
lever operation
Blade engagment
control operation
Fuel shut off
control operation
Hot surface, burns to
f
ingers or hands
Blade cutting element-
height adjustment (mm)
Machine rollover,
To operate machine on a
riding mower
slope, use with 16kg weight
Stop engine before
leaving operator position
kit & operate with deck lowered

Safety
7
Symbols Glossary
Fast
Slow
Decreasing/Increasing
Engine start
Engine stop
Choke
Neutral
First gear
Second gear
Third gear
Reverse
Fuel
Power take off (PTO)
Fourth gear
Forward
Engage
Disengage
Brake system
Parking brake
On/Run
Battery
Off/stop Traction drive

8
Gasoline and Oil
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is
not available.
IMPORTANT: Never use methanol, gasoline
containing methanol, or gasohol containing
more than 10% ethanol because the fuel
system could be damaged. Do not mix oil with
gasoline.
POTENTIAL HAZARD
•In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
•A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
•Use a funnel and fill the fuel tank outdoors,
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
•Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the level
is 1/4” to 1/2” (6 mm to 13 mm) below the
bottom of the filler neck. This empty space
in the tank allows gasoline to expand.
•Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fumes may be ignited by a spark.
•Store gasoline in an approved container
and keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
Stabilizer/Conditioner
Add the correct amount of gas stabilizer/conditioner
to the gas. Using a stabilizer/conditioner that is
isopropyl-based in the machine:
•Keeps gasoline fresh during storage
•Cleans the engine while it runs
•Eliminates gum-like buildup in the fuel system,
which causes hard starting
IMPORTANT: Never use fuel additives
containing methanol or ethanol.
Filling the Fuel Tank
1. Shut the engine off.
2. Clean around the fuel tank cap and remove the
cap. Use a funnel and add unleaded regular
gasoline to the fuel tank, until the level is 1/4 to
1/2 inch (6 mm to 13 mm) below the bottom of
the filler neck. This space in the tank allows
gasoline to expand. Do not fill the fuel tank
completely full.
3. Install the fuel tank cap securely. Wipe up any
gasoline that may have spilled.
Check Engine Oil Level
Before you start the engine and use the machine,
check the oil level in the engine crankcase; refer to
Checking Oil Level, page 22.

9
Set-up
Loose Parts
Note: Use the chart below to verify all parts have been shipped.
DESCRIPTION QTY. USE
Upper Handle
Flanged bolt 3/8–16 x 1” (26 mm)
Flange nut 3/8–16
1
4
4Install upper handle to frame
Shift lever
Shift lever mounting bracket
Washer 1/4”
Bolt 1/4–28 x 2” (51 mm)
1
1
1
1
Install shift lever to transmission
Rod fitting
Clevis pin
Washer
Hairpin cotter
2
2
2
2
Install control rods
Fuel tank
Control panel
Bolt 5/16–1/ x 7/8” (22.5 mm)
Lock washer 5/16”
Washer 5/16”
Hose clamp
1
1
4
4
4
2
Install fuel tank and control panel
Wire tie 1Retain wire harness
Operator’s Manual
Parts catalog
Registration card
1
1
1
Rear before operating machine
Fill out and return to Toro

Set-Up
10
Mount Control Panel and Fuel
Tank
1. Position control panel under bottom of rear
frame (Fig. 1). Align fuel tank to top of rear
frame (Fig. 1).
1716
1
2
3
Figure 1
1. Rear frame
2. Control panel 3. Fuel tank
2. Secure control panel and fuel tank to rear frame
with (4) 7/8 in. (22.5 mm) bolts, lock washers
and washers (Fig. 2).
3. Slide hose clamp onto fuel line (Fig. 2). Push
fuel line onto fuel tank fitting and secure with
hose clamp (Fig. 2).
1717
1
2
3
5
4
6
Figure 2
1. Bolt 5/8–18 x 7/8”
(22.5 mm)
2. Lock washer
3. Washer
4. Fuel line
5. Hose clamp
6. Fuel fitting
Install Shift Lever
1. Align mounting block with flats of shaft on top
of transmission and slide onto shaft (Fig. 3).
Note: DO NOT remove rubber washer on
transmission shaft.
2. Slide shift lever through control panel and align
mounting hole in lever with mounting block on
transmission. Secure lever to transmission with
51 mm bolt and washer. Torque bolt to
115 in. lb. (155 N.m).


1718


Figure 3
1. Mountingblock
2. Shift lever 3. Bolt 1/4–28 x 2” (51 mm) 4. Washer

Set-Up
11

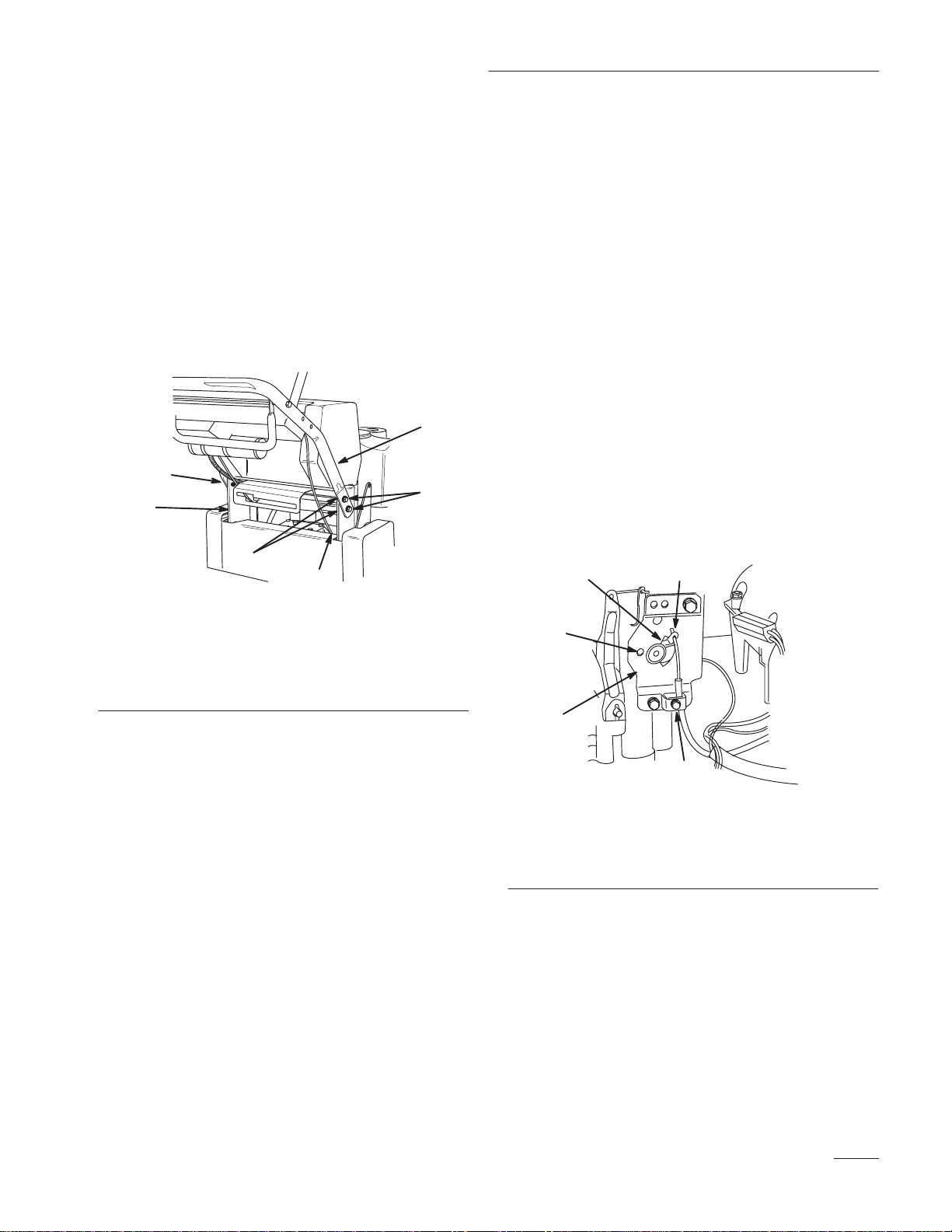

Install Upper Handle
1. Align upper handle mounting holes with desired
mounting holes in rear frame (upper or lower set
of holes)
2. Secure each side with (2) 3/8 –16 x 1” (26mm)
flange bolts and flange nuts (Fig. 4). Torque
bolts to 25 ft. lbs. (34 N.m).
3. Route cables and wire harness inside of frame
(Fig. 4)
1719






Figure 4
1. Upperhandle
2. Rear frame
3. Flange bolt 3/8 x 16–1”
(26mm)
4. Flange nut 3/8
5. Wires and cables
Connect Throttle Cable
1. Place throttle control lever in FAST position.(Fig. 5).
2. Hook wire Z–bend into hole of speed control lever
(Fig. 5).
3. Loosen cable clamp screw allowing cable
installation, but do not tighten (Fig. 5).
4. Move control cable casing and wire until hole in
speed control lever is aligned with hole in base
plate. Insert a 1/4 in. (6.35 mm) diameter pin or
bolt into aligned holes to hold adjustment.
5. Pull throttle cable slightly to remove any slack
and tighten cable clamp screw to lock
adjustment in place.
6. Remove alignment pin and check control
operation. Refer to Adjusting Throttle - Choke
Control, page .
2070





Figure 5
1. Wire Z-bend
2. Speed control lever
3. Base plate
4. Alignment holes 1/4 in.
(6.35mm)
5. Cable clamp

Set-Up
12

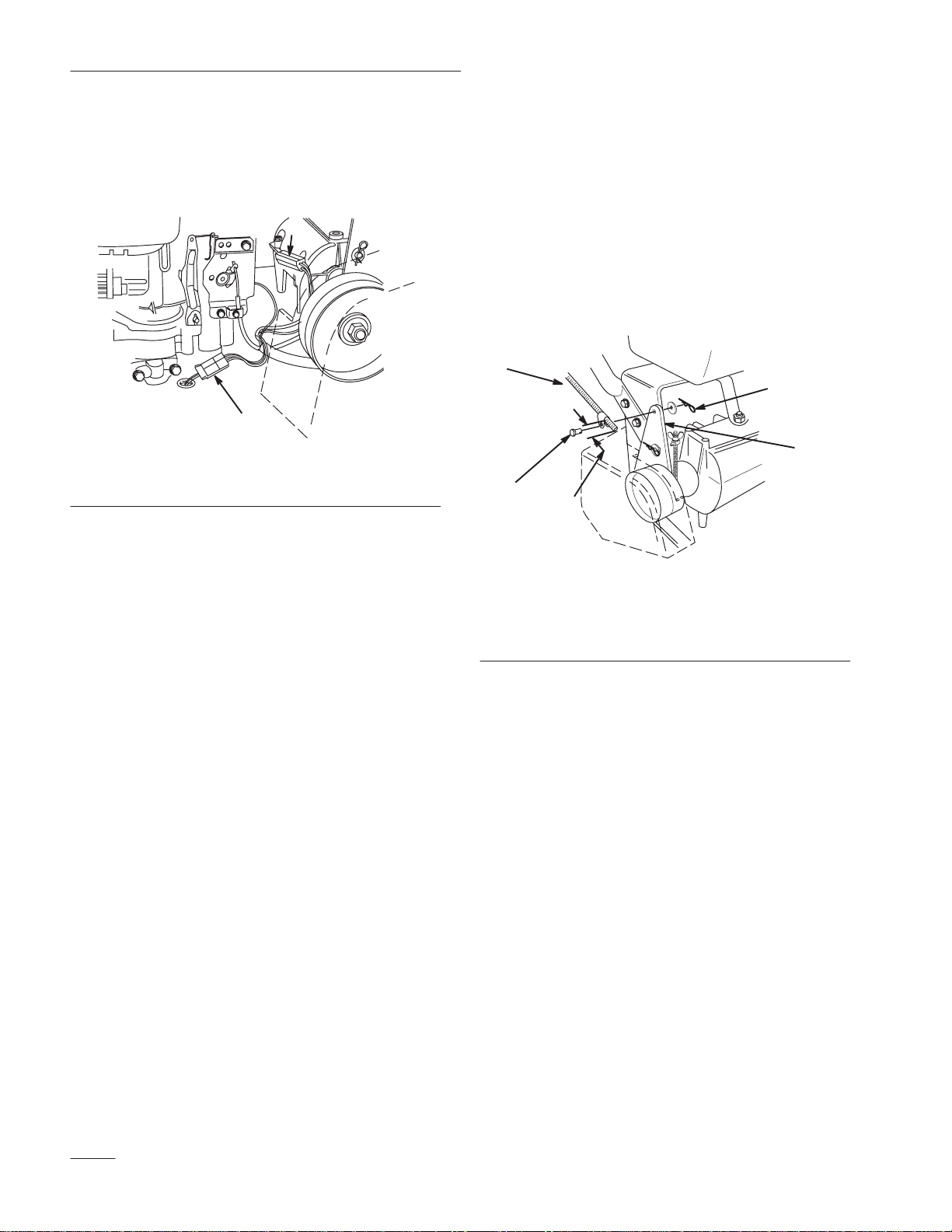

Connect Wire Harness
1. Secure clutch and engine in–line wire connectors
(Fig. 6).


2153
Figure 6
1. Clutch wire connector 2. Engine wire connector
2. Remove top jam nut from right rear engine
mounting bolt located behind oil dipstick.
3. Mount remaining wire to engine bolt and secure
with jam nut.
Install Control Rods
1. Thread a rod fitting onto each control rod
approximately 2 in. (51 mm) (Fig. 7) or until
upper control bar (Fig. 8). is approximately
perpendicular to the ground.
2. Mount rod fitting ends to mounting holes in idler
brackets (from outside) with clevis pins, washers
and hairpin cotters (Fig. 7).
2154





Figure 7
1. Controlrod and fitting
2. 2 in. (51 mm)
3. Idler bracket
4. Clevis pin, washer and
hairpin cotter

Set-Up
13
3. Check gap between upper control bar and upper
handle when fully engaging wheel belts. Gap
should be approximately 1 to 1-1/4 in.
(25–32 mm) (Fig. 8).
Note: The control bar and upper handle must
be parallel when in relaxed drive and
brake positions.
4. Check operation. If adjustment is required,
remove hairpin cotter and washer securing end
of control rod to upper control bar,thread rod
into or out of rod fitting to proper position and
reinstall to upper control bar with washer and
hairpin cotter.
5. Brake rods should be adjusted so parking brake
lever can be swung into a snug position against
the upper handle while pulling back on upper
control bar (Fig. 8).
1720



Figure 8
1. Controlrod
2. Inside control bar 3. Parking brake lever
6. If an adjustment to brake rods is required,
remove hairpin cotter and washer securing brake
rod fitting to idler bracket (Fig. 9).
7. Adjust wing nut up or down on brake rod and
resecure to idler bracket (Fig. 9). Check
adjustment and readjust if necessary.
Note: Make sure brake rod is installed in
forward (“F”) mounting hole in idler
bracket.
8. Repeat procedure on opposite side if adjustment
is required.
2156




Figure 9
1. Idler bracket
2. Brake rod fitting 3. Hairpin cotter and washer 4. Wing nut

14
Operation
Think Safety First
Please carefully read all the safety instructions and
symbols in the safety section. Knowing this
information could help you, your family, pets or
bystanders avoid injury.

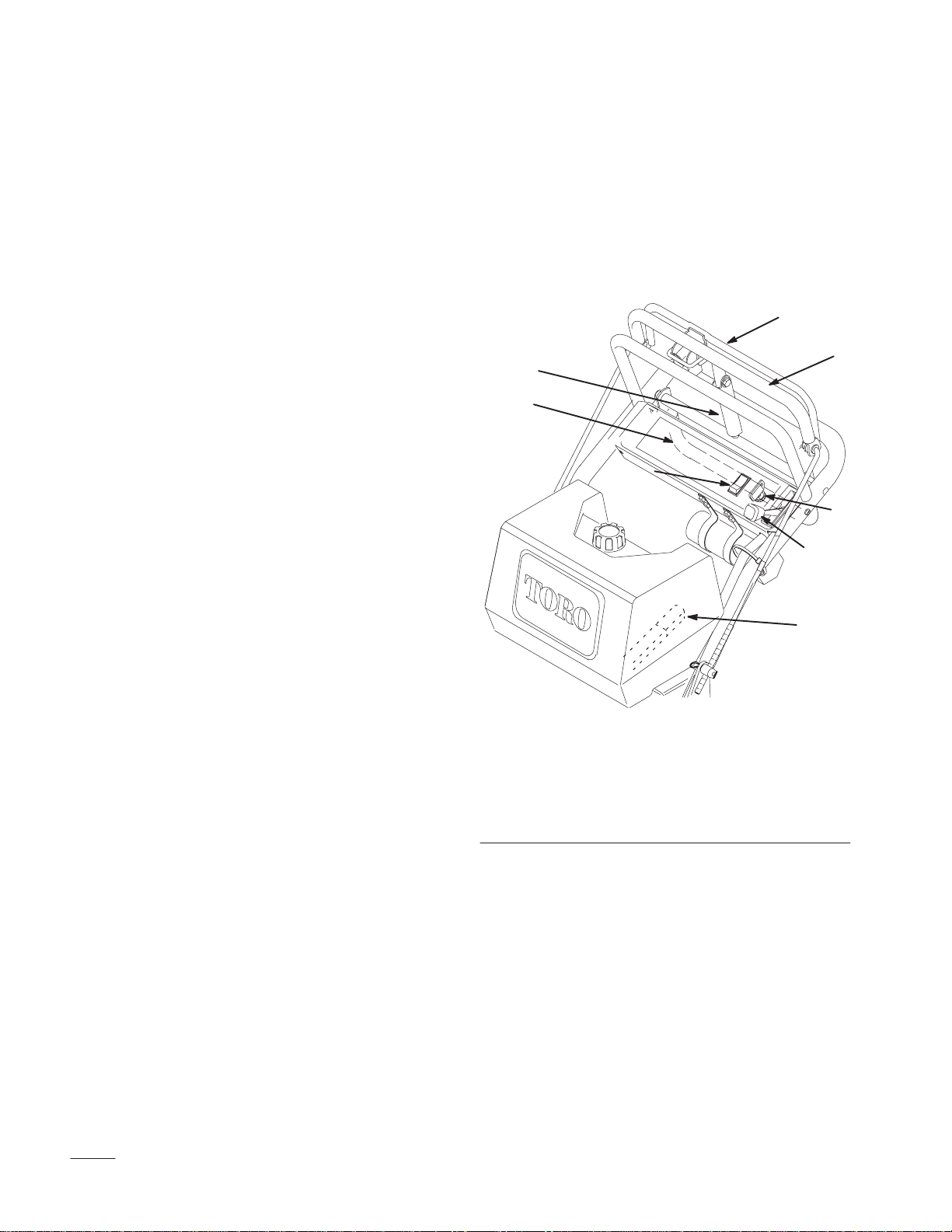

Controls
Become familiar with all the controls (Fig. 10) before
you start the engine and operate the machine.
Throttle Control – The throttle control has three
positions: CHOKE, FAST and SLOW.
Deck Engagement Control Bail – Control bail used
in conjunction with deck engagement switch (PTO) to
release blade brake and engage clutch to drive mower
blades. Release bail to disengage mower blades.
Blade Control Switch (PTO) – Rocker switch used
in conjunction with control bail to release blade brake
and engage clutch to drive mower blades.
Gear Shift Lever – Transmission has four forward
speeds, neutral and reverse, and has an in-line shift
pattern. Do not shift while unit is moving, as
transmission damage may occur.
Upper Control Bar – Shift to desired gear and push
forward on control bar to engage forward traction
operation and pull back to brake. Pull right side of
control bar to turn right and left side to turn left.
Lower Control Bar – Shift transmission to reverse
and pull rearward on lower control bar to engage
rearward traction operation.
Parking Brake Lever – Pull back on upper control
bar and swing brake lever up against the upper
handle.
Ignition Switch – Key switch is used in conjunction
with recoil starter. Switch has two positions: RUN
and OFF.
Recoil Starter – Pull recoil Starter handle to start
engine.
Fuel Shut–off Valve – (Under fuel tank) Close fuel
shut–off valve when transporting or storing mower.
2
3
4
8
2150
1
6
5
7
Figure 10
1. Throttlecontrol
2. Blade control bail
3. Blade control switch
(PTO)
4. Gear shift lever
5. Upper control bar
6. Lower control bar
7. Parking brake lever
8. Ignition switch

Operation
15

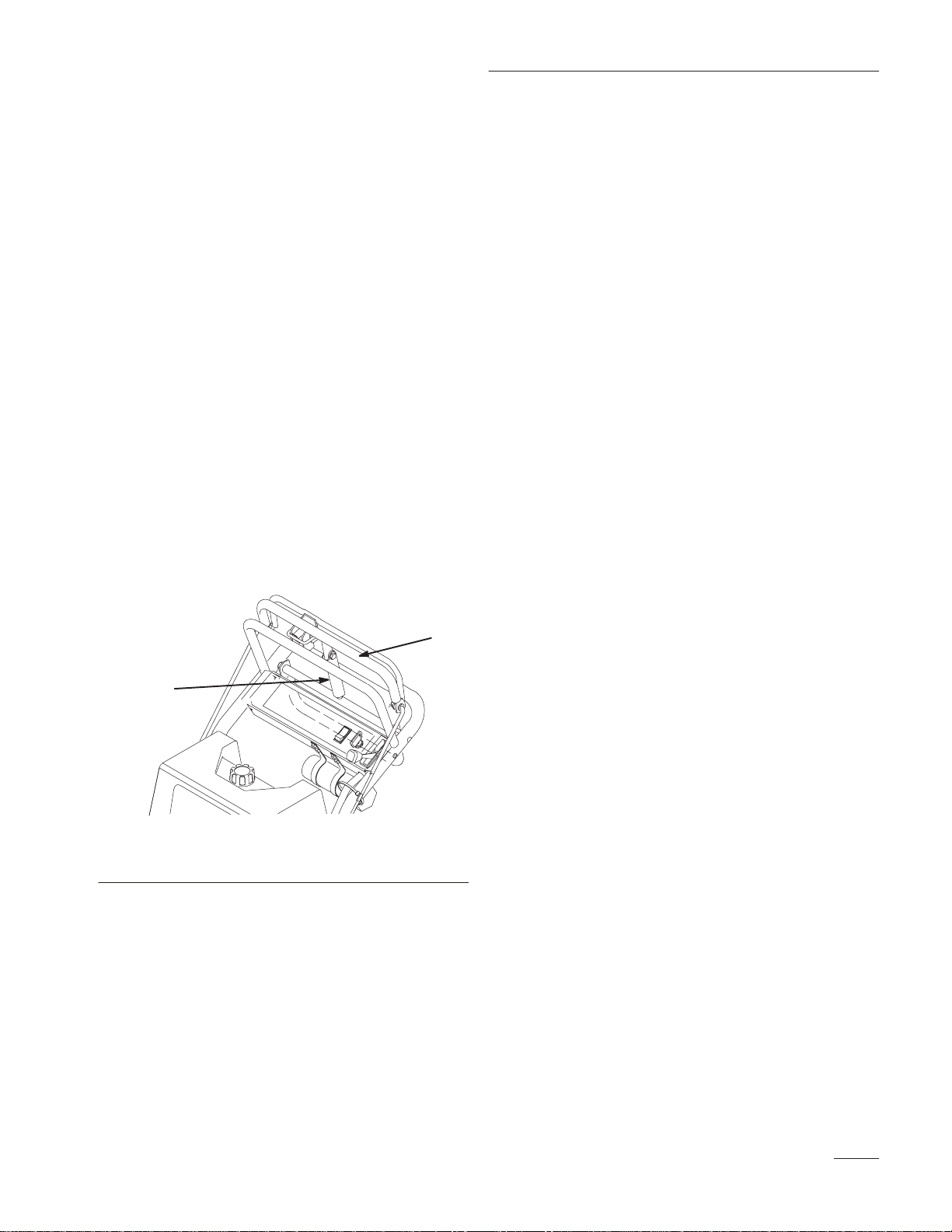

Parking Brake
Always set the parking brake when you stop the
machine or leave it unattended.
Setting the Parking Brake
1. Pull the upper control bar (Fig. 11) rearward and
hold it in this position.
2. Lift the parking brake lock (Fig. 11) up and
gradually release the upper control bar. The
brake lock should stay in the set (locked)
position.
Releasing the Parking Brake
1. Pull rearward on the upper control bar (Fig. 11).
Lower the parking brake lock to the released
position.
2. Gradually release the upper control bar.
1
2
2130
Figure 11
1. Upper control bar 2. Parking brake lock

Operation
16
Starting and Stopping
the Engine
Starting
1. Make sure spark plug wire(s) areinstalled on
spark plug(s) and fuel valve is open.
2. Move the shift lever to neutral, set the parking
brake and turn ignition key to RUN.
3. Move the throttle control to CHOKE position
before starting a cold engine.
Note: A warm or hot engine usually does not
require any choking. To start a warm
engine, move throttle control to FAST
position.
4. Grasp recoil starter handle firmly and pull out
until positive engagement results; then pull
handle vigorously to start engine and allow rope
to recoil slowly.
IMPORTANT: Do not pull recoil rope to its
limit or let go of the starter handle when rope
is pulled out because rope may break or recoil
assembly may be damaged.
Stopping
1. Move the throttle lever to “SLOW” (Fig. 12).
Note: If the engine has been working hard or
is hot, let it idle for a minute before
turning the ignition key “OFF.” This
helps cool the engine before it is
stopped. In an emergency, the engine
may be stopped by turning the ignition
key to “OFF.”
2. Turn the ignition key to “OFF” (Fig. 12).
1
2
2130
Figure 12
1. Throttlelever 2. Ignition key
3. Set the parking brake.
4. Pull wire off spark plug(s) to prevent possibility
of accidental starting before storing machine.
5. Close fuel shut off valve before storing machine.
IMPORTANT: Make sure fuel shut off valve
is closed before transporting or storing
machine, as fuel leakage may occur.

Operation
17
Operating Mower Blade
Control (PTO)
The blade control switch (PTO) in conjunction with
the blade control bail engages and disengages power
to the electric clutch and mower blades.
Engaging the Mower Blades (PTO)
1. Pull on the upper control bar to stop the machine
(Fig. 13).
2. To engage blade, squeeze blade control bail
against upper control bar
3. Press rocker switch forward “ON” and release.
Hold blade control bail against control bar while
operating.
4. Repeat procedure to engage mower blades if
blade control bail is released.
13
2130
2
Figure 13
1. Upper control bar
2. Blade control bail 3. Blade control switch
(PTO)
Disengaging the Mower Blades (PTO)
1. Releasing blade control bail to disengage blades
(PTO) (Fig. 13).
2. Or push the blade control switch (PTO) to the
“OFF”position (Fig. 13).
The Safety Interlock System
Understanding the Safety Interlock
System
The safety interlock system is designed to prevent the
mower blades from rotating unless:
•The control bail is depressed
•The blade control switch (PTO) is pressed “ON”
The safety interlock system is designed to stop the
mower blades if you released the blade control bail.
Testing the Safety Interlock System
Test the safety interlock system before you use the
machine each time. If the safety system does not
operate as described below, have an Authorized
Service Dealer repair the safety system immediately.
1. Set the parking brake and start the engine :refer
to Starting and Stopping the Engine, page 16
2. Squeeze the blade control bail against upper
control bar. The blades should not rotate.
3. Then continue holding the blade control bail and
press the rocker switch forward “ON” and
release. The clutch should engage and the mower
blades begin rotating.
4. Release the blade control bail. The blades should
stop rotating.
5. Then push the blade control switch (PTO) to
“ON” without holding the blade control bail.
The blades should not rotate.

Operation
18
Driving Forward or Backward
The throttle control regulates the engine speed as
measured in rpm (revolutions per minute). Place the
throttle control in the “FAST” position for best
performance.
Forward
1. To go forward, move the shift lever to a forward
gear.
2. Release the parking brake: refer to Releasing the
Parking Brake, page 15.
3. Slowly press on the upper control bar to move
forward (Fig. 14).
To go straight, apply equal pressure to both ends of
the upper control bar (Fig. 14).
To turn, release pressure on the upper control bar side
away from the direction you want to turn (Fig. 14).
1
2
2130
Figure 14
1. Upper control bar 2. Lower control bar
Backward
1. To go backward, move the shift lever to reverse
gear.
2. Release the parking brake: refer to Releasing the
Parking Brake, page 15.
3. Slowly pull on the lower control bar to move
rearward (Fig. 14).
To go straight, apply equal pressure to both ends of
the lower control bar (Fig. 14).
To turn, release pressure on the lower control bar side
in the direction you want to turn (Fig. 14).
Stopping the Machine
To stop the machine, pull back on the upper control
bar, release the blade control bail (PTO), and turn the
ignition key to “OFF” to stop the engine. Also set the
parking brake if you leave the machine unattended;
refer to Setting the Parking Brake, page 15.
Remember to remove the key from the ignition
switch.
POTENTIAL HAZARD
•Someone could move or attempt to operate
the machine while it is unattended.
WHAT CAN HAPPEN
•Children or bystanders may be injured if
they use the machine.
HOW TO AVOID THE HAZARD
•Always remove the ignition key and set the
parking brake when leaving the machine
unattended, even if just for a few minutes.
