Toro TimeCutter SS 5000 User manual

FormNo.3412-393RevA
TimeCutter®SS5000Riding
Mower
ModelNo.74731—SerialNo.400000000andUp
ModelNo.74775—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3412-393*A

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002
ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineonany
forest-covered,brush-covered,orgrass-coveredlandunless
theengineisequippedwithasparkarrester,asdenedin
Section4442,maintainedineffectiveworkingorderorthe
engineisconstructed,equipped,andmaintainedforthe
preventionofre.
GrossHorsepower
Thegrossornethorsepowerofthisenginewaslaboratory
ratedbytheenginemanufacturerinaccordancewiththe
SocietyofAutomotiveEngineers(SAE)J1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,
theactualenginetorqueonthisclassofmowerwillbe
signicantlylower.
Gotowww.Toro.comtoviewspecicationsonyourmower
model.
Important:IfyouareusingamachinewithaToro
engineabove1500m(5,000ft)foracontinuousperiod,
ensurethattheHighAltitudeKithasbeeninstalledso
thattheenginemeetsCARB/EPAemissionregulations.
TheHighAltitudeKitincreasesengineperformance
whilepreventingspark-plugfouling,hardstarting,and
increasedemissions.Onceyouhaveinstalledthekit,
attachthehigh-altitudelabelnexttotheserialdecal
onthemachine.ContactanyAuthorizedToroService
DealertoobtaintheproperHighAltitudeKitand
high-altitudelabelforyourmachine.Tolocateadealer
convenienttoyou,accessourwebsiteatwww.Toro.com
orcontactourToroCustomerCareDepartmentatthe
number(s)listedinyourEmissionControlWarranty
Statement.
Removethekitfromtheengineandrestoretheengine
toitsoriginalfactorycongurationwhenrunningthe
engineunder1500m(5,000ft).Donotoperateanengine
thathasbeenconvertedforhigh-altitudeuseatlower
altitudes;otherwise,youcouldoverheatanddamage
theengine.
Ifyouareunsurewhetherornotyourmachinehasbeen
convertedforhigh-altitudeuse,lookforthefollowing
label.
decal127-9363
Introduction
Thismachineisaride-on,rotary-bladelawnmowerintended
tobeusedbyhomeownersinresidentialapplications.Itis
primarilydesignedforcuttinggrassonwell-maintainedlawns.
Itisnotdesignedforcuttingbrush,mowinggrassandother
growthalongsidehighways,orforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
safetyandoperationtrainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
g188142
Figure1
Undertheseat
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthespace
below:
©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
g000502
Figure2
1.Safety-alertsymbol.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
Contents
Safety...........................................................................4
GeneralSafety.........................................................4
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
ProductOverview.........................................................11
Controls...............................................................11
BeforeOperation......................................................13
BeforeOperationSafety..........................................13
RecommendedFuel................................................13
UsingStabilizer/Conditioner...................................14
FillingtheFuelTank...............................................14
CheckingtheEngine-OilLevel.................................14
BreakinginaNewMachine......................................14
ThinkSafetyFirst...................................................14
UsingtheSafety-InterlockSystem.............................15
PositioningtheSeat................................................16
AdjustingtheMotion-ControlLevers........................16
DuringOperation.....................................................17
DuringOperationSafety.........................................17
OperatingtheMowerBlade-ControlSwitch
(PTO)...............................................................18
OperatingtheThrottle............................................18
OperatingtheChoke...............................................18
OperatingtheIgnitionSwitch..................................19
StartingandShuttingOfftheEngine.........................19
UsingtheMotion-ControlLevers.............................20
DrivingtheMachine...............................................20
StoppingtheMachine.............................................21
AdjustingtheHeightofCut.....................................22
AdjustingtheAnti-ScalpRollers...............................22
UsingtheSideDischarge.........................................23
OperatingTips......................................................23
AfterOperation........................................................24
AfterOperationSafety............................................24
PushingtheMachinebyHand..................................24
TransportingtheMachine........................................25
LoadingtheMachine..............................................25
Maintenance.................................................................27
RecommendedMaintenanceSchedule(s)......................27
Pre-MaintenanceProcedures......................................28
MaintenanceandStorage.........................................28
RaisingtheSeat......................................................28
Lubrication...............................................................29
GreasingtheBearings.............................................29
EngineMaintenance..................................................29
EngineSafety.........................................................29
ServicingtheAirCleaner.........................................29
ServicingtheEngineOil..........................................30
ServicingtheSparkPlug..........................................33
CleaningtheCoolingSystem....................................34
FuelSystemMaintenance...........................................34
ReplacingtheIn-LineFuelFilter...............................34
ElectricalSystemMaintenance....................................35
ElectricalSystemSafety...........................................35
ServicingtheBattery...............................................35
ServicingtheFuses.................................................36
3

DriveSystemMaintenance.........................................37
CheckingtheTirePressure......................................37
ReleasingtheElectricBrake.....................................38
MowerMaintenance...................................................38
ServicingtheCuttingBlades.....................................38
LevelingtheMowerDeck........................................40
RemovingtheMowerDeck.....................................42
ReplacingtheGrassDeector..................................43
MowerBeltMaintenance............................................45
InspectingtheBelts................................................45
ReplacingtheMower-DeckBelt...............................45
Cleaning...................................................................46
WashingtheUndersideoftheMower........................46
Storage........................................................................47
CleaningandStorage..............................................47
Troubleshooting...........................................................48
Schematics...................................................................50
Safety
ThismachinehasbeendesignedinaccordancewithANSI
B71.1-2012.
GeneralSafety
Thisproductiscapableofamputatinghandsandfeetand
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriouspersonalinjury.
Usingthisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.
•ReadandunderstandthecontentsofthisOperator’sManual
beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.
•Donotputyourhandsorfeetnearmovingcomponents
ofthemachine.
•Donotoperatethemachinewithoutallguardsandother
safetyprotectivedevicesinplaceandworkingonthe
machine.
•Keepclearofanydischargeopening.Keepbystandersa
safedistanceawayfromthemachine.
•Keepchildrenoutoftheoperatingarea.Neverallow
childrentooperatethemachine.
•Stopthemachineandshutofftheenginebeforeservicing,
fueling,oruncloggingthemachine.
Improperlyusingormaintainingthismachinecanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructionsandalwayspayattentiontothe
safety-alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theseinstructionsmayresultinpersonalinjuryordeath.
Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.
4

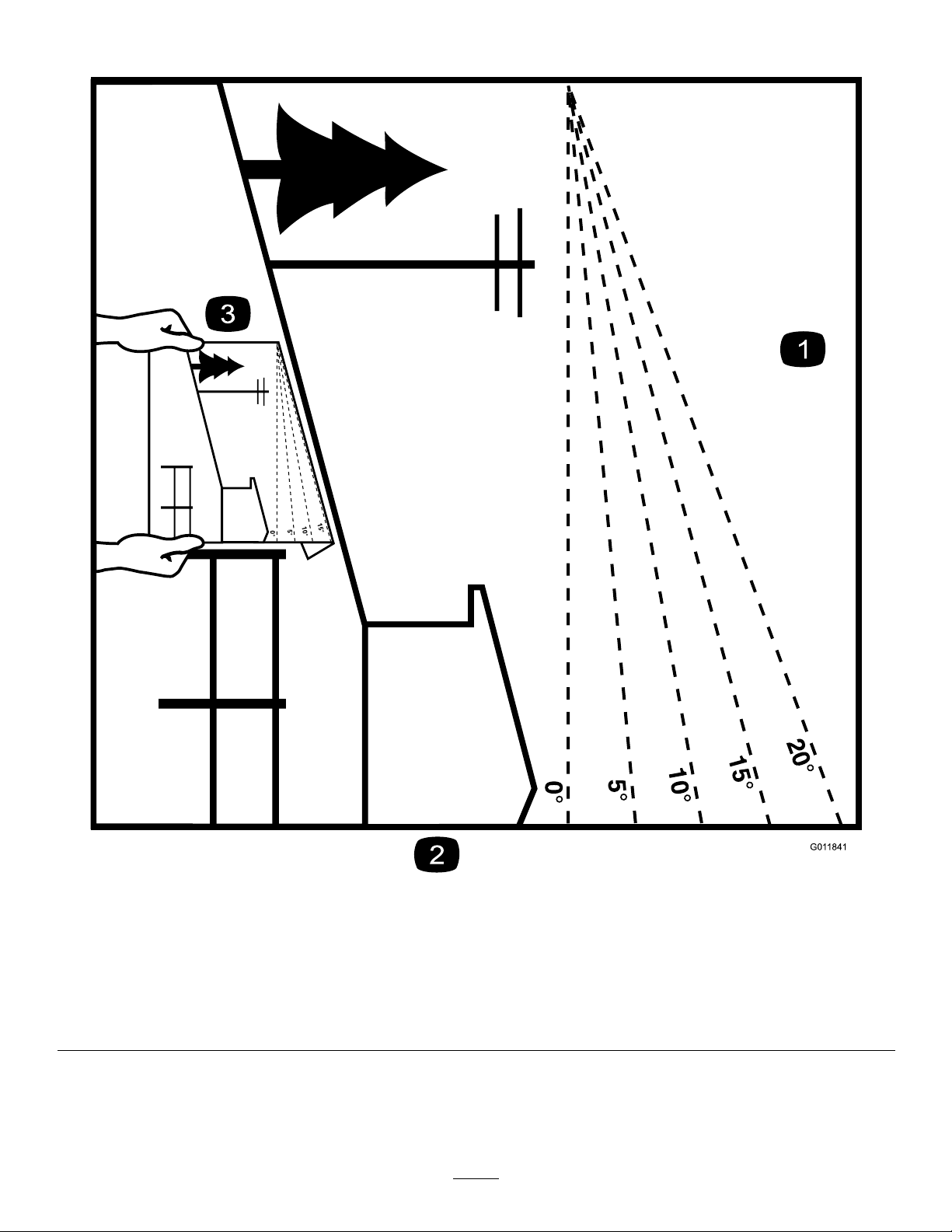

SlopeIndicator
G01 1841
g011841
Figure4
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope
ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
5

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedormissing.
decal93-7009
93-7009
1.Warning—donotoperatethemowerwiththedeectorup
orremoved;keepthedeectorinplace.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
decal99-3943
99-3943
1.Engine
decal106-8717
106-8717
1.Readtheinstructionsbeforeservicingorperforming
maintenance.
2.Checktirepressureevery25operatinghours.
3.Greaseevery25operatinghours.
4.Engine
decal112-9840
112-9840
1.ReadtheOperator's
Manual.
3.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
2.Heightofcut
decal119-8814
119-8814
1.Parkingposition4.Neutral
2.Fast5.Reverse
3.Slow
decal119-8815
119-8815
1.Parkingposition4.Neutral
2.Fast5.Reverse
3.Slow
6

decal119-8870
119-8870
1.Heightofcut
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersasafe
distanceawayfromthe
battery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
decal121-2989b
121-2989
1.Bypassleverpositionfor
pushingthemachine
2.Bypassleverpositionfor
operatingthemachine
decaloemmarkt
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
decal131-1097
131-1097
1.Oildrain
7

decal132-0872
132-0872
1.Thrownobject
hazard—keepbystanders
awayfromthemachine.
3.Severinghazardofhand
orfoot—keepawayfrom
movingparts.
2.Thrownobjecthazard,
raisedbafe—donot
operatethemachinewith
anopendeck;usea
baggerorabafe.
4.Entanglement
hazard—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
decal131-3947
131-3947
1.Trim—slow3.Mow—fast
2.Tow—medium
8

decal121-0773
121-0773
1.Fast4.Choke
2.Continuous-variablesetting5.Powertakeoff(PTO),blade-controlswitch
3.Slow
9

decal132-0869
132-0869
1.Warning—readthe
Operator'sManual.
3.Cuttinghazardofhand,
mowerblade;pinching
hazardofhand,belt—keep
handsandfeetawayfrom
movingparts;keepall
guardsandshieldsinplace.
5.Ramptipping
hazard—whenloading
ontoatrailer,donotuse
dualramps;onlyusea
singlerampwideenough
forthemachineandthat
hasaninclinelessthan
15degrees;backupthe
ramp(inreverse)anddrive
forwardofftheramp.
7.Tippinghazardon
slopes—donotuseon
slopesnearopenwater;do
notuseonslopesgreater
than15degrees.
2.Warning—beforeservicing,
engagetheparkingbrake,
removethekeyandthe
sparkplugconnection.
4.Thrownobject
hazard—keepbystanders
awayfromthemachine;
removedebrisfromthe
areabeforemowing;keep
thedeectorshielddown.
6.Bodilyharmhazard—no
riders;lookbehindyou
whenmowinginreverse.
10

ProductOverview
g028411
Figure5
1.Footrest8.Gas-tankcap
2.Deector9.SmartSpeed™lever
3.Height-of-cutlever10.Reardrivewheel
4.Motion-controllever11.Mowerdeck
5.Controlpanel12.Anti-scalproller
6.Operatorseat13.Frontcasterwheel
7.Engine
Controls
BecomefamiliarwithallofthecontrolsinFigure5and
Figure6beforeyoustarttheengineandoperatethemachine.
g032603
Figure6
Controlpanel
1.Throttle3.Blade-controlswitch
(powertakeoff)
2.Choke4.Ignitionswitch
IgnitionSwitch
Usethisswitchtostartthemowerengine.Ithas3positions:
START,RUN,andOFF.
ChokeControl
Usethechoketostartacoldengine.Pullthechokeknob
uptoengageit.Pushthechokeknobdowntodisengage
it(Figure7).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFASTposition
(Figure7).
Blade-ControlSwitch(PowerTakeoff)
Theblade-controlswitch,representedbyapower-takeoff
(PTO)symbol,engagesanddisengagespowertothemower
blades(Figure6).
11

Motion-ControlLevers
Usethemotion-controlleverstodrivethemachineforward,
reverse,andturneitherdirection.
ParkPosition
Movethemotion-controlleversoutwardfromthecenterto
thePARKpositionwhenexitingthemachine(Figure20).
Alwayspositionthemotion-controlleversintothePARK
positionwhenyoustopthemachineorleaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™Control-Systemlever,locatedbelowthe
operatingposition,givesyouachoicetodrivethemachineat
3speedranges—trim,tow ,andmow(Figure23).
Fuel-PresenceWindow
Youcanusethefuelwindow,locatedontheleftsideofthe
machine,toverifythepresenceoffuelinthetank(Figure7).
G014521
1
g014521
Figure7
1.Fuel-presencewindow
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeckfrom
theseatedposition.Movingtheleverup(towardyou)raises
thedeckfromthegroundandmovingtheleverdown(away
fromyou)lowersthedecktowardtheground.Adjustthe
height-of-cutonlywhilethemachineisnotmoving(Figure
24).
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww.Toro.comforalistofallapproved
attachmentsandaccessories.
12

Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
BeforeOperation
BeforeOperationSafety
GeneralSafety
•Neverallowchildrenoruntrainedpeopletooperateor
servicethemachine.Localregulationsmayrestrictthe
ageoftheoperator.Theownerisresponsiblefortraining
alloperatorsandmechanics.
•Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
•Knowhowtostopthemachineandenginequickly.
•Checkthatoperator-presencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemachineunlesstheyarefunctioningproperly.
•Beforemowing,alwaysinspectthemachinetoensurethat
theblades,bladebolts,andcuttingassembliesareingood
workingcondition.Replacewornordamagedbladesand
boltsinsetstopreservebalance.
•Inspecttheareawhereyouwillusethemachineand
removeallobjectsthatthemachinecouldthrow .
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessoriesrequiredto
operatethemachineproperlyandsafely.
FuelSafety
•Toavoidpersonalinjuryorpropertydamage,useextreme
careinhandlingfuel.Fuelvaporsareammableand
explosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedfuelcontainer.
•Donotremovethefuelcaporaddfueltothefueltank
whiletheengineisrunningorwhilehot.
•Donotrefuelthemachineindoors.
•Donotstorethemachineorfuelcontainerwherethere
isanopename,spark,orpilotlight,suchasonawater
heateroronotherappliances.
•Donotllcontainersinsideavehicleoronatruckor
trailerbedwithaplasticliner.Alwaysplacecontainerson
theground,awayfromyourvehiclebeforelling.
•Removetheequipmentfromthetruckortrailerand
refuelitwhileitisontheground.Ifthisisnotpossible,
thenrefuelfromaportablecontainerratherthana
fuel-dispensernozzle.
•Donotoperatethemachinewithouttheentireexhaust
systeminplaceandinproperworkingcondition.
•Keepthefuel-dispensernozzleincontactwiththerimof
thefueltankorcontaineropeningatalltimesuntilfueling
iscomplete.Donotuseanozzlelock-opendevice.
•Ifyouspillfuelonyourclothing,changeyourclothing
immediately.Wipeupanyfuelthatspills.
•Neveroverllthefueltank.Replacethefuelcapand
tightenitsecurely.
•Storefuelinanapprovedcontainerandkeepitoutofthe
reachofchildren.Neverbuymorethana30-daysupply
offuel.
•Donotllthefueltankcompletelyfull.Addfueltothe
fueltankuntilthelevelis6to13mm(1/4to1/2inch)
belowthebottomofthellerneck.Thisemptyspacein
thetankallowsfueltoexpand.
–Avoidprolongedbreathingofvapors.
–Keepyourfaceawayfromthenozzleandgastank
opening.
–Avoidcontactwithskin;washoffspillswithsoapand
water.
RecommendedFuel
•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume
isacceptable.EthanolandMTBEarenotthesame.
Gasolinewith15%ethanol(E15)byvolumeisnot
approvedforuse.Neverusegasolinethatcontains
morethan10%ethanolbyvolume,suchasE15
(contains15%ethanol),E20(contains20%ethanol),or
E85(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/orengine
damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
overthewinterunlessyouuseafuelstabilizer.
•Donotaddoiltogasoline.
13

UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachinetoprovide
thefollowingbenets:
•Keepsfuelfreshduringstorageof90daysorless(drain
thefueltankwhenstoringthemachineformorethan
90days)
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuelsystem,
whichcauseshardstarting
Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountoffuelstabilizer/conditioner
tothefuel.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshfuel.Tominimizethechanceof
varnishdepositsinthefuelsystem,usefuelstabilizerat
alltimes.
FillingtheFuelTank
1.Parkthemachineonlevelground.
2.Shutofftheengineandengagetheparkingbrake.
3.Cleanaroundthefuel-tankcap.
4.Fillthefueltanktothebottomofthellerneck(Figure
8).
Note:Donotllthefueltankcompletelyfull.The
emptyspaceinthetankallowsthefueltoexpand.
g027243
AB
E
D
C
g027243
Figure8
CheckingtheEngine-OilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page30).
BreakinginaNewMachine
Newenginestaketimetodevelopfullpower.Mowerdecks
anddrivesystemshavehigherfrictionwhennew,placing
additionalloadontheengine.Allow40to50hoursof
break-intimefornewmachinestodevelopfullpowerand
bestperformance.
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthesafety
section.Knowingthisinformationcouldhelpyouor
bystandersavoidinjury.
DANGER
Operatingthemachineonwetgrassorsteepslopes
cancauseslidingandlossofcontrol.
•Donotoperateonslopesgreaterthan15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Donotoperatethemachinenearwater.
DANGER
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,death,or
drowning.
Donotoperatethemachineneardrop-offs.
14

g000513
Figure9
1.SafeZone—usethe
machinehereonslopes
lessthan15degreesor
atareas.
3.Water
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan15degrees,
neardrop-offsandwater.
CAUTION
Thismachineproducessoundlevelsinexcessof
85dBAattheoperator’searandcancausehearing
lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
Useprotectiveequipmentforyoureyes,ears,hands,feet,
andhead.
G009027
12
g009027
Figure10
1.Weareyeprotection.2.Wearhearingprotection.
UsingtheSafety-Interlock
System
WARNING
Ifthesafety-interlockswitchesaredisconnectedor
damaged,themachinecouldoperateunexpectedly,
causingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlockswitches
dailyandreplaceanydamagedswitchesbefore
operatingthemachine.
UnderstandingtheSafety-Interlock
System
Thesafety-interlocksystemisdesignedtopreventtheengine
fromstartingunless:
•Theblade-controlswitch(PTO)isdisengaged.
•Themotion-controlleversareinthePARKposition.
Thesafety-interlocksystemalsoisdesignedtoshutoffthe
enginewheneverthecontrolleversareoutofthePARK
positionandyourisefromtheseat.
TestingtheSafety-InterlockSystem
Testthesafety-interlocksystembeforeyouusethemachine
eachtime.Ifthesafetysystemdoesnotoperateasdescribed
below,haveanAuthorizedServiceDealerrepairthesafety
systemimmediately.
1.Sitontheseat,movethemotion-controlleversinthe
PARKposition,andmovetheblade-controlswitchto
theONposition.Trystartingtheengine;theengine
shouldnotcrank.
2.Sitontheseatandmovetheblade-controlswitchto
theOFFposition.Moveeithermotion-controlleverto
thecenter,unlockedposition.Trystartingtheengine;
theengineshouldnotcrank.Repeatwiththeother
motion-controllever.
3.Sitontheseat,movetheblade-controlswitchtothe
OFFposition,andlockthemotion-controlleversin
thePARKposition.Starttheengine.Whiletheengine
isrunning,engagetheblade-controlswitch,andrise
slightlyfromtheseat;theengineshouldshutoff.
4.Sitontheseat,movetheblade-controlswitchtothe
OFFposition,andlockthemotion-controlleversinthe
PARKposition.Starttheengine.Whiletheengineis
running,movethemotion-controlleverstothecenter,
unlockedposition,engagetheblade-controlswitch,and
riseslightlyfromtheseat;theengineshouldshutoff.
15

PositioningtheSeat
Theseatcanmoveforwardandbackward.Positiontheseat
whereyouhavethebestcontrolofthemachineandaremost
comfortable(Figure11).
g188217
Figure11
AdjustingtheMotion-Control
Levers
AdjustingtheHeight
Youcanadjustthemotion-controllevershigherorlowerfor
maximumcomfort(Figure12).
g027252
B
A
g027252
Figure12
AdjustingtheTilt
Youcanadjustthemotion-controlleversforwardorrearward
foryourcomfort.
1.Loosentheupperboltholdingthecontrollevertothe
control-armshaft.
2.Loosenthelowerboltjustenoughtopivotthecontrol
leverforwardorrearward(Figure12).
3.Tightenbothboltstosecurethecontrolleverinthe
newposition.
4.Repeattheadjustmentfortheothercontrollever.
16

DuringOperation
DuringOperationSafety
GeneralSafety
•Theowner/operatorcanpreventandisresponsiblefor
accidentsthatmaycausepersonalinjuryorproperty
damage.
•Wearappropriateclothing,includingeyeprotection;
slip-resistant,substantialfootwear;andhearing
protection.Tiebacklonghairanddonotwearjewelry.
•Donotoperatethemachinewhileill,tired,orunderthe
inuenceofalcoholordrugs.
•Nevercarrypassengersonthemachineandkeep
bystandersandpetsawayfromthemachineduring
operation.
•Operatethemachineonlyingoodvisibilitytoavoidholes
orhiddenhazards.
•Avoidmowingonwetgrass.Reducedtractioncould
causethemachinetoslide.
•Ensurethatalldrivesareinneutral,theparkingbrake
isengaged,andyouareintheoperatingpositionbefore
youstarttheengine.
•Keepyourhandsandfeetawayfromthecuttingunits.
Keepclearofthedischargeopeningatalltimes.
•Lookbehindanddownbeforebackinguptobesureof
aclearpath.
•Usecarewhenapproachingblindcorners,shrubs,trees,
orotherobjectsthatmayobscureyourvision.
•Donotmowneardrop-offs,ditches,orembankments.
Themachinecouldsuddenlyrolloverifawheelgoes
overtheedgeoriftheedgegivesway.
•Stopthebladeswheneveryouarenotmowing.
•Stopthemachineandinspectthebladesafterstrikingan
objectorifthereisanabnormalvibrationinthemachine.
Makeallnecessaryrepairsbeforeresumingoperation.
•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalkswiththemachine.Always
yieldtheright-of-way.
•Disengagethedrivetothecuttingunitandshutoffthe
enginebeforeadjustingtheheightofcut(unlessyoucan
adjustitfromtheoperatingposition).
•Neverrunanengineinanareawhereexhaustgasesare
enclosed.
•Neverleavearunningmachineunattended.
•Beforeleavingtheoperatingposition(includingtoempty
thecatchersortounclogthechute),dothefollowing:
–Stopthemachineonlevelground.
–Disengagethepowertake-offandlowerthe
attachments.
–Engagetheparkingbrake.
–Shutofftheengineandremovethekey.
–Waitforallmovingpartstostop.
•Donotoperatethemachinewhenthereistheriskof
lightning.
•Donotusethemachineasatowingvehicle.
•Donotchangethegovernorspeedoroverspeedthe
engine.
•UseaccessoriesandattachmentsapprovedbyToroonly.
SlopeSafety
•Slowdownthemachineanduseextracareonhillsides.
Travelupanddownonhillsides.Turfconditionscan
affectthestabilityofthemachine.
•Avoidturningthemachineonslopes.Ifyoumustturnthe
machine,turnitslowlyandgraduallydownhill,ifpossible.
•Donotturnthemachinesharply.Usecarewhenreversing
themachine.
•Useextracarewhileoperatingthemachinewith
attachments;theycanaffectthestabilityofthemachine.
17

OperatingtheMower
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)startsandstopsthemower
bladesandanypoweredattachments.
EngagingtheBlade-ControlSwitch
(PTO)
G008945
g008945
Figure13
Note:AlwaysengagethebladeswiththethrottleintheFAST
position(Figure14).
g187516
Figure14
DisengagingtheBlade-ControlSwitch
(PTO)
G009174
g009174
Figure15
OperatingtheThrottle
YoucanmovethethrottlecontrolbetweentheFASTand
SLOWpositions(Figure16).
AlwaysusetheFASTpositionwhenturningonthemower
deckwiththeblade-controlswitch(PTO).
g187517
Figure16
OperatingtheChoke
Usethechoketostartacoldengine.
1.Iftheengineiscold,usethechoketostarttheengine.
2.Pullupthechokeknobtoengagethechokebefore
usingtheignitionswitch(Figure17).
Note:Ensurethatyoufullyengagethechoke.You
mayneedtoholdtheknobupwhenyouusethe
ignitionswitch.
3.Pushdownthechoketodisengagethechokeafterthe
enginehasstarted(Figure17).
G008959
1
2
g008959
Figure17
1.Onposition2.Offposition
18

OperatingtheIgnitionSwitch
1.TurntheignitionkeytotheSTARTposition(Figure18).
Note:Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto
start,wait15secondsbetweenattempts.Failureto
followtheseinstructionscanburnoutthestarter
motor.
Note:Youmayneedmultipleattemptstostartthe
enginewhenyoustartitthersttimeafterthefuel
systemhasbeenwithoutfuelcompletely.
START
RUN
ST OP
G008947
g008947
Figure18
2.TurntheignitionkeytotheSTOPpositiontoshutoff
theengine.
StartingandShuttingOffthe
Engine
StartingtheEngine
Note:Awarmorhotenginemaynotrequirechoking.
Important:Donotengagethestarterformorethan
5secondsatatime.Engagingthestartermotorfor
morethan5secondscandamagethestartermotor.If
theenginefailstostart,wait10secondsbeforeoperating
theenginestarteragain.
g027581
B
CD
E
A
G
F
g027581
Figure19
ShuttingOfftheEngine
1.Disengagethebladesbymovingtheblade-control
switchtotheOFFposition(Figure17).
2.MovethethrottlelevertotheFASTposition.
3.TurntheignitionkeytotheOFFpositionandremove
thekey.
19

UsingtheMotion-Control
Levers
g004532
Figure20
1.Motion-control
lever—PARKposition
4.Backward
2.Center,unlockedposition5.Frontofmachine
3.Forward
DrivingtheMachine
Thedrivewheelsturnindependently,poweredbyhydraulic
motorsoneachaxle.Youcanturn1sideinreversewhileyou
turntheotherforward,causingthemachinetospinrather
thanturn.Thisgreatlyimprovesthemachinemaneuverability
butmayrequiresometimeforyoutoadapttohowitmoves.
Thethrottlecontrolregulatestheenginespeedasmeasured
inrpm(revolutionsperminute).Placethethrottlecontrolin
theFASTpositionforbestperformance.Alwaysoperatein
thefullthrottlepositionwhenmowing.
WARNING
Themachinecanspinveryrapidly.Youmaylose
controlofthemachineandcausepersonalinjuryor
damagetothemachine.
•Usecautionwhenmakingturns.
•Slowthemachinedownbeforemakingsharp
turns.
DrivingForward
Note:Alwaysusecautionwhenbackingupandturning.
1.Movetheleverstothecenter,unlockedposition.
2.Togoforward,slowlypushthemotion-controllevers
forward(Figure21).
G008952
g008952
Figure21
DrivingBackward
1.Movetheleverstothecenter,unlockedposition.
2.Togobackward,slowlypullthemotion-controllevers
rearward(Figure22).
G008953
g008953
Figure22
20
This manual suits for next models
2
Table of contents
Other Toro Lawn Mower manuals

Toro
Toro Greensmaster 3000 Series Manual

Toro
Toro Recycler 20017 User manual

Toro
Toro 79370 User manual

Toro
Toro GrandStand Series User manual

Toro
Toro Wheel Horse SD 1999 User manual

Toro
Toro Super Bagger User manual

Toro
Toro 71198 User manual

Toro
Toro ProPass 200 User manual

Toro
Toro 74871 User manual

Toro
Toro Super Recycler User manual

Toro
Toro 71185 User manual

Toro
Toro Reelmaster 3555 User manual

Toro
Toro 72076 Manual

Toro
Toro 30363N User manual

Toro
Toro 3910 User manual

Toro
Toro Recycler 119-3320 User manual

Toro
Toro timecutter zs 4200t User manual

Toro
Toro 78292 User manual

Toro
Toro 74295 User manual

Toro
Toro TimeCutter 4200C User manual
