Toshiba TD-BK100GH Series User manual

TUMBLE DRYER
OWNER’S MANUAL
Read This Manual
Read and follow the instructions carefully.
Keep the operation instructions handy for
use . future
Please contact the customer service if
you are in need of a new user manual.
MODEL:
TD-BK100GH Series
TD-BK110GH Series

CONTENTS
1
SAFETY INSTRUCTIONS
Safety Instructions ....................................................
INSTALLATION
Product Description .................................................
Installation ................................................................
OPERATION
Quick Start ..................................................................
Before Each Drying ...................................................
Control Panel .............................................................
Option..........................................................................
Display..........................................................................
Programmes................................................................
Instructions to Connection with the
...............................................................................
Drying Programmes Table .......................................
MAINTENANCE
Cleaning and Care .....................................................
Trouble Shooting ......................................................
Technical Specifications .........................................
TSmartLife
App
2
8
8
11
12
13
15
18
19
20
23
24
27
29

SAFETY INSTRUCTIONS
2
Intended use
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
•
It is not for commercial use or shared use(i.e. by use
in an apartment.)
• This dryer is for inndor use only.
This dryer is inteded for household use only.

SAFETY INSTRUCTIONS
3
Risk of Electric Shock
• Do not use any outlet with rated current less than that
of appliance.
• Do not pull the power cord forcefully. Hold power plug
instead.
• Do not .
• Do not bend, clamp or damage the power cord and the
power plug.
• If the power cable is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
touch the plug with wet hands
Safety Instructions
• This appliance must be grounded. In the event of
malfunction or breakdown , grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
• This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
• Improper connection for the appliance when using
not grounded outlet or when GND terminal of outlet
is not suitable with GND terminal of power plug, can
result in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
Warning!

SAFETY INSTRUCTIONS
4
•
external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by a utility.
• Do not use multiple outlet sockets,an extension power
cable or double adapter with this appliance.
• Plug must be accessible after installation.
The appliance must not be supplied through an
Risk of Injury
Do not attempt to repair,disassemble,or modify the appliance
yourself.
• Do not lean on the opened door of the dryer.
• Do not drink condensed water.
•
Risk of Prouduct Damage
•
See the related chapter in the user manual.
• Do not dry the clothes without spin-dry.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and wet environment.
• Before maintenance,unplug the appliance.
- Do not spray water on the appliance.
- Do not overturn the appliance.
Do not put more load than rated in this user manual.
• Do not operate the dryer without Doorfilter and Base
filter.

SAFETY INSTRUCTIONS
5
Risk of Explosion & Fire
•
substances such as kerosene or alcohol.
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction
in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire.
Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and
matches.
Please do not dry the clothes with any flammable
Warning!

SAFETY INSTRUCTIONS
6
• If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products are placed in a tumble dryer they should first
be washed in hot water with extra detergent. This will
reduce, but not eliminate, the hazard.
• Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
• Openings must not be obstructed.
• be cleaned frequently.
•
Door filter and Base filter should
Lint must not be allowed to accumulate around the
tumble dryer(heat exchanger, inside drum,around door
etc.)
Safety with children
• by Cleaning and user maintenance shall not be made
children without supervision.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
• This appliance is not intended for use by persons
(including children) with reduced physical,sensory or
mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
• Children should be supervised to ensure that they do not
play with the appliance.
for their safety.

SAFETY INSTRUCTIONS
7
Model Rated capacity
9.0kg
• Children of less than 3 years should be kept away unless
continuously supervised.
The appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
•
For use in EU contries：
For use in EU contries
This appliance is labelled in accordance with the European
Directive 2012/19/EU on waste electrical and electronic
equipment (WEEE). The directive provides the framework
for the EU-wide take-back and recycling of waste
equipment.
Disposal of old appliances
The devices marked with this symbol
must not be disposed of in household waste!
For use in other contries
This appliance doesn’t have symbol above. If you
want to dispose your appliance, please contact your
local authority or retailer for futher information on
collection and disposal.
ENVIRONMENT
TD-BK100GH Series
TD-BK110GH Series 10.0kg

INSTALLATION
8
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Product Description
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Remove the drain hose
from the housing drawer.
Put the hose holder in the washing
basin or any other sink.
Installation
Insert the drain
hose and the
external drainage
hose into the
connector.
Max.120cm
200cm
x
Connector

9
INSTALLATION
Transport
Move cautiously. Do not grasp any salient parts of machine. The machine door cannot
be used as the handle for transport. If the dryer can't be transported erectly, the dryer
can be tilted to right less than 30°.
Risk of injury and damage!
Improper handling of the appliance may result in injury.
• This appliance should only be transported by two or more people holding the
appliance aecurely.
• Remove all obstacles on the transport route and from the installation location, e.g.
open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage.
Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring.
At temperatures around freezing point the tumble dryer may not be able to operate
properly. There is a risk of damage if the condensed water is allowed to freeze in the
pump and hoses.
If you want to install the drying support, first clamp the support on the door filter,then
hook it in the front support slot(as shown below).
door filter
front support slot
Drying support is mainly used for
like hats,shoes, plush toys etc. Warm program is recommended for this
function and if items are not completely dried once, you can restart the
program to complete dryness. All items dried with support must meet the
warning requirement of Page 5.Leather products also cannot be dried.
items that is not suitable for tumble dry,
Note!

10
INSTALLATION
Level Adjusting
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit level.
If it is not, adjust the feet by hand or using a tool.
Power Supply Connection
4. The feet must never be removed.
1.Make sure that the voltage of the power supply is more than the electric specification.
2.Do not connect the dryer with the power connection board, a universal plug or socket,
do not use multi-plug adapters and extension cables.
23 1
Raise Lower
Installation Place
•
• The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the tumble dryer, in such a way that a
full opening of the tumble dryer door is restricted.
• Do not restrict the floor clearance through deep pile carpets, strips of wood or
similar. This might cause heat built-up which would interfere with the operation of
the appliance.
Do not allow children to play with pacckaging materials.
1. It is recommended that, for your convenience, the machine is positioned close to
your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not accumulate.
Air must be able to circulate freely around the appliance. Do not obstruct the front
air inlet or the air intake grilles at the back of the machine.
3. To keep vibration and noise within minimum level when the dryer is in use, it must
be placed on a firm and level surface.
Warning!

OPERATION
11
After Drying
Drying
Buzzer beep and " "on display.End
1 2 3 4 5
open the door and
take out laundry
pull out the
container
pour out
condensate water
clean the filter power off
Quick Start
Before using, make sure the tumble dryer is installed correctly.
Note!
1
plug in
2
load
3
close the door
start
on select program select function
or default
• If the socket with a switch is used, please press the switch to turn off the power
directly.
Note!
Before Drying

12
OPERATION
Before Each Drying
•
Put some clean rags into the drum.
Plug the power, press 【 】
Select the 【Refresh】 Programme, press 【 】 button
After finishing this programme, please follow the “cleaning and care ”
to clean the filter door.
• During drying, the compressor and the water will generate some noise
which is entirely normal.
Leave it to stand for 2 hours after transporting. Before first use, please use
the soft fabric to clean the inside drum.
.
1.
2. .
3. .
4.
Note!
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed
shortens the drying time and saves energy.
2.For even drying result, sort the laundry according to fabric type and select the
appropriate drying programme.
3.Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
4.Remove all objects from pockets such as lighters and matches.
5.Remove underwiring from bras.
6.Close duvet covers and pillow cases to prevent small items from being rolled up
inside them.
7.Leave jackets open and undo any long zips so that textiles dry evenly.
8.Do not over dry the clothes, because over dried clothes can easily get creases.
9.Do not dry the articles containing rubber or similar elastic materials.
10.Keep the area around the tumble dryer clean. Coal dust or flour may cause an
explosion.
11.The door can be opened only after the programme of the tumble dryer is finished
to avoid being scalded by hot steam or hot drum.
12.Clean the and empty water container after each use to
avoid extension of drying time and increase of energy consumption.
13.Do not dry clothes after dry-clean process.
Door filter and Base filter

13
OPERATION

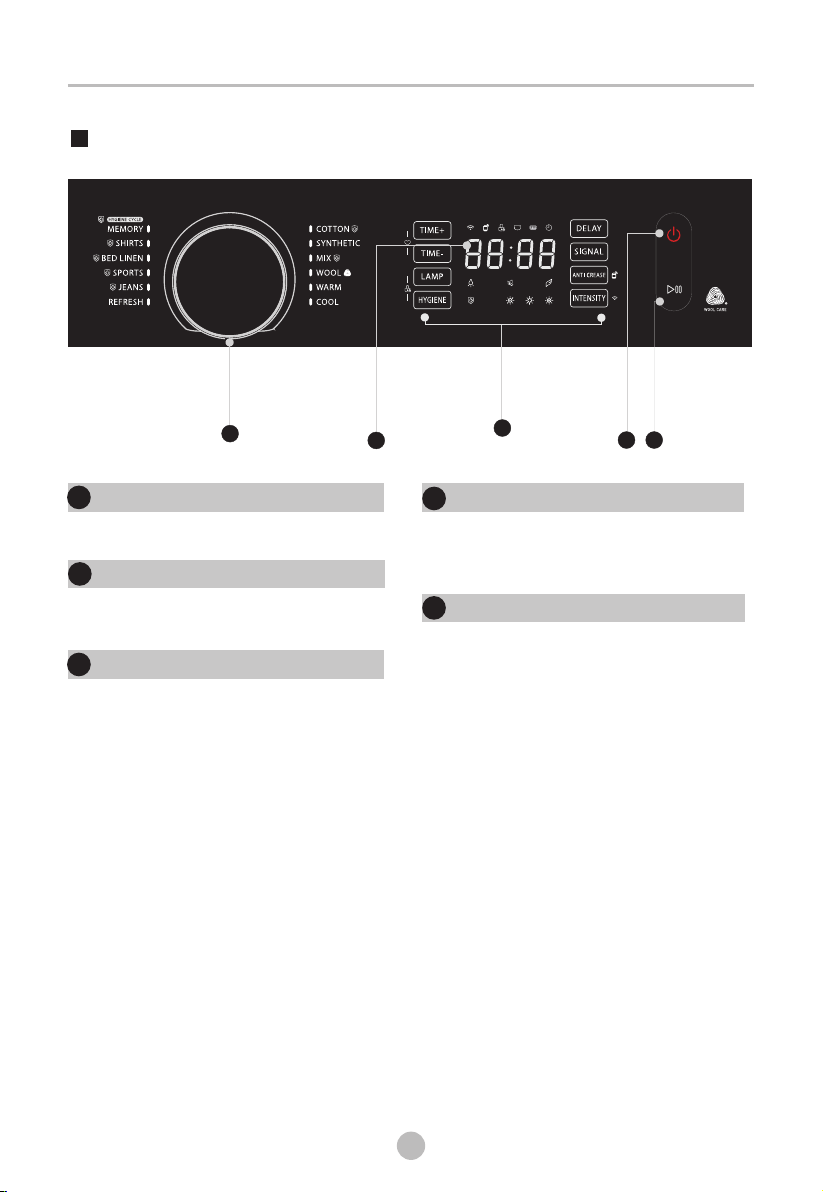

Control Panel
On/Off
Product is switched on or off.
1
1
Start/Pause
the button to start or pause the
drying cycle.
Press
1
2
Option
These buttons are used for setting
additional functions.
3
Display
The display shows the setting, estimated
program time remaining and status messages
of your dryer.
4
Programmes
Different drying cycles can be selected
according to the users need and the type of
laundry to be dried.
5
2
1
4
53

14
OPERATION
Do not put more load than rated.
• Do not dry dripping wet laundry. The dryer might get damaged
•
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
( 70g )cotton
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process : Dry under medium temparature.
Mild drying process: Dry under lower temparture.
Do not tumble dry: Articles unsuitable for drying in the tumbler.

15
OPERATION
Option
Time+ / Time-
When the【 Warm】 or 【Cool】 or 【Refresh】 programme is selected, the 【Time】
button can be used to adjust the drying time in 10 min. steps.
Delay
This function is used for delaying the start of the drying programme up to 24 hours.
When the delayed programme starts, the time starts to countdown on the display and
the delay icon blinks.
1.Load your laundry and make sure the machine door is closed.
2.Press the 【 】button,then use the programme selector knob to select
the desired programme.
3.You can additionally select the 【Anti-Crease】or【Signal】functions according to
your need.
4.Press the【Delay】 button.
5.Repeatedly to press the 【Delay】button to select the desired delay time.
6.After the 【 】 button is pressed, the Dryer is at the running condition.
The drying procedure will be automatically performed when the delay time is over.
7.If you press the【 】button again, the delay function will be paused.
8.If you want to cancel the “Delay” function, please press the 【 】button.
Delay
Time
Intensity
You can adjust the dryness level of the laundry by pressing the【Intensity】button.
There are four grades.
1.The intensity function can be activated only before the programme starts.
2.Press the【Intensity】button repeatedly to increase the drying grade.
3.Except the【Wool】,【Warm】,【Cool】,【Refresh】programme, all the other
programmes can be adjusted with the【Intensity】function.
Intensity
After selecting the program, you can choose the "Hygiene" function
according to your needs. Press 【Hygiene】 to select this function.
Press it again to cancel. After selecting the “Hygiene" function, the clothes
are sterilized during the drying process, making the clothes cleaner and
safer.
Use this function with caution for light, thin or delicate laundry.
Hygiene
Hygiene

16
OPERATION
Anti-Crease
Memory
Child Lock
Lamp
Signal
MEMORY
Used to define and save your favourite programme, which is used frequently.
1.Select the desired programme and other drying functions.
2.Press 【Time +】and 【Time -】 for 3 seconds until the beep sounds and the
desired programme has been saved.
3. Turn the programme selector to the【MEMORY】 position, then you can start
your favourite programme. If you want to change the【MEMORY】 settings, repeat
the steps (1) and (2).
Child Lock
1.This machine incorporates a special child safety lock, which can prevent children
from carelessly pressing buttons or making the faulty operation.
2.When the drying cycle is running, press the【LAMP】and【HYGIENE】buttons at
the same time for 3 seconds to start child lock function.
3.When child lock function is set, the display will show Child lock icon and all button
are deactivated, except【 】 button.
4. To deactivate the child lock function, the【LAMP】and【HYGIENE】buttons shall
be pressed at the same time for3 seconds.
Anti-Crease
At the end of the drying cycle, the anti-crease time is 30 minutes (default)
or 120 minutes (selected). This function prevents the laundry from creases.
The laundry can be removed during the anti-crease phase. Except
【Warm】,【Cool】,【Wool】and【Refresh】, all the other programmes
have this function.
Signal
Set the buzzer on or off. In default condition, the buzzer is on.
When the buzzer is on:
1.The dryer will affirm pressed function button by a sound.
2.If the programme knob is rotated during the dryer is running, the
buzzer will remind the user that this is an invalid operation.
3. When the drying programme is done, the buzzer will beep.
Lamp
The drum light will be on for 1 minutes when the button is pressed
or 1 minute when the door is open.

WiFi
Remote Control
This is the switch of remote control, if you want to use your smartphone to
control the machine remotely, you need to hold [ANTI CREASE] for 3 seconds.
Considering the safe operation of the machine, the smartphone
remote control should meet the following conditions:
1. The appliance should connect to the internet;
2. The door of drum should be closed.
Remark:
-. If the door is open in anytime, the remote control function will be failure.
-. The remote control function is turned off at the end of each cycle automatically,
if you want to use remote control function again, you need turn on it again.
Press INTENSITY 3 seconds to configure the network or reset the network. [ ] for
17
OPERATION

18
OPERATION
Delay
Child lock
Remaining Time indicator/Error message
Clean filters (warning)
Empty water container (warning)
Dryness level
Lamp
Signal
Display
Remote control
Wi-Fi
Hygiene
The wool drying cycle of this machine has been approved
The Woolmark Company for the drying of machine
dryable wool products provided that the products are
dried according to the instructions on the garment
label and those issued by the manufacturer of this
tumble dryer. M1716
by
Anti crease
Memory
“Cotton standard” is the recommended dryer program designed to minimize
energy consumption for normally soiled load at rated capacity.

19
OPERATION
Programme selector
1.When the LED display screen brightens up, rotate the programme knob to select the
desired programme.
2.Select the【Delay】,【Time】,【Intensity】,【Anti-Crease】or【Signal】
functions for additional options.
3.Press the【 】button.
4.Press the【 】button after the programme has comlpeted.
Programme start
Programme end
The drum will rotate after the programme starts. and the remaining programme time
will be displayed.
Programmes
1. The drum will stop rotating after the programme ends. The display will show "End" ,
The dryer will start【Anti-Crease】function if user doesn't take out the load.
Please press【 】button after unloading the tumble dryer to cut off power and
pull out the plug.
