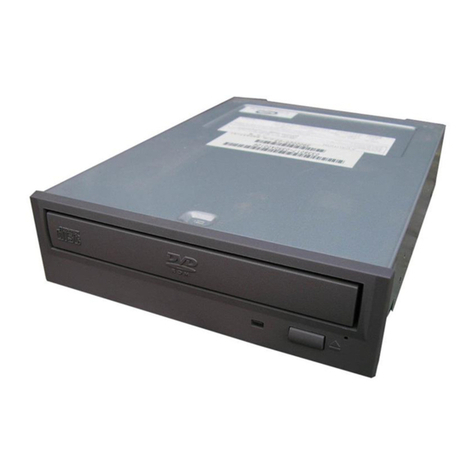

Toshiba SD-M1502 User manual

TOSHIBA AMERICA INFORMATION SYSTEMS
STORAGE DEVICE DIVISION
IRVINE, CALIFORNIA
SD-M1502
DVD-ROM DRIVE
USER MANUAL

CONTENTS
Introduction..............................................................................1
Setup ........................................................................................3
Using the DVD-ROM Drive ......................................................6
Troubleshooting.......................................................................8
Specifications ..........................................................................9
Drive Connectors...................................................................13

1
INTRODUCTION – SD-M1502 DVD-ROM Drive
General Features
Tray Loading Mechanism
3-way Disc Eject (eject button, software, emergency eject hole)
Average Random Access Time
CD-ROM 85ms
DVD 115ms
DAE (Digital Audio Extraction) Audio Capability
MPC3 Compatibility
Multi-Read Capability
Regionalization (RPC2 compliance) (DVD)
ATAPI BUS Interface
Drive Speed
DVD 16X Single Layer
10X Dual Layer
CD 48X
Types of Disc Formats Supported
DVD
•DVD-ROM
DVD-5 - Single-sided/Single Layer
DVD-9 - Single-sided/Dual Layer
DVD-10 - Double-sided/Single Layer
DVD-18 - Double-sided/Dual Layer
•DVD-R

CD
•CD-DA
•CD+(E)G
•CD-MIDI
•CD-TEXT
•CD-ROM
•CD-ROM-XA
•CD-I Bridge (Photo-CD, Video CD)
•CD-I
•Multi-session (Photo-CD, CD Extra, CD-RW, CD-R)
•CD-R (Read)
•CD-RW (Read)
Front Panel
Figure 1.SD-M1502 DVD-ROM Drive Front Panel
Loading Tray
Load disc using tray.
Busy Indicator When you install a disc into the DVD-ROM drive, the BUSY light flashes slowly as it
attempts to locate the disc. One of the following will occur:
•BUSY light goes out. The DVD-ROM drive is ready to read data from the disc.
•BUSY light flashes slowly. The disc may be dirty.
•BUSY light remains ON. The DVD-ROM is accessing data.
•BUSY light remains ON indefinitely. The DVD-ROM is experiencing an error
Eject
Button
The Eject button is used to open the disc tray so you can install or remove a disc.
Emergency
Eject Hole
The emergency eject hole is to be used only when the Loading Tray will not open when
Eject button is pressed.

3
SETUP – SD-M1502 DVD-ROM
The following steps must be performed to properly install your drive:
•Set Drive Jumper Settings
•Connect Audio Cable (optional)
•Attach IDE BUS Cable
•Attach Power Cable
•Mount Drive
Jumper Settings
The mode select jumpers are 6 straight angle pins located on the rear of the DVD-ROM drive.
By placing a jumper on the pins, you can select the following functions:
CS Drive is configured using host interface signal CSEL
SL Configures drive as Slave
MA Configures drive as Master (default mode)
Figure 1.Mode Select Jumper
In most installations, jumper should remain in the MA position (factory default). It is recommended that
you install your DVD-ROM drive only on the secondary IDE BUS. If you are installing on primary IDE
BUS, your hard drive would then be the Master, and you should set your DVD-ROM drive to the Slave
position (SL)
Figure 2.Jumper Locations

4
Placing DVD-ROM Drive inside your Computer
Now that you have set the jumpers, you are ready to install your DVD-ROM drive inside your computer.
Important Note: Disconnect power from your computer system before beginning installation.
Remove computer cover and faceplate if required. Refer to your computer systems manual for removal
information. If the DVD-ROM drive is replacing a CD-ROM or DVD-ROM, remove drive presently
installed in your system.
Your Toshiba DVD-ROM drive can be placed in any free half-height drive slot at the front of your
computer. (It can be mounted horizontally or vertically.)
Carefully start sliding the DVD-ROM drive into the opening with the disc tray facing the front of the
computer. Before you push the drive all the way in you will need to connect the IDE BUS cable, Audio
cable and the Power cable on the back of the drive.
Connecting Cables
IDE BUS Cable (not supplied with drive) - Your computer system should have a primary and secondary
IDE BUS, cable with your Hard Drive most likely being the Master on the primary BUS. Connect BUS
cable as follows, assuring that pin 1 of cable (side with red stripe) is connected to pin 1 of the DVD-ROM
drive's interface connector:
If you are replacing your CD-ROM or DVD:
connect DVD-ROM drive to the BUS Cable connector
that the CD-ROM or DVD was connected to.
If DVD-ROM drive is not replacing a CD-ROM/DVD or is
an addition to a CD-ROM/DVD:
connect DVD-ROM drive to an open connector on the
secondary IDE BUS cable (not supplied with drive).
If DVD-ROM drive is to be slave on Primary BUS:
connect DVD-ROM drive to open connector on the
primary IDE BUS cable (not supplied with drive).
Figure 3.Installing BUS Cable
Power Cable - Connect an internal computer power
supply cable to the power socket at the back of the
DVD-ROM drive. One side of the plug has chamfered
edges, so the power connector fits only one way. Push
plug completely into the socket making sure the plug fits
correctly.
Figure 4.Installing Power Cable

5
Audio Cable (optional) - If you have a sound card and
speakers, and would like to play audio CDs on your
computer, you will need to install a CD/DVD audio cable.
Toshiba's DVD-ROM drives use a standard 4-pin audio
cable that can be purchased from most local computer
suppliers. The sound cable connects to your sound card
at one end and the other end connects to the digital
audio connector at the left rear of the DVD-ROM drive
(see DVD-ROM drive Back Panel photo for location).
Refer to the instructions that came with your sound card
for details on any sound-driver software required.
Figure 5.Installing Audio Cable
Completing Installation
After you have connected all the necessary cables,
push the DVD-ROM drive completely into the
computers drive slot. Mount drive per your computers
instructions. The screw length should not exceed
30.5mm (measured from outside surface of side or
bottom of drive to tip of screw). Replace computer
cover and all outer screws.
Figure 6.Mounting Illustration
Software Driver - Toshiba's optical drives do not require any unique device drivers for Windows
'95/'98/2000/Me/XP/NT. After installing your drive and re-booting, your system should recognize your
drive. Windows '95/'98/2000/Me/XP/NT Operating Systems support all Toshiba optical drives natively If
you prefer using DOS, download the DOS ATAPI driver from our web site.

6
USING THE DVD DVD-ROM Drive – SD-M1502
Drive Operation
Inserting a Disc - Horizontally
To insert a disc into a drive that is mounted horizontally, perform the following steps:
Figure 1.Inserting Disc
1. Open the drive's Loading tray by pressing the Eject Button.
2. Place disc into drive's Loading tray
3. Press Eject button again or gently push on the open disc tray. Tray will automatically close.
Inserting a Disc - Vertically
To insert a disc in a drive that is mounted vertically, perform the following steps:
1. Locate sliding disc holders (4 locations) on drive's Loading Tray.
2. Position the disc behind the disc holders
3. Close the drive by gently pushing in the tray or pressing the eject button.
Figure 2.Inserting Disc Vertically
Removing a Disc
To remove a disc from the DVD-ROM drive, perform the following steps:
1. Open the Loading Tray by pressing the Eject Button.
2. Grasp disc by edges, and lift out of loading tray.
3. Press Eject Button again to close Loading Tray.

7
Usage Guidelines
•Keep the disc tray closed when not using the DVD-ROM Drive.
•Do not press down on the disc tray when opening or closing it.
•Do not place objects on the disc tray.
•Never use a damaged, broken, or deformed disc.
•Do not press the Open/Close button while the drive is playing a DVD movie or accessing a disc.
To stop a DVD movie, click Stop button in the DVD player application program.
NOTE: High-speed drives spin the disc at a high rotational speed. If a disc has printing on only half of the
disc, or if there is a slight imbalance in the disc, the imbalance is greatly magnified by the high speed,
causing the drive to vibrate or produce a fan-like noise. These effects are inherent in the high-speed
technology and do not indicate a problem with the drive.
Emergency Ejection
CAUTION: The following procedure is intended only as a last resort when pressing the
eject button fails to open the Loading Tray
1. Turn computer power OFF by properly shutting down system.
2. Insert a solid bar (i.e. large paper clip) into Emergency Eject hole and push as shown in the
picture below
3. DVD tray will open/eject.
Figure 3.Using Emergency Eject
This procedure cannot be repeated without cycling the DVD-ROMs (computer's) power.
After the media is removed and the loading tray is closed, the tray will not reopen without first turning the
power ON/OFF.
NOTE: Use a bar that is less than 1.5 mm in diameter. Do not insert more than 50mm in depth.
Inserting more than 50mm may damage the DVD-ROM drive.
Handling Media
DVD media is sensitive to dust and fingerprints. Carefully handle media by its edges only. If a DVD
movie skips or hangs during playback, clean the media. Most DVD video playback issues are media-
related and can be remedied by proper handling and care of media.
Cleaning Media
Try to avoid touching the read area (underside) of the disc as dirt and smears will degrade the disc
accessing speed.
If the disc becomes dirty wipe it with a damp soft cloth. Avoid cleaning in a circular motion, but rather
from the inner side outward.

8
TROUBLESHOOTING – SD-M1502
Problem Solution
Disc tray cannot be opened •Check that there is power to drive.
•Use Emergency Eject instructions to open tray.
Drive is not recognized by system •Is the drive connected properly? Are all cables plugged in properly (e.g.
Power Cable, Interface Cable and Audio Cables).
•Are the drive configuration jumpers on the DVD-ROM drive set
properly?
•Is the software driver loaded? On a step-by-step (F8) Boot of the
system is the DVD-ROM drive recognized?
(BIOS / DOS reports "device driver not found" or "no valid drivers
selected.). If not, Contact Technical Support.
•Has the DVD-ROM drive software driver been corrupted by a virus. Run
a Virus Scan program and repair if possible. Contact Technical Support
if the Virus renders the DVD-ROM drive software drivers not useable.
Drive is not recognized by system
during Boot process, but is
recognized by the Operating
System (i.e. XP, Win2000, Win98,
Win NT, etc.)
•Is the DVD-ROM drive software driver loaded? On a step-by-step (F8)
Boot of the system is the DVD-ROM drive recognized?
(BIOS / DOS reports "device driver not found or no valid DVD drivers
selected.). If not, Contact Technical Support.
•Has the Windows DVD-ROM drive software driver program been
corrupted by a virus. Run a Virus Scan program and repair if possible.
Contact Technical Support if the Virus renders the software drivers not
useable.
BUSY Indicator LED flashes
slowly
•The disc may be dirty Clean it with a soft damp cloth. Avoid cleaning the
disc using a circular motion. The disc should be wiped in a radial
direction. That is, from the inner side outward.
•The laser lens may have become cloudy or blocked by particulate
matter. Please contact Technical Support.
BUSY Indicator LED is constantly
ON
•Possible Hardware Problem. Please contact Technical Support.
DVD-ROM can not play a DVD in
the drive or certain types of CD
media (i.e. CD-plus, etc.)
•Is the DVD-ROM drive driver loaded
•Is the DVD disc the correct format for the type of system that you are
using? (i.e. on a PC an ISO9660 IBM compatible PC format as opposed
to Apple/Mac HFS disc or UNIX disc formats which will not function).
•Do you have the correct software applications program/drivers installed
to run a DVD disc?
•Has the Windows DVD-ROM drive software driver program been
corrupted by a virus. Run a Virus Scan program and repair if possible.
Contact Technical Support if the Virus renders the software drivers not
useable.

9
SPECIFICATIONS – SD-M1502
General
Interface ATAPI
Compatible DVD-ROM Standards
DVD DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18)
DVD (Read)
CD CD-DA
CD-ROM
CD-I Bridge (Photo-CD, Video CD)
Multi-session (Photo-CD, CD Extra, CD-RW, CD-R)
CD-MINI
CD-TEXT
CD+(E)G
CD-ROM-XA
CD-I
CD-R (Read)
CD-RW (Read)
Storage Capacities
DVD 4.377GB (DVD-5)
7.959GB (DVD-9)
8.754GB (DVD-10)
15.917GB (DVD-18)
CD 656.5MB (mode 1)
748.8MB (mode 2)
Performance
Rotational Speed
DVD-ROM
(6.0X - 16X) single layer 9,200rpm
(4.1X - 10X) dual layer 6,300rpm
DVD-R (2X) 1,100 – 2,800rpm
CD-ROM, CD-R (20.7 - 48X) 9,500rpm
CD-RW (8.6 - 20X) 4,300rpm
CD Audio/Video CD (4X – 5.7X) 1,200 – 2,000rpm

10
Data Transfer Rate
DVD (Single) 8,910 - 21,600 KBytes/s
CD (mode 1) 3,105 – 7,200 KBytes/s
CD-(mode 2) 3,541 – 8,212 KBytes/s
Burst Rate 16.7 Mbyte/s (PIO Mode 4)
16.7 Mbyte/s (multiple word DMA transfer mode 2)
33.3 MByte/s (Ultra DMA)
Random Access Time
CD 95ms
DVD 115ms
Data Error Rate
DVD 10-15 Max
CD 10-15 Max (Mode 1)
10-12 Max (Mode 2)
Spin-up Time
DVD 1.5s Typ
CD 1.4s Typ
Data Buffer 128Kbytes
Reliability
MTBF 100,000 hours
Power ON Hours 5,436 hours/year
ON/OFF Cycles 313 cycles/yea
Number of Access 600,000 accesses/year
Operating Duty Cycle 20% of Power ON time (Reading/Seeking)
MTTR 0.5 hours
Audio
Number of Channels 2
Frequency Response 20Hz to 20,000 Hz
Distortion -80 dB (at 1kHz JIS A-weighted)
Output Levels
Headphone 0.97V (rms Typ)
Analog Line Out 0.86 V (rms Typ)
Digital Line Out 0.65 V (p-p)

11
Environmental
Ambient Temperature
Operating 5° to 50° C (41° to 122° F)
Storage -10° to 60° C (-14° to 140° F)
Shipping -40° to 65° C (-40° to 149° F)
Temperature Gradient
Operating 11° C/hour (max)
Storage/Shipping 20° C/hour (max)
Relative Humidity
Operating 8% to 85%
Storage/Shipping 5% to 95% (wet bulb 27°C max)
Vibration
Operating no hard error: 10 to 500 Hz 2.45 m/s2[0.25G] (O-P) (excludes
resonance point)
Non-operating no damage: 5 - 10Hz 5mm (P-P)
10 - 500Hz 9.8m/s2[1G] (O-P)
Shock (Non-operating) 490 m/s2[50G] (Half sine wave 11ms)
Acoustical Noise 45dB (IEC 179 A-weighted at 1m)
Power
DC Voltage and Current Requirements 5V ±5%, 12V ±5%
+5V +12V
Sleep
Standby
Idle
Random Access (average)
280mA
300mA
580mA (DVD)
600mA (CD)
930mA (DVD)
850mA (CD)
0mA
0mA
50mA (DVD)
50mA (CD)
710mA (DVD)
870mA (CD)
Physical
Height 5.75" (146mm)
Width 1.6" (41.5mm)
Depth 7.6" (193mm)
Weight 2.14lbs (.97kg)
Connectors
DC input AMP 1-480424-0
IDE Interface Connector 40 Pin ATAPI Standard
Analog Audio Line Output Connector 4 Pin ATAPI Standard (70066 Series, C Version)
Digital Audio Line Output Connector 4 Pin ATAPI Standard (70066 Series, C Version)

12
Lasers
CD Laser
Type Semiconductor Laser and 3-beam System
Wave Length 770 - 795 nm
DVD Laser
Type Semiconductor Laser and 1-beam System
Wave Length 770 - 650 nm
Regulatory
The SD-M1502 DVD-ROM drive has been certified by the following regulatory agencies:
•UL 1950
•CSA C22.2 No. 950
•TUV (EN60950I)
•CE standard
•CB
•DHHS 21 CFR Sub-Chapter J

13
DRIVE CONNECTORS –SD-M1502
Figure 1.SD-M1502 DVD-ROM Drive Rear Panel - Connectors
Power
Connector
Power is supplied to your DVD-ROM drive by the connection with your computer's
+5V/+12V power cable to the power socket at the back of drive. One side of the plug has
chamfered edges, so the power connector fits only one way
CAUTION: Severe damage to the Drive circuits may occur if power cable is plugged in
upside-down with power ON.
Audio
Connectors
Supplies Analog and Digital sound to your system
ATAPI
Connector
The SD-M1502 DVD drive is connected to your computer system through the ATAPI
connector.

14
Table 1.Interface Pin Assignments
INTERFACE PIN ASSIGNMENT
PIN
NO.
I/O SIGNAL
NAME
HOST SIGNAL NAME PIN
NO.
I/O SIGNAL
NAME
HOST SIGNAL NAME
1 I Reset Host Reset 21 O HDRQ DMA Request
2 - GND 22 - GND
3 I/O HD7 Host Data Bus BIT 7 23 I HWR-,STOP Host I/O Write
4 I/O HD8 Host Data Bus BIT 8 24 - GND
5 I/O HD6 Host Data Bus BIT 6 25 I HRD-,
HDMARDY, -
HSTROBE
Host I/O Read
6 I/O HD9 Host Data Bus BIT 9 26 - GND
7 I/O HD5 Host Data Bus BIT 5 27 O IORDY,
DDMARDY,-
DSTROBE
I/O Channel Ready
8 I/O HD10 Host Data Bus Bit 10 28 - CSEL Cable Select
9 I/O HD4 Host Data Bus BIT 4 29 I HDAK- DMA Acknowledge
10 I/O HD11 Host Data Bus BIT 11 30 - GND
11 I/O HD3 Host Data Bus BIT 3 31 O INTRQ Host Interrupt Request
12 I/O HD12 Host Data Bus BIT 12 32 O IOCS16- Host 16 BIT I/O
13 I/O HD2 Host Data Bus BIT 2 33 I HA1 Host Address Bus BIT 1
14 I/O HD13 Host Data Bus BIT 13 34 I/O PDIAG- Passed Diagnostics
15 I/O HD1 Host Data Bus BIT 1 35 I HA0 Host Address Bus BIT 0
16 I/O HD14 Host Data Bus BIT 14 36 I HA2 Host Address Bus BIT 2
17 I/O HD0 Host Data Bus BIT 0 37 I HCS1 Host CHIP Select 0
18 I/O HD15 Host Data Bus BIT 15 38 I HCS3 Host CHIP Select 1
19 - GND 39 I/O DASP- Drive Active/Drive 1
Present
20 - (KEYPIN) 40 - GND
