Toshiba M640-ST2N02 User manual

This product specification is variable and subject to change prior to product launch.
© Copyright 2010 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite M640-ST2N02 Page 1 of 4
Satellite M640 Detailed Product Specification1
Model Name: M640-ST2N02 Part Number: PSMPBU-03E01S UPC: 883974598168
Operating System C1 2
 Genuine Windows® 7 Home Premium 64-bit
Processor3and Graphics4
 Intel ® Core™ i5-460M Processor
o 2.53 GHz (2.80 GHz with Turbo Boost Technology), 3MB Cache
 Mobile Intel® HM55 Express Chipset
 Mobile Intel® HD Graphics with 64MB – 1696MB dynamically allocated
shared graphics memory
Memory5
 Configured with 4GB DDR3 (max 8GB)
 2 memory slots accessible from the bottom. Both slots occupied
Storage Drive6
 500GB (5400 RPM); Serial ATA hard disk drive
 TOSHIBA Hard Drive Impact Sensor (3D sensor)
Fixed Optical Disk Drive7
 DVD SuperMulti drive with Labelflash® supporting 11 formats
o Maximum Read speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (24x), DVD-ROM (8x), DVD-R (8x), DVD-R DL
(6x), DVD-RW (8x), DVD+R (8x), DVD+R DL (6x), DVD+RW
(8x), DVD-RAM (5x)
o Supports Labelflash® media to burn high quality labels directly on
the disc.
Display8
 14.0” diagonal widescreen HD TruBrite® TFT LCD display at 1366x768
native resolution
o Native support for 720p content
o 16:9 aspect ratio
o LED backlit
 Intel Wireless Display Technology
Sound
 Built-in harman/kardon® stereo speakers
 DOLB Y® Advanced Audio™
Input Devices
 Premium Raised Tile backlit Keyboard (black)
 TouchPad™ pointing device with multi-touch control
 TouchPad™ Enable/Disable
 Media Control Buttons:
o TOSHIBA eco utility™ (Energy-saving mode)
o Wireless On/Off
o Illumination On/Off
o CD/DVD control buttons
o Mute
o Volume up
o Volume down
Communications
 Webcam and microphone
 10/100 Ethernet
 Wi-Fi® Wireless networking (802.11b/g/n)9
Expandability
 ExpressCar d™ slot
 Memory Card Reader
o Secure Digital, Secure Digital High Capacity, Memory Stick™,
Memory Stick PRO™, xD Picture Card, Mini SD Card, SDXC,
Multi Media Card [shared slot may require adapter for use]
Ports
 Video
o RGB
o HDMI
 Audio
o Microphone input port with Sleep and Music10
o Headphone output port
 Data
o 3 USB v2.0 ports (2 USB + 1 eSATA/USB combo with USB
Sleep and Charge11)
o RJ-45 LAN port
 Securit y
o Slot for security lock
Physical Description
 Fus ion® X2 Finish in Charcoal
 Dimensions (W x D x H Front/H Rear): 13.3” x 9.0” x 1.12”/1.39” without
feet
 Weight:Starting at 5.4 lbs. depending upon configuration 12
Power
 65W (19V 3.42A) 100-240V/50-60Hz AC Adapter.
o Dimensions (W x H x D): 4.2” x 1.85” x 1.20”
o Weight: starting at 0.55 lbs.
Battery13
 6 cell/48Wh Lithium Ion battery pack
 Battery Life Rating (measured by MobileMark™ Productivity 2007)
Included 6 cell battery: 5 hours, 3 minutes
Software C1 14
 Toshiba Software and Utilities
o TOSHIBA App PlaceSM
o TO SHIBA Assist
o TOSHIBA BookPlace™
o TOSHIBA Bulletin Board
o TOSHIBA Disc Creator
o T OSHIBA eco Utility™
o TOSHIBA Face Recognition
o TOSHIBA HDD/SSD Alert
o TOSHIBA HW Setup Utility
o TOSHIBA Laptop Checkup
o TOSHIBA Media Controller15
o TOSHIBA Password Utility
o TOSHIBA PC Health Monitor
o TOSHIBA Recovery Disc Creator
o TO SHIBA ReelTime
o TOSHIBA Service Station
o TOSHIBA Supervisor Password Utility
o TOSHIBA Value Added Package
o TOSHIBA Web Camera Application
 Third-pa rty Software
o Adobe ® Acrobat® Reader
o Corel Label@Once
o Google ® Toolbar
o Google ® Chrome
o Internet Explorer 8
o Microsoft ® Office Starter 201016
o Microsoft ® Windows Media Player 12
o Microsoft ® Silverlight™
o Microsoft ® Live Essentials
 Photo Gallery
 Messenger
 Mail
 Wr iter
 Movie Maker
o WildTangent ® Games Console
 Special Offers and Trial Software
o Intuit ® Quickbooks® Financial Center
o KidZui™, The Internet for Kids
o NetZer o® Internet Service
o Norton Internet Security™ 2011 (30-day trial subscription)
o Sky pe®
o Toshiba Online Backup (30-day trial subscription)
Environmental Specifications
 This product is RoHS17 compatible
This product specification is variable and subject to change prior to product launch.
© Copyright 2010 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite M640-ST2N02 Page 2 of 4
 Energ y Star Qualified
 EPEAT™ Gold Compliant
Operating Non-operating
Temperature
18
5° to 35° C -20° to 60° C
Thermal Gradient 15° C per hour (max) 20° C per hour
Relative Humidity
(non-condensing)
20% to 80% 10% to 90%
Altitude
(relative to sea level)
0 to 3,000 metres 0 to 10,000 metres
Shock 10G 60G
Vibration 0.5G 1.0G
1 YEAR STANDARD LIMITED WARRANTY19
 Includes International Limited Warranty for obtaining service when
traveling outside the United States.
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard®,
On-Site Repair, and ServiceExpress to provide additional support to your
notebook PC. For a full description and complete list of programs and
program terms and conditions, please visit www.pcsupport.toshiba.com.
Accessories
For additional and most updated accessories, please visit
www.accessories.toshiba.com
Memory Upgrade
Part Number Description
PA3677U-1M4G Toshiba 4GB DDR3-1066 memory module
Power
Part Number Description
PA3717U-1ACA Toshiba 120W Global AC Adapter
PA3818U-1BRS Toshiba Primary Li Ion Battery Pack(6 cell)
PA3819U-1BRS Toshiba Primary High Capacity Li Ion Battery Pack (12
cell)
Expansion
Part Number Description
PA3778U-1PRP dynadock V USB Docking Station with DVI/VGA port
PA3575U-1PRP dynadock U USB Docking Station with DVI/VGA port
PA3686U-1SET dynadock Wireless U Docking Station with Wireless
USB Adapter
Carrying Case
Part Number Description
PA1445U-1CS4 Toshiba 14” Envoy Series Ballistic Polyester Carrying
Case (Fits up to 14.1”)
PA1457U-1CL4 Toshiba 14” Envoy Leather Carrying Case(Fits up to
14.1”)
Bluetooth
Part Number Description
PA3710U-1BTM Toshiba Bluetooth 2.1+EDR USB Nano Adapter
Storage
Part Number Description
PA3556U-1M2G Toshiba 2GB USB Hi-Speed Flash Drive, ReadyBoost
PA3556U-1M4G Toshiba 4GB USB Hi-Speed Flash Drive, ReadyBoost
PA3556U-1M8G Toshiba 8GB USB Hi-Speed Flash Drive, ReadyBoost
E05A050CAU2XK Toshiba 500GB USB 2.0 Port Hard Drive, Raven Black
E05A075CAU2XL Toshiba 750GB USB 2.0 Port Hard Drive, Liquid Blue
E05A100PBU2XY Toshiba 1TB USB 2.0 Port Hard Drive, Satin Silver
Subject to Change
While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications,
configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your
computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at http://www.pcsupport.toshiba.com
Return Policy
Notwithstanding anything to the contrary in any third party License Agreement or product documentation supplied with your PC, Toshiba America Information
Systems, Inc. (“TAIS”) does not accept the return of component parts, or bundled software, that have been removed from the PC system. Pro-rata refunds on
individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the
TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures.
Toshiba America Information Systems, Incorporated (“TAIS”)
9740 Irvine Boulevard
Irvine CA 92618
ToshibaDirect website: http://www.toshibadirect.com
TAIS website for resellers: http://sell.toshiba.com
TAIS PC Support website: http://pcsupport.toshiba.com
Qosmio, Satellite, Portégé, Tecra, SelectBay, ConfigFree, SystemGuard, EasyGuard are registered trademarks of Toshiba America Information Systems, Inc.
and/or Toshiba Corporation. All other products and names mentioned are the property of their respective owners.
C164-bit computing:
64-bit computing requires that the following hardware and software requirements are met:
- 64-bit Operating System
- 64-bit CPU, Chipset and BIOS (Basic Input/Output System)
- 64-bit Device drivers
- 64-bit applications
Certain device drivers and/or applications may not be compatible with a 64-bit CPU and therefore may not function properly. See "Detailed Specs" for more information.
1 Product Series Legal Footnote. The product specifications and configuration information are designed for a product Series. Your particular model may
not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model,
please visit Toshiba's Web site at pcsupport.toshiba.com.
This product specification is variable and subject to change prior to product launch.
© Copyright 2010 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite M640-ST2N02 Page 3 of 4
Product Offering Legal Footnote. Toshiba America Information Systems, Inc. reserves the right to modify or withdraw this offer at anytime without notice
2 Operating System.
Also see 64-Bit Computing Legal Footnote, if applicable.
Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE
PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed
during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll
charges may apply).
Some software may differ from its retail version (if available), and may not include user manuals or all program functionality.
Offers. Offer terms, duration and product availability all subject to change without notice
3 Processor (Central Processing Unit). Also see 64-Bit Computing Legal Footnote, if applicable.
CPU performance in your computer product may vary from specifications under the following conditions:
1. use of certain external peripheral products
2. use of battery power instead of AC power
3. use of certain multimedia, computer generated graphics or video applications
4. use of standard telephone lines or low speed network connections
5. use of complex modeling software, such as high end computer aided design applications
6. use of several applications or functionalities simultaneously
7. use of computer in areas with low air pressure (high altitude >1,000 meters or >3,280 feet above sea level)
8. use of computer at temperatures outside the range of 5°C to 30°C (41°F to 86° F) or >25°C (77°F) at high altitude (all temperature references are
approximate and may vary depending on the specific computer model – please visit the Toshiba website at www.pcsupport.toshiba.com for details).
CPU performance may also vary from specifications due to design configuration.
Under some conditions, your computer product may automatically shut-down. This is a normal protective feature designed to reduce the risk of lost data or damage to the product
when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. Use your
computer product only under recommended conditions. Read additional restrictions under “Environmental Conditions” in your product “Detailed Specs.” Contact Toshiba Technical
Service and Support for more information.
4 Graphics (Graphics Processing Unit). GPU performance may vary depending on product model, design configuration, applications, power management settings and features
utilized. GPU performance is only optimized when operating in AC power mode and may decrease considerably when operating in battery power mode.
Total Available Graphics Memory is the total of, as applicable, Dedicated Video Memory, System Video Memory and Shared System Memory. Shared System Memory will vary
depending on system memory size and other factors.
5 Memory (Main System). Part of the main system memory may be used by the graphics system for graphics performance and therefore reduce the amount of main system
memory available for other computing activities. The amount of main system memory allocated to support graphics may vary depending on the graphics system, applications
utilized, system memory size and other factors. Computers configured with a 32-bit operating system can address up to 3GB of system memory. Only computers configured with a
64-bit operating system can address 4 GB or more of system memory.
6 Storage Drive
Computer (Internal) HDD Capacity. One Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity
using powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer
includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity
may vary.
7 Optical Drive. Due to manufacturing and quality variations in third party optical media (e.g., CD or DVD) or optical media players/recorders, in certain cases, your Toshiba optical
drive may not record on certain optical media that bear the applicable logo, or playback optical media recorded by other PCs or optical media recorders. Additionally, certain optical
media recorded on your optical drive may not playback or operate properly on other PCs or optical media players. These problems are not due to any defect in your Toshiba PC or
optical drive. Please refer to your PC's product specification for listing of specific format compatibilities.
Recording or viewing of certain optical media may be limited or prevented in accordance with applicable copy protection standards.
8 Display. Small bright dots may appear on your screen display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is
manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a
period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology.
When the computer is operated on battery power, the screen with dim and you may not be able to increase the brightness of the screen while on battery power.
9 Wireless-N. The wireless adapter is based on a draft release version of the IEEE 802.11n specification, and may not be compatible with, or support all features (e.g., security) of,
certain Wi-Fi® equipment.
10 Sleep & Music: In this mode, the headphone jack and mute functions are disabled. The volume and sound quality will diminish as the speakers not tuned in Windows®
mode. Use the volume control on your audio device to adjust sound. Audio line-in cable is not included
11 USB Sleep & Charge. The "USB Sleep & Charge function" may not work with certain external devices even if they are compliant with the USB specification. In those cases, turn
the power of the computer ON to charge the device.
12 Weight. Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected.
This product specification is variable and subject to change prior to product launch.
© Copyright 2010 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite M640-ST2N02 Page 4 of 4
13 Battery Life Rating. Measured by MobileMark® 2007. MobileMark is a trademark of the Business Applications Performance Corporation. Rating based on either MobileMark
Productivity 2007 modeling a user performing common mobile office activities or Reader 2007 modeling a user reading documents. See “Detailed Specifications” for test used.
Details of MobileMark 2007 testing are available at www.bapco.com.Rating is for comparison purposes only, and does not indicate the battery life that will be obtained by any
individual user. Actual battery life may vary considerably from specifications depending on product model, configuration, applications, power management settings and features
utilized, as well as the natural performance variations produced by the design of individual components. The battery life rating is only achieved on the select models and
configurations tested by Toshiba under the specific test settings at the time of publication and is not an estimate of a system’s battery life under any conditions other than the
specific test settings. After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries.
14 Software. Some software may differ from its retail version (if available), and may not include user manuals or all program functionality.
Certain Microsoft® software products (including Microsoft Office Small Business Accounting if applicable) included with this computer may use technological measures for copy
protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION
PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software
products or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply).
Internet access is required to enable certain functionality of certain Microsoft products(including Microsoft Office Small Business Accounting 2006) which may be included with this computer.
Includes Microsoft® Office 2010 preloaded. Purchase a Product Key to activate a full Microsoft Office 2010 suite.
15 Toshiba Media Controller. Copy protection technology, if any, associated with the content may prevent or limit sharing of content.
16 Microsoft Office Starter 2010. Office Starter consists of reduced-functionality versions of Word and Excel with advertising. PowerPoint, Outlook, OneNote, Access and
Publisher are not included.
17 RoHS. This notebook is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment
(RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its notebook component suppliers to meet RoHS requirements
and verifies its suppliers' commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process.
18 Temperature (Environmental) Conditions. All temperature references are approximate and the performance of your computer may vary from specifications even when
operating within the recommended temperature range.
19 Warranty: The terms and conditions of Toshiba’s standard limited warranty are available at www.warranty.toshiba.com.

Other Toshiba Laptop manuals

Toshiba Z30 User manual

Toshiba

Toshiba Z30 User manual

Toshiba 5205-S5151 User manual

Toshiba

Toshiba 5205-S5151 User manual

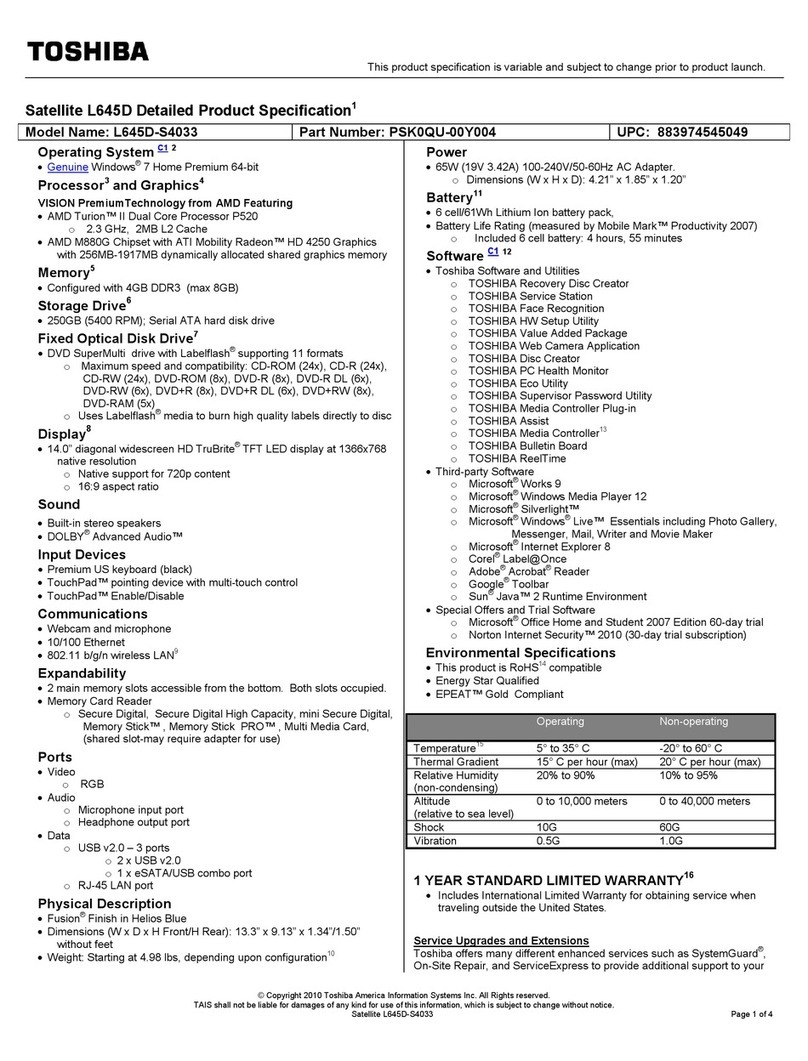

Toshiba L645D-S4033 User manual

Toshiba

Toshiba L645D-S4033 User manual

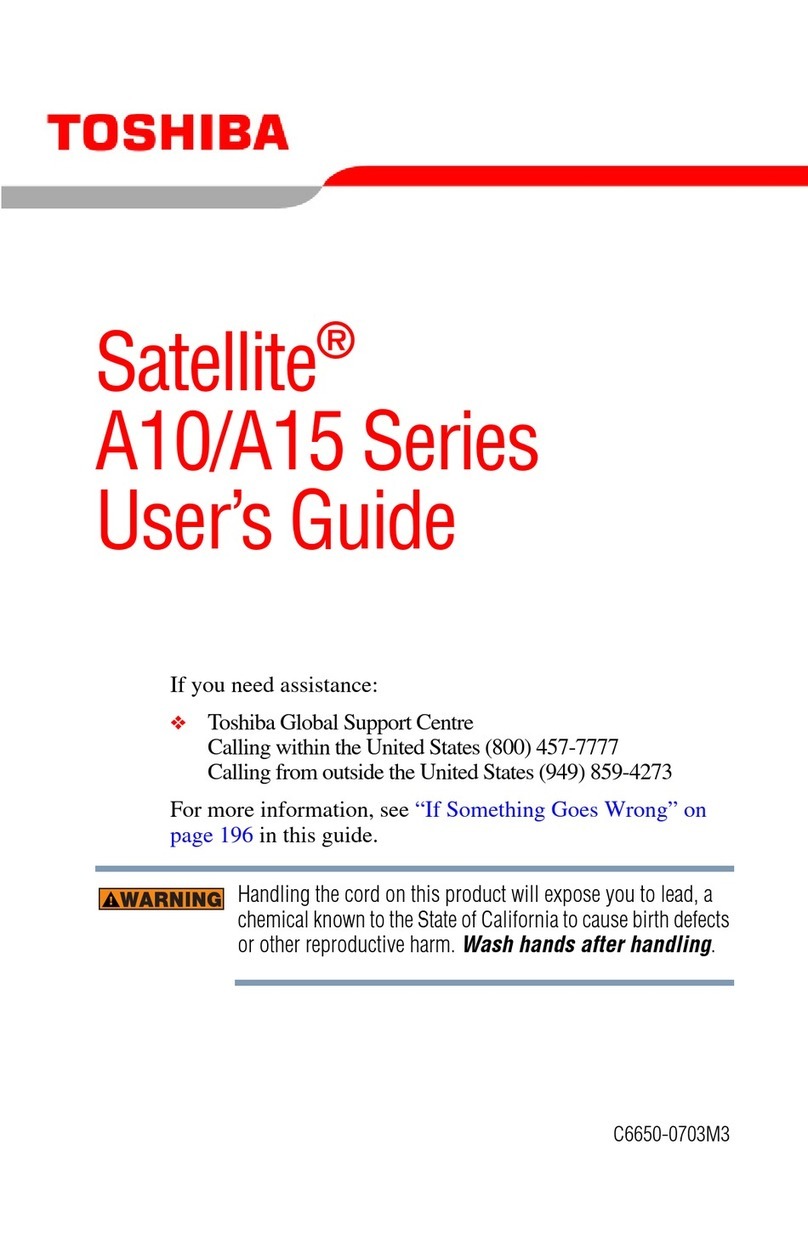

Toshiba A10-S100 User manual

Toshiba

Toshiba A10-S100 User manual

Toshiba L300-EZ1501 User manual

Toshiba

Toshiba L300-EZ1501 User manual

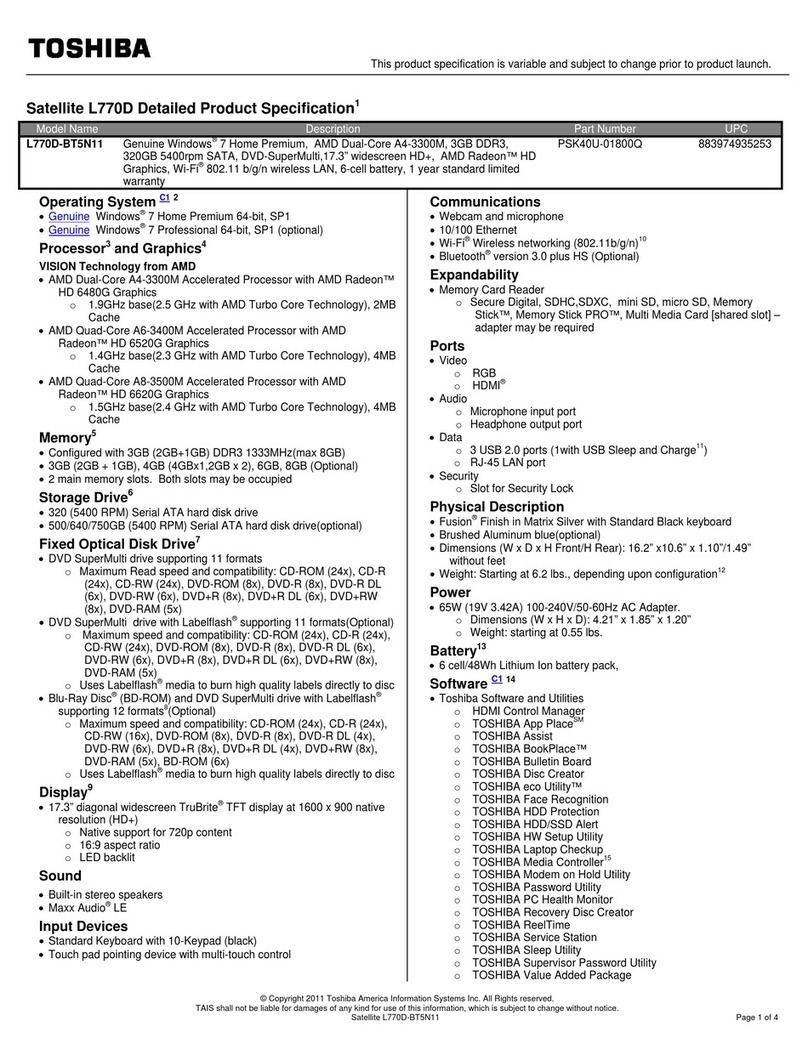

Toshiba Satellite L770D User manual

Toshiba

Toshiba Satellite L770D User manual

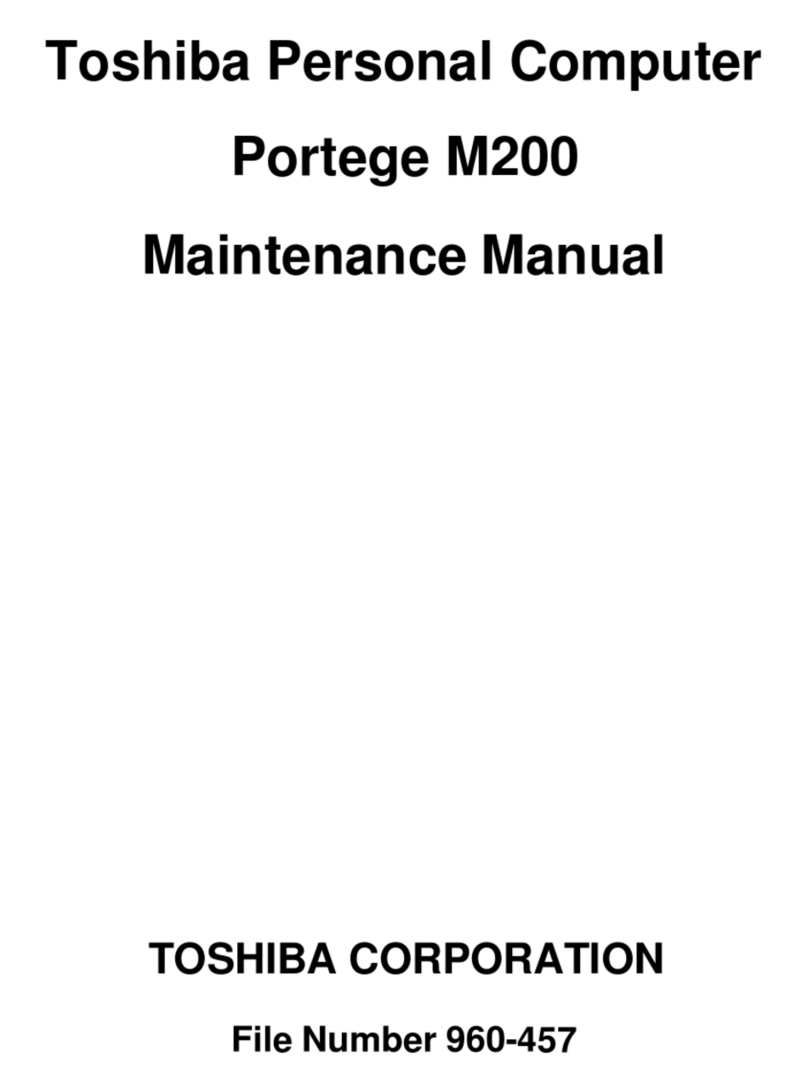

Toshiba M200 - Portege - Pentium M 1.5 GHz User manual

Toshiba

Toshiba M200 - Portege - Pentium M 1.5 GHz User manual

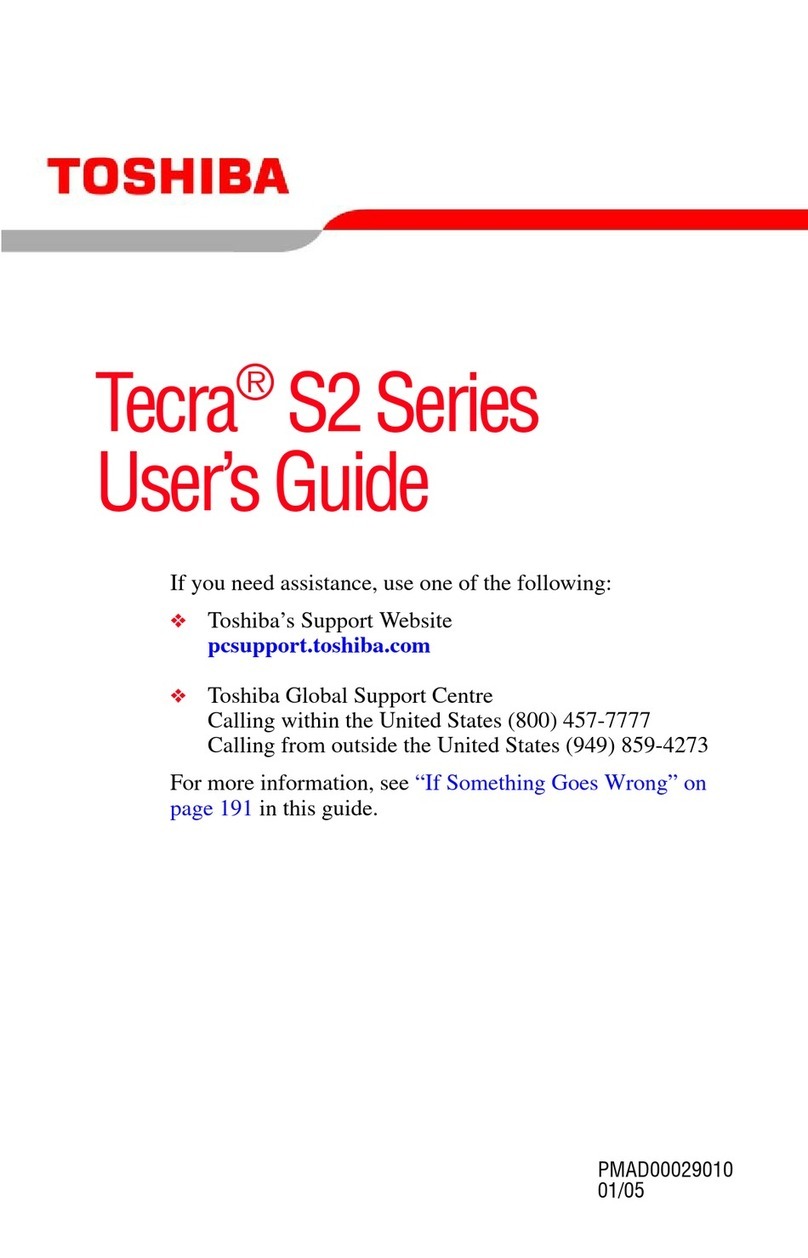

Toshiba Tecra S2 User manual

Toshiba

Toshiba Tecra S2 User manual

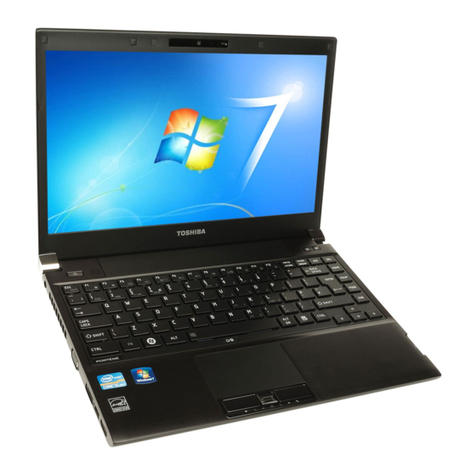

Toshiba Portege R830 User manual

Toshiba

Toshiba Portege R830 User manual

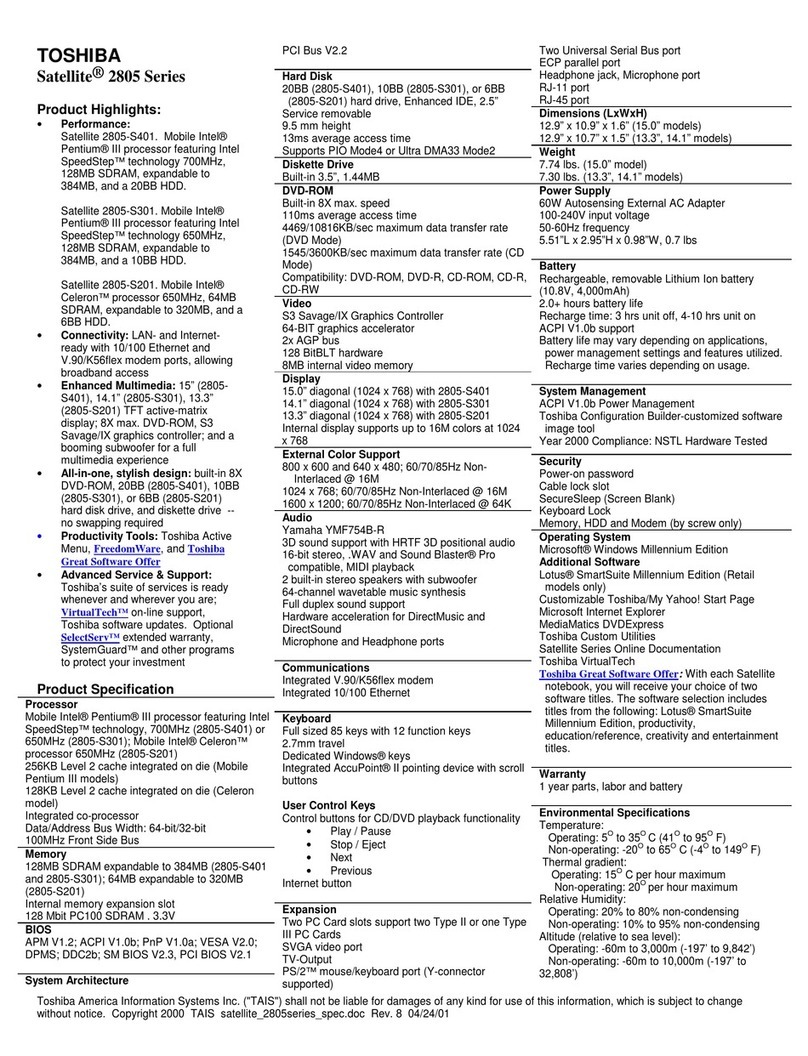

Toshiba 2805-S401 User manual

Toshiba

Toshiba 2805-S401 User manual

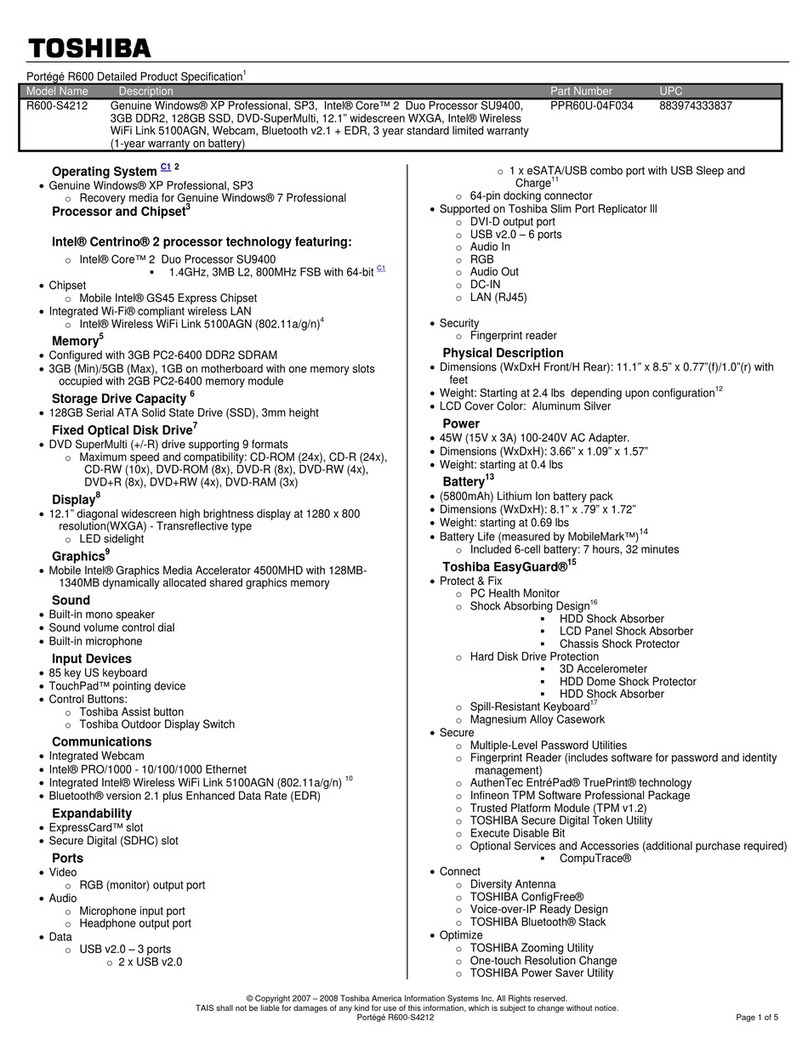

Toshiba Portege R600-S4212 User manual

Toshiba

Toshiba Portege R600-S4212 User manual

Toshiba A205-S5804 User manual

Toshiba

Toshiba A205-S5804 User manual

Toshiba Satellite M305-S4820 User manual

Toshiba

Toshiba Satellite M305-S4820 User manual

Toshiba R830-S8310 Firmware update

Toshiba

Toshiba R830-S8310 Firmware update

Toshiba X875-SP7361KM User guide

Toshiba

Toshiba X875-SP7361KM User guide

Toshiba Satellite C55-A User manual

Toshiba

Toshiba Satellite C55-A User manual

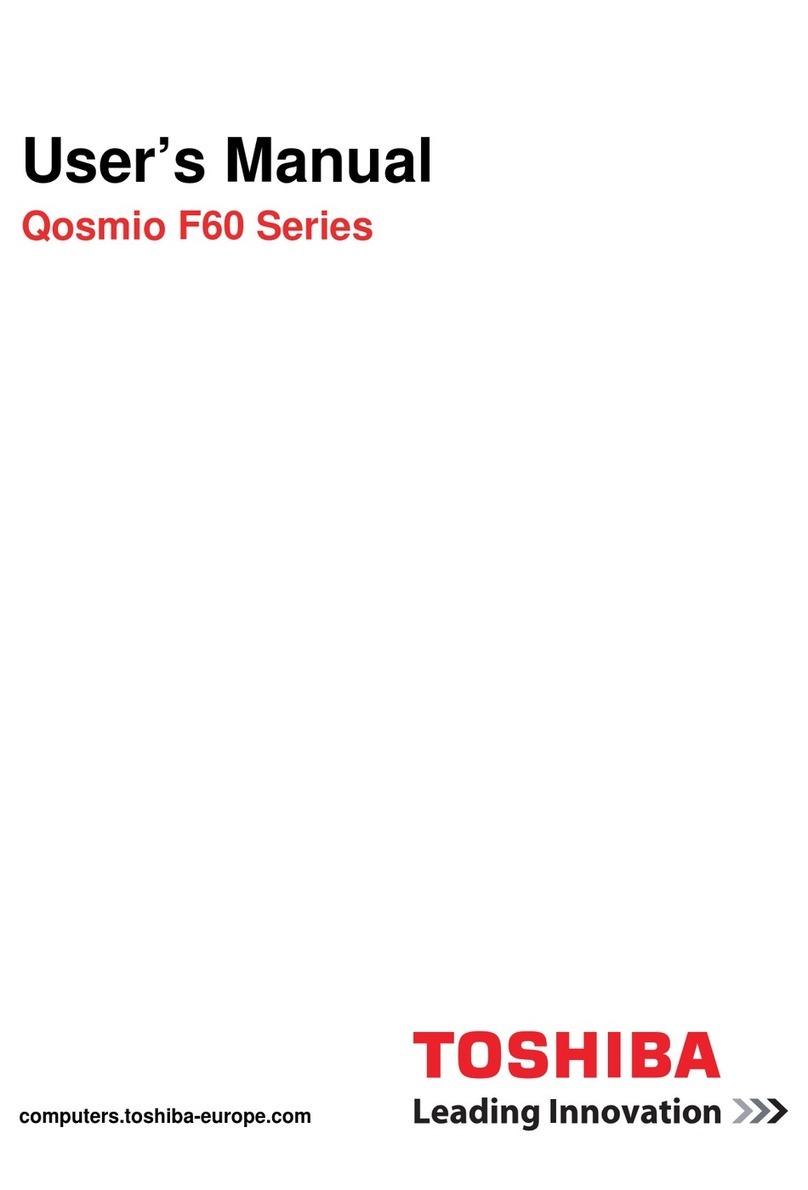

Toshiba Qosmio F60 Series User manual

Toshiba

Toshiba Qosmio F60 Series User manual

Toshiba Satellite 310CDS User manual

Toshiba

Toshiba Satellite 310CDS User manual

Toshiba NB305-SP2002M User manual

Toshiba

Toshiba NB305-SP2002M User manual

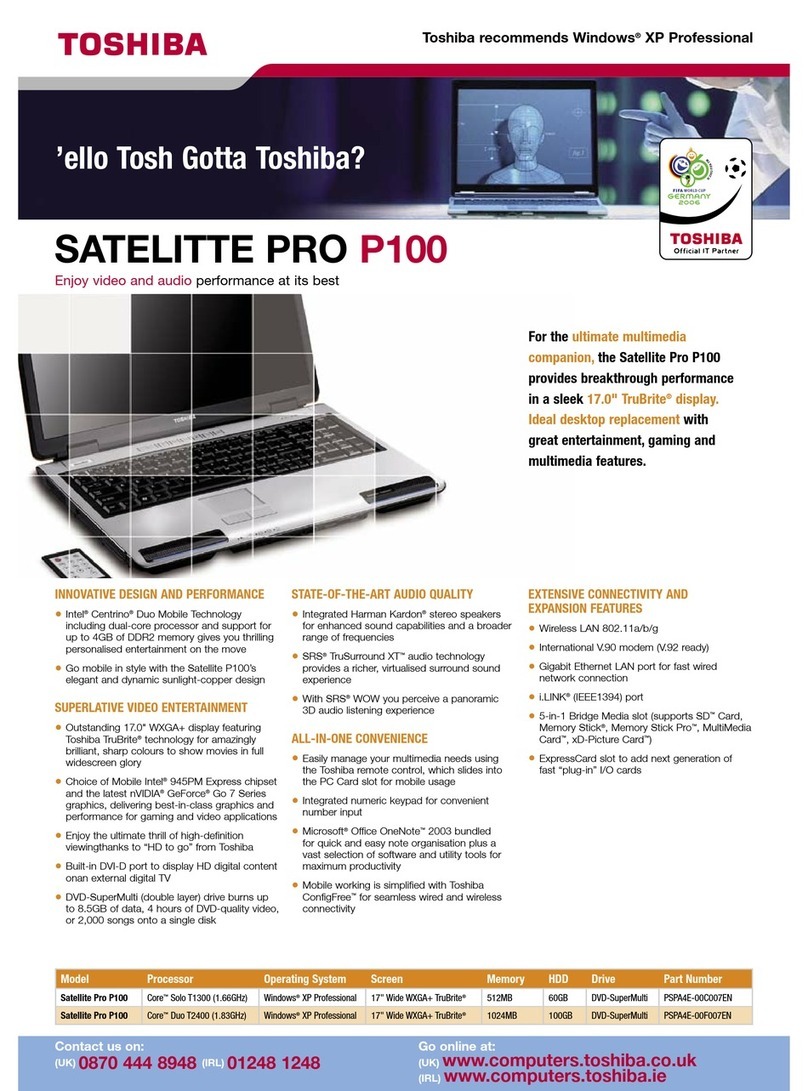

Toshiba Satellite Pro P100 Series User manual

Toshiba

Toshiba Satellite Pro P100 Series User manual

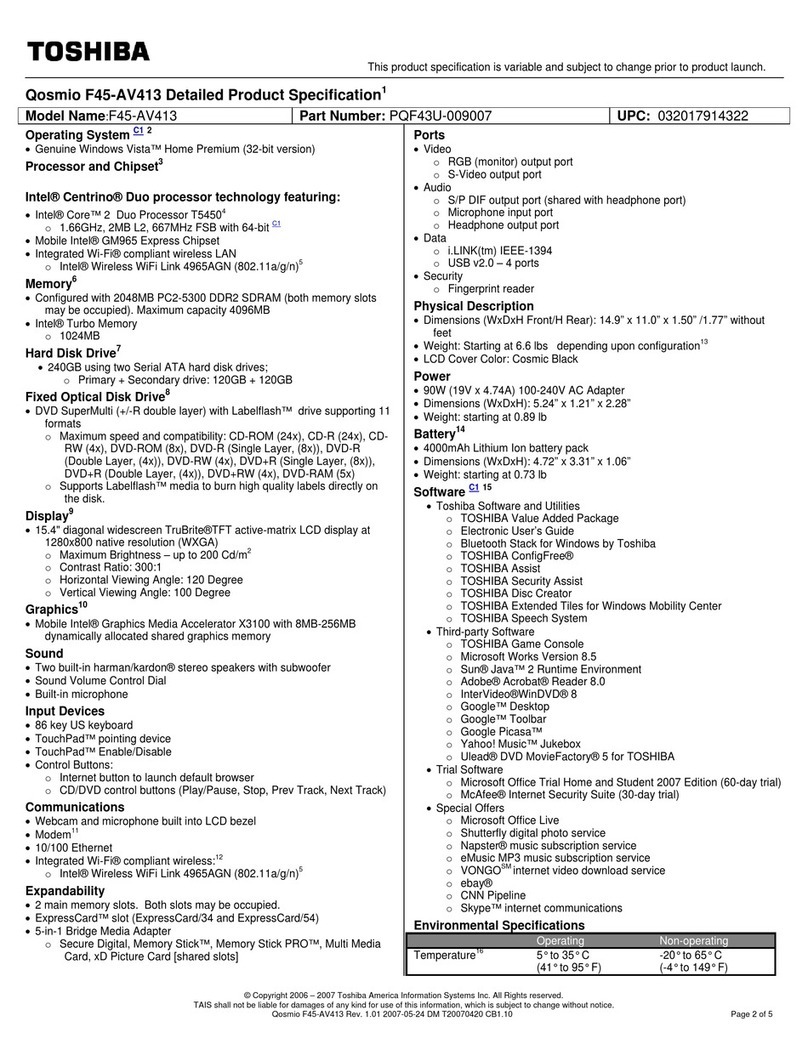

Toshiba Qosmio F45-AV413 User manual

Toshiba

Toshiba Qosmio F45-AV413 User manual

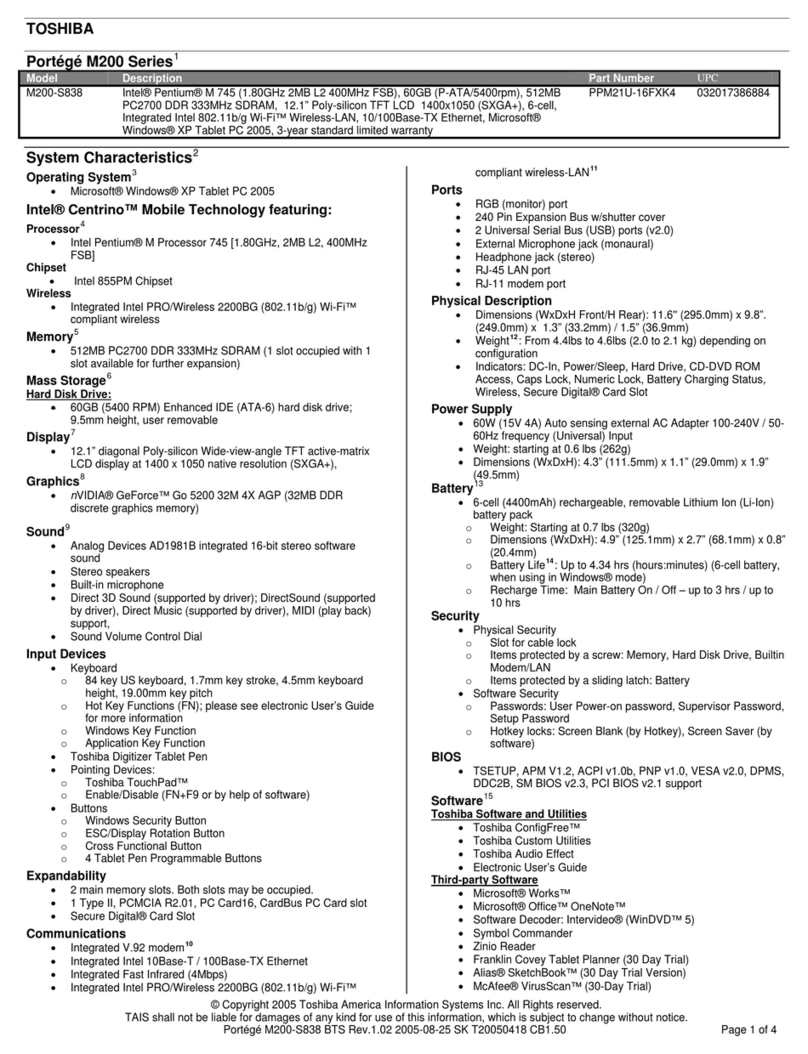

Toshiba M200-S838 User manual

Toshiba

Toshiba M200-S838 User manual

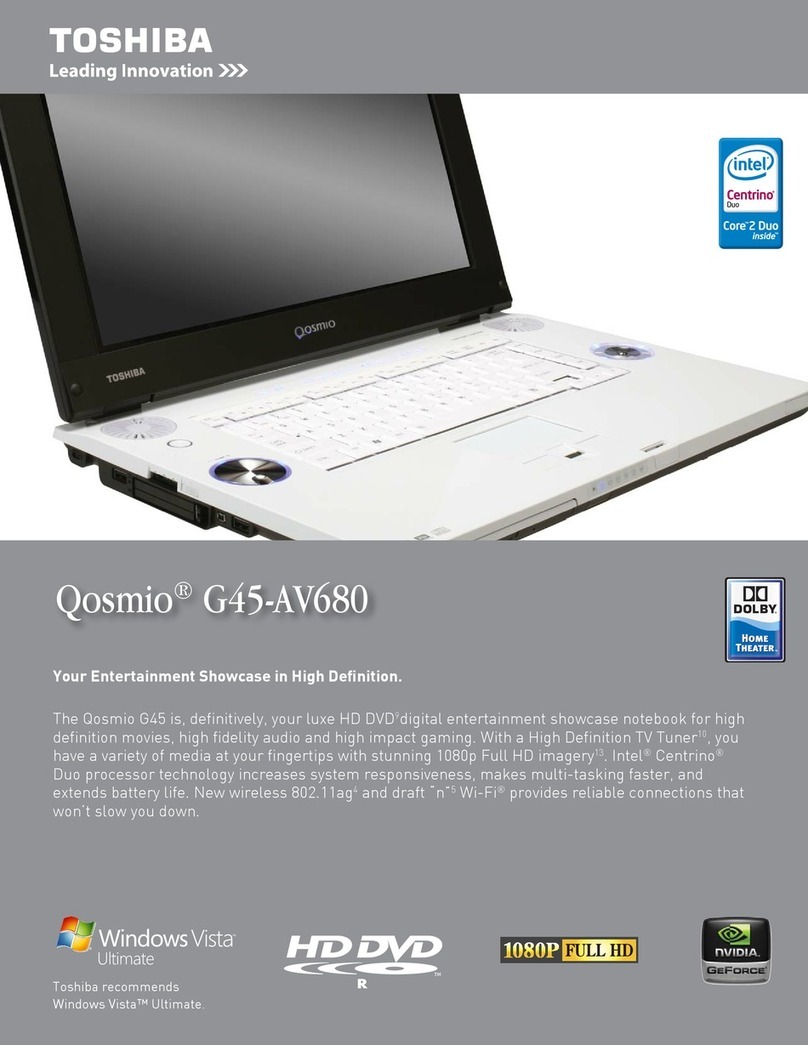

Toshiba G45AV680 - Qosmio - Core 2 Duo GHz User manual

Toshiba

Toshiba G45AV680 - Qosmio - Core 2 Duo GHz User manual

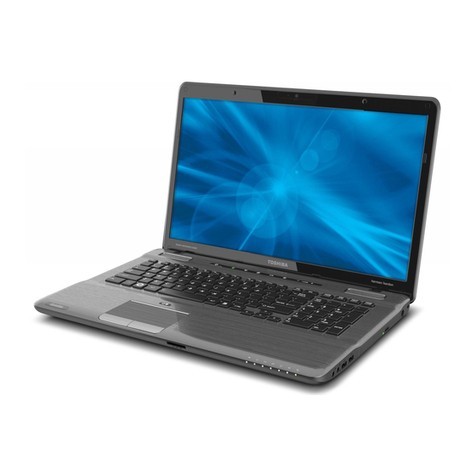

Toshiba Satellite P770D User manual

Toshiba

Toshiba Satellite P770D User manual

Popular Laptop manuals by other brands

Clevo B5100M Service manual

Clevo

Clevo B5100M Service manual

Fujitsu Siemens Computers AMILO Pi 153 SERIES Getting started

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pi 153 SERIES Getting started

Sony VAIO VPCEB11FX/BI Specifications

Sony

Sony VAIO VPCEB11FX/BI Specifications

Acer TravelMate 260 series user guide

Acer

Acer TravelMate 260 series user guide

dynabook PORTEGE X30W-J user manual

dynabook

dynabook PORTEGE X30W-J user manual

HP EliteBook 2540P Maintenance and service guide

HP

HP EliteBook 2540P Maintenance and service guide

IBM ThinkPad 240 Compatibility guide

IBM

IBM ThinkPad 240 Compatibility guide

Acer TravelMate 230 Series Manual do utilizador

Acer

Acer TravelMate 230 Series Manual do utilizador

Dell Latitude C510 Service manual

Dell

Dell Latitude C510 Service manual

Lenovo THINKPAD T510 Hardware Maintenance Manual

Lenovo

Lenovo THINKPAD T510 Hardware Maintenance Manual

Dell Latitude D430 user guide

Dell

Dell Latitude D430 user guide

Dell Latitude 7430 quick start

Dell

Dell Latitude 7430 quick start

HP ZBook Studio G 315-ap000 - 15ap099 Maintenance and service guide

HP

HP ZBook Studio G 315-ap000 - 15ap099 Maintenance and service guide

Acer TravelMate P633-M Service guide

Acer

Acer TravelMate P633-M Service guide

Sony VAIO PCG-GRT915M Hardware guide

Sony

Sony VAIO PCG-GRT915M Hardware guide

HP ELITEBOOK 2740P user guide

HP

HP ELITEBOOK 2740P user guide

Lenovo ThinkPad X130e Vodič za korisnike

Lenovo

Lenovo ThinkPad X130e Vodič za korisnike

Compaq Compaq Presario Getting started

Compaq

Compaq Compaq Presario Getting started

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
