Toshiba T1100 PLUS User manual

1.1 General
Toshiba TIIOO PLUS is a portable personal computer which is
compatible with IBM PC and is situated at higher rank of
portable computer than Toshiba TllOO. It provides many powerful
functions in spite of its compact size. Hardware of the TllOO
PLUS, most. of IC chips are,-f-MOS type so that the power
consumption is very little :;'0 V W) and Gate Array IC chips are
applied so that it is very mpact and light weight ( (:)
). J. 0-rr t;- 151/
The TllOO PLUS System has following two types.
1. F type - Only one Floppy Disk Drive.
2. F/F type - Two Floppy Disk Drives.
The TllOO PLUS is composed of System PCB, Keyboard, LCD, 3.5"
FDD (Floppy Disk Drive), Power Supply Unit and case. LCD can
display 640 X 200 pixels in graphic mode and 2000 characters in
character mode. The 3.5" FDD have capacity of 720KB.
The standerd memory size of the TllOO PLUS is 256.KS and it is
able to extend up to 640 KB with optional Memory Card.
Option unit to the TllOO PLUS System are one Memory Card (384
KB), Modem Card and Interface Card are capable to be installed
in the TllOO PLUS System Unit. The optional external unit
attached to the system unit are 5.25" External PDD 2D (Storage
capacity of 360 KB) and I/O Expansion Box are prepared.
The TllOO PLUS has connectors of Color/Monochrome CRT Display
port and RS232C port and Print r/FDD on the rear panel of the
TllOO PLUS.
Figure 1-1 TllOO PLUS System
To be continued.
1-2

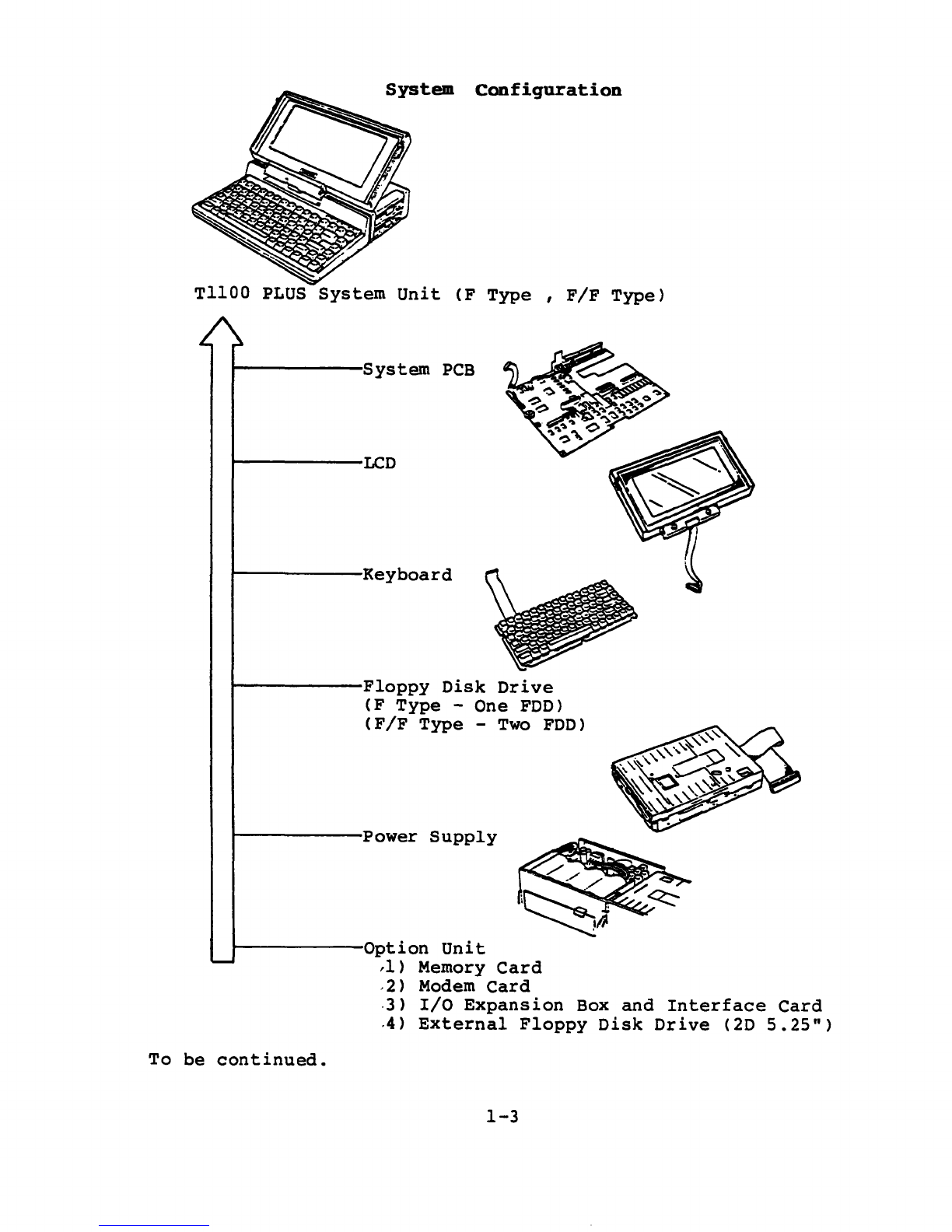

System Configuration
~'-
TllOO PLUS System Unit (F Type , F/F Type)
~---------System PCB
t-----------LCD
~----------Keyboard
~----------Floppy Disk Drive
(F Type -One FDD)
(F/F Type - Two FDD)
~----------Power Supply
~----------Option Unit
To be continued.
,1) Memory Card
,2) Modem Card
·3) I/O Expansion Box and Interface Card
.4) External Floppy Disk Drive (2D 5.25")
1-3

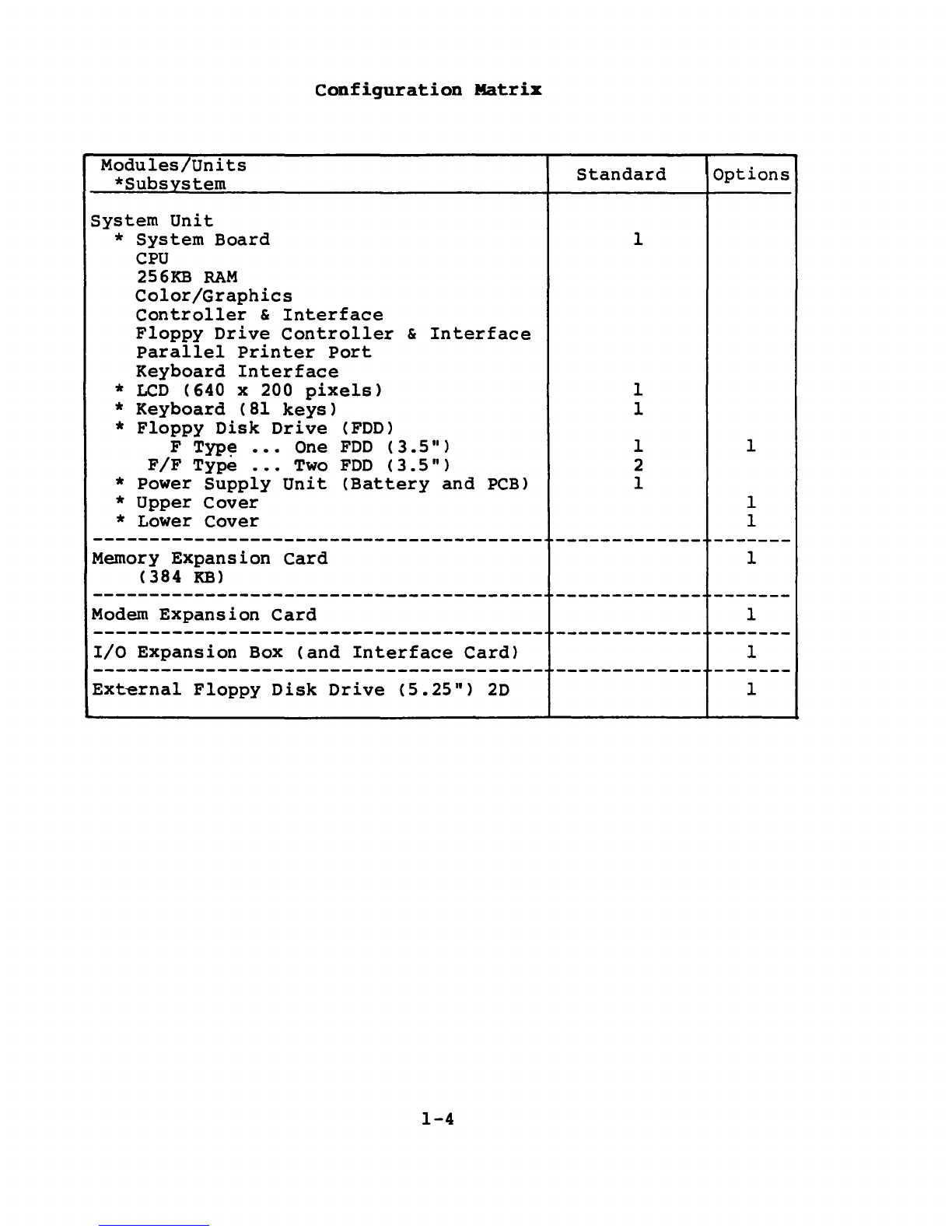

Configuration Matrix
Modules/Units
*Subsystem
System Unit
* System Board
CPU
256KB RAM
Color/Graphics
Controller & Interface
Floppy Drive Controller & Interface
Parallel Printer Port
Keyboard Interface
* LCD (640 x 200 pixels)
* Keyboard (81 keys)
* Floppy Disk Drive (FDD)
F Typ~ ••• One FDD (3.5 II )
F /F Type .•• Two FDD (3. 5" )
* Power
Supply Unit (Battery and PCB)
* Upper Cover
* Lower Cover
Memory Expansion Card
(384 KB)
Modem Expansion Card
I/O Expansion Box (and Interface Card)
Ext-erna1 Floppy Disk Drive (5.25") 2D
1-4
Standard Options
1
1
1
1 1
2
1 1
1
1
1
1
1

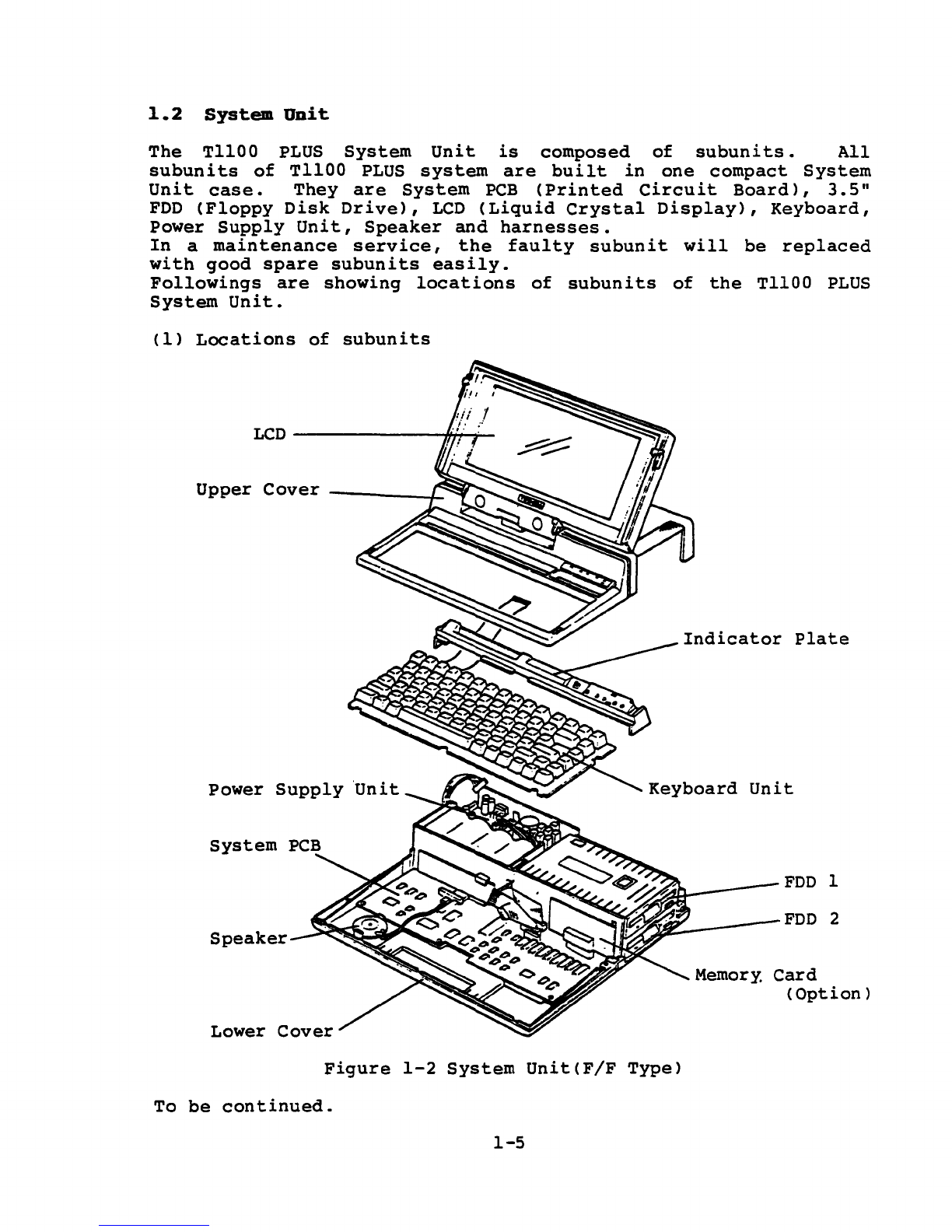

1.2 System UDit
The T11aa PLUS System Unit is composed of subunits. All
subunits of T11aa PLUS system are built in one compact System
Unit case. They are System PCB (Printed Circuit Board), 3.5"
FDD (Floppy Disk Drive), LCD (Liquid Crystal Display), Keyboard,
Power Supply Unit, Speaker and harnesses.
In a maintenance service, the faulty subunit will be replaced
with good spare subunits easily.
Followings are showing locations of subunits of the T110a PLUS
System Unit.
(1) Locations of subunits
LCD --------J.'fir-"i--
Upper Cover ________ ~~
Power Supply 'Unit
Speaker ~~~:?JI"""""'"
Lower
Indicator Plate
Keyboard Unit
FDD 1
Memory, Card
(Option)
Figure 1-2 System Unit(F/F Type)
To be continued.
1-5

The System unit contains the following subunits.
System PCB
3.5" FDD (Floppy Disk Drive)
LCD
Keyboard
Power Supply Unit
Harnesses
Covers
Ac Adaptor is used for rechargment of the Battery and/or power
source to the TllOO PLUS System indoors by plug in the DC Jack
on the back of the System.
AC Adaptor
Input
output
I~o /07 /).J-
~v (~-~V) For U.S.A. version
230v (207-253V) For Europe version
9V DC
(2) Locations of connectors and switches
Figure 1-3 Rear View of the TllOO PLUS
RS-232C Connector
External FDD and Printer Connector
Monochrome CRT Display Connector (Composit)
Color CRT Display port (RGB)
DC jack
Power Switch
PRT/FDD Select Switch
LCD CONTRAST Dial
1-6

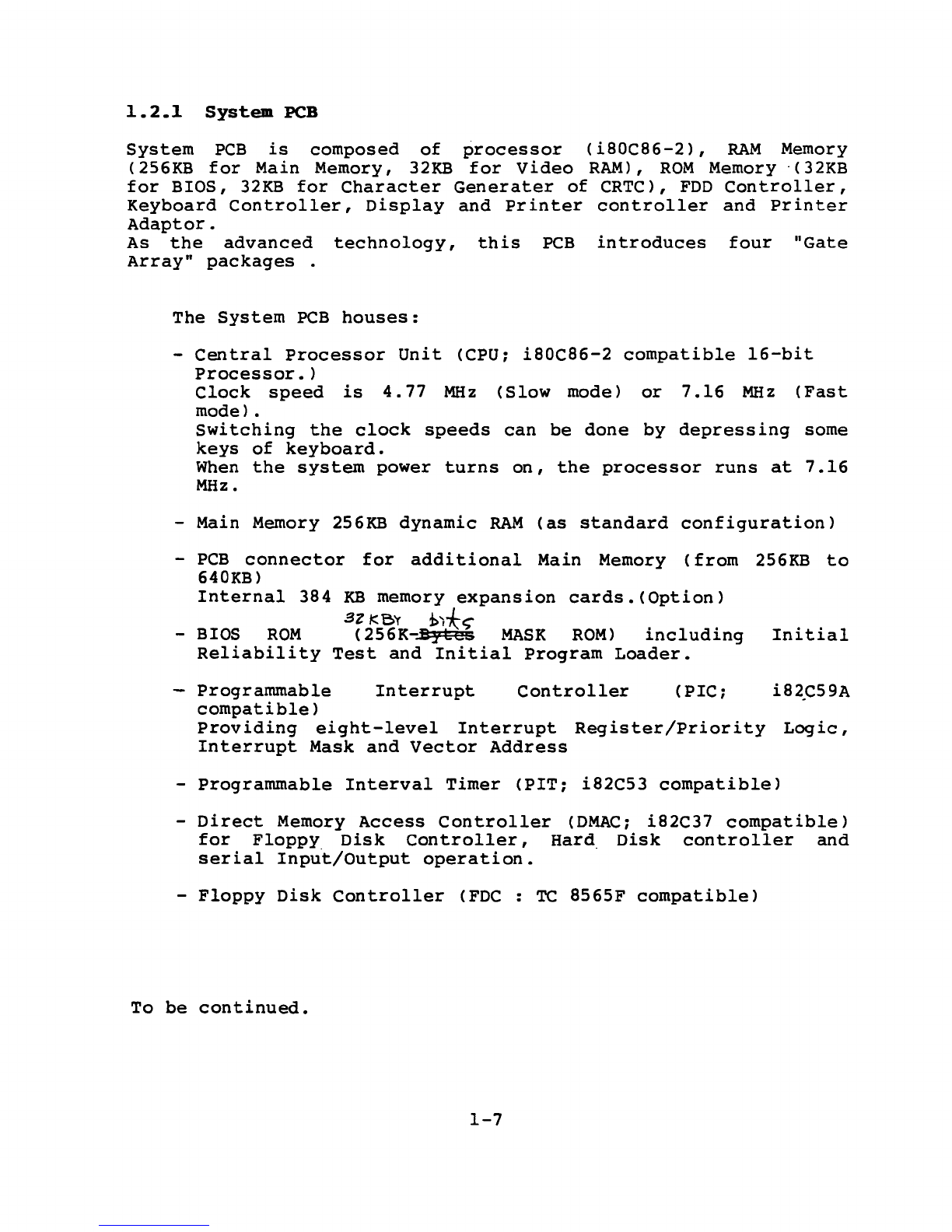

1.2.1 System PCB
System PCB is composed of processor (i80C86-2), RAM Memory
(256KB
for Main Memory, 32KB for Video RAM), ROM Memory· (32KB
for BIOS, 32KB for Character Generater of CRTC), FDD Controller,
Keyboard Controller, Display and Printer controller and Printer
Adaptor.
As the advanced technology, this PCB introduces four liGate
Array" packages .
The System PCB houses:
- Central Processor Unit (CPU: i80C86-2 compatible l6-bit
Processor. )
Clock speed is 4.77 MHz (Slow mode) or 7.16 MHz (Fast
mode) .
switching the clock speeds can be done by depressing some
keys of keyboard.
When the system power turns on, the processor runs at 7.16
MHz.
- Main Memory 256KB dynamic RAM (as standard configuration)
- PCB connector for additional Main Memory (from 256KB to
640KB)
Internal 384 KB memory expansion cards.(Option)
3Z KBy ±>~*c;
-BIOS ROM (256K-~j bes MASK ROM) including Initial
Reliability Test and Initial Program Loader.
Programmable Interrupt Controller (PIC: i8~C59A
compatible)
providing eight-level Interrupt Register/priority Logic,
Interrupt Mask and Vector Address
- Programmable Interval Timer (PIT: i82C53 compatible)
- Direct Memory Access Controller (DMAC; i82C37 compatible)
for Floppy Disk Controller, Hard Disk controller and
serial Input/Output operation. .
-
Floppy Disk Controller (FDC : TC 8565F compatible)
To be continued.
1-7

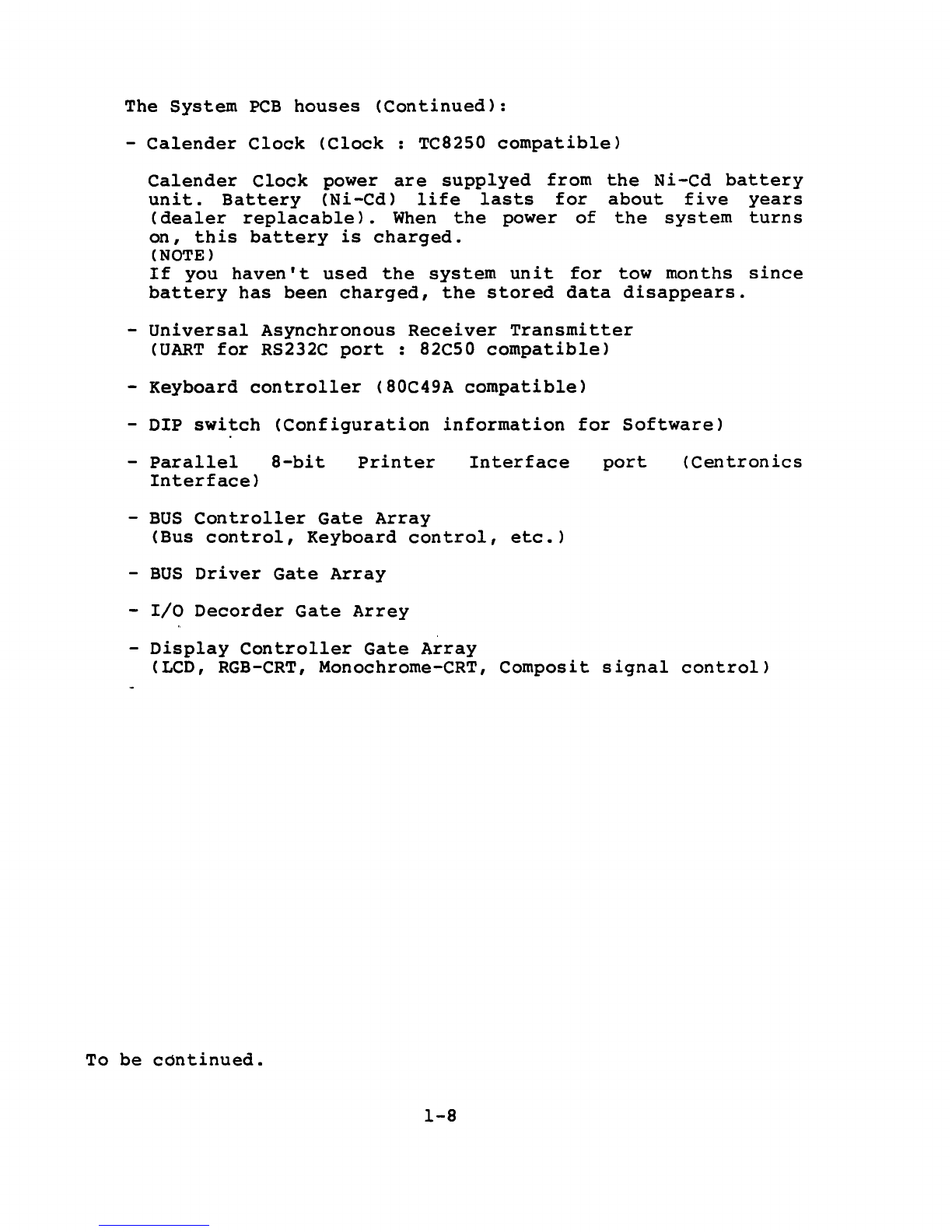

The System PCB houses (Continued):
- Calender Clock (Clock: TC82S0 compatible)
Calender Clock power are supplyed from
unit. Battery (Ni-Cd) life lasts for
( dealer rep lac able ). When the power of
on, this battery is charged.
(NOTE)
the Ni-Cd battery
about five years
the system turns
If you haven r t used the system unit for tow months since
battery has been charged, the stored data disappears.
- Universal Asynchronous Receiver Transmitter
(UART for RS232C port : 82CSO compatible)
- Keyboard controller (80C49A compatible)
- DIP switch (Configuration information for Software)
- Parallel 8-bit
Interface)
Printer
- BUS Controller Gate Array
Interface
(Bus control, Keyboard control, etc.)
- BUS Driver Gate Array
- I/O Decorder Gate Arrey
- Display Controller Gate Array
port (Centronics
(LCD, RGB-CRT, Monochrome-CRT, Composit signal control)
To be continued.
1-8

DMAC(82C37)
PIT(82C53)
PJ15
PJ14 Ni-Cd Battery
CPU(80C86-2)
(BIOS)
PJ6
9
PJ8
I/O DEC ORDER
(GA)
BUS CONT
(GA)
Memory
Chips
~~~'- (256KB)
EX03
16.000M
PJ1
PRT/FDD
Select Swi
LCD CONTRAS
BUS DRIVER(GA) 8586FCFDD
CONT)
TC8250
PJ1
DIP S
U8250
EX03 14.745M
DISPLAY CONT(GA)
EX03 14.318M
PJ4
80C49CKB CONT)

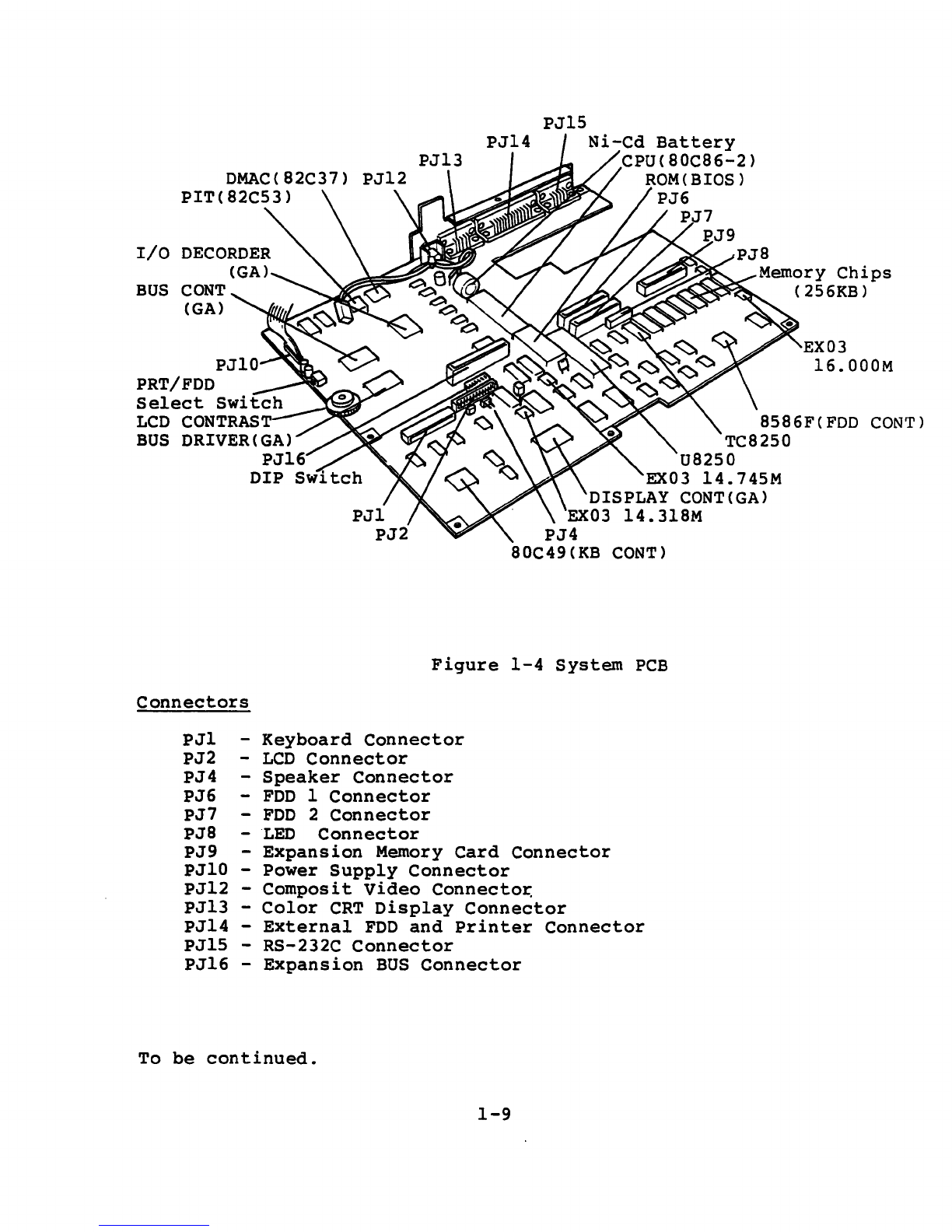

Figure 1-4 System PCB
Connectors
PJ1
PJ2
PJ4
PJ6
PJ7
PJ8
PJ9
PJ10
PJ12
PJ13
PJ14
PJ15
PJ16
- Keyboard Connector
- LCD Connector
- Speaker Connector
- FDD 1 Connector
- FDD 2 Connector
- LED Connector
- Expansion Memory Card Connector
- Power Supply Connector
- Composit Video Connecto~
- Color CRT Display Connector
- External FDD and Printer Connector
- RS-232C Connector
- Expansion BUS Connector
To be continued.
1-9

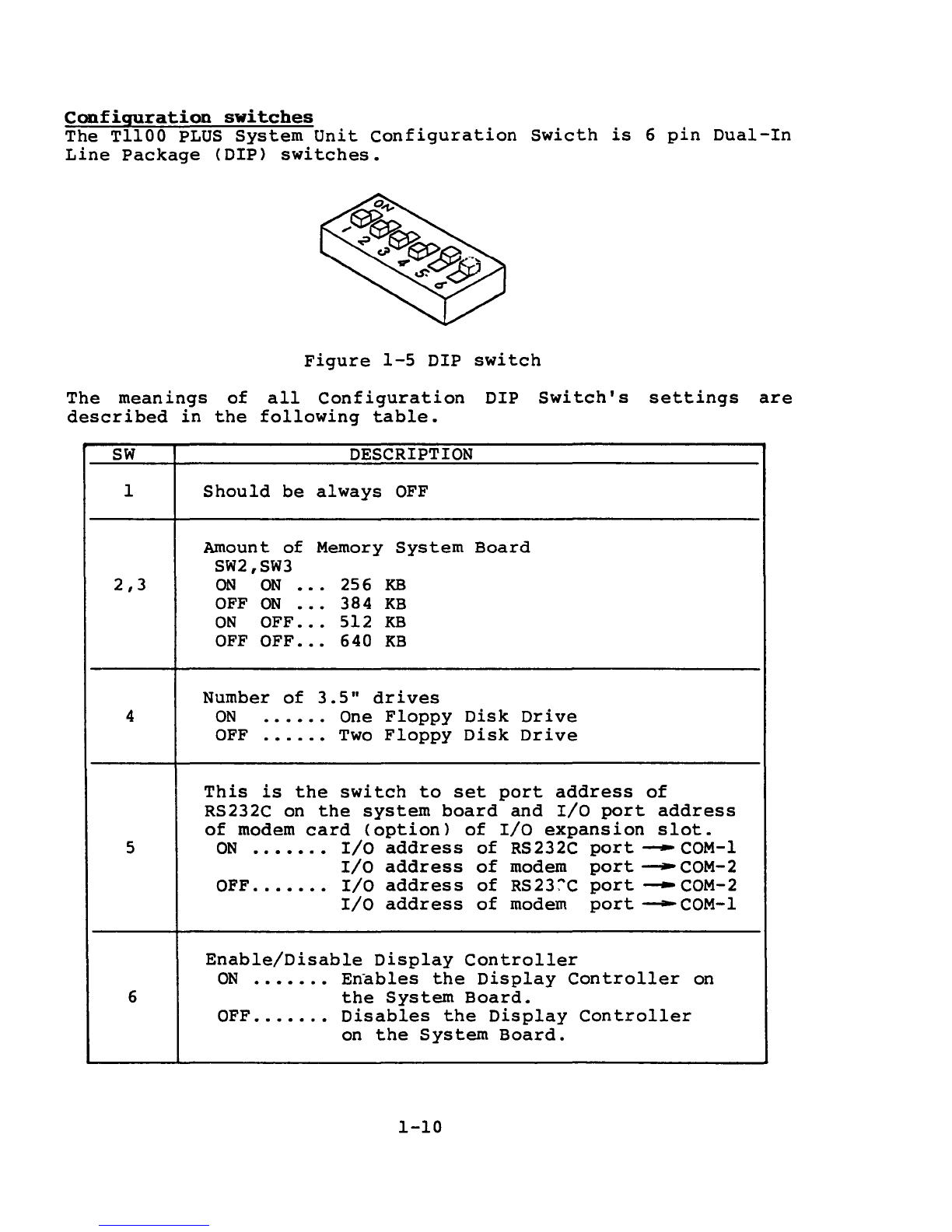

Configuration switches
The TllOO PLUS System Unit configuration Swicth is 6 pin Dual-In
Line Package (DIP) switches.
Figure 1-5 DIP switch
The meanings of all Configuration DIP Switch's settings are
described in the following table.
SW DESCRIPTION
1
Should be always OFF
Amount of Memory System Board
SW2,SW3
2,3
ON ON ... 256 KB
OFF ON
...
384 KB
ON
OFF ... 512 KB
OFF OFF ... 640
KB
Number of 3.5" drives
4 ON
......
One Floppy Disk Drive
OFF
......
Two Floppy Disk
Drive
This
is the switch to set port address of
RS232C on
the system board and I/O port address
of modem card
(option)
of I/O expansion slot.
5 ON ....... I/O address of
RS232C port -- COM-l
I/O address of modem
port ~COM-2
OFF ....... I/O address of RS23~C
port -- COM-2
I/O address of modem
port -COM-l
Enable/Disable Display Controller
ON
.......
En-abIes
the Display Controller
on
6
the System Board.
OFF ....... Disables
the Display Controller
on the System Board.
1-10

1.2.2 3.5- Floppy Disk Drive (POD)
The SMD-280L of 3.5" FDD is a high performance, high reliable,
slim sized Floppy Disk Drive (FDD) for 3.5" floppy disks.
The drive is able to read and write single or double density
3.5" floppy disk with 1M-bytes of recording capacity
(unformatted) in double side, double density and 135 TPI.
Figure 1-6 3.5"FDD
1-11

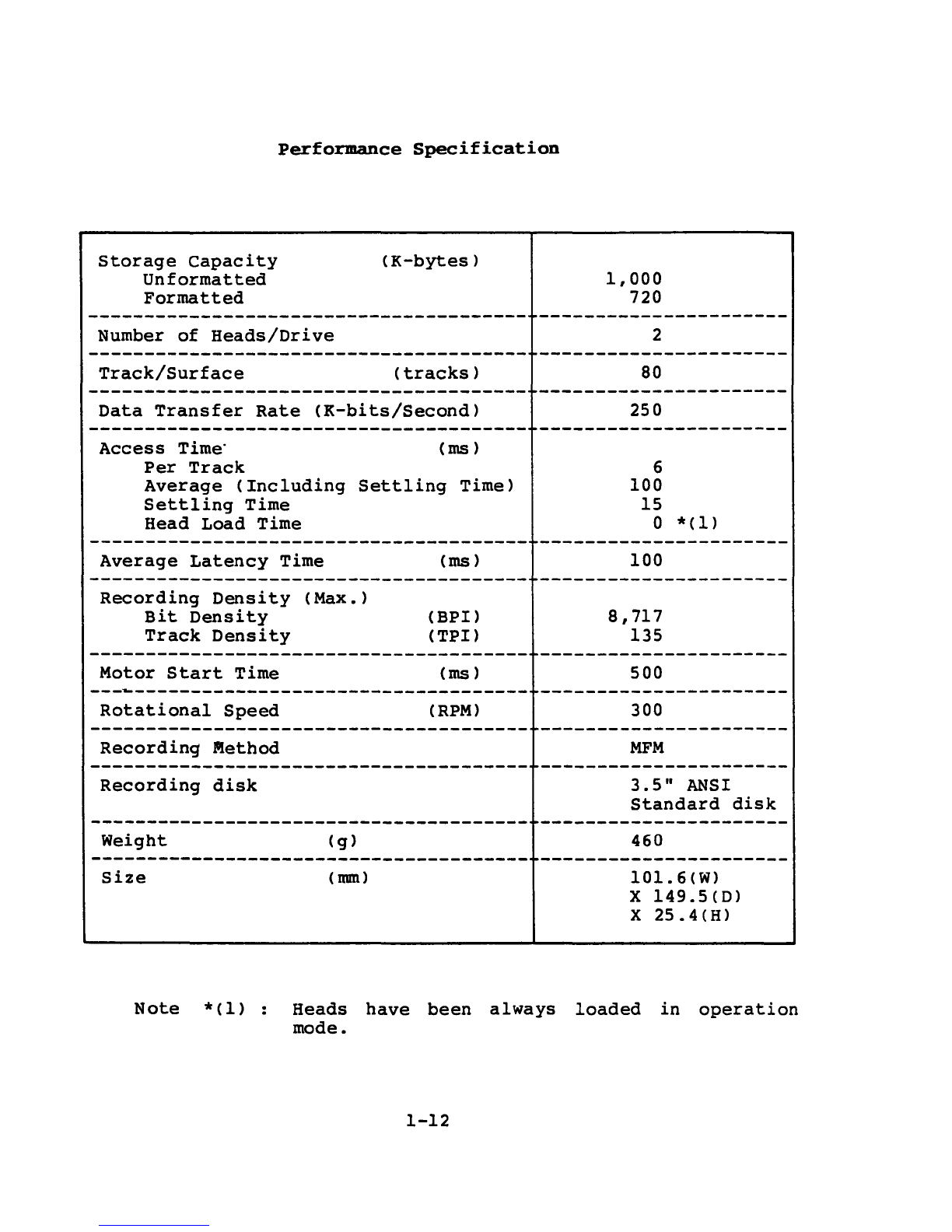

Storage Capacity
Unformatted
Formatted
Performance Specification
(K-bytes)
1,000
720
Number of Heads/Drive 2
Track/Surface
(tracks) 80
Data Transfer Rate (K-bits/Second) 250
Access Time" (ms)
Per Track
Average (Including Settling Time)
Settling Time
Head Load Time
Average Latency Time
Recording Density (Max.)
Bit Density
Track Density
Motor Start Time
Rotational Speed
(ms )
(BPI)
(TPI)
(ms )
(RPM)
6
100
15
o * (I)
100
8,717
135
500
300
Recording Method MFM
Recording disk 3.5" ANSI
Standard disk
Weight
Size
Note * (1)
(g)
(nun)
460
101.6(W)
X l49.5{D)
X 25.4{H)
Heads have been always loaded in operation
mode.
1-12

1.2.3 Keyboard
The keyboard consists of 81 key tops crresponding number of
Keyswitches (81) and matrix circuit, and it is connected to the
System PCB through signal cable.
The keyboard controller (80C49A) is built in on the System PCB.
It is applied by chang ing the key tops with option key tops for
character differences due to the Nations where the TIIOO PLUS is
used
Figure 1-7 Keyboard
1-13

1.2.4 Liquid Crystal Display
LQ.
The LCD Module (TeL-365-121) is flat panel 640 x 200 pixels
Liquid Crystal Display unit with aspect ratio of the active area
of four to three.
The LCD can display graphic patterns, numerals, alphabets and
symbols up to 2,000 charactors (8 x 8 dots charactor).
Figure 1-8 LCD
Clock
Supply Voltage (volts)
Number of Dot (pixel)
Number of Characters
(Dot)
Dot Size
(nun)
Dot pitch
(mm)
+5V DC + 0.5V
-15V DC ± 0.5V
640 (Horizontal)
200 (Vertical)
80 X 25 (2000 characters>
(8 X 8 dot format>
0.46 H X 0.32 W
0.35 (Horizontal)
0.49 (Vertical>
Power Consumption (mW) 400
Size
(mm)
275.0 X 126.0 X 15.8
Weight (g)
500
1-14

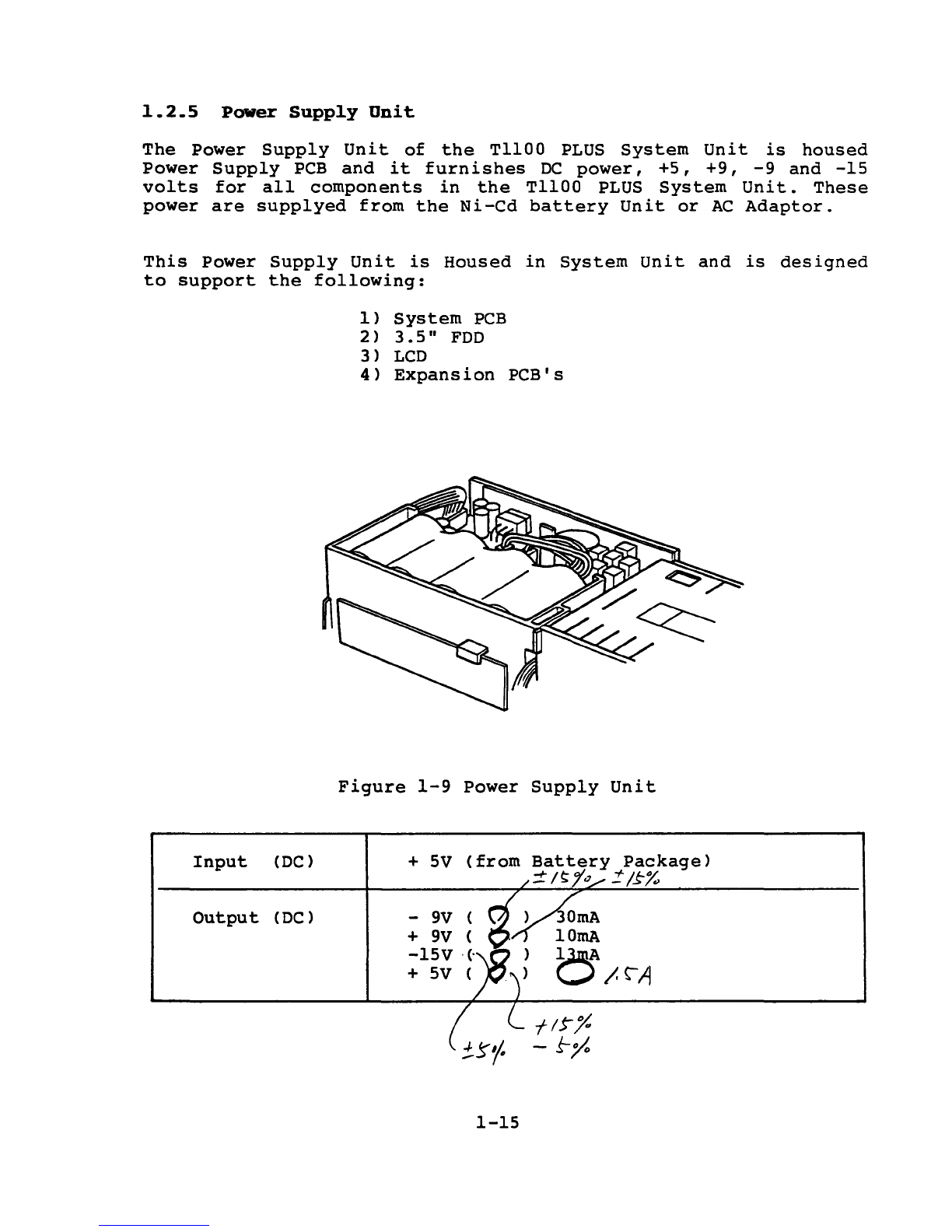

1.2.5 Power Supply Unit
The Power Supply Unit of the TllOO PLUS System Unit is housed
Power Supply PCB and it furnishes DC power, +5, +9, -9 and -15
volts for all components in the TllOO PLUS System Unit. These
power are supplyed from the Ni-Cd battery Unit or AC Adaptor.
This Power Supply Unit is Housed in System Unit and is designed
to support the following:
Input (DC)
Output (DC)
1) System PCB
2) 3.5" FDD
3) LCD
4) Expansion PCB's
Figure 1-9 Power Supply Unit
+ 5V (from Battery Package)
::t /~ /,0 :! /sX
- 9V
+ 9V
-15V
+ 5V
1-15
30mA
lOrnA
!lul
A
c...; /. r-A

1.3 Option units
The TllOO PLUS has a variation of option units to be attached to
the system. Following Units are possible to attached to the
TllOO PLUS system.
1) Memory Expansion Card (384KB)
2) Modem Expansion Card
3) I/O Expansion Box and Interface Card
4) External Floppy Disk Drive (5.25") 20
1-16

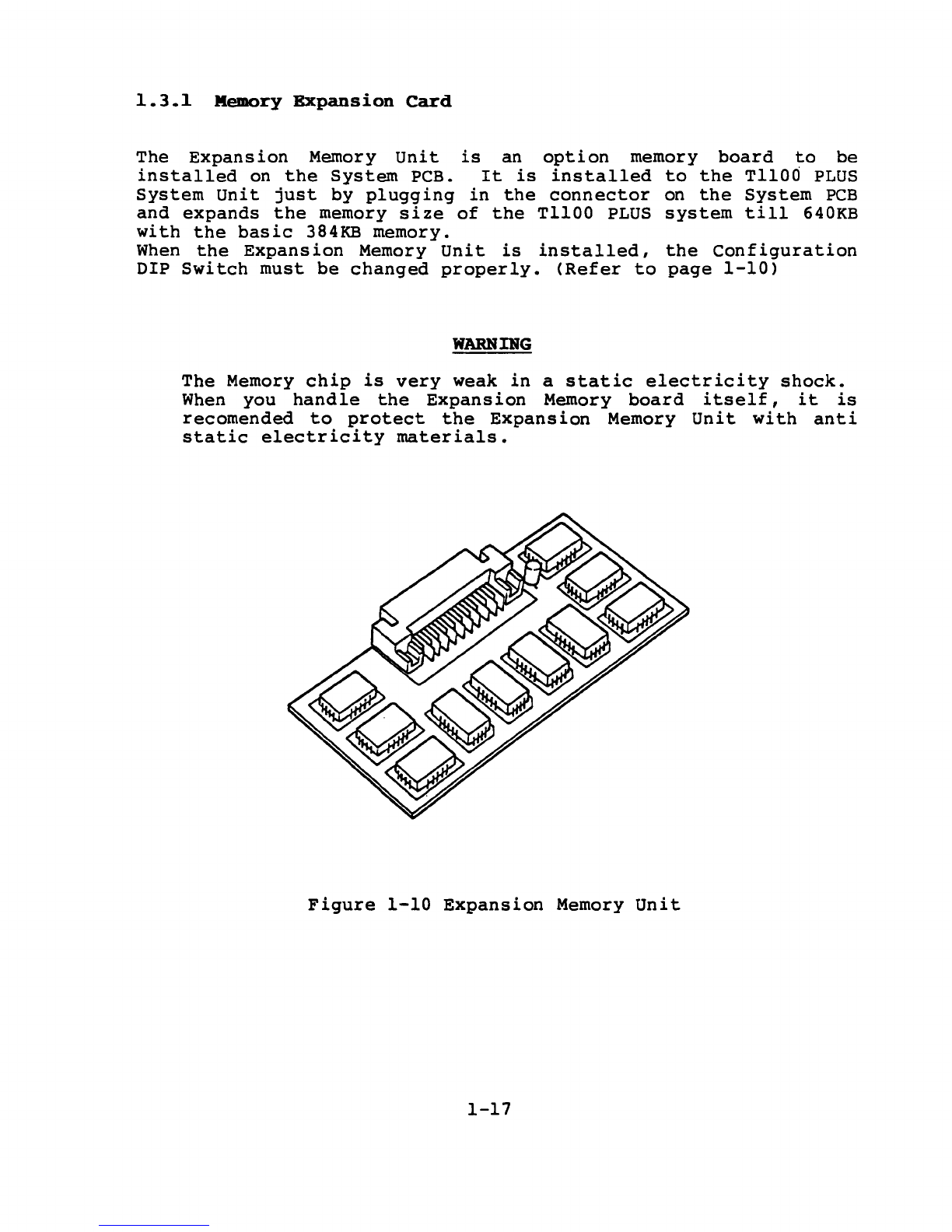

1.3.1 Memory Expansion Card
The Expansion Memory unit is an option memory board to be
installed on the System PCB. It is installed to the TllOa PLUS
System Unit just by plugging in the connector on the System PCB
and expands the memory size of the TllOO PLUS system till 640KB
with the basic 384KB memory.
When the Expansion Memory Unit is installed, the Configuration
DIP Switch must be changed properly. (Refer to page 1-10)
WARNING
The Memory chip is very weak in a static electricity shock.
When you handle the Expansion Memory board itself, it is
recomended to protect the Expansion Memory Unit with anti
static electricity materials.
Figure 1-10 Expansion Memory Unit
1-17

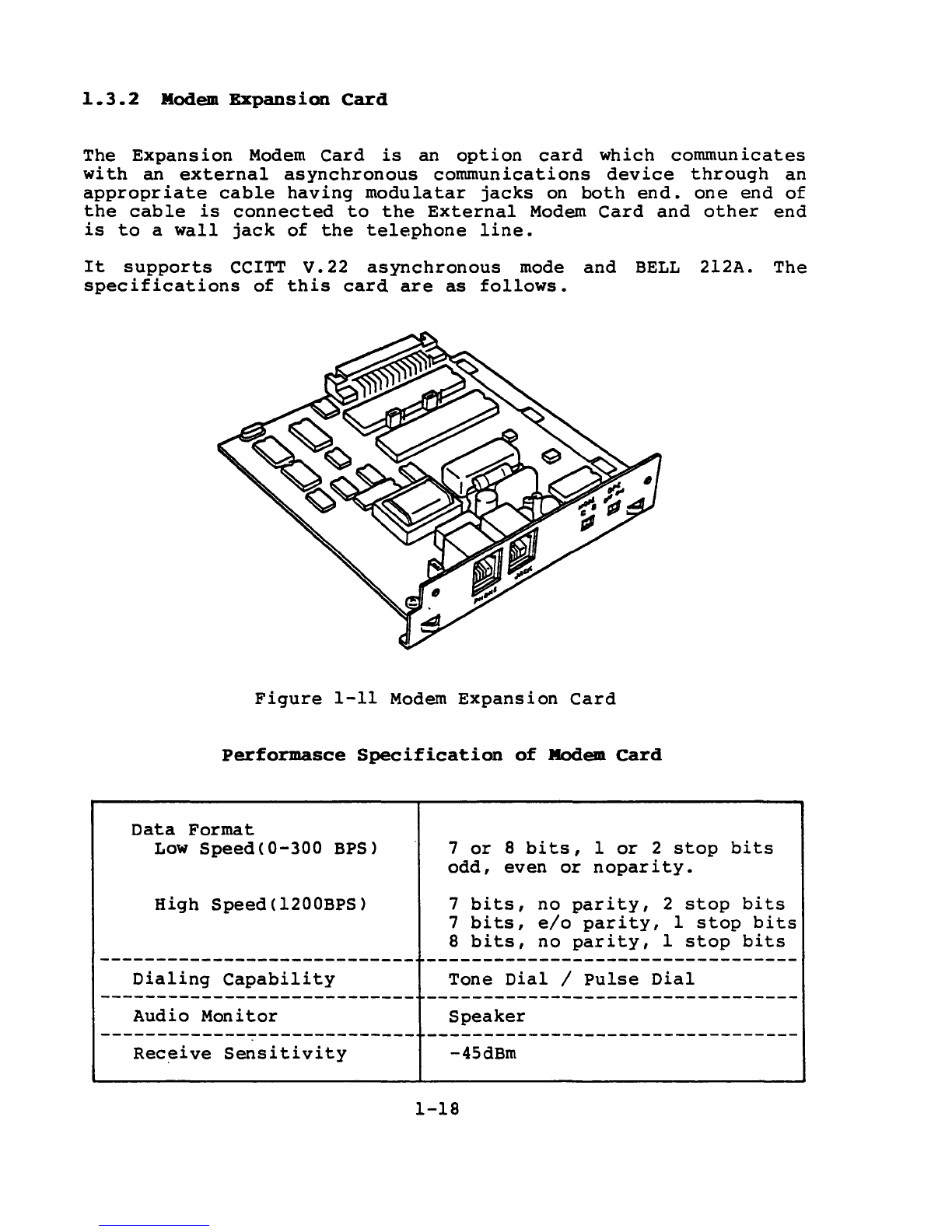

1.3.2 M.odem Expansion Card
The Expansion Modem Card is an option card which communicates
wi th an external asynchronous communications device through an
appropriate cable having modulatar jacks on both end. one end of
the cable is connected to the External Modem Card and other end
is to a wall jack of the telephone line.
It supports CCITT V. 22 asynchronous mode and BELL 2l2A. The
specifications of this card are as follows.
Figure 1-11 Modem Expansion Card
Performasce Specification of Modem Card
Data Format
Low Speed(O-300 BPS)
High Speed(1200BPS)
Dialing Capability
Audio Monitor
Receive Sensitivity
7 or 8 bits, 1 or 2 stop bits
odd, even or noparity.
7 bits, no parity, 2 stop bits
7 bits, e/o parity, 1 stop bits
8 bits, no parity, 1 stop bits
Tone Dial/Pulse Dial
Speaker
-45dBm
1-18

1.3.3 I/O Expansion Box and Interface Card
Expansion Box is an option unit to provide the I/O channel to
the TllOO PLUS System. This unit is composed of the Expansion
I/O Cable, Interface Card, Expansion Box and AC Power Cord. The
Expans ion Card, Backpanel Card and Power Supply are in the
Expansion Box. Adding an Expansion Box provides five expansion
slots.
An option adaptor in the Expansion Box and. the System Unit
communicates through the Interface and Expansion Cards. The
Interface Card is plugged into the EXP sockets at the rear of
System Unit. This card is connected to the Receiver Card in the
Expansion Box via a cable having 62-pin D-shell connectors at
the both ends. The Expansion Card is mounted one of six
Expansion Slots in the Expansion Box.
Figure 1-12 Expansion Box
Figure 1-13 Interface Card
1-19

1.3.4 5.25- External POD (SD-521)
The 50-521 is a high performance, high reliable, slim sized
Floppy Oisk Orive (FOO) for 5.25" floppy disks.
The drive is able to read and write single or double· density
5.25" floppy disk with 500KB of recording capacity (unformatted)
in double side, double density and 48 TPI.
TllOO PLUS System uses the 50-521 as external 5.25" FOO unit
(option) .
Front View
Rear View
Figure 1-14 5.25" External FOO (50-521)
1-20

Explanations on components
CD 5.25" External FDD
5.25" External FDD (Floppy Disk Drive) is composed of
Disk Drive and Control PCB.
CD
Connector Cable
This cable is a signal cable between the FDD and the
T1100 PLUS System Unit.
~ Disk Eject Button
This button is used to remove a Floppy Disk from the
FDD •
Cardboard Protector
This cardboard is used for head protection
shock during a transportation of the FDD.
against a
Dsub-Connector
The Dsub-Connector
Connector Cable.
Jack
is
a
25-pin connector
The DC Jack is for connecting the AC Adaptor.
The required specification of AC Adaptor is
Input 220-24DV ac
Output 18V dc, 60DmA
for
(2) Power Switch
Push the rear portion of the switch to Power ON.
Push the front portion of the switch to Power OFF.
the
C!) Drive Unit Select Indicator
It is lit while the FDD is selected to use by The TllDD
PLUS system. Do not eject a disk while it is lit.
1-21
