Tosibox TB4GM8 User manual

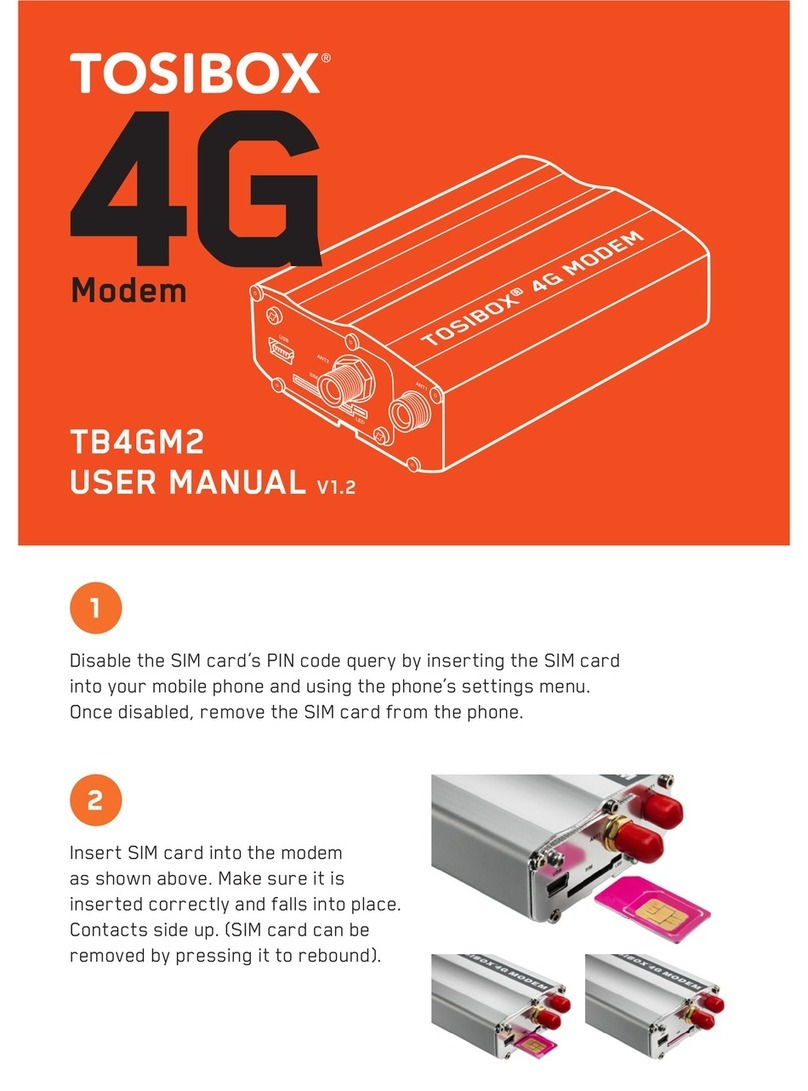

Disable the SIM card’s PIN code query by inserting the SIM card
into your mobile phone and using the phone’s settings menu.
Once disabled, remove the SIM card from the phone.
Insert SIM card into the modem. Make
sure it is inserted correctly and falls
into place contacts side up.
SIM card can be removed by pressing
it to rebound.
TB4GM2 / TB4GM8
USER MANUAL V1.5
1
2
Your Authorized Distributor is: Controller Service and Sales - www.controllerservice.com - [email protected] - [phone]

Attach the DIN rail adapter to the bottom of the modem or use the metal
clips provided to mount the modem to a wall (screws not included).
Mount the modem with attached rail adapter to the DIN rail.
1.
...or
2. 3.
3
4
Your Authorized Distributor is: Controller Service and Sales - www.controllerservice.com - [email protected] - [phone]

Connect the USB cable between the
modem and a TOSIBOX®Lock. Power is
supplied from the Lock via USB.
Remove the protective caps from antenna
connectors ANT 1 and ANT 2. Connect
and use always BOTH antennas delivered
in the sales package. If possible arrange
antennas in 90 degrees angle with each
other. In case where accessory antenna
cables and omni-directional antennas
are used (not included), have the
antennas mounted in a vertical position
and at least 50 cm separated. This will
maximise the wireless performance.
Check the LED status indicator:
• the LED does not illuminate > the modem is not powered
• steady blink > normal operation
• fast blink > data transmission
Check modem compatibility from
https://www.tosibox.com/products/4g-modem
Normal AT commands can be used with RS-232 connection.
Visit https://www.tosibox.com/support/
for more information.
5
6
7
Your Authorized Distributor is: Controller Service and Sales - www.controllerservice.com - [email protected] - [phone]

EC DECLARATION OF CONFORMITY
Manufacturer: Tosibox Oy, Teknologiantie 12A, 90590 OULU, FINLAND.
We hereby declare under our sole responsibility for the below listed,
CE marked product:
TOSIBOX®4G Modem, with product code TB4GM2EU, TB4GM2AU or TB4GM8EU,
is in conformity with the essential requirements of the European Directives:
2014/53/EC RED
2011/65/EC RoHS 2.0
The product has been tested against the following standards
and specifications.
Art. 3.1 (a): SAFETY
EN 60950-1:2006+A2:2013
Art. 3.1 (a): HEALTH
EN 62479: 2010
Art. 3.1 (b): EMC
EN 301 489-1 v2.2.0 (2017-03)
EN 301 489-24 v2.1.1 (2017-3)
Art. 3.2: RADIO
EN 301 908-1 v11.1.1 (2016-07)
EN 301 908-13 v11.1.2 (2017-07)
ROHS
IEC 50581: 2012
First Year of affixation of the CE-mark: 2016
Place of Issue: Oulu, Finland Date of Issue: 12.02.2018
Signature:
Tero Lepistö
Chief Executive Officer
Tosibox Oy
Copyright © Tosibox. All rights reserved.
