Totem KIN MINI Sub User manual

Our vision
Totem Acoustic’s mission is to develop loudspeakers capable of reproducing a
truly musical and involving performance. Our goal is to provide designs that are
both affordable and real ‘soul movers’ for the music lover and surround lover.
Music of any period, country or style is accurately and emotionally rendered with
a powerful focus that is yet soul stirring. Each speaker is a ‘piece de resistance’
that attests to the profound sound staging that can be reproduced by flexible and
innovative engineering.
Listen and believe...
Congratulations
We sincerely thank you for having granted Totem the special place in your living
environment. These speakers are designed to redefine your musical
understanding and open up corridors of new experiences. We hope you not only
enjoy but experience Totem as your guide to a new and rewarding listening
environment!
You will without a doubt experience a Totem moment.

User Manual
KIN MINI Sub
Congratulations on your new Totem subwoofer: KIN MINI Sub
A compact, reference sub designed to seamlessly blend with your Totem
speakers in any stereo or home theatre application.
Please take the time to fully read this manual prior to beginning set-up. The
manual will clearly guide you to achieve the best possible sound that these
newly acquired Totem speakers are capable of providing.
If you have further questions, contact your authorized Totem dealer or visit
the Support section of our Totem website at www.totemacoustic.com or at
kinmini.com
For further assistance contact our tech support at [email protected]
Unpacking
Totem Acoustic keeps to a strict quality control regimen and all factory-sealed
products leave our facility in perfect condition. If there are any damages visible or
concealed they have occurred in handling and must be reported immediately to
your Totem dealer.
Carefully remove the subwoofer from the box; take caution as the size often
deceives the actual weight. Save all custom cartons and packaging foam for
future use. They are rather expensive and may come in handy for future
upgrades.

Product Features Specifications
6 inch ballistic carbon-fiber woofer
Built in 110 watt peak RMS high efficiency amplifier
Adjustable (50 to 350Hz) Low-pass crossover
High-pass speaker input
Line level (RCA stereo & RCA LFE) inputs
Signal sensing auto turn/off button
Variable volume control
0 to 180 phase control
Frequency response 30-350Hz
Compression circuit prevents amp. Clipping
Power indicator LED
Removable power cord
3

!

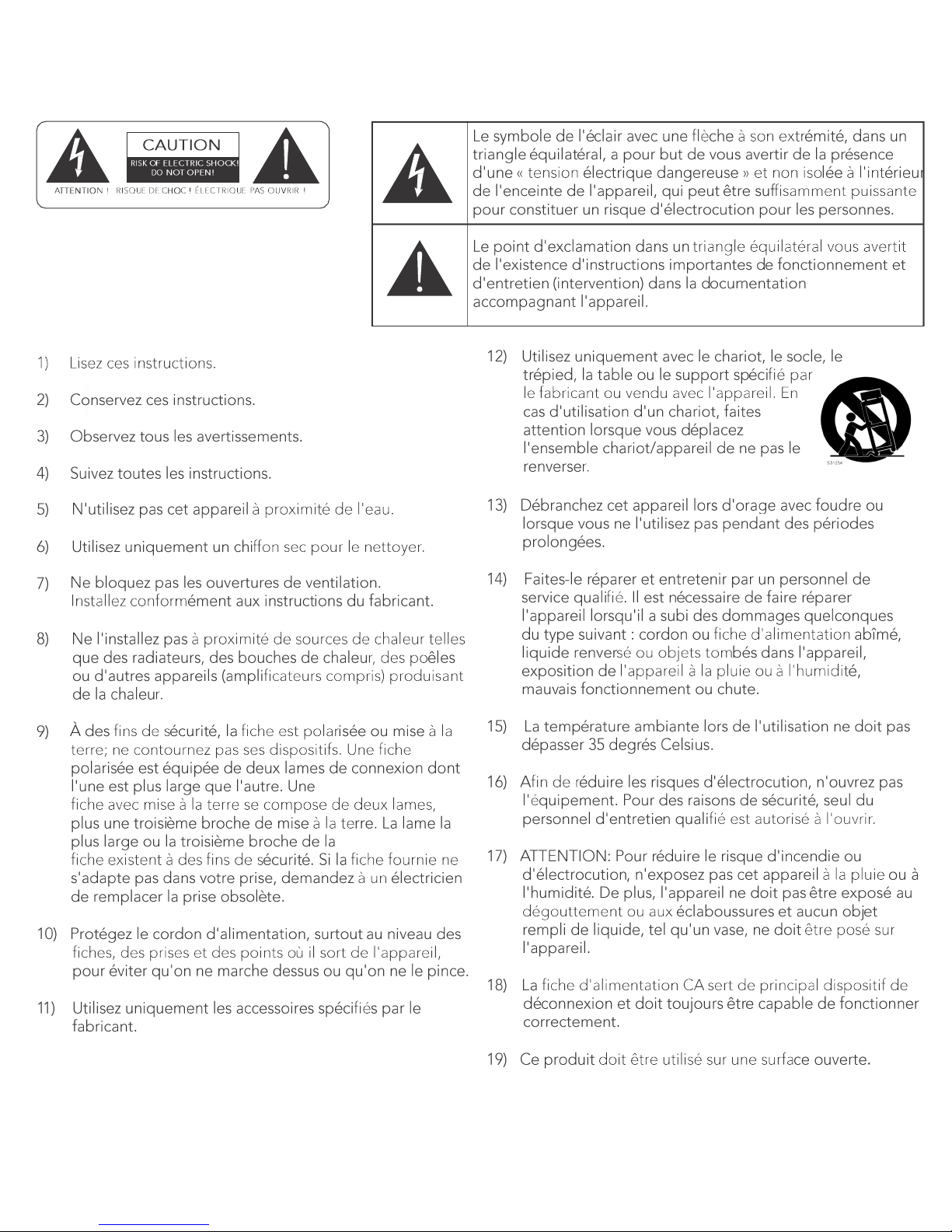

Consignes de sécuritéimportantes
!

Connections
Prior to making any connections make sure the power switch is set to OFF and
the VOLUME dial is set to its minimum value.

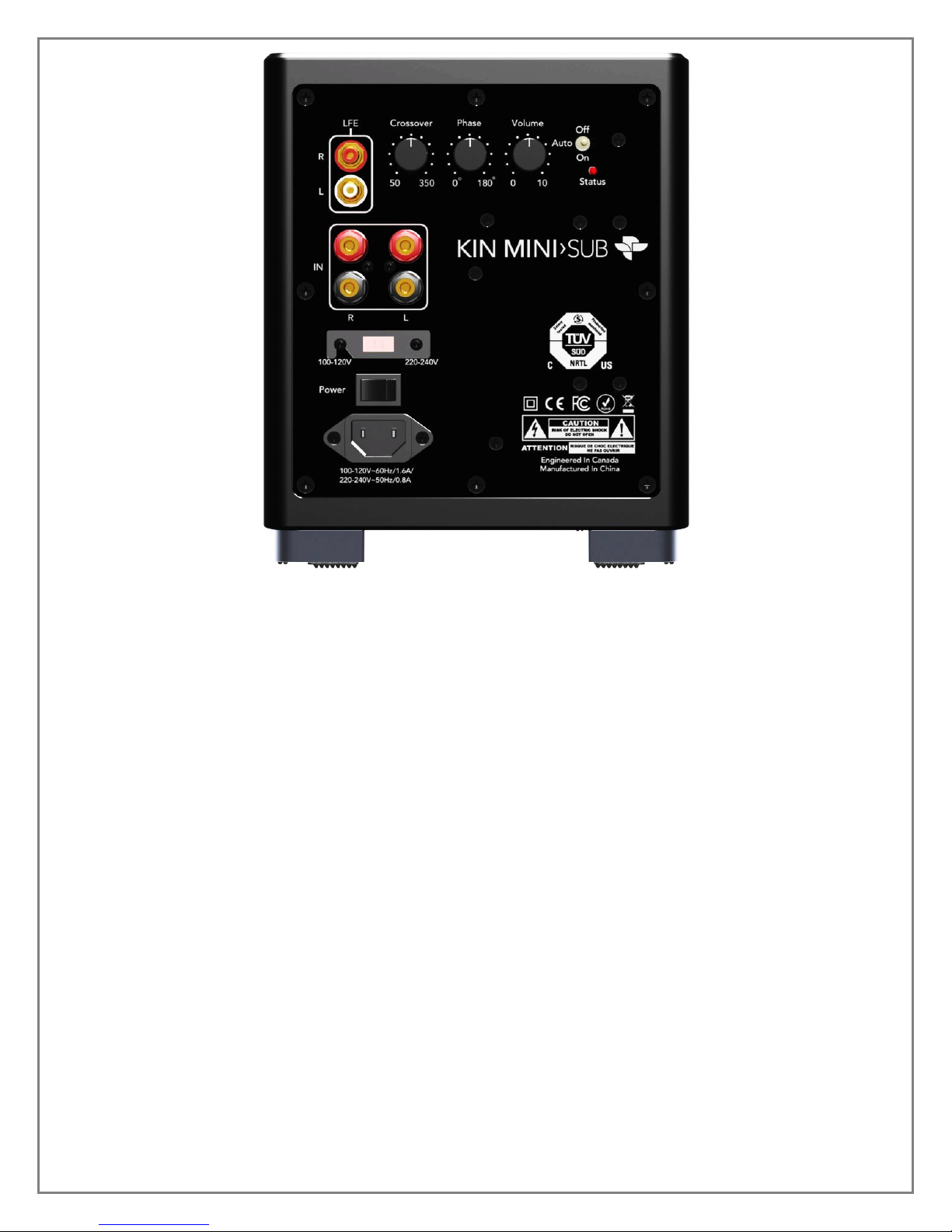

Two connections are possible with the TOTEM KIN Mini Sub (low and high levels
inputs). The low level connection is the preferred method to achieve maximum
performance. If low-level connections are not possible the high level option may
be incorporated.
LOW LEVEL CONNECTION
If connecting from a processor or a preamp, connect using a pair of RCA
interconnects from PRE-OUT (on preamplifiers and surround processors) or
SUB-OUT (on surround sound processors) to the LOW LEVEL INPUT
terminals on the subwoofer.
When connecting from a SUB-OUT on a surround sound processor, only one
interconnect is required and should be used with the RIGHT (LFE) LOW LEVEL
INPUT RCA terminals on the subwoofer.
!!!
HIGH LEVEL CONNECTION
If your receiver or preamp does not have a SUB-OUT or PRE-OUT, the high level
connection may be used. From your amplifiers SPEAKERS OUT, connect both
pair of speaker cables to the KIN Mini Sub high-level input. (It is important to
respect +/- polarity and the right/left channel of your speaker wire). Using a
second set of speaker wires, connect the KIN Mini Sub high level out to the
appropriate loudspeaker, once again respecting polarity and channel. Connect
the power cord to the A.C. power inlet on your subwoofer and then directly to the
A.C. receptacle on the wall.
!!!!!!!!!!!!!!!!!!!!!!!!!!!! 6

Adjustments
The VOLUME, FREQUENCY DIALS are used to tune the subwoofer to your
speaker, whether set for surround sound or stereo application. Depending on the
placement near a wall or a corner, the final position of the dials should blend the
Kin Mini Sub seamlessly to your system.
Use the Volume dial to match the loudness of the KIN Mini Sub to main speakers.
Generally, the final position is set between 9 and 12 o’clock. For optimum
performance it is recommended that you do not turn the unit too loud during a
break-in period of about 100 hours.
Use the PHASE dial to adjust the phase of the Totem KIN Mini Sub to your main
speakers. When in phase the system will give a much fuller bass response. If your
main speakers become brighter then usually it means the system is out of phase
7

and needs readjusting. The simplest way is to adjust the phase of your system is
to have someone vary the PHASE dial as you are sitting in the listening position.
The Totem KIN Mini Sub is equipped with an automatic standby mode. If the unit
does not receive a signal, it will automatically go into “standby”. This feature
eliminates the need to turn the subwoofer off after each listening session, The
Totem Kin Mini subwoofer will automatically resume power one a signal is sent to
the sub.
Use the low-pass FREQUENCY dial to adjust the cut-in frequency of the
subwoofer. (usually between 50 and 70 Hz for floorstanding speakers and 70Hz
and up for monitor speakers)
Placement
When using the Totem subwoofer in a stereo setup its ideal location between the
main speakers or right beside them. When the Totem subwoofer is used in a
home cinema system it is recommended to place it in a corner. Be careful not to
place the subwoofer too close to the corner, or it will start to sound congested,
causing detail loss. Also make sure not to place the sub equidistant from the two
walls in your corner. As every room is different, experimentation is the key to
determining the optimal location for the Totem subwoofer.
Always keep in mind that frequency response and output level can be
significantly affected / influenced by placement all depending on the room’s
acoustic properties.
Caution! This subwoofer has electronics built into the cabinet. Do not place the
cabinet next to sources of heat such as furnace registers, radiators, etc. Do not
place the unit near sources of excessive moisture, such as evaporative coolers,
humidifiers, etc. The power cord should be routed in such a way that it will not be
walked on, pinched, or compressed in any way that could result in damaging the
insulation or wire.
8

When using the KIN Mini Sub in a home cinema setup it is recommended to
place it in a corner. The corner location offers the greatest output levels and
optimum low frequency extension. Be careful not to place the subwoofer too
close to the corner, or it will begin to sound congested, causing detail loss. Also
make sure not to place the unit equidistant from the two walls in your corner.
In order to achieve maximum performance your KIN Mini Sub requires proper
positioning. We suggest you experiment with the location during your setup to find
where it sounds best while seated in your listening position.
Wherever the placement choice, the subwoofer must always remain in an
upright position with the woofer facing forward. If unit is stored, shipped or
used in any other position for an extended period of time, damage not covered by
warranty may result.
Grill Installation
The Totem KIN Mini Sub incorporates a magnetic grill assembly. Simply place
the grill in front of the driver and it will securely attach to the cabinet.
Care of Subwoofer
This unit does not require any type of regular maintenance. Dust and clean the
surface using a soft damp cloth. Abrasive detergents and solutions may result in
damage to the cabinet and woofer.
Voltage switch
The Totem Kin subwoofer is equipped with a voltage switch to allow playback in
different regions. It is imperative that the voltage switch be set to reflect your local
A/C current. If you are not familiar with your A/C current please contact your local
TOTEM AUTHORIZED DEALER. To adjust the voltage remove the protective
cover and move the switch to the appropriate position. For security, please reinstall
the safety cover once the appropriate voltage is selected. Please note that an
appropriate power cord (to the voltage/outlet selected) must be incorporated.
9

Totem Limited Warranty on Subwoofer
The Totem subwoofer must be purchased from a TOTEM AUTHORIZED
DEALER or from the KIN Mini online store (kinmini.com).
The limited warranty is for 2 years from the date of purchase. Please register
online at www.totemacoustic.com or kinmini.com within two weeks of the
purchase date.
Keep your original bill or receipt obtained from your TOTEM AUTHORIZED
DEALER or from the KIN Mini online store. Retain the sturdy carton and all
packing material; if needed, it will prove invaluable for damage-free transport
or storage.
The Totem limited warranty applies to products in normal home use only. The
warranty is void if serial numbers have been altered or removed. The warranty
is void if products show signs of abuse. The warranty is void if the subwoofer
has been tampered with.
The subwoofer requires at least 75-100 hours of actual break-in time period.
During this time, refrain from playing the unit at very loud levels. You will notice
a definite gradual improvement as your unit breaks in.
Should servicing be required please contact your TOTEM AUTHORIZED
DEALER.
We reserve the right to any future change or modification without notice. If you
have any further queries or require any classifications, feel free to contact your
TOTEM AUTHORIZED DEALER.
10
