Instructions for construction
Before product installation, read these instructions for
construction carefully and retain it for future reference.
施工说明书

Contents
Contents
Detailed list
Use condition and attentions
in construction
Attentions in construction
and maintenance
Installation completion figure
Faucets installation
1
2
3
4
5-7
8-13
Main water nozzle body part
Handle part
External plate part
Liner plate part
Fixing cover
Adjusting screw
Button
Screw
Instructions for construction
Instructions for operation
1 set
1 set
1 set
1 set
1 piece
1 set
1 set
4 pieces
1 copy
1 copy
Detailed list
Detailed list
The products using this detailed list include:
TBV02105 "G Shower" Conceald 3way Push Button Shut Off Valve
(Contemporary Type)
TBV02405 "G Shower" Conceald Thermostat and 1way Push Button Shut
Off Valve (Contemporary Type)
TBV02406 "G Shower" Conceald Thermostat and 2way Push Button Shut
Off Valve (Contemporary Type)
TBV02402 "G Shower" Conceald Thermostat Valve for 3way Push Button
(Contemporary Type)
*
*
*
*
1 2

Use condition and attentions in construction
Use condition
1. Cold water supply*hot water supply pressure
Minimum pressure ………………… 0.05MPa (flow pressure)
Maximum pressure ………………… 1.0MPa (static pressure)
Recommended pressure ……………. 0.1-0.5MPa (flow pressure)
A pressure-reducing valve has to be installed when exceeding 0.5MPa.
Testing pressure ……………………..1.6MPa (static pressure)
2. The temperature for water supply is 4~90℃. It is suggested to use the temperature of
60±5℃. Do not use steam to supply hot water.
3. The ambient temperature for use is above 0℃. If the ambient temperature is lower than
0℃, the faucets will deform and crack from freezing.
4. To prevent internal sprinkler damage, the water outlet temperature on the sprinkler side
shall not exceed 60℃. It is suggested to use a temperature below 45℃.
5. Being out of use for a long time may result in internal and external rust to the faucets and
being unable to be used.
6. If you want to scrap this product, do not treat it as you do for general household garbage.
Please follow relevant statutes to have it treated, recovered and collected appropriately by
an independent recovery system.
7. The product in these instructions has a cleaning function.
※To attain the best installation and operation effect, it is recommended to use with
TOTO series sprinkler in a supporting manner.
Attentions in construction and maintenance
Attentions in construction
Warning
Attentions
Maintenance
Warning: it means that ignoring this mark and misoperation may cause serious
personal injury and death.
Attention: it means that ignoring this mark and misoperation may cause personal
injury or property loss.
1. The hot water supply side of the faucets is in a condition of high temperature. Do not
allow skin to contact with the hardware surface directly. Otherwise, scalding may occur.
2. Do not reverse the cold*hot water pipe. Otherwise,scalding may occur.
3. Do not use steam to supply hot water. Otherwise, scalding may occur.
4. When switching directly from the water outlet side to the shower side or from the shower
side to the water outlet side.the water temperature may change.Be sure to use after
measuring the water temperature with hand.Otherwise,scalding may occur.
5. Turn the temperature-regulating handle slowly.If turning the temperature-regulating
handle rapidly,the temperature will rise or reduce sharply.
6. After using hot water,it is imperative to turn the temperature-regulating handle below
“40” to avoid hot water spraying out when using it again.
1. As the temperature control spool is a precise component, do not dismantle it without
authorization. Otherwise, such poor conditions as water leakage, etc. may be caused.
2. Do not use strong force to impact the faucet. Otherwise, water leakage or faucet
strength reduction may occur.
3. With the product design being updated constantly, the physical object may not coincide
with the figure. However, the basic principle for installation, use is the same.
4. Due to water supply inspction before ex-factory,there may be water remaining in the
faucet.This is not a product problem.
To maintain a beautiful appearance of the product, the user is requested
to conduct maintenance and care in the following method.
1. Wipe with a piece of soft cloth frequently and use a piece of soft cloth
dipped in water to wipe from time to time.
2. When dirt exists obviously, please use water to wash sufficiently after
wiping with a neutral detergent.
3 4

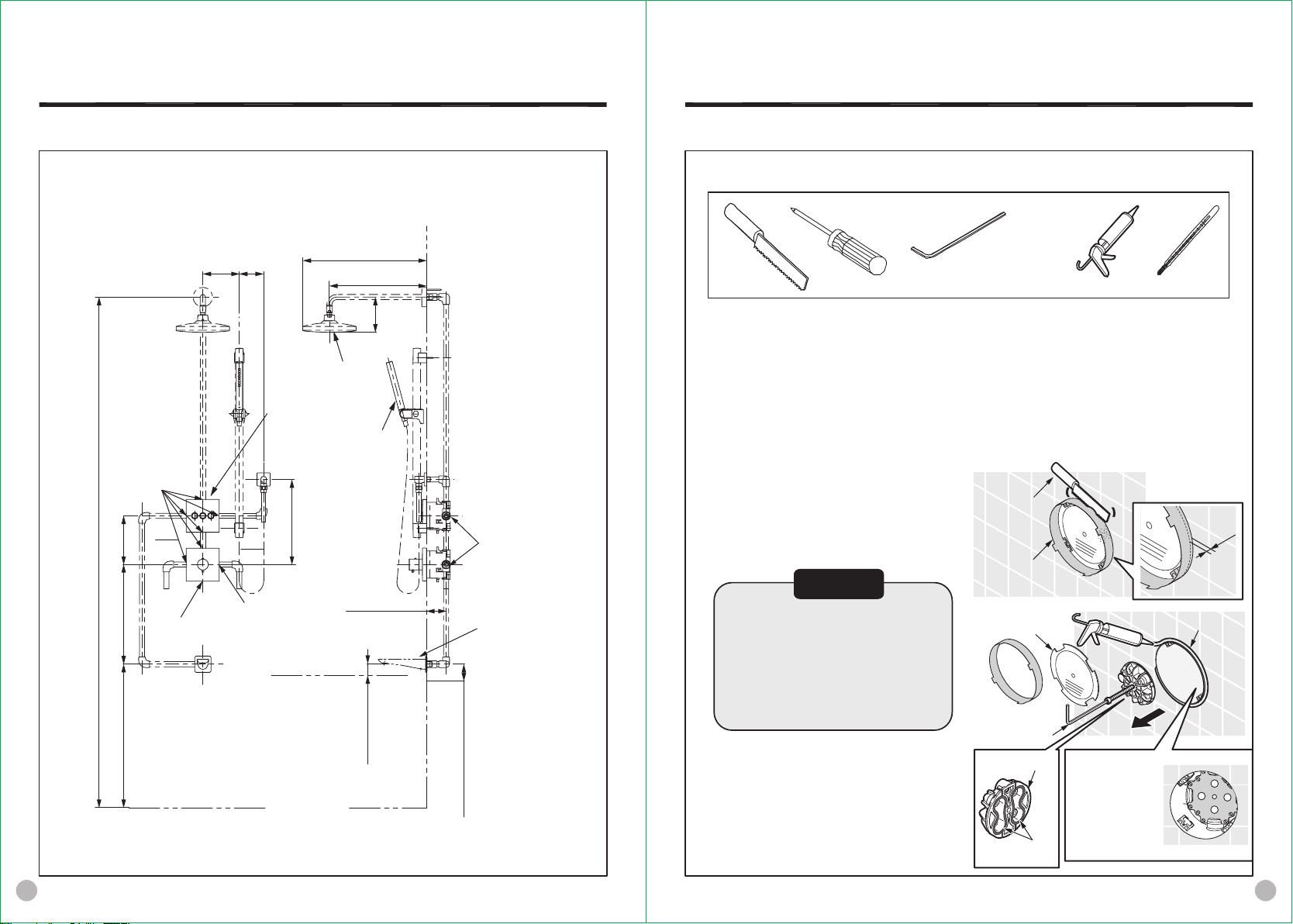

Installation completion figure
TBV02405
*
"G Shower" Conceald Thermostat and 1way Push Button
Shut Off Valve (Contemporary Type)
Note: The above dimensional unit is mm.
The dimensions in ( ) are reference ones.
Installation completion figure
TBV02406*"G Shower" Conceald Thermostat and 2way Push Button
Shut Off Valve (Contemporary Type)
Note: The above dimensional unit is mm.
The dimension in ( ) is reference dimension.
W.L
F.L
Export closure(G1/2)
Bathtub
surface
Faucet outlet
(bug separatly)
(bug separatly)
More than 50
Construction space more than 60
TBN01001*
F.L
W.L
▽
(350)
(145)
(150) (510)
(400)
(100)
(1000) (2100)
G1/2
G1/2
80±13
TBN01001*
TBV02406*
G1/2
(590)
(1000)
80±13
G1/2
▽
Cartridge
sprinkler
(bug separatly)
Hand shower
(bug separatly)
(bug separatly)
TBV02405*
F.L than1850
5 6

Attentions

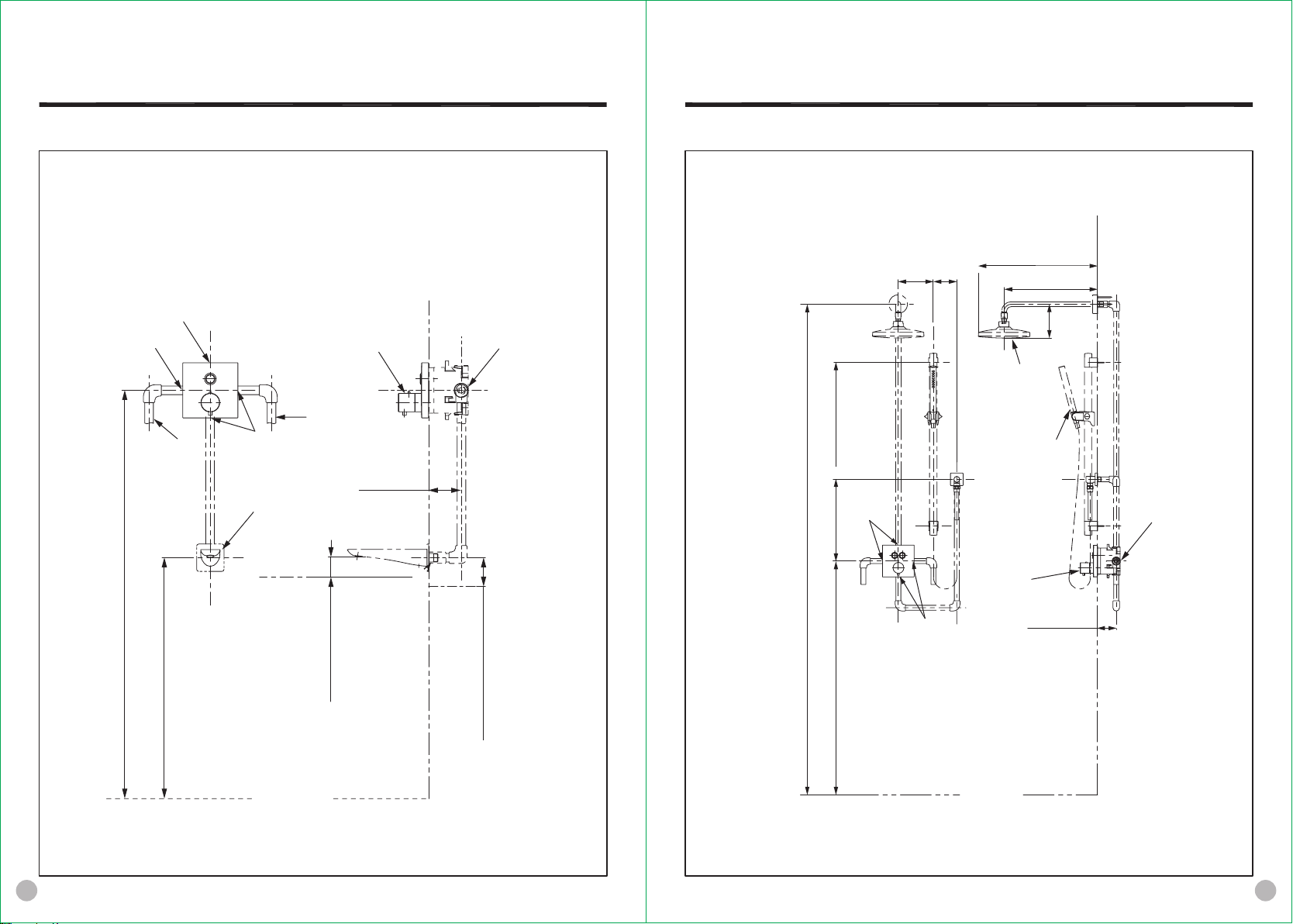

Installation completion figure
TBV02105*"G Shower" Conceald 3way Push Button Shut Off Valve
(Contemporary Type)
TBV02402*"G Shower" Conceald Thermostat Valve for 3way Push
Button (Contemporary Type)
Note: The above dimensional unit is mm.
The dimension in ( ) is reference dimension.
Faucets installation
Tools to be prepared
Confirm the following before installation
■ Confirm that the water supply pipe has been closed and the water
circuit has been cleaned before installation.
■ Read carefully the instructions for construction and install according
to the main points for installation in the instructions.
I. Preparation before Faucet installation
3. Remove the protective cover. After
using a hex wrench to remove the
screws, take out the washing cover.
2. Apply waterproof adhesive uniformly
in the gap betwen the buried box,and
wall surface.No adhesive surface
shall be convex from the wall surface.
●In cutting the resin sleeve, note
that cut edge is neat.
●In cutting the protective cover,
there is a possibility of being
scratched. But this does not
influence the use of the whole
product.
Hand saw Screwdriver ThermometerSealing surface
Hex wrench
(opposite side 4mm)
Had
saw
TBN01001*
Protective
cover
Hex wrench
(opposite side
4mm)
Within
2mm
F.L
W.L
More than 50
Bathtub
surface
Export closure
Nozzle outlet
(bug separatly)
(bug separatly)
Construction space more than 60
(150)(100)
80±13
（200）
(350)
（410）
(590）
（2100）
(510)
(400)
G1/2
(145)
▽
G1/2
TBN01001*
TBV02105*
Cartridge
sprinkler
(bug separatly)
Hand shower
(bug separatly)
1. For the buried product properly
installed (TBN01001*), remove the
part of resin sleeve exposed from
the wall. It is required to ensure that
the convex edge of the resin sleeve
is within 2mm with the wall surface.
(The edge cannot be recessed inside
the wall surface either)
Sealing surface
Washing
cover Please confirm
the bodyNo
sundries on
the surface
Sealing
surface
7 8

Attentions
Attentions
Attentions
Attentions
Note: The above dimensional unit is mm.
The dimension in ( ) is reference dimension.
Faucets installation
d. Use a hand saw contacting closely with
the surface of the fixing cover to cut off
the adjusting screw.
e. Remove the properly cut off adjusting
screw. Then remove the fixing cover.
At last, remove the cartridge cover.
※ An additional set of adjusting
screw is equipped for appearing on site.
If cutting off is not successful, use the
spare part to cut off again. The fixing
cover removed has no functional
assembly. Please abandoned after the
installation of the product according to
the national rules and regulations.
3. Installation of liner plate
●In cutting off, keep the adjusting
screw fixed without turning.
●The surface of the adjusting
screw cut off must be flat with no
burr.
●Do not lose the screws when
removing the fixing cover.
●Before installing the liner plate part,
please confirm first if the water stop valve
is fully open and conduct a water pressure
test to see if the main body of faucet is
installed
●properly. Press the press start type
cartridge and confirm if the outtet water
flow at the terminal end of the whole water
circuit is normal. If the flow is very small,
please screw out the water stop valve and
clean the filter net thereon.
●Turn the spindle in the water stop valve
to an appropriate position according to the
water amount required.
Cartridge cover
Hand saw
Fixing
cover
Adjusting
screw
Surface cut
off protrudes
Hot water
side water
stop valve
Cold water
side water
stop valve
Cold water
side water
stop valve
Cold water
side water
stop valve
Hot water
side water
stop valve
Hot water
side water
stop valve

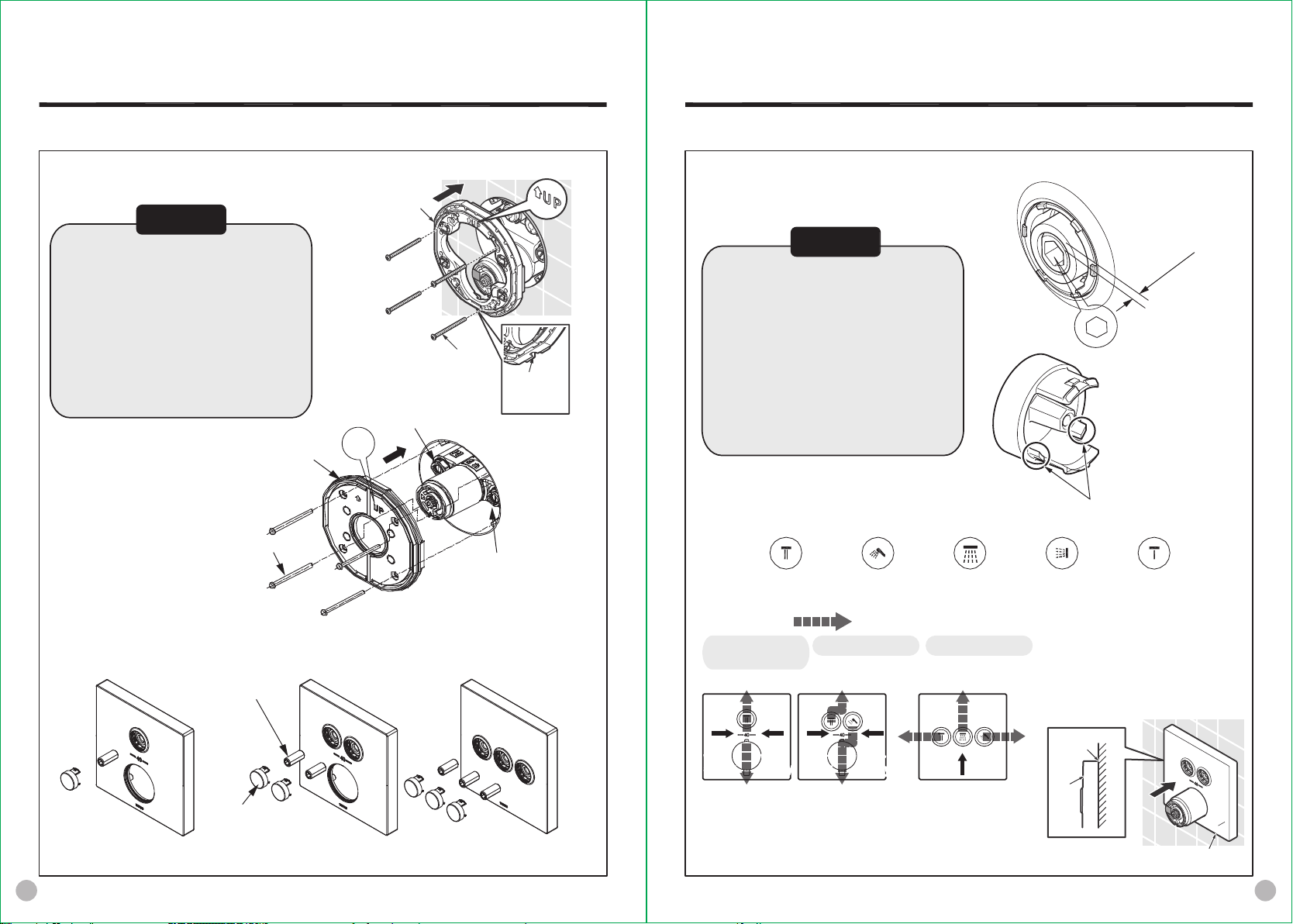

Faucets installation
II. Faucet installation (take TBV02406* as an example)
1. Installation of main body part of faucet
a. Take out the main body part of faucet
and remove the protective cover.
b. Install the up direction mark “UP” on the
main body of faucet in the faucet buried
in wall and use screw to secure sufficiently.
2. Cutting off of adjusting screw (in case of
TBV02402*, there is no this step)
a. Take out the fixing cover and use screws
to fix it in the faucet buried in wall.
b. Take out the adjusting screw and screw
in a corresponding position. Just tighten
until contacting with the cartridge surface.
Protective cover
Octagonal wrench
Main body of
water nozzle
O ring
Physical wall
faucet
Screw
Screw
Cartridge
Adjusting screw
Adjusting
screw
In case of TBV02405* In case of TBV02406*
Fixing cover
Adjusting screw
In case of TBV02105*
●Do not use electric tool to
tighten the screws by sudden
force.
●Do not screw tight the
adjusting screw by strong
force.
UP
●When removing the protective
cover, take care not to allow screws
drop and lose. The O-ring cannot fall
off.
●Please use the hex wrench in
the product package to fasten the
screws on the main body of faucet
闭闭
开开
Flow reduces
Flow increases
910

Attentions Attentions
Faucets installation
①Screw the adjusting which screw cut just now in
the decorating plate.
②Install the button
●The cut off surface of the
adjusting screw faces outside and
it is ensured that the end face
section difference with the sliding
part in the decorating plate is
within 1mm.
●When the adjusting screw is
turned to stop, ensure one angle
of the hex hole faces up.
●The button needs to ensure the
wide face claw.
The difference between the
two end face sections is
within 1mm.
The direction
of hex hole
The wide face claw
faces down
Water coming out
from fixed spinkler
Side washingWater outlet
Waterway
Outlet 1 Outlet 1
Outlet 1 Outlet 3
Outlet 2 Outlet 2 Mixed water
Outlet 2
Flow direction
Top spray
sprinkler
Handheld
sprinkler
Faucets installation
Take out the lining plate part and use screws
to fix it onto the faucet buried in.
4. Button installation (in case of TBV02402*, there is no this step)
●The “up” on the linling plate should
face up and the water discharge port
should face down.
●Please compress the foam gasket on
the lining plate and reduce the gap
between the lining plate and wall
surface as practical as possible.
●Please fasten the screws manually.
Do not use electric tool to tighten by
force.
In case of TBV02402*
Screw
Properly cut
adjusting screw
button
In case of TBV02405* In case of TBV02406* In case of TBV02105*
Water stop
valve
Liner plate part
Screw
plate part
Water stop valve
UP
In case of TBV02405*, TBV02406*,
please select the button showing
corresponding function icon according to
other ancillary products for installation.
5. Decorating plate installation
Put the main body of faucet on
the decorating plate part and
compress tight.
TBV02405*
TBV02402* TBV02406* TBV02105*
Water
discharge
port
Press to wall
Plate
Plate
hot
water
supply
hot
water
supply
Cold
water
supply
Cold
water
supply Cold
water
supply
Cold
water
supply
hot
water
supply
hot
water
supply
11 12

Attentions
Faucets installation
6. Handle part installation (in case of TBV02105*,
there is no this step)
a. Adjust the opening of the snap ring so th
at it faces down.
b. Install the handle and ensure the safety
button to face up and align with “40”.
c. Screw the small screws.
d. Put on and press tightly the decorating
cover to facilitate application of a small
amount of soap water on the O-ring for
lubrication.
●Before installing the handle part,
confirm that the opening of the
snap ring faces down and the
internal convex part has been
snapped in the snap slot.
●As before the temperature
adjusting cartridge leaves the
factory, the outgoing water
temperature is initially adjusted to
40℃and a color marking is
provided on the spline, please turn
the color marking to the up
direction to align with “40”.
Snap ring
O-ring
Decorating
cover
Small
screw
Handle
Safety
button
Snap slot
Convex part
Spline
Color mark
“40”
13 14
