Universal flat-panel mount
I N S T A L L A T I O N M A N U A L
PREMIER MOUNTS ©2004/ REV 02
3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888
www.mounts.com
- 2 -
- Assembly drawing - Securing the bottom wall plate
- Fine tune tilt adjustments - Securin
g
the top plate

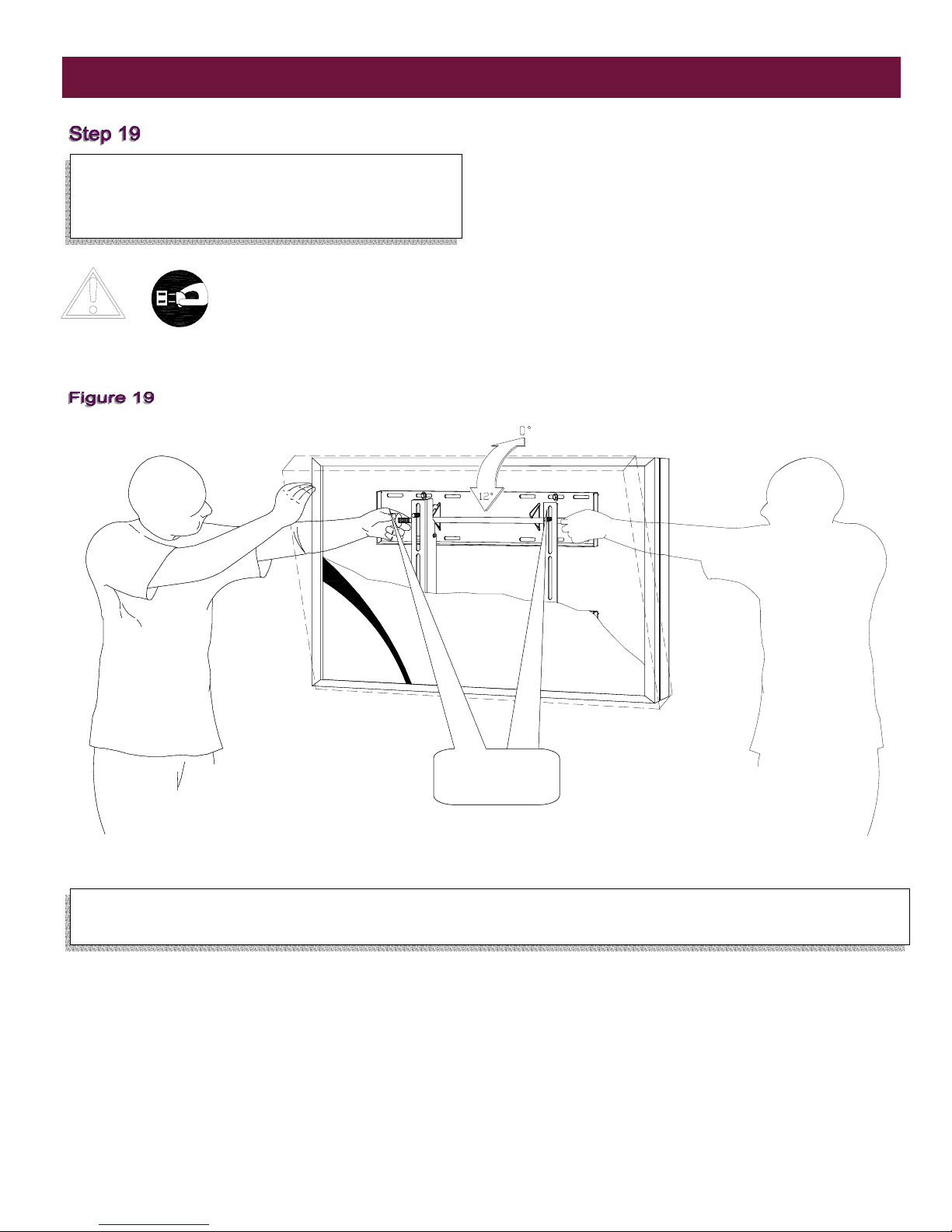

- Flat panel list - Securing the flat panel to the wall mount
- Parts list - Lateral shift adjustment
- Checking thread depth
- Finding the center of the flat panel

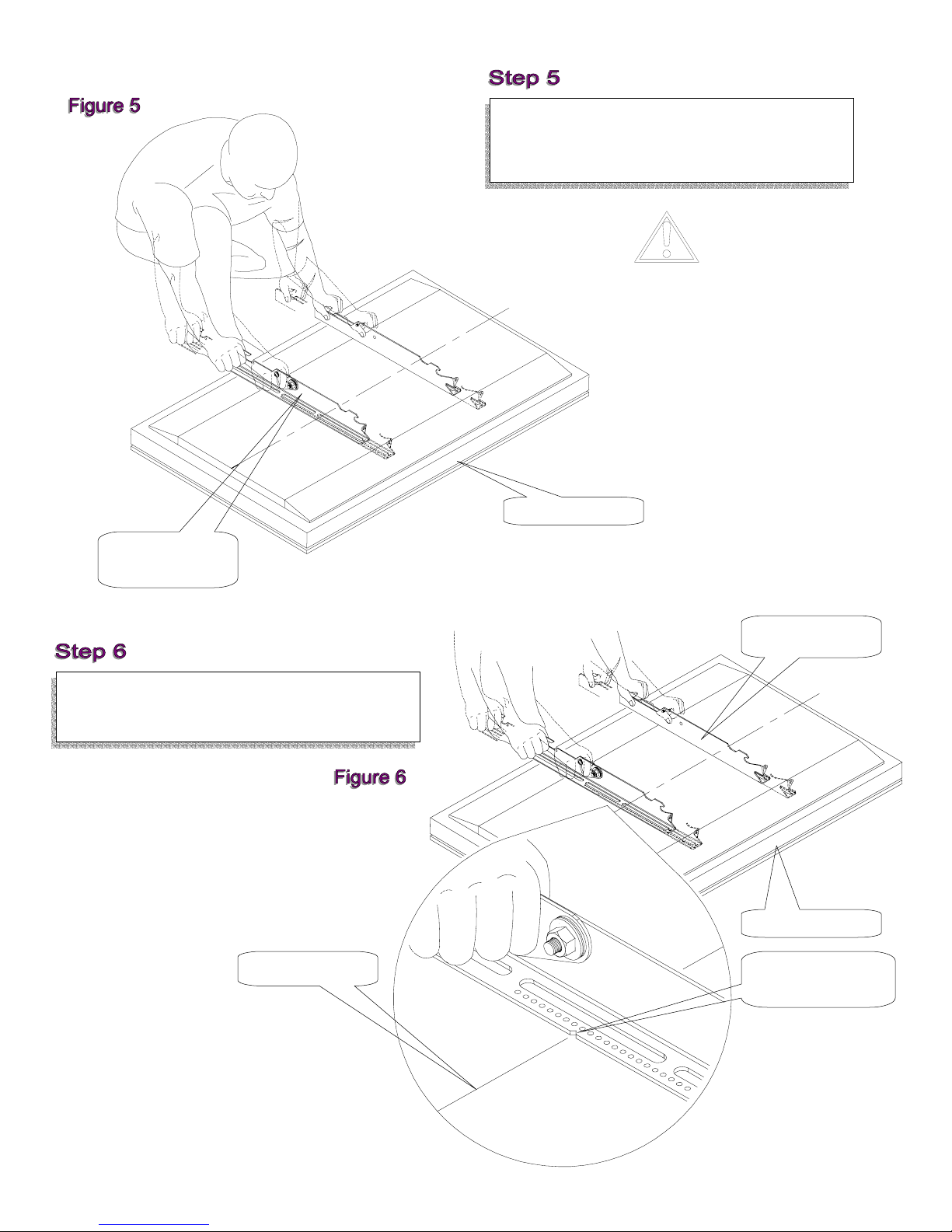

- Positioning the mounting brackets
- Securing the mounting brackets

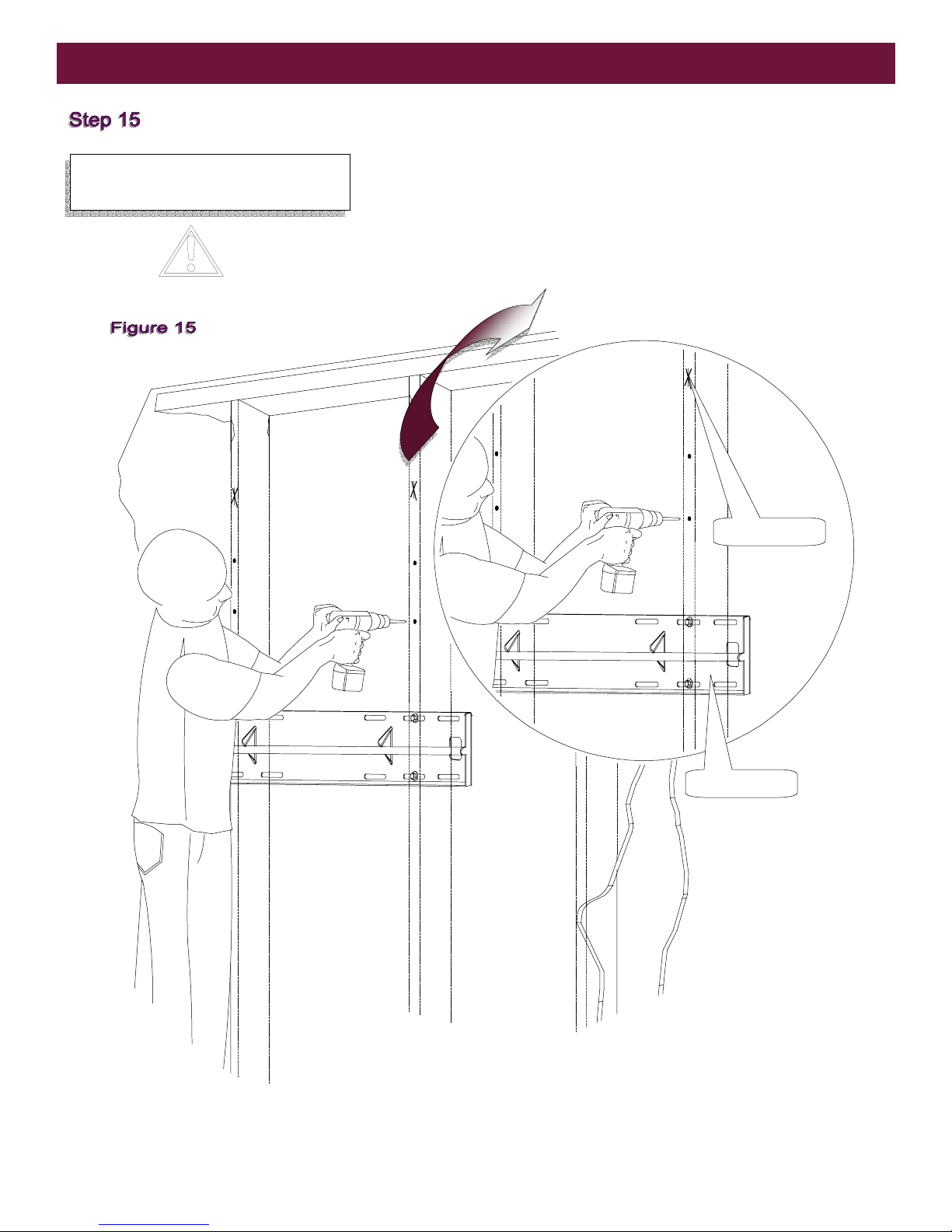

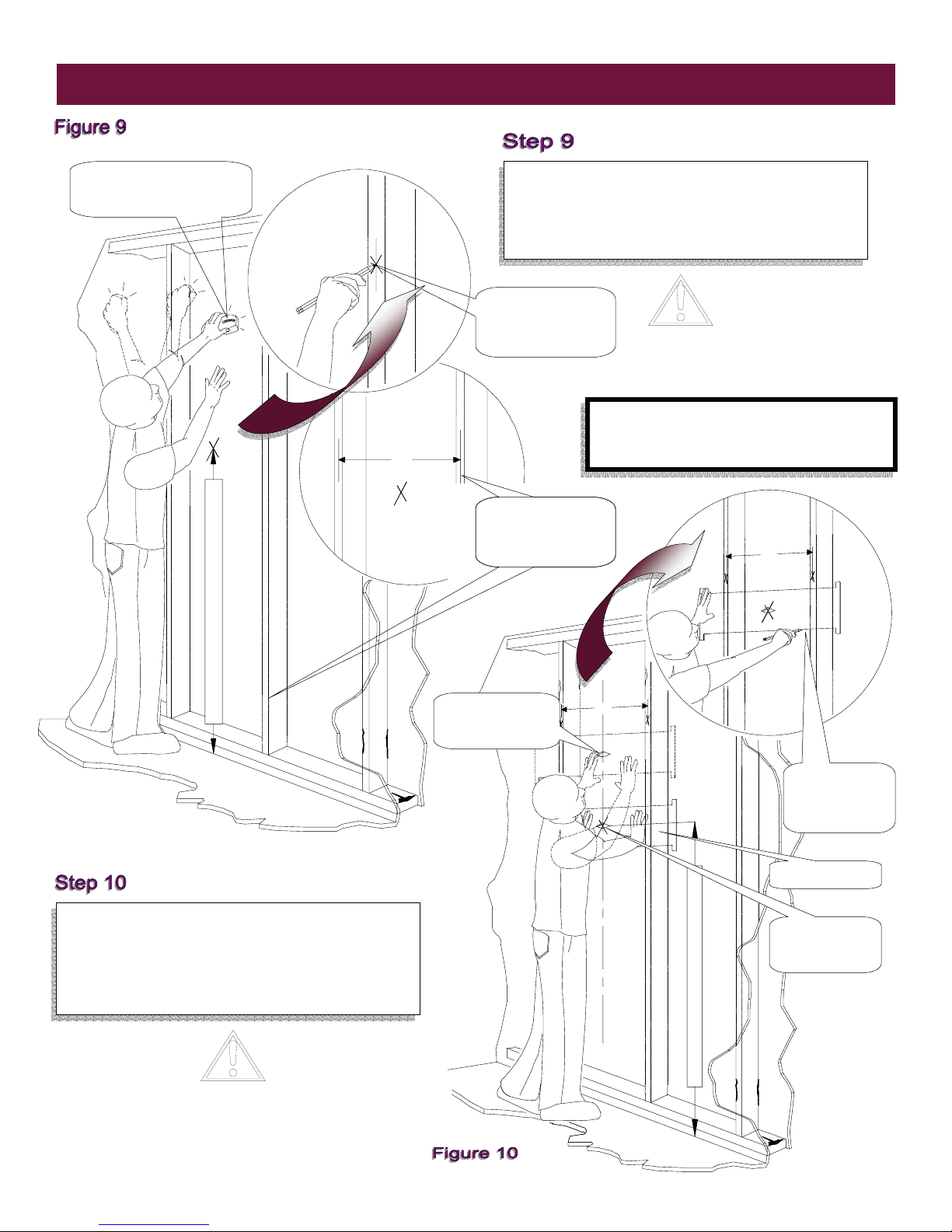

- Finding the wood stud behind the wall structure
- Marking the bottom plate mounting points
Contents
WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and
tools for the installation procedure to prevent personal injury.
The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before
beginning installation. The installation instructions should be read, understood and followed to prevent personal in
j
ur
y
or propert
y
dama
g
e.
Keep these installation instructions in an easily accessible location for future reference.
Indicates that the power plug is to be disconnected from
the power outlet.
Safety precautions must be taken at all times.
Contact Premier Mounts for an
y
q
uestions
Warning and caution in general
Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in flat panel cracking or
falling from the wall causing damage and injury.
Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may
result in damage to the flat panel and could cause a risk of fire.
At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling
the flat panel.
The wall structure should be capable of supporting a max weight of 160 Lbs., the weight of the flat panel. More than 160 Lbs the wall must
be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions must be adhered to. Failure to
do so could result in serious personal injury.
A secured structure wooden stud wall must always support the weight or load of the flat panel. Always confirm the center of the wood
stud before beginning the installation.
Mounting structure recommended wood studs, solid-flat concrete. Use a min dia of 5/16” x 2 ¼” lg concrete wedge anchor
(commercially available). or a min dia of 5/16” x 3” lg wood screws.
- 3 -
16.000
(406.4)
28.000
(171.2)
16.000
(406.4)
16.000
(406.4)
16.000
(406.4)
24.290
(616.97)
F
G
12.000
(304.8)
19.000
(482.6)
H
L
C
20.500
(520.7)
E
D
21.000
(533.4)
5.000
(127)
5.000
(127)
10.500
(266.7)
C
1.245
(31.75) A
C
L
B
G
H
1
2.331
(59.21)
2
Description
A
. Wall plates
B. Mounting brackets
C. Griplate™
D. Mounting hardware
E. M6 x 30 (mm) Phillip screws
F. Wood stud
G. 5/16” x 3” Lag screws and flat washers
H. Safety knobs

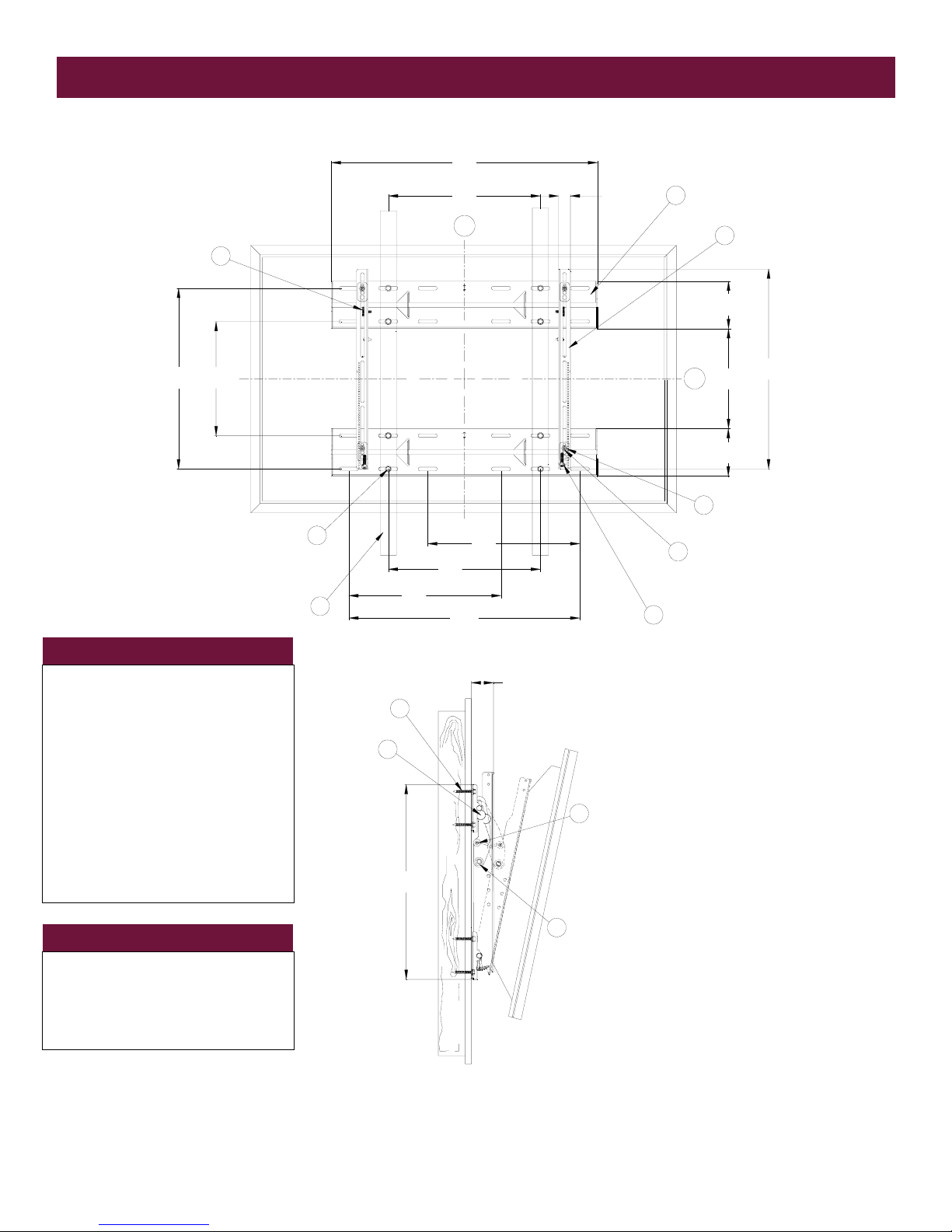

Assembly drawing
Dimensions are in Inches and
(
mm
)
Fine tune tilt adjustments
1. M5 Phillips screws for fine tension
2. M8 Hex nut coarse tension
NOTE: The 8 (mm) hex nut is for your coarse
tension adjustment and the 5 (mm) screws are for
your fine tension adjustment.
- 4 -
Flat panel list
Hitachi
EIKI
Electrograph
Gateway
32HDT20,CMP307XJ,CMP307XU,32HDT20
CMP401HDU, CMP402HDE, CMP402HDU,
CMP4120HDU,CMP4121,CMP4121HDU,CMP4201U,
CMP4202U, 42HDW10,42HDT20, 42HDT50, 42HDT55
M6 x 12
CMP5000WXU, CMP5003WXU, 50HDT50, 50HDT55:
M8 X 20
PLD32: M5 x 20 - ¼” nylon space
r
s (small)
PLD42XU: M5 x 20 - ¼” nylon spacers (small)
DTS42W: M8 x 30 – ¼” nylon spacers (large)
DTS4230: M8 x 30 – ½” nylon spacers - sleeves
DTS42DD, DTS42GBDD, DTS42GB: M6 x 20
GTWP42M102: M8 x 20, M8 x 35 – ¼” nylon spacers
(large)
GATEWAY 42: M8 x 30 – ¼” nylon spacers
GATEWAY 46: M6 x 20
GATEWAY 50: M8 x 30 – ¼” nylon spacers
Acer
PDP7859: M6 x 20
Akai
CTA42AR7A, PDP4247, PDP4290, PDP4294,
PDP5090, HPT500AN: M8 x 25 – ½” nylon spacers -
sleeves
Albatron
PWV46AC: M6 x 20
Barco
Cineversum 50: M8 x 20
Akira
EPM420, SV4201: M5 x 16
BenQ
PDP7843E: M6 x 20 – ¼” nylon space
r
s (small)
PDP46W1: M6 X 12
Cornea
MP4200, MP4204: M5 x 16
Dream Vision
Revolution One, Revolution Five: M4 x 16
Eizo
5420T: M8 x 30
Dukane
P37: M6 x 12
P42: M6 x 12
P50: M8 x 20
Dwin
HD50: M8 x 30 – ½” nylon spacers - sleeves
Faroudja
FPP42HD10, FPP50HD10: M4 X 16
Fujitsu
4211, 4212, 4221, 4222, 4208, 4209, 4213, 4214, 4229,
4241 4242, 4233: M5 x 16
5001, 5002, 5003, 5004, P50XHA10, P50XCA11UH,
P50XHA30WS: M8 x 25 – flat washers
PDS6101, PDS6001, PDS6002: M8 x 30 – ½” Nylon
spacers - sleeves
Helios
4200: M8 x 20
Idex
PDM4260: M4 x 16
Ikegami
PTM4202: M5 x 20
Integra
PLA50V1: M4 X 16
JVC
GDV4200PZW, 4210, GDV4210PZWGA, 4211,
GMP420UG, GMV42UG, JVP042WV74, PD42WV74,
PD42WX84: M5 x 16
GDV500PZU, GDV501U, 502U: M8 X 30 – ½” nylon
spacers – sleeves
LG Electronics
Flatron MU40PA10B, MU40PA15B: M5 x 20- ¼” nylon
spacers
Flatron MN42PZ10, MN42PZ11, MU42PZ10,
MU42PZ11B, MU42PZ15B: M5 x 20
MU50PZ41, MU50PZ90: M5 x 20
Flatron MU60PZ10, MU60PZ11B, MU60PZ12B,
MU60PZ90V: M8 x 25
Luce
PDTV4220A: M5 x 25 – ½” nylon spacers
Marantz
PD4280D, PD4282D, PD4290D, PD4292D,
PD4293: M4 x 20
PD4298HD: M6 X 20
PD501OD, PD5020, PD5040:
Max
4600, 4600T: M6 x 20
5000: M8 x 30- ½” nylon spacers - sleeves
NOTE: If your flat panel display is not listed, go to (page 8) to determine the thread pitch for your flat panel.
- 5 -
SONY
Sanyo
VIEWSONIC
Sampo
PFM42B1,PFM42B2: M6 x 20 - 5/16” flat washers
PFM-42V1,PFM-42V2: M6 x 25 – 9/16” nylon spacers
PFM50C1: M6 x 20 - 5/16” flat washers
KE-42XBR900: M6 x 20 - 5/16” flat washers
KE50XBR900: M6 x 20 - 5/16” flat washers
KE42XS910: M6 x 20 - 5/16” flat washers
KDE61XBR950: M6 x 20 - 5/16” flat washers
PDP421A: M5 x 20 - ¼” nylon spacer (small)
PDP42H1NA: M5 x 20 - ¼” nylon spacer (small)
VPW420: M8 x 30 – ½” nylon space
r
s- sleeves
VPW425: M8 x 30 – ¼” nylon spacers (large)
VPW450HD: M8 x 30 – ¼” nylon spacers (large)
VPW500: M8 X 20
VPW505: M8 x 30 – ¼” nylon spacers (large)
PME42S6: M8 x 30 – ¼” nylon spacers (large)
PME42F61: M8 x 20, M8 x 35 – ¼” nylon spacers
(large)
PME50X6: M8 x 30 – ¼” nylon spacers (large)
Mitsubishi
PD5010HD, PD5030: M4 x 16
Monivision
PWV46AC, PD46W00: M6 x 20
NEC
4200W, 4210W, M4A,MP2, PX42M3A, 42PD1W, PD2
M5A,M5G, 42MP1, 42PD1, PX42VM1A, PX42VP1A,
PX42VP2A, 42MP3, 42PD3, PX42VP3A, 42MP4,
42VP4A, 42MX2: M4 X 16, 5000W, PX50M5A, 50PD1,
PX50VP1A, PX50MX1A, 50MP1, 50MP2, 50PD2,
50VP2, 50MP3,
50XM3: M4 X 16
Norcent
46WGA850: M6 x 12
Orion
PM4202: M5 x 16
Panasonic
TC42P1, PT42PD3P, PT42PD1P, TC42P1F, PT37P1,
TH42PWD3, TH37PWD4UZ, PT37PD4, TH37PW5EX,
TH37PA20UP, TH42PD4UY, TH42PWD4EX, PT42P1,
42PD2, TH42PWD3U, TH42PHD5U, PT42PD3P,
PT42PD4, PT42PHD4P, TH42PWD5UY, TH42PW5UZ,
TH42PWD6UY, TH42PA20UP, TH42PL20E,
TH42PAX20, TH50PHD3U, PT50PD3P, PT50PHD4P,
TH50PHD3E, TH50PHW3, TH50PD4, TH50PHD5UY,
TH50PHD6UY, TH50PL20E, TH50TX20UP:
M8 X 30 – ½” Nylon spacers – sleeves
TH42PX20U, TH50PX20U: M8 X 70 – 1-1/2” Nylon
spacers
Philips
42FD9934, 42FD9952, 42FD9954, 42PH9555,
42FD9935: M5 x 25 ½” Nylon spacers
BDS4611: M6 x 20
50FD9934/17S: M4 X 16
Pioneer
PDPV401, V402, PDP4330HD, PDP433HDE,
PDP433CMX, PDP433PU, PDP4300, PDP4340HD,
PRO800HD, PRO800HDI, PRO910HD, PDP4310,
PDP501X, V502MX, V502X, PDP503MX, V505,
PDP505HD, PRO1000HD, PDP503CMX, PDP5030HD,
PDP503HDE, PDP5031HD, PDP5040HD,
PRO1000HDI,PRO1110HD: M8 X 20
Planar
42N: M4 x 16
50P: M8 x 20
Princeton Graphics
A
R3.4FTW,
A
R4.6PDP: M6 x 20
Rainbow
Spectrum 3750: M6 x 20
RCA
PR42300, PHD42600, PHD50300, PHD50400: M4 X 16
PHD50500: M8 X 20
Revox
E1042: M6 x 20
E1050: M8 x 20
Runco
PL42C, CW42: M4 X 16
PL42CXPL50CX: M8 X 30, ½” Nylon spacers –
sleeves
E1050, PL50C, PL50HDX, CW50MC: M8 X 20
Samsung
PPM42S2, PPM42S3, SPL4225K, SPN4235, SPN4239:
SPK4215M, PK42P2S: M8 x 25 – ½” nylon spacers
PPM50H2, HPL5025K: M8 x 30 – ½” Nylon spacers -
sleeves
PPM50H3, HPN5039: M8 x 25 – ½” nylon spacers
Sharp
PZ42H2U, PZ43HV2U, PD50U, PZ50HV2U: M8 X 20
Tatung
P46T: M6 x 20
Toshiba
42HP82: M4 X 16
PD42W, PD42W1: M8 X 30 – ½ ” nylon spacers
(large) - sleeves
50HP81: M8 X 30 – ½” nylon spacers (large) - sleeves
50HP82: M4 X 16
SVA
HD4208TIII: M6 x 20 - ¼” nylon spacers
Tredex
TXP4600: M6 x 20
V-Inc
Vizio P1, Vizio P4: M6 x 12
Vidikron
VPW420: M8 X 30, ½” Nylon spacers (large) - sleeves
Yamaha
PDM1: M8 x 30 – ½” nylon spacers - sleeves
Zenith
DPDP40W, P40V22,DPDP40V, P40V24: M5 x 20 – ¼”
nylon spacers (small)
P42W22, P42W22B, P42W24P, P42W34P: P40V24:
M5 x 20 – ¼” nylon spacers (small)
P50W26, P50W28, P50W38: M5 x 16
NOTE: If your flat panel display is not
listed, go to (page 8) to determine the
thread pitch for your flat panel.
- 6 -
M4 x 25
M5 x 20
M5 x 50
M8 x 20
M6 x 30
(Qty 6)
(Qty 4)
(Qty 6)
(Qty 4)
(Qty 2)
M4 x 16 (Qty 8)
(Qty 8)
M5 x 12
M5 x 16 (Qty 6)
M5 x 25 (Qty 4)
M6 x 12 (Qty 8)
M8 x 25 (Qty 6)
M8 x 30 (Qty 6)
M8 x 35 (Qty 4)
M6 x 20 (Qty 6)
M8 x 70 (Qty 4)
Parts list
NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing before
beginning installation. If there are parts missing stop the installation and contact Premier Mounts.
Actual screw size
- 7 -
1/4" Nylon spacers
5/16" Flat washers
(metal)
1" Nylon spacers
1/4" Nylon spacers
9/16" Nylon spacers
(large)
(small)
1/2" Nylon spacers
(large) Nylon sleeves
(Qty 6)
(Qty 12)
(Qty 6)
(Qty 6)
(Qty 6)
(Qty 6)
(Qty 4)

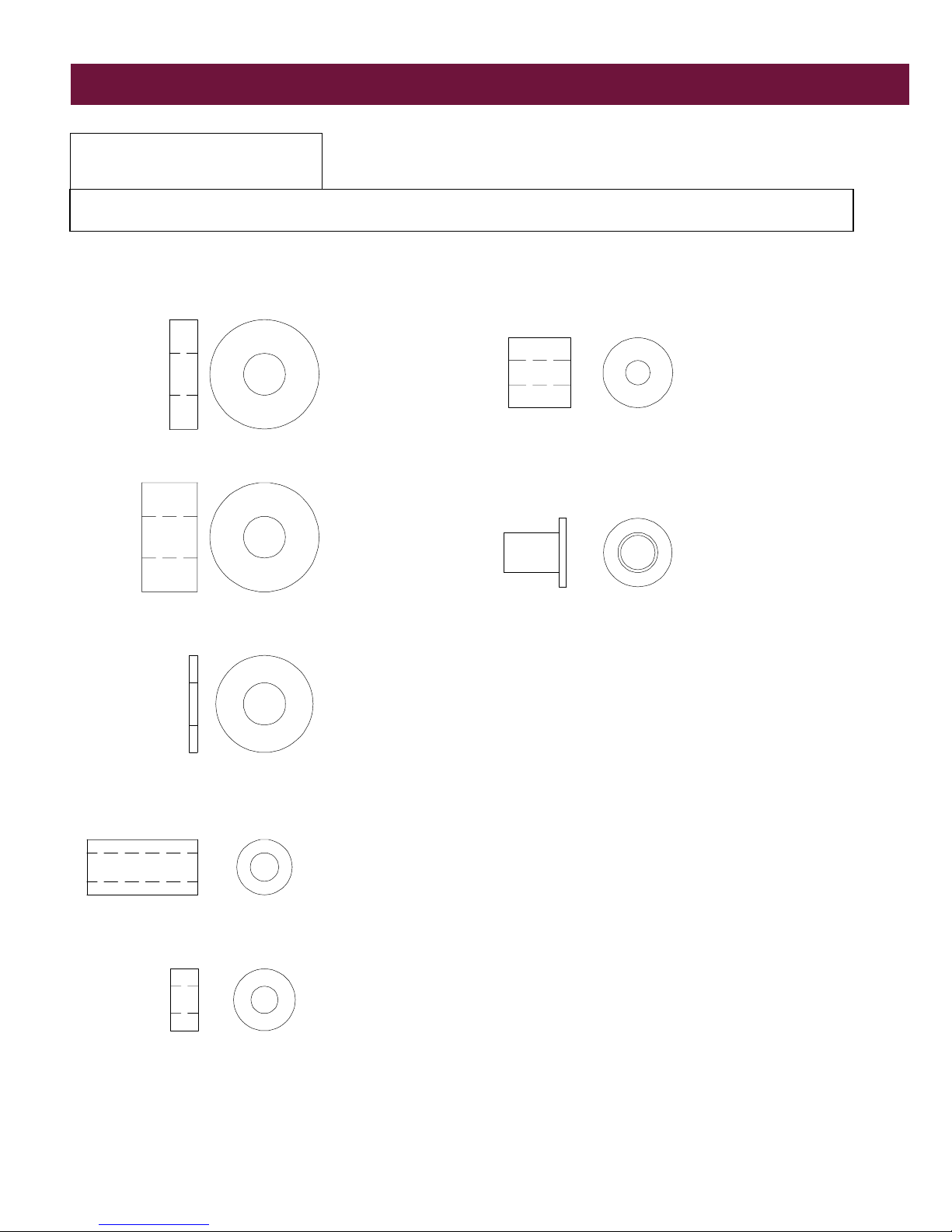

Nylon spacers and flat washers
actual size
Parts list (con’t)
NOTE: The nylon spacers may be staked to achieve proper spacing.
- 8 -

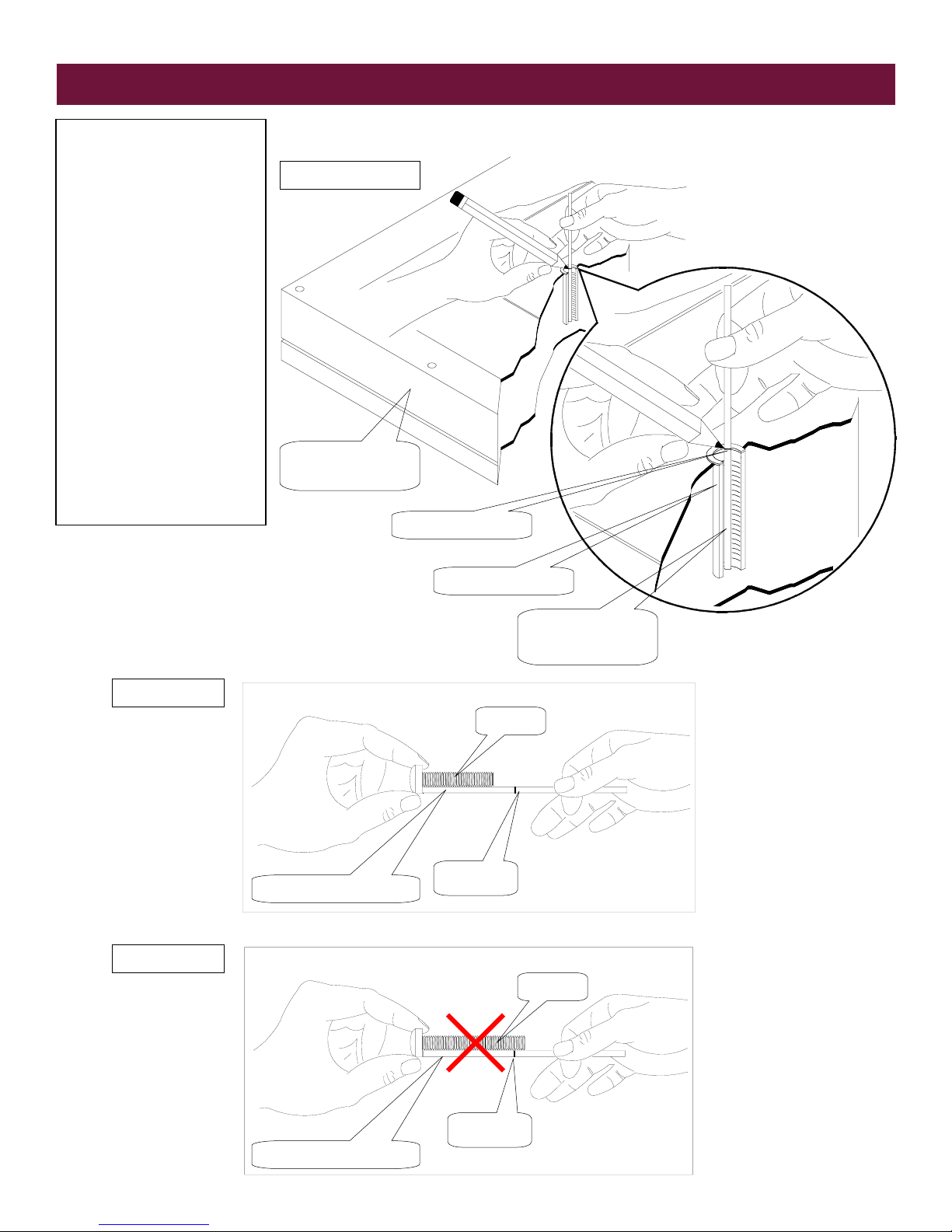

Checking the thread depth on your flat panel
Inverted flat panel
display
Thread insert
Thread depth
indicator
Figure 2
Figure 3
Figure 1
Markin
g
the de
p
th
1. Insert the thread depth
indicator (supplied) through
the thread inserts found on
the back of the flat panel to
make sure the inserts
measure the same full depth
and mark it.
(see figure 1)
2. Locate the correct diameter
screw for the thread insert.
Compare your marking to the
screws (supplied). If your
selected screw is longer than
the marking on the thread
depth indicator DO NOT USE
this screw.
The screw length must not
bypass the marking. Select
another screw size
(see figure 2 and 3). Until you
find one that comes closest to
your mark without going past.
Marking
Screw
Marking
Screw
Thread de
p
th indicator
Thread de
p
th indicator
- 9 -

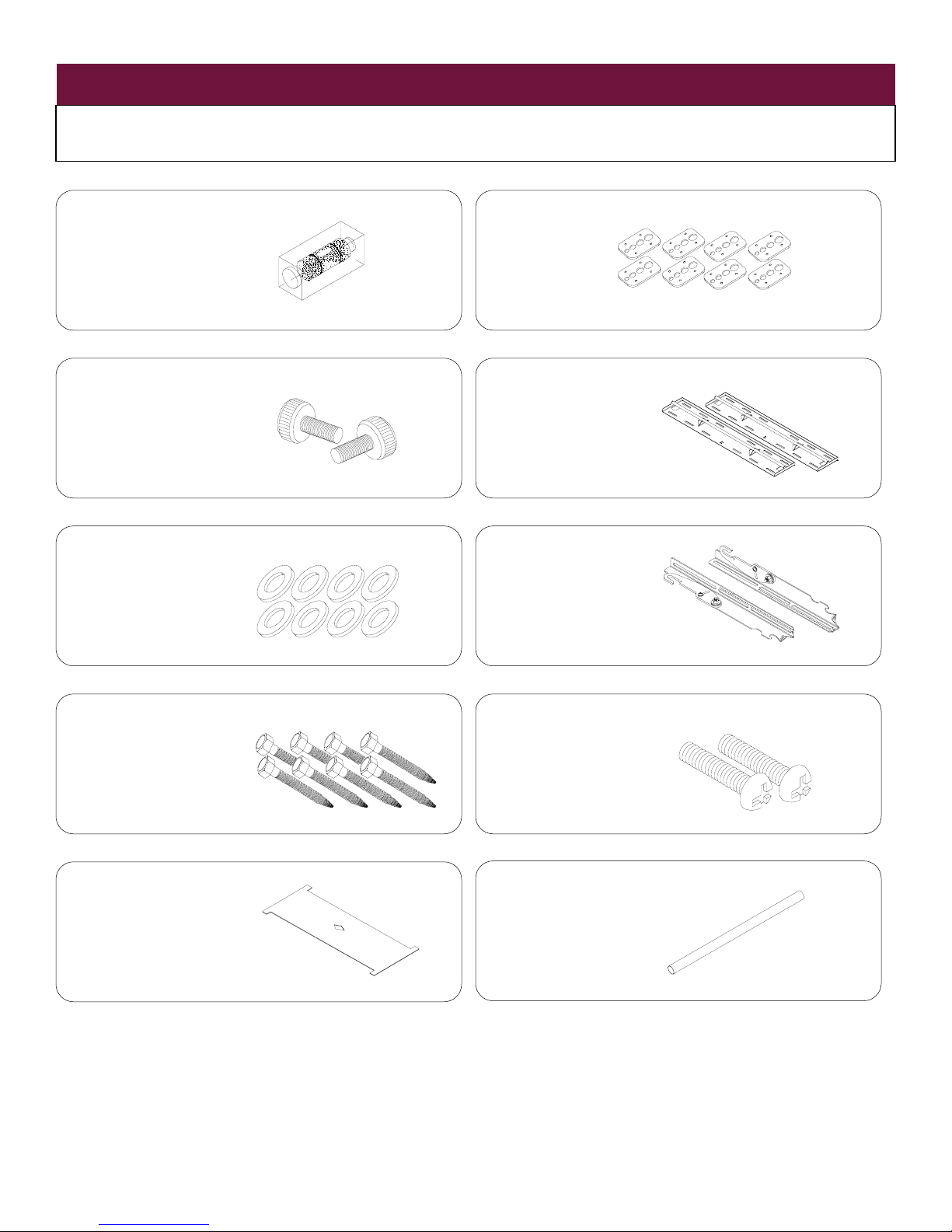

Parts list (con’t)
Level (1)
M6 x 12 Safety knobs (2)
5/16" flat washers (8)
5/16" x 3" Lag bolts (8)
(used on wood studs only)
Template (1)
Griplates™ (8)
Wall plates (2)
Mounting brackets
(left & right)
M6 x 30 Lateral shift
locking screws (2)
All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there
are parts missing stop the installation and contact Premier Mounts.
Thread depth
indicator (1)
- 10 -
C
L
L
C

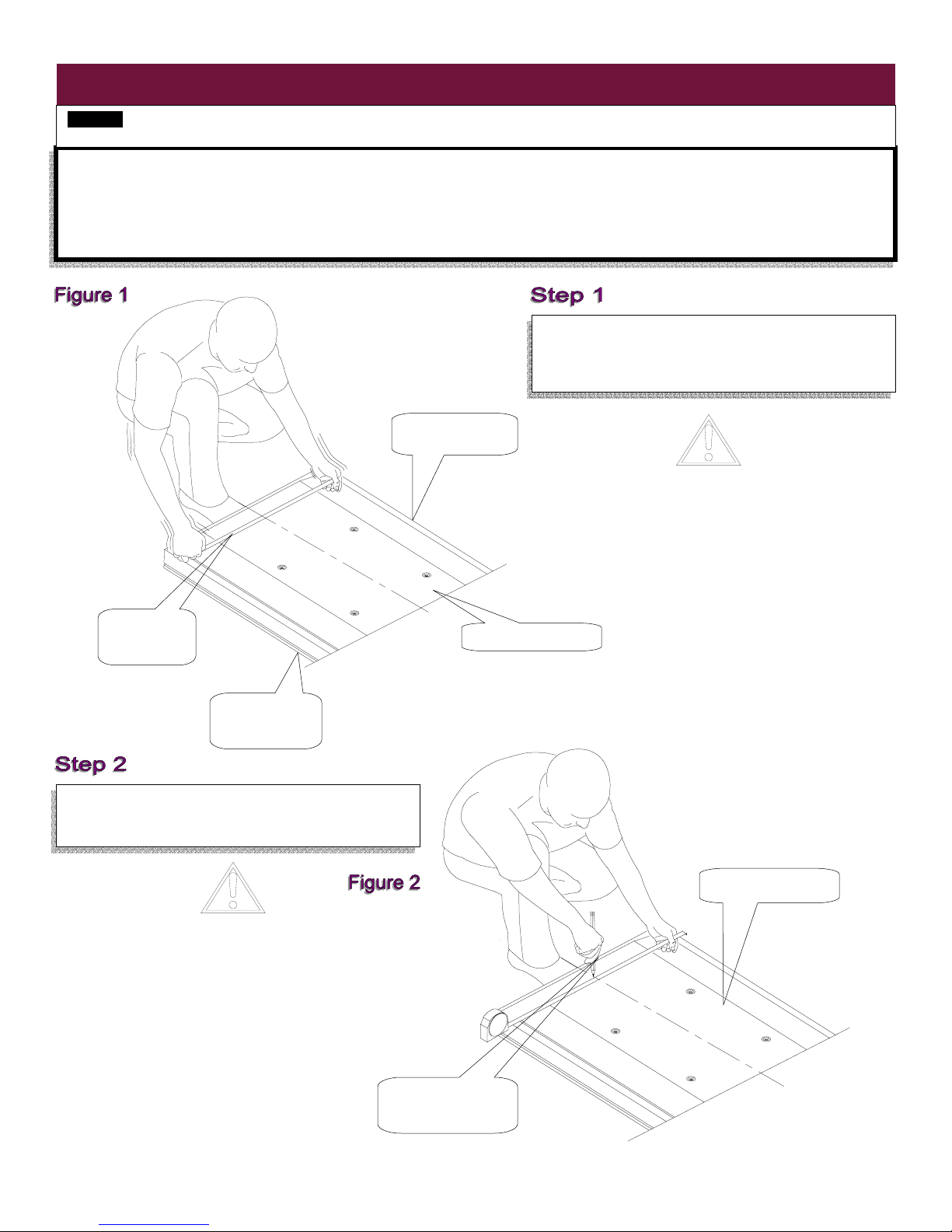

Finding center of the plasma TV
Once the flat panel is inverted, use a measuring tape to
find the center of your flat panel measuring from outside to
outside of the chassis. See figure 1.
Using a pencil lightly mark the center of your flat panel.
See figure 2.
Inverted flat
p
anel
Top of flat panel
Bottom of flat
panel
Mark the center of
the flat panel
Measuring
tape
Inverted flat panel
WARNING!
INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC.
FAILURE TO DO SO WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY PROTECTION
TO THE GLASS. THE FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR
INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL.
WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could
result in serious
p
ersonal in
j
ur
y
and
p
ossible dama
g
e to the flat
p
anel.
- 11 -
Positioning the mounting brackets
Inverted flat
p
anel
Nylon spacers if
Applicable
(see chart) on page 4 and 5
Center mark
Bottom of flat
p
anel
Left mounting
bracket
CAUTION: Check the chart on page 4 and 5 to see if
your flat panel needs nylon spacers. The nylon spacers
provided, must be used. Failure to do so will result in
damaging the flat panel.
Install the nylon spacers to the mounting points on the flat
panel see figure 3.
NOTE: See chart (if the nylon spacers apply to your
flat panel).
Lay the left and right mounting brackets
(stamped arrows facing out). See figure 4.
Arrows facing out
Left mounting
bracket
- 12 -
L
C
Bottom of flat
p
anel
A
lign the mounting
brackets
The mounting brackets are designed with a center of
viewing guide on the side of them.
See figure 6.
Bottom of flat
p
anel
Mounting bracket
Center of flat panel Center of
viewing guide
Match the center of viewing guide with the center line you
marked in step 1.
See figure 5.
- 13 -
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING UP
DIMPLES
FACING DOWN
Securing the mounting brackets
The Griplates™ have M4, M5 M6 and M8 hole
patterns to fit the hardware that your flat panel
requires.
EXAMPLE: If your plasma uses M8 x 20 Phillip
screws. Use the M8 mounting points. See figure 7
Bottom of flat panel
Philli
p
s screw driver
DIMPLES
M8
M6
M5
M4
Pre install two (2) M6 x 30 (mm) Phillip pan screws to
the bottom of the left and right hand side mounting
brackets. Once the mounting brackets are aligned secure
the Griplate™ to the flat panel.
NOTE: The dimples of the top plates have to be facing up
and the bottom dimples must be facing down.
See figure 8.
NOTE: Secure the two (2) M6 x 30 Phillip pan
screws to the left and right mounting bracket.
CAUTION: Do not over tighten the mounting
hardware.
- 14 -
16"
CENTEROFVIEWINGHEIGHTDESIRED
CENTEROFVIEWINGHEIGHTDESIRED
16"
16"
Finding the wood studs behind the wall structure
Using a (commercially available) wood stud finder, locate
the 16" or 24" stud centers behind the wall. Once found,
make a pencil marking on the center of the wood studs.
See figure 9.
Align the center viewing port from the carton template to
the center of the wood studs horizontally. Match the center
of viewing port to the center of viewing height desired and
mark a line on the bottom of the carton template.
See figure 10.
Mark the wall and
the center of the
wood studs.
Wood stud finder
(commercially available)
Carton tem
p
late
Center of viewing
port
Mark the
bottom of the
carton template
Wood studs
behind the wall
structure
Center of
viewing mark
NOTE: The wall plates have (3) 16" and (1) 24"
mounting slot positions.
(Look at the assembly drawing on page 3)
- 15 -
16"
16"
Marking the bottom plate mounting points
Place the upper portion of the bottom wall plate to the
reference line and mark the four (4) lag bolt mounting points
through the wall plate slots on the wall. Level the wall plate
with the reference arrow pointing up to the ceiling.
See figure 11.
Drill four (4) ¼" pilot holes to the marked wall.
See figure 12.
Wood studs
Wall
p
late
Pilot holes
Drill gun
Wall
p
late
Level
Mounting slots
Wood studs
- 16 -
Securing the bottom wall plate
When the bottom wall plate is properly installed to the
wall. Lay the carton template on top of the wall plate.
Lay the top wall plate on top of the cardboard template
and mark the four (4) lag bolt mounting points.
See figure 14.
Wall
p
late
(4) 5/16" x 3" lag bolts and
(4) flat washers
(supplied)
Marked wall
Level and secure the plate to the wall with the
reference arrow facing up to the ceiling. Secure the
plate using the four (4) 5/16" lag bolts and flat
washers (supplied). See figure 13.
CAUTION: Do not over tighten the lag bolts.
Level
Tem
p
late
Wall
p
late
- 17 -
Securing the top plate
Drill four (4) ¼" pilot holes to the marked
wall. See figure 15.
Wall
p
late
Wall marks
- 18 -
Level and secure the plate to the wall with the
reference arrow facing up to the ceiling. Secure the
plate using the four (4) 5/16" lag bolts and flat
washers (supplied). See figure 16
CAUTION: Do not over tighten the lag bolts.
NOTE: CHECK THE MOUNT FOR PROPER
TIGHTNESS AND SECURITY.
Wall
p
lates
Power source
area
- 19 -
WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO
COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL.
Securing the plasma to the wall mount
Make any lateral shift adjustment and lock it by
tightening the two (2) M6 x 30 (mm) Phillips screws
found on the bottom of the mounting brackets.
CAUTION: Do not over tighten the M6 screws to
the rods.
See figure 18
Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat
panel and insert the top and bottom hooks from each bracket to the rods from the
wall plates. See figure 17.
TOP
BOTTOM
Lateral shift
M6 x 30 Lateral
shift screw
- 20 -
Tilt the flat panel and secure the two (2) M6 x 12 (mm) safety
knobs to each of the mounting brackets.
See figure 19.
Lateral shift adjustment
NOTE: To remove the display from the wall simply extend the display to its maximum tilt range, remove the two 6 (mm) safety knurl knobs push
the flat panel back to it’s flat position loosen or remove the two (2) M6 x 30 lateral shift screws and lift the unit of the wall.
M6 x 12
Safety knobs
Table of contents
Other Touchboards TV Mount manuals
