ToupTek WUCAM1080P Series Reference guide

The WUCAM1080P Series Camera Help Manual

The WUCAM1080P Series Camera Help Manual
I
Contents
Contents ............................................................................................................................................................................... I
1 The Application of the WUCAM1080P Series Camera ............................................................................................. 1
2 WUCAM1080P Series Camera Datasheet and Functions .......................................................................................... 1
3 WUCAM1080P Series Camera Packing Information ................................................................................................ 2
4 Software and App ....................................................................................................................................................... 3
5 Two connection methods for WUCAM1080P series cameras .................................................................................... 3
5.1 Connecting camera to the PC with Micro USB port ...................................................................................... 3
5.2 Camera working in WiFi AP mode ................................................................................................................ 4
6 Contacting Customer Service ..................................................................................................................................... 4

The WUCAM1080P Series Camera Help Manual
1 / 4
1 The Application of the WUCAM1080P Series Camera
Figure 1-1 WUCAM1080P Series Camera
The WUCAM1080P series camera is intended to be used for the acquisition of digital images from the stereo
microscope, biological microscope or online interactive teaching. The basic characteristics are listed as below:
 Sony Starvis back illuminated CMOS sensor
 USB,WiFi(AP mode) multiple video outputs
 With strong ISP and other related processing functions
 ToupView/ToupLite software for PC
 iOS/Android app for smart phones or tablets
2 WUCAM1080P Series Camera Datasheet and Functions
Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity FPS/Resolution Binning Exposure(ms)
WUCAM1080PA Sony IMX307(C)
1/2.8"(5.57x3.13) 2.9x2.9 1300mv with 1/30s
50@1920*1080(USB)
50@1920*1080(WiFi) 1x1 0.01~1000
Figure 2-1 Available Ports on the Back Panel of the Camera Body
Interface and Indicator Function Description
Micro USB Connect to 5V power supply with Micro USB cable, Camera provides WiFi AP connection mode;
Connecting to PC with Micro USB cable, Camera provides UVC function.
WiFi LED WiFi function indicator
PWR LED Power indicator
Video Output Interface Function Description
USB Video Interface Connecting USB port of PC for video transfer; MJPEG format video, supported 50fps@1080P;
WiFi Interface Support 802.11b/g/n protocols in AP mode; 50fps@1920*1080 H264 encoded video and Jpeg image
capture; support up to 3 clients, 1 client connection is the best.
Other Function Function Description
Color Technique Ultra-Fine Color Engine;
ISP Function Exposure(Automatic / Manual Exposure) , Gain， White Balance(Automatic / Manual / ROI
Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness

The WUCAM1080P Series Camera Help Manual
2 / 4
Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function, Anti-
flicker， Mirror/Flip
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK;
Recording System Still Picture or Movie
PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
WiFi Adaptor: Support 802.11 b/g/n
Display:19” or Larger
CD-ROM
Operating Environment
Operating Temperature (in Centidegree) -10~ 50
Storage Temperature (in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply USB DC 5V/1A Adapter
3 WUCAM1080P Series Camera Packing Information

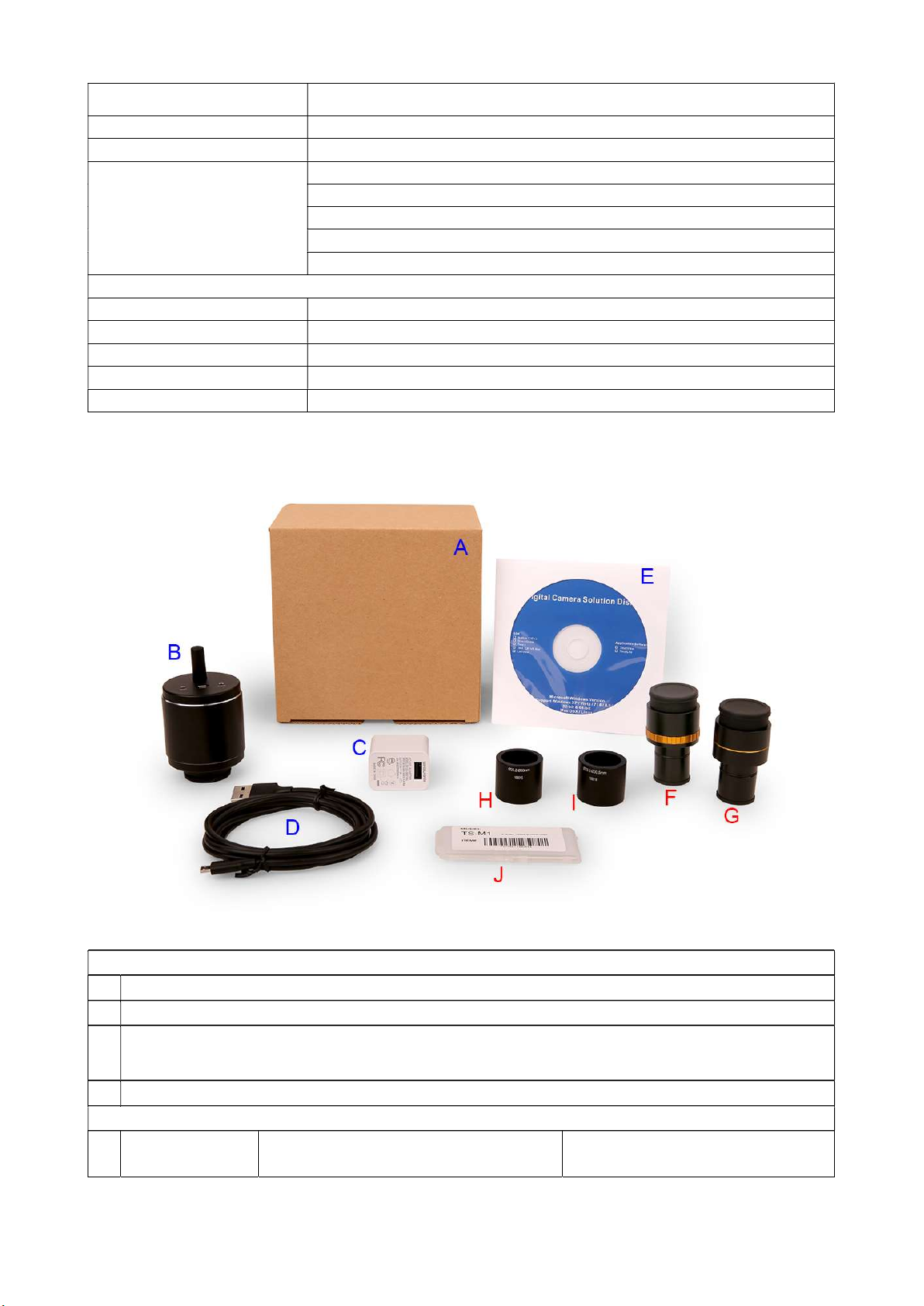

Figure 3-1 WUCAM1080P Series Camera Packing Information
Standard Packing List
A Gift box : L:17.4cm W:17.4cm H:7.6cm (1pcs, 0.54kg/ box)
B WUCAM1080PA
C
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 5V 1A
American standard: Model: POWER-U-5V1A(SK12G-0500100U): UL/CE/FCC
European standard: Model: POWER-E-5V1A(SK12G-0500100V): UL/CE/FCC
D Micro USB data cable 1.5m
Optional Accessory
E Adjustable lens adapter C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)
108001/AMA037
108002/AMA050
108003/AMA075

The WUCAM1080P Series Camera Help Manual
3 / 4
F
Fixed lens adapter C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)
108005/FMA037
108006/FMA050
108007/FMA075
Note
: For
E
and
F
optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will
help you to determine the right microscope or telescope camera adapter for your application;
G 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
H 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
I Calibration kit
106011/TS-M1(X=0.01mm/100Div.)
106012/TS-M2(X,Y=0.01mm/100Div.)
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
4 Software and App
For Windows user (Windows XP (32bit), Windows 7/8/10 (32/64 bit)), please use ToupView.
For macOS and Linux user (macOS 10.10 or above or Linux distributions with kernel 2.6.27 or higher), please use
ToupLite.
When connecting the camera with a mobile device, the free ToupView App is required. Just make sure that the mobile
device uses iOS 11 or higher/Android 5.1 or higher operating systems.
The software or the App can be downloaded from the following link：
Windows: http://www.touptek.com/download/showdownload.php?lang=en&id=33
Linux & macOS: http://www.touptek.com/download/showdownload.php?lang=en&id=28
iOS: https://itunes.apple.com/us/app/toupview/id911644970
Android: https://play.google.com/store/apps/details?id=com.touptek.tpview
Note:The device must be WiFi enabled to support WiFi connection.
5 Two connection methods for WUCAM1080P series cameras
There are two main ways to use WUCAM1080P series.
5.1 Connecting camera to the PC with Micro USB port
The steps to start the camera are listed below:
 Install the ToupView /ToupLite software on your PC;
 Connect the Micro USB cable to the power port, Wait for the camera to start;
 Open ToupView/ToupLite software. The WUCAM1080P series camera will be recognized automatically by
software. In ToupView/ToupLite software, select the corresponding WUCAM1080P series camera by clicking the
camera name in the camera list.

The WUCAM1080P Series Camera Help Manual
4 / 4
5.2 Camera working in WiFi AP mode
The steps to start the camera are listed below:
 Install the ToupView/ToupLite on your PC or install the ToupView App on the mobile device;
 Connect the Micro USB cable to 5V power adapter;
 Connect the PC or mobile device to the WiFi ssid of camera;
 Start the ToupView/ToupLite software or ToupView App and check the configuration. Normally, active
WUCAM1080P cameras are automatically recognized. The connected cameras will be listed in the Camera List
group of the Camera Control Bar of ToupView/ToupLite on PC. On mobile device, connected cameras will be
listed in the Camera Thumbnail page of ToupView App. Click the corresponding camera to start the stream.
6 Contacting Customer Service
Please contact your local distributor if you have any questions about the product.
