’06 HIGHLANDER_U (L/O 0508)
1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 11. . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1

’06 HIGHLANDER_U (L/O 0508)
2
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Input terminal adapter
14. Power outlets
15. Cup holder
16. Container
17. Front ashtray
18. Audio remote control switches
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
Instrument panel overview
"Vehicles with rear seat entertainment system (view A)

’06 HIGHLANDER_U (L/O 0508)
3
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Power outlet
16. Front ashtray
17. Audio remote control switches
18. Hood lock release lever
19. Parking brake pedal
20. Window lock switch
"Vehicles without rear seat entertainment system (view A)

’06 HIGHLANDER_U (L/O 0508)
4
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger’s seat belt reminder
light
6. Rear window and outside rear view
mirror defogger and windshield wiper
de−icer switch
7. Air conditioning controls
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch
(two−wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset
switch
"Vehicles with manual air conditioning controls (view B)

’06 HIGHLANDER_U (L/O 0508)
5
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches

’06 HIGHLANDER_U (L/O 0508)
6
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger’s seat belt reminder
light
6. Air conditioning controls and
multi−information display
7. Rear window and outside rear view
mirror defogger and windshield wiper
de−icer switch
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch
(two−wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset
switch
"Vehicles with automatic air conditioning controls (view B without navigation system)

’06 HIGHLANDER_U (L/O 0508)
7
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches

’06 HIGHLANDER_U (L/O 0508)

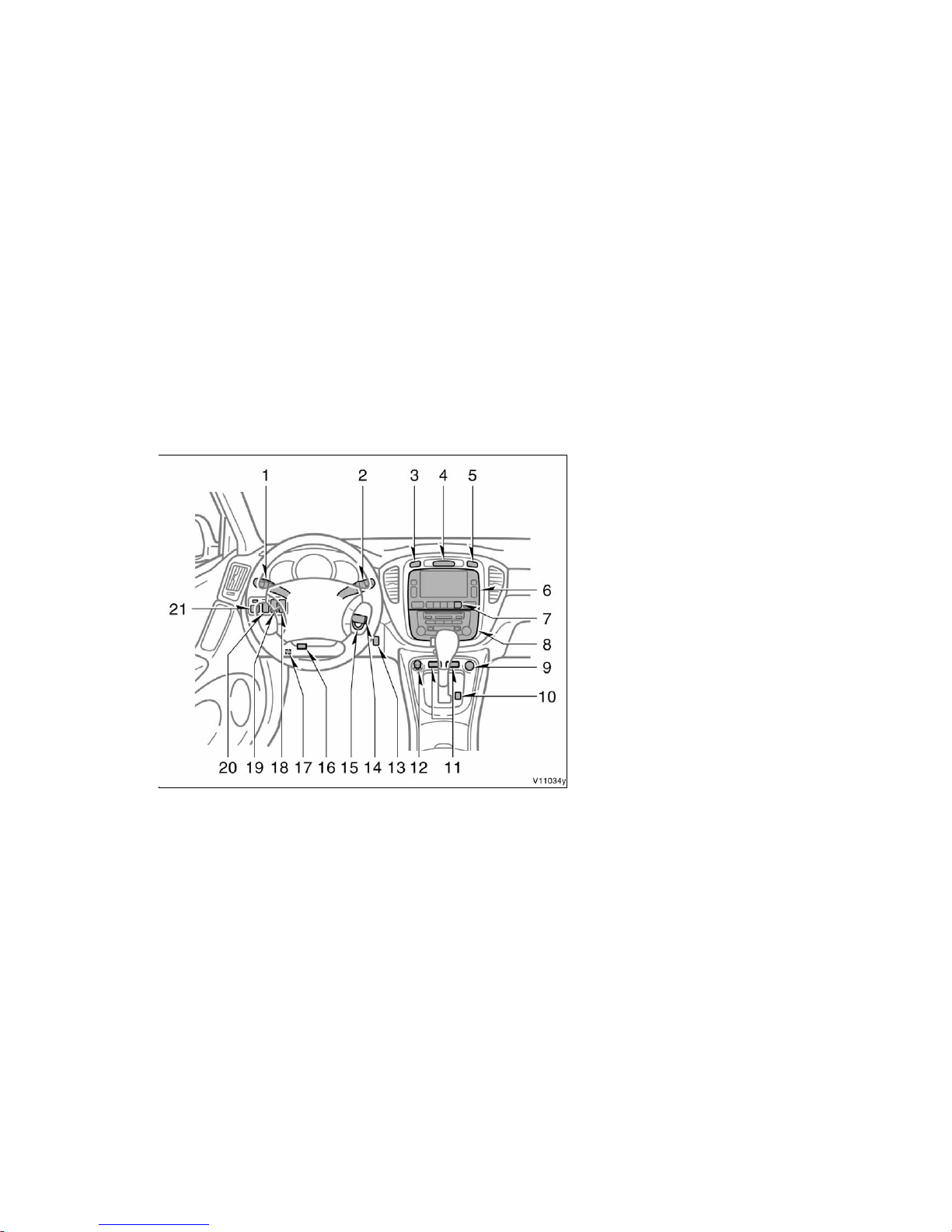

8
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock (See the separate “Navigation
System Owner’s Manual”.)
5. Front passenger’s seat belt reminder
light
6. Navigation system including air
conditioning controls (See the separate
“Navigation System Owner’s Manual”.)
7. Rear window and outside rear view
mirror defogger switch
8. Audio system (See the separate
“Navigation System Owner’s Manual”.)
9. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch
(two−wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
"Vehicles with automatic air conditioning controls (view B with navigation system)

’06 HIGHLANDER_U (L/O 0508)
9
17. Tire pressure warning system reset
switch
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches

’06 HIGHLANDER_U (L/O 0508)
10
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Instrument panel light control knob
Instrument cluster overview

’06 HIGHLANDER_U (L/O 0508)
11
Brake system warning light∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver’s seat belt reminder light∗1Open door warning light∗1
Automatic transmission fluid temperature
warning light∗1(four−wheel drive models)
or
Low windshield washer fluid level warning
light∗1
or
Vehicle stability control system warning light∗1
Anti−lock brake system warning light∗1 or
Front passenger’s seat belt reminder light∗1
Low tire pressure warning light∗1

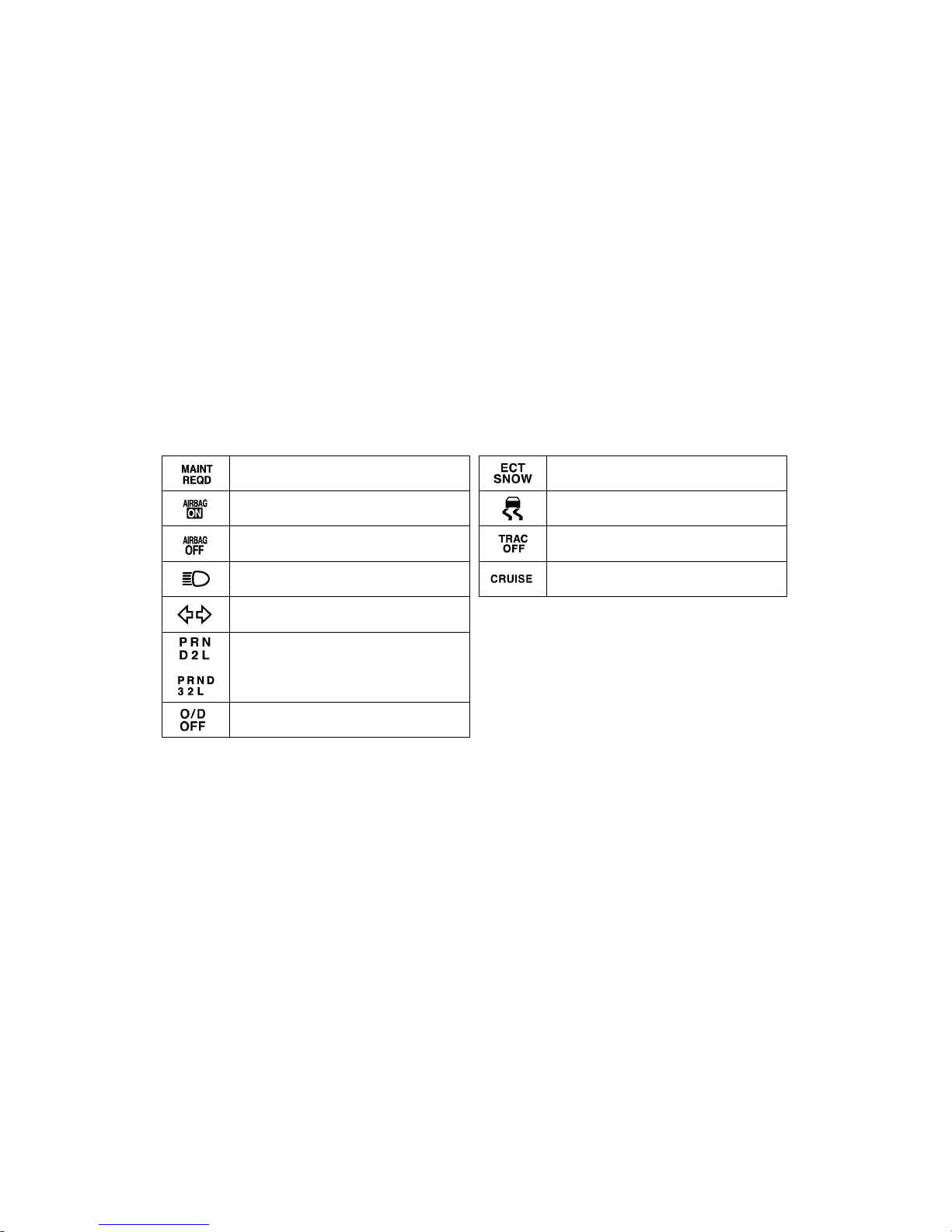

Indicator symbols on the instrument panel

’06 HIGHLANDER_U (L/O 0508)
12
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 133 in Section 1−6.
∗2: If this light flashes, see “Cruise control” on page 163 in
Section 1−7.
Cruise control indicator light∗2
Overdrive−off indicator light
Slip indicator light
Turn signal indicator lights
Automatic transmission indicator lights
Snow mode indicator light
Traction control system off indicator light
Headlight high beam indicator light
or
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light

’06 HIGHLANDER_U (L/O 0508)
263
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 264. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 265. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 266. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 270. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 271. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 272. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 273. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 274. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 277. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Container 279. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 280. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottle holders 282. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie−down hooks 282. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover 283. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier 285. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 287. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For information about the clock of a vehicle equipped with
Navigation system, please refer to the separate “Navigation
System Owner’s Manual”.
SECTION 1−10

’06 HIGHLANDER_U (L/O 0508)
264
Air conditioning system on—
Air conditioning system off—
The multi−information display indicates
the following information.
1. Outside temperature
2. Average vehicle speed
3. Average fuel consumption
4. Instantaneous fuel consumption
5. Driving time
6. Air conditioning system on—The air
conditioned temperature is displayed.
Air conditioning system off—The air
conditioned temperature is not dis-
played.
Every time you push the “INFO” button,
the display toggles through this informa-
tion.
The displayed values in the multi−informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
You can adjust the air conditioned temper-
ature while the multi−information is operat-
ing. 5 seconds has been passed after ad-
justing the temperature or pushing the
“INFO” button, the display will be back to
the multi−information display.
1. Outside temperature
(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
−22F (−30C) up to 122F (50C).
If an abnormality exists in the connection
of the outside air temperature sensor,
“−−F” (“−−C”) will appear on the display.
If “−−F” (“−−C”) appears on the display,
contact your Toyota dealer.
There may be a case that “−−F” (“−−C”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
2. Average vehicle speed
(“AVG MPH” or “AVG km/h”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculation, push the “INFO”
button for more than 1 second.
Multi−information display

’06 HIGHLANDER_U (L/O 0508)
265
3. Average fuel consumption
(“AVG MPG” or “AVG L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
4. Instantaneous fuel consumption
(“MPG” or “L/100 km”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 1 sec-
onds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off.
5. Driving time (“E/T”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 11:59 (11
hours, 59 minutes) can be displayed.
When the driving time exceeds 11:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
Clock

’06 HIGHLANDER_U (L/O 0508)
266

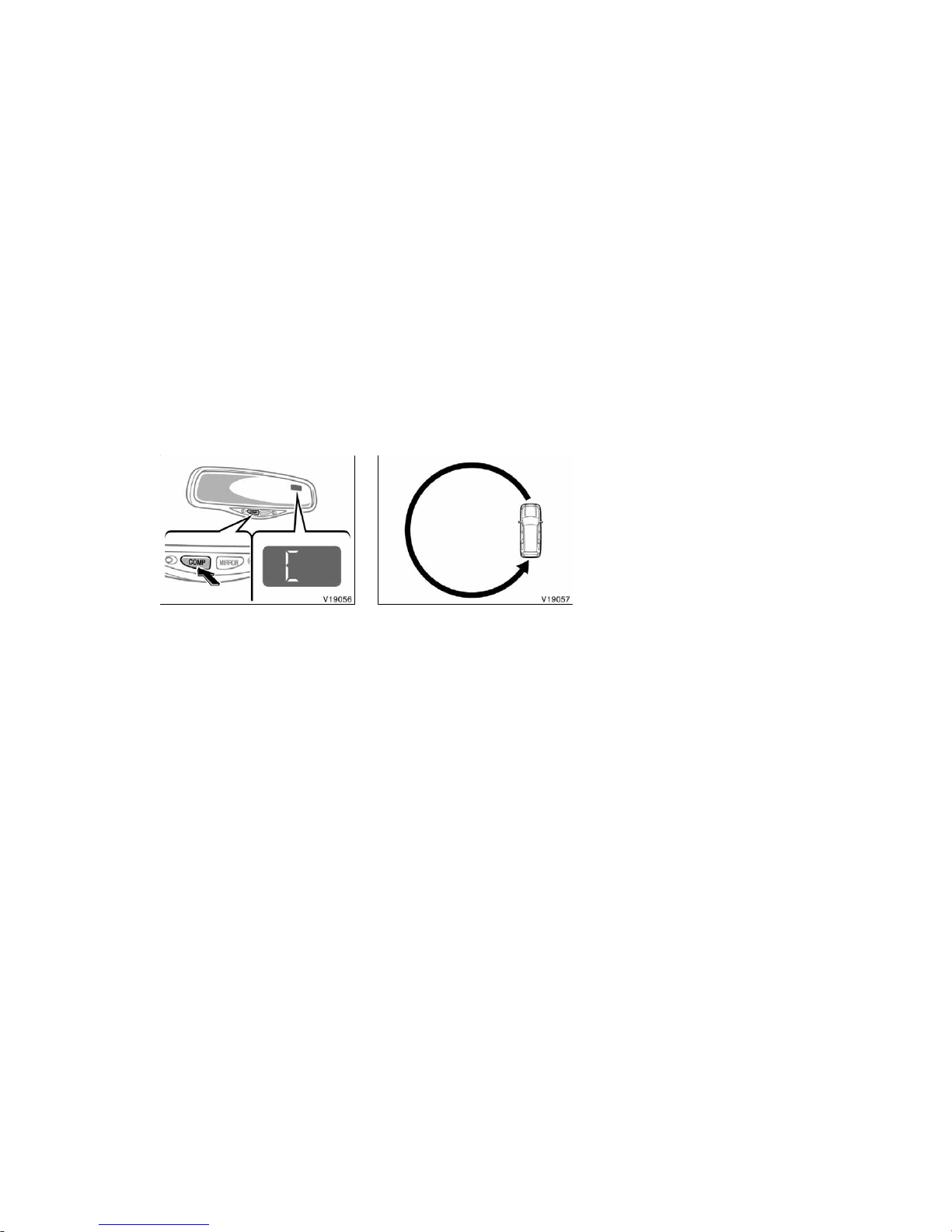

The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “COMP” switch to turn the com-
pass system on and off.
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays Directions
N
NE
E
SE
S
SW
W
NW
North
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass

’06 HIGHLANDER_U (L/O 0508)
267
Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.

’06 HIGHLANDER_U (L/O 0508)
268
Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

’06 HIGHLANDER_U (L/O 0508)
269
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “COMP” switch until “C” appears
on the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

’06 HIGHLANDER_U (L/O 0508)
270
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Cigarette lighter
Front ashtray
Rear ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
Cigarette lighter and ashtrays
