This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satised driving in your new
Yaris HB.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris HB operations.
Every Yaris HB owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
NOTES
29

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Air conditioning/heating 13
Audio 16
Automatic transmission 8
Clock 14
Cruise control 11
Door-Back 16
Door locks-Power 15
Light control-Instrument cluster 15
Lights & turn signals 9
Multi-Information Display (MID) 14
Pairing a Bluetooth®Device 16
Parking brake 8
Power outlet 14
Seat adjustments-Front 11
Seat-Folding rear seat 12
Seats-Head restraints 11
Steering wheel switches 15
Tilt steering wheel 8
USB/AUX port 15
Windows-Power 10
Windshield wipers & washers 10
1
INDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Auto High Beams (AHB) 22
Lane Departure Alert (LDA) 20-21
Pre-Collision System (PCS) 18-19
Quick overview-
Toyota Safety Sense C 17
Sensors 17
Doors-Child safety locks 23
Floor mat installation 26
Seat belts 23
Spare tire & tools 24
Star Safety SystemTM 25-26
Tire Pressure Monitoring
(warning) System (TPMS) 24

2
Instrument panel
OVERVIEW
Headlight, turn signal and
front fog light1controls
Power outside rearview
mirror control switches1
Instrument panel light control
Hood release
Tilt steering lock release lever
Cruise control1
Wiper and washer controls
Steering wheel
audio controls1
Lane Departure Alert
(LDA) switch1
Steering wheel controls

3
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
3
12V DC power outlet
USB port/AUX port1
Air Conditioning controls
Rear window defogger switch
“AIR BAG ON” and
“AIR BAG OFF” indicator
Emergency flasher switch
1If equipped.

4
Instrument cluster
1 If indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
OVERVIEW
Fuel gauge
Display change button
Display change button
Multi-Information Display
Multi-Information Display
Speedometer
Speedometer
Tachometer
Clock adjusting buttons
Clock adjusting buttons
Service indicators and reminders
WITH TACHOMETER & FUEL GAUGE
WITHOUT TACHOMETER & FUEL GAUGE

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
5
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
2 If this light flashes, refer to “Cruise control” or “Dynamic Radar Cruise Control,” Section 4-5, 2017
Owner’s Manual.
3 If equipped.
Driver seat belt reminder
(speeds over 12 mph sounds alarm)
Cruise control indicator/
Cruise control SET indicator2
Low Tire Pressure Warning1,3
Electric power steering system
warning1
AIR BAG ON indicator
AIR BAG OFF indicator1
Brake system warning1
Malfunction/Check Engine indicator1
Maintenance required warning1
Low windshield washer fluid
warning
Lane marker indicators
Lane Departure Alert (LDA)
indicator
Pre-Collision System (PCS)
warning1
Pre-Collision System (PCS)
activator indicator
Low fuel level warning
Arrow direction indicates fuel
tank door position
Charging system warning1
Low engine oil pressure warning1
Open door warning
Engine coolant temperature
warning1
Anti-lock Brake System warning1
Vehicle Stability Control
(VSC) OFF indicator1
Slip indicator1
TRAC OFF indicator1
Turn signal indicator
Front fog light indicator
Headlight high beam indicator
Automatic high beam indicator

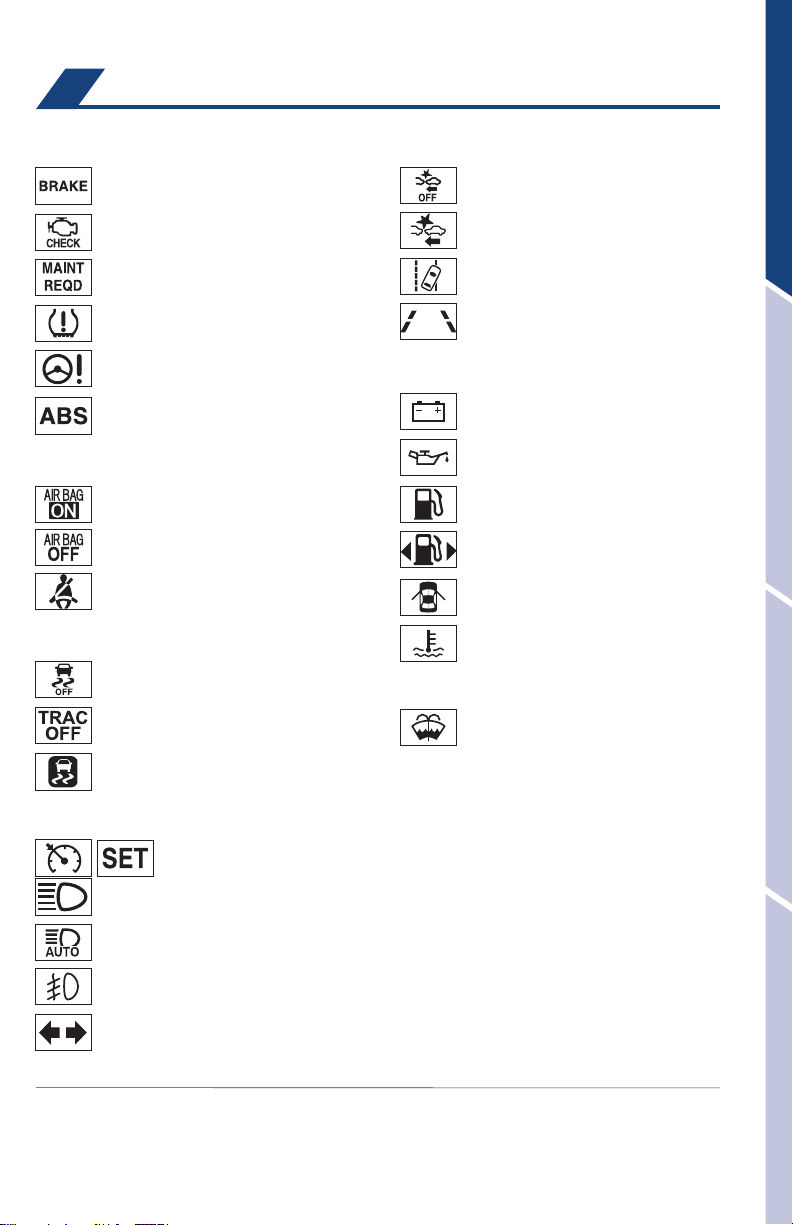

Instrument symbols

6
LOCKING OPERATION
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
* Engine immobilizer feature if equipped. As an anti-theft feature, the vehicle’s keys have built-in
transponder chips that prevent the engine from starting if a key has not been previously registered in the
vehicle’s on-board computer. Please refer to the Owner’s Manual for more details.
Fuel tank door release and cap
Keyless entry (if equipped)*
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ “ indicator may illuminate.
OVERVIEW
Type A Type B
Type A Type B
Push
ONCE: Driver door
TWICE: All doors
Push
Pull
Turn to open
Push and hold
PANIC BUTTON

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
7
Pull Pull up latch and
raise hood
Engage support rod

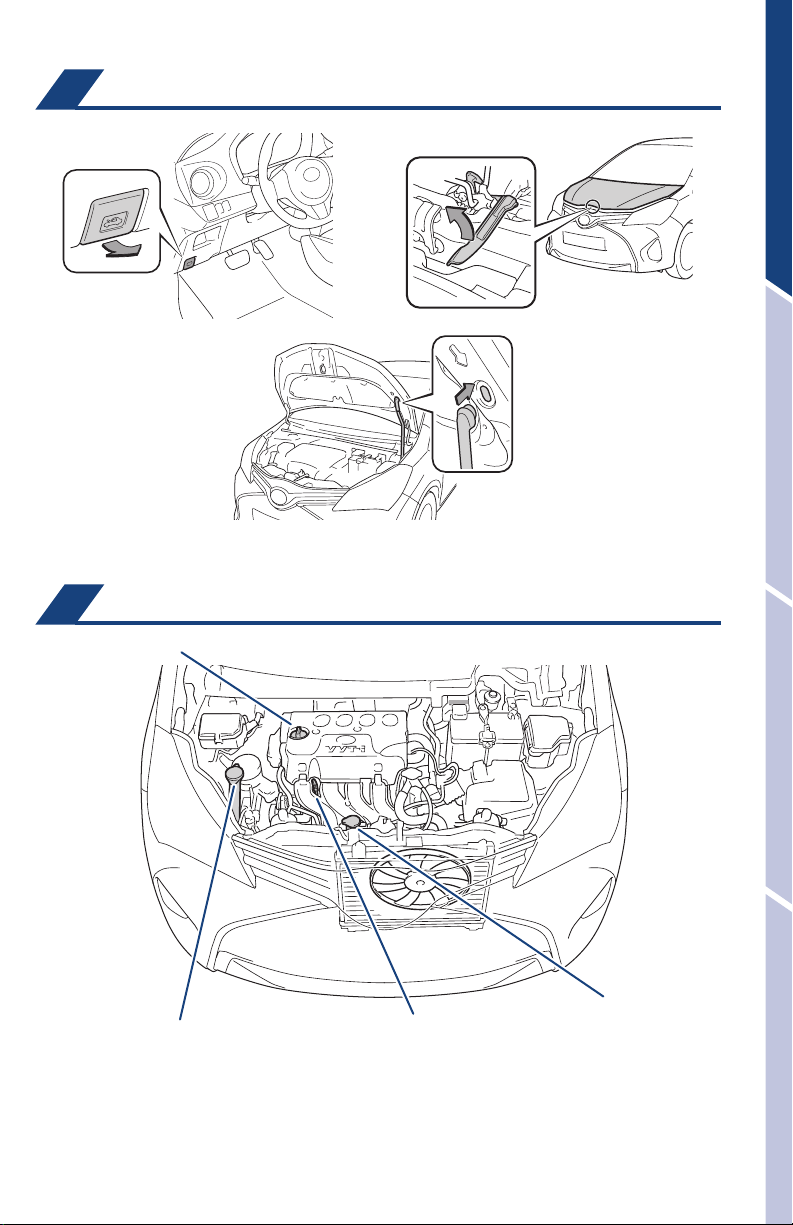

Hood release
Engine maintenance
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Windshield washer fluid tank and
rear window washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”

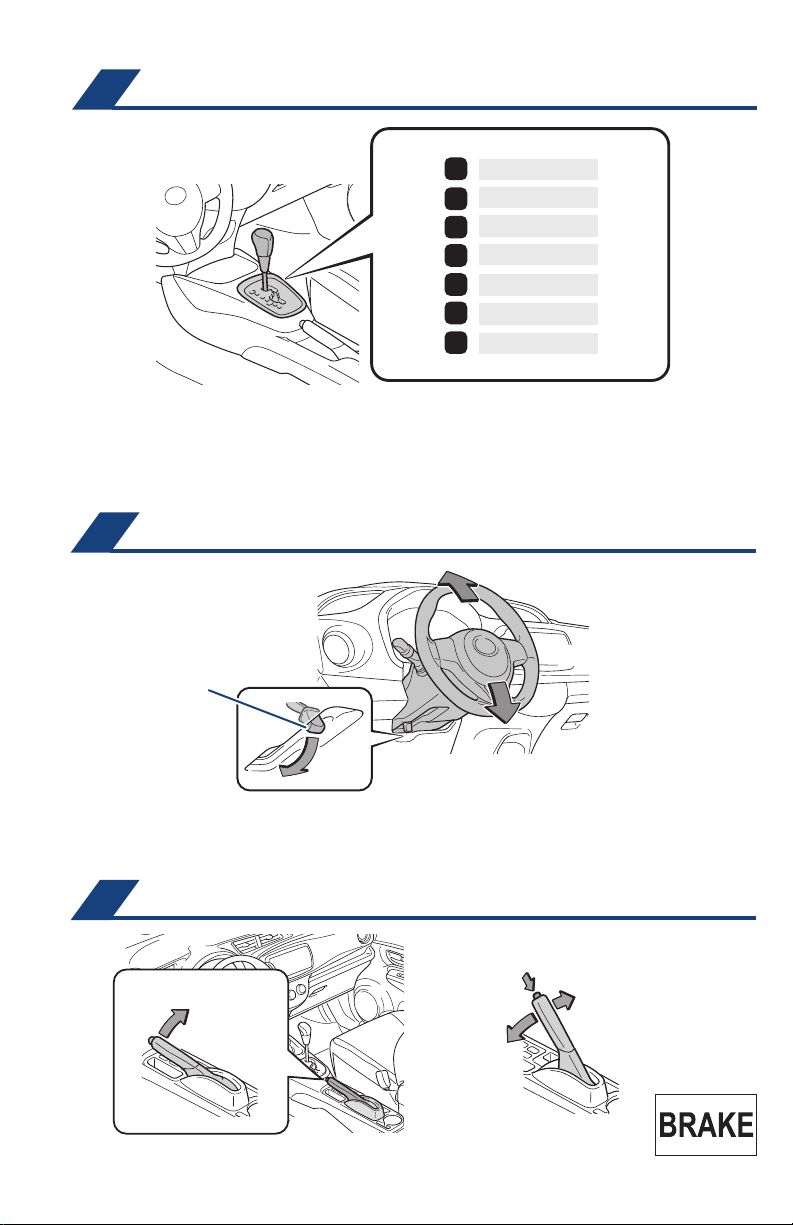

8
Tilt steering wheel
Parking brake
Automatic transmission
FEATURES & OPERATIONS
* The ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*
P
Reverse
R
Neutral
N
Drive
D
Third gear
3
Second gear
2
First gear
L
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Set Release
Lock release lever
Angle
Pull
(2) Push
(1) Pull slightly
(3) Lower

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
9
Type A
Type A
Type C
Type B
Type B
Front fog lights turn on only when the headlights are on low beam.
Turn Turn

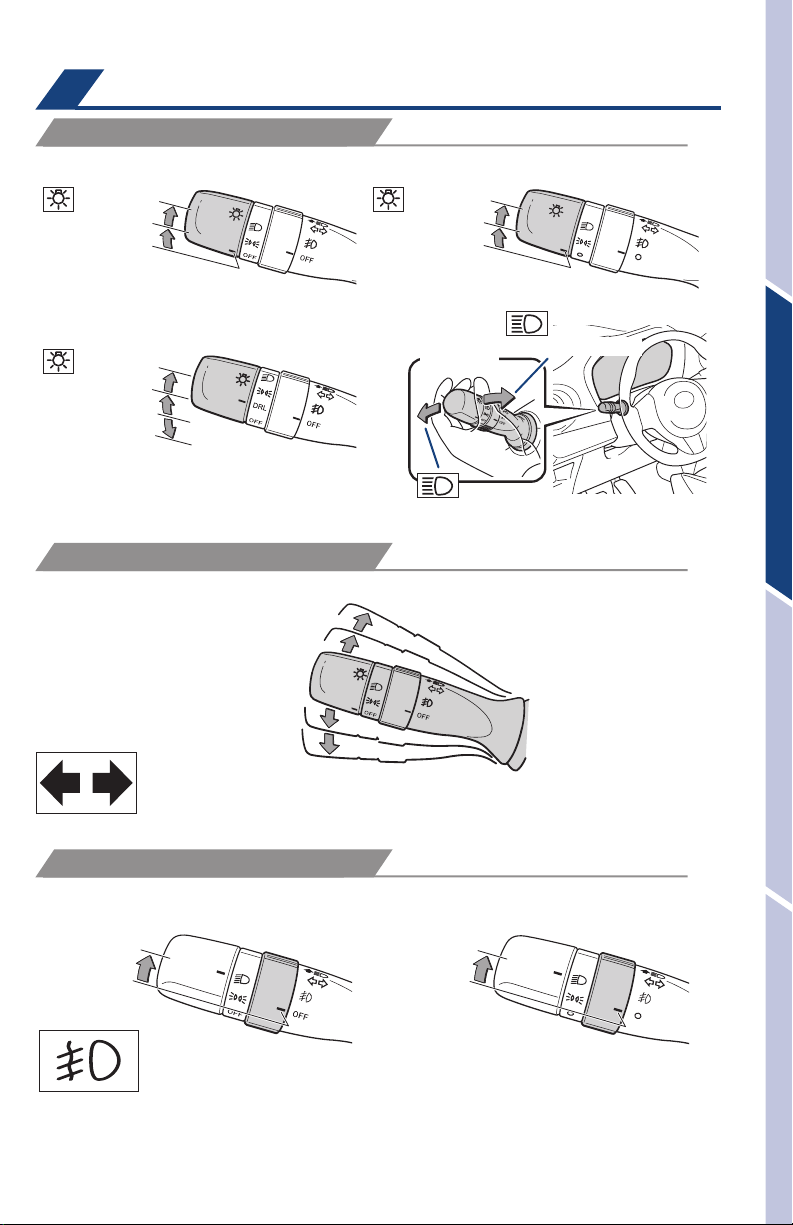

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
FRONT FOG LIGHTS (IF EQUIPPED)
High beam flasher
Low beam
Headlights
Parking lights
High beam
Headlights
Headlights
Parking lights
Parking lights
DRL ON
OFF
OFF OFF
Right turn
Lane change
Lane change
Left turn

10
FEATURES & OPERATIONS

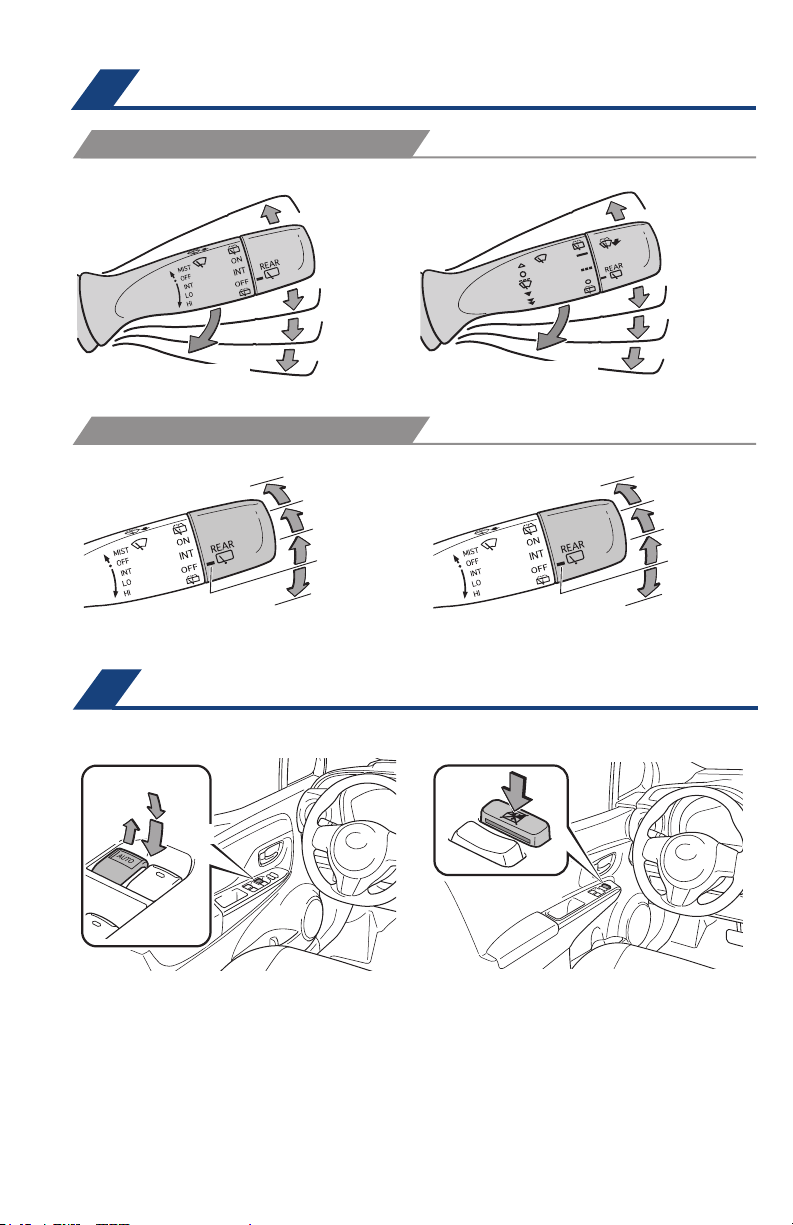

Windshield wipers & washers
Windows-Power
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop window partway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
* If equipped
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Mist
Interval wipe
Slow
Fast
Pull to wash and wipe
*Interval wipe
Wipe
Wash and wipe
Wash
Wipe
Wash and wipe
*Interval wipe
Wash
Window lock switch
Up Down
Driver side
Type A Type B
Type B
Type A
FRONT
REAR

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
11
Seat adjustments-Front
Seats-Head restraints
Driver seat Passenger seat
1 The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (manual transmission).
2 Unless vehicle speed drops below 10 mph, the set speed may be resumed once
vehicle exceeds 25 mph.
Refer to the Owner’s Manual for more details.

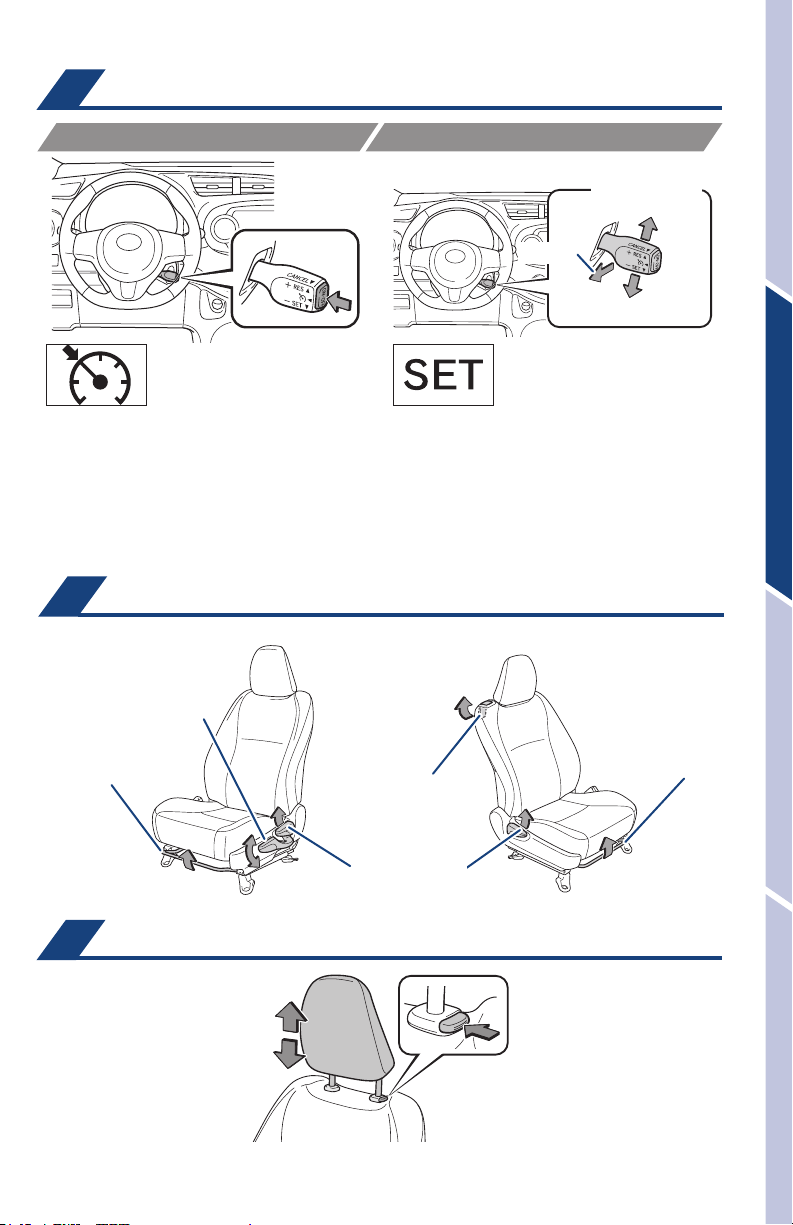

Cruise control (if equipped)
Resume2/
Increase speed
Set/Decrease speed
Cancel1
System ON/OFF
Seatback angle
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback lock release
(3-door models)
Height crank
Lock release button
TURNING SYSTEM ON/OFF FUNCTIONS

12
FEATURES & OPERATIONS

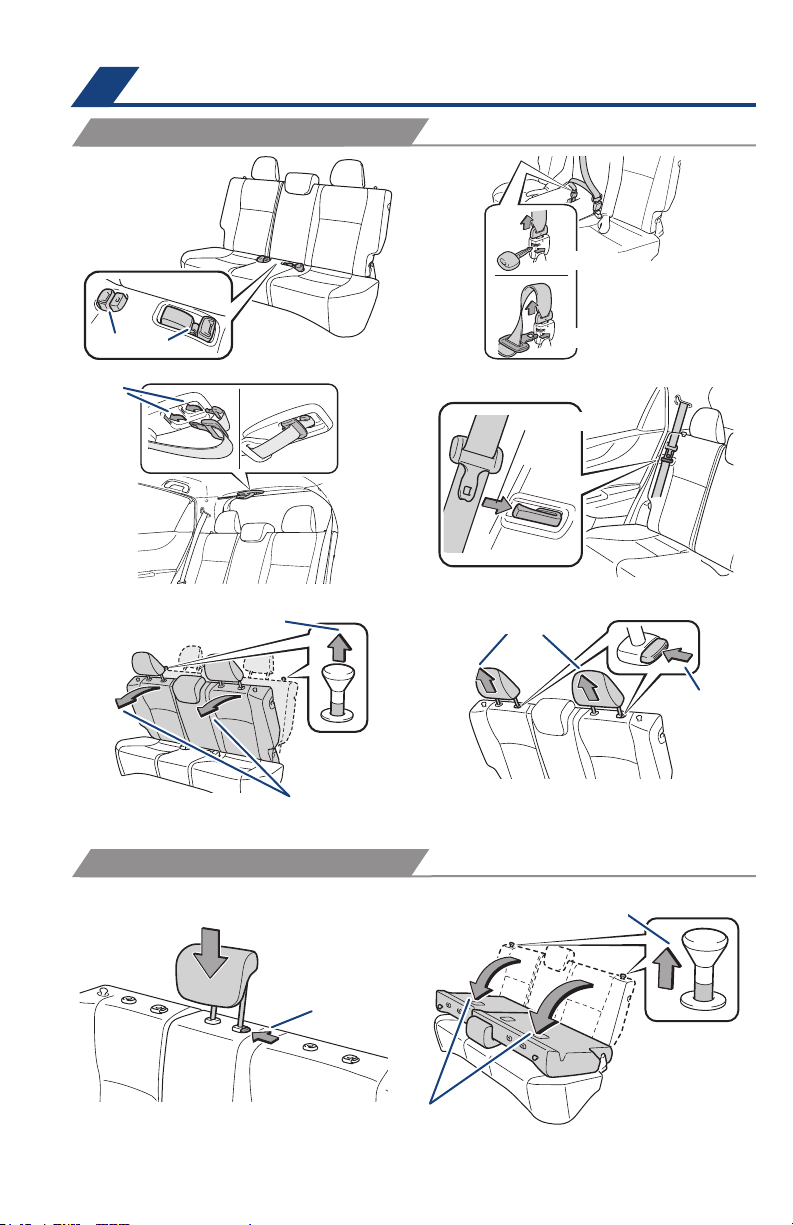

Seat-Folding rear seat
(1) Store
(4) Store
(2) Push
(2) Push
(3) Store
(5) Pull up
(6) Fold down
(8) Pull up
(7) Push
(1) Push
(3) Pull up
(2) Lower
(4) Fold down
BEFORE FOLDING
FOLD (SPLIT SEAT)

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
13
WITH AIR CONDITIONING ON/OFF BUTTON
WITHOUT AIR CONDITIONING ON/OFF BUTTON
Air conditioning/heating
*“ ” mode uses outside air to reduce window fogging
Airflow vent*
Airflow vent*
Fan speed
Fan speed
Temperature
selector
Temperature
selector
Air onditioning
ON/OFF
Rear window defogger ON/
OFF
Rear window defogger
ON/OFF
Recirculate cabin air
(outside air when OFF)
Recirculate cabin air
(outside air when OFF)

14

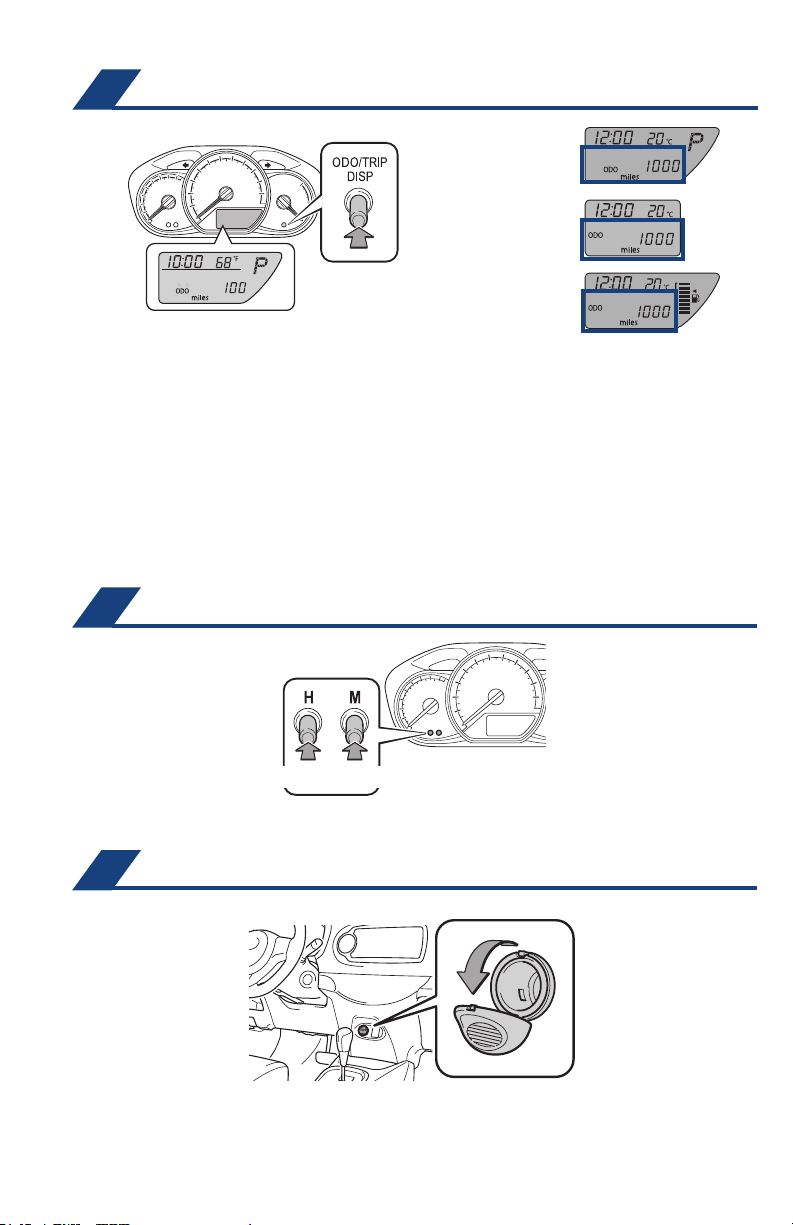

Multi-Information Display (MID)
Clock
Power Outlet
FEATURES & OPERATIONS
Push button to change information in the following succession (shown in box
indicated above):
(1) Odometer
(2) Trip meters
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average gas mileage (AVG/MPG)
(5) Current gas mileage (MPG)
(6) Average vehicle speed from engine start (AVG/MPH)
Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to
be used.
Type A
Type B
Type C
Hour set Minute set

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
15
Brightness
control
+
-
-In radio mode Push to select a preset
station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a
next/previous track.
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio system OFF.
Door locks-Power
LockUnlock
Light control-Instrument cluster
USB/AUX port (if equipped)
Steering wheel switches (if equipped)
Volume control
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.

16
Audio
Pairing a Bluetooth®Device
Door-Back
YARIS ENTUNE™ AUDIO
OPEN/CLOSE
FEATURES & OPERATIONS
APPS button
** Do not attempt the Bluetooth®Pairing process while driving. **
1. Press the “SETUP” button
2. Touch “Bluetooth” on the “Setup” screen
3. Touch “Registered Devices”
4. Touch “Add New”
5. Go to your Bluetooth Device and access Bluetooth settings
6. On your Bluetooth Device, touch the device to be paired.
7. Input the passcode displayed on the screen into your Bluetooth device
8. When the connection is completed the screen will display
“Phone connection successful”.
Once you have connected the Bluetooth device, it is automatically connected
whenever the engine switch is in the “ACC” or “ON” position.
For detailed pairing instructions, see your audio system owner’s manual.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Push to display
audio screen
Seek station/
CD track select
Push to turn
ON/OFF
Turn to tune radio
stations manually or
select tracks
SETUP Button
Push to display
Bluetooth®hands-free
system
Eject CD
Unlock *
Lock

OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
17

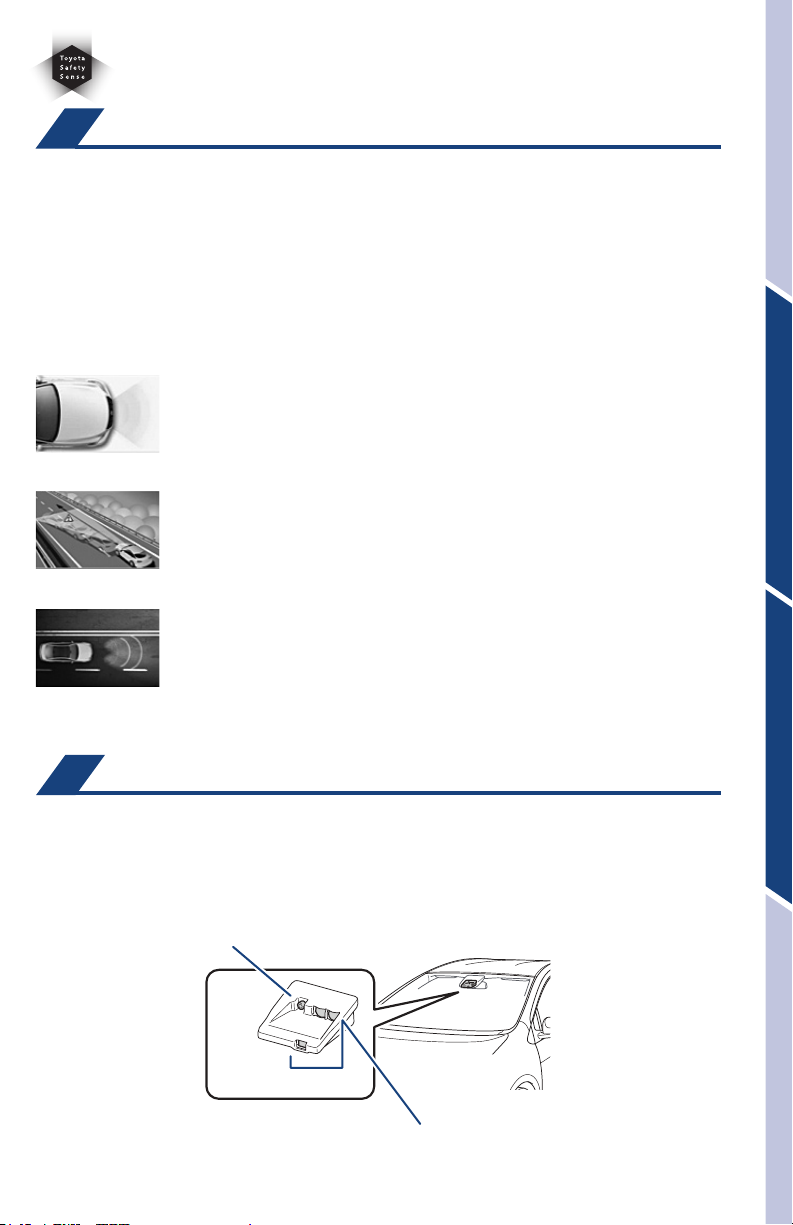

TOYOTA SAFETY SENSE
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation
support in certain situations in speed ranges where rear
end collisions are likely to occur.
Lane Departure Alert (LDA)
Provides notification regarding the risk of unintended
lane departure when the system detects visible lane
markers.
Auto High Beams (AHB)
The system is designed to detect lights of leading or
opposing vehicles and automatically changes between
high and low beam headlight settings.
Toyota Safety Sense (TSS) C is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situations. TSS-C
is designed to help support the driver’s awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
Refer to the Owner’s Manual for more details to understand these functions and
complete safety precautions before attempting to use any of TOYOTA SAFETY
SENSE C functions.
Two types of sensors, located behind the front windshield, detect information
necessary to operate the drive assist systems. The single-lens camera in front of the
inside rear view mirror is designed to recognize certain shapes and visible white or
yellow lane markings.
Laser sensor
Camera sensor
Quick overview-Toyota Safety Sense C
Sensors

18
TOYOTA SAFETY SENSE
The Pre-Collision System uses a laser sensor and camera sensor to help detect
vehicles in front of your vehicle.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the warning timing of the system can be
changed.
Pre-Collision System (PCS)
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
PRE-COLLISION WARNING
When the system determines that the possibility of a frontal collision is high, the
system applies greater braking force in relation to how strongly the brake pedal is
depressed.
PRE-COLLISION BRAKE ASSIST
When the system determines that the possibility of a frontal collision is high, the
system warns the driver. If the system determines that the possibility of a collision
is extremely high, the brakes are automatically applied to help avoid the collision or
reduce the collision speed.
PRE-COLLISION BRAKING
