QUICK REFERENCE
GUIDE
CAMRY
2010
413262M2_r1.indd 3 1/12/09 4:12:03 PM
Information Provided by:

2010
Camry
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Camry.
This Quick Reference Guide is not a full description of
Camry operations. Every Camry owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

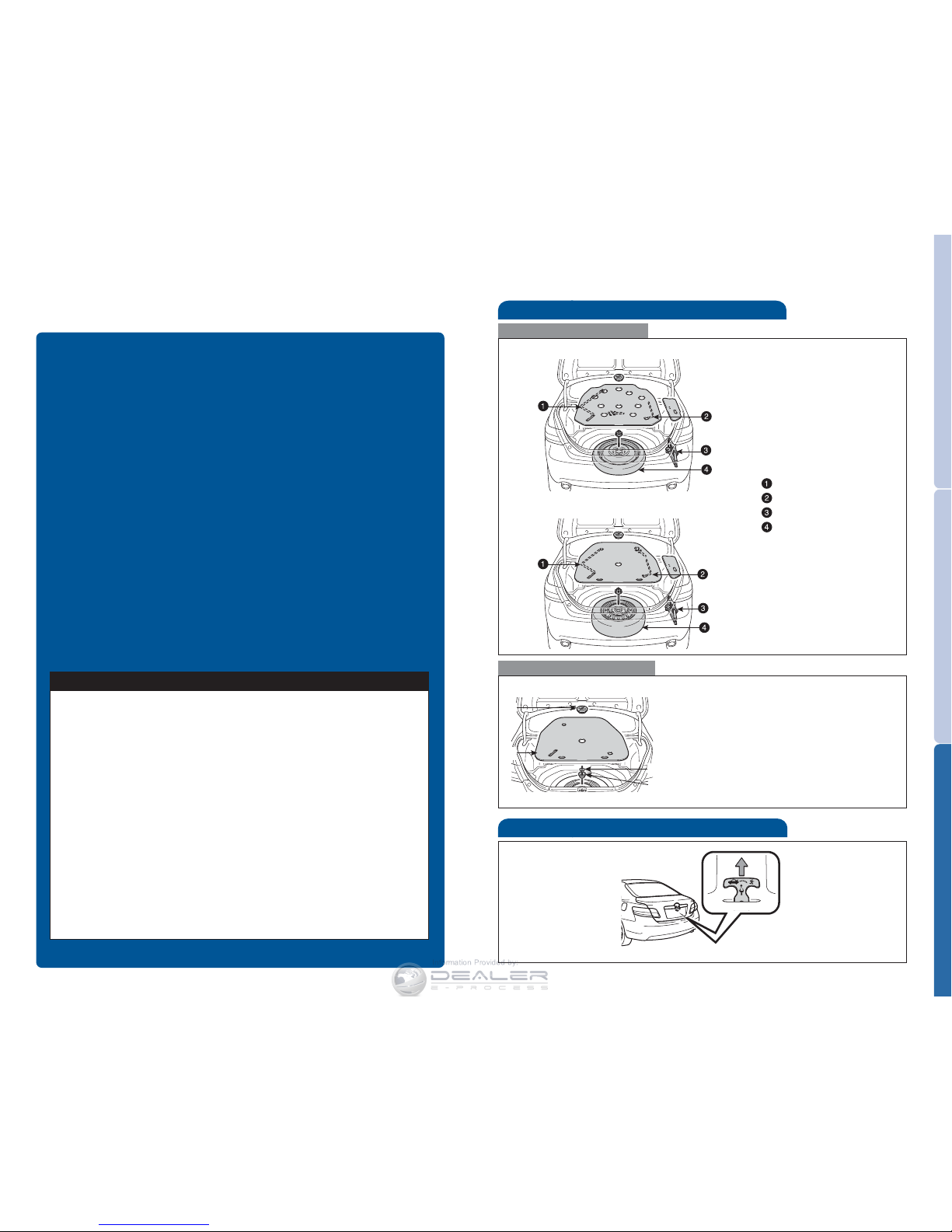

Spare tire & tools
Tool location
Jack handle
Wheel nut wrench
Jack
Spare tire
With compact spare tire
Without compact spare tire
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the spacer (with aluminum
wheels).
Trunk-Internal release
Pull up
(1)
(2)
(3)
(4) Refer to the Owner’s Manual for tire changing
and jack positioning procedures.
Information Provided by:

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20-21
Auto lock functions210
Automatic Transmission 10
Clock 18
Cruise control 16
Cup holders 22
Garage door opener (HomeLink®)316
Lights1& turn signals 14
Moonroof 12
Multi-information display 15
Parking brake 11
Power outlets-12V DC 15
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seat heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 21
Sunshade-Rear 17
Telephone controls (Bluetooth®)17
Tilt and telescopic steering wheel 11
Windows-Power 12
Windshield wipers & washers 14
Child comfort guide 24
Door locks 23
Doors-Child safety locks 23
Seatbelts 23
Seatbelts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Information Provided by:

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Steering wheel climate controls1
Multi-information display button1
Voice command button1,2
Telephone controls1,2
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Steering wheel controls
Steering wheel controls
XLE and LE models
SE model
Information Provided by:

3

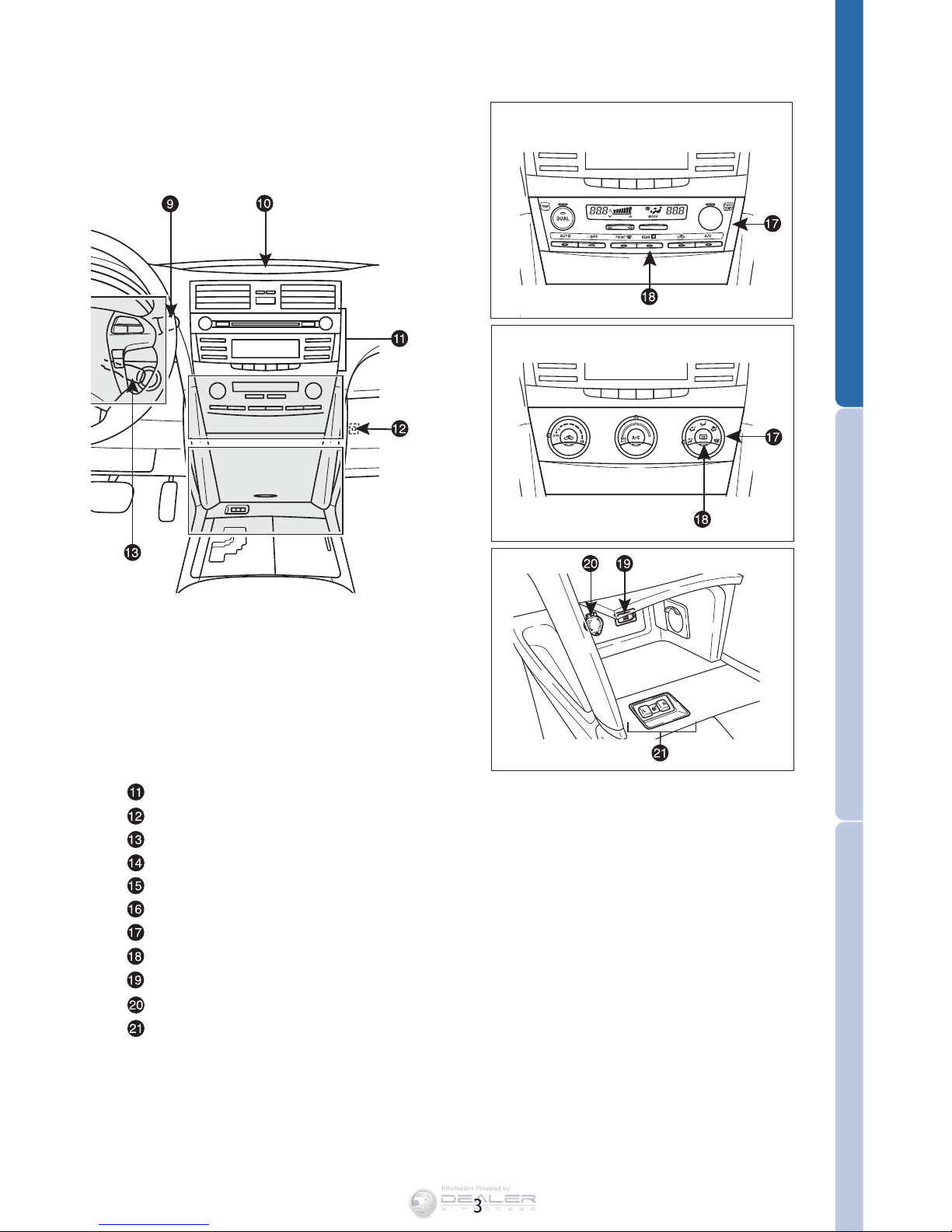

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Audio system2
Tire Pressure Monitoring (warning) System
Cruise control
Tilt and telescopic steering lock release
VSC OFF switch
Power outside rearview mirror controls
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
AUX or USB/AUX audio jack
12V DC Power outlet
Seat heater controls1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual.”
Automatic Air Conditioning
Manual Air Conditioning
Information Provided by:

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Multi-information display
Automatic Transmission shift position indicator
Sequential shift display (if equipped)
Odometer, two trip meters and outside temperature display
With multi-information display
Without multi-information display
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Information Provided by:

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Charging system warning1
Front passenger occupant classification or front passenger AIR BAG
ON/OFF indicator1
2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Cruise control set indicator2
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
Front fog light indicator
Smart Key System warning
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Information Provided by:

6
OVERVIEW

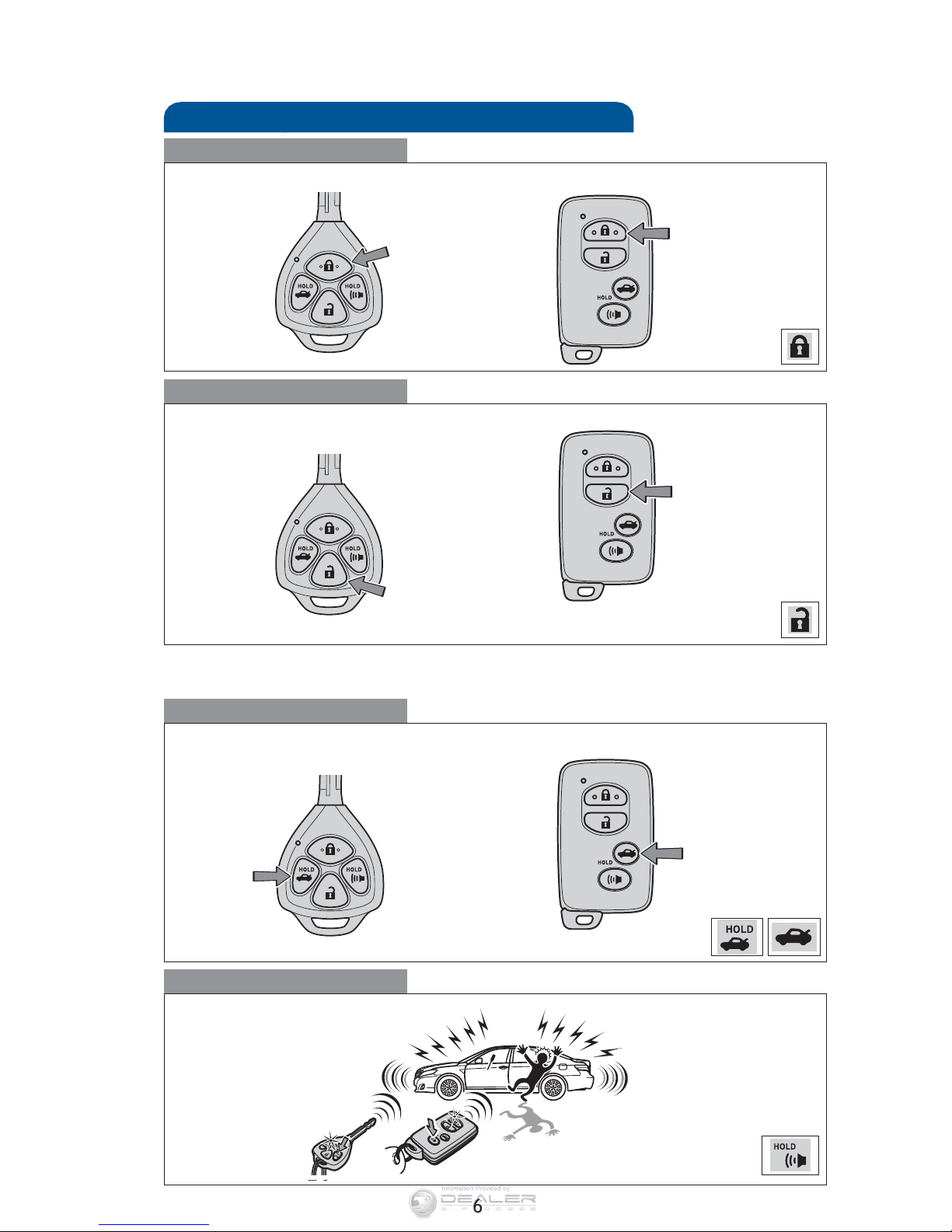

Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Trunk lid
Without Smart Key system With Smart Key system
Push and hold
Information Provided by:

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Back door lock/unlock
Push
Locking operation Unlocking operation
Carry remote to lock/unlock Carry remote to lock/unlock
Push
Front door lock
Grasp
Carry remote to lock/unlock
Front door unlock*
Information Provided by:

8

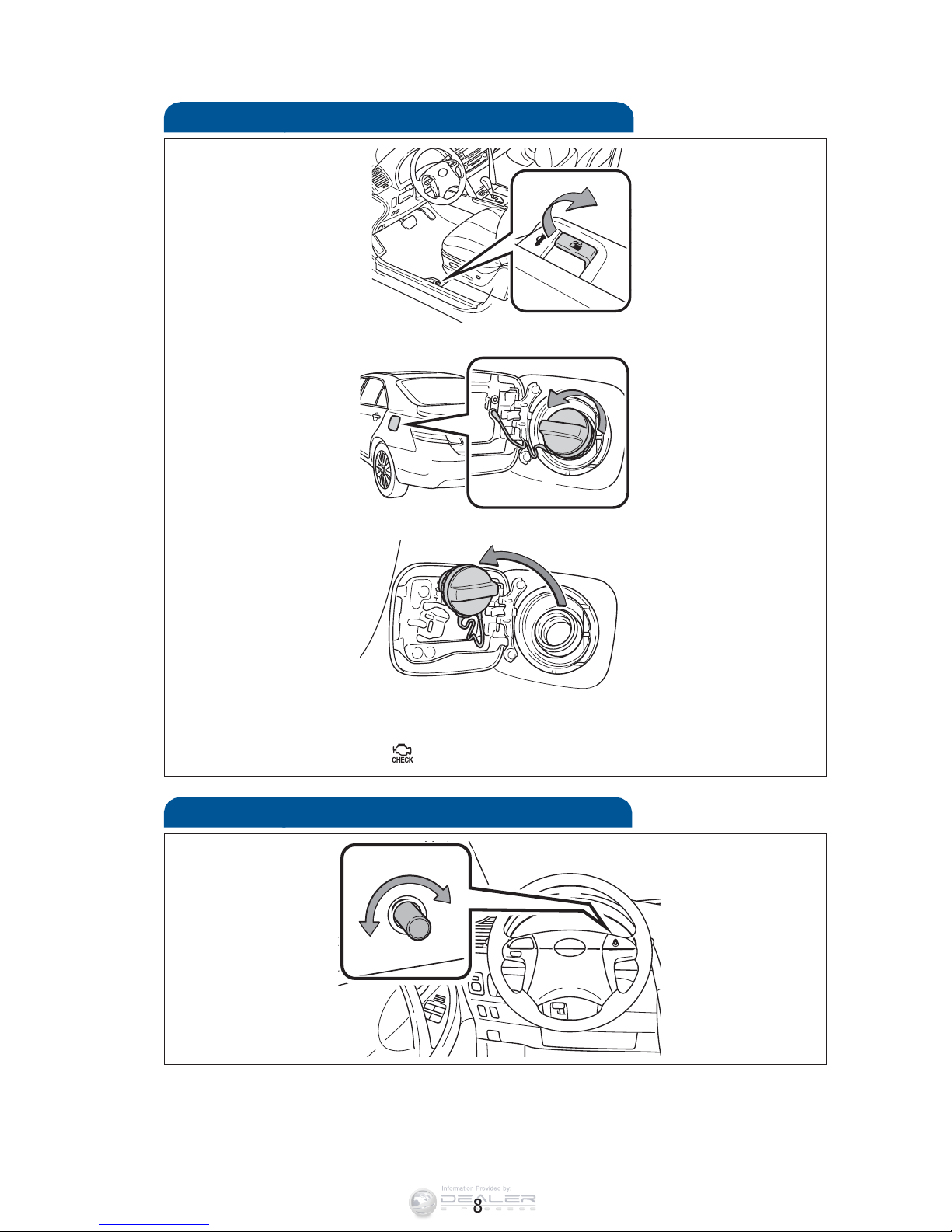

Fuel tank door release and cap
NOTE: Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “ ” indicator may illuminate.
Pull up
Tu r n
Store
Light control-Instrument panel
Brightness
control
-+
OVERVIEW
Information Provided by:

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and raise hood
Pull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AR-FE) engine
6 cylinder (2GR-FE) engine
Information Provided by:

10
FEATURES/OPERATIONS

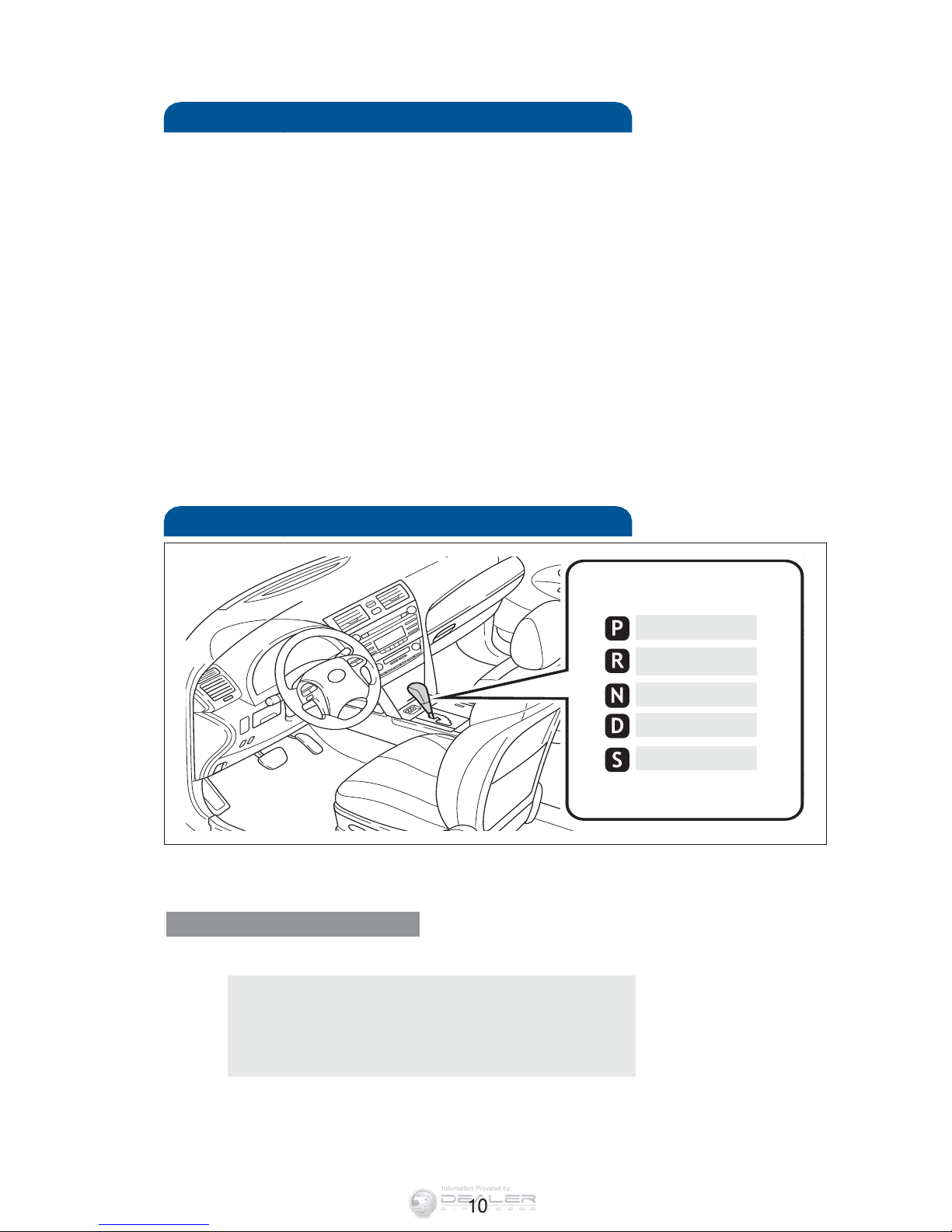

Automatic Transmission (if equipped)
* The “ENGINE START STOP”/engine switch must be “ON” and the brake
pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshifting (push and release)
-: Downshifting (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
N
“S” mode
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.*
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.*
Vehicles without Smart Key system
-Doors unlock when the engine switch is set from “ON” to “ACC” or
“LOCK” and driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and
driver’s door is opened.
* Automatic Transmission only
Refer to the Owner’s Manual for more details.
Information Provided by:

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

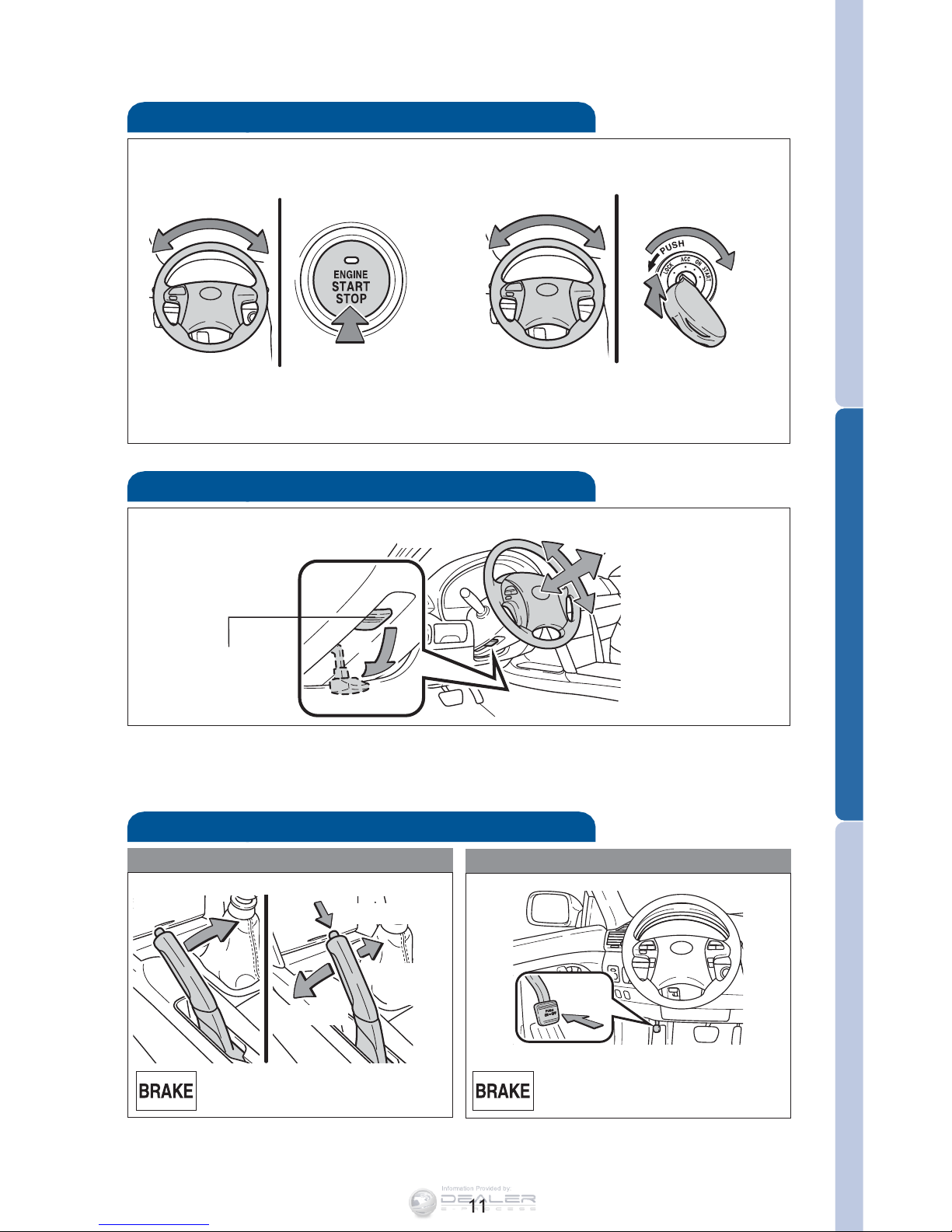

Steering lock release
Tu r n
Tu r n
Smart Key system* Without Smart Key system
Push
Tu r n
Parking brake
Lever type Pedal type
Set: Depress
Release: Depress again
Pull
(2) Push
Set Release
(3) Lower
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
* Gently turn wheel while pressing the ENGINE
START STOP switch. If the lock does not
release, the switch will flash green.
Angle
Length
(1) Pull
slightly
Information Provided by:

12
FEATURES/OPERATIONS

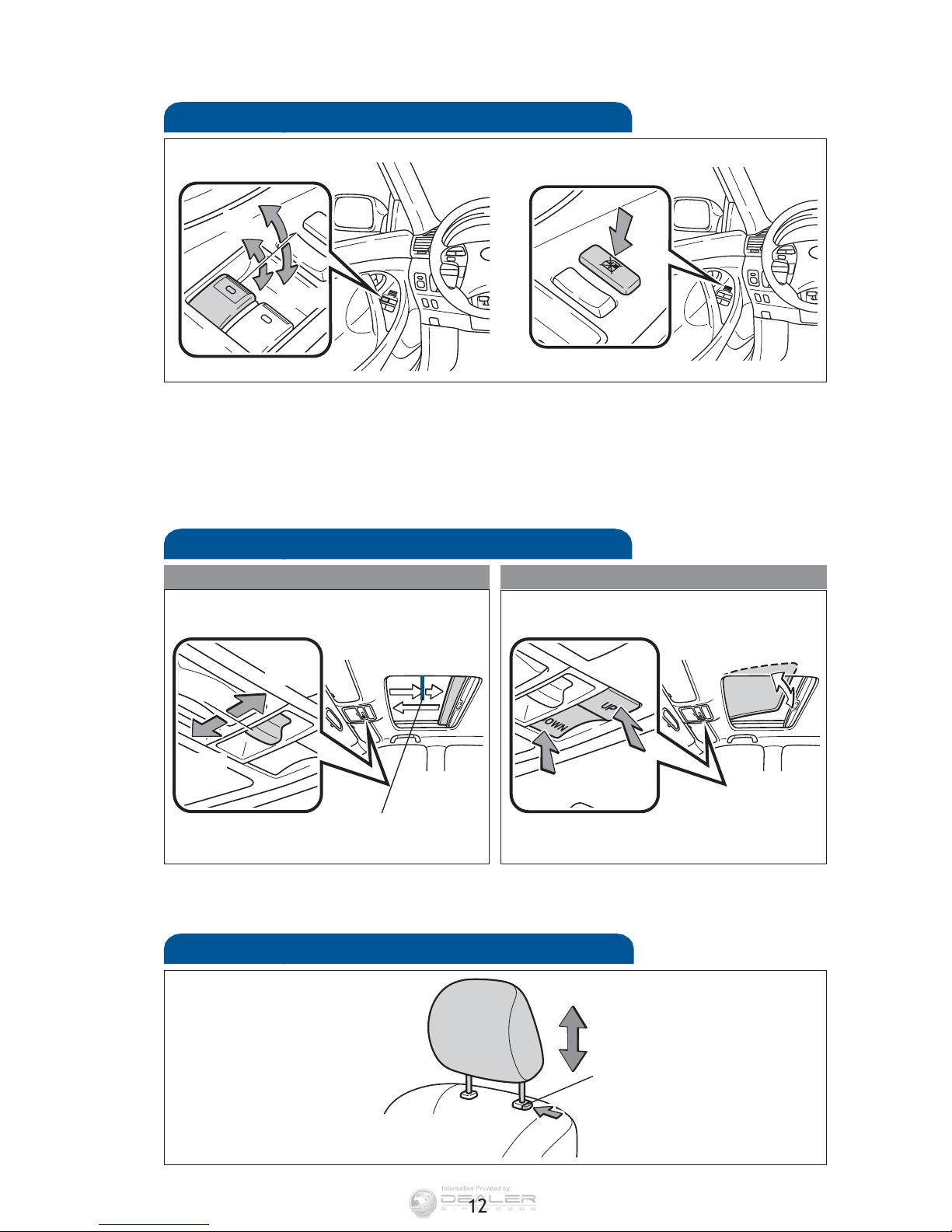

Moonroof (if equipped)
Sliding operation Tilting operation
Open
Tilt
Close
Close
Recommended driving position
to minimize wind noise.
Seats-Head restraints
Lock release button
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
Information Provided by:

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Manual seat Power seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Seat adjustments-Rear (if equipped)
Reclining type (XLE model)
Seatback angle
lever
Fold down type (LE model)
Pull
Fold down
Refer to the Owner’s Manual for more details.
Information Provided by:

14
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam
Auto
DRL OFF
Tu r n
Windshield wipers & washers
Adjust frequency*
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Front fog lights come on only when the headlights are on low beam.
FEATURES/OPERATIONS
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Information Provided by:

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
Front console
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Center console (if equipped)
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
Information Provided by:

16
FEATURES/OPERATIONS
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal or
clutch pedal (Manual Transmission only).
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual for
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Set
Information Provided by:

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

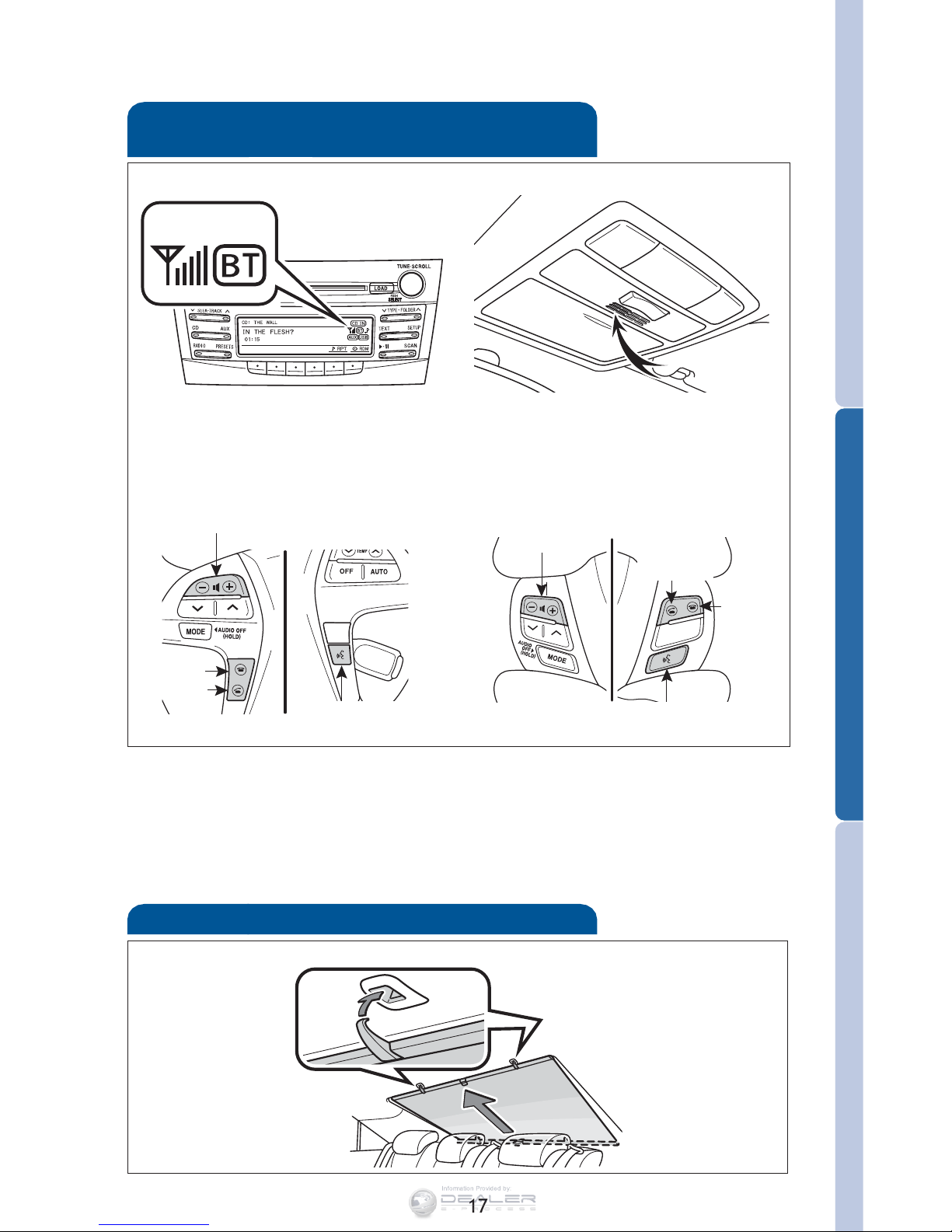

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
Microphone
Audio unit
Steering wheel telephone switches
SE model
XLE and LE models
Voice command
button
Volume
Start call
End call
Volume
Start call
End call
Voice command
button
Sunshade-Rear (if equipped)
Information Provided by:

18
FEATURES/OPERATIONS

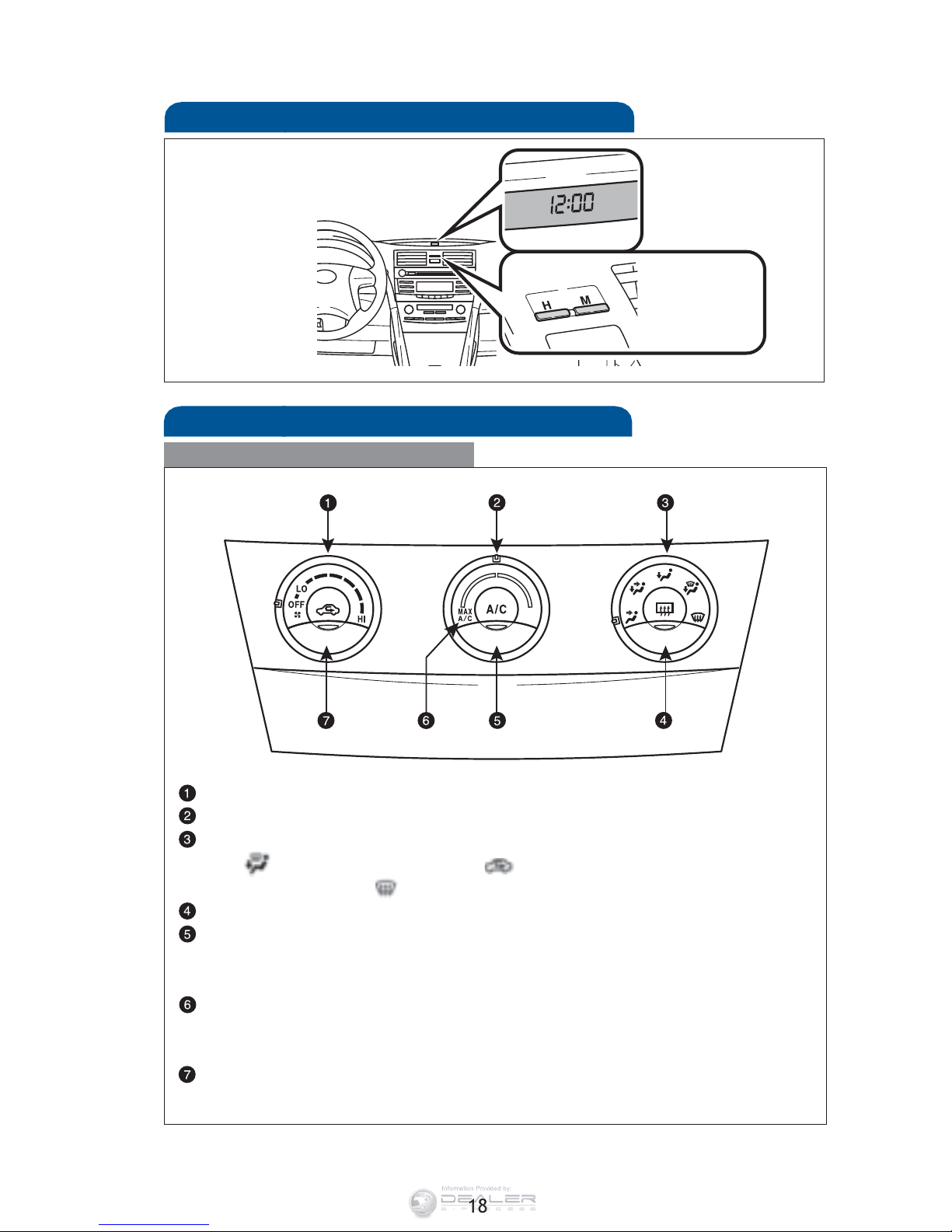

Air Conditioning/Heating
M anual Air Conditioning
Fan speed
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn A/C
OFF in this mode.
Fresh or recirculated cabin air
* If equipped
Clock
H-Hour set
M-Minute set
Information Provided by:
