Toyota 2010 Tundra User manual

QUICK REFERENCE
GUIDE
2010
TUNDRA
413522M1.indd 1413522M1.indd 1 4/15/09 2:19:31 PM4/15/09 2:19:31 PM

2010
Tundra
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Tundra.
This Quick Reference Guide is not a full description of Tundra
operations. Every Tundra owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
413522M2.qxd:413522M2 4/15/09 1:53 PM Page B

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release and cap 7
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 6
Accessory meter 25
Air Conditioning/Heating 20-21
Audio 22-23
Automatic Transmission 9
Bottle holders 26
Cruise control 25
Cup holders 27
Door locks 10
Four-wheel drive 10
Garage door opener (HomeLink®)321
Lights1& turn signals 16
Mirrors-Power side view 10
Moonroof 12

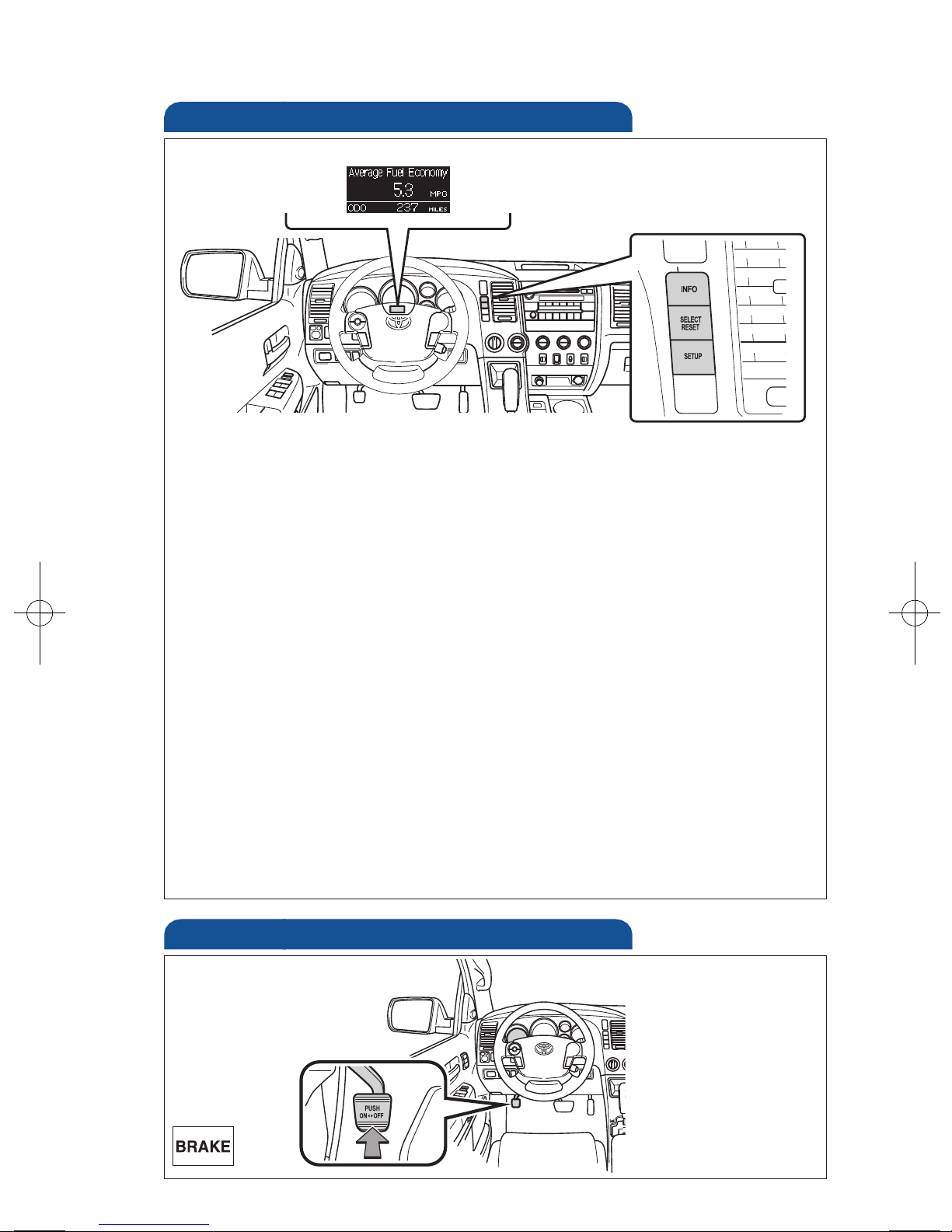

Multi-information display218
Parking brake 18

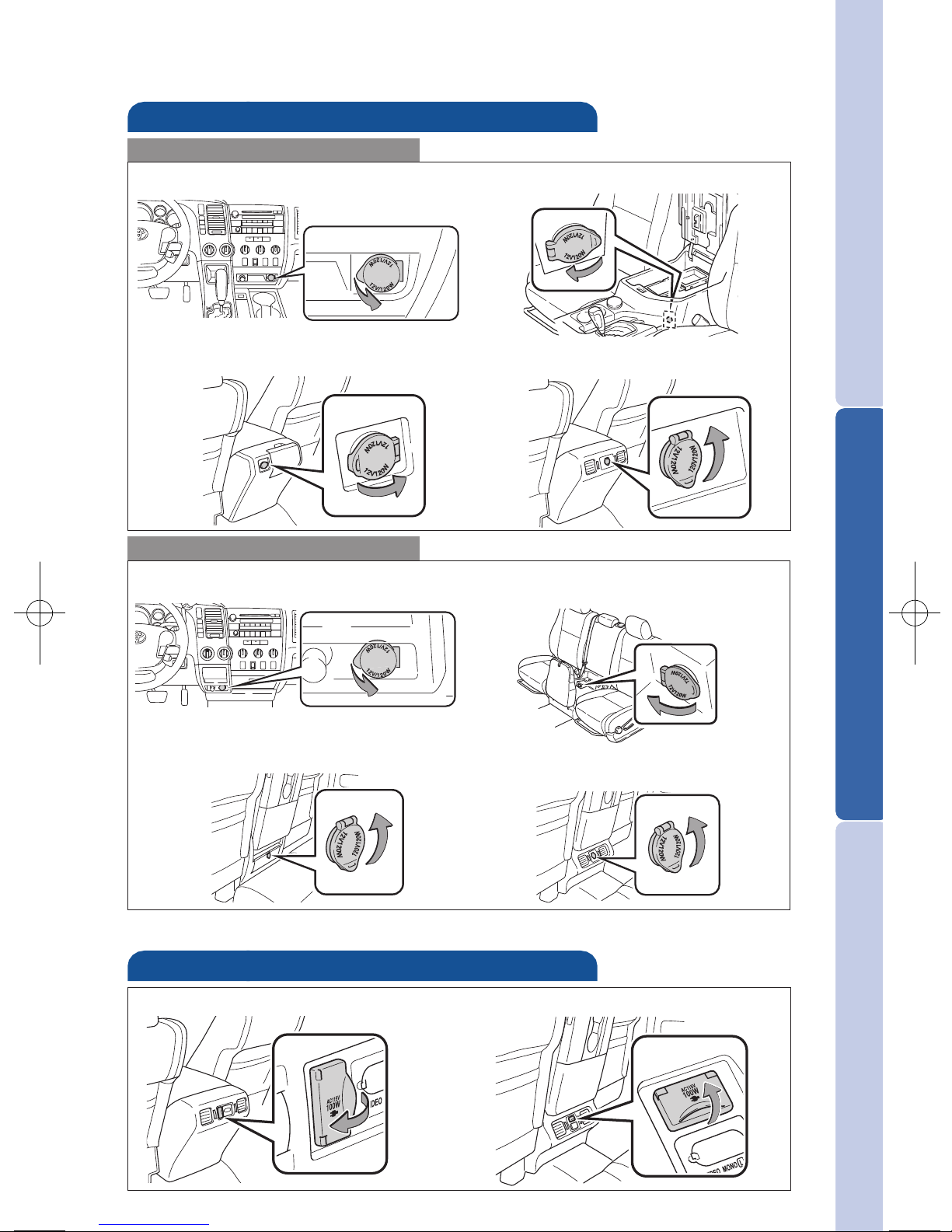

Power outlets-12V DC 17
Power outlets-115V AC 17
Rear seat entertainment system 24
Seat adjustments-Front 12-13
Seat adjustments-Rear 13
Seat heaters and ventilators 19
Seats-Folding 14-15
Seats-Head restraints 14
Te l e p h o n e controls (Bluetooth®)26
Tilt and telescopic steering wheel 11
“TOW/HAUL” switch 11
VSC OFF button 24
Window-Rear 19
Windows-Power 19
Windshield wipers & washers 15
Doors-Child safety locks 29
Seatbelts 28
Seatbelts-Shoulder belt anchor 28
Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/ OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 1

2
OVERVIEW

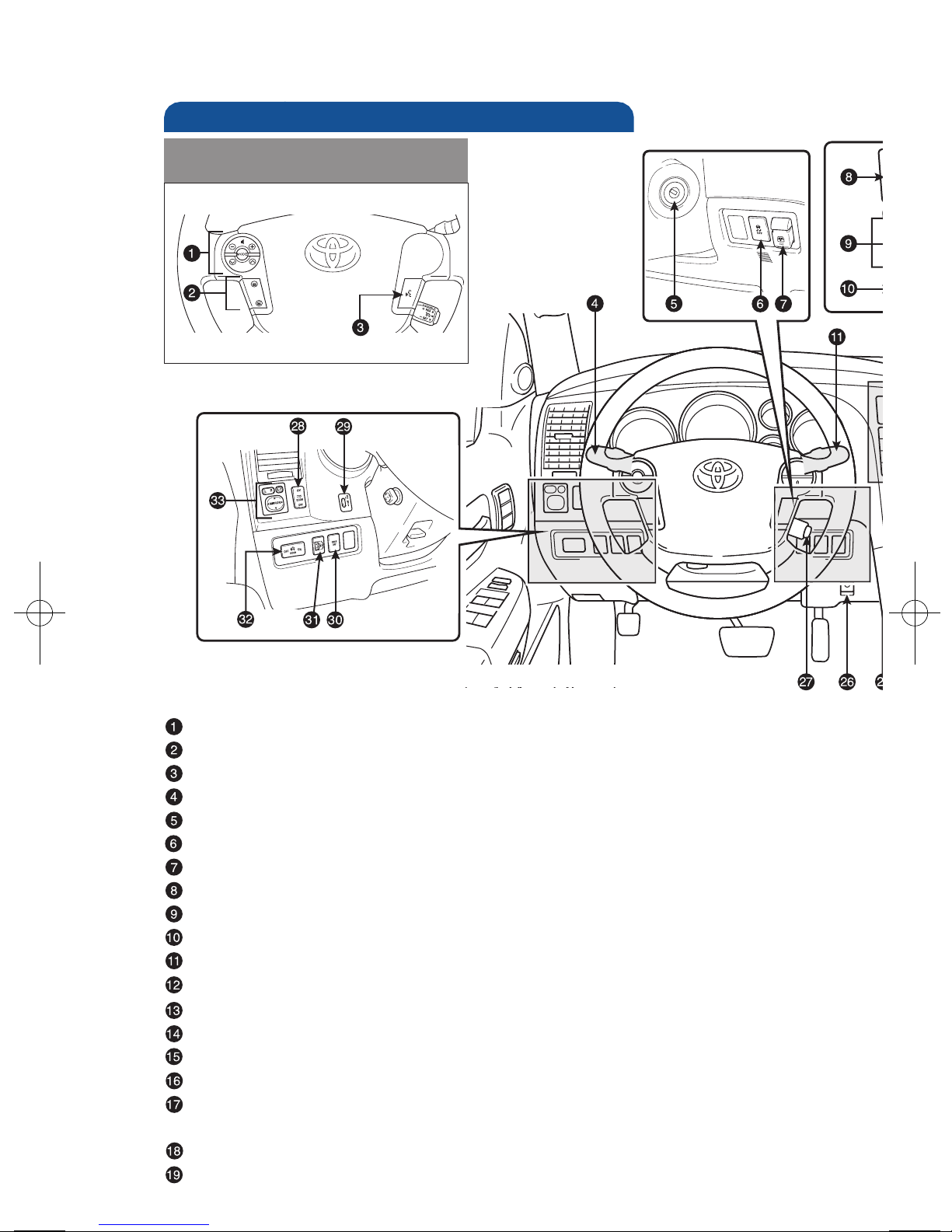

Instrument panel
Steering wheel audio controls1
Telephone controls1
Voice command button1,2
Headlight and turn signal controls
Ignition switch
VSC OFF button
Power back window switch1
Emergency flasher button
Multi-information display/Accessory meter control buttons1
Intuitive parking assist button1
Wiper and washer controls
Accessory meter
Theft deterrent system/Engine immobilizer indicator1
Audio system or navigation system-integrated audio system2
Outside rearview mirror/Back window defogger button1
Front passenger seatbelt reminder
Front passenger occupant classification indicator or front passenger
airbag ON/OFF indicator1
Seat heater controls1
Front passenger airbag manual ON/OFF switch1 (in glove box)
Steering wheel controls
(if equipped)
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 2

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

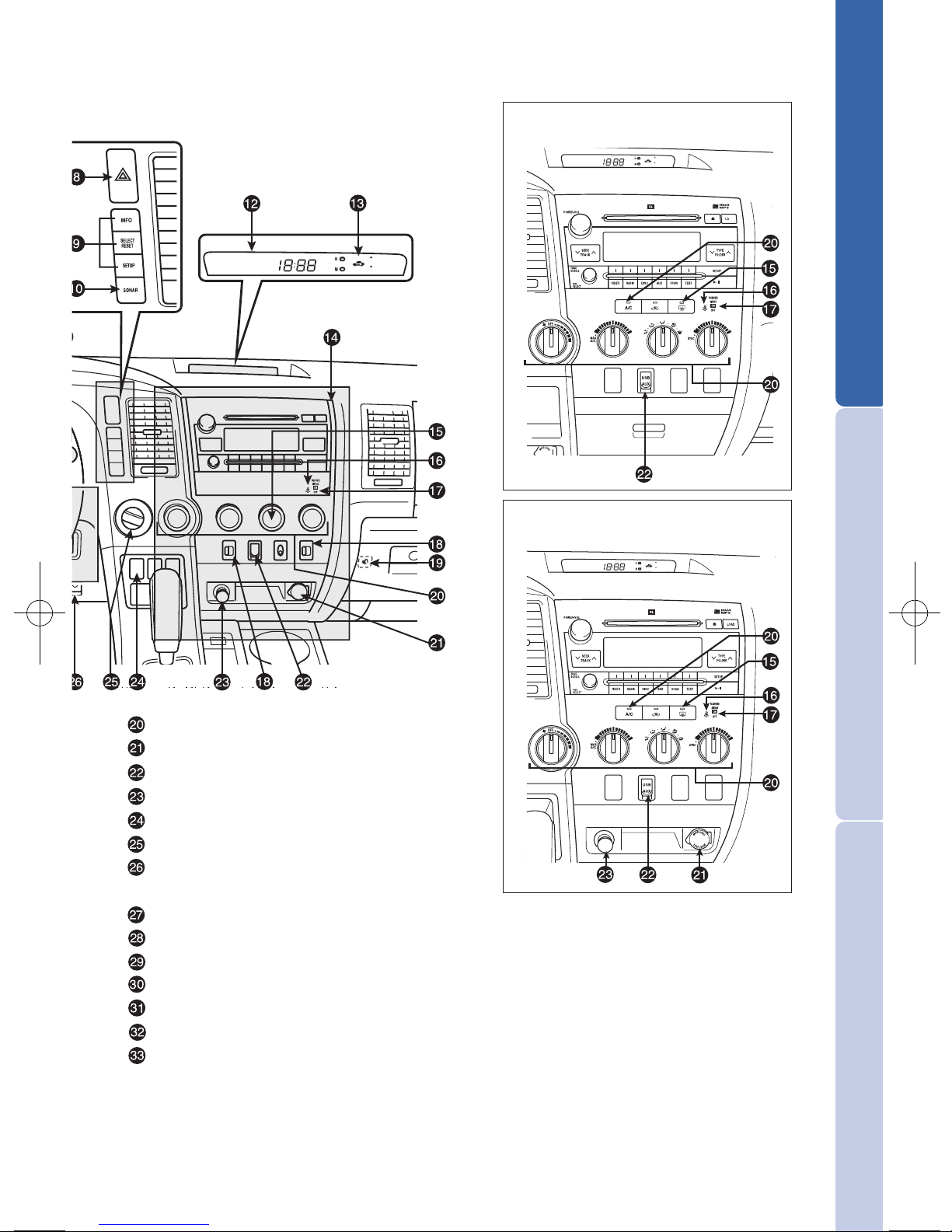

Bench seat with manual
Air Conditioning System
Air Conditioning controls
12V DC Power outlet
AUX audio jack/USB adapter1
Cigarette lighter
“TOW/HAUL” button1
Two-wheel/Four-wheel drive selector1
Tire Pressure Monitoring (warning)
System reset
Cruise control1
Interior light/Personal light main switch
Instrument panel light control
“RSCA OFF” switch
Headlight leveling dial
Cargo lamp switch
Power rearview mirror control1
Separate seat with manual
Air Conditioning system
1 If equipped
2 For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 3

4
OVERVIEW
Indicator symbols

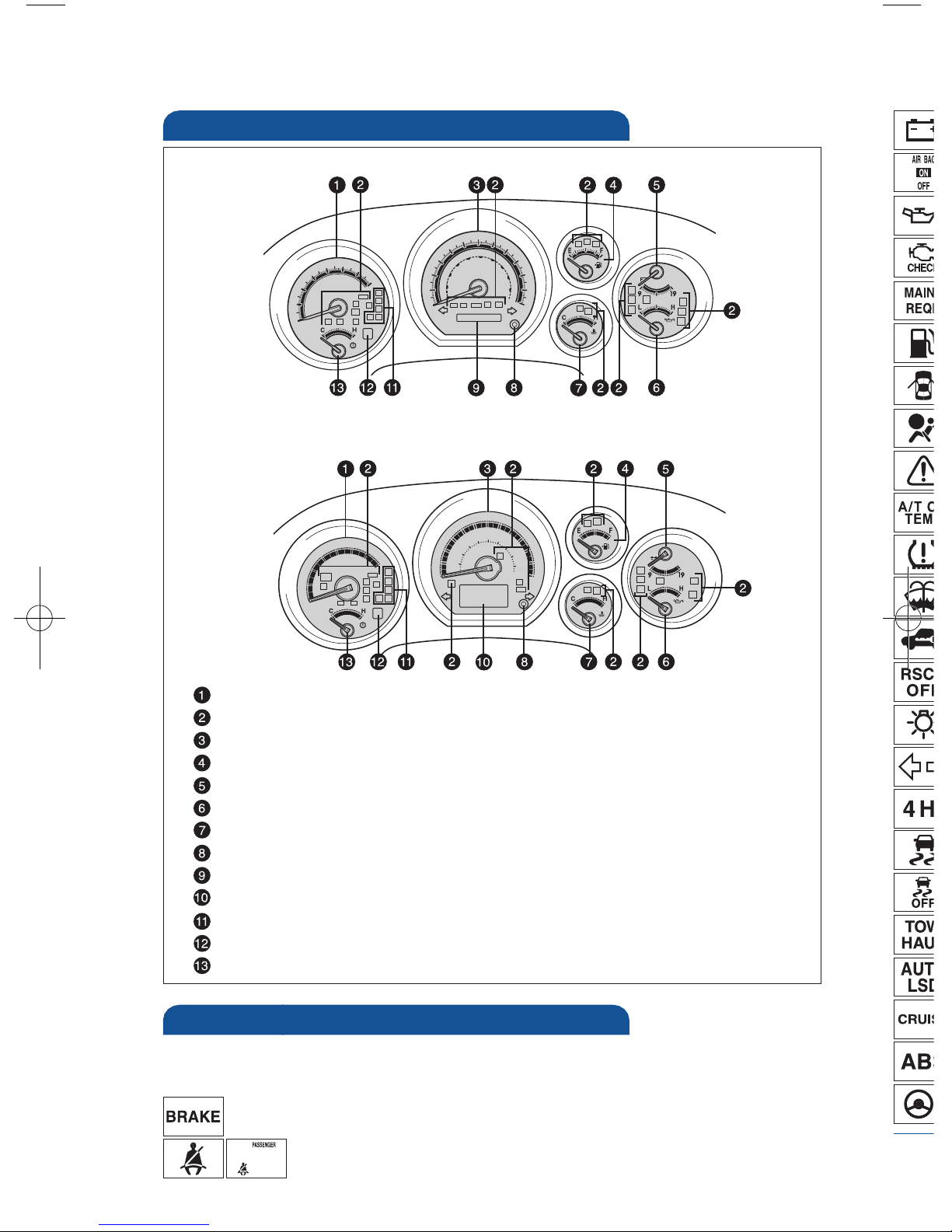

Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Voltmeter
Oil pressure gauge
Engine coolant temperature
Trip m ete r res et kn ob
Odometer and two trip meters
Multi-information display
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
Without multi-information display
With multi-information display
Driver/Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
1If i
n
mal
413522M2_r1.qxd:413522M2_r1 4/16/09 3:44 PM Page 4

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

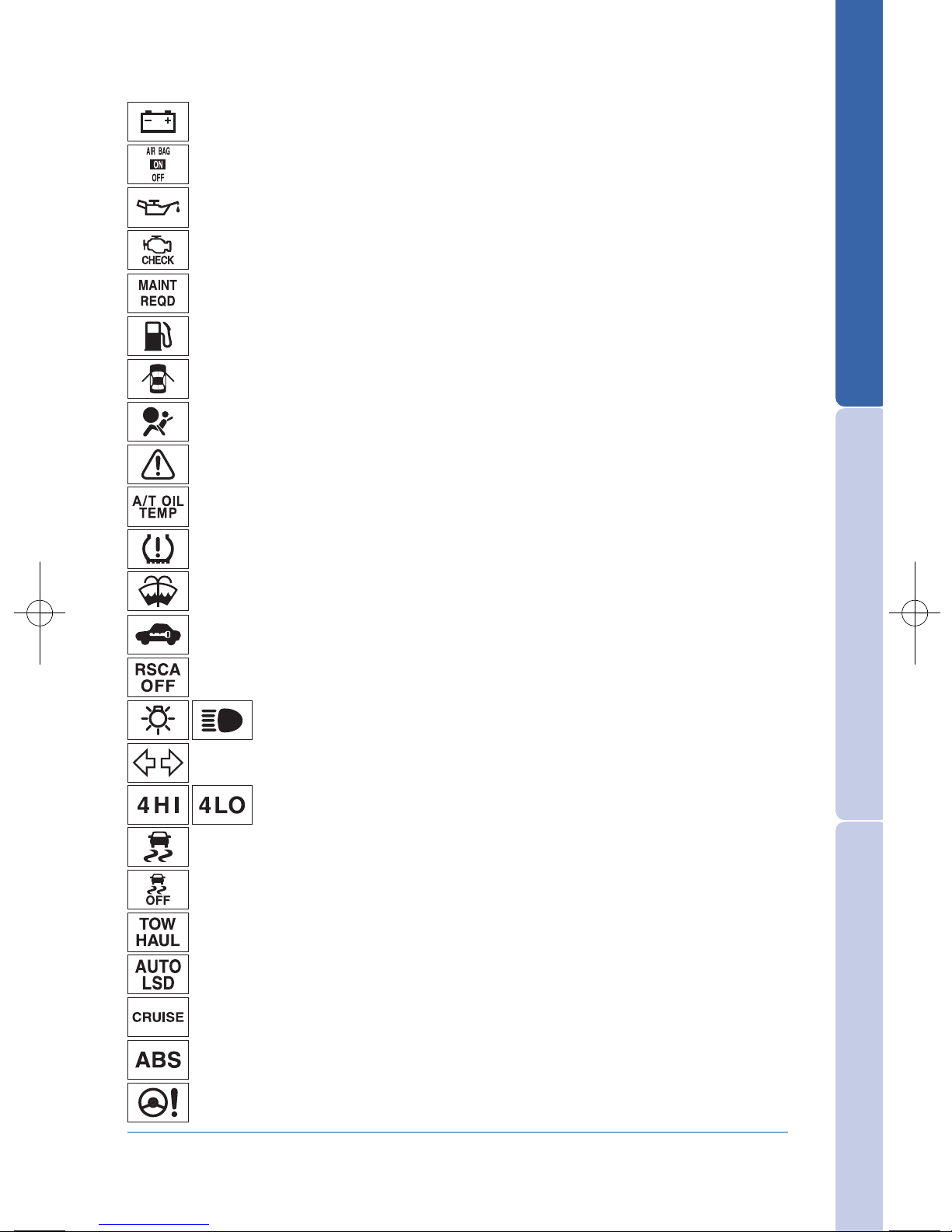

Charging system warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
High/Low speed four-wheel drive indicator
Slip indicator1
Vehicle Stability Control OFF indicator/warning1
TOW/HAUL mode indicator
AUTO Limited Slip Differential indicator1
Cruise control indicator
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Low fuel level warning
Open door warning
Roll Sensing Curtain Airbags OFF indicator1
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Power steering warning light
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 5

6
OVERVIEW
Keyless entry
Panic button
NOTE: If a door is not opened within 30 seconds of unlocking, all doors will
relock for safety.
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Light control-Instrument panel
Brightness
control
-
+
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 6

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Fuel tank door release and cap
Hood release
Pull up latch and
raise hood
Pull
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Store
Tu r n
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 7

8
OVERVIEW

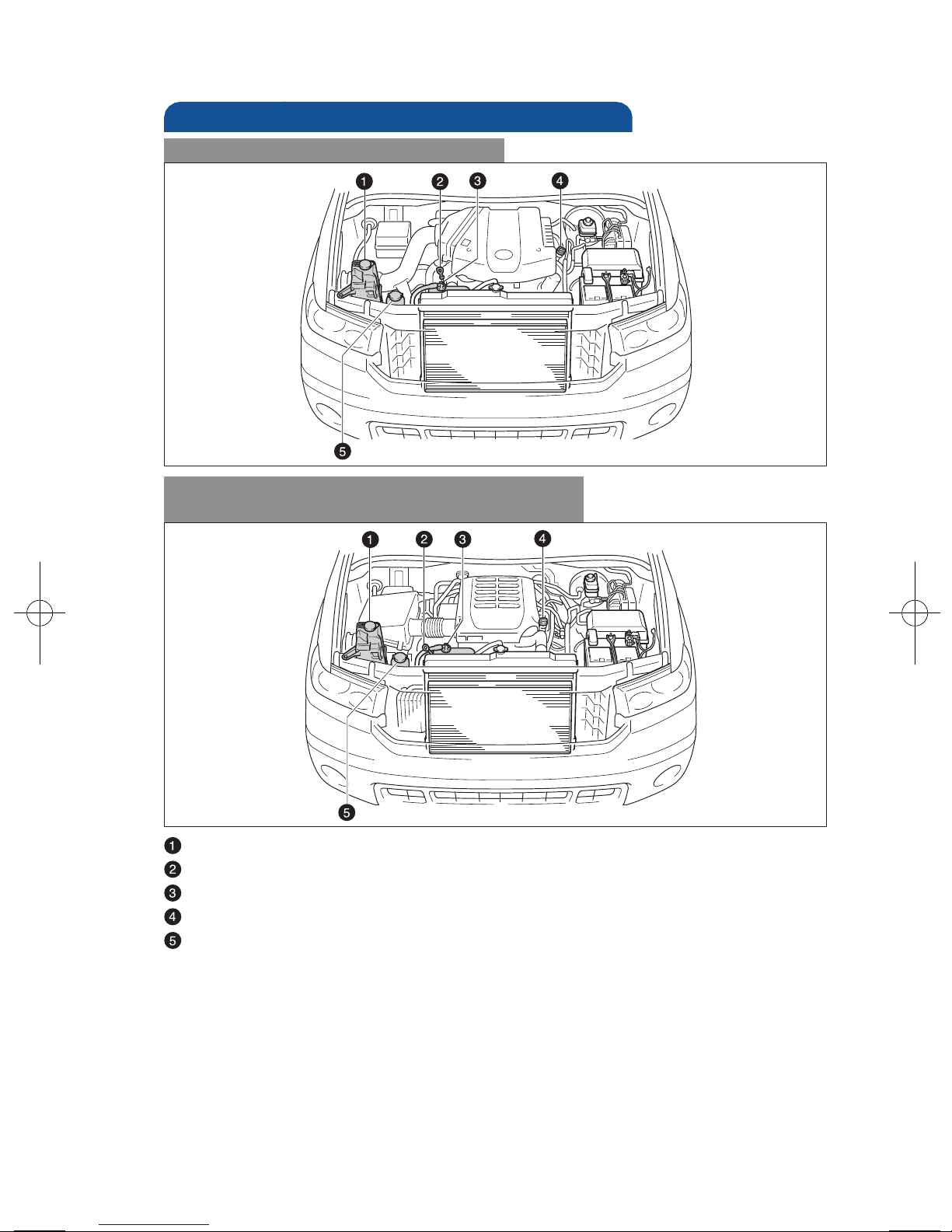

Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Note: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please
refer to the “Warranty Maintenance Guide.”
Engine maintenance
4.0L 6 cylinder (1GR-FE) engine
4.6L 8 cylinder (1UR-FE) and
5.7L 8 cylinder (3UR-FE/ 3UR-FBE) engine
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 8

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/ OPERATIONS

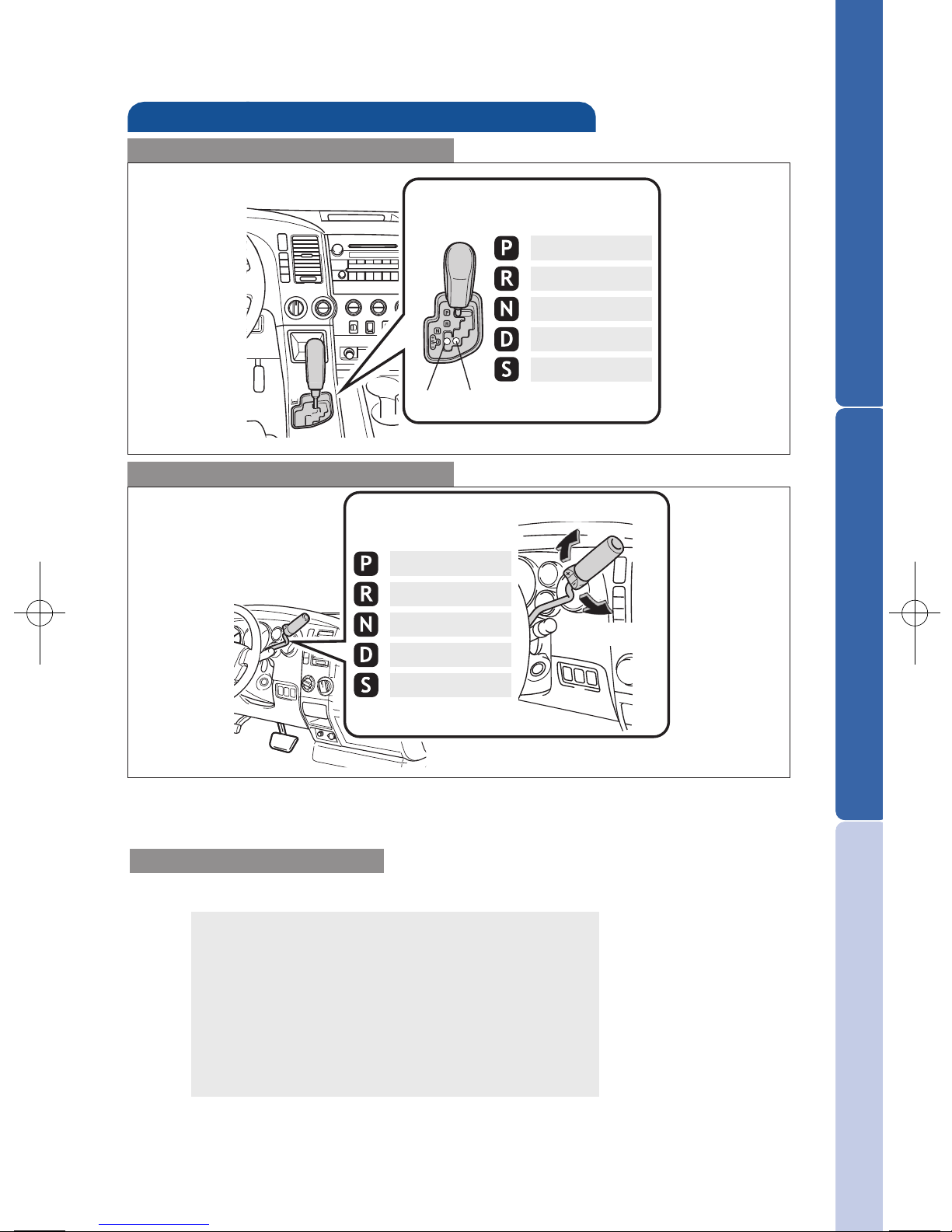

Automatic Transmission
* The engine switch must be set at “ON” and the brake pedal depressed to
shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Floor shift type
Column shift type
Park*
Reverse
Neutral
Drive
“S” mode
“S” “D”
Park*
Reverse
Neutral
Drive
“S” mode
+ (“S” mode)
-(“S” mode)
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
Column shift type:
+: Upshift (turn up and release)
-: Downshift (turn down and release)
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 9

10
FEATURES/ OPERATIONS
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Tu r n
Tu r n
Mirrors-Power side view (if equipped)
Fold mirrors in
Return mirrors to
original position
Adjust
Select left or right
Key must be in the “ACC” or “ON” position.
Door locks (if equipped)
Lock
Unlock
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 10

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Tilt steering wheel Tilt and telescopic steering wheel
Tilt and telescopic (if equipped)
steering wheel
Length
Lock release lever
Lock release lever
Angle
Push the control switch, set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Angle
Control switch
“TOW/ HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when
driving without a load is recommended.
Refer to the Owner‘s Manual for more details on this system before
attempting to use it.
Floor shift type
System ON/OFF
Column shift type
System
ON/OFF
Length
Up
To w a r d t h e
driver
Away from
the driver
Down
Angle
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 11

12
FEATURES/ OPERATIONS

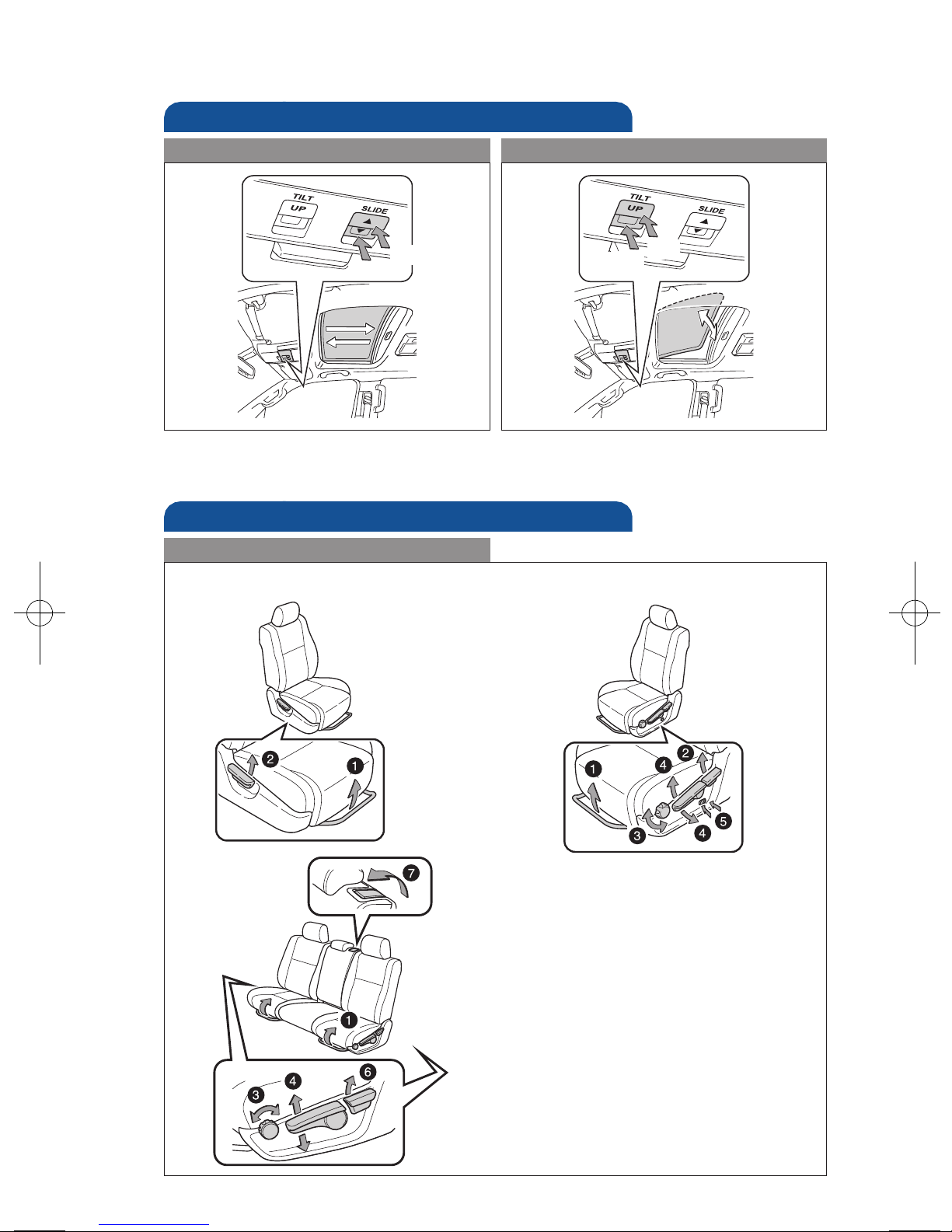

Seat adjustments-Front
Manual seat
Separate seat
-Regular cab model
Separate seat
-Double cab and CrewMax models
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Bench seat
*
*
Push once to open/close completely. To stop partway, press the switch
lightly.
* Double cab and CrewMax models only
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 12

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seat position (forward/backward)
Seatback angle and fold
Seat position (forward/backward)
Seatback angle
Seat cushion angle
Seat height
Lumbar support (if equipped)
Seatback angle (side)
Seatback angle (center)
Leg support
Seat position, cushion angle and height
Power seat
Seat adjustments-Rear
(CrewMax models)
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 13

14
FEATURES/ OPERATIONS
Seats-Folding
Front (regular cab model)
(1) Pull (2) Pull
Seats-Head restraints
Front-Separate seat (type B)
Front-Separate seat (type A)
Lock release button Lock release button
(1)
(2)
Rear (double cab model)
Front-Bench seat
Lock release button
Lock release button
Rear (CrewMax model)
Lock release button
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 14

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Rear (double cab model)
(2)
(3) Lift up
Pull
(2)
(1) Stow
(3) Pull and
fold down
Rear (CrewMax model)
Windshield wipers & washers
With intermittent wiper
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
(1) Stow
Without intermittent wiper
Single wipe
Slow
Fast
Pull to wash
and wipe
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 15

16
FEATURES/ OPERATIONS
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights upon starting engine and releasing parking brake.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Tu r n
Lane change
Lane change
Left turn
High beam
Auto
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 16

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC (if equipped)
Separate seats
Bench seat
Instrument panel Under the seat cushion
of the front center seat
Back of the center console box
(CrewMax model)
Instrument panel Inside of the center console box
Back of the front center seat
(CrewMax model)
Key must be in the “ACC” or “ON” position to be used.
Power outlets-115V AC (if equipped)
Back of the center console box Back of the front center seat
Back of the center console box
Back of the front center seat
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 17

18
FEATURES/ OPERATIONS
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) LANGUAGE
(10) DEFAULT SETTING
Parking brake
Set: Depress
Release: Depress again
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 18
