Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, please call the following number:
U.S. OWNERS: DWhen traveling in the U.S. mainland or Canada:
Toyota Customer Experience Center Tol l−free:1−800−331−4331
DHawaii:
Servco Automotive Customer Services Tol l−free:1−888−272−5515
CANADIAN OWNERS: DWhen traveling in Canada or the U.S. mainland:
Toyota Canada Customer Interaction Centre Tol l−free:1−888−TOYOTA−8 or 1−888−869−6828
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
Please access our websites for further information.
DThe U.S. mainland www.toyota.com
DHawaii www.toyotahawaii.com
DCanada www.toyota.ca
©2006 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

’07Camry hybrid_U (L/O 0610)
iii
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Important information about your Toyota
Hybrid system on your vehicle
Your vehicle is a hybrid vehicle. It has characteristics dif-
ferent from other conventional vehicles. You must under-
stand the characteristics of your vehicle very well and han-
dle it carefully. Read this manual and follow the instruc-
tions. Section 1−1 explains the characteristics of the hy-
brid system.
Occupant restraint systems
Toyota encourages you and your family to take the time to
read Section 1−3 of this Owner’s Manual carefully. In
terms of helping you understand how you can receive the
maximum benefit of the occupant restraint systems this
vehicle provides, Section 1−3 of this Owner’s Manual is
the most important Section for you and your family to
read.
Section 1−3 describes the function and operation concern-
ing seats, seat belts, SRS airbags and child restraint sys-
tems of this vehicle and some potential hazards you
should be aware of. These systems work together along
with the overall structure of this vehicle in order to provide
occupant restraint in the event of a crash. The effect of
each system is enhanced when it is used properly and
together with other systems. No single occupant restraint
system can, by itself, provide you or your family with the
equal level of restraint which these systems can provide
when used together. That is why it is important for you and
your family to understand the purpose and proper use of
each of these systems and how they relate to each other.

’07Camry hybrid_U (L/O 0610)
iv
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either individ-
ually or together, can ensure that there is no injury in the
event of collision. However, the more you know about
these systems and how to use them properly, the greater
your chances become of surviving an accident without
death or serious injury.
Seat belts provide the primary restraint to all occupants of
the vehicle, and every occupant of the vehicle should wear
seat belts properly at all times. Children should always be
secured in child restraint systems that are appropriate for
their age and size. SRS (Supplemental Restraint System)
airbags are, as their names imply, designed to work with,
and be supplemental to, seat belts and are not substitutes
for them. SRS airbags can be very effective in reducing
the risk of head, chest and knee injuries by preventing
contact of the head, chest and knee with interior portions
of the vehicle.
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS air-
bags makes the SRS airbags themselves potential sources
of death or serious injury if an occupant is too close to an
airbag, or if an object or some part of his or her body has
been placed between the occupant and the airbag at the
time of deployment. This is just one example of how the
instructions in Section 1−3 of this Owner’s Manual will help
ensure proper use of the occupant restraint systems, and
increase the safety they can provide to you and your fami-
ly in the event of an accident.
Toyota recommends you to read the provisions in Section
1−3 carefully and refer to them as needed during your time
of ownership of this vehicle.

’07Camry hybrid_U (L/O 0610)
v
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Event data recorder
Your vehicle has computers that monitor and control cer-
tain aspects of your vehicle. These computers assist in
driving and maintaining optimal vehicle performance. Be-
sides storing data useful for troubleshooting, there is a
system to record data in a crash or a near car crash
event. This is called an Event Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device may record
some or all of the following information:
DEngine speed
DWhether the brake pedal was applied or not
DVehicle speed
DTo what extent the accelerator pedal was depressed
DPosition of the transmission selector lever
DWhether the driver and front passenger wore the seat
belts or not
DDriver’s seat position
DFront passenger’s occupant classification
DSRS airbag deployment data
DSRS airbag system diagnostic data
If your vehicle is equipped with a vehicle stability control
(VSC) system, its Electronic Control Unit (ECU) may con-
tain another EDR. There are a variety of driving situations
which include activating the VSC under which the VSC
EDR will record certain information. The VSC EDR may
record some or all of the following information:
DBehavior of the vehicle
DSteering wheel angle
DVehicle speed
DTo what extent the accelerator pedal was depressed
DTo what extent the brake pedal was applied
DTo what extent the ECU controlled the condition of
the 4 wheels
DVehicle stability control system diagnostic data
The information above is intended to be used for the
purpose of improving vehicle safety performance. Unlike
general data recorders, the EDR does not record sound
data such as conversation between passengers.

’07Camry hybrid_U (L/O 0610)
vi
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Toyota will not disclose the data recorded in an EDR to a
third party except when:
DAn agreement from the vehicle’s owner (or the leas-
ing company for a leased vehicle) is obtained
DOfficially requested by the police or other authorities
DUsed as a defense for Toyota in a law suit
DOrdered by the court
However, if necessary Toyota will:
DUse the data for research on Toyota vehicle safety
performance
DDisclose the data to a third party for research pur-
poses without disclosing details of the vehicle owner,
and only when it is deemed necessary
DDisclose summarized data cleared of vehicle identifi-
cation information to a non−Toyota organization for
research purposes
New vehicle warranty
Your new vehicle is covered by the following Toyota limited
warranties:
DNew vehicle warranty
DEmission control systems warranty
DOthers
For further information, please refer to the “Owner’s War-
ranty Information Booklet” or “Owner’s Manual Supple-
ment”.
Your responsibility for
maintenance
It is the owner’s responsibility to make sure that the speci-
fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in-
formation, please refer to the “Scheduled Maintenance
Guide” or “Owner’s Manual Supplement”.

’07Camry hybrid_U (L/O 0610)
vii
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Important health and safety
information about your Toyota
CAUTION
DWARNING: Engine exhaust, some of its constitu-
ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as
well as waste produced by component wear con-
tain or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm.
DBattery∗posts, terminals and related accessories
contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
∗: The 12 volt battery for the hybrid vehicle
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.

’07Camry hybrid_U (L/O 0610)
viii
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Spark ignition system of your
Toyota
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference−Causing Equipment
Standard.
Installation of a mobile two−way
radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as Toyota
hybrid system, cruise control system, electronically con-
trolled brake system, vehicle dynamics integrated manage-
ment, SRS airbag system and seat belt pretensioner sys-
tem, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
High voltage parts and cables on the hybrid vehicles
emit approximately the same amount of electromag-
netic waves as the conventional gasoline powered
vehicles or home electronic appliances despite of
their electromagnetic shieldings.
Unwanted noise may occur in the reception of the
mobile two−way radio.

’07Camry hybrid_U (L/O 0610)
ix
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Smart key system
Users of any electrical medical devices such as im-
planted pacemakers should consult the manufacturer of
the device for information about its operation under the
influence of radio waves. Radio waves could have unex-
pected effects on the operation of such medical devices.
For details, see “Keys” on page 22 in Section 1−2.
Tires and loading on your
Toyota
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner’s Manual. For details about tire inflation
pressure and load limits, see pages 359 and 295.
Leak detection pump
This pump performs fuel evaporation leakage check. This
check is done approximately five hours after the hybrid
system is turned off. So you may hear sound coming from
underneath the trunk for several minutes. It does not indi-
cate a malfunction.
Hybrid battery
The hybrid battery has a limited service life. Call your
Toyota dealer or a qualified service shop for information
about recycling or disposal of the battery.

’07Camry hybrid_U (L/O 0610)
x
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Scrapping of your Toyota
CAUTION
In the event that your vehicle must be disposed of,
make sure to contact your Toyota dealer or a quali-
fied service shop. If your vehicle is disposed of
without the hybrid battery having been removed,
there is a danger of serious electric shock if high
voltage parts, cables and their connectors are tou-
ched. The hybrid batteries must be disposed of by
your Toyota dealer or a qualified service shop. If the
traction batteries are not disposed of properly, they
may cause electric shock that can result a death or
serious injury.
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
High voltage cautions
CAUTION
The vehicle has high voltage DC and AC systems as
well as a 12−volt system. DC and AC high voltage
is very dangerous and can cause severe burns and
electric shock that may result in death or serious
injury.
DNever touch, disassemble, remove or replace the
high voltage parts, cables and their connectors.
High voltage parts and cables are indicated in the
illustration on page 7. Touching, disassembling, re-
moving or replacing those parts and cables can
cause severe burns or electric shock that may re-
sult in death or serious injury.
DNever try to open the service plug access hole
located in the trunk. The service plug is used only
when the vehicle is serviced and is subject to
high voltage. Touching the service plug can cause
severe burns or electric shock that may result in
death or serious injury.

’07Camry hybrid_U (L/O 0610)
xi
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DThe hybrid system uses high voltage up to 650 V.
The system can be hot while and after starting. Be
careful of both the high voltage and the high tem-
perature. Obey the caution labels attached to the
vehicle.
Road accident cautions
CAUTION
DPull your vehicle off the road, put the transmis-
sion in the “P” position, apply the parking brake,
turn the hybrid system off and carry the key.
DIn order to avoid death or serious injury, do not
touch high voltage wiring, connectors or high volt-
age parts (inverter unit, hybrid battery and etc.).
High voltage parts and cables are indicated in the
illustration on page 7.
DIf exposed electric wires are protruding inside or
outside of your vehicle, an electric shock may oc-
cur. Never touch the electric wires.
DIf fluid leaks or gets into some parts of the ve-
hicle, never touch it because it may be strong al-
kaline electrolyte from the hybrid battery. If it con-
tacts your skin or eyes, wash it off immediately
with a large amount of water or if possible, boric
acid solution. Get immediate medical attention in
order to help avoid serious injury.

’07Camry hybrid_U (L/O 0610)
xii
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DIf a fire occurs in the hybrid vehicle, leave the
vehicle as soon as possible. Never use a fire ex-
tinguisher that is not meant for use on electric
fires. Using a small amount of water may be also
dangerous.
DIf your vehicle needs to be towed, do it with the
front wheels raised. If the wheels with the motor
generator are on the ground when towing, the mo-
tor may continue to generate electricity. This may
cause the electricity leakage. Depending on the se-
verity of the damage, electricity leakage may
cause fire. See “If your vehicle needs to be
towed” on page 327 in Section 4.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate.
These components may include airbag, seat belt preten-
sioners, and wireless remote control batteries.

’07Camry hybrid_U (L/O 0610)
ii
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

’07Camry hybrid_U (L/O 0610)
1
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Hybrid vehicle overview
Toyota hybrid system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel consumption indicators 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting your hybrid vehicle 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Efficient use of your hybrid vehicle 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions for the use of hybrid vehicle 7. . . . . . . . . . . . . . . . . . . . . . . .
Road accident cautions 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel overview 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering switches and overhead console overview 16. . . . . . . . . . . . . .
Instrument cluster overview 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 18. . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1

’07Camry hybrid_U (L/O 0610)
2
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Toyota hybrid system combines the
power of an engine and a traction mo-
tor to minimize fuel consumption and
emissions.
Depending on driving conditions, the ve-
hicle runs optimally on a combination of
the engine and traction motor.
Since the engine charges the hybrid bat-
tery as needed, the battery does not have
to be charged from an outside source like
an electric vehicle.
In your hybrid vehicle, there are several
indicators that show different aspects
of fuel consumption:
Instrument cluster indicators
1. Current fuel consumption (fuel economy
meter):
See “Fuel economy meter” in Section
1−6 on page 133.
2. Average fuel consumption after refuel-
ing (“TANK AVG”):
See “—Outside temperature and cruise
information” in Section 1−6 on page
135.
3. Average fuel consumption after the hy-
brid system is turned on (“ECO DRIVE
LEVEL”):
See “—Outside temperature and cruise
information” in Section 1−6 on page
135.
Toyota hybrid system Fuel consumption indicators

’07Camry hybrid_U (L/O 0610)
3
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

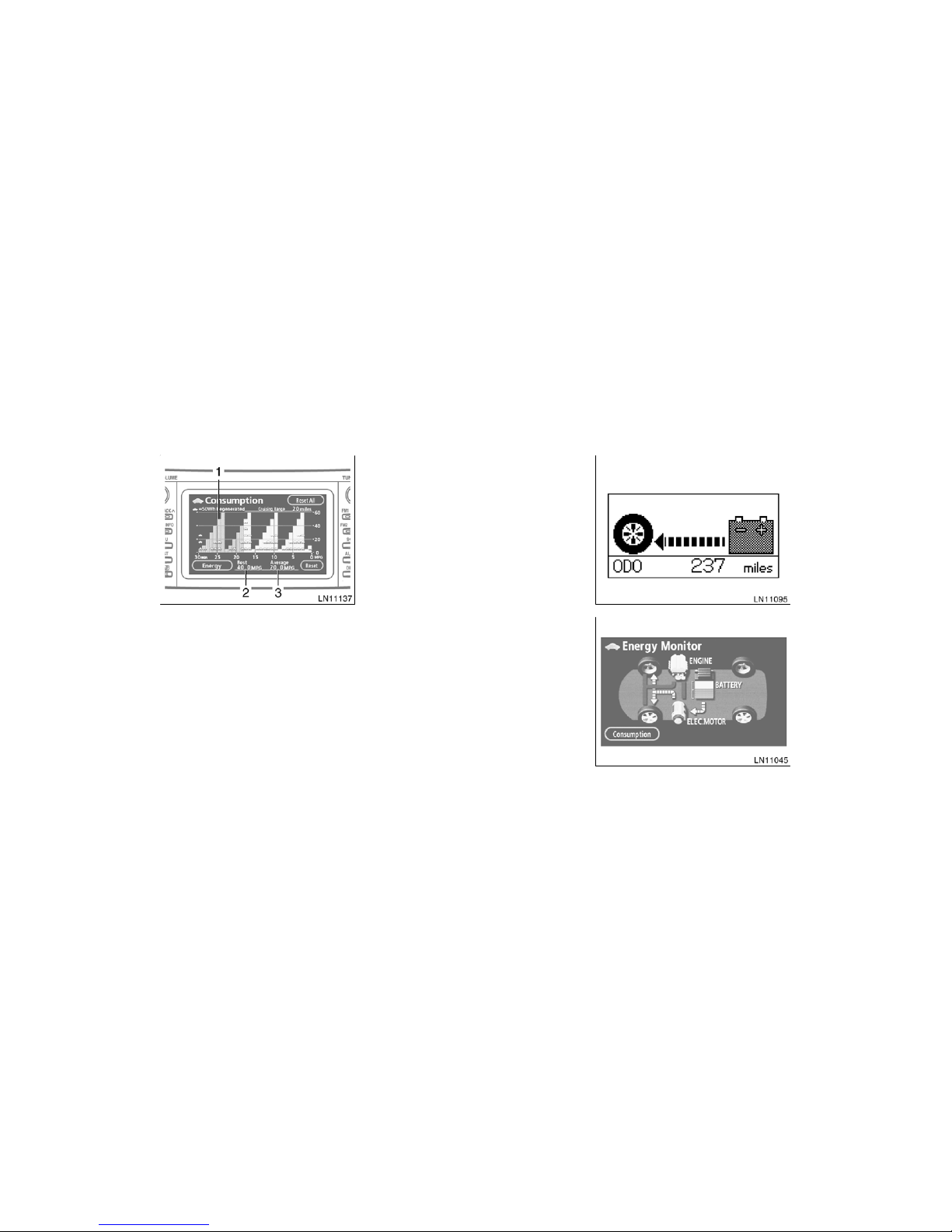

Navigation system indicators (models with
navigation system only)
1. Transition of fuel consumption in the
past 30 minutes (“Consumption”):
See “Trip information (with navigation
system)” in Section 1−10 on page 255.
2. Best fuel economy (lowest fuel con-
sumption) among average (“Best”):
See “Trip information (with navigation
system)” in Section 1−10 on page 255.
3. Average fuel consumption (“Average”):
See “Trip information (with navigation
system)” in Section 1−10 on page 255.
Toyota hybrid system performs various
controls depending on the operating
condition. The condition appears on the
multi−information display and/or naviga-
tion system screen (with navigation
system) when the display and/or screen
is in “Energy Monitor” mode. See
“—Outside temperature and cruise in-
formation” on page 135 in Section 1−6
and “Trip information” on page 255 in
Section 1−10 for the operation of the
display and screen.
These are representative examples of
energy monitor displays. Depending on
the condition, the energy monitor dis-
plays the graphics different from those
shown below. Depending on conditions,
the graphic does not reflect the actual
motion of the vehicle.

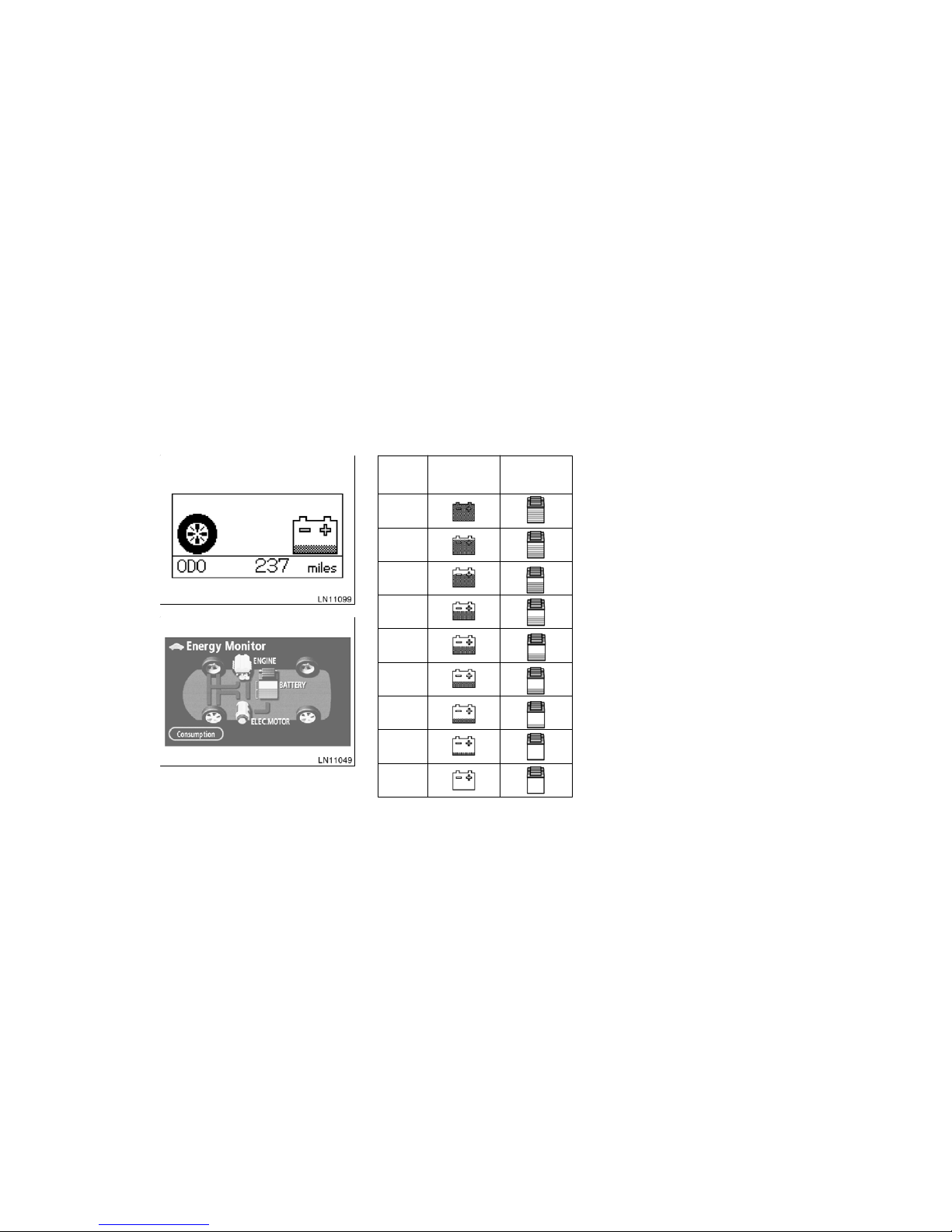

Multi−information display
Navigation system screen
DWhen the vehicle is powered only by
the traction motor.
Energy monitor—

’07Camry hybrid_U (L/O 0610)
4
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

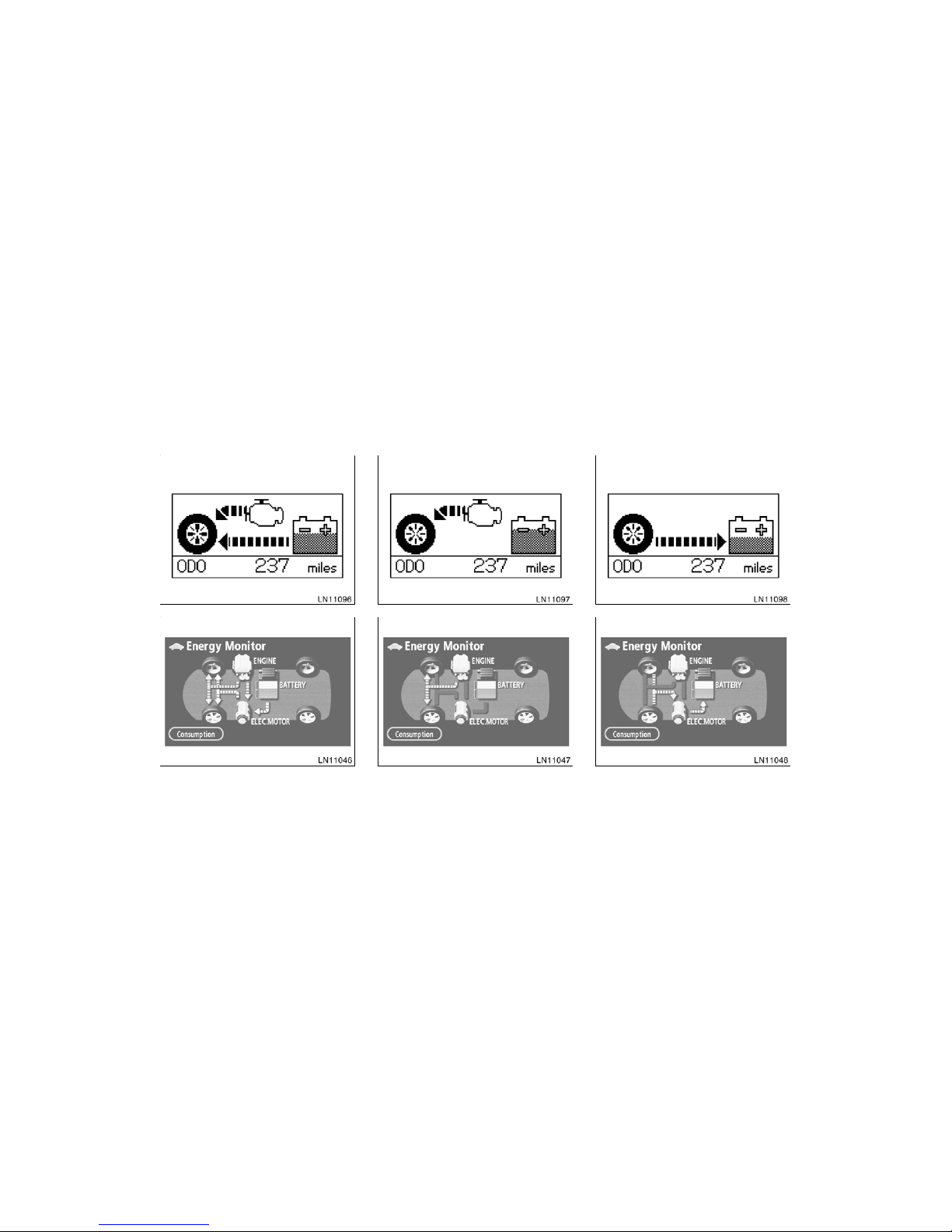

Multi−information display
Navigation system screen
DWhen the vehicle is powered by both
the engine and the traction motor.
Multi−information display
Navigation system screen
DWhen the vehicle is powered only by
the engine.
Multi−information display
Navigation system screen
DWhen the vehicle is regenerating and
charging the hybrid battery.

’07Camry hybrid_U (L/O 0610)
5
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Multi−information display
Navigation system screen
DWhen there is no energy flow.
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8
Status
Multi−
information
display
Navigation
system
screen
Level 0
Your vehicle is equipped with a push
start system. Follow the procedure be-
low to start the hybrid system:
1. Make sure that you are carrying the
electronic key.
2. Make sure that the transmission is in
the “P” position.
3. Press the “POWER” switch briefly and
firmly with the brake pedal depressed.
The “READY” light starts flashing and then
it stays on with sounding a beep. If the
ambient temperature is low, such as dur-
ing winter driving conditions, it may take
longer than the usual amount of time until
the “READY” light stays on.
The hybrid system cannot be started with-
out the brake pedal depressed.
For details, see “How to start the hybrid
system” on page 301 in Section 3.
The engine may not start even with the
“READY” light on.
—Hybrid battery status Starting your hybrid vehicle

’07Camry hybrid_U (L/O 0610)
6
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Drive your vehicle with smooth accel-
eration and deceleration.
DWhile driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for effi-
cient use, do not accelerate or deceler-
ate your vehicle more than necessary.
DAvoid abrupt acceleration and decelera-
tion.
DThe power of the hybrid battery can be
checked on the multi−information dis-
play or the navigation system screen
(with navigation system). See “—Hybrid
battery status” on page 5 for details.
Gradual or non−abrupt acceleration and
deceleration will make more effectively
use of the traction motor without hav-
ing to use engine power.
When parking, be sure to put the trans-
mission into the “P” position. While
driving, put the transmission into the
“D” position.
DIn the “N” position, the engine operates
but electricity cannot be generated. The
hybrid battery will be discharged requir-
ing unnecessary engine power to re-
charge.
DThe hybrid system automatically re-
charges the hybrid battery when the
remaining battery power is reduced.
However, the hybrid battery cannot be
recharged if the transmission is in the
“N” position.
For detailed information, see “How to save
fuel and make your vehicle last longer” on
page 311 in Section 3.
INFORMATION
The engine starts and stops automati-
cally. (It stops during a low load driv-
ing, deceleration or when the vehicle
is stopped.)
As long as the “READY” light remains
on, you can start your vehicle using
the traction motor even with the en-
gine stopped.
The engine may not stop automatical-
ly in the following conditions:
zDuring engine warm−up
zDuring hybrid battery charging
zDuring low or high hybrid battery
temperature
Efficient use of your hybrid
vehicle

’07Camry hybrid_U (L/O 0610)
7
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Air conditioning compressor
2. Inverter unit
3. High voltage cables
4. Hybrid battery and DC/DC converter
5. Service plug
6. Traction motor, transaxle and motor
generator
The hybrid system uses high voltage up
to 650 V. High voltage components are
indicated in the illustration above. High
voltage cables are orange. The system
can be hot while and after starting. Be
careful of both the high voltage and the
high temperature.
Precautions for the use of hybrid vehicle—
—High voltage components

’07Camry hybrid_U (L/O 0610)
8
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Caution label
CAUTION
The vehicle has high voltage DC and
AC systems as well as a 12−volt sys-
tem. DC and AC high voltage is very
dangerous and can cause severe
burns and electric shock that may re-
sult in death or serious injury.
DNever touch, disassemble, remove
or replace the high voltage parts,
cables and their connectors. High
voltage parts and cables are indi-
cated in the illustration above.
Touching, disassembling, removing
or replacing those parts and cables
can cause severe burns or electric
shock that may result in death or
serious injury.
DThe hybrid system uses high volt-
age and the system can be hot
while and after starting. Be careful
of both the high voltage and the
high temperature. Obey the caution
labels attached to the vehicle.
DNever try to open the service plug
access hole located in the trunk.
The service plug is used only when
the vehicle is serviced and is sub-
ject to high voltage. Touching the
service plug can cause severe
burns or electric shock that may
result in death or serious injury.
