Toyota 86 2020 User manual

Quick Reference Guide 2020
toyota.com
Printed in U.S.A. 8/19
19 - M KG -13 4 8 5
QUICK
REFERENCE
GUIDE
2020

Toyota 86
2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satised driving in your
new 86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. Every 86
owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
29
6. Touch [PAIR] to begin the
pairing process. Once the
pairing process is completed, a
conrmation message is shown.
7. Touch [OK] on the message screen to complete the pairing process.
NOTE: A maximum of four devices can be paired.
The Multimedia System will automatically initiate the download of contacts, call
history and messages.
Refer to the Display Audio Owner’s Manual for more information.

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 22
Audio 20
Automatic transmission 10
Clock 19
Cruise control 12
Cup/bottle holders 23
Door locks 17
Driving mode select 11
Hill-start Assist Control (HAC) 12
Lights & turn signals 14
Manual transmission 10

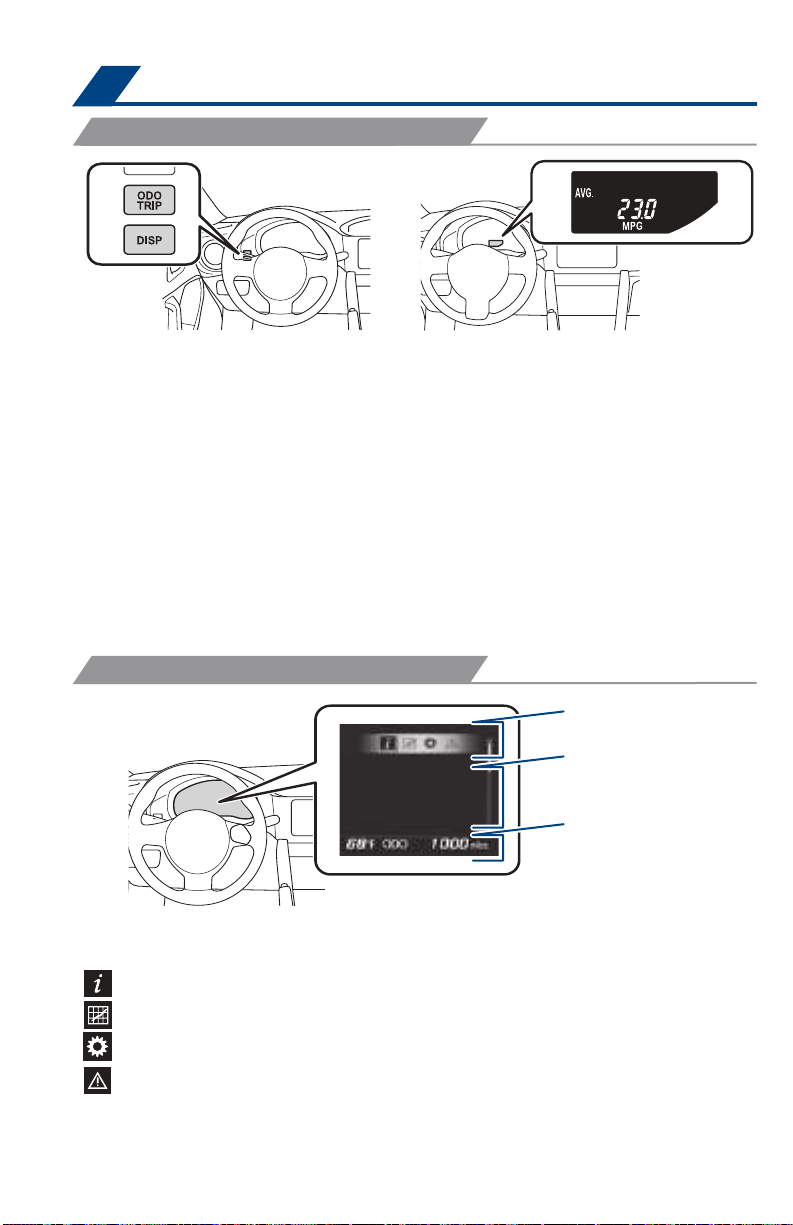

Multi-Information Display (MID) 16
Parking brake 10
Power outlets-12V DC 21
Rear view monitor system 13

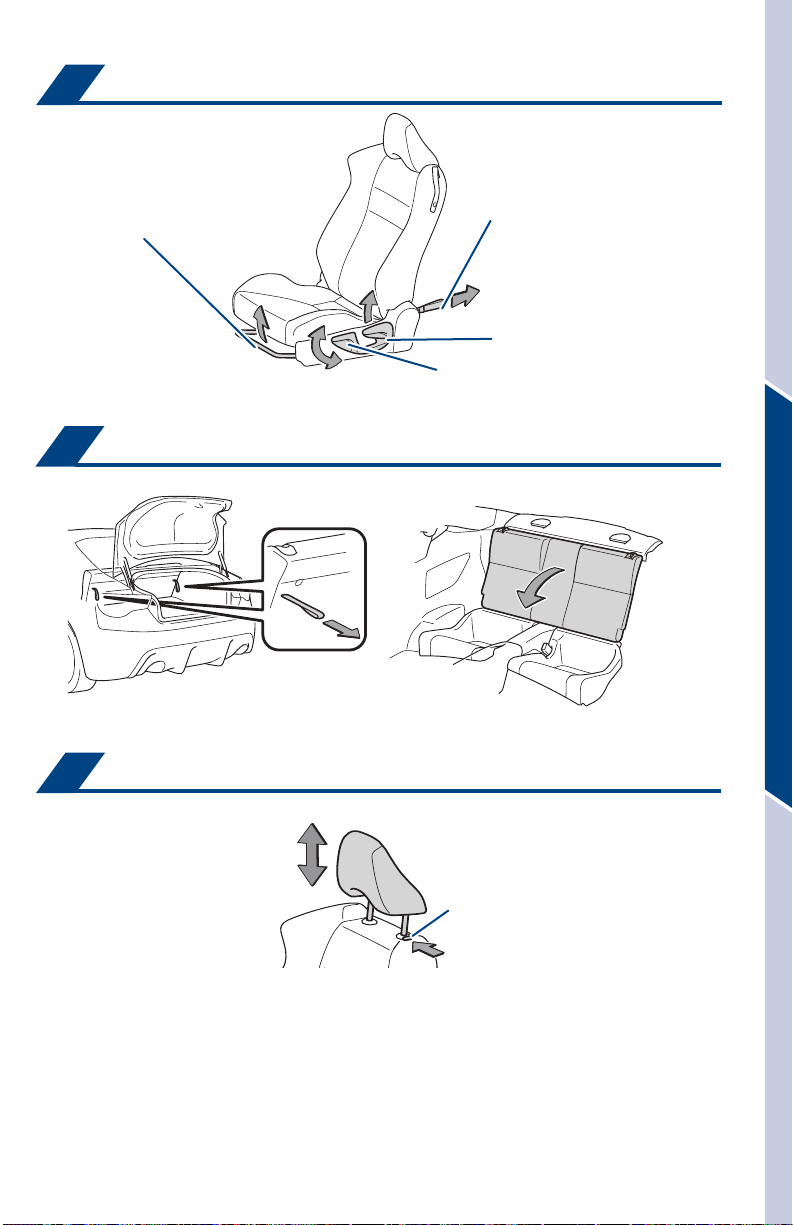

Seat adjustments-Front 15
Seat heaters 23
Seats-Folding rear 15
Seats-Head restraints 15
Steering lock release 18
Steering wheel switches 17
Tilt & telescopic steering wheel 18
Trunk release 19
USB media port 21
Vehicle Stability Control (VSC)
TRAC OFF switch 13
Windows-Power 17
Windshield wipers & washers 14
Floor mat installation 27
Seat belts 24
Spare tire & tools 25
Star Safety System™26-27
Tire Pressure Monitoring
(warning) System (TPMS) 24
Trunk-Internal release 24
PAIRING BLUETOOTH®PHONE FOR
THE FIRST TIME 28-29

2
Instrument panel
Steering wheel controls
OVERVIEW
Paddle shifters*
Audio control
switches
Ignition switch*
(behind the steering wheel)
Meter control switches*
Headlight, turn signal and
fog light* control
Windshield wiper and washer control
Meters/Multi-Information Display (MID)
Tilt and telescopic steering lock release lever
(below the steering wheel)
Hood lock release lever
Fuel tank door release lever
“ENGINE START
STOP” switch*
Trunk opener switch
Instrument panel light control
Cruise control switch

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
3
Rear window and outside rear
view mirror defogger*/rear
window defogger* switch
SPORT or SNOW
mode switch*
Clock
Emergency flasher switch
Air conditioning/heating controls
Manual air conditioning/heating controls
Automatic air conditioning/heating controls
Vehicle Stability Control (VSC)/TRAC OFF switch
TRACK mode switch
Seat heaters*
Power outlet
* If equipped
USB media/AUX port

4

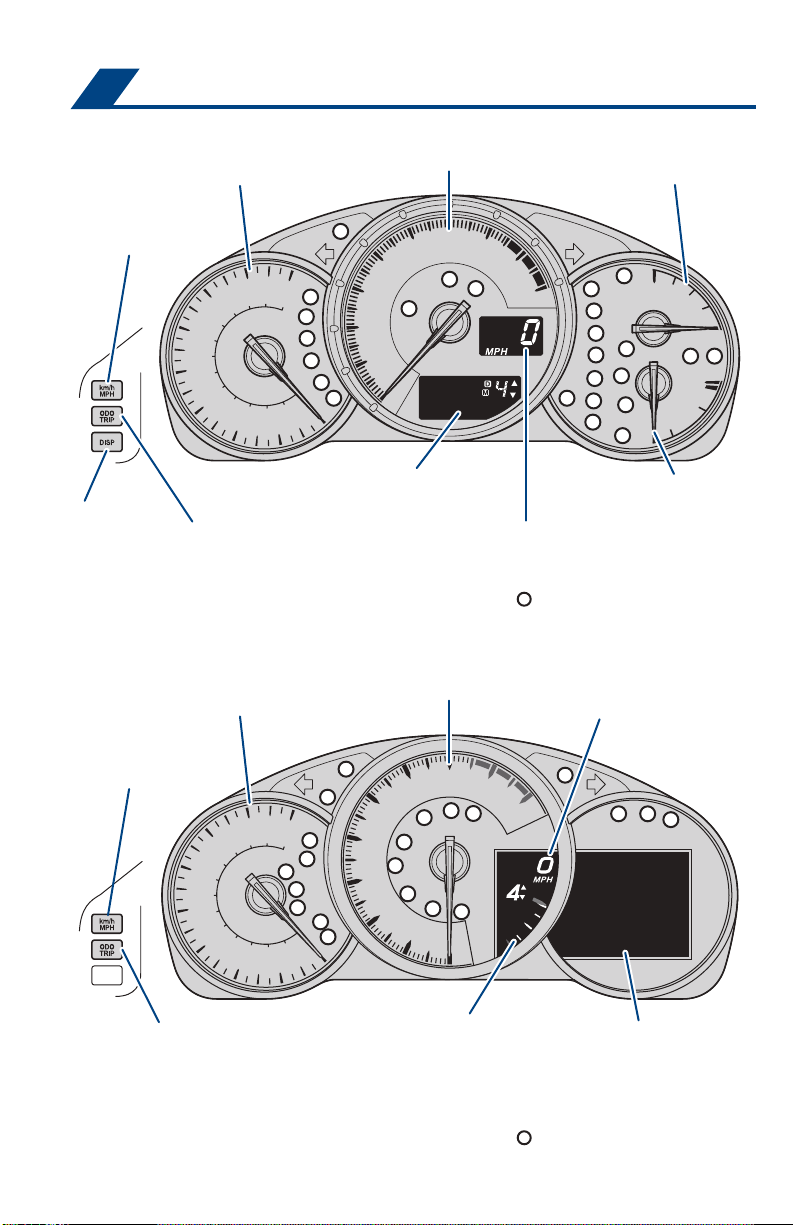

Instrument cluster
Display switch*
Monochrome display
Color display*
Analog speedometer
Analog speedometer
km/h MPH switch
km/h MPH switch
Odometer/trip meter
display change switch
Odometer/trip meter
display change switch
Tachometer
Tachometer
Fuel gauge
Fuel gauge
Engine coolant temperature
gauge*
Digital speedometer
Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
Service indicators and reminders
OVERVIEW
* If equipped
* If equipped

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
5
Brake system warning1
Charging system warning1
Automatic headlight leveling
system warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2020 Owner’s
Manual.
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Low fuel level warning1(yellow)
Cruise control indicator (green/yellow)
Cruise control SET indicator
Low Tire Pressure Warning1
Slip indicator1,3
Smart Key system indicator6
(green/yellow2)
Automatic Transmission fluid
temperature warning6
TRAC OFF indicator1
SNOW indicator4,6
REV (engine RPM) indicator (red)
Upshift/downshift indicator4,6
Shift position indicator5,6
Shift-up indicator5,6
Shift position and shift range
indicator4,6
Security indicator
SPORT indicator4,6
Turn signal indicator
TRACK mode indicator
Open door warning6
Master warning1,2,6
AIR BAG ON/OFF indicator
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1
Low engine coolant temperature
indicator2,6 (blue/red)
Electric power steering system warning1
Fuel tank door position
Front fog light indicator6
Hill-start assist control ON indicator3
Headlight high beam indicator
Low outside temperature indicator6Vehicle Stability Control (VSC) OFF
indicator1
1If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.
3If the indicator flashes, it indicates that the system is operating.
4Vehicle with an automatic transmission.
5Vehicle with a manual transmission.
6If equipped.
Indicator symbols

6
Keyless entry
LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart Key
Carry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Driver door unlock*
Push
ONCE: Driver door
TWICE: All doors
Push
Push and hold
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
OVERVIEW

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
7
Smart Key system (if equipped)
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
On - All electrical components can be used.
Accessory – Some electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed (automatic transmission)/
with the gear shift lever in N and the clutch pedal depressed (manual
transmission), push the “ENGINE START STOP” switch.
Without depressing the brake pedal (automatic transmission)/ the clutch pedal
(manual transmission), pressing the engine switch will change the operation mode
in succession from:

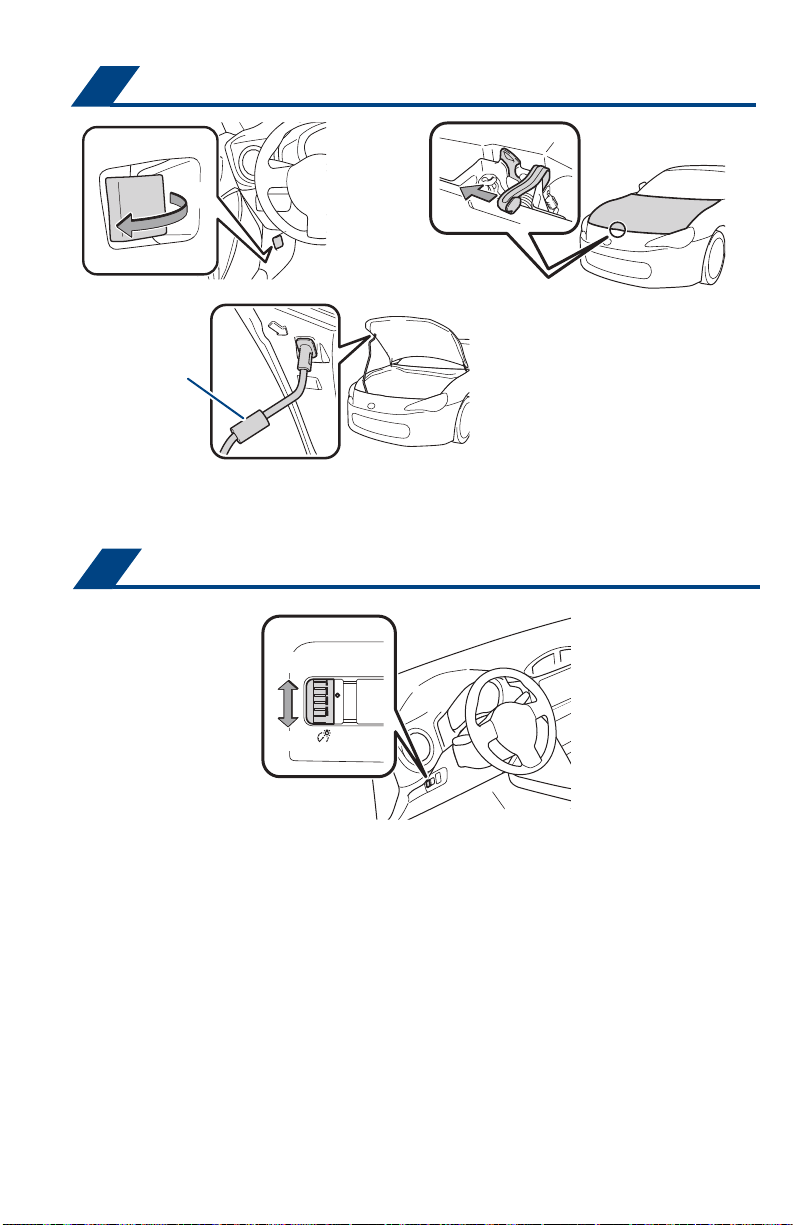

Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Pull up
Store
Turn to open

8
Hood release
Grip
Instrument panel light control
Brightness control
Brighter
Darker
+
-
When holding a supporting rod,
hold it by the grip portion.
Push latch to the left and
raise hood
Pull
OVERVIEW

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
9
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance

10
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
+ (“M” mode)
- (“M” mode)
+ (“M” mode)
*If equipped
- (“M” mode)
Paddle shifters*
Shift lever
* The engine switch must be in the “ON” position (without Smart Key) / “IGNITION
ON” mode (with Smart Key) and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer to the Owner’s Manual for more details.
Pull (2) Push
(1) Pull slightly
(3) Lower
Set Release
“M” (MANUAL) MODE
Automatic transmission (if equipped)
Lift up ring to shift into reverse
Manual transmission (if equipped)
Parking brake
FEATURES & OPERATIONS

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
11
Normal mode
Sport mode
Use for sporty driving or when driving in mountainous regions with lots of curves.
Press this switch and the “SPORT” indicator illuminates.
Snow mode
Use for accelerating and driving on slippery road surfaces such as snow. Press this
switch and the “SNOW” indicator illuminates.
To cancel SPORT mode or SNOW mode, press the same side of the switch again
and it returns to normal driving mode.
Refer to the Owner’s Manual for more details.
There are two types of control modes to accommodate various driving preferences.
Normal mode
Use for secure and smooth normal driving.
“TRACK” mode
Use for the feeling of added control and maneuverability. Press and hold this switch
and the “TRACK” and “VSC OFF” indicators illuminate. To cancel and go back to
normal mode while in “TRACK” mode, press “TRACK” or “VSC OFF” switch again.
Refer to the Owner’s Manual for more details.
Driving mode select
NORMAL SPORT SNOW
AUTOMATIC TRANSMISSION (IF EQUIPPED)
AUTOMATIC TRANSMISSION/MANUAL TRANSMISSION/ (IF EQUIPPED)

12
FEATURES & OPERATIONS

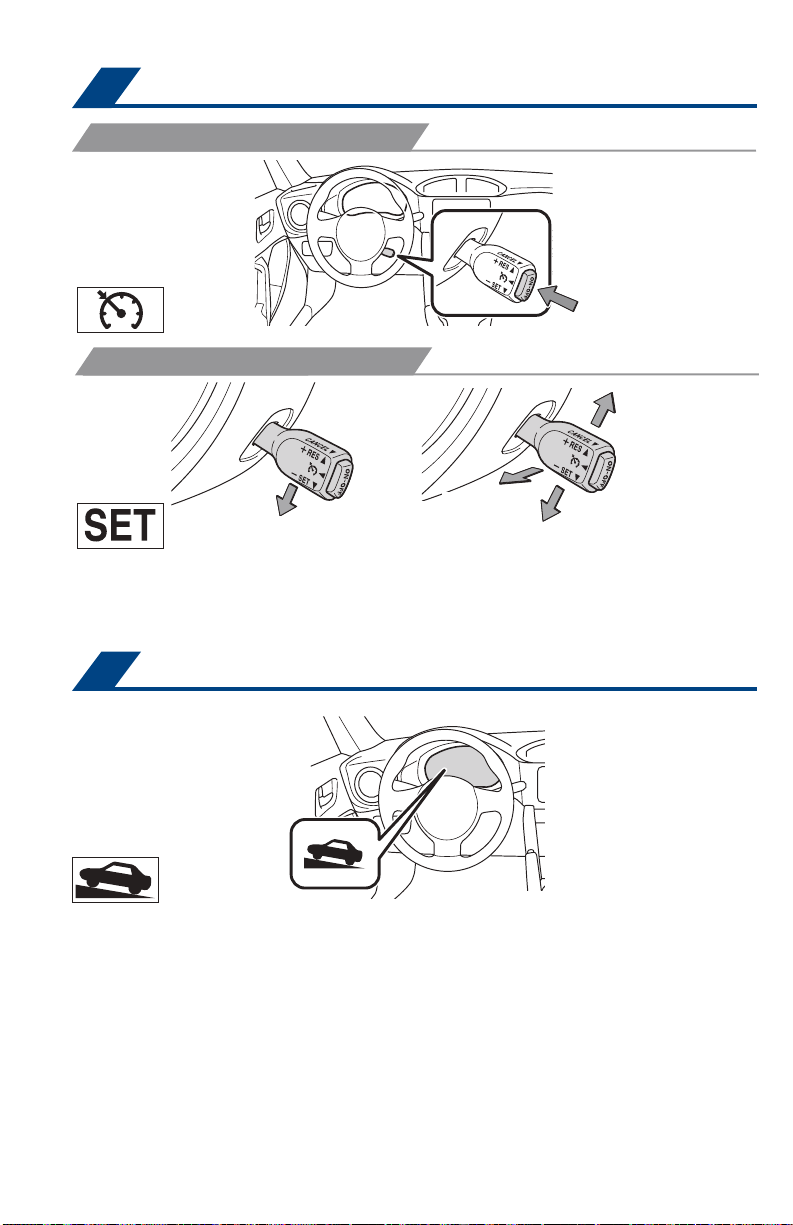

Cruise control
1
The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (manual transmission).
2The set speed may be resumed once vehicle speed exceeds 20 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Hill-start Assist Control (HAC)
Hill-start assist control (HAC) helps to maintain braking force to assist starting off
forward while facing uphill or starting off backward while facing downhill. As HAC
is initially disabled, enable the system to make it operable. The enabled/disabled
setting will be maintained the next time the engine is started.
The hill-start assist control ON indicator will be illuminated when system is enabled
and flash while the system is operating.
To enable system, refer to the Owner’s Manual for limitations and more information.
TURNING SYSTEM ON/OFF
FUNCTIONS

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
13
Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
The rear view image will be displayed on the rear view monitor after the shift lever
is shifted to R.
Refer to the Owner‘s Manual for limitations and more details on this system.
Screen
Automatic transmission
Manual transmission

14
Windshield wipers & washers
For more details, refer to the Owner’s Manual.
* Intermittent windshield wiper frequency
adjustment. Rotate to increase/decrease wipe
frequency.
Lights & turn signals
Parking lights
Low beam
Headlights
Right turn
Left turn
Lane change
Lane change
High beam
High beam flasher
AUTO
OFF
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
Automatic light cut off system Automatically turns lights off after 30 second delay,
or lock switch on remote is pushed after locking.
TURN SIGNALS
Turn
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe Adjust frequency*
FEATURES & OPERATIONS
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
15
Seats-Folding rear
(1) Pull (2) Fold down
Height
Lock release button
Seat position
(forward/backward)
Seatback angle
Height crank (diver’s side only)
Seatback lock release
Seat adjustments-Front
Seats-Head restraints

16
Multi-Information Display (MID)
Push “ODO TRIP” to change information in the following:
(1) Odometer
(2) Trip meter
(3) Setting screen for the shift position indicator and shift-up indicator (manual
transmission)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
For more details, refer to the Owner’s Manual.
Menu icons
Content display area
Odometer/trip meter
display area
Use meter control switches on the steering wheel to scroll through the following
information screens:
Drive information
Exclusive content for 86 (G-force, Power and torque curve, Stopwatch)
Setting display
Warning message display
For more details, refer to the Owner’s Manual.
FEATURES & OPERATIONS
MONOCHROME DISPLAY (IF EQUIPPED)
COLOR DISPLAY (IF EQUIPPED)

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
17
“” Select menu icons.
“” Change displayed
content, scroll up/down
the screen and move the
cursor
Returns to the previous screen.
“MODE” button
Push to change audio
mode.
Push and hold to mute
or pause the audio.
Enter
Meter control switches
Audio control switches
Steering wheel switches
For more details, refer to the Display Audio Owner’s Manual for more information.
Door locks
Windows - Power
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open. To stop window midway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window lock switch
Up
Down
Driver door window controls
Lock
Unlock
“” Volume buttons.
“” Use to search within
the selected audio feature.

18
FEATURES & OPERATIONS
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
A message will be displayed on the
multi-information display.
Automatic transmission
Check that the shift lever is in P. Press
the engine switch while turning the
steering wheel left and right.
Manual transmission
Press the engine switch while turning
the steering wheel left and right.
With Smart Key system
Without Smart Key system
Push
Turn
Turn Turn
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
Lock release lever
Angle Length
Steering lock release
