Foreword
Welcome to the growing group of value- conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble- free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Customer Assistance Center Toll- free: 1- 800- 331- 4331
CANADIAN OWNERS: Toyota Canada Customer Interaction Centre Toll- free: 1- 888- TOYOTA- 8 (1- 888- 869- 6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
1
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 13. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
2
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Personal lights
5. Garage door opener box or auxiliary
box
6. Side defroster outlet
7. Glove box
8. Power door lock switches
9. Power window switches
10. Manual transmission gear shift lever
11. Rear console box
12. Cup holders
13. Parking brake lever
14. Tire pressure warning system reset
switch
15. Lower vent
16. Hood lock release lever
17. Window lock switch
18. Power rear view mirror control switches
Instrument panel overview (standard and access cab models)
Vehicles with manual transmission

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
3
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Auxiliary box
12. Rear console box
13. Cup holders
14. Passenger airbag manual on- off switch
15. Tire pressure warning system reset
switch
16. Lower vent
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
20. Power rear view mirror control switches
Vehicles with automatic transmission (type A)

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
4
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Rear condole box
12. Cup holders
13. Tire pressure warning system reset
switch
14. Lower vent
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches
Vehicles with automatic transmission (type B)

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
5
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)

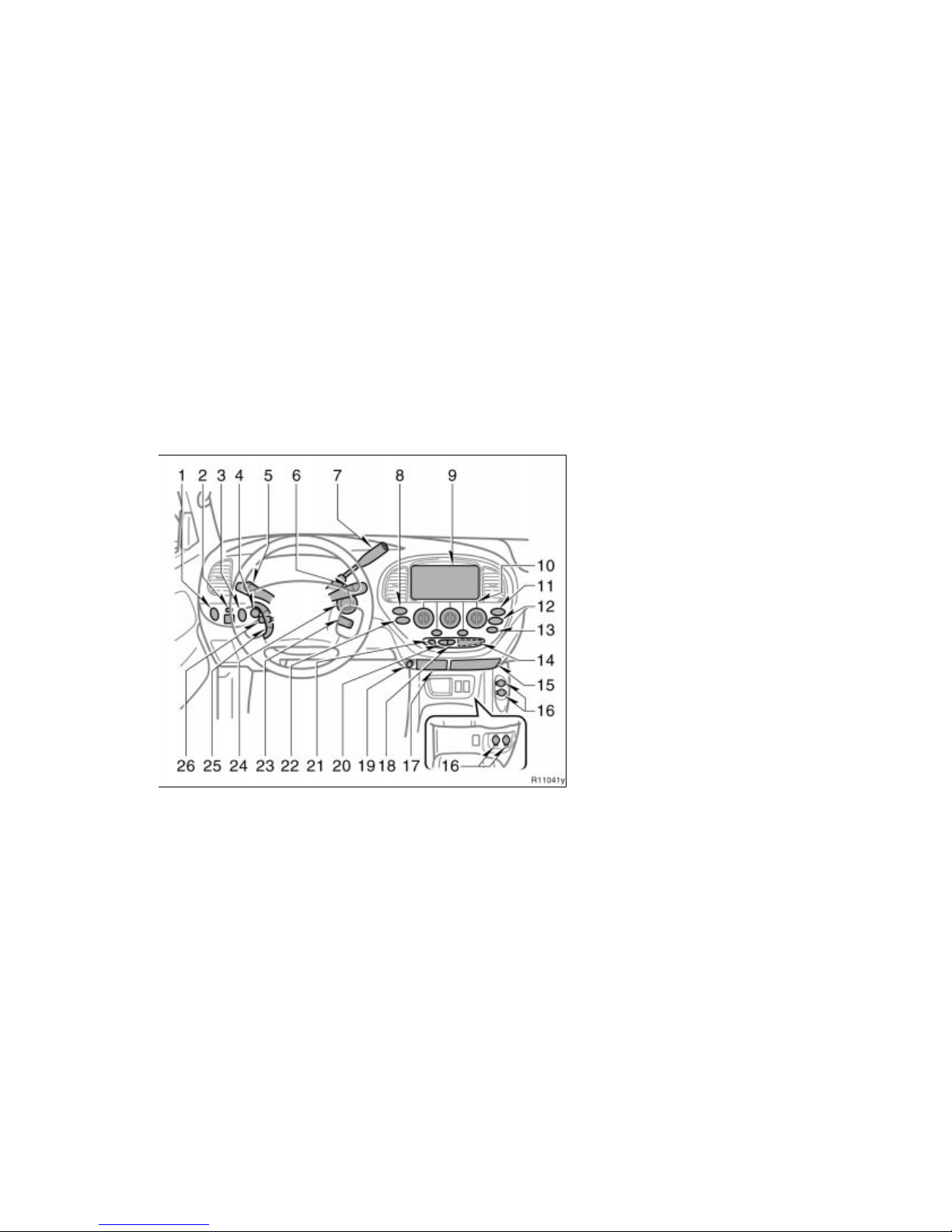

1. Outside rear view mirror heater switch
2. Power back window switch
3. Headlight, turn signal and front fog
light switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission shift position
“L” switch (“SHIFT L” switch)
7. Emergency flasher switch
8. Audio system or navigation system
including audio system
(For the navigation system, see the
separate “Navigation System Owner’s
Manual”)
9. Air conditioning controls
10. Front passenger’s occupant
classification indicator light/front
passenger’s seat belt reminder
light/passenger airbag on- off indicator
light
11. Cargo lamp switch
12. Clock
13. “4LO” switch
(transfer mode selector switch)
14. Cup holder

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
6
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
15. Power outlets
16. Passenger airbag manual on- off switch
17. Ashtray
18. Cigarette lighter
19. “2WD/4HI” switch
(transfer mode selector switch)
20. “AUTO LSD” switch
21. Cruise control switch
22. Audio remote control switches
23. Tilt steering lock release lever
24. Toyota vehicle intrusion protection
system (TVIP) indicator light
25. Instrument panel light control knob

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
7
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)

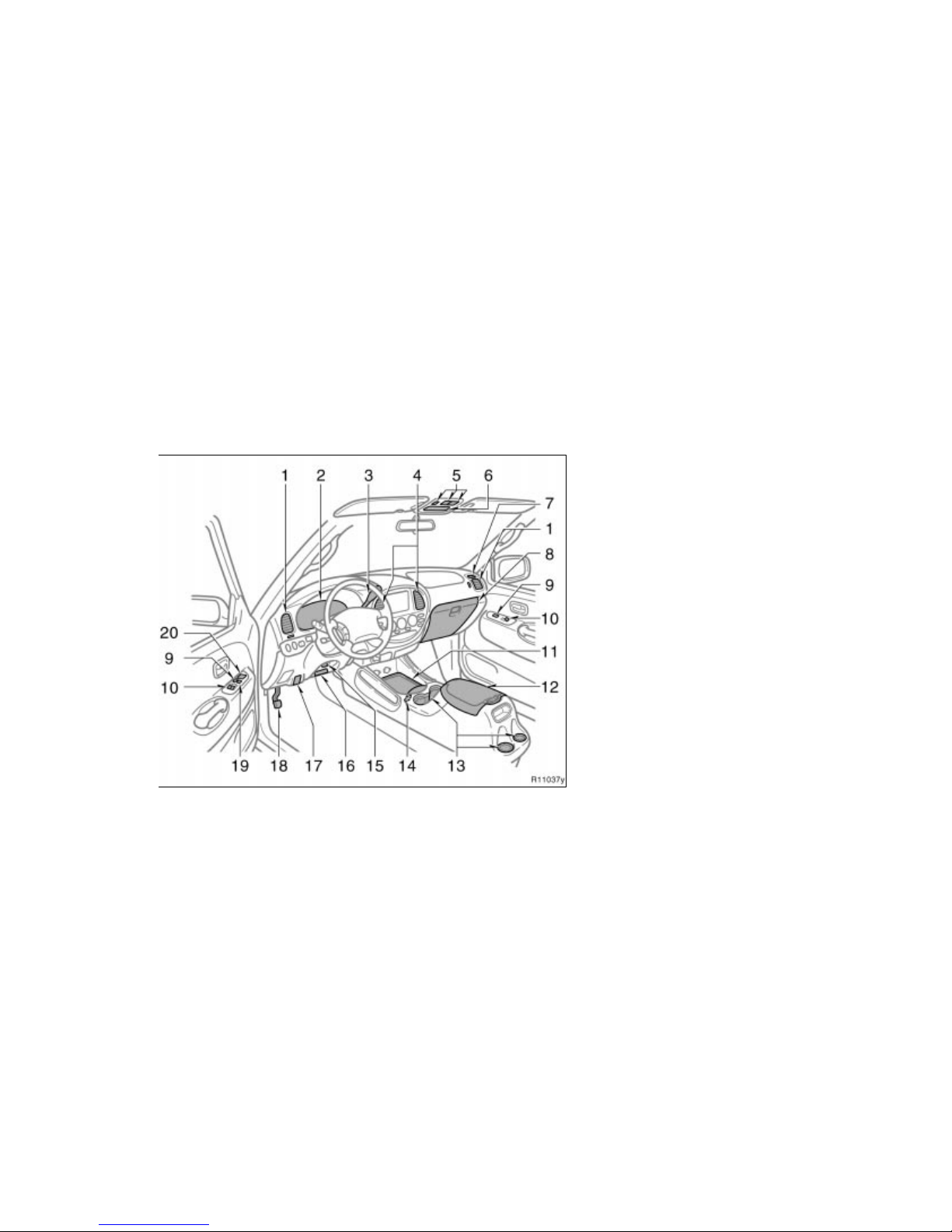

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi-information display
5. Personal lights
6. Auxiliary box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Seat heater switches
13. Rear console box
14. Input terminal adapter
15. Headphone input jacks and headphone
volume control dials
16. Power outlets
17. Cup holders
18. Power outlet main switch
19. Tire pressure warning system reset
switch
20. Lower vent
Instrument panel overview (double cab models)

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
8
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
21. Hood lock release lever
22. Parking brake pedal
23. Window lock switch

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
9
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)

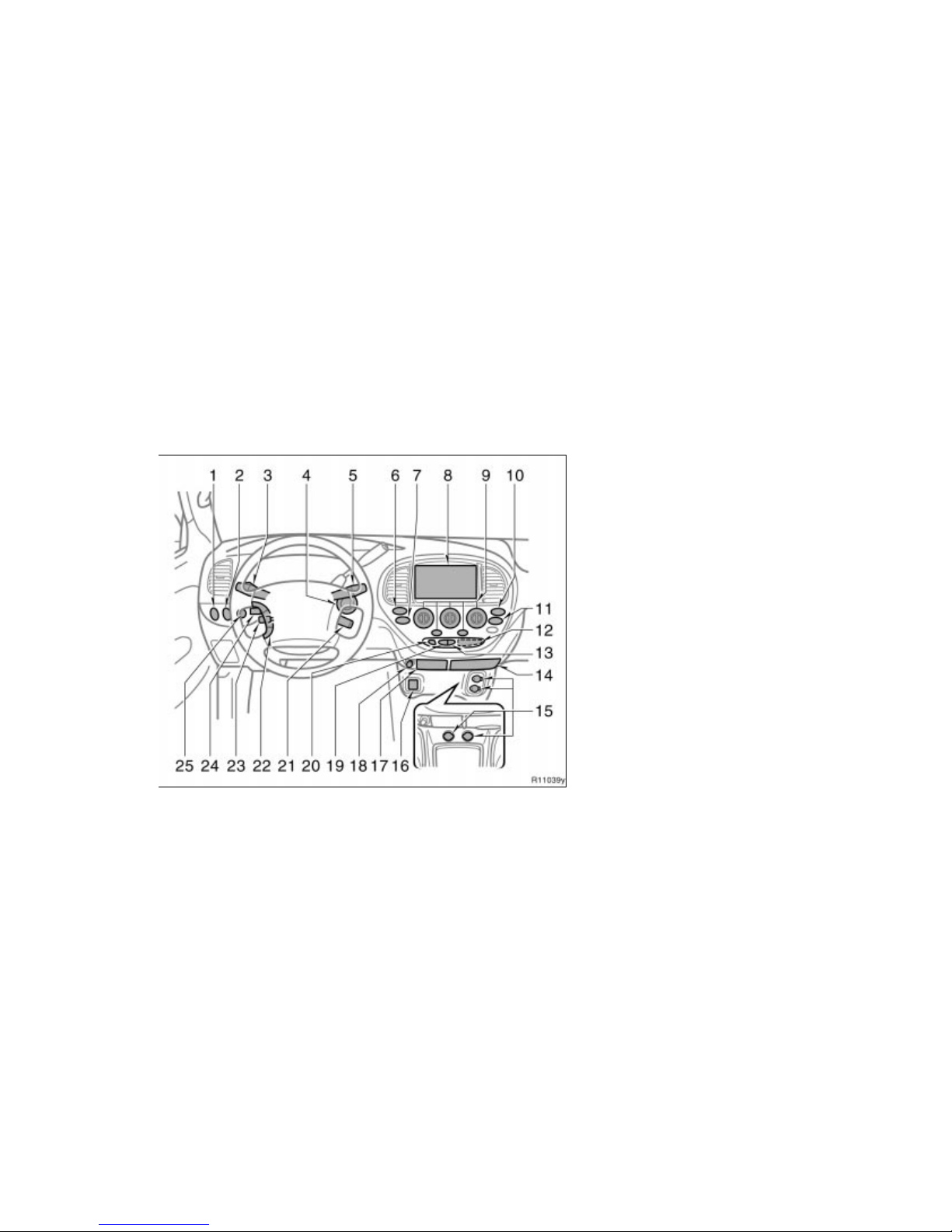

1. Power back window switch
2. Power rear view mirror control switches
3. Roll sensing of curtain shield airbags
off switch (“RSCA OFF” switch)
4. Instrument panel light control knob
5. Headlight, turn signal and front fog
light switches
6. Wiper and washer switches
7. Automatic transmission selector lever
8. Automatic transmission shift position
“L” switch (“SHIFT L” switch)
9. Audio system or navigation system
including audio system
(For the navigation system, see the
separate “Navigation System Owner’s
Manual”)
10. Air conditioning controls
11. Front passenger’s occupant
classification indicator light/front
passenger’s seat belt reminder light
12. Cargo lamp switch
13. Back window and outside rear view
mirror defogger switch
14. Clock
15. Cup holder
16. Power outlets
17. Ashtray

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
10
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
18. “4LO” switch
(transfer mode selector switch)
19. Cigarette lighter
20. “2WD/4HI” switch
(transfer mode selector switch)
21. “AUTO LSD” switch
22. Emergency flasher switch
23. Cruise control switch
24. Ignition switch
25. Audio remote control switches
26. Tilt steering lock release lever

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
11
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge 5. Trip meter reset knob 6. Odometer and two trip meters
Instrument cluster overview
Without tachometer

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
12
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
1. Service reminder indicators and
indicator lights
2. Oil pressure gauge
3. Tachometer
4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Voltmeter
With tachometer

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
13
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)

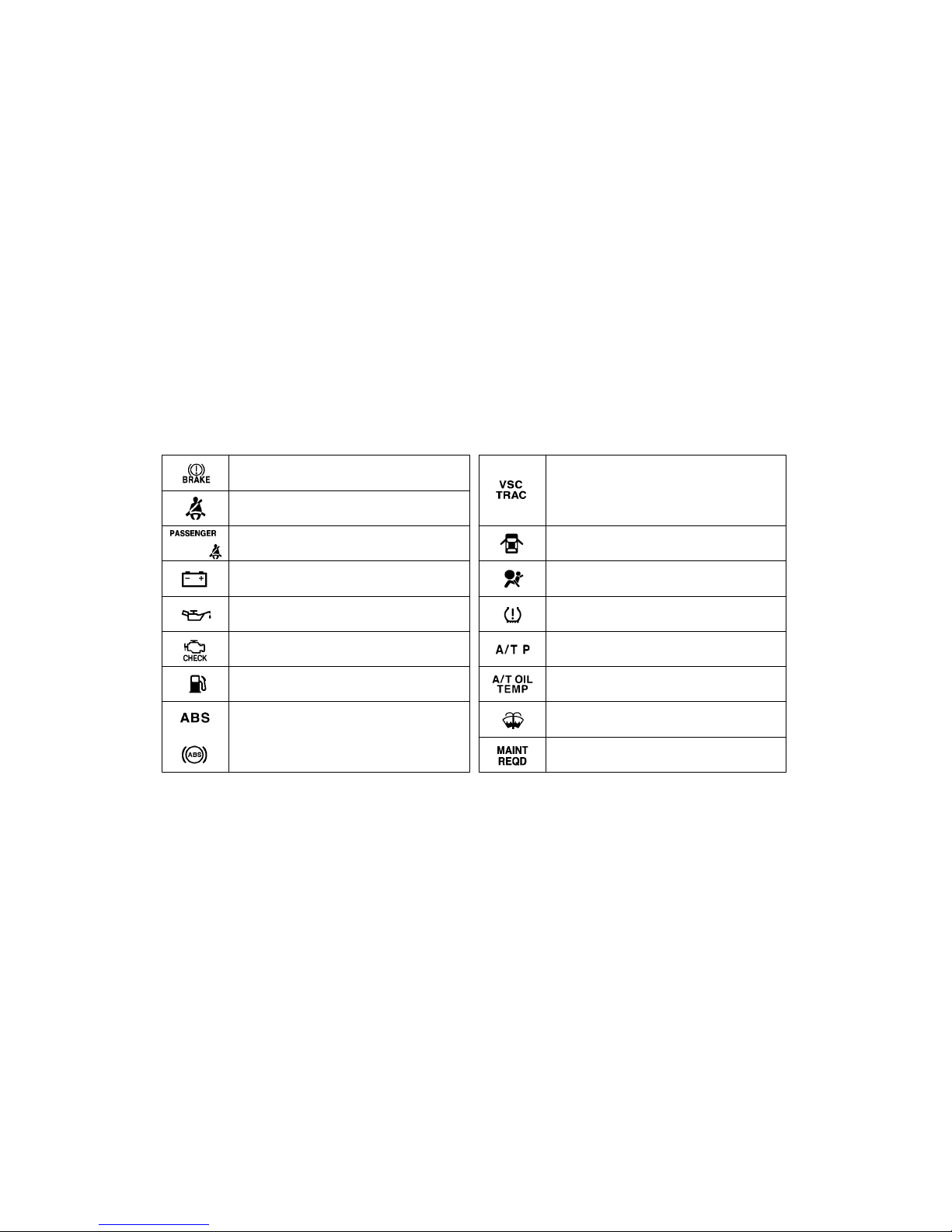

Driver’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Anti- lock brake system warning light∗1 or
Front passenger’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
“AUTO LSD” system warning light∗1
SRS warning light∗1
Automatic transmission fluid temperature
warning light∗1(four- wheel drive models)
Unengaged “Park” warning light∗1
Low windshield washer fluid level warning
light∗1
Open door warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Indicator symbols on the instrument panel

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
14
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1-6.
∗2: For details, see “Roll sensing of curtain shield airbags off
switch” in Section 1-3.
∗3: If this light flashes, see “Four- wheel drive system” in Sec-
tion 1- 7.
∗4: If this light flashes, see “Cruise control” in Section 1-7.

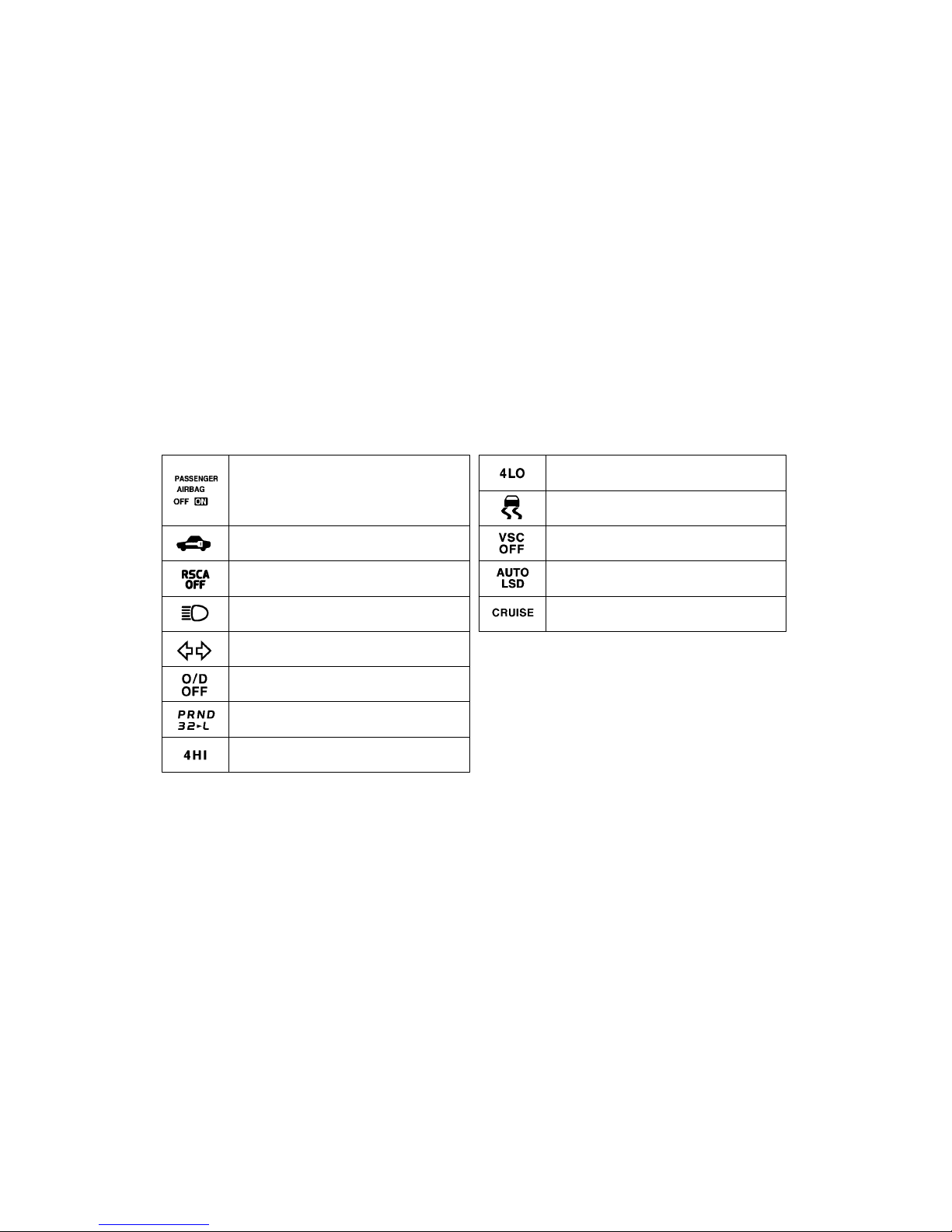

Cruise control indicator light∗4
Low speed four- wheel drive indicator light∗3
(four- wheel drive models)
High speed four- wheel drive indicator light∗3
(four- wheel drive models)
Automatic transmission indicator lights
Overdrive- off indicator light
Turn signal indicator lights
“AUTO LSD” indicator light
Slip indicator light
Vehicle stability control system off indicator light
Headlight high beam indicator light
Front passenger occupant classification
indicator light
Passenger airbag on- off indicator light
Theft deterrent system indicator light
Roll sensing of curtain shield airbags off
indicator light∗2

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
15
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front doors 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Access doors 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear side windows 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power back window 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Toyota vehicle intrusion protection system (TVIP) 39. . . . . . . . . . . . . . .
Theft deterrent system 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
16
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
These keys work in every lock.
Your vehicle is supplied with two kinds
of keys.
1. Master keys—These keys work in ev-
ery lock.
2. Sub key—This key will not work in the
glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
Both doors lock and unlock simultaneously
with either door. In the driver’s door lock,
turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock the driver’s door and passenger’s
door simultaneously.
Keys Front doors (standard and
access cab models)

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
17
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
The door will not lock if the key is left in
the ignition switch when closing the front
doors.
Driver’s side
Passenger’s side

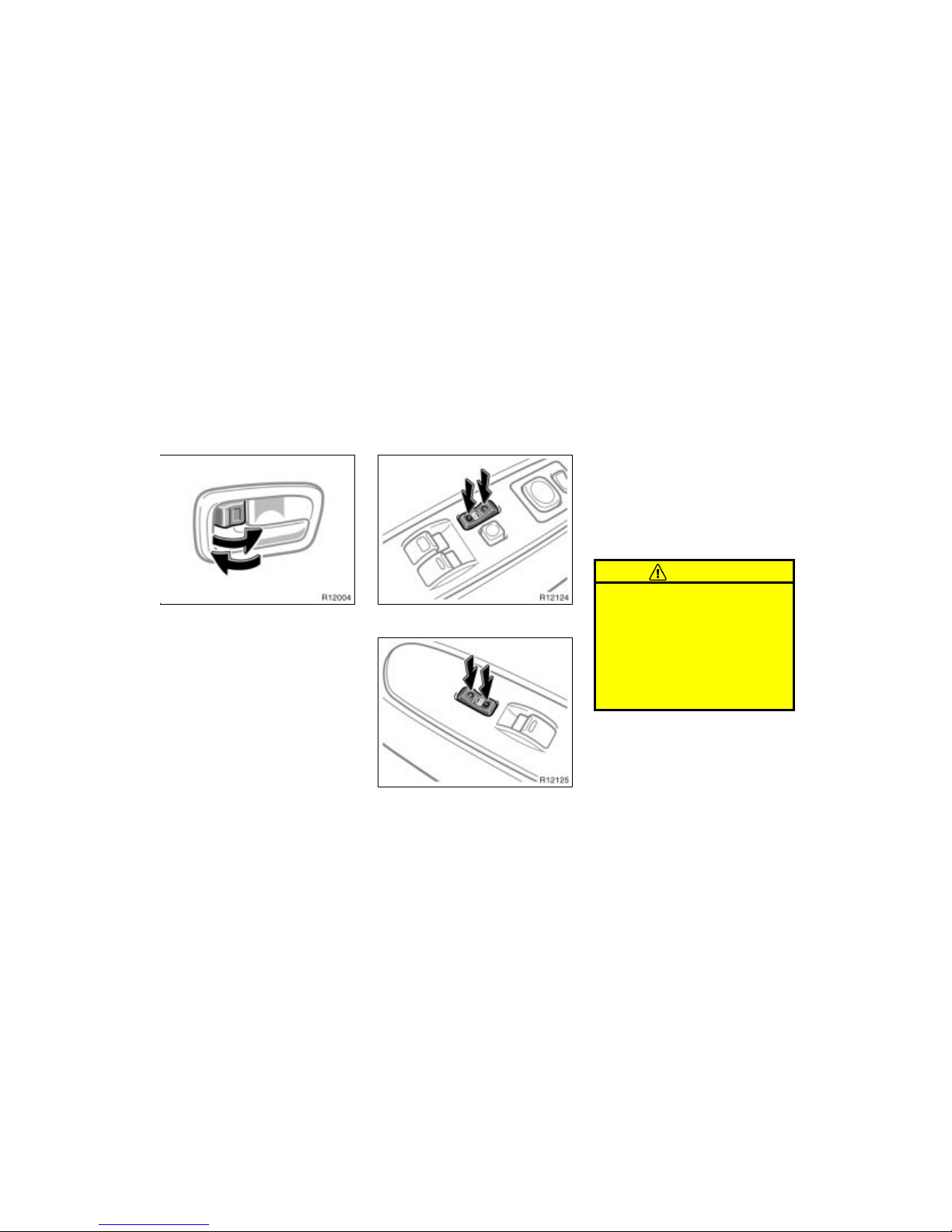

LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Both doors lock or unlock simultaneously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
18
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
This double key turning operation to un-
lock all the doors can be changed to a
single key turning operation. For details,
contact your Toyota dealer.
When all the doors are unlocked simulta-
neously using a key, the interior light, igni-
tion switch light, step light come on for
about 15 seconds and cargo lamp for
about 20 seconds before fading out. (For
details, see “Center interior and personal
lights”, “Ignition switch and step lights”
and “Cargo lamp” in Section 1-5.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
Side doors
(double cab models)

WWW.MANUALS.WS
WWW.MANUALS.WS
’05 TUNDRA_U (L/O 0409)
19
2005 TUNDRA from Sep. ’04 Prod. (OM34432U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked with the
inside lock knob, the key or the wireless
remote control transmitter, the power door
lock switch will not work until either front
door is unlocked with the key, lock knob,
or wireless remote control transmitter.
