Toyota Land Cruiser 2004 User manual

i
2004 L/C100 from July ’03 Prod. (OM60A04U)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
!U.S. OWNERS: Toyota Customer Assistance Center Toll−free:1−800−331−4331
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2003 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

ii
2004 L/C100 from July ’03 Prod. (OM60A04U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not”; “Do
not do this”; or “Do not let this hap-
pen”.

iii
2004 L/C100 from July ’03 Prod. (OM60A04U)
Important information about your Toyota
Occupant restraint systems
Toyota encourages you and your family to take the time
to read Section 1−3 of this Owner’s Manual carefully. In
terms of helping you understand how you can receive
the maximum benefit of the occupant restraint systems
this vehicle provides, Section 1−3 of this Owner’s Manu-
al is the most important section for you and your family
to read.
Section 1−3 describes the function and operation con-
cerning seats, seat belts, SRS airbags and child re-
straint systems of this vehicle and some potential haz-
ards you should be aware of. These systems work to-
gether along with the overall structure of this vehicle in
order to provide occupant restraint in the event of a
crash. The effect of each system is enhanced when it is
used properly and together with other systems. No
single occupant restraint system can, by itself, provide
you or your family with the equal level of restraint
which these systems can provide when used together.
That is why it is important for you and your family to
understand the purpose and proper use of each of these
systems and how they relate to each other.
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either indi-
vidually or together, can ensure that there is no injury
in the event of collision. However, the more you know
about these systems and how to use them properly, the
greater your chances become of surviving an accident
without death or serious injury.
Seat belts provide the primary restraint to all occupants
of the vehicle, and every occupant of the vehicle should
wear seat belts properly at all times. Children should
always be secured in child restraint systems that are
appropriate for their age and size. SRS (Supplemental
Restraint System) airbags are, as their names imply,
designed to work with, and be supplemental to, seat
belts and are not substitutes for them. SRS airbags can
be very effective in reducing the risk of head and chest
injuries by preventing contact of the head and chest
with interior portions of the vehicle.

iv
2004 L/C100 from July ’03 Prod. (OM60A04U)
In order to be effective, the SRS airbags must deploy
with tremendous speed. The rapid deployment of the
SRS airbags makes the SRS airbags themselves poten-
tial sources of serious injury if an occupant is too close
to an airbag, or if an object or some part of his or her
body has been placed between the occupant and the
airbag at the time of deployment. This is just one exam-
ple of how the instructions in Section 1−3 of this Own-
er’s Manual will help ensure proper use of the occupant
restraint systems, and increase the safety they can pro-
vide to you and your family in the event of an accident.
Toy ot a r ec omm en ds y ou t o r ea d t he p ro v is io ns i n S ec-
tion 1−3 carefully and refer to them as needed during
your time of ownership of this vehicle.
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
!New vehicle warranty
!Emission control systems warranty
!Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner’s Manual Sup-
plement”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the
specified maintenance is performed. Section 6 gives
details of these maintenance requirements. Also
included in Section 6 is general maintenance. For
scheduled maintenance information, place refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement”.

v
2004 L/C100 from July ’03 Prod. (OM60A04U)
Important health and safety
information about your Toyota
CAUTION
!WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components contain
or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive
harm. In addition, oils, fuels and fluids contained in
vehicles as well as waste produced by component wear
contain or emit chemicals known to the State of Cali-
fornia to cause cancer and birth defects or other re-
productive harm.
!Battery posts, terminals and related accessories con-
tain lead and lead compounds. Wash your hands after
handling. Used engine oil contains chemicals that have
caused cancer in laboratory animals. Always protect
your skin by washing thoroughly with soap and water.
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

vi
2004 L/C100 from July ’03 Prod. (OM60A04U)
Installation of a mobile
two−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system,
cruise control system, anti−lock brake system, active
traction control system, vehicle stability control system,
SRS airbag system and seat belt pretensioner system,
be sure to check with your Toyota dealer for precaution-
ary measures or special instructions regarding installa-
tion.
Tires and loading on your Toyota
Underinflated or overinflated tire inflation pressure
and the excess load may result in the deterioration
of steering ability and braking ability, leading to
an accident. Check the tire inflation pressure peri-
odically and be sure to keep the load limits given
in this Owner’s Manual. For details about tire infla-
tion pressure and load limits, see pages 293 and
224.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.

vii
2004 L/C100 from July ’03 Prod. (OM60A04U)
On−pavement and off−road
driving tips
This vehicle belongs to the utility vehicle class. Utility
vehicles have a significantly higher rollover rate than other
types of vehicles. This vehicle will handle and maneuver
differently from an ordinary passenger car because it is
designed for off−road use also. In addition, this vehicle
has a higher ground clearance and center of gravity than
that of an ordinary passenger car. This vehicle design
feature causes this type of vehicle to be more likely to
rollover. Failure to operate this vehicle correctly may result
in loss of control, accidents or vehicle rollover causing
death or serious injury. Be sure to read “Off−road vehicle
precautions” on page 202 and “Off−road driving precau-
tions” on page 232.

viii
2004 L/C100 from July ’03 Prod. (OM60A04U)

1
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1

2
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

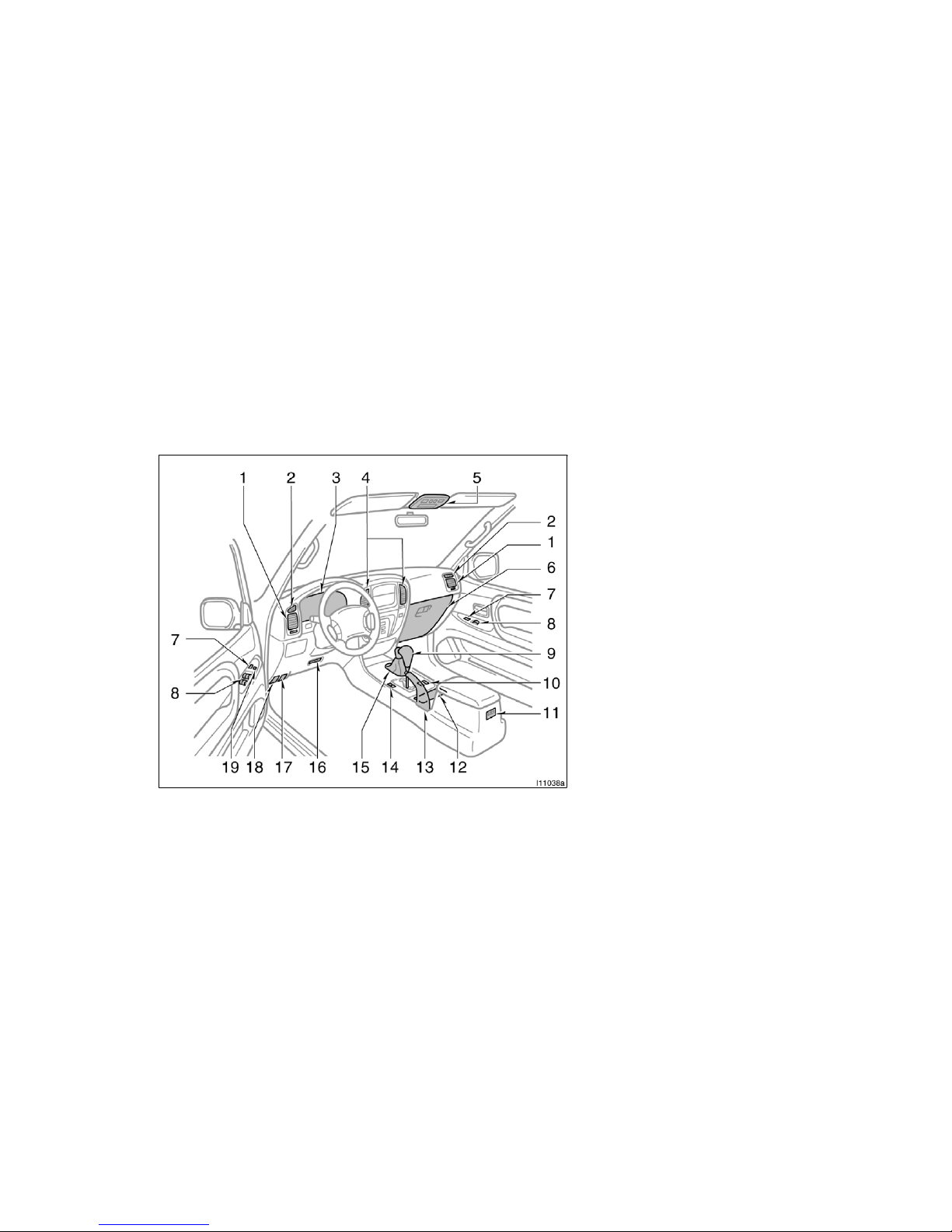

1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11. Rear seat audio system
12. Cup holder
13. Parking brake lever
14. Second start mode selector button and
driving pattern selector button
15. Four−wheel drive control lever
16. Lower vent
17. Hood lock release lever
18. Fuel filler door opener
19. Window lock switch
Instrument panel overview
!View A

3
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

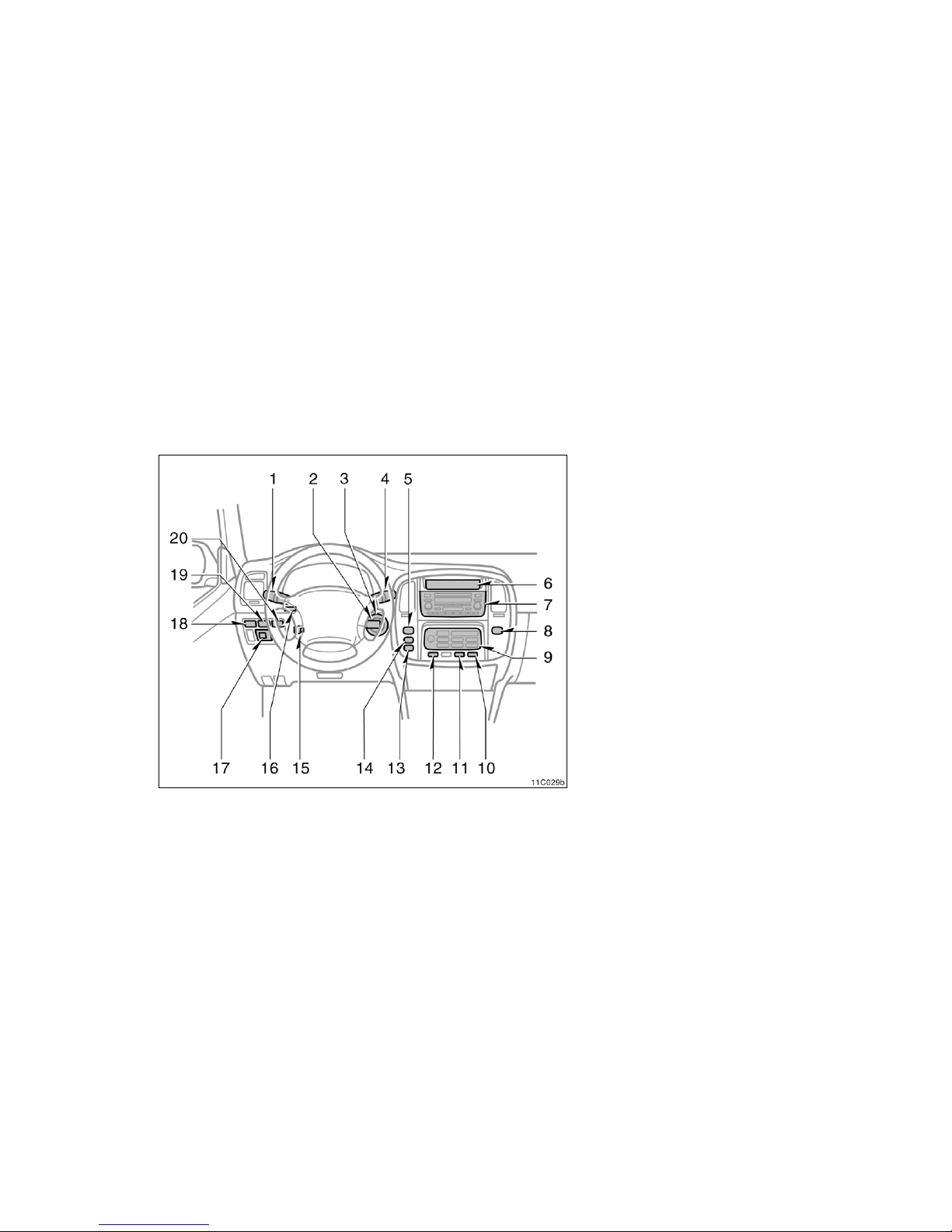

1. Headlight, turn signal and front fog
light switches
2. Cruise control switch
3. Ignition switch
4. Wiper and washer switches
5. Emergency flasher switch
6. Clock, outside temperature and trip infor-
mation display
7. Car audio
8. Front passenger’s seat belt reminder
light
9. Air conditioning controls
10. Outside rear view mirror heater switch
11. Rear air conditioning switch
12. Rear window defogger switch
13. Center differential lock switch
14. Power antenna switch
15. Power tilt and telescopic steering
switch
16. Instrument panel light control dial
17. Power rear view mirror control switches
18. Power quarter window switch (left−hand
side)
19. Power quarter window switch (right−
hand side)
20. Roll sensing of curtain shield airbags
off switch
!View B

4
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
1. Ashtray
2. Cigarette lighter
3. Power outlet
!Lower part of center cluster panel

5
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Instrument cluster overview
1. Voltmeter
2. Speedometer
3. Service reminder indicators and
indicator lights
4. Tachometer
5. Engine oil pressure gauge
6. Engine coolant temperature gauge
7. Odometer and two trip meters
8. Trip meter reset knob
9. Fuel gauge

6
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light
Turn signal indicator lights
Driver’s seat belt reminder light∗1
Anti−lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low fuel level warning light∗1
Automatic transmission fluid temperature warning
light∗1
Unengaged “Park” warning light∗1
Discharge warning light∗1
Engine oil replacement reminder light
Center differential lock indicator light
Driving pattern (“POWER” mode) indicator
light
Automatic transmission second start indicator
light
Cruise control indicator light∗2
Automatic transmission indicator lights

7
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 122.
∗2: If this light flashes, see “Cruise control” on page 142.
∗3: For details, see “Roll sensing of curtain shield airbags off
switch” on page 66.
vehicle stability control system off indicator
light∗1
vehicle stability control system and active traction
control system warning light∗1
Active traction control system indicator light
Slip indicator light
Roll sensing of curtain shield airbags off indicator light∗3

8
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

9
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power quarter windows 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 2

10
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Keys
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built−in transponder chip.
2. Sub key (gray)—This key does not
work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 17.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
!When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

11
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
!When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
!Do not bend the key grip.
!Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
!Do not knock the key hard against
other objects.
!Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
!Do not put the key in water or
wash it in an ultrasonic washer.
!Do not use the key with electromag-
netic materials.
!Do not use the key with electromag-
netic materials.

12
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Engine immobilizer system
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
!The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 27.)
!The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
!The indicator light flashes unsteady.
