QUICK REFERENCE GUIDE
LAND CRUISER
2013

A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Land
Cruiser.
This Quick Reference Guide is not a full description of Land
Cruiser operations. Every Land Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2013
Land Cruiser
A word about safe vehicle operations

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20-21
Auto lock/unlock110
Automatic Transmission 10
Back door 17
Cooler box 26
Crawl control 21
Cup holders 26
Door locks 25
Dynamic radar cruise control 22-23
Four-wheel drive 11
Garage door opener (HomeLink®)323
Lights1& turn signals 15
Mirrors-Side 17
Moonroof 17
Multi-Information Display224
Parking brake 27
Power outlets-12V DC 27
Power outlet-120V AC 27
Rear seat entertainment system 26
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat heaters and ventilators 19
Seats-Head restraints 12
Seats-Tumbling second row seats 13
Seats-Tumbling third row seats 14
Steering lock release 11
Tilt and telescopic steering wheel 24
Te l e p h o n e controls (Bluetooth®)25
Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29
Floor mat installation 31
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Star Safety SystemTM 30
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

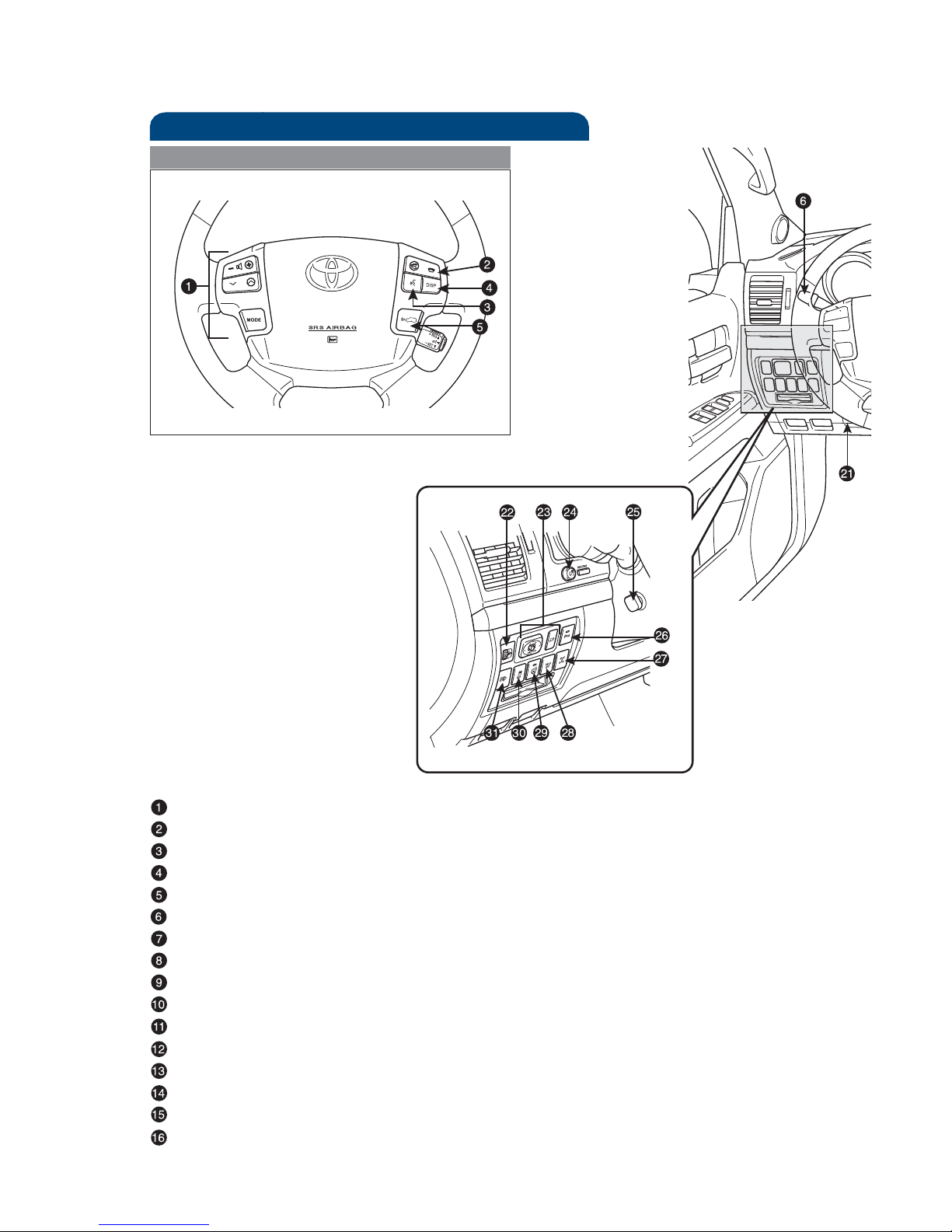

Steering wheel audio controls*
Telephone controls*
Voice command button*
Multi-Information Display button
Distance switch*
Headlight, turn signal and front fog light controls
Multi-Information Display
Wiper and washer controls
Audio system*
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock*
Front passenger seat belt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls*
2
OVERVIEW
Instrument panel
Steering wheel controls

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3

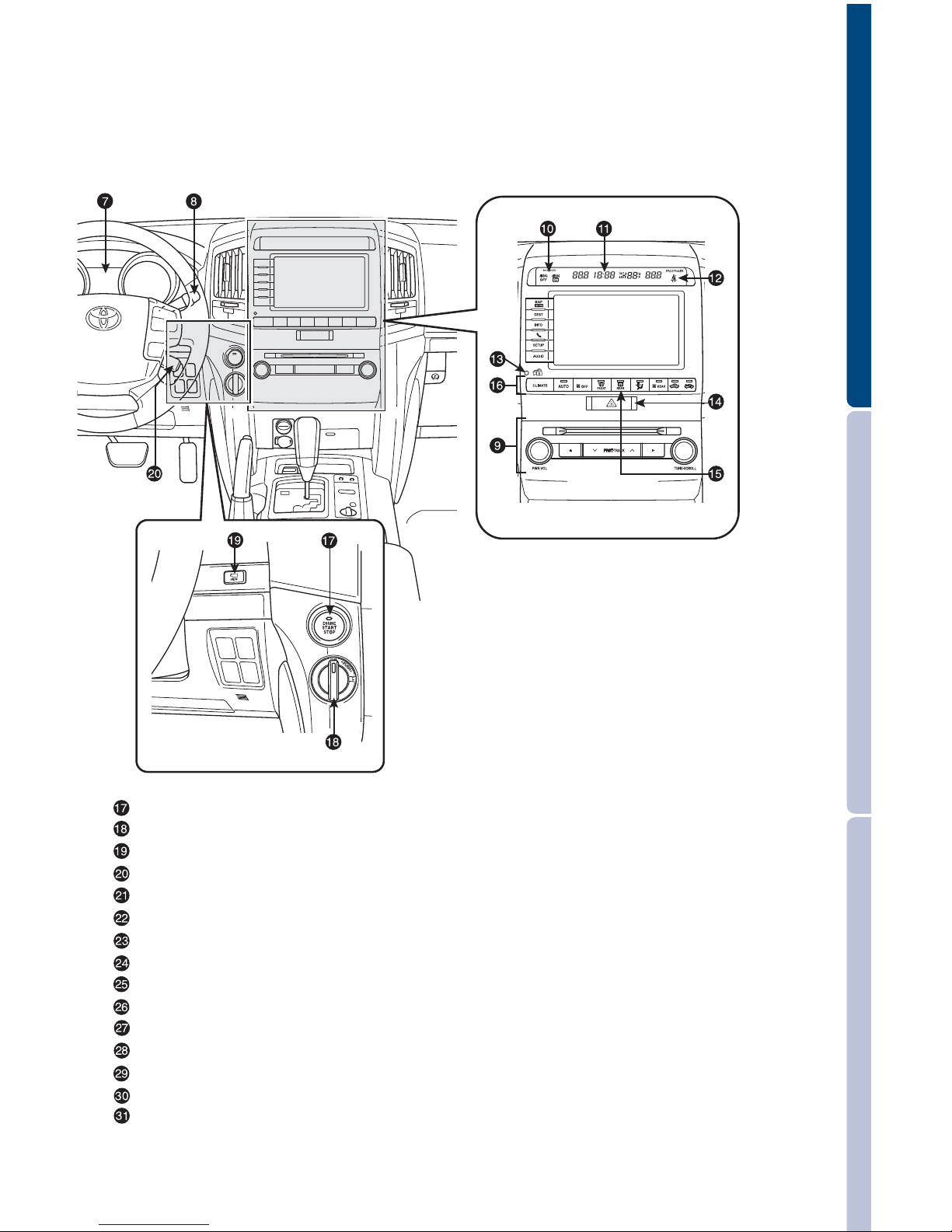

“ENGINE START STOP” switch
Four-wheel drive control switch
VIEW switch (multi-terrain monitor)*
Dynamic radar cruise control
Tire Pressure Monitoring (warning) System reset
Headlight leveling dial
Power outside rearview mirror controls
Instrument panel light control
Tilt and telescopic steering control
Intuitive parking assist switch
Center differential lock/unlock switch
Roll Sensing of Curtain shield Airbag OFF switch
Heated steering wheel switch
VSC/TRAC OFF switch
Headlight cleaner
* Refer to the “Navigation System Owner’s Manual” for details.

4
OVERVIEW

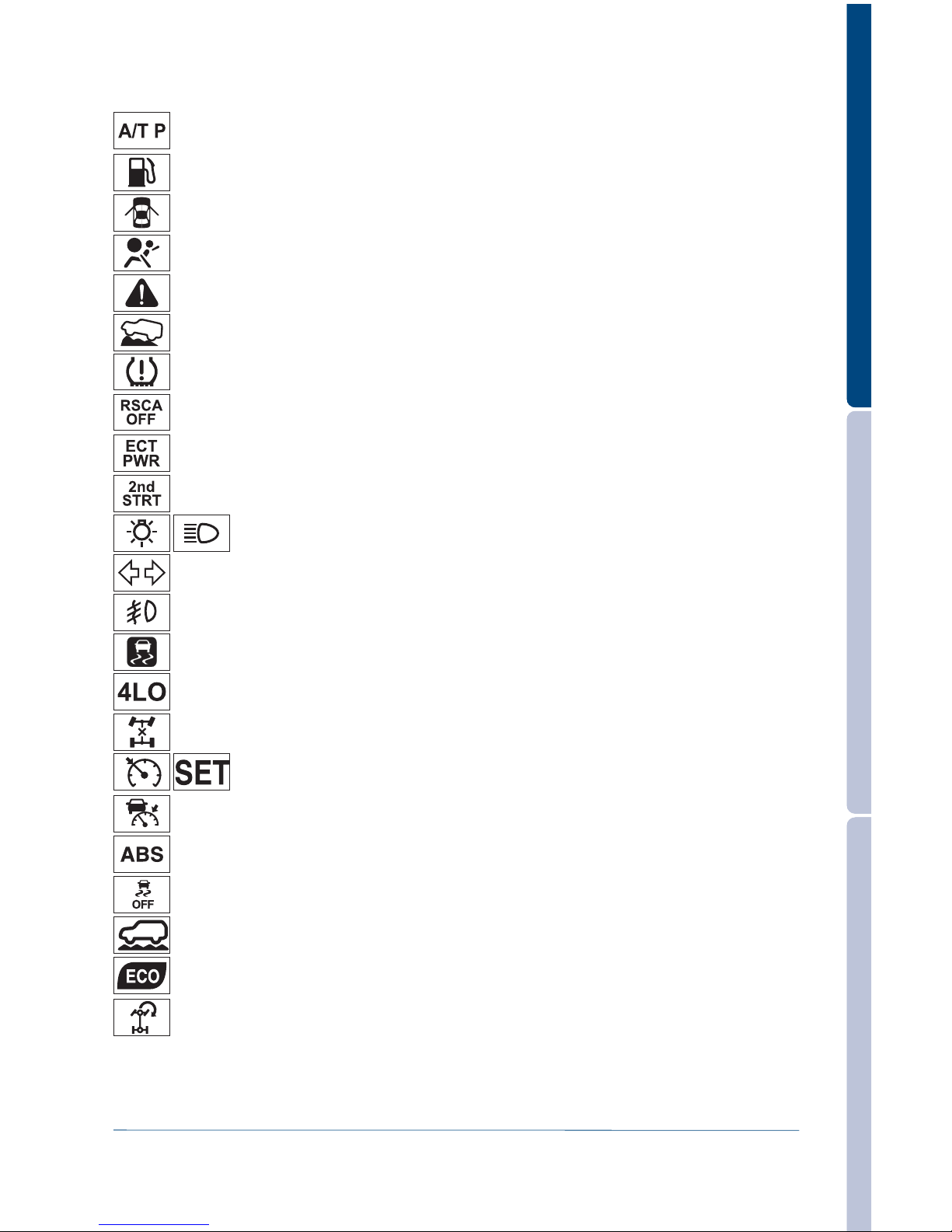

Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Voltmeter
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1,2
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator/Cruise control SET indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
Power mode indicator
Unengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2The indicator flashes to indicate that the system is operating.
Vehicle Stability Control OFF indicator1
Multi-terrain select indicator
ECO driving indicator1
Turn assist function indicator
Radar cruise control indicator

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7

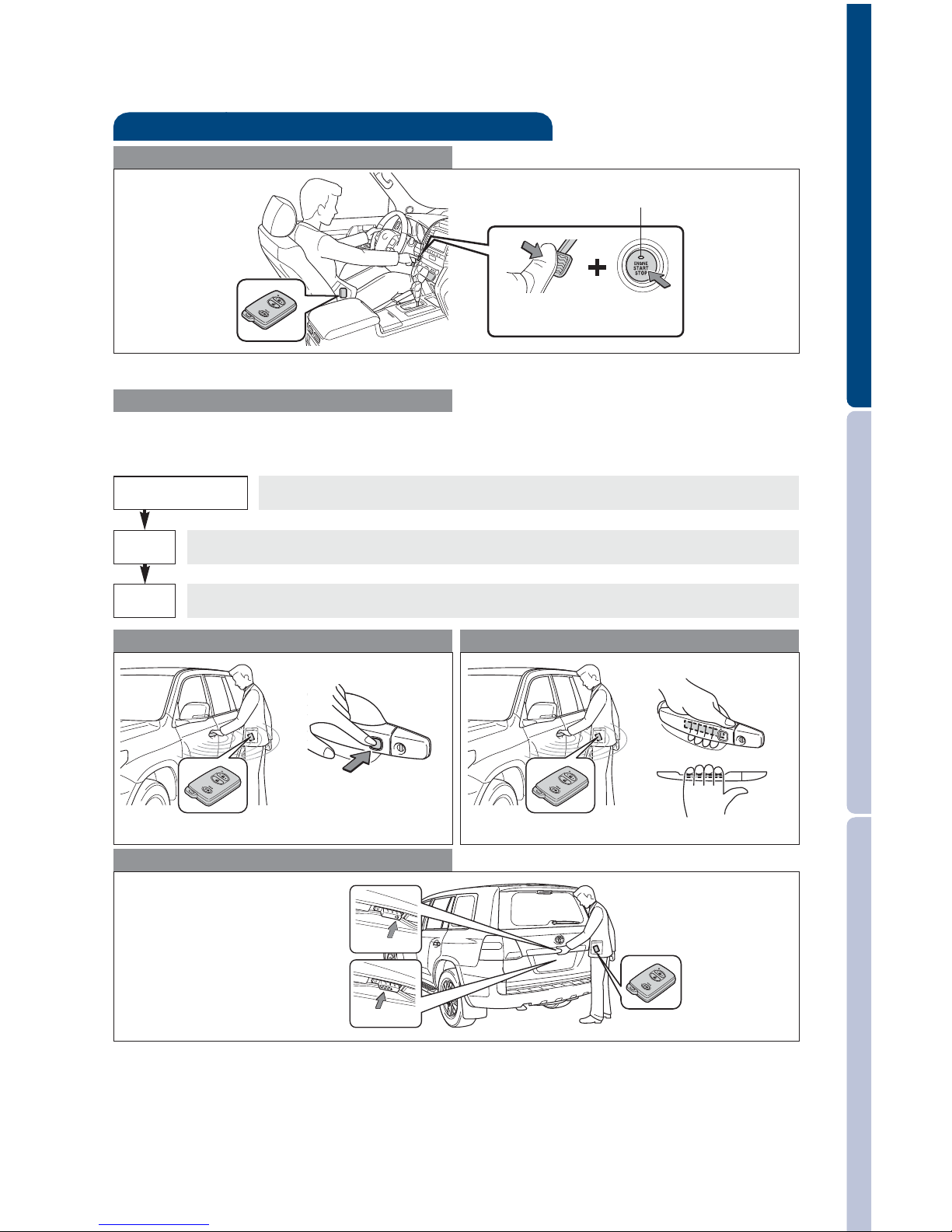

Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will
change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Lock
Push
Unlock
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lock Front door unlock*
Grasp
Carry remote
to lock/unlock

8

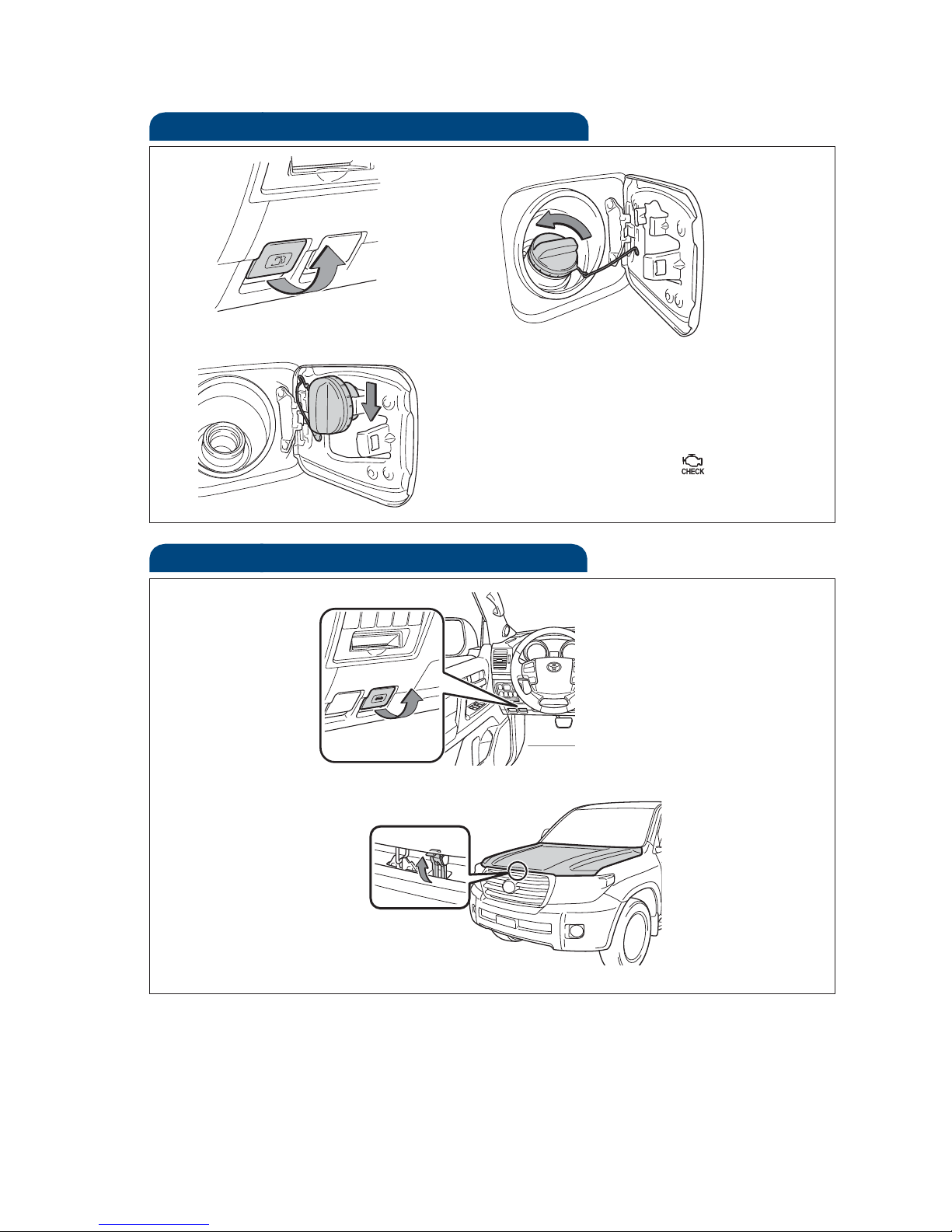

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Tu r n t o o p e n
Store
Pull
OVERVIEW

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Power steering fluid reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS

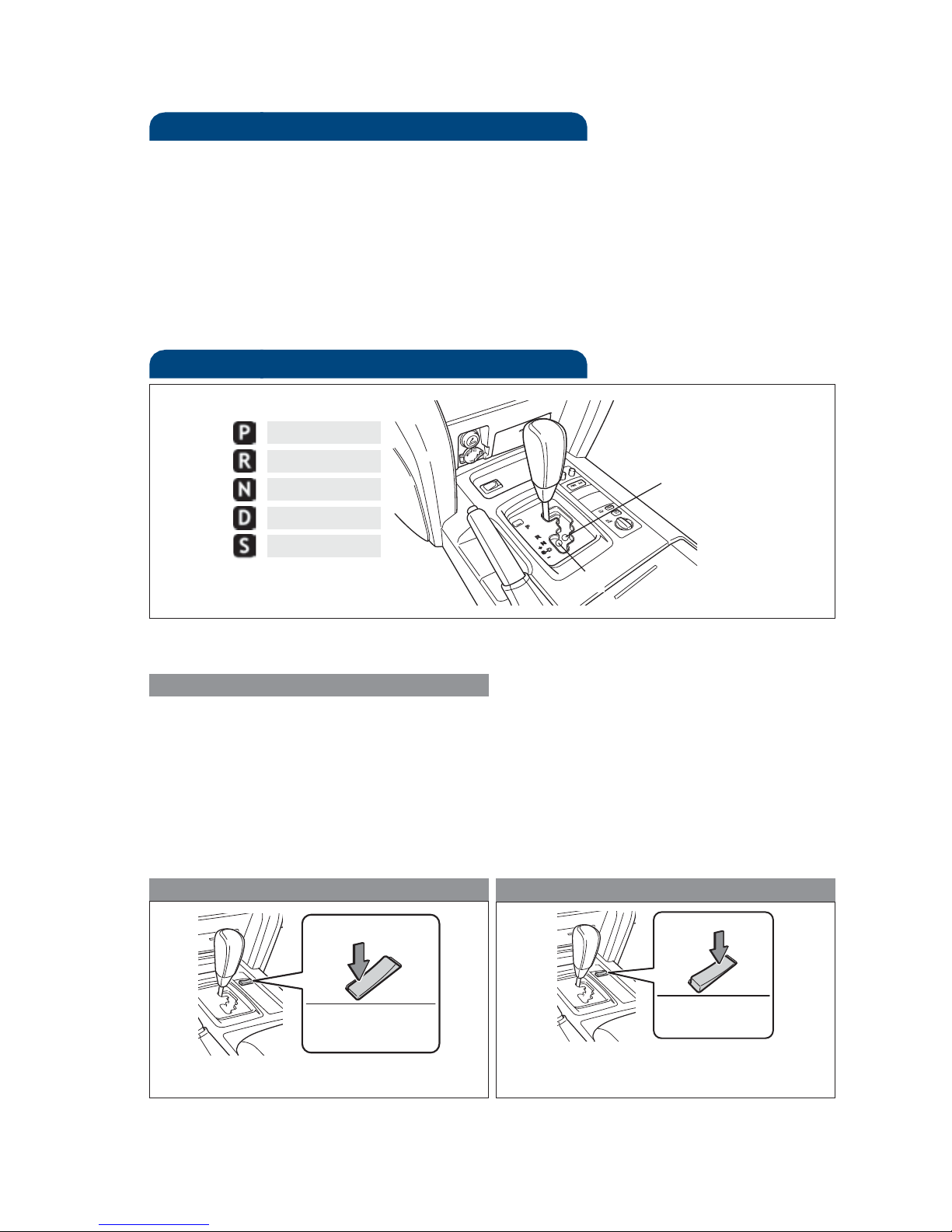

Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mode and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
RWP
dn2
ECT
PWR
R
WP
dn2
2nd
STRT
RWP
d
n
2
R
WP
dn2
Power mode Second start mode
For powerful acceleration and driving in
mountainous regions.
For starting on slippery surfaces, such as
snowy roads. Press “2nd” to return to
normal mode.
Push Push

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11

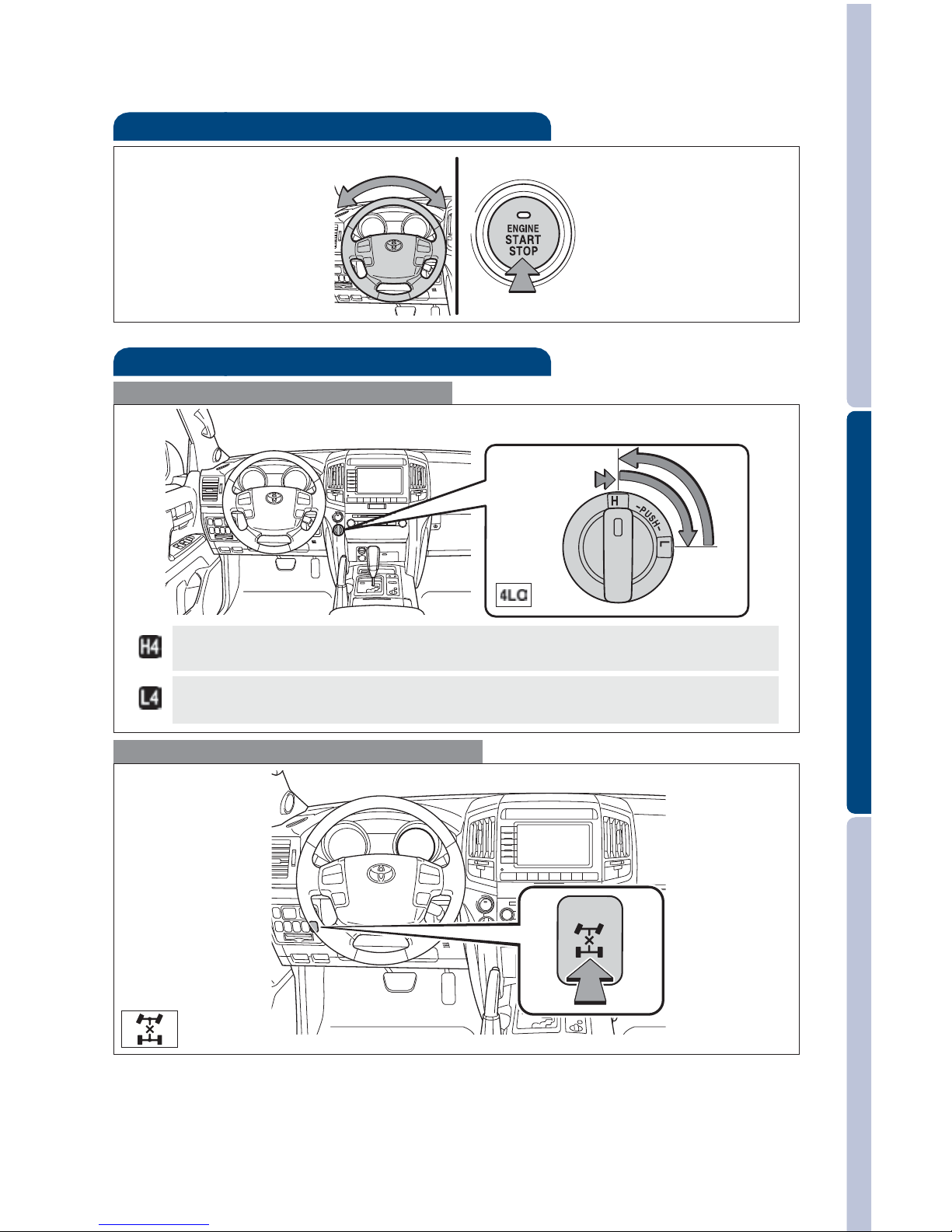

Steering lock release
Tu r n
Push
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”
Lock the center differential when your vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push

12
FEATURES/OPERATIONS

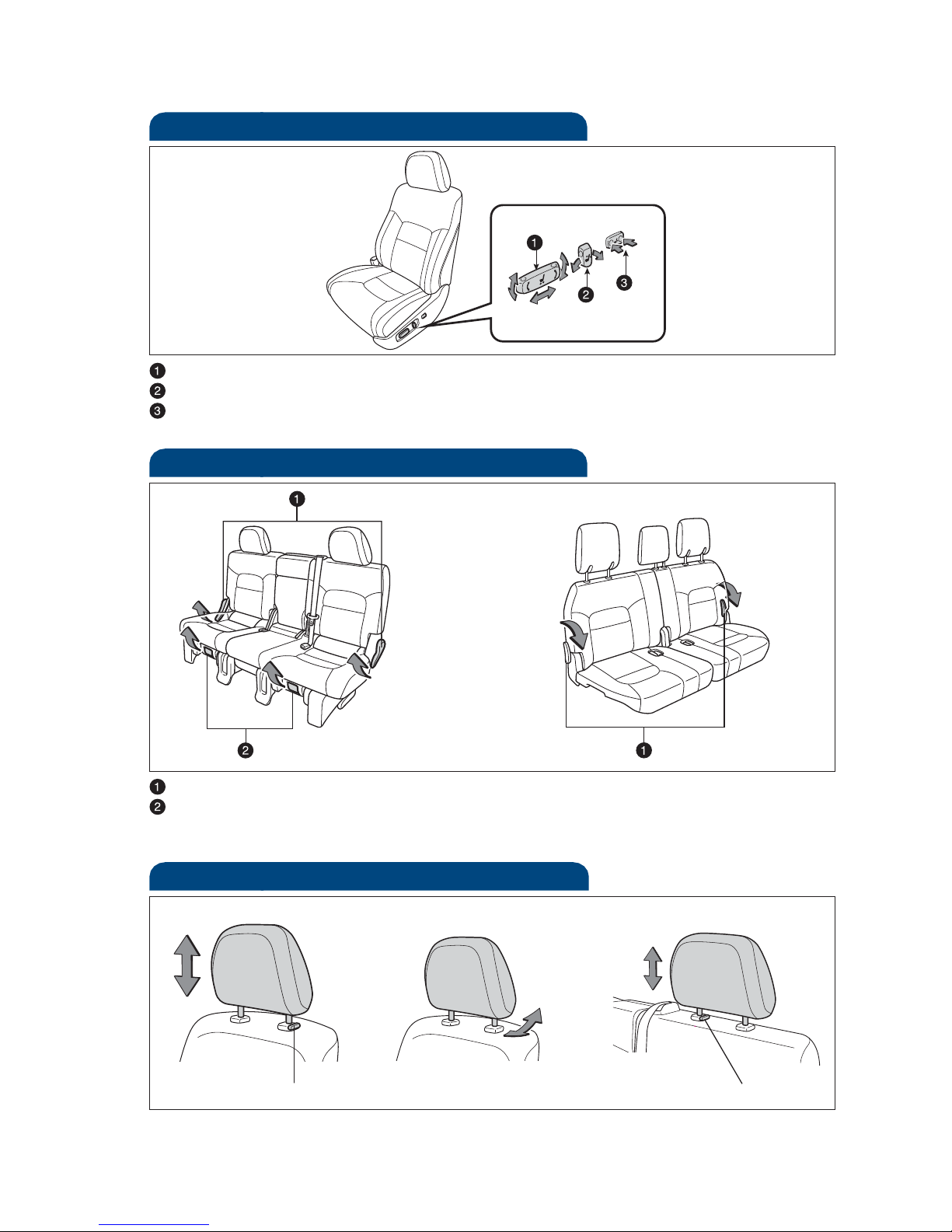

Seat adjustments-Rear
Seatback angle
Seat position
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Seat position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row
Seats-Head restraints
Front Second row
Lock release button Lock release button
Height Angle
Height

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
(1) Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

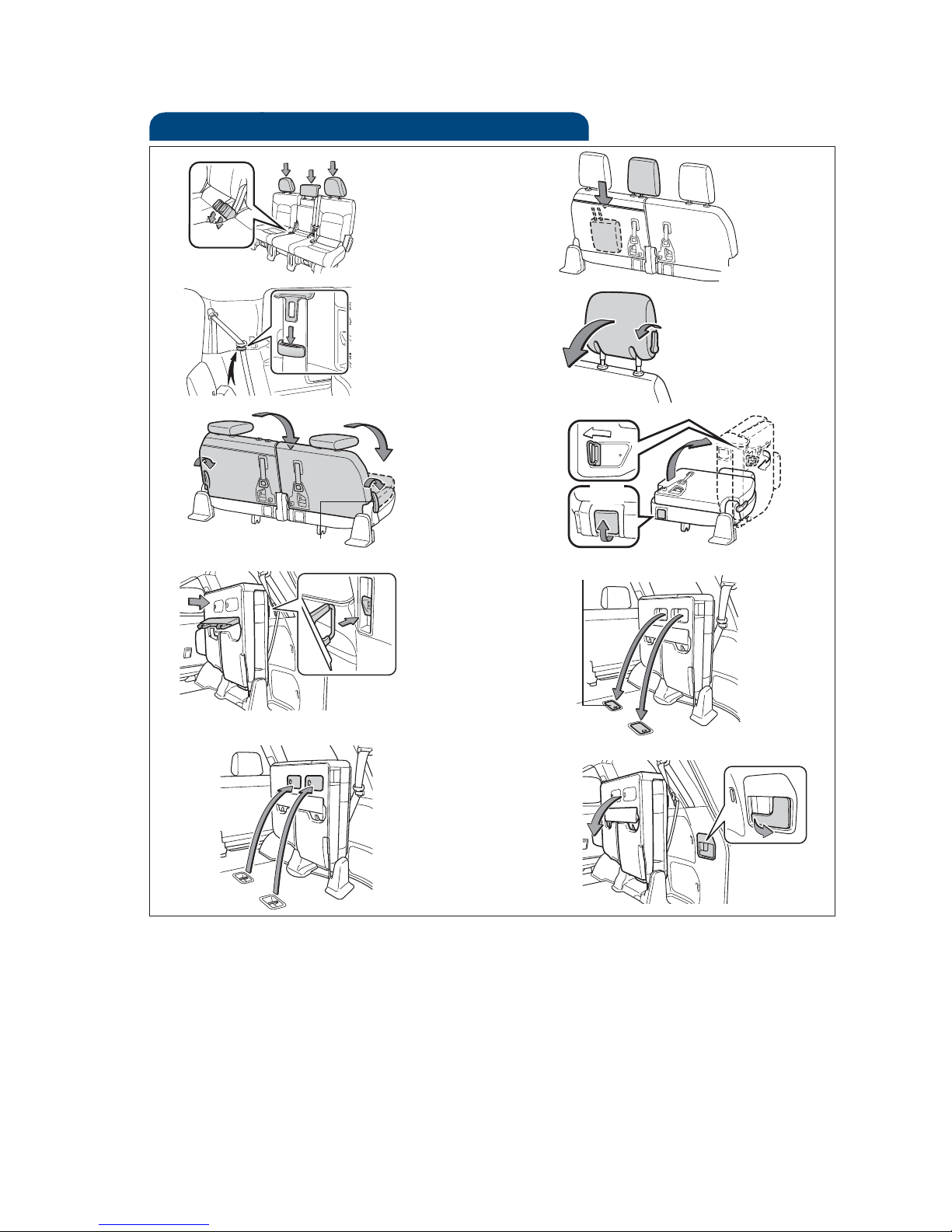

Seats-Tumbling second row seats
(4)
Pull
Seat hook cover
Pull

14
FEATURES/OPERATIONS
(1) Stow the seat belt buckles.
(2) Stow the center head restraint.
(3) Hook the seat belt to the seat belt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7) (8) Seat hook cover
Pull
Pull
Returning seats
(1) (2)
Returning seats
(1) Install the seat hook covers into the back of the seat cushions.
(2) Lower the seats to their original position.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15

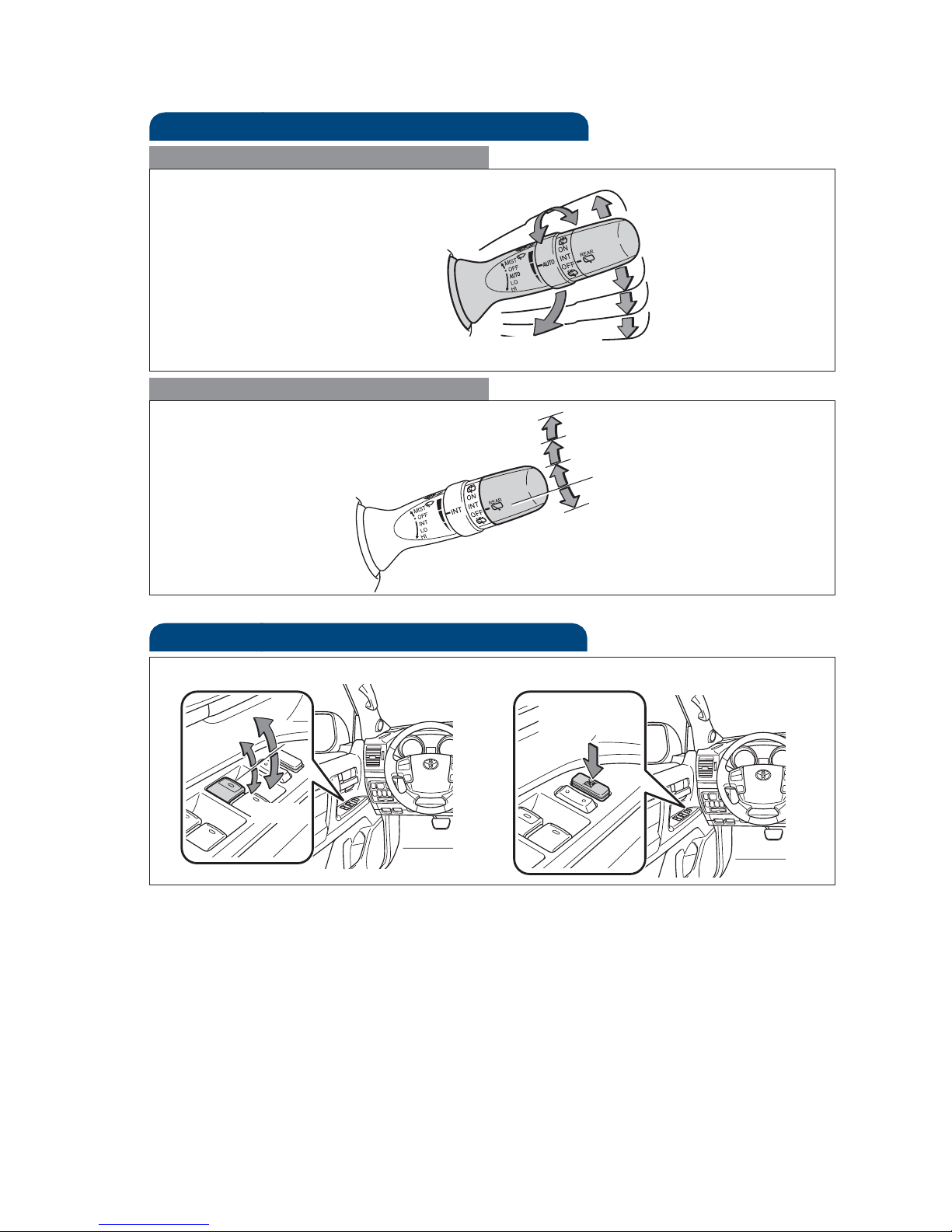

Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Auto
Headlights
Parking lights
Tu r n

16
Window wipers & washers
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
* Rain-sensing windshield wiper
Rotate to increase/decrease
sensor sensitivity.
Rain-sensing
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust sensor sensitivity*

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Back door
Pull
Unlock
The back door can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
Raise
Moonroof
Sliding operation Tilting operation
Open Tilt
Close Close
Recommended open position to
minimize wind noise.
Push once to open partway;
again to open completely.
Mirrors-Side
Linked mirror function when reversing The outside rearview mirrors
automatically angle downwards when vehicle is in reverse. Will only operate when
switch is in “L” or “R” position.
Use switch to adjust mirror
angle while in ACCESSORY
or IGNITION ON mode.

18
FEATURES/OPERATIONS
Air Conditioning/Heating

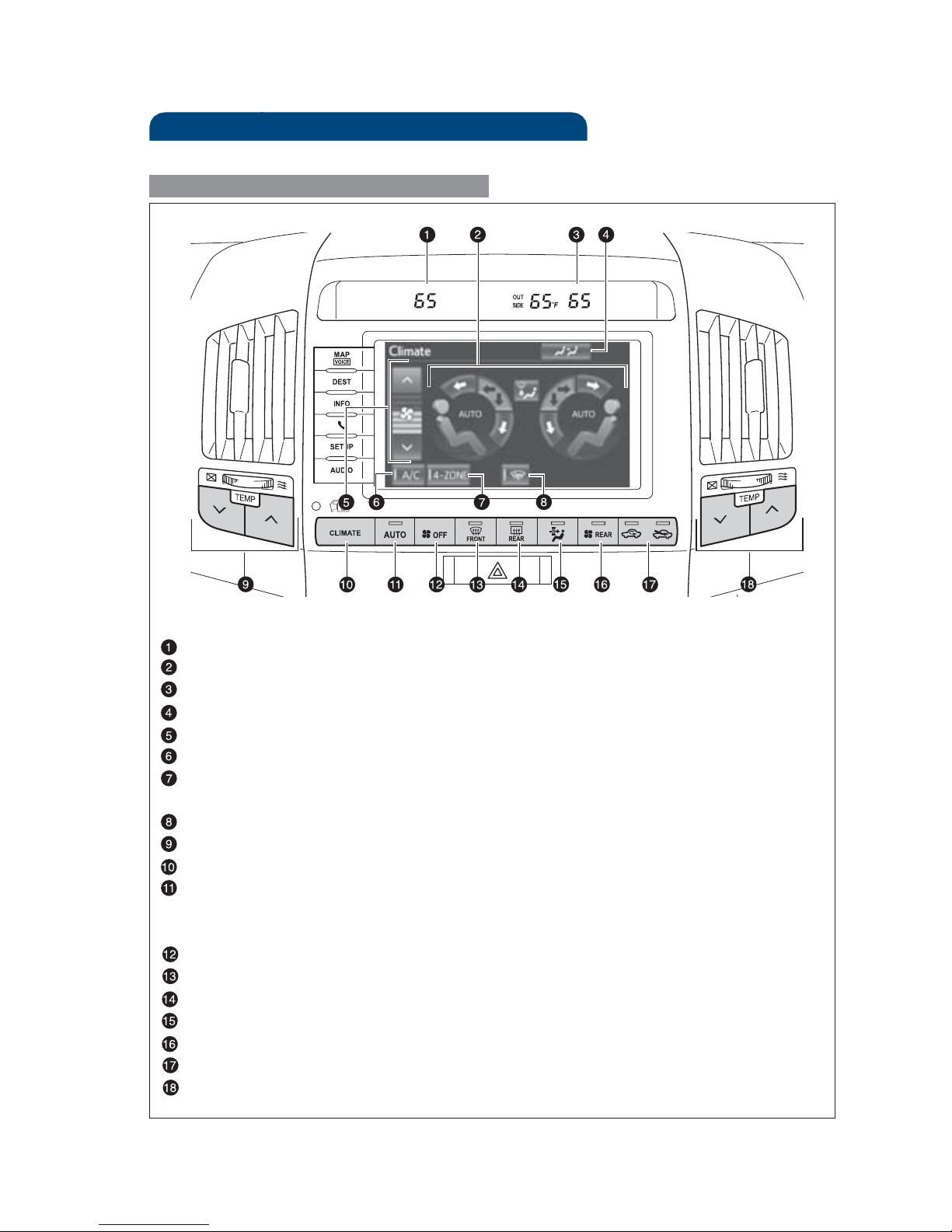

Front Air Conditioning
Driver side temperature display
Airflow controls (touch to change air outlets)
Passenger side temperature display
Rear AC control button (touch to display rear AC control screen)
Fan speed
Air Conditioning ON/OFF
“4-ZONE” button (touch to set the temperatures independently for driver,
front passenger and rear seats)
Windshield wiper de-icer (if equipped)
Temperature controls (driver side)
CLIMATE (push to display AC control screen)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Climate control OFF
Windshield airflow/defogger (fresh air only)
Outside rearview mirror/Rear window defogger
Micro dust and pollen removal mode ON/OFF
Rear Air Conditioning operation mode ON/OFF
Air intake control (switch between outside air and recirculated air mode)
Temperature controls (passenger side)
NOTE: For more information, refer to the “Navigation System Owner’s Manual.”
