5-1. Using the air conditioning system and defogger
Manual air conditioning system∗
∗: If equipped
Air outlet selector dial
Fan speed control dial
Temperature control dial
Cooling and dehumidification
function on/off button
Outside/recirculated air mode
button
1
2
3
4
5

RAV4_OM_OM42809U_(U)
289
5-1. Using the air conditioning system and defogger
5
Interior features
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control dial
clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
To select the air outlets, set the air outlet selector dial to the desired
position.
The positions between the air outlet selections shown below can also be
selected for more delicate adjustment.
Adjusting the settings
1
2
3

290
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
Set the air outlet selector dial to
position.
If the recirculated air mode is used,
it will automatically switch to the
outside air mode.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
●To adjust the temperature setting, turn the temperature control
dial.
●If the dehumidification function is not operating, press to
operate the dehumidification function.

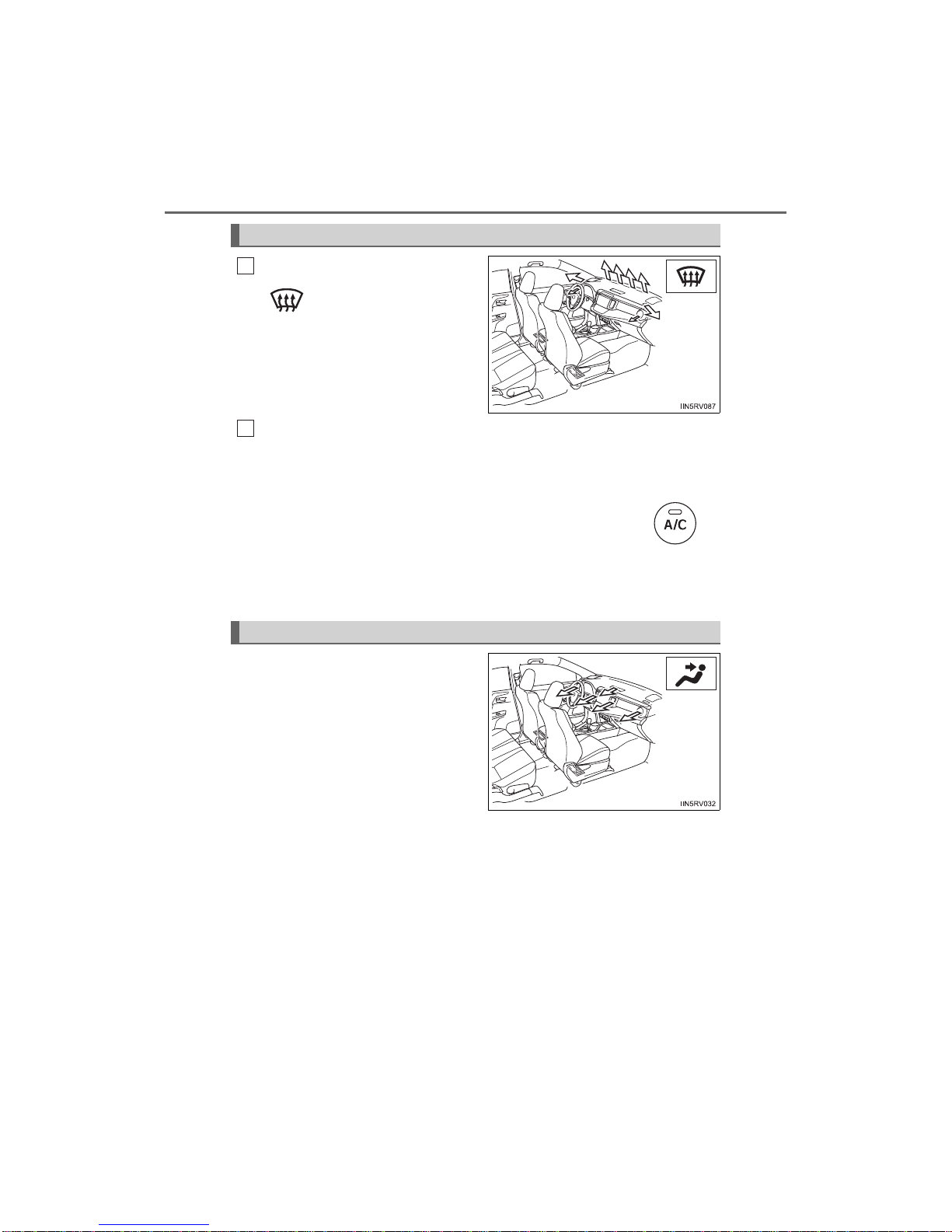

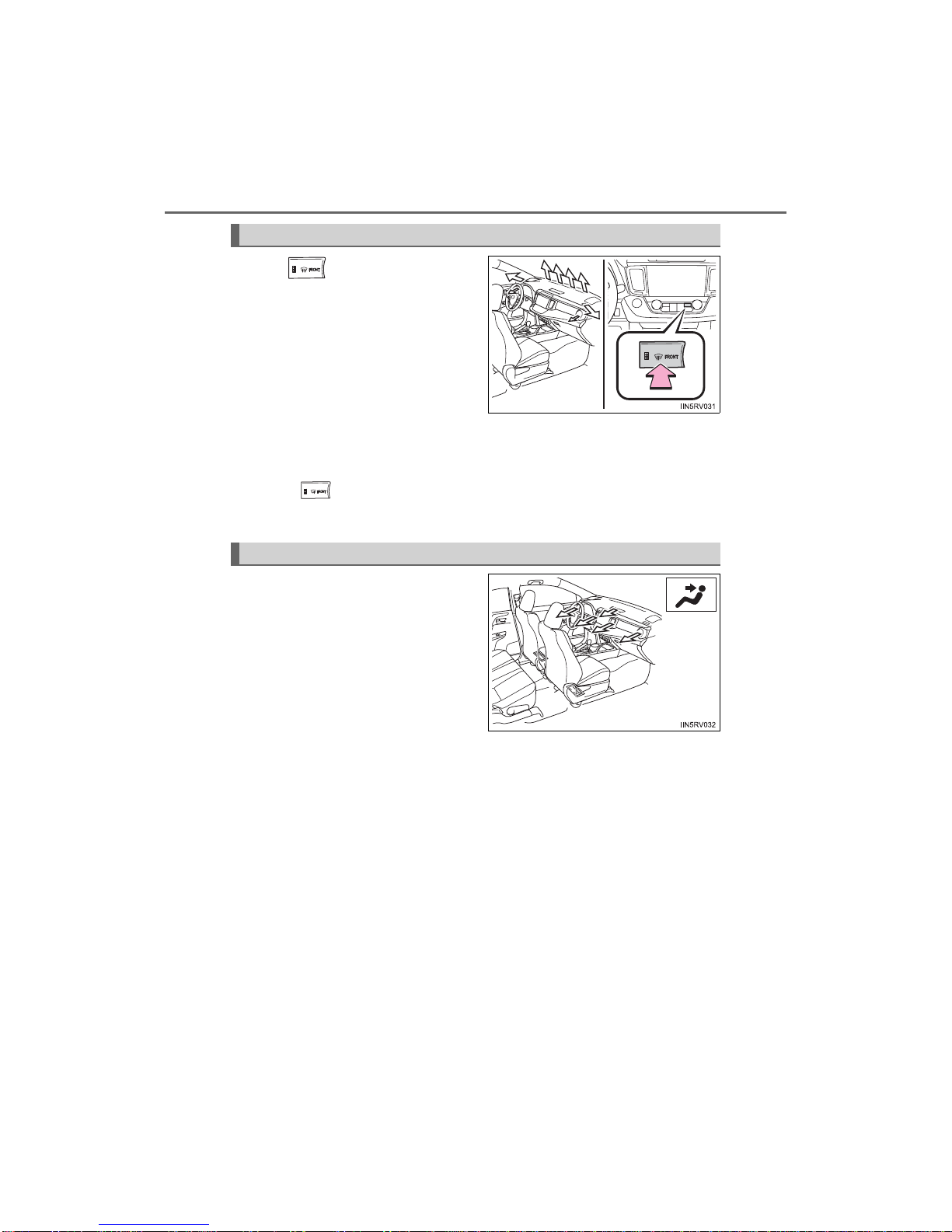

To defog the windshield and the side windows early, turn the air
flow and temperature up.
Upper body
Defogging the windshield
1
Air outlets and air flow
2

RAV4_OM_OM42809U_(U)
291
5-1. Using the air conditioning system and defogger
5
Interior features
Upper body and feet
Feet
Feet and windshield
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
Switching between outside air and recirculated air modes

292
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger

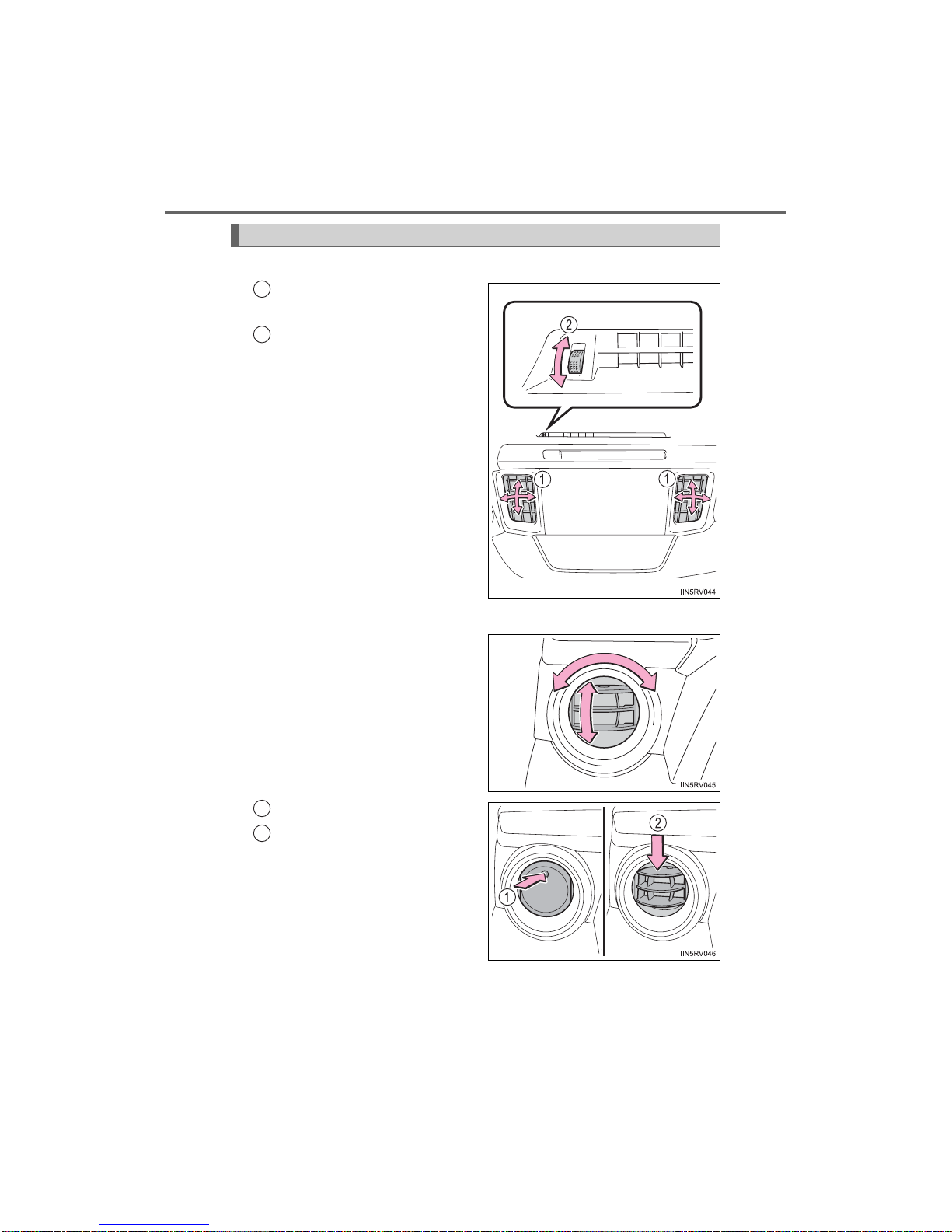

■Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or
close the vent for rear seat
occupants.
■Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Adjusting the position of and opening and closing the air outlets
1
2
1
2

RAV4_OM_OM42809U_(U)
293
5-1. Using the air conditioning system and defogger
5
Interior features
■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled to prioritize fuel
efficiency by regulating the engine speed and compressor operation to
restrict the heating/cooling capacity.
To improve air conditioning performance, turn off Eco drive mode. (→P. 209)
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior. During cooling
operation, setting the recirculated air mode will also cool the vehicle interior
effectively.
■When outside air temperature approaches 32 °F (0 °C)
The air conditioning system may not operate even when is pressed.

294
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
●To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■Air conditioning filter
→P. 460
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

295
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
5
Interior features

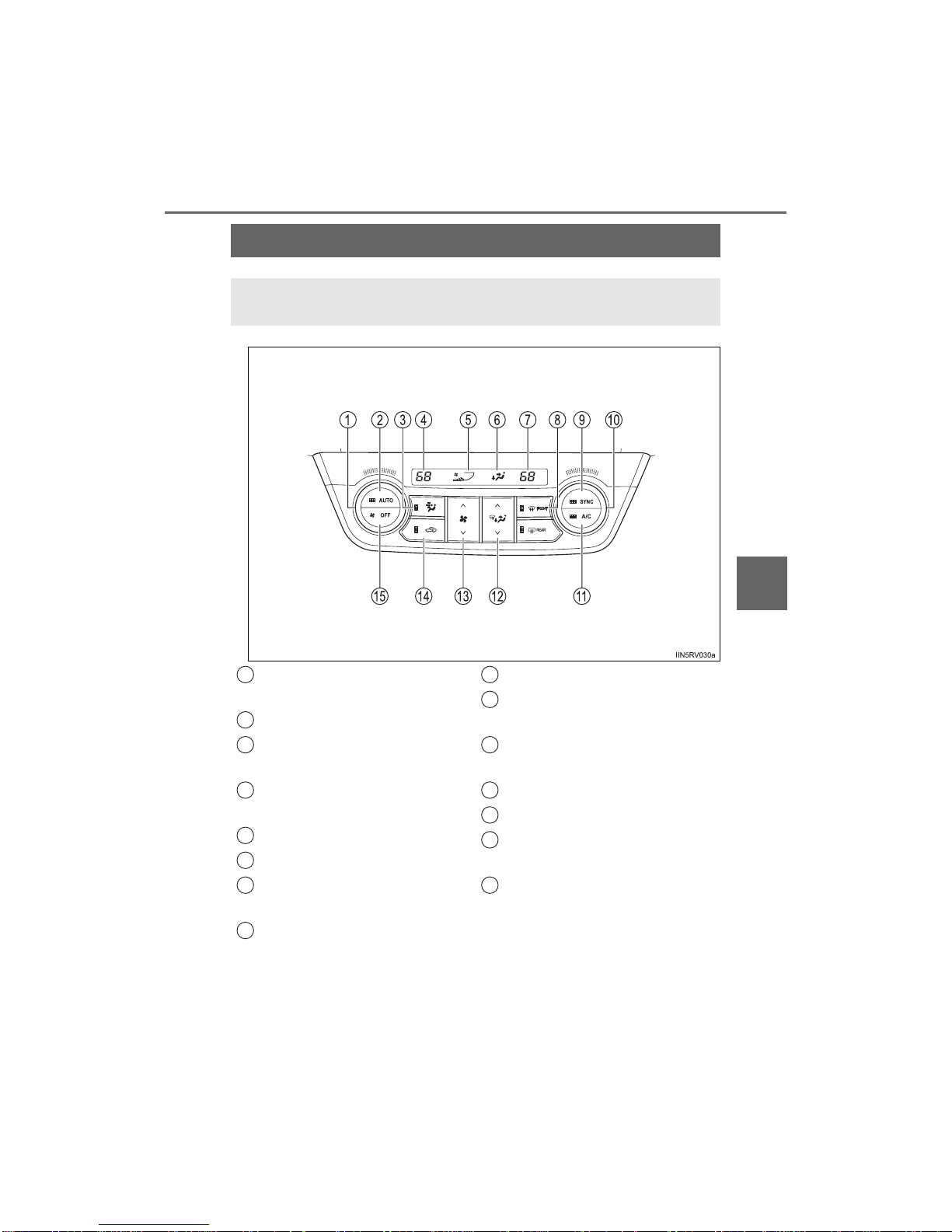

Automatic air conditioning system∗
∗: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Driver’s side temperature con-
trol dial
Automatic mode button
Micro dust and pollen filter
mode button
Driver’s side temperature set-
ting display
Fan speed display
Air outlet display
Passenger’s side temperature
setting display
Windshield defogger button
Simultaneous mode button
Passenger’s side temperature
control dial
Cooling and dehumidification
function on/off button
Air outlet selector button
Fan speed control button
Outside air or recirculated air
mode button
Off button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

296
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
Press .
The dehumidification function begins to operate. Air outlets and fan speed
are automatically adjusted according to the temperature setting and
humidity.
Turn clockwise to increases the temperature and turn
counterclockwise to decreases the temperature.
The air conditioning system switches between individual and simultaneous
modes each time is pressed.
Simultaneous mode (the indicator on is on):
The driver’s side temperature control dial can be used to adjust the tem-
perature for the driver’s and passenger’s side. At this time, operate the
passenger’s side temperature control dial to enter individual mode.
Individual mode (the indicator on is off):
The temperature for the driver’s and passenger’s side can be adjusted
separately.
Using the automatic air conditioning system
1
2

RAV4_OM_OM42809U_(U)
297
5-1. Using the air conditioning system and defogger
5
Interior features

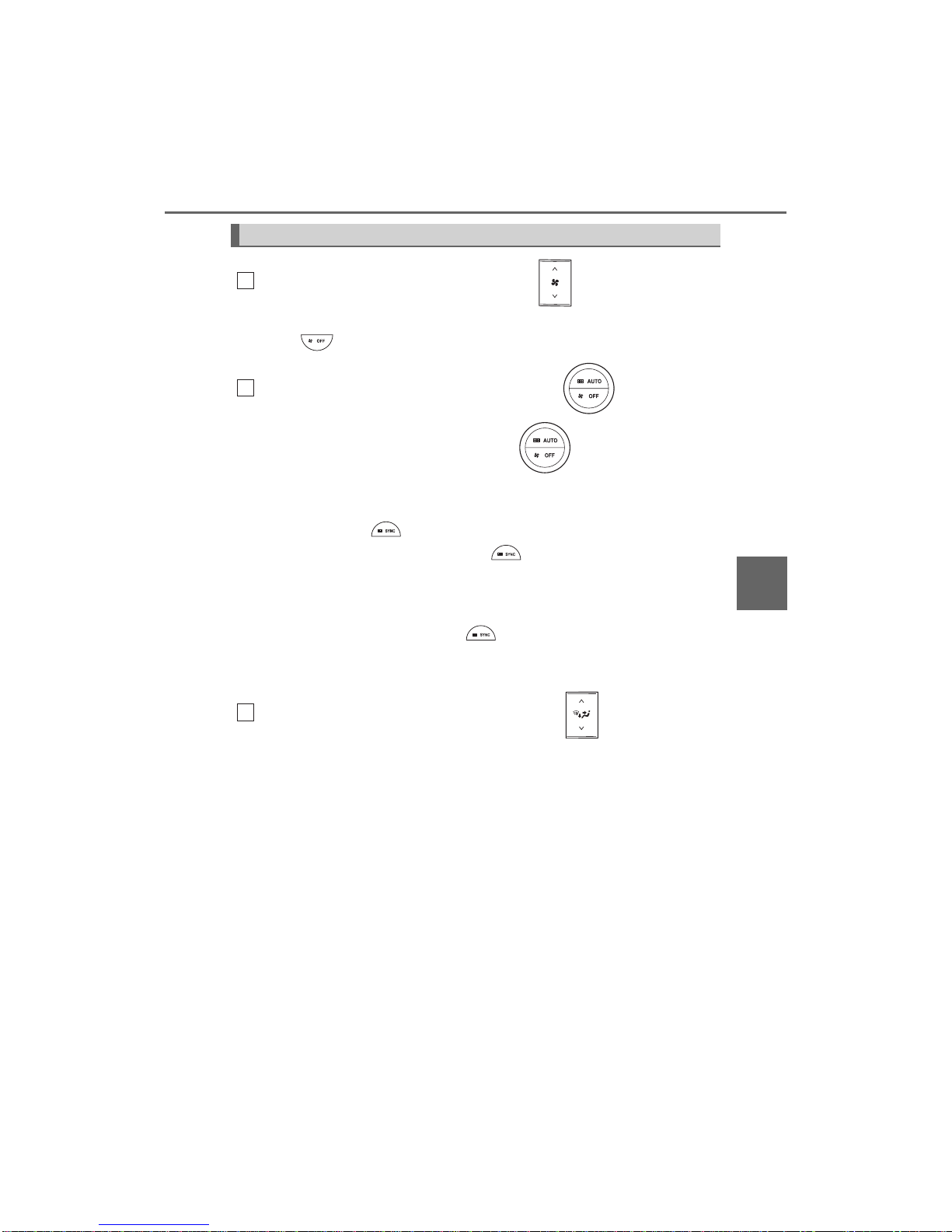

To adjust the fan speed, press “∧” on to increase the fan
speed and “∨” to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn clockwise to
increases the temperature and turn counterclockwise to
decreases the temperature.
The air conditioning system switches between individual and simultaneous
modes each time is pressed.
Simultaneous mode (the indicator on is on):
The driver’s side temperature control dial can be used to adjust the tem-
perature for the driver’s and passenger’s side. At this time, operate the
passenger’s side temperature control dial to enter individual mode.
Individual mode (the indicator on is off):
The temperature for the driver’s and passenger’s side can be adjusted
separately.
To change the air outlets, press “∧” or “∨” on .
The air outlets used are switched each time either side the button is
pressed.
Adjusting the settings manually
1
2
3

298
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
Press .
The dehumidification function
operates and fan speed increases.
Set the outside/recirculated air
mode button to outside air mode if
the recirculated air mode is used.
(It may switch automatically.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press again when the wind-
shield is defogged.
Upper body
Defogging the windshield
Air outlets and air flow

RAV4_OM_OM42809U_(U)
299
5-1. Using the air conditioning system and defogger
5
Interior features
Upper body and feet
Feet
Feet and windshield
If the recirculated air mode is used,
it will automatically switch to the
outside air mode.

300
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger

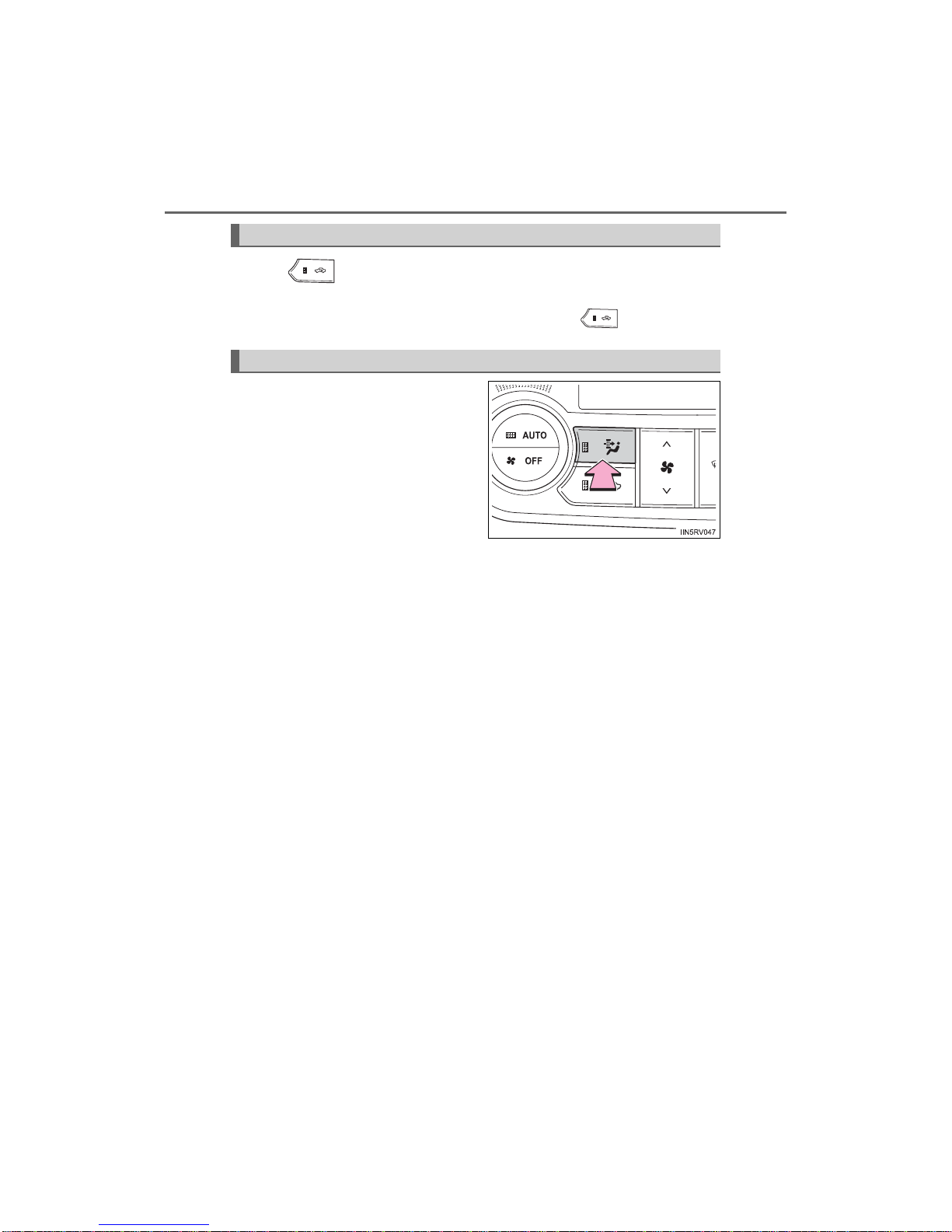

Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time is pressed.
Operates micro dust and pollen fil-
ter mode on/off.
Outside air mode switches to recir-
culated air mode. Pollen is
removed from the air and the air
flows to the upper part of the body.
Usually the system will turn off
automatically after approximately 3
minutes.
Switching between outside air and recirculated air modes
Micro dust and pollen filter mode button

RAV4_OM_OM42809U_(U)
301
5-1. Using the air conditioning system and defogger
5
Interior features
■Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knobs to open or
close the vents.
Turn the knob to open or
close the vent for rear seat
occupants.
■Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Adjusting the position of and opening and closing the air outlets
1
2
3
1
2

302
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
●Engine speed and compressor operation controlled to restrict heating/cool-
ing capacity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode (→P. 209)
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
●If you turn off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
●Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.

RAV4_OM_OM42809U_(U)
303
5-1. Using the air conditioning system and defogger
5
Interior features
■When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
●In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
●Recirculated air mode is selected as a default mode when the engine switch
is in the “ON” position (vehicles without a smart key system) or IGNITION
ON mode (vehicles with a smart key system)
●It is possible to switch to outside air mode at any time by pressing .
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is
cold, the following may occur:
• Outside air mode does not switch to recirculated air mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the pollen removal mode is turned off.
■When the outside temperature falls to nearly 32°F (0°C)
The dehumidification function may not operate even when is pressed.

304
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■Air conditioning filter
→P. 460
■Customization
Settings (e.g. outside/recirculated air mode) can be changed.
(Customizable features →P. 583)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

305
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
5
Interior features

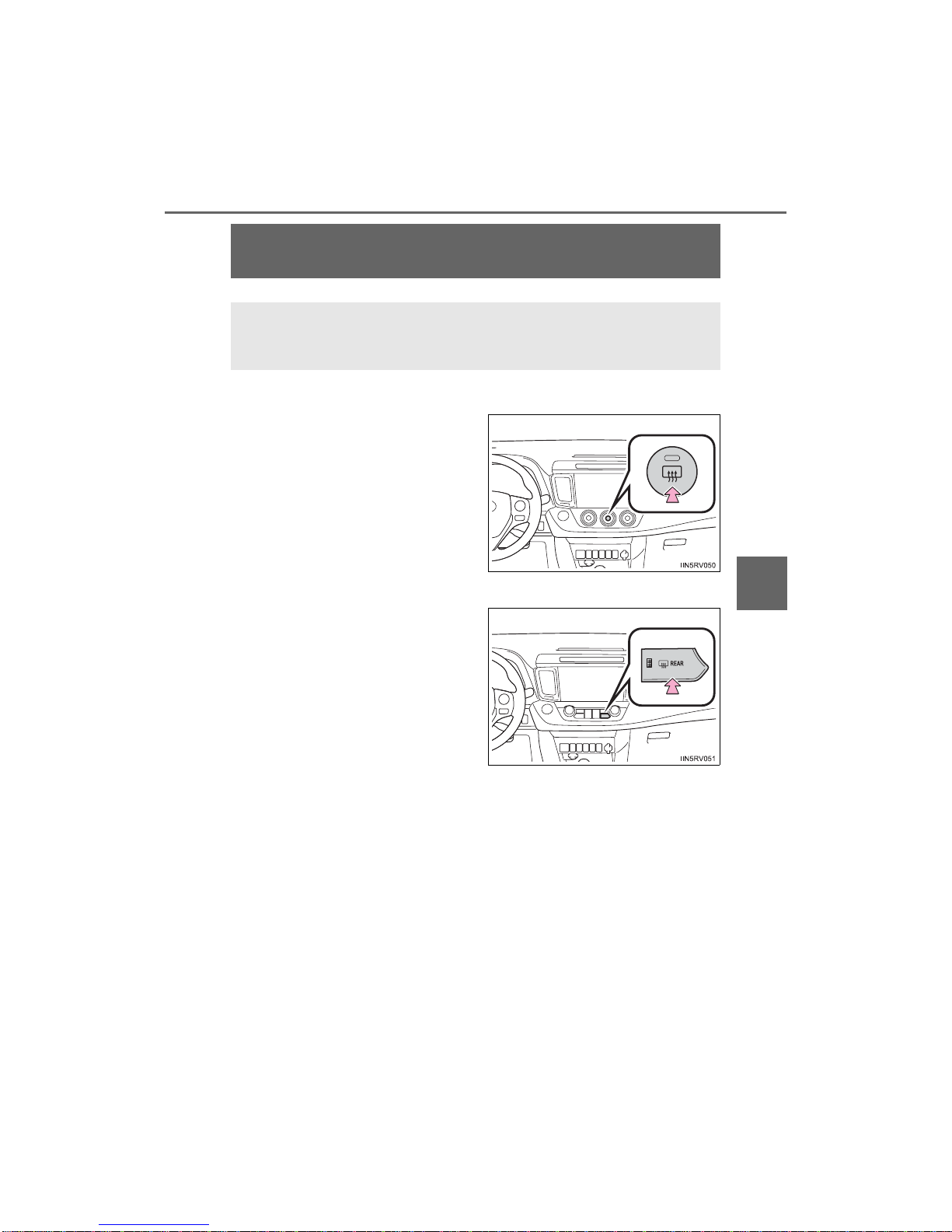

Rear window and outside rear view mirror
defoggers
XVehicles with a manual air conditioning system
On/off
The defoggers will automatically
turn off after approximately 15 min-
utes.
XVehicles with an automatic air conditioning system
On/off
The defoggers will automatically
turn off after approximately 15 min-
utes.
These features are used to defog the rear window, and to
remove raindrops, dew and frost from the outside rear view mir-
rors (if equipped).

306
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
■Operating conditions
XVehicles without a smart key system
The engine switch is in the “ON” position.
XVehicles with a smart key system
The engine switch is in IGNITION ON mode.
■The outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.

307
RAV4_OM_OM42809U_(U)
5-1. Using the air conditioning system and defogger
5
Interior features
Windshield wiper de-icer∗
On/off
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes. Pressing the
switch again also turns the de-icer
off.
■Operating conditions
XVehicles without a smart key system
The engine switch is in the “ON” position.
XVehicles with a smart key system
The engine switch is in IGNITION ON mode.
∗: If equipped
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars,
as the surfaces can become very hot and burn you.
