!Aword about safe vehicle operations
This Pocket Reference Guide is a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guide is not intended
as a substitute for the Owner’s Manual
located in the vehicle’sglove box. We
strongly encourage you to review the Owner’s
Manual and supplementary manuals so you
will have a better understanding of the
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc., wish you many
years of satisfied driving in your new Sienna.
This Pocket Reference Guide is not a full
description of Sienna operations. Every
Sienna owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted
throughout this reference guide and
throughout the Owner’s Manual.Each box
contains safe operating instructions to
help you avoid injury or equipment
malfunction.
All information in this Pocket Reference
Guide is current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.

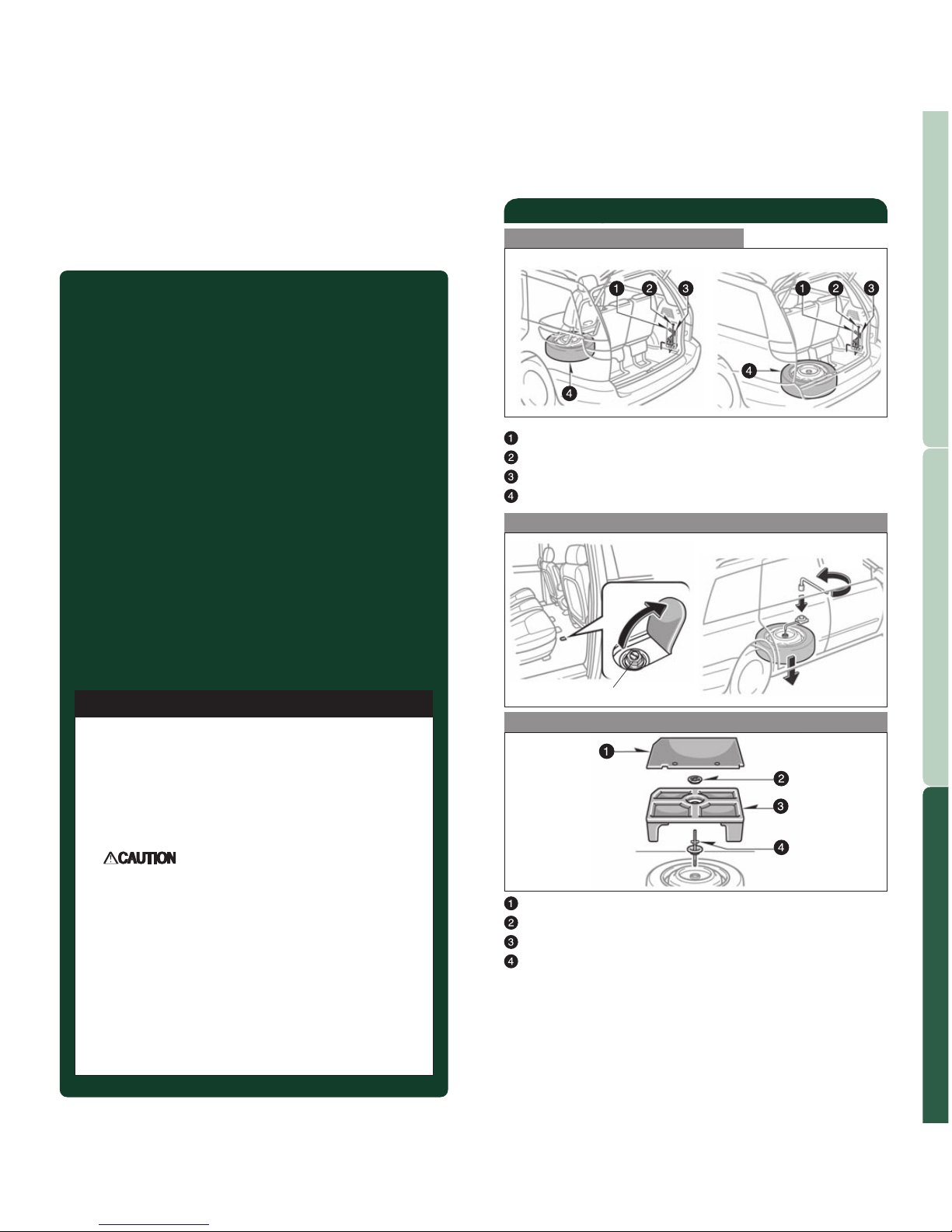

Spare tire & tools
Tool and spare tire location
Removing the spare tire (two-wheel drive models)
Removing the spare tire (all-wheel drive models)
Wheel nut wrench
Jack handle
Jack
Spare tire
29
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Remove the floor panel.
Loosen and remove the nut.
Remove the spare tire cover.
Loosen and remove bolt with spacer.
Refer to the Owner’s Manual for jack positioning and
tire changing procedures.
Two-wheel drive models All-wheel drive models
Spare tire clamp bolt
Turn

1Programmable by customer. For other dealer-
programmable features, please visit your Toyota dealer.
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Item Page no.
OVERVIEW
Engine maintenance 7
Fuel tank door release and cap 7
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
FEATURES/OPERATIONS
Air conditioning/Heating 22-23
Audio 20-21
Auto lock function
1
8
Automatic transmission 8
Bottle holders 25
Clock 13
Console box 13
Cruise control 18
Cup holders 26
Door-Power back 12
Doors-Power sliding 12
Dynamic laser cruise control 18-19
Front seat console table 13
Light control-Instrument panel 19
Lights & turn signals 9
Moonroof 11
Multi-Information display (HomeLink
®
)
2
24
Parking brake 10
Power outlets 25
Rear seat entertainment system 24
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat arrangements 15
Seat heaters 11
Seats-Head restraints 15
Seats-Stowing third row seats 16-17
Seats-Tumble/Remove second row seats 16
Sunshade-Side 17
Tilt and telescopic steering wheel 8
Windows 11
Window-Power quarter 10
Window wiper & washer 10
SAFETY AND EMERGENCY FEATURES
Door locks 27
Doors-Child safety locks 27
Seat belt comfort guide 27
Seat belts 28
Seat belts-Shoulder belt anchor 27
Spare tire & tools 29
Tire Pressure Warning System reset 28
2HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
2

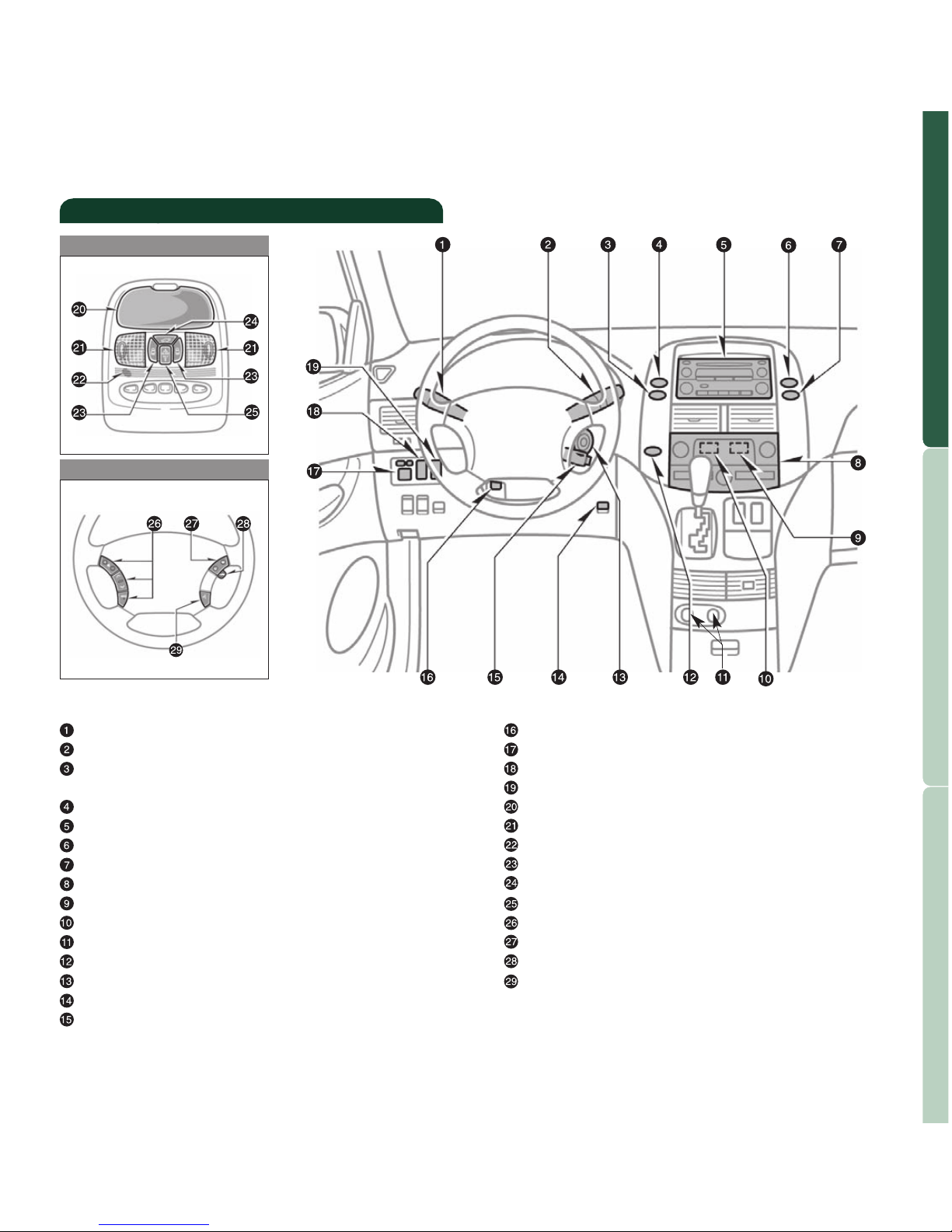

OVERVIEW
Headlight, turn signal and front fog light1controls
Wiper and washer controls
Rear window and outside rearview mirror defogger1
and windshield wiper de-icer1switch
Emergency flasher
Audio or navigation system1,2
115V AC Power outlet ON/OFF switch1
AUX adapter
Front air conditioning controls
Front passenger occupant classification indicator
Toyota park assist system and indicator1
12V DC Power outlet
Personal light main switch
Ignition
“TRAC OFF” (Traction Control “OFF”)1
Cruise control or dynamic laser cruise control1
Tilt and telescopic steering lock release
Power rearview mirror controls
Power quarter window switch1
Headlight beam level control dial1
Conversation mirror
Front personal lights
Microphone1,2
Power sliding door switch1
Power back door switch1
Electric moon roof switch1
Audio steering wheel switches1,2
Telephone switch1,2
Dynamic laser cruise control distance switch1
Speech command switch1,2
1If equipped
2For details, refer to the Navigation System
Owner’s Manual.
Instrument panel
Overhead console
Steering wheel switches

Low engine oil pressure warning1
5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
4
OVERVIEW
Driver’s seat belt reminder1
Front passenger’s seat belt reminder1
Brake system warning1
Battery warning1
Anti-lock Brake System warning1
Malfunction indicator/Check engine1
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2006 Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2006
Owner’s Manual.
3If this light flashes, refer to “Dynamic laser cruise control,”
Section 1-7, 2006 Owner’s Manual.
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.

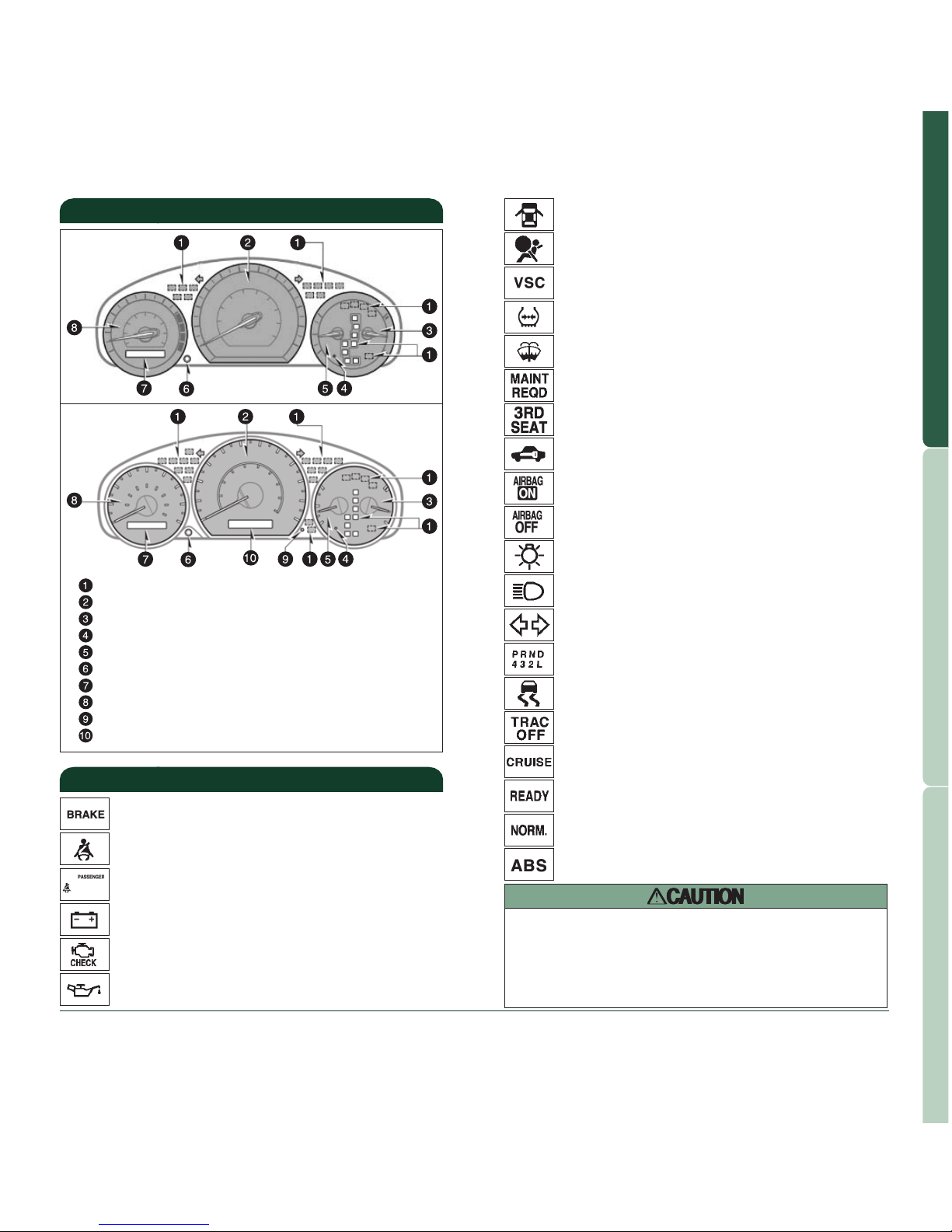

Indicator symbols
Open door warning1
Low Tire Pressure Warning1
Engine oil replacement reminder1
Third seat fold incomplete warning1
Engine immobilizer/Theft deterrent system
indicator
“AIRBAG ON” indicator
“AIRBAG OFF” indicator
Headlight low beam indicator
Turn signal indicator
Headlight high beam indicator
Cruise control indicator2or dynamic laser
cruise control indicator3
Dynamic laser cruise control ready mode
indicator
Conventional cruise control mode indicator
Automatic transmission indicator
Slip indicator
Traction Control “OFF” indicator
Airbag SRS warning1
Vehicle Stability Control/Traction Control
warning1
Low windshield washer fluid level warning1
Instrument cluster
Service indicator and reminder
Speedometer
Engine coolant temperature
Low fuel level warning
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Tachometer
Dynamic laser cruise control master warning
Dynamic laser cruise control display
If equipped

NOTE: If not tightened enough, Check Engine “ ”
indicator may illuminate.
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
6
OVERVIEW

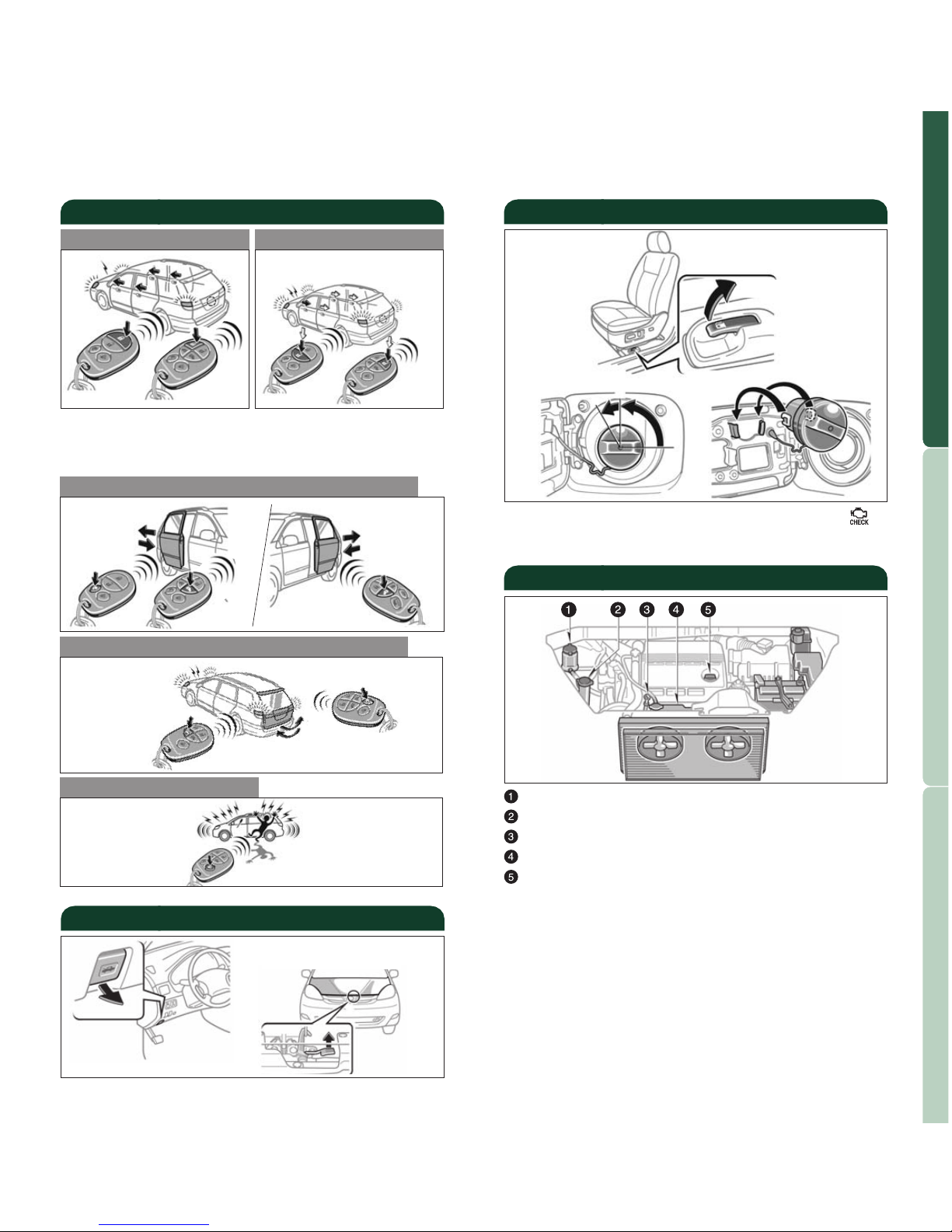

Fuel tank door release and cap
Pull up
Store
Turn
Keyless entry
Locking operation Unlocking operation
NOTE: After unlocking, if a door is not opened
within thirty (30) seconds, all doors will
relock for safety.
Push Push ONCE: Driver door
TWICE: ALL doors
Power back door operation (if equipped)
Power sliding door operation (if equipped)
Right side power
sliding door
Push and
hold
Left side
power
sliding
door
Alarm operation
Push
and hold
Push and
hold
Push
Hood release
Pull Pull up to release
then raise hood
Power steering fluid reservoir
Windshield and rear window washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
8

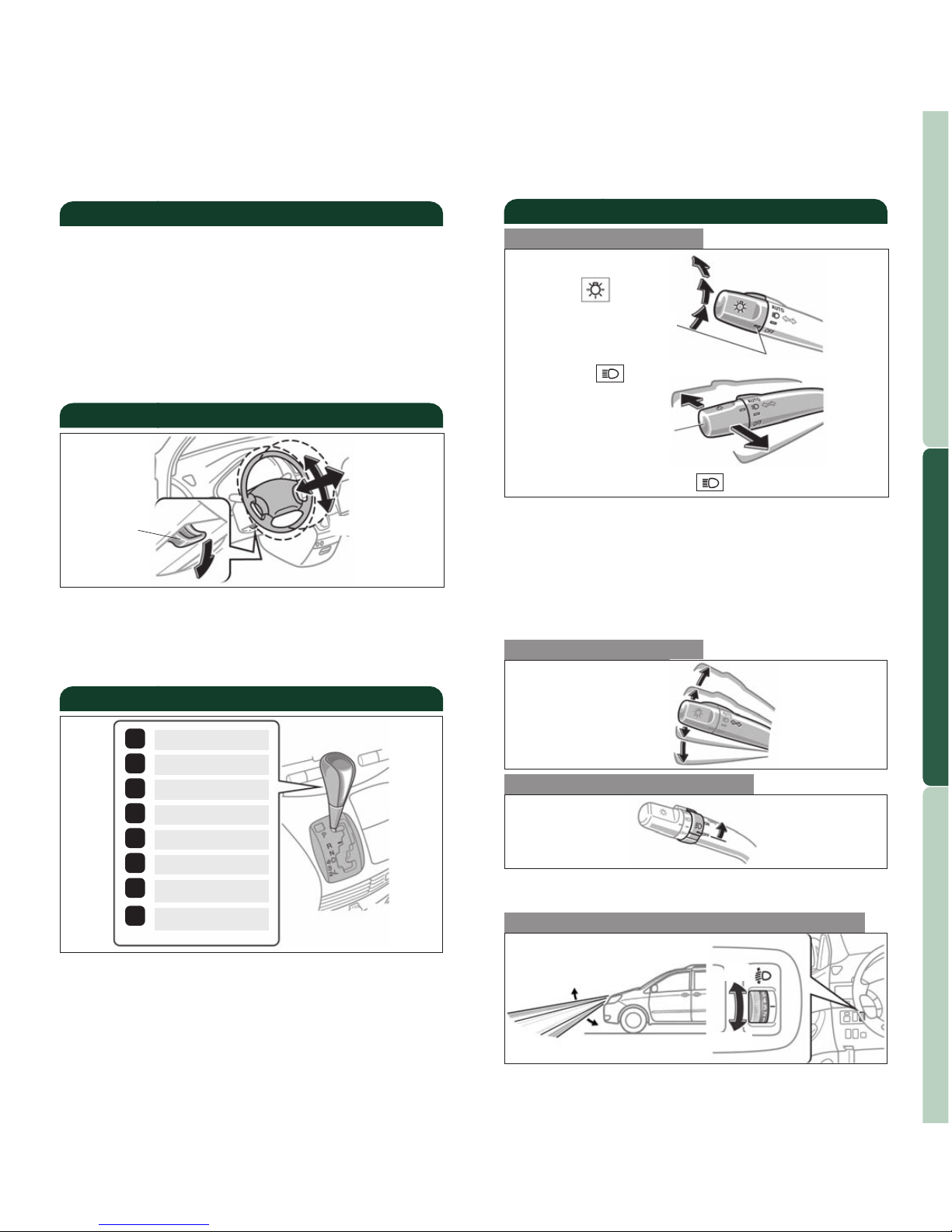

Lights & turn signals
Turn signals
Headlights
AUTO*
High beam flasher
*if equipped
Front fog lights (if equipped)
Headlights
-Automatic light cutoff system Automatically turns
lights off after 30 seconds when any of the doors are
opened and closed with the engine off. Lights may
also be turned off by pushing lock button on remote.
-Daytime Running Light system (if equipped)
Automatically turns on the headlights at a reduced
intensity.
Front fog lights turn ON only when the headlights
are on low beam.
Parking lights
High beams
Right turn
Turn
Lane change
Lane change
Left turn
Low beams
Hold wheel, push lever down, set angle and length,
then return lever.
Note: Do not attempt to adjust while the vehicle
is in motion.
FEATURES/OPERATIONS
Auto lock functions
Automatic door locks can be programmed by
consumer to operate in 4 different modes.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above
about 12 mph.
-Doors unlock when the ignition key is turned to the
“ACC” or “LOCK” position and driver’s door is
opened.
-Doors unlock when shifting into Park.
Tilt and telescopic steering wheel
Length
Lock
release
lever Angle
Automatic transmission
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
1T
oshift from PARK, the key must be in the “ON”
position, and the brake pedal depressed.
Downshifting increases power going uphill, or
provides engine braking going downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Headlight beam level control (if equipped)
Higher number will lower the beam.
Up
Down Down
Up

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS

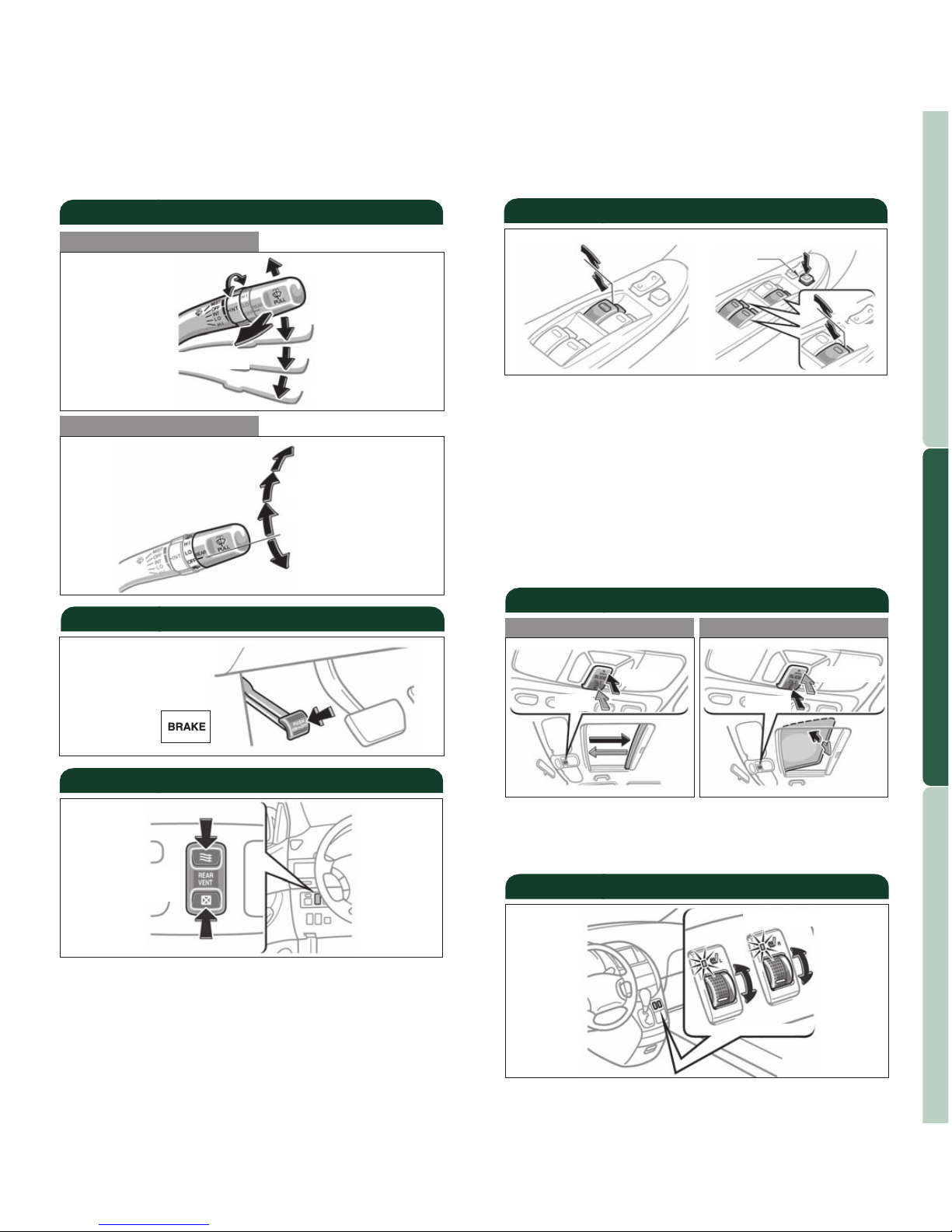

Windows
Automatic operation* (Driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window mid-
way, lightly push the switch in the opposite direction.
NOTE: If battery is disconnected, the windows need
to be reinitialized. Refer to the Owner’s
Manual for more details.
*If equipped
Passenger’s
window lock
switch
Up
Up
Down
Down
Driver side
Moonroof (if equipped)
Tilting operationSliding operation
Open
Close
Tilt down
Tilt up
Seat heaters (if equipped)
Right front seat
Left front seat
NOTE: If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the
Owner’s Manual for more details.
Window wiper & washer
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust interval
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Windows-Power quarter (if equipped)
Open
Close
Push and
hold
Parking brake
Set: Depress
Release: Depress again

Door-Power back (if equipped)
13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
12
Clock
With manual air
conditioning system With automatic air conditioning system
H- Hour set
M- Minutes set
The console box can be removed and installed
between the front or second row seats.
To remove Open the auxiliary box on the rear
side, and pull the lock release lever. Lift the box
from the rear to release it from the hook.
To install Place the hook into the striker. Lower
box and push down to engage the rear lock.
FEATURES/OPERATIONS
Console box (if equipped)
Front seat
Second row seat
Lock
release
lever
Lock
release
lever
Front seat console table (if equipped)
NOTE:
•When the key is in the “ON” position, power
sliding doors will open only when gear selector is
in the “P” Park position, and doors are unlocked.
Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and
the vehicle is shifted out of park.
• If battery is disconnected, the power sliding doors
need to be reinitialized. Refer to the Owner’s
Manual for more details.
Doors-Power sliding (if equipped)
Front overhead console
Instrument panel
ON/OFF switch
Push
Center pillar
On Off
Open: Push
Close: Push again
On Off
Push
Push
ON/OFF switch
Instrument panel Front overhead console
Open: Push
Close: Push again
NOTE: If battery is disconnected, the power back
door needs to be reinitialized. Refer to the
Owner’s Manual for more details.
Remove Install
Auxiliary
box

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
14

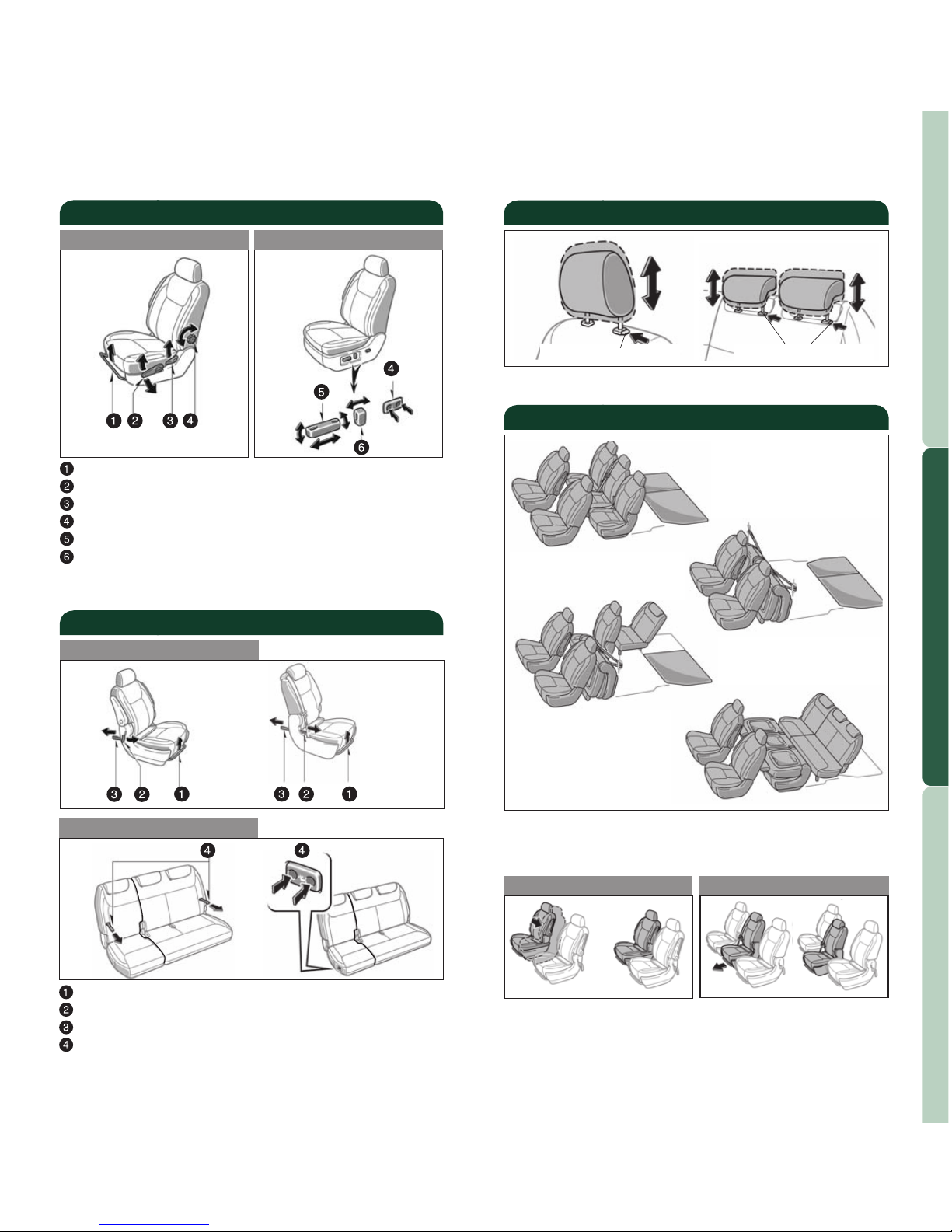

Seat arrangements (examples)
7-passenger models The right seat can be placed in
the inside or outboard position.
8-passenger models The center seat can be placed in
the forward position or even with the other seats.
7-passenger models 8-passenger models
These are some possible seat arrangements. Please
read the following section and refer to the Owner’s
Manual for more information about seat positions.
Seats-Head restraints
Lock release button Lock release buttons
Front Rear
FEATURES/OPERATIONS
Seat adjustments-Rear
Second row seat
Third row seat
Position
Seatback release (from second row seat)
Seatback release (from third row seat)
Seatback angle
Refer to the Owner’s Manual for more details.
Outer
Manual
Center
Power
Seat adjustments-Front
Manual Seat Power Seat
Position
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only*)
Position, cushion angle and height
Seatback angle
*If equipped

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
16
Seats-Stowing third row seats (Power)(if equipped)
Lower
Push
Stowing seat
Push and hold Push and hold
Returning seat
1This light will remain “ON” until the seat is fully
open or stowed.
An alarm will also sound for 10 seconds, and the
indicator will light up on the instrument panel.
Sunshade-Side (if equipped)
Side window Quarter window
Hook
Pull
Hook
Pull
FEATURES/OPERATIONS
Seats-Tumble/Remove second row seats
Lower the head restraint and slide the seat to the
rear-most locked position.
Pull the strap or lever and tumble the seat.
Pass the strap through the assist grip.
Pull and hold the strap, then fold down the seat
to disengage from front hooks.
Lower
Push Pull
Pull up
Push
Fold
down
Push
down
Third seat
fold
incomplete
warning
light1
Third seat
fold
incomplete
warning
light1
Refer to the Owner’s Manual for more details.
Seats-Stowing third row seats (Manual)

19
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
18

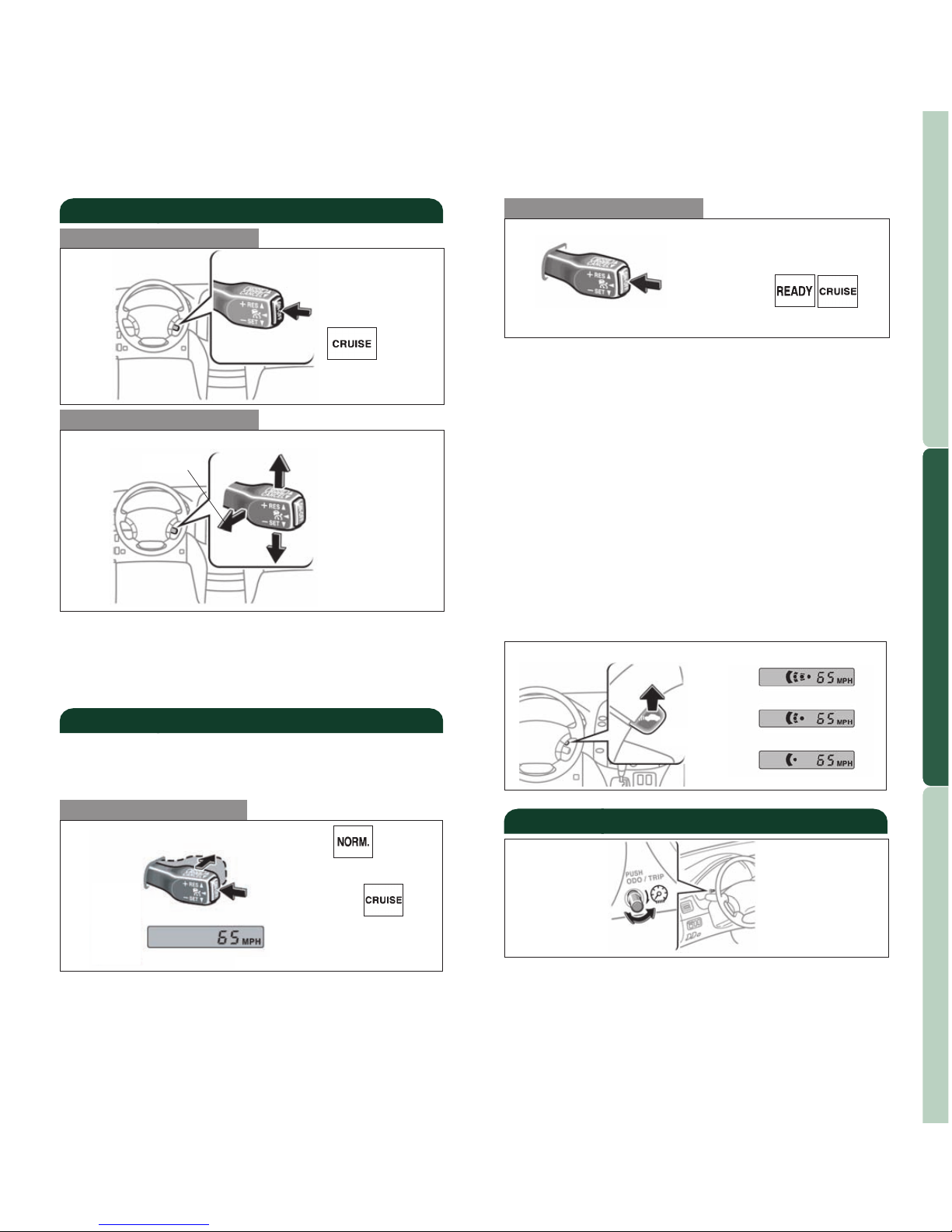

Distance control mode
To set, cancel and resume a speed Refer to
“Functions” in the Cruise Control section at left,
and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up
toward “+ RES.” will increase speed to the nearest 5
mph, and then in 5 mph increments. Pushing lever
down toward “- SET” will reduce speed in the same
way.
LONG
MIDDLE
SHORT
The distance control mode will cruise at a set
speed, decelerate to maintain a selected distance
from a slower vehicle in front of you, and accelerate
back up to the selected speed if the vehicle in front
of you changes lanes or speeds up.
Pull
Changing vehicle-to-vehicle
distance
Push
System ON/OFF
FEATURES/OPERATIONS
To set, cancel and resume a speed Refer to
“Functions” in the Cruise Control section above, and
the Owner’s Manual for more details.
Fixed speed mode
(1)Push
System ON/OFF
(2)Push and hold
Dynamic laser cruise control (if equipped)
Refer to the Owner’s Manual for more details and
complete safety precautions before attempting to
use the “Dynamic laser cruise control.”
Cruise control (if equipped)
1The set speed may also be cancelled by depressing
the brake pedal.
2The set speed may be resumed once vehicle speed
reaches 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Light control-Instrument panel
Bright Dark

21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
20
“-+”
Volume control
“ ”
-In radio mode Push to select a preset station,
push and hold to seek the next strong station.
-In CD mode Push to skip up or down to the next
or previous track.
“MODE”
Push to turn audio “ON” and select an audio
mode. Push and hold to turn the audio “OFF.”
By inserting a mini plug of a commercially available
component into the AUX adapter, you can listen to
music from a portable audio device through the
vehicle’s speaker system.
>
>
AUX adapter
Steering wheel switches (if equipped)
Pull
FEATURES/OPERATIONS
To scan tracks on a disc Push “SCAN.” Push again to
hold selection.
CD Changer (Type 2 only)
-To load one disc Push “LOAD” and insert 1 disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE”
to file up/down.
To select a folder (MP3/WMA only) Push either side
of “MP3/FOLDER.”
Audio
Type 2 functions include:
View CD
information
Eject CD
Push to turn
ON/OFF
Push to
adjust
tone &
balance
Push to
skip
up/down
folder
Seek
station/
CD track
select Station/CD
track scan
Mode
Load CD(s)
Preset buttons - button functions in
other modes indicated above number.
RADIO
Preset buttons Tune in the desired station and hold
down a preset button (1-6) until you hear a beep.
“SCAN” Push and hold “SCAN” to scan preset
stations.
CD PLAYER

23
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
22
Rear automatic air conditioning
Front automatic air conditioning
Temperature (driver side)
Temperature (front passenger side)
Air Conditioning ON/OFF
Synchronizes front and rear setting
Air flow vent selector
In “ ” or “ ” mode, use fresh air
(“ ” indicator ON) to reduce window fogging.
Windshield air flow/defogger
Temperature (rear passenger side)
Fan speed
Fresh or recirculate cabin air
Climate control OFF
Automatic climate control ON/OFF
Automatic climate control ON/OFF
Air flow vent selector
Temperature selector (rear)
Fan speed
Climate control OFF
ON/OFF switch
T
emperature selector (front)
FEATURES/OPERATIONS
Air conditioning/Heating
Rear manual air conditioning
Front manual air conditioning
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to
recirculate for cooler air.
Fresh or recirculate cabin air
Air flow vent selector
In “ ” or “ ” mode, use fresh air
(“ ” indicator ON) to reduce window fogging.
Temperature
Fan speed
Fan speed (rear)
Air flow vent selector
Temperature
Fan speed (front)
To reduce air flow from side vents, turn fan speed to
OFF and recirculate cabin air, or close vent
manually.

25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
24

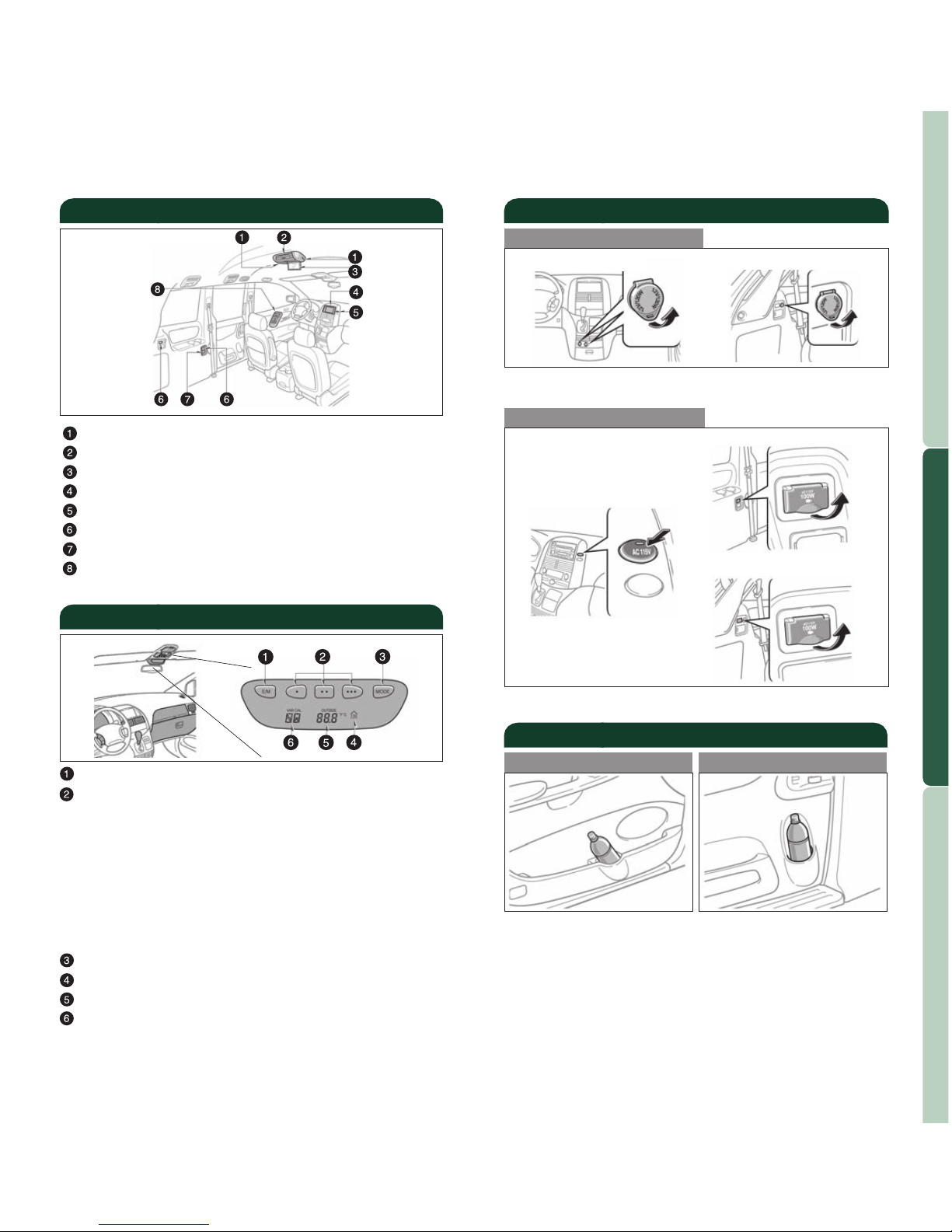

Bottle holders
Note: Do not place open containers in the sliding
door bottle holders.
Front doors Sliding doors
115V AC (if equipped)
ON/OFF switch
Beside second row seat
Beside third row seat
Power outlets
12V DC
Instrument panel Luggage compartment
Key must be in the “ON” position to be used.
Key must be in the “ON” position to be used.
Rear seat entertainment system (if equipped)
Headphone jacks and headphone volume control
DVD player
DVD screen
Front audio
115V AC Power outlet ON/OFF switch
115V AC Power outlets
AV input adapter
Remote control
FEATURES/OPERATIONS
Multi-Information display (if equipped)
Select standard or metric
Garage door opener buttons Garage door
openers manufactured under license from
HomeLink®*can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact the Toyota
Customer Experience Center at 1-800-331-4331, or
visit http://www.homelink.com
Change display information
Garage door opener indicator
Information display
Compass
*HomeLink®is a registered trademark of Johnson Controls, Inc.

27
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
26
SAFETY AND
EMERGENCY FEATURES

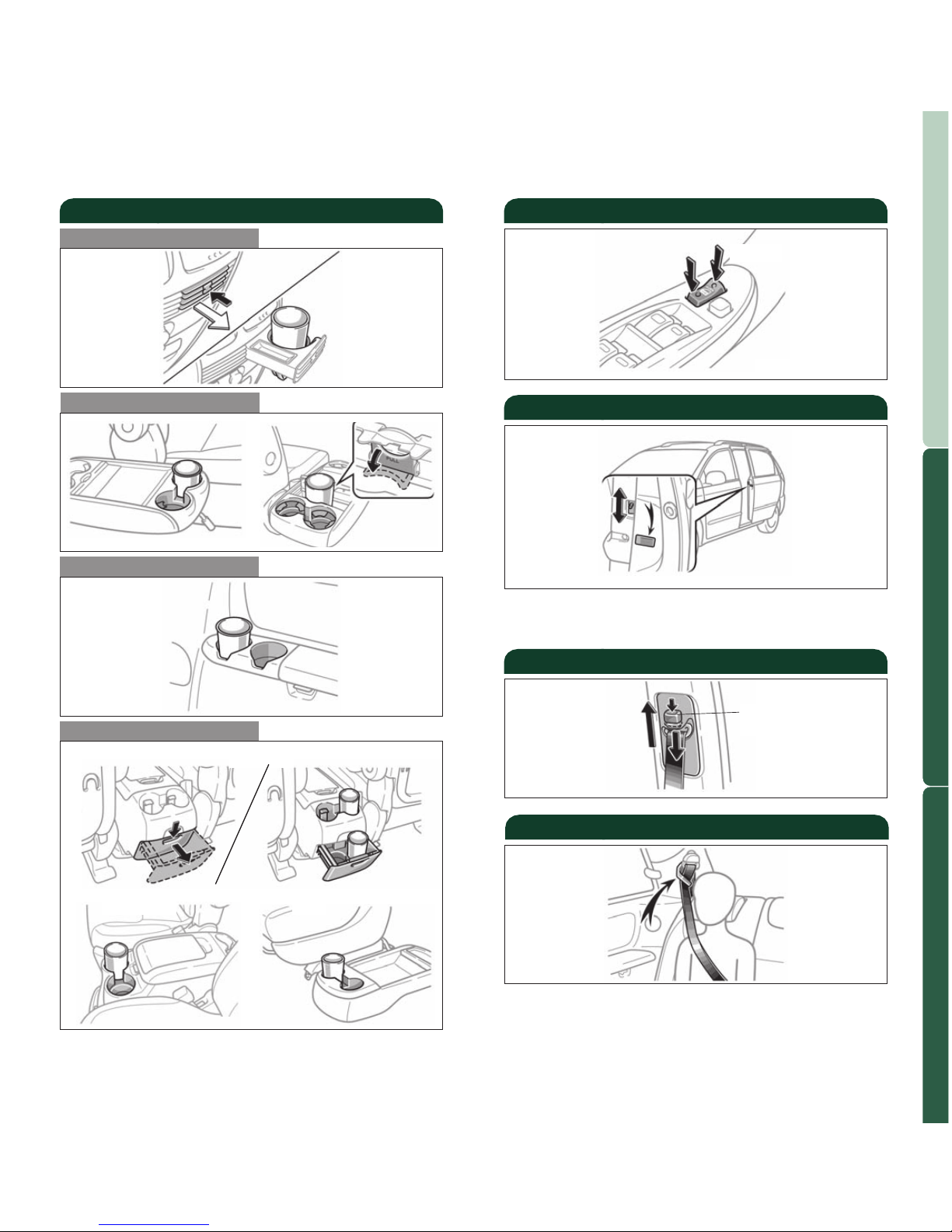

Doors-Child safety locks
Door locks
Move the lever to “LOCK,” allowing the sliding door
to be opened only from the outside.
Seat belts-Shoulder belt anchor
Unlock Lock
Squeeze lock
release to lower
Rear console box
Cup holders
Instrument panel
Front side table
Quarter trim
Rear side
Front side Tray
FEATURES/OPERATIONS

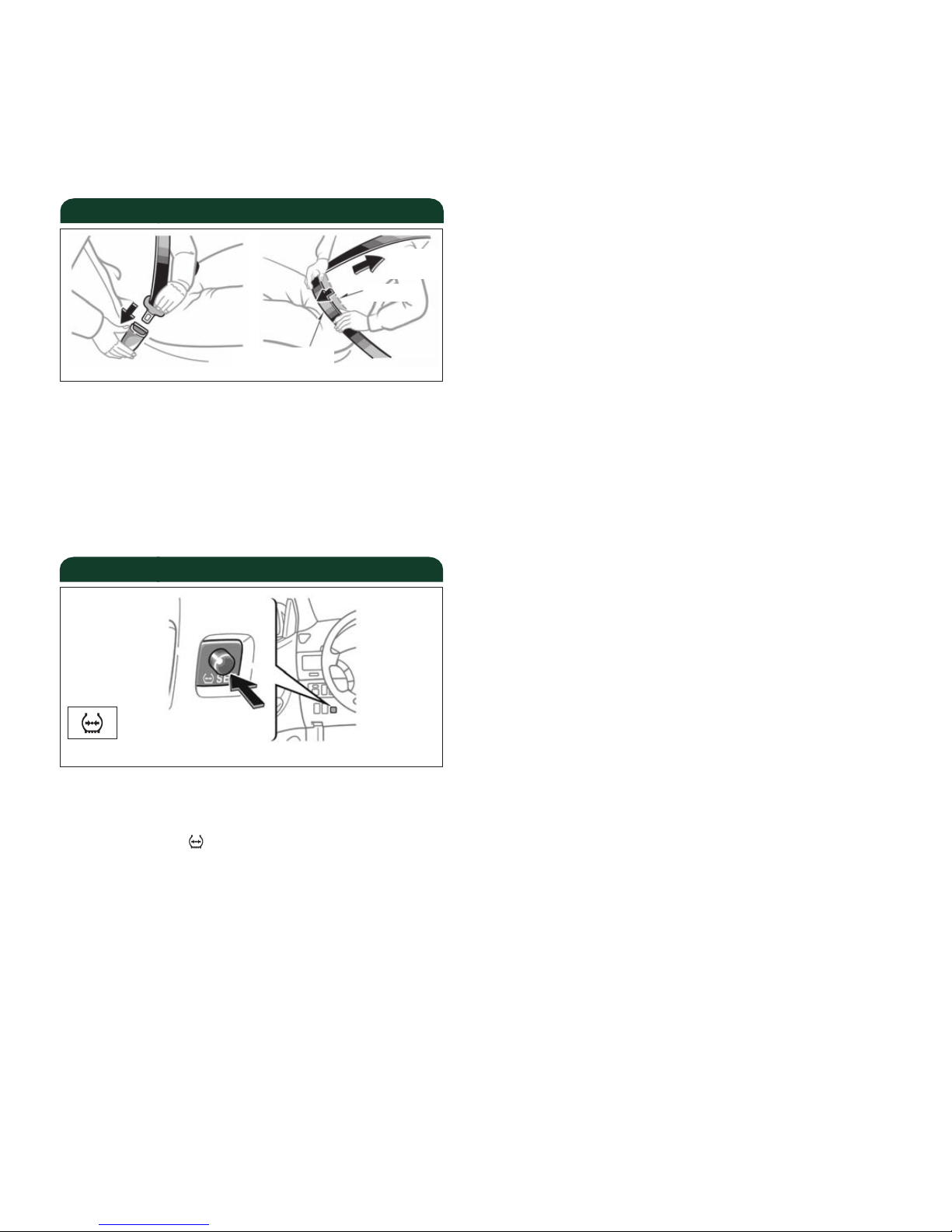

Seat belt comfort guide

28
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Tire Pressure Warning System reset
Designed to provide warning when tire pressure of
any one of the tires is critically reduced while the
vehicle is moving. It must be re-initialized by pushing
and holding the “ SET” button if indicator light
blinks twice every second, and/or after replacing or
rotating tires or wheels.
SAFETY AND EMERGENCY FEATURES
Indicator light
