2004 SOLARA from Feb. ’04 Prod. (OM33640U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

’04 Solara_U (L/O 0402)
2
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

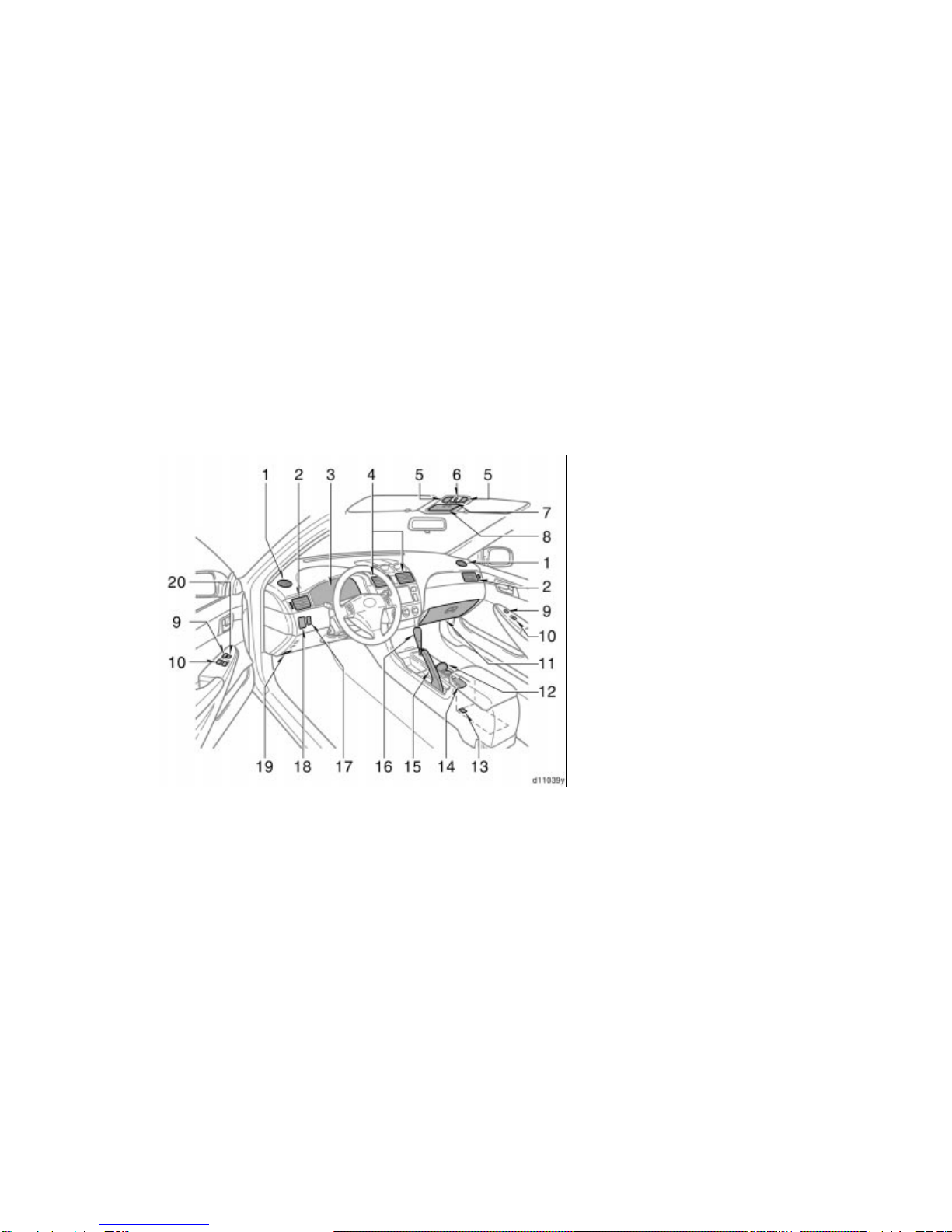

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary box
9. Power door lock switches
10. Power window switches
11. Glove box
12. Portable ashtray
13. Power outlet
14. Cup holder
15. Parking brake lever
16. Automatic transmission selector lever
or manual transmission gear shift lever
17. Theft deterrent system/engine
immobilizer system indicator light
18. Power rear view mirror control switches
19. Hood lock release lever
20. Window lock switch
Instrument panel overview
Coupe

’04 Solara_U (L/O 0402)
3
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

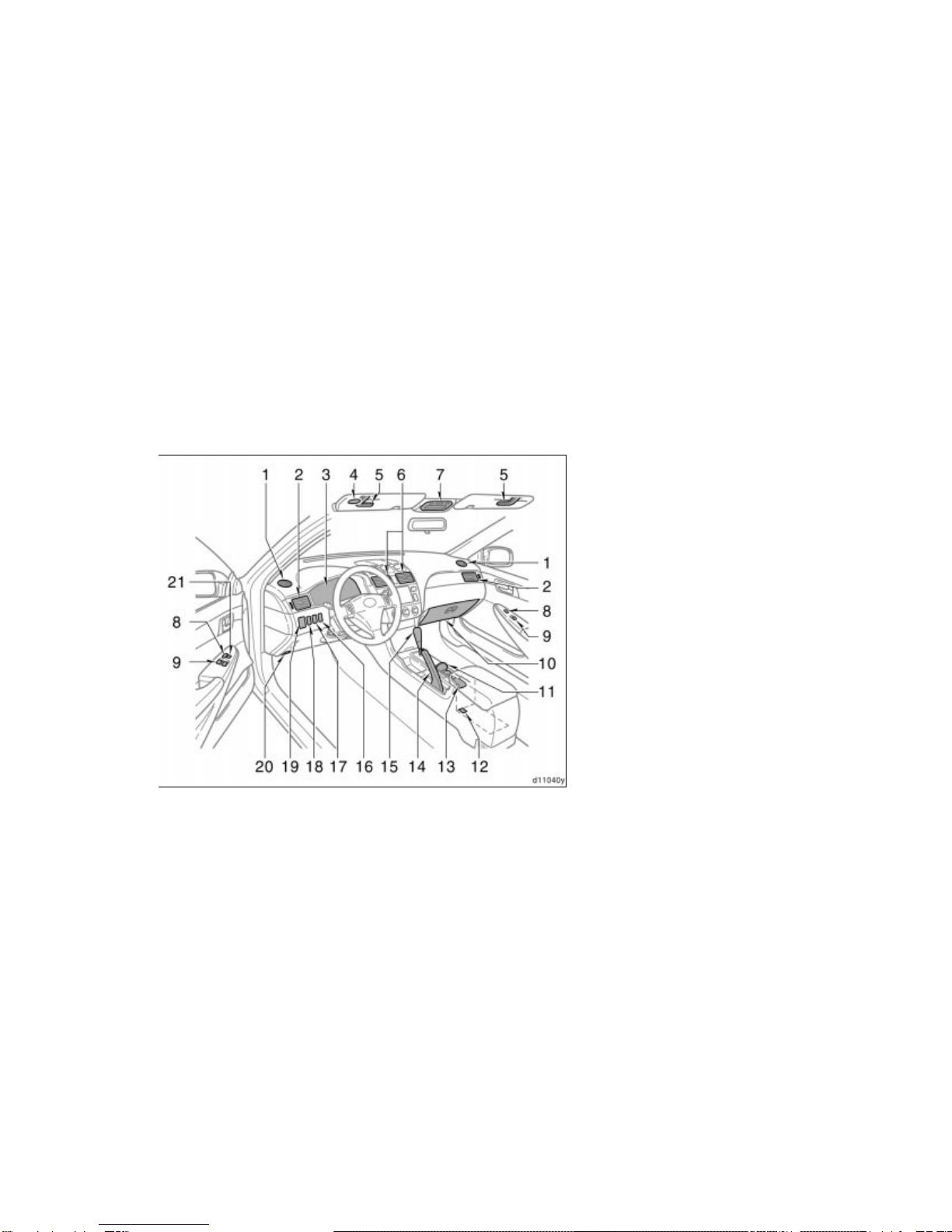

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Garage door opener
5. Convertible top latch handles
6. Center vents
7. Personal lights
8. Power door lock switches
9. Power window switches
10. Glove box
11. Portable ashtray
12. Power outlet
13. Cup holder
14. Parking brake lever
15. Automatic transmission selector lever
16. Theft deterrent system/engine
immobilizer system indicator light
17. All window control switch
18. Convertible top control switch
19. Power rear view mirror control switches
20. Hood lock release lever
21. Window lock switch
Convertible

’04 Solara_U (L/O 0402)
4
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
1. Headlight, turn signal and front fog
light switches
2. Audio remote control switches
3. Multi-information display control switch
4. Wiper and washer switches
5. Multi-information displays
6. Front passenger’s occupant
classification indicator light/front
passenger seat belt reminder light
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Rear window defogger switch
11. Auxiliary box
12. Power outlet
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Telescopic steering lock release lever
17. Tire pressure warning system reset
switch
18. “TRAC OFF” (traction control system
off) switch
With manual air conditioning controls

’04 Solara_U (L/O 0402)
5
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
1. Headlight, turn signal and front fog
light switches
2. Audio remote control switches
3. Multi-information display control switch
4. Wiper and washer switches
5. Multi-information displays
6. Front passenger’s occupant
classification indicator light/front
passenger seat belt reminder light
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Rear window and outside rear view
mirror defogger switch
11. Auxiliary box
12. Power outlet
13. Seat heater switches
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Telescopic steering lock release lever
18. Tire pressure warning system reset
switch
19. “TRAC OFF” (traction control system
off) switch
With automatic air conditioning controls

’04 Solara_U (L/O 0402)
6
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

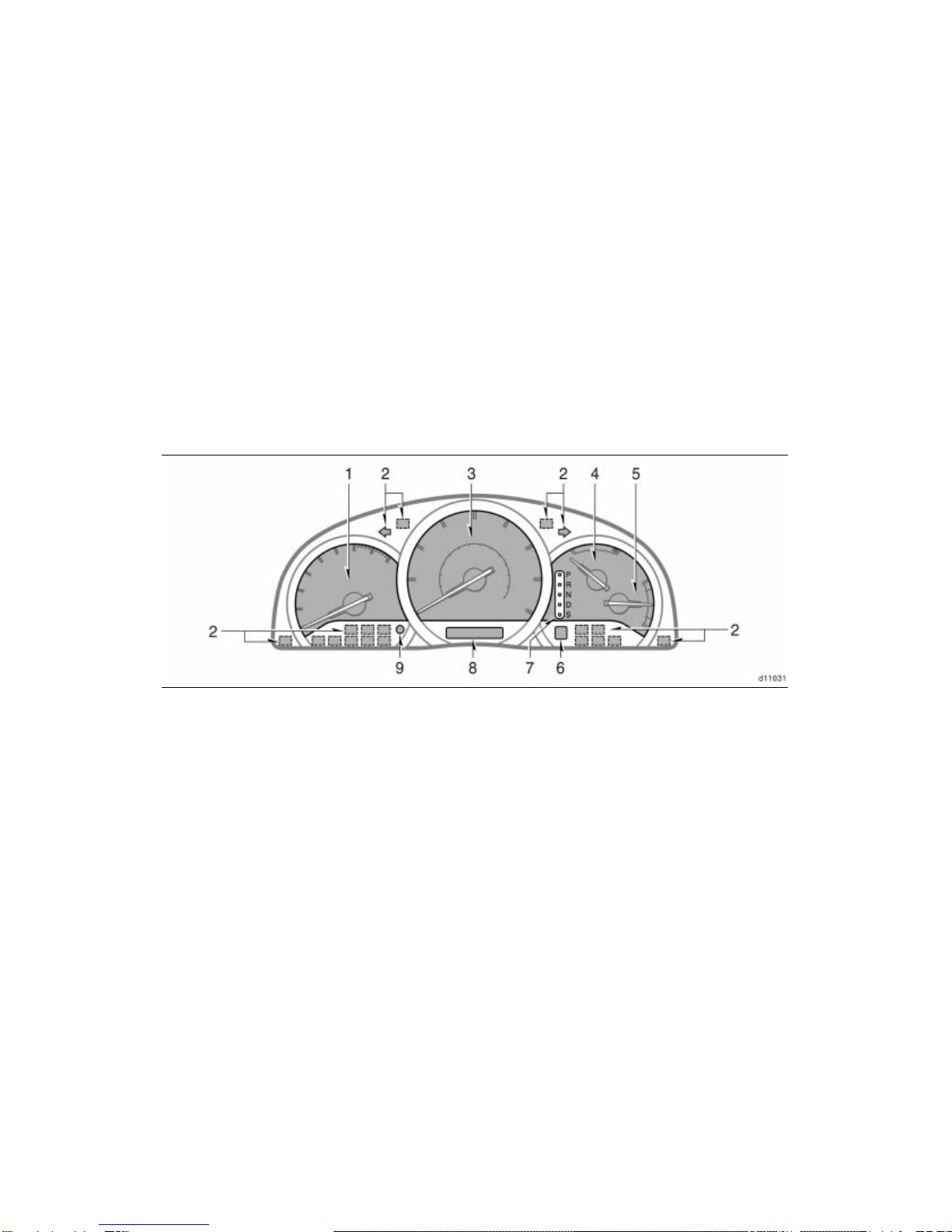

1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Automatic transmission shift position
indicator lights
7. Odometer and two trip meters
8. Trip meter reset knob/instrument panel
light control knob
Instrument cluster overview
2AZ- FE engine

’04 Solara_U (L/O 0402)
7
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Automatic transmission shift range
position display
7. Automatic transmission shift position
indicator lights
8. Odometer and two trip meters
9. Trip meter reset knob/instrument panel
light control knob
3MZ- FE engine

’04 Solara_U (L/O 0402)
8
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

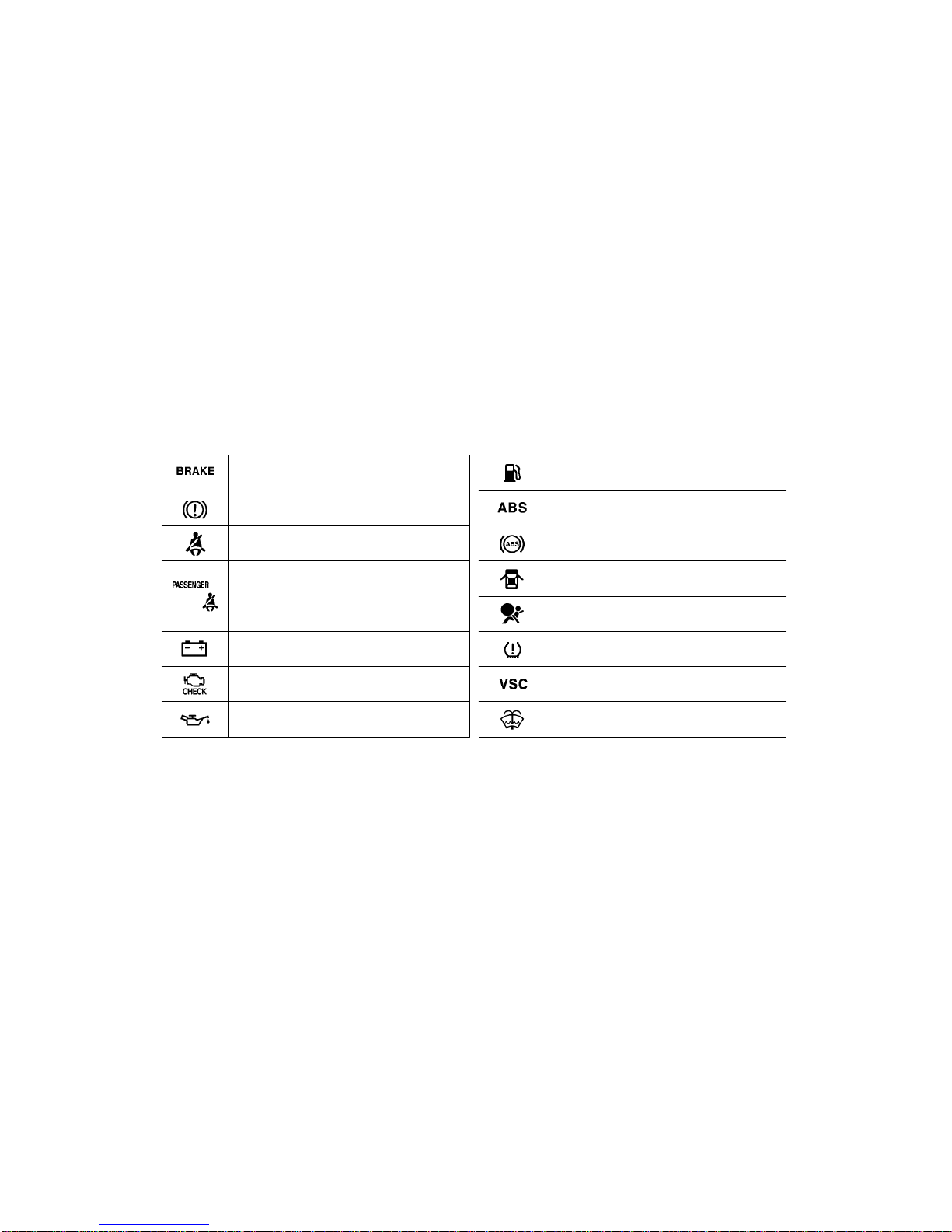

Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti- lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
or
or
Front passenger’s seat belt reminder light∗1
Low fuel level warning light∗1
Vehicle stability control system/traction control
system warning light∗1
Low tire pressure warning light∗1
Indicator symbols on the instrument panel

’04 Solara_U (L/O 0402)
9
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 129 in Section 1- 6.
∗2: If this light flashes, see “Cruise control” on page 155 in Sec-
tion 1- 7.
Cruise control indicator light∗2
Traction control system off indicator light
Turn signal indicator lights
Headlight high beam indicator light
Front passenger occupant classification indicator
light
Engine oil replacement reminder light∗1

’04 Solara_U (L/O 0402)
10
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

’04 Solara_U (L/O 0402)
11
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convertible top 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

’04 Solara_U (L/O 0402)
12
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—
These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built- in trans-
ponder chip.
Since the doors can be locked without
a key, you should always carry a spare
master key in case you accidentally
lock your keys inside the vehicle.
2. Sub key (gray)—
This key will not work in the trunk lid
lock release lever and glove box.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys

’04 Solara_U (L/O 0402)
13
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.

’04 Solara_U (L/O 0402)
14
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 29 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
Engine immobilizer system

’04 Solara_U (L/O 0402)
15
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
1. Lock switch
2. Unlock switch
3. Alarm switch
4. Trunk lid open switch
The wireless remote control system is
designed to lock or unlock both doors,
open the trunk lid or activate the alarm
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
Wireless remote control

’04 Solara_U (L/O 0402)
16
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 18.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 275 in
Section 4.)
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation. Locking operation
Unlocking operation
—Locking and unlocking
doors

’04 Solara_U (L/O 0402)
17
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
To lock and unlock both doors, push
the switches of the transmitter slowly
and securely.

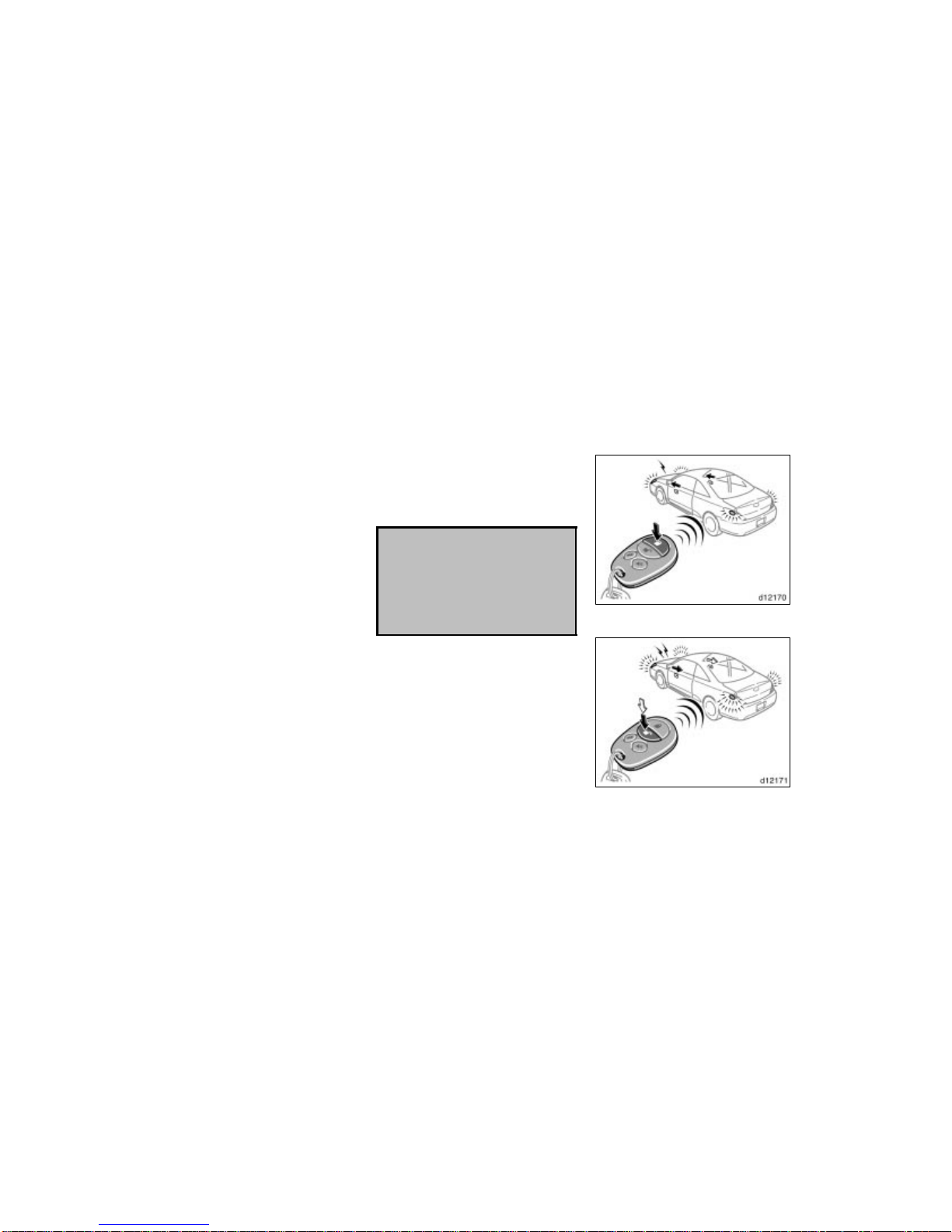

To lock: Push the “ ” (lock) switch. Both
doors are locked simultaneously. At this
time one beep will be heard, and the turn
signal lights will flash once.
Check to see that the doors are securely
locked.
If either door is not securely closed, lock-
ing cannot be performed by the “ ”
switch and a beep will sound continuously
for 10 seconds. However, if the key is in
the ignition, a beep will not sound.
To stop the beep, close both doors se-
curely or push the “ ” (unlock) switch.
To unlock: Push the “ ” switch once to
unlock the driver’s door alone. Pushing
the switch twice within 3 seconds unlocks
passenger’s door simultaneously. Each
time the “ ” switch is pushed, two
beeps will be heard, and the turn signal
lights will flash twice.
Coupe—When unlocking a door when both
doors are locked, the interior light and
ignition switch light come on. The lights
remain on for about 15 seconds unless
either door is opened and closed. (For
further information, see “Interior light” on
page 120 and “Ignition switch light and
quarter trim courtesy light” on page 120
in Section 1-5.)
Convertible—When unlocking a door when
both doors are locked, the ignition switch
light, quarter trim courtesy light and per-
sonal lights come on. The lights remain
on for about 15 seconds unless either
door is opened and closed. (For further
information, see “Ignition switch light and
quarter trim courtesy light” on page 120
and “Personal lights” on page 121 in Sec-
tion 1- 5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both
doors will be automatically locked again
and one beep will be heard.
If the “ ” or “ ” switch is kept pushed
in, the locking or unlocking operation is
not repeated. Release the switch and then
push again.

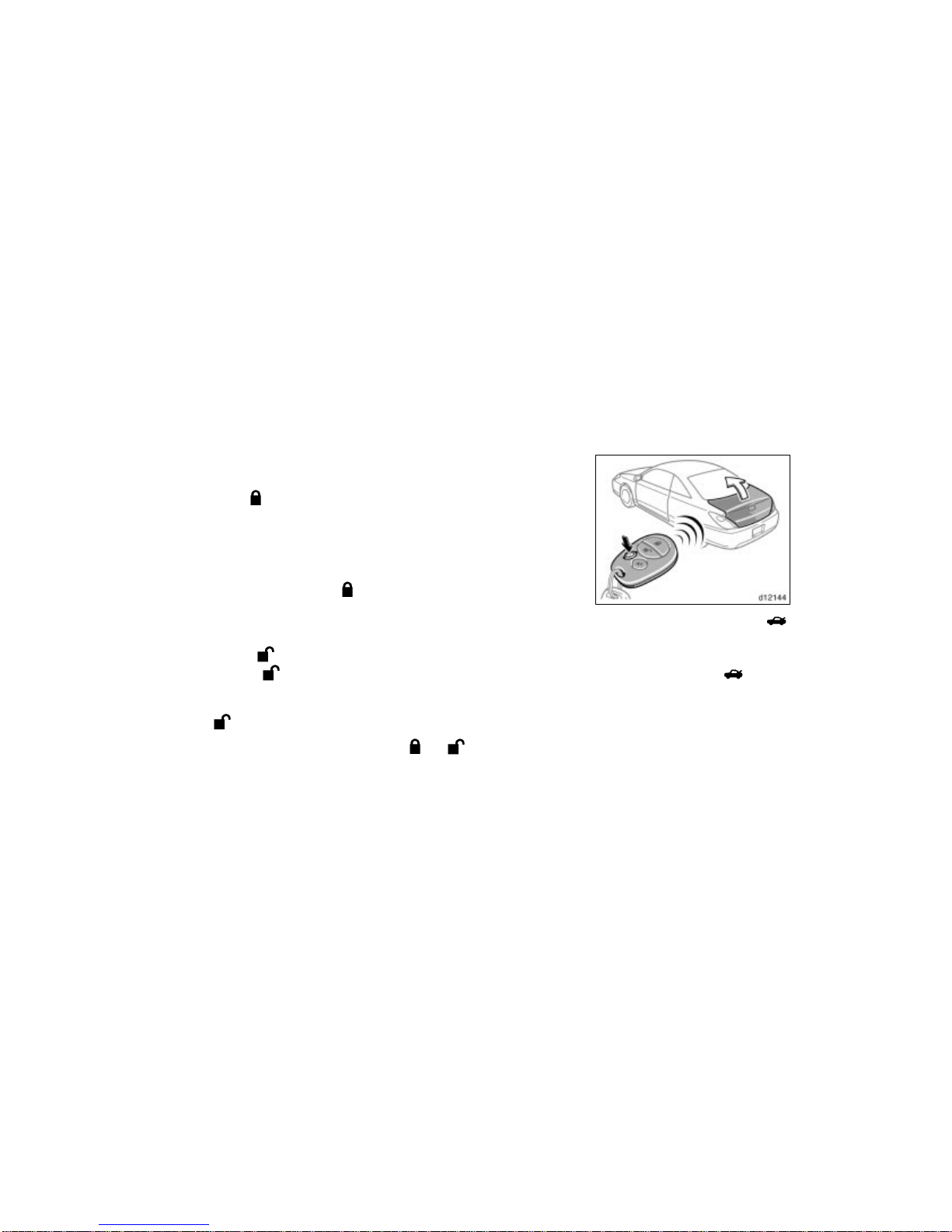

To open the trunk lid, push the “ ”
(trunk lid open) switch of the transmit-
ter for 1 second.
If the key is in the ignition, the trunk lid
cannot be opened by the “ ” switch.
—Opening trunk lid

’04 Solara_U (L/O 0402)
18
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

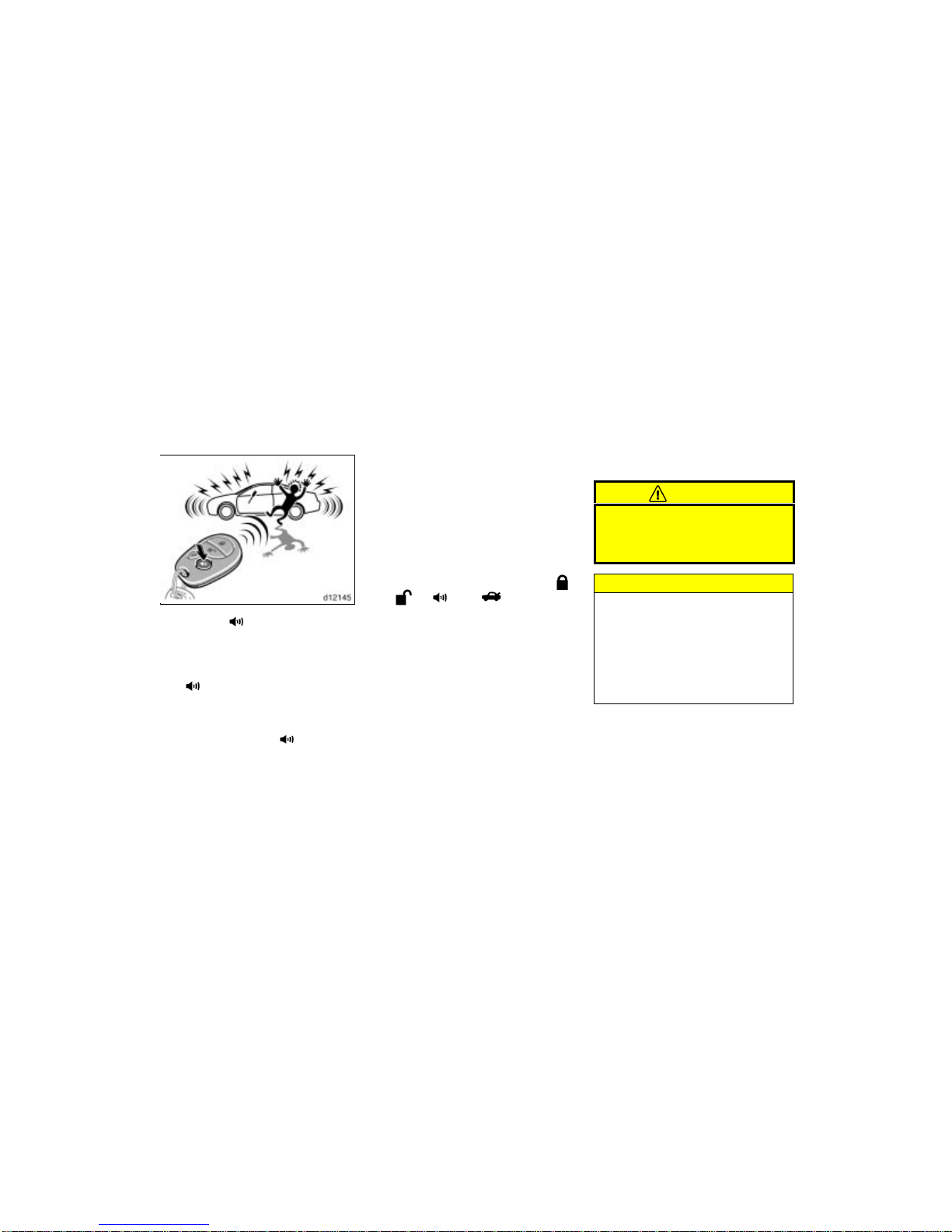

Pushing the “ ” (alarm) switch blows
the horn intermittently and flashes the
headlights, tail lights, turn signal lights,
and interior light (coupe) or personal
lights (convertible).
The “ ” switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “ ” switch once
again, unlock a door with transmitter, or
turn the ignition key from the “LOCK” to
“ON” position.
The alarm does not work when the ignition
key is in the “ON” position.
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition
key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “ ”,
“”, “ ” or “ ” switch twice
within 10 seconds. Two beep sounds
inform you that the program has been
switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
—Activating alarm —Switching beep sound —Replacing battery

’04 Solara_U (L/O 0402)
19
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
1. Using a coin or equivalent, open the
transmitter case. 2. Remove the circuit board, then remove the discharged transmitter battery.
NOTICE
 Take care not to damage the circuit
board.
 Do not bend the terminals.
3. Put in a new transmitter battery with
positive (+) side up. Install the circuit
board into the transmitter case.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.

’04 Solara_U (L/O 0402)
20
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer. LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Passenger’s door locks simultaneously
with the driver’s door. Turning the key
once will unlock the driver’s door and
twice in succession will unlock passen-
ger’s door.
Coupe—When unlocking a door when both
doors are locked, the interior light and
ignition switch light will come on and re-
main on for about 15 seconds before fad-
ing out. (For further information, see “Inte-
rior light” on page 120 and “Ignition switch
light and quarter trim courtesy light” on
page 120 in Section 1- 5.)
Convertible—When unlocking a door when
both doors are locked, the ignition switch
light, quarter trim courtesy light and per-
sonal lights will come on and remain on
for about 15 seconds before fading out.
(For further information, see “Ignition
switch light and quarter trim courtesy
light” on page 120 and “Personal lights”
on page 121 in Section 1- 5.)
Side doors—
