Thank you for choosing a “TOYOTOMI” product!
Toyotomi products are used by satisfied customers worldwide. In order to
assure the comfortable and safe use of our products by customers in each
country, our products conform to the safety standards not only in Japan but
also in every country around the world we do business with.
Toyotomi tailors its products to satisfy its customer’s needs by always
pursuing our business philosophy, “sharing joys in daily living”. We will
continue to research, develop and manufacture products that match people’s
lifestyle for efficiency, safety and comfort.
We hope that you’ll enjoy your Toyotomi appliance for years to come!
We invite you to read this instruction manual first, to ensure the maximum
lifetime for this appliance.
Get to know us better… visit us at www.toyotomi.eu for our full line of
products.
1 Read the diRections foR Use fiRst.
2 in case of anY doUbt, contact YoUR dealeR.
3 PoUR liRe, déPliez la deRnièRe Page. e e e e e e e e e e e e e 3 befoRe YoU staRt Reading, consUlt the Main coMPonents list on the last Page.
4
2

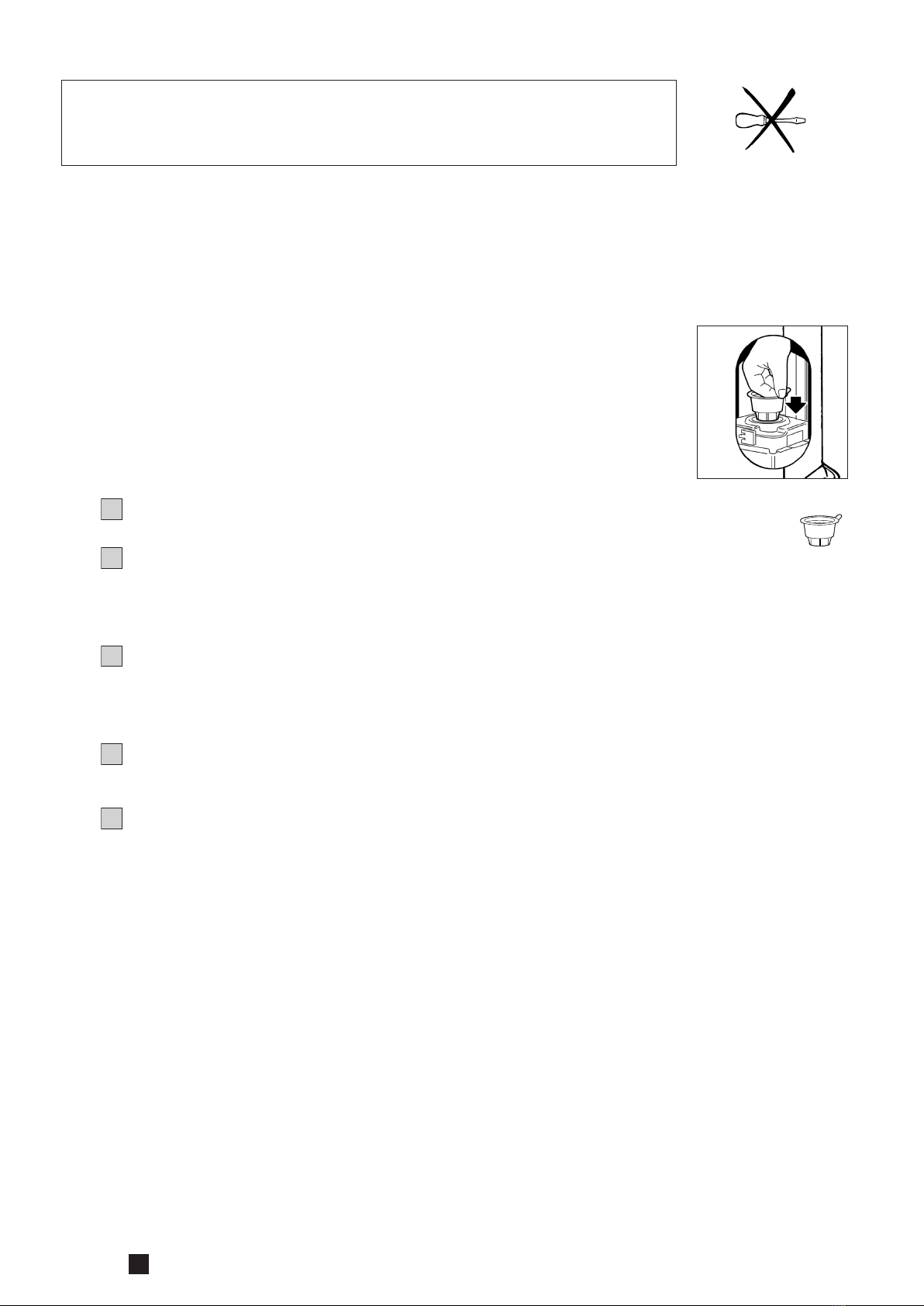

GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for using your
heater. For more details, please refer to the MANUAL.
• As a fire precaution, the tank must be filled either when the heater has
been switched off or in another room than the room where the heater is
installed.
• Always ensure that the tank is closed properly after filling it at a safe
distance from all sources of heat and open flames (see chapter B).
• The first time the heater is ignited it will smell like “new” for a short time.
• Store all fuel containers with their original caps and seals in a cool and
dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• Only use high quality and water-free pure paraffin in accordance with
local legislation.
• Before changing brands and/or types of fuel make sure that the mobile
heater first completely empties all of the remaining fuel inside the heater.
Remove all packaging materials (refer to Section A, Fig. A).
Fill the removable tank 6 (refer to Section B, Fig. C).
Insert the plug into the wall-socket.
Ignite the heater using the key L(refer to Section D).
If required, change the temperature using the adjustment keys
(refer to Section E).
Switch off the heater by pressing the key L.
1
2
3
4
5
6
1 Read the diRections foR Use fiRst.
2 in case of anY doUbt, contact YoUR dealeR.
3 PoUR liRe, déPliez la deRnièRe Page. e e e e e e e e e e e e e 3 befoRe YoU staRt Reading, consUlt the Main coMPonents list on the last Page.
4
3

This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!
WHAT YOU NEED TO KNOW IN ADVANCE
VENTILATE SUFFICIENTLY
Read this user manual carefully before using the appliance and keep it for future
reference. Install this device only when it complies with local/national legislation,
ordinances and standards. This product is intended to be used as a heater
in residential houses and is only suitable for use in dry locations, in normal
household conditions, indoors in living room, kitchen and garage.
This heater is equipped with an air quality control system Q. When there is
insufficient ventilation in the room or when the heater is being used in a room
which is too small, the heater will shut off automatically. For comfortable and
safe heating ensure that there is sufficient ventilation.
Note: To avoid unexpected shut off, we recommend to put a door or window ajar
when the heater is operating.
Regardless of the model, you must always make sure that the heater is used
in a room large enough to enable the heater to be used safely without extra
ventilation. If the room is smaller than required, you must always open a door or
window slightly (ensuring an opening of approx. 2.5 cm). It is important that every
room where the heater is used has sufficient air intake and efficient air outflow
(both openings must have a minimum cross section of 50 cm2). No modifications
to the safety system are allowed, as that will invalidate the guarantee that the air
probe will work properly. Consult your dealer in case of doubt.
Especially for France: Your heater was designed to operate exclusively on fuel for
liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002
and 25-06-2010. The use of other fuels is forbidden.
Ask your dealer or check our website for the addresses of our retailers.
The liquid fuel-operated mobile heater is intended as an extra heater, and not as a
continuous source of heat.
Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with
BS2869; Part 2, or equivalent.
The user must comply with the following instructions for proper use:
DO NOT
- use petrol.
- use the liquid fuel-operated mobile heater in caravans, boats, and vehicle
cabins;
- use the liquid fuel-operated mobile heater in insufficiently ventilated rooms
(consult the table of properties for the minimum dimensions of the room to be
heated), underground rooms and / or at a height of over 1300 metres;
- modify the heater safety features.
The use of this type of heating in public rooms is subject to prior regulatory
permission. Obtain proper information on this in advance.
THE RIGHT FUEL
Your heater has been designed for use with high-quality water-free pure paraffin
oil. Only fuels of this kind will ensure clean and proper burning. Lower quality
fuel may result in:
increased possibility of malfunctioning
incomplete combustion
reduced heater lifetime
smoke and/or fumes
deposits on the grid or mantle
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Damage and/or malfunctions of the heater due to the use of other than high-
quality water-free pure paraffin oil is not covered by the warranty.
Always refer to your local dealer for the right fuel for your heater.
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of
your heater.
4
4

MANUAL
A INSTALLING THE HEATER
1Carefully remove your heater from the box and check the contents.
In addition to the heater you also need to have:
a manual fuel pump
a transportation cap
these directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or
transportation.
2Open the lid of the removable tank Dand remove the piece of cardboard.
3Fill the removable tank as indicated in Section B.
4The floor should be firm and completely level. Reposition the heater, when it
is not level. Do not try to correct the situation by placing books or other
goods under the heater.
5Insert the plug J into the wall-socket (230 Volts - AC / 50 Hz) and set the
correct time using the adjustment keys N (refer to Section C).
6Your heater is now ready for use.
BFILLING FUEL
Fill the removable tank in a suitable place since there can always be some
spillage. Follow the procedure below:
1Make sure that the heater is switched off.
2Open the upper lid and lift the removable tank out of the heater (Fig. B).
Note: Some drops may leak from the tank. Put down the removable tank
(cap pointing upwards, handle on floor) (Fig. C) and screw off the fuel cap.
3 Fill the removable tank using a fuel pump (refer to fuel pump operation
instructions.) Make sure that it is in a higher position than the removable tank
(Fig. C). Insert the ribbed hose into the opening of the removable tank.
4Check the removable tank fuel gauge while filling the tank (Fig. D). Stop
filling once the gauge indicates that the tank is full. Never overfill the tank,
especially not when the fuel is very cold (fuel expands when it heats up).
5Let the remaining fuel in the pump flow back into the jerrycan and carefully
remove the pump. Carefully screw the fuel cap back on the tank. Clean off
any spilled fuel.
C
D
empty full
A
B
4
5

F: The required tempe-
rature on the left, the
measured temperature
on the right.
E: When the 4-digit
stops blinking, the set-
ting has been locked to
the indicated value.
!
6Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.
CSETTING THE CLOCK
It is only possible to set the correct time, when the heater is connected to the
mains and not burning. Use the adjustment keys N to set the time. First press
either of the two keys to switch on the function (the 4-digit K will start blinking).
Next, set the hours using the key on the left (Nhour) and the minutes using the
key on the right (Mmin.). Press once to increase the value by one step. When you
hold down the key, the value will continue going up, until you release the key
again. After approximately 10 seconds the 4-digit will stop blinking and the set-
ting will be locked. 5 minutes after switching off the heater, the information on
the display will disappear and the heater will automatically switch into the stand-
by position.
When the heater has been unplugged (or after a power failure), the time needs
to be set again.
DIGNITING THE HEATER
When used for the first time, a new heater may give out a smell for a short while.
You should therefore provide extra ventilation.
Always ignite the heater with the
button L
. Never use matches or a
cigarette lighter.

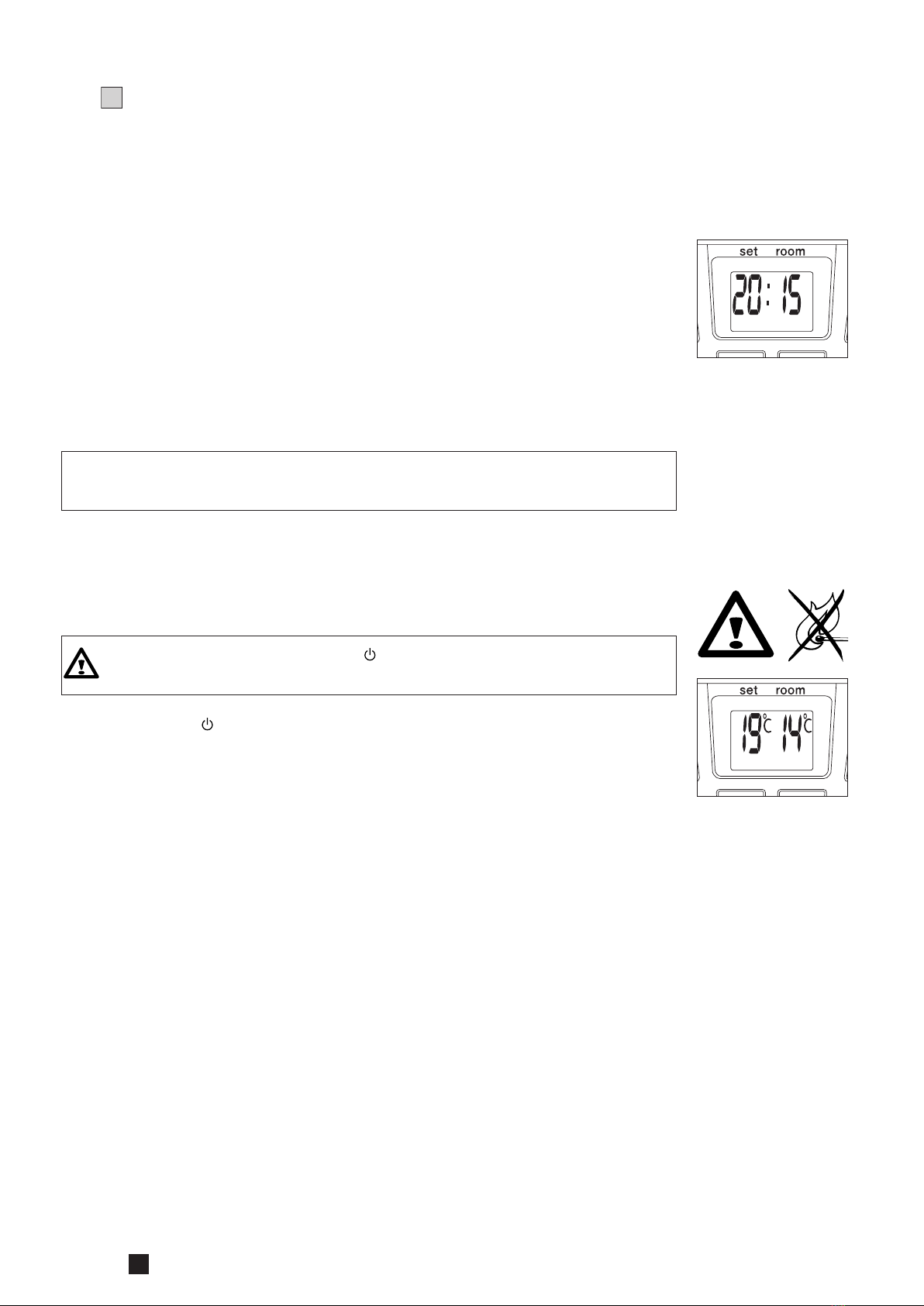

Just press the button L to ignite the heater. The POWER lamp will start blinking,
indicating that the ignition procedure has started. This will take a short while.
Once the heater is burning, the POWER lamp will remain lit (red). The information
display Kwill show two numbers. The light next to them indicates that these
numbers refer to the temperatures (Fig. F). The actual room temperature is
indicated below ROOM, while the temperature setting is indicated below SET. The
latter can be changed with the adjustment keys (refer to Section E).
Prior to igniting the heater, always check for sufficient fuel in the removable tank.
ESETTING THE REQUIRED TEMPERATURE
The temperature setting can only be adjusted, when the heater is burning. Use
the adjustment keys N to adjust the temperature. First press either of the two
keys to switch on the function (the °C mark will start blinking). Next, adjust the
temperature using the key on the right (Mmin.) to set the temperature to a higher
setting and the key on the left (Nhour) to lower the temperature. Press once to
increase the value one step. After approximately 10 seconds the °C mark will stop
blinking and the setting will be locked (Fig. F).
The available temperature settings range from 6°C minimum to 28°C maximum.
When the heater has been unplugged (or after a power failure), the temperature
will reset to the factory setting of 20°C.
4
6

G: The TIMER indicator
light indicates that the
timer function has been
switched on.
In case of any
malfunctioning the
information display will
tell you what is the
matter.
FUSING THE TIMER
The timer allows you to switch on the heater automatically at a preset time.
In order to switch on the timer, the correct time must have been set (refer to
Section C) and the heater should be off. Follow the procedure below:
1Press the
button L and then the TIMER key Oimmediately after that.
The TIMER lamp and the 4-digit Kwill start blinking.
2Use the adjustment keys Nto set the time at which the heater must ignite.
Use the key on the left (Nhour) to set the hours and the key on the right
(Mmin.) to set the minutes (interval of 5 minutes).
3After approximately 10 seconds the 4-digit will show CLOCK again and the
TIMER lamp will light up, indicating that the timer function has been
activated (Fig. G).
4The timer will ensure that the room will have been heated to approximately
the required temperature at the set time.
When you want to switch off the heater and ignite it again with the timer, all
you have to do is press the TIMER key (refer to Section G).
Press the button Lonce to clear the timer setting.
GSWITCHING OFF THE HEATER
There are two ways to switch off the heater.
1Press the button L. The information display will show the CLOCK
signal. Within approximately one minute the flame will have extinguished.
2Press the TIMER key O, when you want to switch off the heater and ignite it
again with the timer the next time. This not only switches off the heater, but
it also activates the timer function. You can change the required time with
the adjustment keys N(refer to Section F).
H THE INFORMATION DISPLAY
The information display Knot only serves as an indicator of the (set) time and
temperature (sections C, E, and F), it also indicates any malfunctioning of the
heater. The code on the information display tells you what is the matter:
CODE INFORMATION WHAT TO DO
e - 0 Temperature within the heater too high. Cool-down and re-ignite.
f - 0 Power interrupted. Re-ignite the heater.
e - 1 Faulty thermostat. Contact your dealer.
f - 1 Faulty burner thermistor. Contact your dealer.
e - 2 Starting problems. Contact your dealer.
!
4
7

e - 5 Tipping-over protection. Re-ignite the heater.
e - 6 Poor burning. Contact your dealer.
e - 7 Room temperature If necessary,
above 32°C. re-ignite the heater.
e - 8 Defective booster. Contact your dealer.
e - 9 Air filter dirty; or Clean filter.
Fuel pump dirty. Contact your dealer.
The heater has been in operation
continuously for a period of 65 hours
and has turned itself off automatically. Switch the heater back on.
-- : --
+
Out of fuel. Refill removable tank.
-- : --
+
Too little ventilation. Ventilate better.
e - 1 1
+
Too little ventilation. Ventilate better.
Always contact your dealer for any malfunctioning not listed above and/or when
the error keeps occuring after taking the corrective measure as described above.
AUTOMATIC DEACTIVATION
This heater is fitted with a safety system that ensures that it switches off
automatically after 65 hours continuous operation. The following will then appear
in the display: . If desired, you can switch the heater on again by pressing
the button
L
(see section D).
AUTOMATIC CLEANING MODE
When the heater has been burning continuously for two hours at its highest
setting, the burner will automatically start an autoclean procedure. The display
will show the autocleaningcode cl:05 running back to cl:01. The procedure takes 5
minutes, during which the heater will burn at its lowest setting, while the burner
autocleans. When the burner is clean again, the heater will automatically switch
back to the highest setting again.
I CHILDPROOF LOCK / PARENTEL CONTROL
The childproof lock can be used to prevent children accidentally changing the
heater settings. When the heater is burning and the childproof lock is on, the heater
can only be switched off. Other functions are blocked then. If the heater has already
been switched off, the childproof lock also prevents accidental ignition of the
heater.
Activate the childproof lock by pressing the appropriate key Mand holding
it down for more than 3 seconds. The KEY-LOCK indicator
will appear on the
information display (Fig. H), indicating that the childproof lock has been activated.
Switch off the childproof lock by pressing the key Mand holding it down for more
than 3 seconds once again.
J THE CORRECT USE OF ‘SAVE’
The ‘SAVE’ function allows you to limit the temperature. When this function is
activated, the heater will automatically switch off, when the room temperature exceeds
the set temperature by 3°C. Subsequently, when the room temperature has dropped
again to the set temperature, the heater will automatically switch on again.
Activate
the ‘SAVE’ setting by pressing the appropriate P key. The SAVE indicator light will
light up (Fig. I). Switch off the function by pressing the SAVE key once again.
H: When the mark
appears, the
childproof lock has been
activated.
I: When the SAVE light
lights up, the heater will
automatically switch on
or off in order to remain
within a specified tem-
perature range.
4
8

Without the ‘SAVE’ setting your heater will maintain the set temperature by
approximation as well, by adjusting its heating capacity. ‘SAVE’ is an economy
setting, which you can use when, for instance, you are not present in the room
or to keep it frost-free.
K THE ‘FUEL’ INDICATOR
When the FUEL indicator appears, it means that there is only fuel left for 10
more minutes. The count-down of the remaining heating time can be seen in the
information display K (Fig. J). Now you have two options:
you remove the fuel tank and refill it outside the living room (section B) or
you push the button extension S. By pushing this button, the remaining
heating time will extend to 60 minutes.
The heater will automatically switch back to its lowest position. In the display
the number 60 will appear, which will decline to 10. At the arrival of 10,
you will hear an alarm signal every two minutes, warning you to refill the
removable tank. If you do not react, the heater will extinguish by itself. The
heater will also sound a warning signal, when it switches off. The fuel
indicator will blink, while four lines (--:--) are blinking in the information
display. You can stop this by pressing the button L once more.
Once the heater has used up all its fuel and extinguished, it will take some time,
after the refill, before the heater is completely ready for use again.
L THE ‘VENT’ INDICATOR
When there is insufficient ventilation in the room, an intermittent buzzer will be heard
(approximately once each 30 seconds) and the VENT indicator will be lit. When this
signal is given, ensure that the ventilation of the room is improved (e.g. by opening a
door or window a little more), to avoid that the heater shuts off. When the ventilation
of the room is improved, the VENT indicator and buzzer will be deactivated. When
there is still insufficient ventilation, the heater shuts off automatically. When this
occurs, e -1 1 is displayed and the VENT indicator is blinking (Fig. K). After improving
the ventilation of the room (e.g. by opening a door or window a little more), the
heater can be ignited by pushing the button Lagain.
MMAINTENANCE
Switch off the heater and let it cool down, before you start any maintenance
work. Also disconnect the plug from the mains. Your heater needs hardly any
maintenance. It is, however, important that you clean the vent filter 8with a
vacuum cleaner and the grid 2 with a damp cloth, both on a weekly basis.
Regularly inspect the fuel filter as well:
1Remove the removable tank 6from the heater and remove the fuel filter
(Fig. L). Some drops may leak from the filter; keep a cloth at hand.
2Remove the dirt by tapping the fuel filter upside-down against a hard surface.
(Never clean it with water!)
3Reinstall the fuel filter into the heater.
We recommend that you remove dust and stains from time to time with a damp
cloth, because otherwise these may cause stains that are hard to remove.
L
Fuel filter

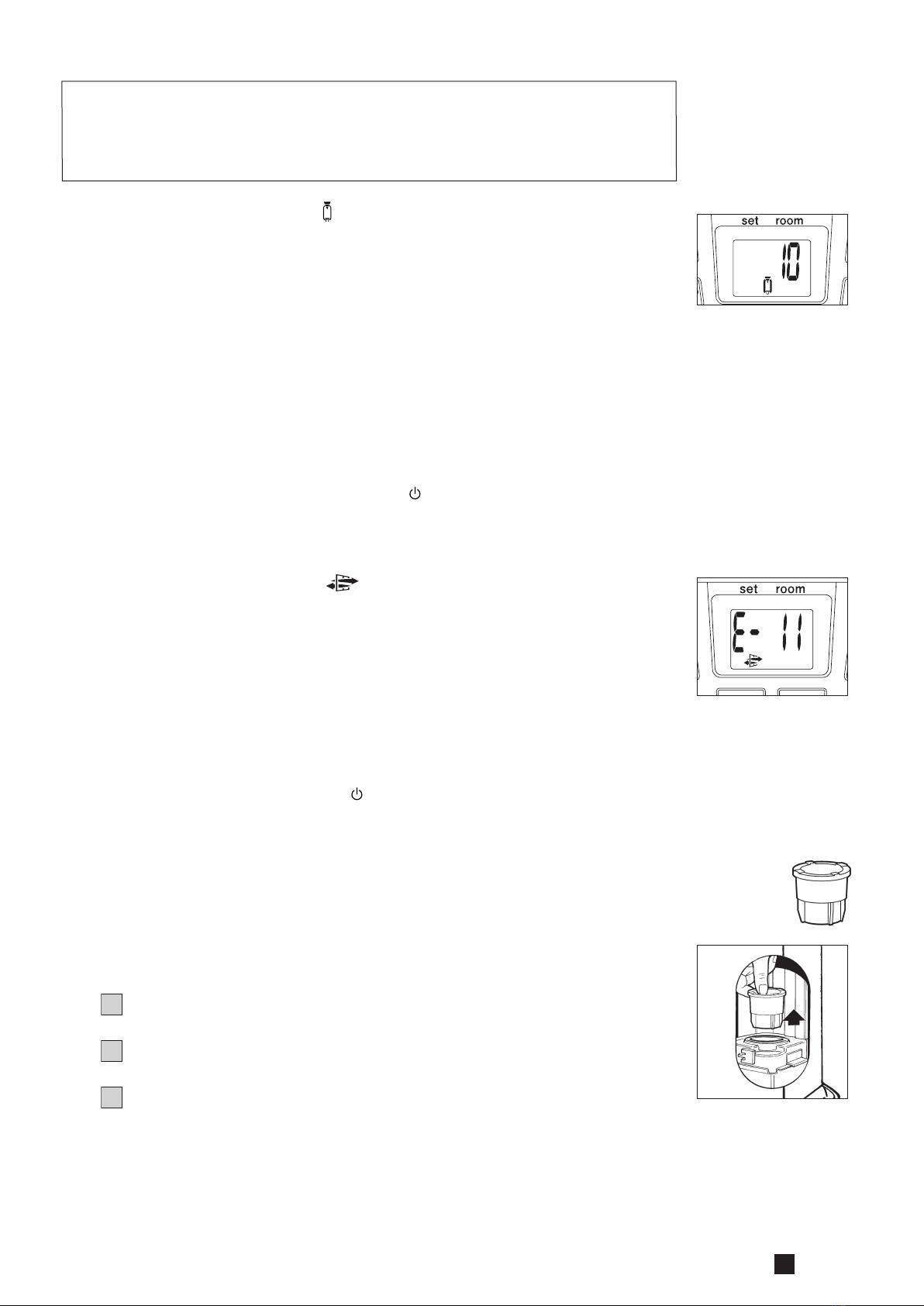

J: When the FUEL
indicator has appeard,
the information display
will show the number of
minutes of fuel left in
the tank.
K: A blinking VENT
indicator is a sign
that you need extra
ventilation.
!
4
9

Do not remove any heater components yourself. Always contact your dealer
for repairs. When the power cord is damaged, it may only be replaced by an
authorised fitter. Use a new cord of the type H05 VV-F.
N STORAGE (END OF THE HEATING SEASON)
At the end of the heating season, you must store the heater in a dust-free place, if
possible in its original packaging. Unused fuel cannot be used in the next heating
season. We therefore recommend that you burn up all fuel. If there is still some
fuel left, do not throw it away, but dispose of it in accordance with the local
regulations for the disposal of domestic chemical waste.
Always start the new heating season with fresh fuel. When you start re-using the
heater follow the instructions again (starting from section A and as specified).
O TRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of
the heater:
1Let the heater cool down.
2Remove the removable tank 6from the heater and remove the fuel filter
(refer to Section M, Fig. L). Some drops may leak from the filter; keep a cloth
at hand. Store the fuel filter and the removable tank outside the heater.
3 Place the transportation cap into the position of the fuel filter (Fig. M).
Press it tight. The transportation cap will, as much as possible, prevent oil
leakage from the heater during transport.
4Always move the heater in an upright position.
5Make the fixed tank empty with a fuel pump before transportation or in case
of wrong or dirty fuel. First remove the fuel filter and then insert the fuel
pump into the empty fixed tank. Follow the same procedure if the fuel tank
contains water.
Transportation
cap
M
!
4
10

P SPECIFICATIONS
Ignition electrical Dimensions (mm) width 376
Fuel paraffin including base plate: depth 296
Capacity (kW) max. 3.10 height 438
Capacity (kW) min. 0.80 Accessories: - manual fuel pump
Suitable space (m3)** 48-120 - transportation cap
Fuel consumption (l/hr)* 0.323 Mains 230 V
-- AC / 50 Hz
Fuel consumption (g/hr)* 258
Electrical consumption
:
Burning time per tank (hr)* 16.7
-
igniter 320 W
Capacity removable tank (litres) 5.4 - continuous 13 W
Weight (kg) 8.0 Fuse rating 250V, 5A
Monitoring of the quality of ventilation (air renewal):
Direct measurement of the CO2 level (NDIR CO2-sensor Q).
* At maximum setting ** Specified values are indicative
Q WARRANTY PROVISIONS
Your heater comes with a 48-month warranty starting on the date of purchase.
Within this period all defects in material or workmanship will be repaired without
any charge. The following provisions shall apply regarding this warranty:
1We expressly dismiss all other claims for damages, including consequential
damages.
2Any repairs or replacements of components within the term of warranty will
not result in an extension of the term of warranty.
3The warranty shall no longer apply, when the heater has been modified,
non-original parts have been used, or when it is repaired by third parties.
4The warranty shall not apply to parts that are subject to normal wear, such as
the burner mat, any kind of gasket and the manual fuel pump.
5The warranty shall only apply, when you present the original, dated proof of
purchase, provided no changes have been made to it.
6The warranty shall not apply to damages caused by actions not in compliance
with the Directions for Use, neglect, and the use of an incorrect type of fuel,
or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7Transportation costs and the risks involved during the transportation of the
heater or heater components shall always be at the expense of the purchaser.
In order to avoid unnecessary costs, we recommend that you always read the
’Directions for Use’ carefully first. In case they offer no solution, please take the
heater to your dealer for repair.
* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this
happen, never try to move the heater, but always switch off the heater immediately. In case of emergency you
may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.
4
11

4
12
Defective electrical devices and batteries must be kept separate from household
waste. Ensure that there is effective recycling where possible. Ask you local council
or dealer for expert advice on recycling.
15 TIPS FOR SAFE USE
1Children should be supervised to ensure that they do not
play with the appliance.
2Do not move the heater when it is burning or still hot. Do
not refill nor service the heater when it is burning or still
hot.
3Position the front of the heater at a distance of minimum
1.5 metres from walls, curtains, furniture, spray can and
gas cylinder. Do not store the fuel tank near the heater.
4Do not use the heater in dustyrooms. You will not have
optimum burning in such rooms. Do not use the heater
in the immediate surrounding of a bath, a shower or a
swimmingpool.
5Switch off the heater, before you leave or go sleeping.
Unplug the heater as well, when you go away for a
longer period of time (e.g. holidays).
6Store and move fuel only in suitable tanks and jerrycans.
7Make sure that the fuel is not exposed to heat or extreme
temperature changes. Always store the fuel in a cool, dry
and dark place (sunlight will affect the quality).
8Never use the heater in places where harmful gasses
or fumes may be present (e.g. exhaust gasses or paint
fumes).
9Beware that the grid of the heater becomes hot. If the
appliance is covered there is a risk of fire.
10 Always make sure that there is sufficient ventilation.
11 This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
12 This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
13 Children shall not play with the appliance.
14 Cleaning and user maintenance shall not be made by
children without supervision.
15 Do not stay near the heater for a long time.

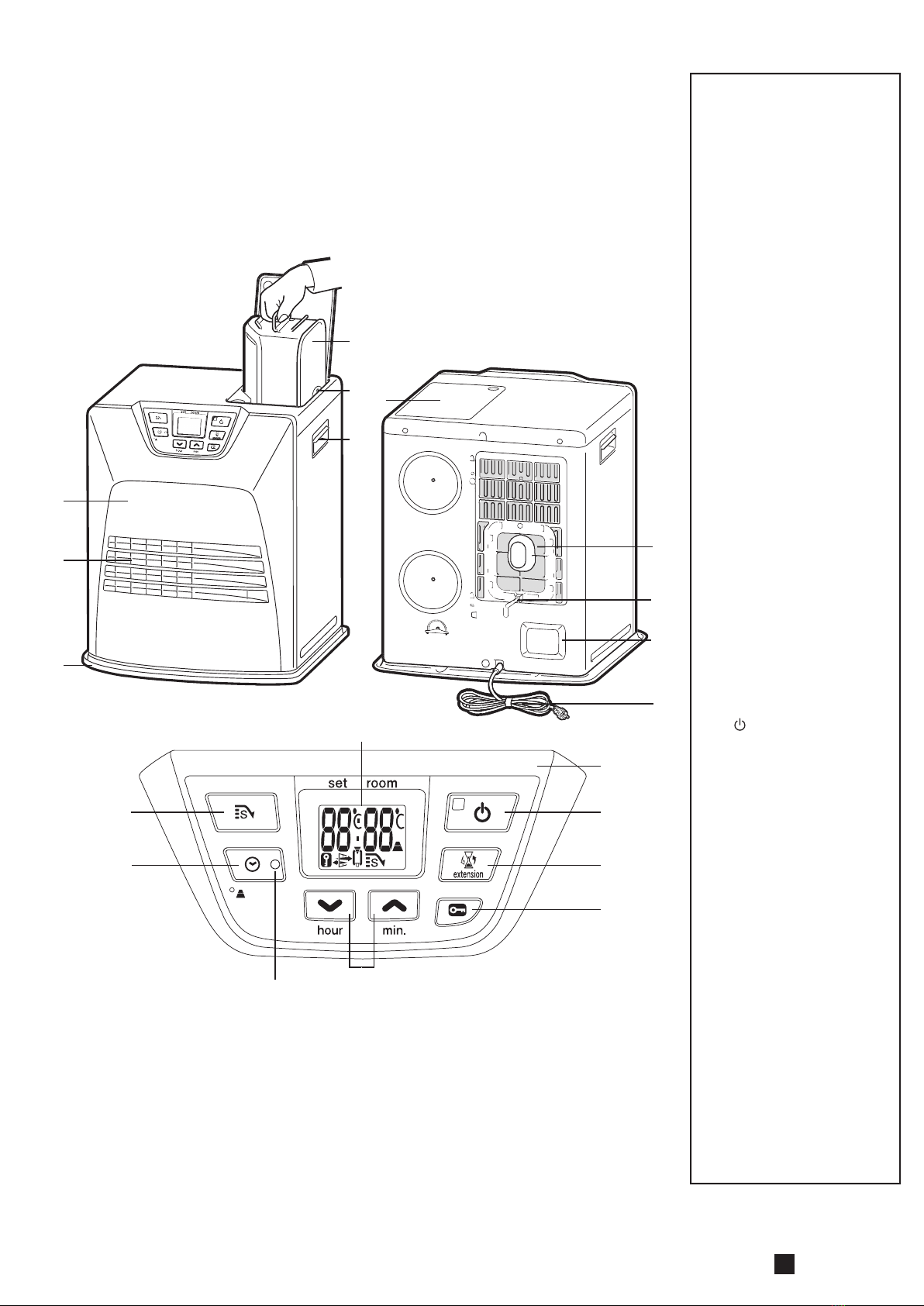

MAIN COMPONENTS
Front plate
Grid
Base plate
Lid for removable
tank
Operation panel
Removable tank
Fuel gauge
removable tank
Vent filter
Thermostat
Plug + cord
Information display
key
Childproof lock
Adjustment keys
(time and
temperature)
Timer
SAVE key
Air quality control
system
Handle
Extension
Timer lamp
J
K
L
M
N
O
P
Q
S
4
13
6
8
J
Q
M
S
L
O
P
N
K

Rev. 06/16 Printed in Japan
8935001921
Guarantee
4
YEARS
Kerosun®, Toyostove®, Toyoset®, Toyotomi®and Zibro®for the use of paraffin heaters are all registered
trademarks of TOYOTOMI Co., Ltd. - Japan.
Zibro®brand paraffin heaters are made in JAPAN and imported by Toyotomi Europe Sales b.v.
Should you require further information or should particular problems occur that are not
dealt with in this operating manual, please visit our website www.toyotomi.eu or contact
our Sales Support (you find its phone number on www.toyotomi.eu)
Falls Sie weitere Informationen wünschen, oder sollten besondere Probleme auftreten,
die in dieser Bedienungsanleitung nicht ausfürhrlich genug behandelt werden, besuchen
Sie bitte unsere Website (www.toyotomi.eu), oder fordern Sie die benötigte Auskunft von
unserem Kundendienst an (Telefonnummer auf www.toyotomi.eu)
Vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un pro-
blem, rendez-vous sur notre site Web (www.toyotomi.eu) ou contactez notre service client
(vous trouverez l’adresse et le numéro de telephone sur www.toyotomi.eu)
Wenst u nadere informatie, of indien er bijzondere problemen optreden die in deze ge-
bruiksaanwijzing niet behandeld zijn, bezoekt u dan onze website www.toyotomi.eu of
vraag de benodigde informatie op bij de afdeling Sales Support (adres en telefoonnummer
op www.toyotomi.eu)
Si necesitara más información o surgiera algún problema concreto que no abarque este
manual operativo, visítenos en www.toyotomi.eu o contacte con nuestro equipo de asisten-
cia postventa (encontrará el número de teléfono en www.toyotomi.eu).
In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non
sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito
www.toyotomi.eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel
nostro sito www.toyotomi.eu)
Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i
brugsanvisningen, bedes du besøge vores webside www.toyotomi.eu eller kontakt afdelin-
gen Sales Support (adresse og telefonnummer på www.toyotomi.eu).
Om du ønsker mer informasjon, eller om et problem har dukket opp som ikke er dekket i
disse instruksjonene, besøk oss gjerne på www.toyotomi.eu eller be om den nødvendige
informasjonen fra avdelingen for brukerstøtte (adresse og telefonnummer kan finnes på
www.toyotomi.eu).
Om du önskar mer information, eller om några problem uppstår som inte har berörts i
dessa instruktioner, besök då vår hemsida www.toyotomi.eu eller begär den nödvändiga
informationen från Säljsupport avdelningen (adress och telefonnummer finns på www.
toyotomi.eu).
Jos haluat lisätietoja tai kohtaat ongelmia, joita ei käsitellä näissä ohjeissa, verkkosivustolla
osoitteessa www.toyotomi.eu tai pyydä tarvittavat tiedot myynnin tukiosastolta (osoite ja
puhelinnumero löytyy sivustolta www.toyotomi.eu).
Distributed in Europe by TOYOTOMI EUROPE SALES B.V.
Other manuals for zibro LC-DX320
1
Table of contents
Popular Swimming Pool Heater manuals by other brands

Hayward
Hayward C-SPA-XI 5.5 Installation, operation & service procedures

Jandy
Jandy Legacy LRZM Installation and operation manual

STA-RITE
STA-RITE 200K BTU/HR owner's manual

Astrapool
Astrapool 71245 User and service manual

Teledyne
Teledyne EHE Installation and operation manual

Plastica
Plastica X-stream Duo instruction manual
