Quick Installation Guide
Package Contents
System Requirement
The following operating systems are supported:
· Windows XP · Windows Vista · Windows 7
· Windows 98 · Windows 2000 · Windows 2003
· Windows Me · Mac · Linux
The following browsers are supported:
· Microsoft Internet Explorer · FireFox
· Safari · Chrome
The product model shown in this QIG is TL-MR3220, as an1. example.
Information for technical support can be found in the last2. page.
Note

2
English
Front Panel●
Rear Panel●
WAN Port
Power WPS/RESET Button
4 LAN Ports
3
ON/OFF Button
Side Panel●
Physical Description
1
USB PortWi-Fi Button

3
English
Item Description
(Power)
On•. The electrical power is on.
Off•. There is no electrical power.
(System)
On•. The Router is initializing.
Flashing•. The Router is working properly.
Off•. The Router has a system error.
(WLAN)
Flashing•. The wireless function is enabled.
Off•. The wireless function is disabled.
(WAN)
(
LAN 1~4 )
On•. A device is linked to the corresponding
port.
Flashing•. There is data beening received or
sent on the corresponding port.
Off•. There is no device linked to the
corresponding port.
(USB)
On•. The USB 3G/4G modem is connected
but no data being transferred.
Flashing•. Data is being received/sent
through the 3G/4G modem.
Off•. T h e U S B 3 G / 4 G m o d e m i s n o t
connected.
(WPS)
Slow Flash•. A wireless device is connecting
to the network. This process will last in the
rst 2 minutes.
On•. A wireless device has been successfully
added to the network.
Quick Flash•. A wireless device failed to be
added to the network.
Off•. WPS function is disabled.

4
English
The router supports both 3G/4G and WAN connection. If both the 3G/4G
USB Modem and WAN port are connected, TL-MR3220 will choose
one of them to access the Internet according to your configuration.
For detailed information, please refer to Step 4 in Part 3 Router
Con guration.
Connect TL-MR3220 to 3G/4G network●
3G/4G
Network
SOCKET
2
TL-MR3220
Notebook
3
1
4
Connect the notebook/PC to the LAN port of TL-MR3220 with an1)
Ethernet cable.
Plug the power adapter into the power jack of TL-MR3220.2)
Insert 3G/4G USB modem into the USB port (Ensure the SIM card is3)
in the modem).
Press the ON/OFF button to power on TL-MR3220.4)
2Hardware Connection

5
English
Connect TL-MR3220 to WAN network●
Power off the ADSL/Cable Modem.1)
Connect the notebook/PC to the LAN port of TL-MR3220 with an2)
Ethernet cable. Connect the ADSL/Cable Modem to the WAN port of
TL-MR3220 with an Ethernet cable.
Plug the power adapter into the power jack of TL-MR3220.3)
Power on the modem and wait until all LEDs fl ash properly. Press 4)
the ON/OFF button to power on TL-MR3220.
We recommend you to use only the Power Adapter1.
provided with the device.
Place the device on the level and stable surface.2.
Unplug the Power Adapter in the thunder storm to avoid3.
damage.
Place the device in a well ventilated place far from any4.
heater or heating vent.
Keep the router far from the water to avoid damage.5.
Warning

6
English
Open web browser, type in1) 192.168.0.1, press Enter, then enter the
User name and Password (admin /admin) and click OK.
The2) Status web page will display after a successful login. Please
check if your 3G/4G USB modem can be recognized or not.
If your 3G/4G USB modem can’t be identied (shown as “Unknown
Modem”), please refer to T4~T6 in Troubleshooting for the solution.
3Router Conguration
Note

7
English
Click3) Quick Setup menu, then click Next to continue.
Select one Internet access mode, and then click4) Next. As follows we
take 3G/4G Only mode as an example.
Select your location and mobile ISP, then click5) Next.

8
English
If you can't nd your location in the pull-down list, please tick Set
the Dial Number, APN, Username and Password manually to
manually set them according to the information your 3G/4G ISP
provided.

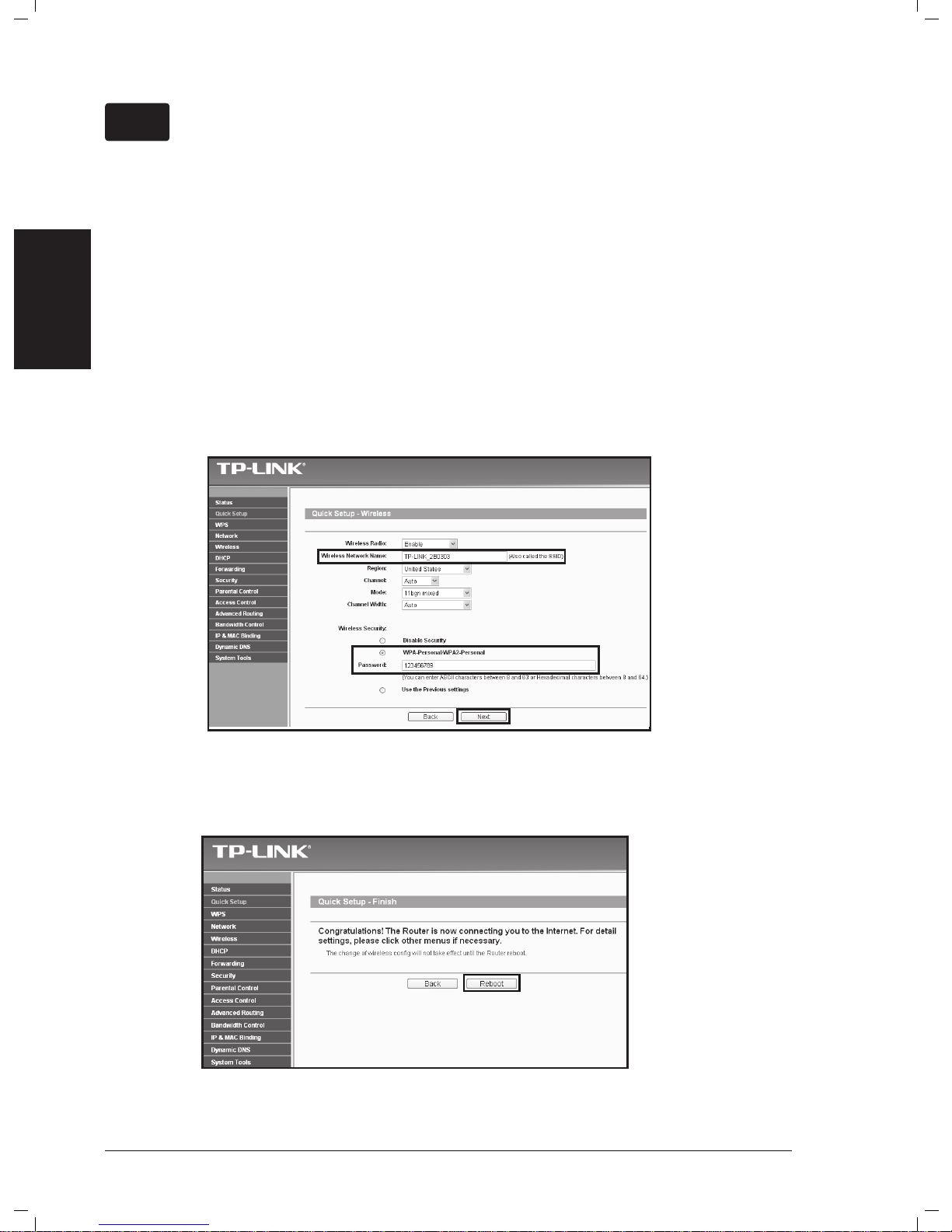

Set your Wireless Parameter, TP-LINK strongly recommends you to6)
edit the following two items, then click Next.
Create a unique and easy-to-remember•Wireless Network Name
(SSID). You can also keep the default settings.
Select the Wireless Security•WPA-Personal/WPA2-Personal, and
enter a Security Key using 8~64 characters (numbers or letters) in
the Password eld.
Click7) Reboot to complete the Quick Setup. Please note that if there
is nothing changed on Wireless page, the Reboot button will be
replaced by Finish.
Congratulations! You can enjoy the 3G/4G surng now.
Note
