TraceTek TT-FFS-EEC User manual

TT-FFS Extreme Environment Cover
Description
TT-FFS-EEC (Extreme Environment Cover) is a kit of parts designed to
provide additional protection for TT-FFS Fast Fuel Sensors when harsh
conditions warrant extra protection. The outer tube is porous but rigid.
Lightweight fuels such as gasoline and diesel fuel flow through the
protective mesh tube with little or no impact on TT-FFS response time.
The flow of heavy crude oil or other heavy fuel oils may be restricted
by the outer tube in which case TT-FFS-EEC may not be appropriate for
these liquids.
For technical support, call Tyco Thermal Controls at [phone].
Installation Instructions/Data Sheet
A
B
C
TT-FFS-EEC-250
TT-FFS-EEC-100
• InsertTT-FFSintoclearmeshtube.Whenfullyinserted,o-ringwillbecenteredintube.
The Extreme Environment Cover is suitable
for use in outdoor locations where the TT-FFS
is exposed to flowing water, or where insects
and other contaminants are problematic.
Both TT-FFS-EEC-250 and TT-FFS-EEC-100
are shown here.
• Placeo-ringontoTT-FFS,approximately¼inchfromtheend.

2
© 2009 Tyco Thermal Controls LLC H58519 11/09
Worldwide Headquarters
Tyco Thermal Controls
307 Constitution Drive
MenloPark,CA94025-1164
USA
Tel: [phone]
Tel: [phone]
Fax: [phone]
Fax: [phone]
[email protected]
www.tracetek.com
Canada
Tyco Thermal Controls
250WestSt.
Trenton, Ontario
Canada K8V 5S2
Tel [phone]
Fax [phone]
Important: All information, including illustrations, is believed to be reliable. Users, however,
should independently evaluate the suitability of each product for their particular application.
Tyco Thermal Controls makes no warranties as to the accuracy or completeness of the
information, and disclaims any liability regarding its use. Tyco Thermal Controls' only
obligations are those in the Tyco Thermal Controls Standard Terms and Conditions of Sale
for this product, and in no case will Tyco Thermal Controls or its distributors be liable for
any incidental, indirect, or consequential damages arising from the sale, resale, use, or
misuse of the product. Specifications are subject to change without notice. In addition, Tyco
Thermal Controls reserves the right to make changes—without notification to Buyer—to
processing or materials that do not affect compliance with any applicable specification.
Tyco and TraceTek are trademarks of Tyco Thermal Controls LLC or its affiliates.
D

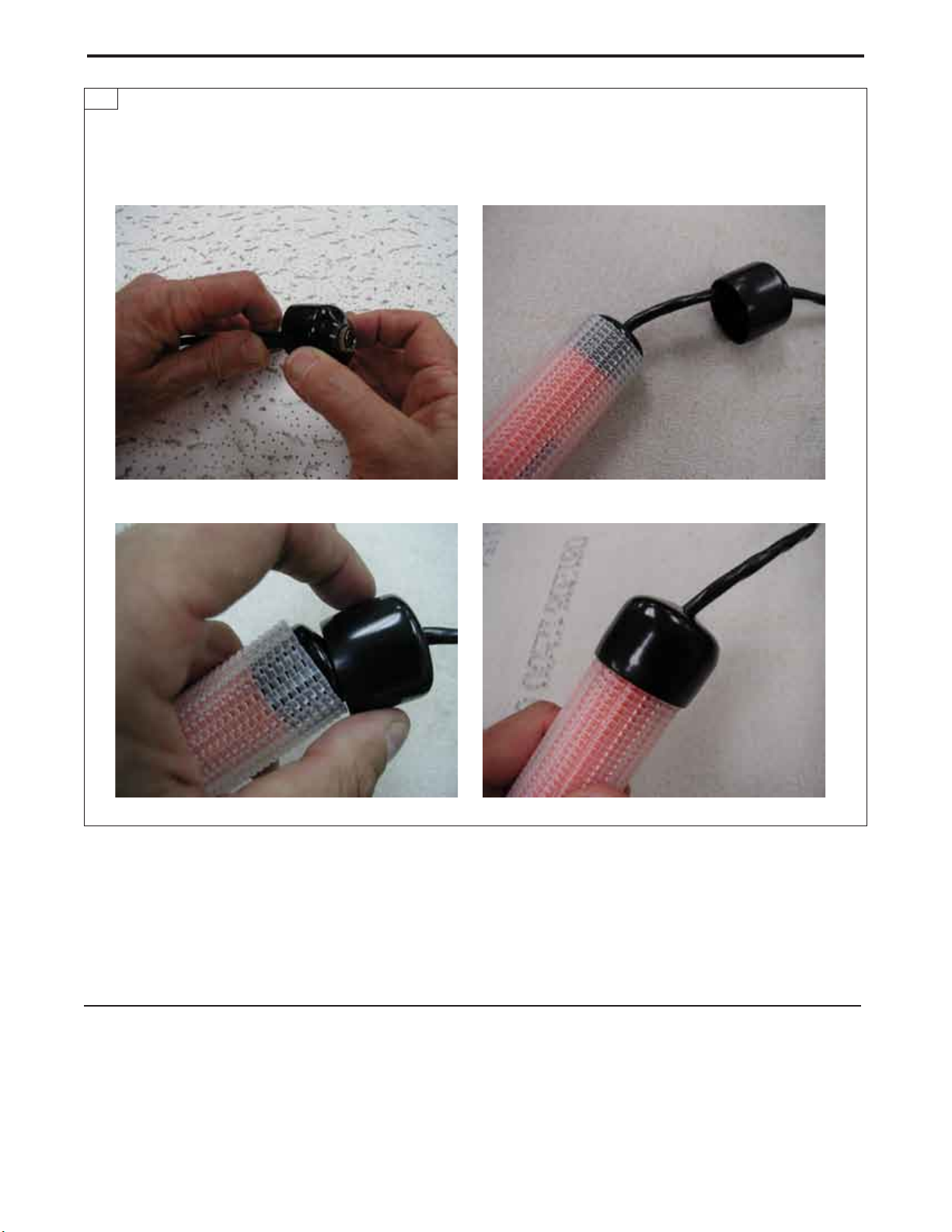

PushTT-FFSconnectororleadwireendthroughholeinblackplasticcap.•
Slide cap down cable and press onto the clear mesh tube end.•
Pressthecapontotheclearmeshtubeasfaraspossible.Itwillbeasnugfit.•
Note:TheEECshouldbeinspectedmonthlyforblockage.Ifthemesh
tube becomes contaminated with dirt or debris, it could prevent a leak
from being detected rapidly. To clean the EEC, remove the cap, carefully
removetheTT-FFS,andwashtheEECinwaterorIPA(Donotremove
screen!). TT-FFS cleaning (if necessary) is a separate operation, please
refer to TT-FFS Care and Cleaning Instructions (H58307).
