Trane 4MXW6 User manual

Installation Manual
June 2009 MXW-SVN15A-EN
R-410A, 50Hz R-410A, 60Hz
Indoor Unit Outdoor Unit Indoor Unit Outdoor Unit
Heat Pump 4MXW6 4TXK6 4MXW6 4TXK6
Split System (R-410A)
Inverter Units, 16 SEER
9,000 to 24,000 BTU/Hr

Warnings and Cautions
© 2009 Trane All rights reserved MXW-SVN15A-EN
Warnings and Cautions. Notice that warnings and cautions appear at appropriate intervals
throughout this manual. Warnings are provided to alert installing contractors to potential
hazards that could result in personal injury or death, while cautions are designed to alert
personnel to conditions that could result in equipment damage.
Your personal safety and the proper operation of this machine depend upon the strict
observance of these precautions.
Trane has always recommended installing Trane approved matched indoor and outdoor
systems.
The benefits of installing approved matched systems are maximum efficiency, optimum
performance and best overall system reliability.
WARNING
This equipment is to be serviced by professionally trained personnel ONLY. Under NO
circumstances should an unqualified person service it. This equipment contains
refrigerant under PRESSURE and operates at HIGH VOLTAGE. Improperly installed,
adjusted or altered equipment by an unqualified person poses safety hazards
including FIRE, ELECTROCUTION, or EXPLOSION, which could result in death or
serious injury.
WARNING
Electrocution and Fire Hazards with Improperly Installed and Grounded
Field Wiring!
Improperly installed and grounded field wiring poses FIRE & ELECTROCUTION
hazards. To avoid these hazards, you MUST follow requirements for field wiring
installation and grounding as described in the National Electrical Codes (NEC) and
your local/state electrical codes. All field wiring MUST be performed by qualified
personnel.
Failure to follow these requirements could result in death or serious injury.
Attention:Warnings and Cautions appear at appropriate sections throughout this
literature. Read these carefully.
WARNING:Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, could
result in minor or moderate injury. It may also be used to alert against unsafe practices.
NOTICE:Indicates a situation that could result in equipment or property-damage only
accidents.

Preface
MXW-SVN15A-EN 3
WARNING
R410A Refrigerant under Higher Pressure than R22!
The units described in this manual use R410A refrigerant which operates at 50 to 70%
higher pressures than R-22. Use only R-410A approved service equipment. Refrigerant
cylinders are painted with "pink" color to indicate the type of refrigerant and may
contain a "dip" tube to allow for charging of liquid refrigerant into the system. For
specific handling concerns with R-410A, please contact your local Trane representative.
Failure to use R-410A approved service equipment could result in standard equipment
exploding under R-410A higher pressure which could result in death or serious injury.
NOTICE
Use PVE Oil with R-410A Mini-Split Units!
All R-410A mini-splits use a PVE oil (Polyvinyl Ether Oil) that readily absorbs moisture
from the atmosphere. To limit this “hygroscopic” action, the system should remain
sealed whenever possible. If a system has been open to the atmosphere for more than
4 hours, the compressor oil must be replaced. Never break a vacuum with air and
always change the driers when opening the system for component replacement. For
specific handling concerns with PVE oil, contact your local Trane representative.
USE ONLY THE FACTORY RECOMMENDED - DAFNE HERMETIC OIL FV50S - for
servicing these units.
Important!
Environmental Concerns
Scientific research has shown that certain man-made chemicals can affect the earth’s naturally
occurring stratospheric ozone layer when released to the atmosphere. In particular, several of
the identified chemicals that may affect the ozone layer are refrigerants that contain Chlorine,
Fluorine and Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and Carbon
(HCFCs). Not all refrigerants containing these compounds have the same potential impact to the
environment. Trane advocates the responsible handling of all refrigerants—including industry
replacements for CFCs such as HCFCs and HFCs.
Responsible Refrigerant Practices
Trane believes that responsible refrigerant practices are important to the environment, our
customers, and the air conditioning industry. All technicians who handle refrigerants must be
certified. The Federal Clean Air Act (Section 608) sets forth the requirements for handling,
reclaiming, recovering and recycling of certain refrigerants and the equipment that is used in
these service procedures. In addition, some states or municipalities may have additional
requirements that must also be adhered to for responsible management of refrigerants. Know
the applicable laws and follow them.

4MXW-SVN15A-EN
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Outdoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing Outdoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

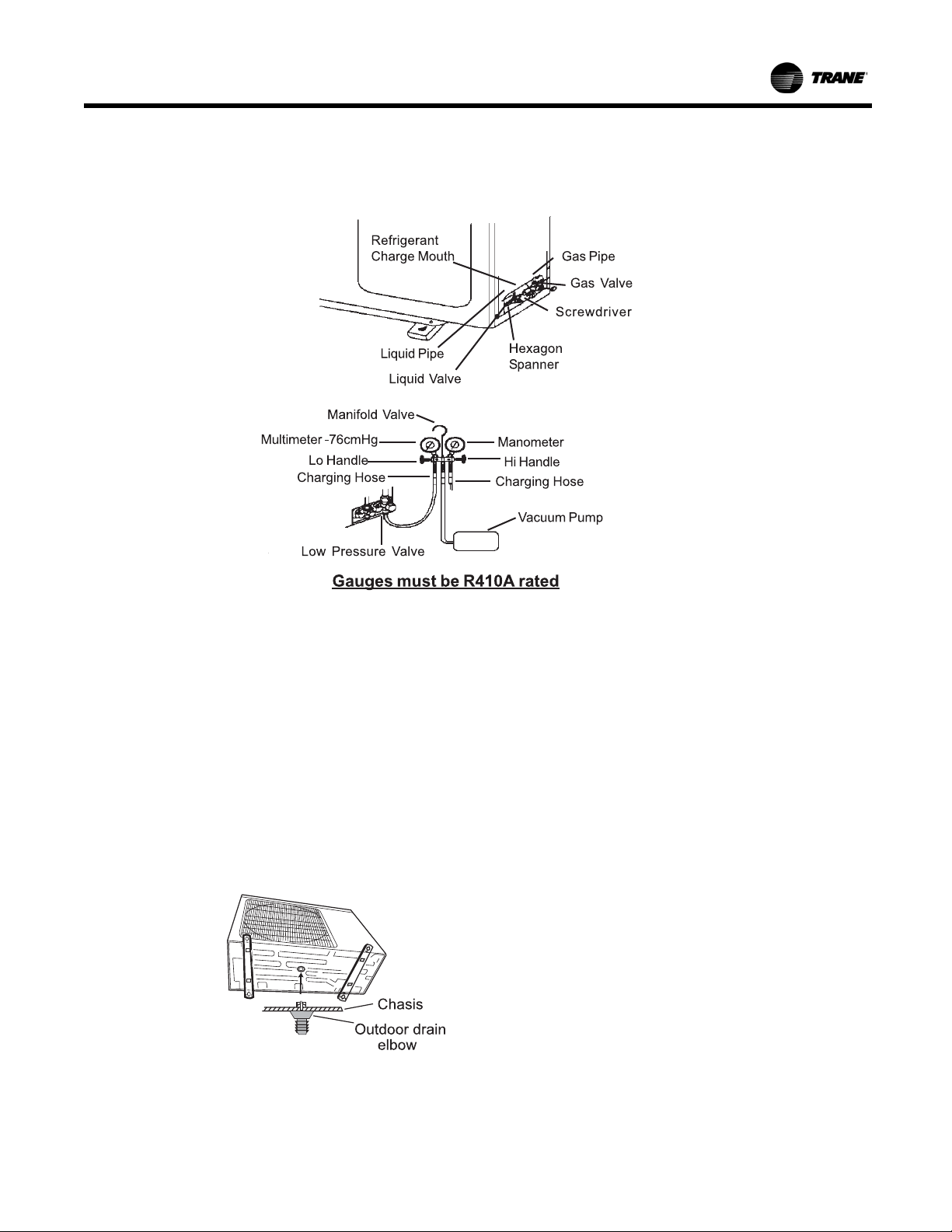

Vacuum Pump and Lick Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Outdoor condensation drainage (Heat pump type only) . . . . . . . . . . . . . . . . .14
Check after Installation and Test Operation . . . . . . . . . . . . . . . . . . . . . . . . . .15

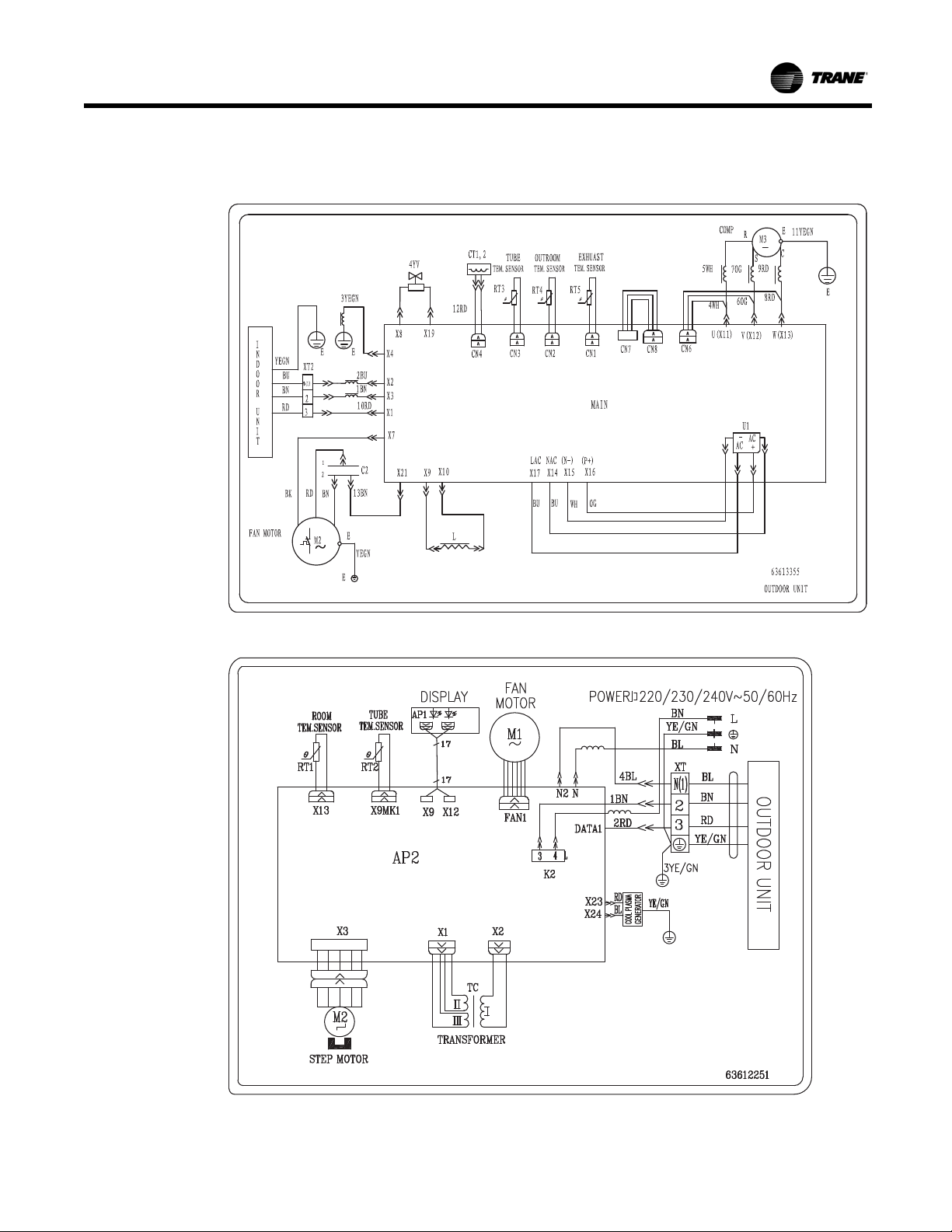

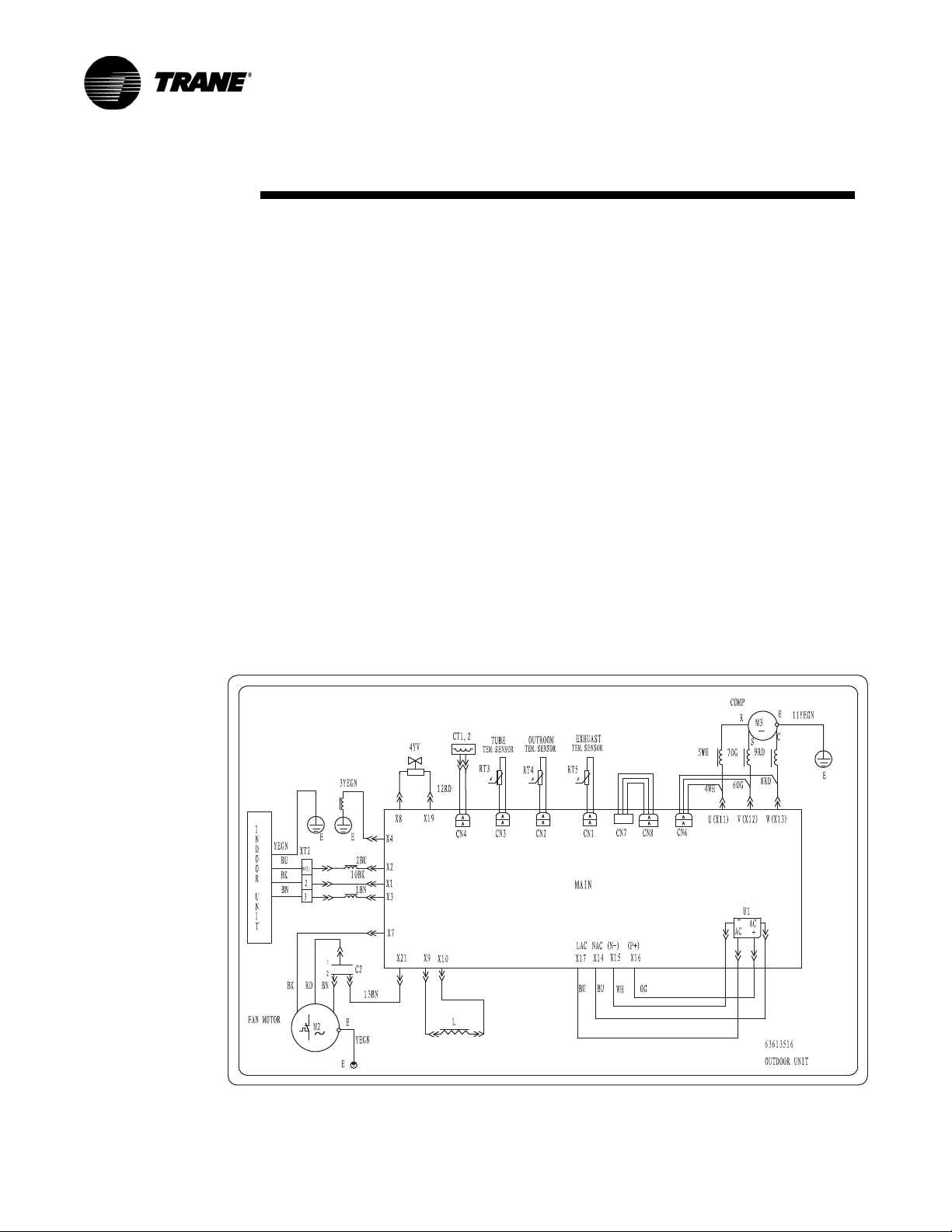

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Heat Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
High Efficiency 50 Hz models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
High Efficiency 60 Hz models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Contents

MXW-SVN15A-EN 5
This installation Manual is given as a guide to good practices in the installation and operation of a
wall mounted split system models 4MXW6 and 4TXK6. However it does not contain all the
service procedures for this unit, as these procedures must be performed by a qualified service
technician, through the maintenance contract with a reputable service company.
Read these operation Instructions completely before installing the unit.
Warranty
Warranty is based on the general terms and conditions by country. The warranty is void if the
equipment is modified or repaired without the written approval of The Trane Company, if the
operating limits are exceeded or if the control system or the electrical wiring is modified.
Damage due to inappropriate installation, lack of knowledge or failure to comply with the
manufacturer’s instructions, is not covered by the warranty obligation.
If the installation does not conform to the rules described in Installation Manual, it may entail
cancellation of warranty and liabilities by The Trane Company.
Reception
On arrival, inspect the unit before signing the delivery note. Specify any damage of the unit on
the delivery note, and send a registered letter of protest to the last carrier of the goods within 72
hours of delivery. Notify the dealer at the same time.
The unit should be totally inspected within 7 days of delivery. If any concealed damage is
discovered, send a registered letter of protest to the carrier within 7 days of delivery and notify
the local dealer.
About the Unit
These units are assembled, pressure tested, dehydrated, charged and run tested before shipment.
This manual contains informations related to 4MXW6 and 4TXK6 (50 and 60 Hz) units.
Refrigerant
The refrigerant provided by the manufacturer comply with all the requirements for our units.
When using a recycled or reprocessed refrigerant, we recommend its qualities be as good as
those of a new refrigerant. It is necessary to have the refrigerant tested by a qualified laboratory.
Failure to do so could void the warranty.
Important
These instructions do not cover all variations in systems, nor do they provide for every possible
contingency to be met in connection with installation. Should further information be desired or
should particular problems arise which are not covered sufficiently in this manual, the matter
should be referred to your authorized Trane dealer.
General Information

6MXW-SVN15A-EN
Accessories
Table 1. Parts list
No. Part Name Diagram Qty Specification Memo
1 Mounting plate 1
2Wireless remote
controller 1
3Remote controller
holder 1
4 Battery 2 AAA,1.5V
5 Tapping screw 10 ST4.2 X 25 For mounting plate
6Drainhose 1L=2m
7 Thermal insulation 1 φ35 X 500
8 Drain kit 1 Heat pump type only
9 Drain hole cover 3 Heat pump type only
10 Air cleaner 2 Packaged with indoor unit
11 Air filter 2

MXW-SVN15A-EN 7

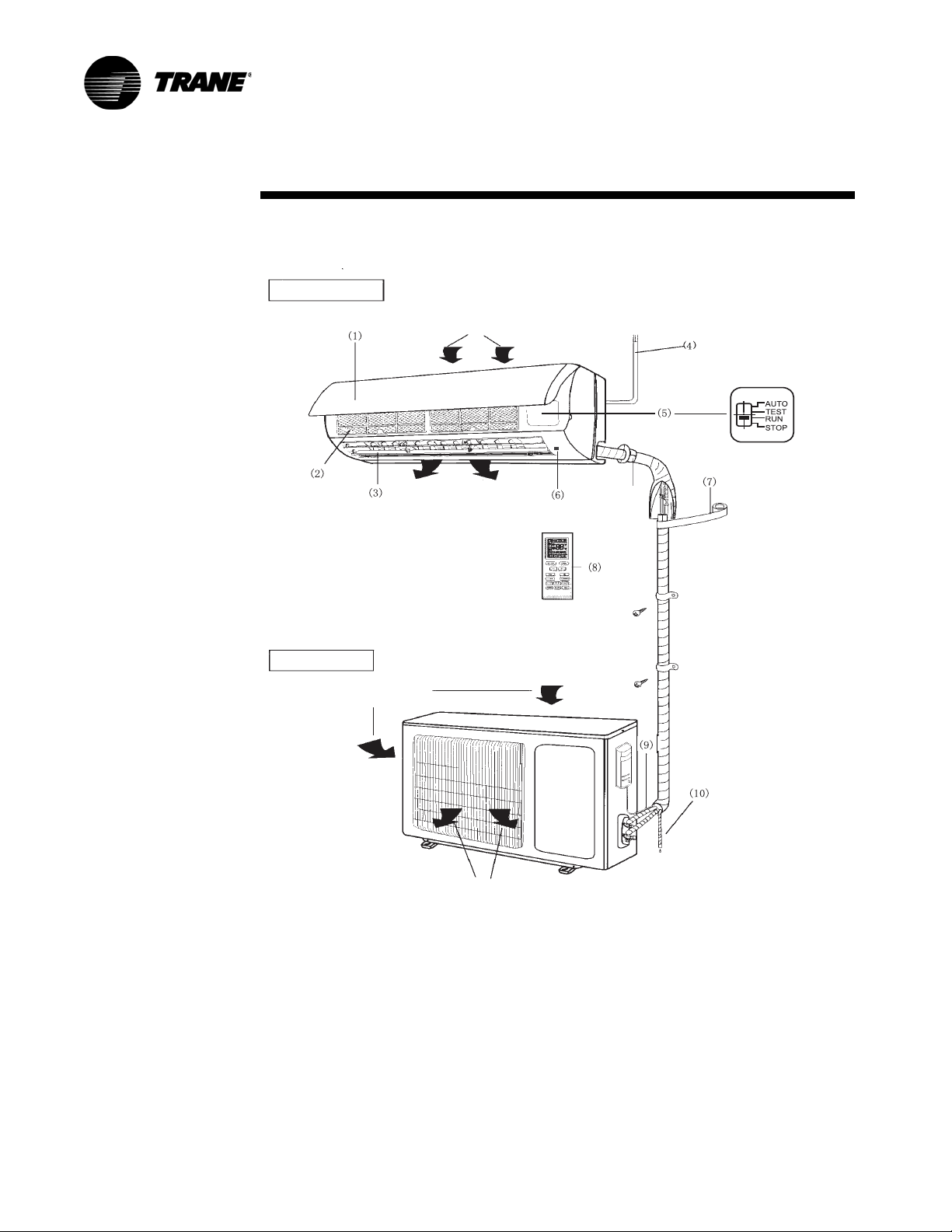

Typical Installation
Indoor Unit
Air In
Air out
Outdoor Unit
Air in
Air out
1. Front panel
2. Filter
3. Guide Louver
4. Electric plug
5. Manual Switch
6. Receiving Window
7. Bind Tape
8. Remote Control
9. Connection wire
10. Drain pipe

8MXW-SVN15A-EN
Indoor Unit
WARNING
Adequate Support!
Wall structure must be adequate to support the weight of the unit. Failure to ensure
adequate structural support could result in unit falling from its location which could
result in death, serious injury, or equipement or property-only damage.
1. The air inlet and outlet should be far away from anything that could prevent the air from
reaching all parts of the room.
2. Select a location where it is easy to drain the condensing water and connect to the outdoor
unit;
3. Keep the indoor unit far away from heat sources, vapor and inflammable gas;
4. Be sure that the installation of the indoor unit conforms to the installation dimension
diagram;
5. Be sure to leave enough space to allow access for routine maintenance; clearance between
the indoor unit and the floor should be more than 200cm;
6. Install in a location where the unit is more than 1 meter away from other electric appliances
such as television, audio devices etc.;
7. Select location where air filters can be easily removed
Outdoor unit
WARNING
Adequate Support!
Wall structure must be adequate to support the weight of the unit. Failure to ensure
adequate structural support could result in unit falling from its location which could
result in death, serious injury, or equipement or property-only damage.
1. Select a location from which noise and air discharge by unit will not annoy neighbors.
2. Select a location where there is sufficient ventilation.
3. Make sure the air inlet and outlet are not blocked by any obstacles.
4. Select a location capable of supporting the weight and vibration of the outdoor unit, and
where installation work can be carried out safely.
5. Select a location away from flammable gas or gas leaks.
6. Make sure that the installation of the outdoor unit conforms to the installation dimension
diagram.
NOTICE
Installing the unit in one of the following locations could result in unit malfunction:
• Places where oil (machine oil) is used
• Seaside/places with high level of salt in the air.
• Places with high level of sulfur gas such as areas with hot springs.
• Places where high-frequency waves are generated by radio equipment, welders and medical
equipment.
• Other unusual places where unit operation may be altered.
Installation location

MXW-SVN15A-EN 9
Indoor Unit Installation
WARNING
Hazardous Service Procedures!
The maintenance and troubleshooting procedures recommended in this section of the
manual could result in exposure to electrical, mechanical or other potential safety
hazards. Always refer to the safety warnings provided throughout this manual
concerning these procedures. When possible, disconnect all electrical power including
remote disconnect and discharge all energy storing devices such as capacitors before
servicing. Follow proper lockout/tagout procedures to ensure the power can not be
inadvertently energized. When necessary to work with live electrical components, have
a qualified licensed electrician or other individual who has been trained in handling live
electrical components perform these tasks. Failure to follow all of the recommended
safety warnings provided, could result in death or serious injury.

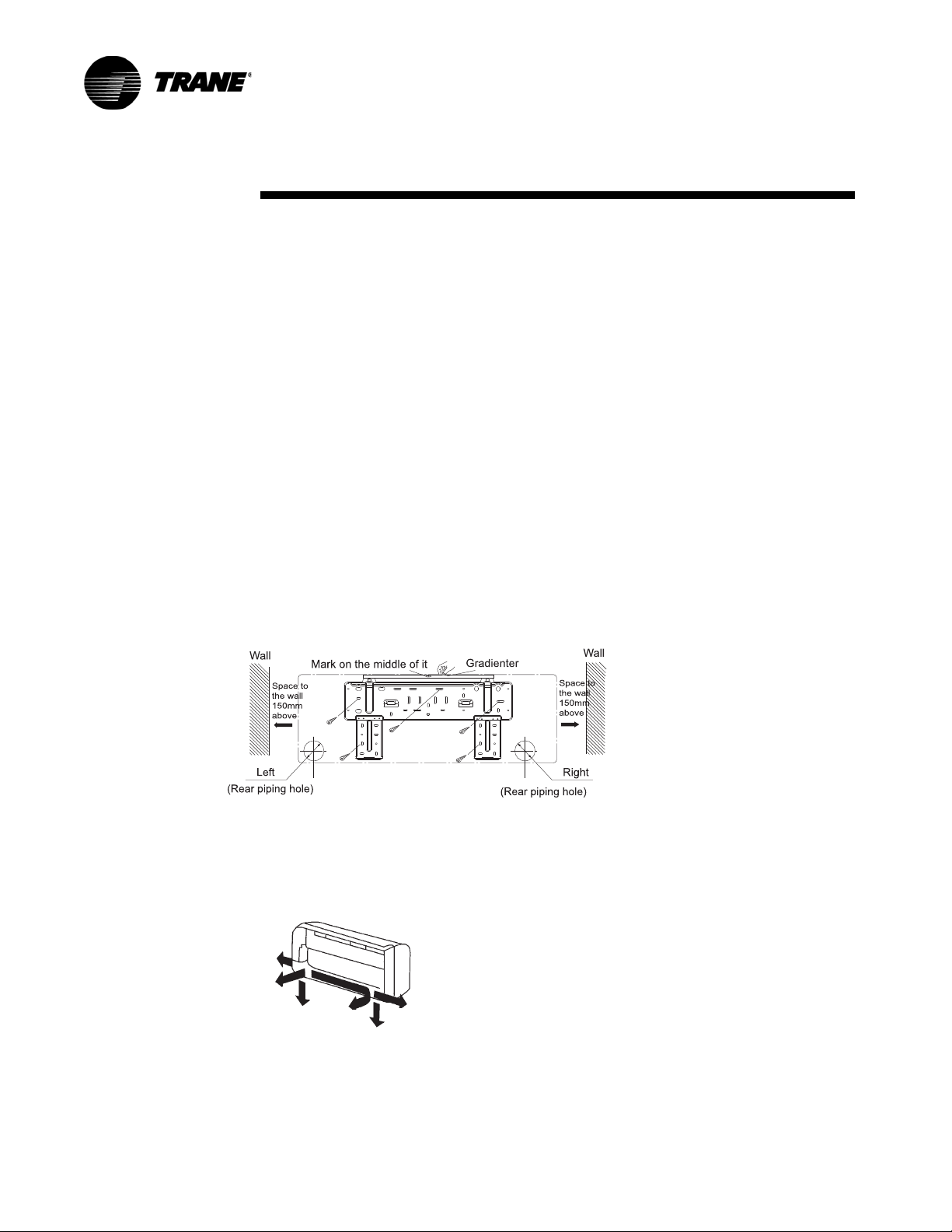

Mounting Location
1. Always mount the rear panel horizontally.
2. Fix the rear panel on the selected location
3. Be sure that the rear panel has been fixed firmly enough to withstand the weight of an adult
of 60kg, furthermore, the weight should be evenly shared by each screw.

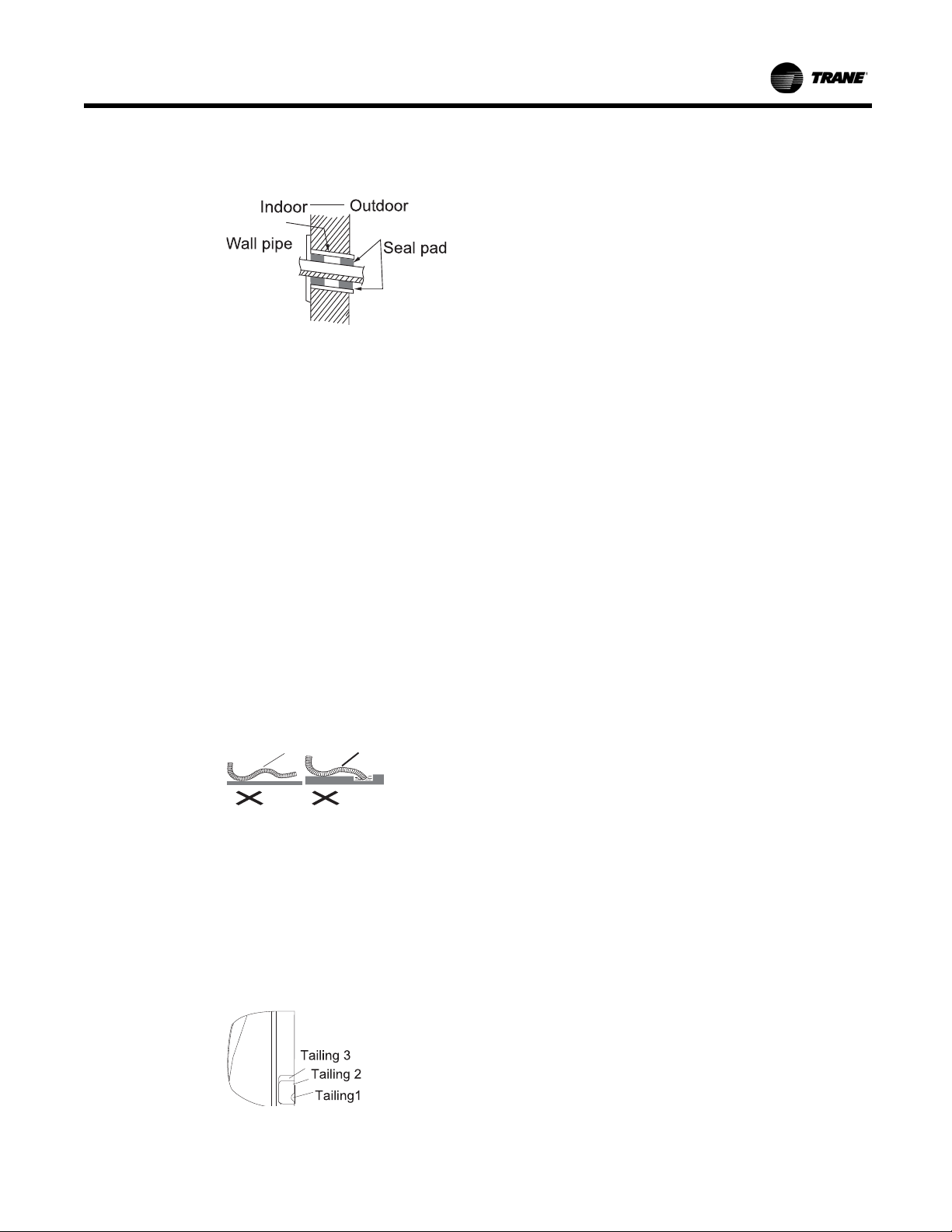

Drilling a hole in the wall to install the piping
The piping can be connected in six different locations on the unit, as shown on figure below:
1. Drill a 65mm diameter hole in the wall at a slight downward angle toward the outdoor side in
such a way that the end of the pipe outside is 5 mm lower than the inside.
2. Insert a sleeve into the hole to prevent the connection piping and wiring from being damaged
when passing through the hole.
Installation
Left downward
Left
Rear Left
Right Downward
Rear Right
Right

10 MXW-SVN15A-EN
Installation
NOTICE
When a wall sleeve is not used, it is then necessary to drill a straight hole in the wall. If
the hole is not straight and uniform, this could result in water leaking from
condensation, resulting in property damage.
NOTICE
If a wall sleeve is not mounted in the wall, the wiring between the indoor unit and the
outdoor unit can possibly be damaged resulting in electrical current loss in the ground
wiring.
Installing the water drain pipe
NOTICE
Do not wrench or bend the drain hose and make sure the ends of the drain pipe are not
under water. Failure to do so could result in leakage.
1. To ensure proper water drainage, the drain hose should be placed at a downward slant.
2. The water drain pipe must be insulated throughout the house.
Installing the unit
Note: The piping can be lead out from right, right rear, left, left rear.
1. When routing the piping and wiring from the left or right side of indoor unit, cut off the
tailings from the chassis in necessary.
(1).Cut off the tailings 1 when routing the wiring only;
(2).Cut off the tailings 1 and tailings 2 when routing both the wiring and piping.(or 1,2,3)
Under water
Bent
Wrenched

MXW-SVN15A-EN 11
Installation
2. Take out the piping from body case, wrap the piping electric wire, water pipe with tape and
put them through the piping hole.
3. Hang the mounting slots of the indoor unit on the upper tabs of the rear panel and check if it
is firm enough.
Installing the connection pipe
1. Align the center of the piping flare with the relevant valve.
2. Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer
to the following.
Note: First, connect the connection pipe to indoor unit, then to outdoor unit; pay attention to the
piping bending, do not damage the connection pipe; the joint nut couldn't tighten too
much, otherwise it may cause leakage.
Table 2. Tightening Torque Table
Hex nut Diameter Tightening torque (N-m)
6mm - 1/4" 15-20
9.5mm - 3/8" 31-35
12mm - 1/2" 50-55
16mm - 5/8" 60-65

12 MXW-SVN15A-EN
Installation
Connect indoor and outdoor electric wires
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects before servicing. Follow
proper lockout/tagout procedures to ensure the power can not be inadvertently
energized. Failure to disconnect power before servicing could result in death or serious
injury.
1. Open the front panel upwardly.
2. Screw off the fixing screw of cover plate and screw off cover plate.
3. Put the power connection cable through the back of indoor unit wire hole and take it out.
4. All the wiring should be connected according to the circuit diagram on the unit.
5. Put the power connection cable the section, which with sheath into wire groove, and cover
the cover plate, screw on the fixing screw, tighten the connection wire.
6. Cover the front panel cover.
7. For the cooling and heating unit, signal control wire can be passed through the connection of
connector and indoor unit, and use the wire clip that is under the body case, tighten the
signal control wire.
Installing Outdoor Unit
Wiring
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects before servicing. Follow
proper lockout/tagout procedures to ensure the power can not be inadvertently
energized. Failure to disconnect power before servicing could result in death or serious
injury.
1. Disassemble handle of right side plate or front side plate of outdoor unit.
2. Take off wire clamp, connect and fix power connect cord to terminal of line bank. Wiring
should fit that of indoor unit.
3. Fix the power connection cable with wire clamp, for cooling and heating unit, then use the
wire clamp to fix the signal control wire, then connect the corresponding connector.
4. Ensure if wire has been fixed well.
5. Install handle or front side plate.
Note: Wrong wiring may cause spare parts malfunction.
Note: After the cable fixed, make sure there should be a free space between the connection and
fixing place on the lead wire.

MXW-SVN15A-EN 13
Installation
Vacuum Pump and Lick Inspection
WARNING
Hazard of Explosion!
Never use an open flame to detect gas leaks. Explosive conditions may occur. Use a
leak test solution or other approved methods for leak testing. Failure to follow
recommended safe leak test procedures could result in death or serious injury or
equipment or property-only-damage.
WARNING
Hazard of Explosion!
Use only dry nitrogen with a pressure regulator for pressurizing unit. Do not use
acetylene, oxygen or compressed air or mixtures containing them for pressure testing.
Do not use mixtures of a hydrogen containing refrigerant and air above atmospheric
pressure for pressure testing as they may become flammable and could result in an
explosion. Refrigerant, when used as a trace gas should only be mixed with dry
nitrogen for pressurizing units. Failure to follow these recommendations could result in
death or serious injury or equipment or property-only damage.
After the installation of refrigerant lines to both the outdoor and indoor units are completed, the
flare connections must be checked for leaks. Pressurize through the service valve ports, the indoor
unit and field refrigerant lines with dry nitrogen to 350-400 psi. Use soap bubbles or other leak-
checking methods to see that all flares are leak-free! If not, release pressure; then repair!
SYSTEM EVACUATION
Note: Since the oudoor unit has a refrigerant charge, the gas and liquid line valves must remain
closed.
1. Upon completion of leak check, evacuate the refrigerant lines and indoor coil before opening
the gas and liquid line valves.
2. Attach appropriate hoses from manifold gauge to gas and liquid line pressure taps.
3. Attach center hose of manifold gauges to vacuum pump.
4. Evacuate until the micron gauge reads no higher than 350 microns.
5. Close off valve to vacuum pump and observe the micron gauge. If gauge pressure rises
above 500 microns in one (1) minute, then evacuation is incomplete or system has a leak.
6. If vacuum gauge does not rise above 500 microns in one (1) minute, the evacuation should be
complete.
7. Blank off vacuum pump and micron gauge, close valves on manifold gauge set.
Note: DO NOT VENT REFRIGERANT INTO THE ATMOSPHERE.
8. The liquid line shut-off valve can now be opened. Remove shut-off-valve cap. Fully insert hex
wrench into the stem and backout counterclockwise open.

14 MXW-SVN15A-EN
Installation
9. The gas valve can now be opened. Open the gas valve by removing the shut-off valve cap
and turning the valve stem 1/4 turn counterclockwise using 1/4” Open End or Adjustable
wrench.
10. The gas valve is now open for refrigerant flow. If refrigerant lines are longer than fifteen feet
(8 m), it will be necessary to adjust system refrigerant charge upon completion of installation.
Outdoor condensation drainage (Heat pump type only)
When the unit is heating, the condensing water and defrosting water can be drained out reliably
through the drain hose.
Installation:
Install the outdoor drain elbow in a 25mm hole on the base plate, and joint the drain hose to the
elbow, so that the wastewater formed in the outdoor unit can be drained out to a proper place.
Figure 1. Vacuum Pump and Leak inspection

MXW-SVN15A-EN 15
Before test operation
1. Do not switch on power before installation is finished completely.
2. Electric wiring must be connected correctly and securely.
3. Shut-off valves of the connection pipes should be opened.
4. All the impurities such as scraps and thrums must be cleared from the unit.
Test operation method
1. Switch on power, press "ON/OFF" button on the wireless remote control to start the
operation.
2. Press MODE button, to select the COOL, HEAT, FAN to check whether the operation is normal
or not.
Check after Installation and Test
Operation
Items to check Possible problems they generate
Has the unit been attached firmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test? It may cause insufficient cooling(heating)
capacity.
Is heat insulation sufficient? It may cause condensation and dripping.
Is water drainage well? It may cause condensation and dripping.
Is the voltage in accordance with the rated voltage
marked on the nameplate? It may cause electric malfunction or damage the unit.
Is the electric wiring and piping connection
installed correctly and securely? It may cause electric malfunction or damage the unit.
Has the unit been connected to a secure earth
connection? It may cause electrical leakage.
Is the power cord specified? It may cause electric malfunction or damage the
unit
Is the inlet and outlet been covered? It may cause insufficient cooling(heating)
capacity.
Has the length of connection pipes and refrigerant
capacity been recorded? The refrigerant capacity is not accurate.

16 MXW-SVN15A-EN
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects before servicing. Follow
proper lockout/tagout procedures to ensure the power can not be inadvertently
energized. Failure to disconnect power before servicing could result in death or serious
injury.
WARNING
Electrocution and Fire Hazards with Improperly Installed and Grounded
Field Wiring!
Improperly installed and grounded field wiring poses FIRE & ELECTROCUTION hazards. To avoid
these hazards, you MUST follow requirements for field wiring installation and grounding as
described in the National Electrical Codes (NEC) and your local/state electrical codes. All field
wiring MUST be performed by qualified personnel.
Failure to follow these requirements could result in death or serious injury.
Heat Pump
High Efficiency 50 Hz models
Wiring Diagrams
Figure 2. 4TXK6509ABAA (Outdoor)

MXW-SVN15A-EN 17
Wiring Diagrams
Figure 3. 4MXW6509ABAA (Indoor)

18 MXW-SVN15A-EN
Wiring Diagrams
Figure 4. 4TXK6512ABAA (Outdoor)
Figure 5. 4MXW6512ABAA (Indoor)

MXW-SVN15A-EN 19
Wiring Diagrams
Figure 6. 4TXK6518ABAA (Outdoor)
Figure 7. 4MXW6518ABAA (Indoor)

20 MXW-SVN15A-EN
Wiring Diagrams
Figure 8. 4TXK6524ABAA (Outdoor)
Figure 9. 4MXW6524ABAA (Indoor)
