Trane TTD User manual

Installation Manual
Multi-Split System
Condensing Unit
18,000-54,000 Btuh
Models 50/60 Hz
MS-SVN005-EN
TTD/TTT
October 2012
50 Hz Models
Cooling Only
TTD 518 AB
TTD 521 AB
TTD 527 AB
TTD 530 AB
TTD 536 AB
TTD 536 DB
TTT 527 AB
TTT 530 AB
TTT 533 AB
TTT 536 AB
TTT 536 DB
TTT 542AB
60 Hz Models
Cooling Only
TTD 518 A1
TTD 521 A1
TTD 524 A1
TTD 527 A1
TTD 530 A1
TTD 536 A1
TTD 536 D1
TTT 527 A1
TTT 530 A1
TTT 533 A1
TTT 536 A1
TTT 536 D1
TTD 524 AB
TTD 530 DB
TTD 524 DB
TTD 527 DB
TTD 533 AB
TTD 533 DB
TTD 542 AB
TTD 542 DB
TTD 545 AB
TTD 548 AB
TTD 548 BB
TTD 548 DB
TTD 554 AB
TTD 554 DB
TTT 542DB
TTT 545AB
TTT 548AB
TTT 548BB
TTT 554AB
TTT 554DB
TTD 551 AB

2MS-SVN005-EN
General Information
© American Standard Inc. 2000
General Information
This Installation Manual is given as a
guide to good practice in the
installation by the installer of TTD/TTT
mini-split system. Installation
procedures should be performed in
the sequence that they appear in this
manual.
For installing the unit to operate
properly and reliably, it must be
installed in accordance with these
instructions. Also, the services of a
qualified service technician should be
employed, through the maintenance
contract with a reputable service
company.
Read this Installation Manual
completely before installing and
operating the system.
About this Manual
Cautions appear at appropriate places
in this Instruction Manual. Your
personal safety and the proper
operation of this machine require that
you follow them carefully.
The Trane Company assumes no
liability for installations or servicing
performed by unqualified personnel.
All phases of the installation of this air
conditioning system must conform to
all national, provincial, state and local
codes.
About the Unit
These TTD/TTT units are assembled,
pressure tested, dehydrated, charged
and run tested before shipment.
Reception
On arrival, inspect the unit before
signing the delivery note. Specify any
damage of the unit on the delivery
note, and send a registered letter of
protest to the last carrier of the goods
within 72 hours of delivery. Notify the
dealer at the same time.
The unit should be totally inspected
within 7 days of delivery. If any
concealed damage is discovered,
send a registered letter of protest to
the carrier within 7 days of delivery
and notify the dealer.
Warning
Warnings are provided at appropriate
places in this manual to indicate to
installers, operators and service
personnel of potentially hazardous
situations which, if not avoided,
COULD result in death or serious
injury.
Caution
Cautions are provided at appropriate
places in this manual to indicate to
installers, operators, and service
personnel of potentially hazardous
situations which, if not avoided, MAY
result in minor or moderate injury or
malfunction of the unit.
Your personal safety and the proper
operation of this unit require that you
follow them carefully. The Trane
Company assumes no liability for
installations or servicing performed by
unqualified personnel.
Warranty
Warranty is based on the general
terms and conditions by country. The
warranty is void if the equipment is
modified or repaired without the
written approval of The Trane
Company, if the operating limits are
exceeded or if the control system or
the electrical wiring is modified.
Damage due to inappropriate
installation, lack of knowledge or
failure to comply with the
manufacturer’s instructions, is not
covered by the warranty obligation.
If the installation does not conform to
the rules described in Installation
Manual, it may entail cancellation of
warranty and liabilities by The Trane
Company.
Important
This document is customer property
and is to remain with unit. Please
place in service information pack upon
completion of work.
These instructions do not cover all
variations in systems, nor do they
provide for every possible contingency
to be met in connection with
installation.
Should further information be desired
or should particular problems arise
which are not covered sufficiently in
this manual, the matter should be
referred to your authorized Trane
dealer.
MS-SVN005-EN.indd 2 1/10/08 11:03:27 AM

MS-SVN005-EN 3
Contents
2
10
11
12
4
5
6
7
8
9
14
18
General Information
Valid System Combinations
Installation Requirements
Location and Preparation of Units
Connection of Refrigerant Tubing
Condensate Drain Piping
System Evacuation and Purging
Electrical Installation
Matching Table
Wiring Diagram
Dimensional Data
Note
MS-SVN005-EN.indd 3 1/10/08 11:03:28 AM

4MS-SVN005-EN

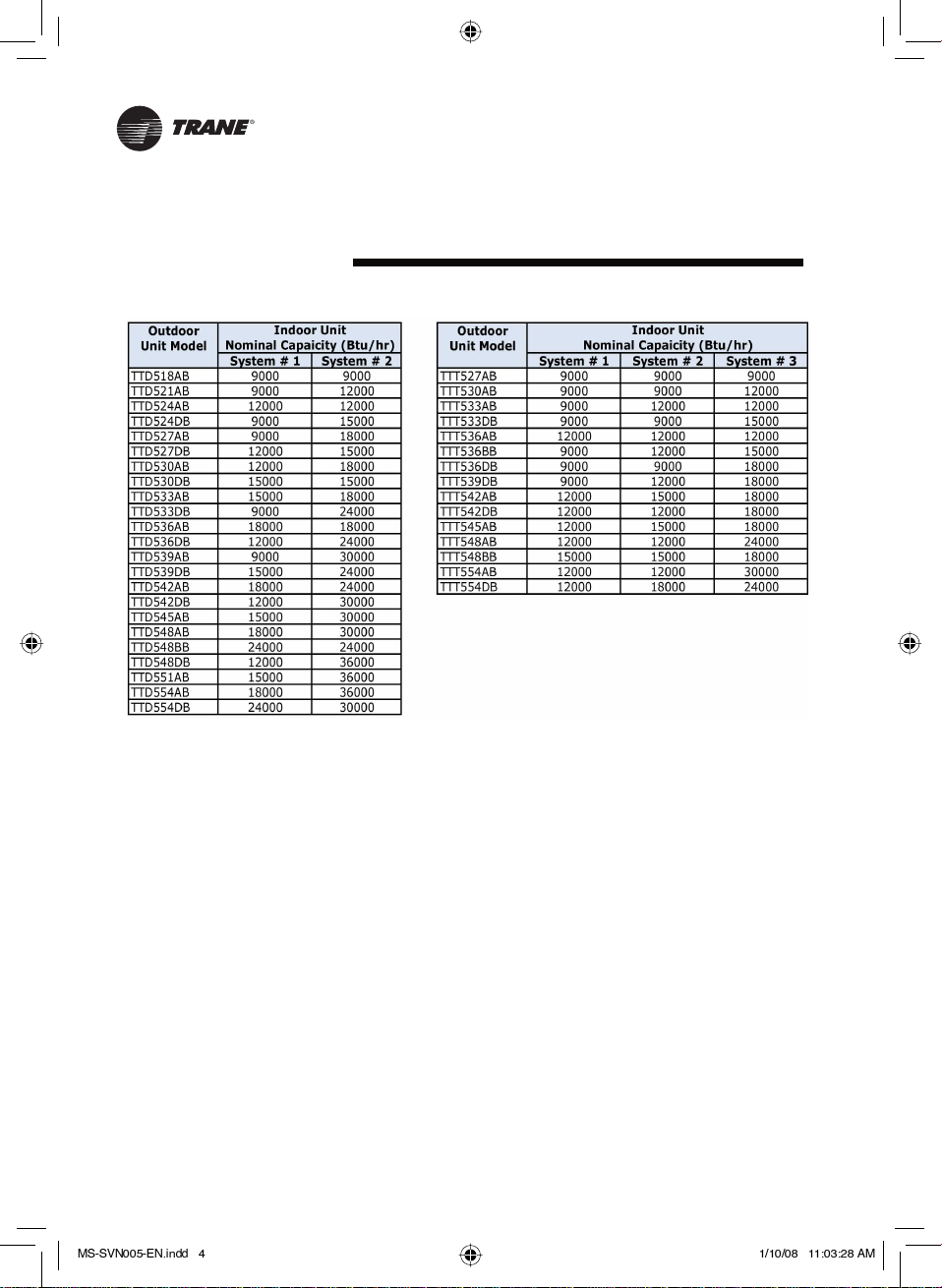

Valid System Combinations
MS-SVN005-EN.indd 4 1/10/08 11:03:28 AM

MS-SVN005-EN 5
Installation Requirements
Table 2
1. Copper Tubing
Copper tubing, fittings and
insulation to interconnect the
suction (S) (wide tube) and liquid
(L) (narrow tube) refrigerant lines
between the indoor and outdoor
units can be purchased locally.
It is necessary to purchase the
following items:
- Purchase equal lengths of both
tubes and insulation required.
Cut the appropriate tube lengths,
30 to 40 cm (12 to 16 in.) longer
on each one to deepen vibration
between units. Wall thickness of
copper tube should be 0.8 mm
(0.0314 in.).
Both tubes must be well
insulated with proper insulation
materials.
- The length of wiring will
determine the wire size. See
local codes, refer to section of
electrical installation.
2. Additional Materials
- Saddles or clamps to hold
refrigerant tubing.
- Insulated clamps or staples
for connecting wire.
See local codes.
- Refrigeration oil and tape
(armored).
- Putty or similar filter.
*On Cooling Mode
Indoor Unit 512 518
O.D. O.D. O.D.
Item mm (in.) mm (in.) mm (in.)
Deoxidizied Annealed (L *) 6.35 (1/4) 6.35 (1/4) 6.35 (1/4)
Copper Tube (S *) 9.52 (3/8) 12.7 (1/2) 12.7 (1/2)
Foamed Polyethylene Diameter: According Diameter: According Diameter: According
to O.D. of copper tube to O.D. of copper tube to O.D. of copper tube
Insulation Thickness: No less than Thickness: No less than Thickness: No less than
8 mm (0.3 in) 8 mm (0.3 in) 8 mm (0.3 in)
Insulated Copper Wire Length required to make Length required to make Length required to make
electrical wiring electrical wiring electrical wiring
507-509
MS-SVN005-EN.indd 5 1/10/08 11:03:29 AM

6MS-SVN005-EN
Location and Preparation of Units
1. Choose a place as cool as possible.
The place should be well ventilated
and the inlet air should not hotter
than the outside temperature (max
45OC or 113OF).
2. Avoid the vicinity of heat sources,
exhaust fan, etc.
3. Avoid direct sunlight, provide
awnings if necessary.
4. The unit should be set on a level
reinforced concrete pad to avoid
the effect humidity. The minimum
height of the concrete pad should
be 100 mm. (4"). Unit shall be fixed
securely to the concrete pad with
bolts (not supplied) to prevent
abnormal noise and vibration.
5. The concrete pad must be
positioned a minimum of 200 mm.
(8") from any well and surrounding
shrubbery.
6. Minimum clearance on the inlet air
side of the unit must be 250 mm.
(10") : 1200 mm. (48") on the
discharge air side of the unit and
250 mm. (10") on the tubing side
of the unit (Figure 1).
7. When the unit is mounted on a roof,
be sure the roof will carry the unit’s
weight. Vibration isolation is
recommended to prevent
transmission to the building
structure.
Note
The Multi-Split System (Outdoor) Unit
should be installed as close to the
indoor units as possible.
Figure 1
Air Discharge Air Inlet
200 mm (10")1,200 mm (48")
250 mm (10")250 mm (10")
MS-SVN005-EN.indd 6 1/10/08 11:03:30 AM

MS-SVN005-EN 7
Connection of Refrigerant Tubing
Table 3
Tube Diameter Tightening Torque
mm. in. kg - cm lbs - in.
6.35 (1/4) 150 - 200 (130 - 170)
9.52 (3/8) 350 - 400 (300 - 340)
12.70 (1/2) 500 - 550 (430 - 470)
1. The principal concerns in
refrigeration tubing are:
- Uniform oil return to the
compressor.
- Pressure drops and their effect on
system capacity.
- Tube routing and isolation to avoid
line breakage, vibration and sound
transmission. Regarding this, the
interconnecting refrigerant lines
should be simple and shorter as
much as possible.
2. Flare Connections
The units reported in this manual
employ the flare method to
interconnect refrigerant tubes between
indoor and outdoor units (Figure 2).
- The tube end of all refrigerant tubes
should be flared, the tube should
be cut and deburred. Be sure no
copper scraps fall in to the tube.
- Be sure to fit a cap to the open end
of the tube to keep it free of dust
and moisture.
- Avoid bending the tube. If it is
necessary, bend it gently, with a
radius of more than 3 or 4 cm.
(1 1/2 in. or 1 5/8 in.)
- Cut approximately 30 to 50 cm.
(12 in. to 20 in.) longer than
estimated tubing length.
- Before flaring remember to fit
the nut.
- Ream with tube end downward
to avoid copper scraps inside
the tube.
- Remove the flare caps on the
tube end.
- Connect the tubes by aligning
the centers of both flares and turn
the flare nuts by hand 3 or 4 turns
(Figure 3).
3. Insulate both lines, liquid (narrow
tube) and suction (wide tube), to
prevent heat loss and wet floor due to
dripping of chilled condensation.
Apply proper insulation material,
minimum thickness should be 8 mm
(1/3 in.) (Figure 4).
Note
Do not try to bend the tube after
installation.
4. Finish with armoring tape.
Also see section of condensate drain
piping.
Note
Apply refrigeration oil on flare and
union surfaces before connecting
them. This will reduce refrigerant
leakage.
- Check the tubing connections and
refrigerant lines before applying
specified torque. Fasten flare nuts
as recommended below.
Figure 4
Figure 3
Figure 2
Electrical Connection
Service Port
Valve Cap Tu b e
Connection
(Flare)
Liquid Line System # 1
Gas Line System # 1
Liquid Line System # 2
Gas Line System # 2
Liquid Line System # 3
Gas Line System # 3
Union Flare nut
Insulation Thickness
Min. 8 mm Min. 8 mm (1/3 in.)
MS-SVN005-EN.indd 7 1/10/08 11:03:31 AM

8MS-SVN005-EN
Condensate Drain Piping
Figure 5
Drain
1. The drain hose should come
straight down the wall to a level
where runoff will not stain the wall.
2. There should be no traps and avoid
putting the end of the hose in water.
3. To avoid damage to the floor or
furniture when the drain hose is
placed in the room, insulate the
hose with foamed polyethylene
or equivalent.
4. After completing refrigerant lines,
wining and drain connection, bind
the tubing, wining and drain pipe
(check if local codes permit it) into
a bundle by using tape at 100 or
200 mm (4 in. or 8 in.) intervals.
Make sure the drain tube is at the
bottom of the bundle (Figure 5).
MS-SVN005-EN.indd 8 1/10/08 11:03:32 AM

MS-SVN005-EN 9
System Evacuation and Purping
The outdoor unit is factory charged.
Unit nameplate charge is the total
required system charge with 7.5
meters of interconnecting lines. Since
the outdoor unit will not have to be
evacuated unless charge has been
completely lost, leave the suction and
liquid shut-off valves closed.
1. Upon completion of installation,
evacuate the refrigerant lines and
indoor coil (Figure 6).
2. Evacuate unit until the gauge reads
350 microns or evacuate at least
one hour for one system.
3. Close off valve to vacuum pump
and observe the micron gauge. If
gauge pressure rised above 500
microns in one (1) minute, then
evacuation is incompleted or
system is leaking.
- Attach appropriate hose from
manifold gauge to suction and
liquid line valves service ports.
- Attached center hose of mainfold
gauges to vacuum pump.
Note
Unnecessary switching of hoses and
complete evacuation of all lines
leading to sealed system can be
accomplished by placing a “T” in
manifold center hose and connecting
branch hose to cylinder of R-22.
Note
Evacuate unit 2 and 3 in the same
manner explained above.
This completes system evacuation
with a vacuum pump and the air
conditioner is ready for actual
operation.
Figure 6
Indoor Unit 3
Indoor Unit 2
Indoor Unit 1
System # 3
System # 2
System # 1
Service Port System #3
Suction Line System #3
Liquid Line System #3
Suction Pressure
Liquid Pressure
Vacuum Pump
Cylinder of R-22
MS-SVN005-EN.indd 9 1/10/08 11:03:33 AM

10 MS-SVN005-EN
Electrical Installation
Wiring and grounding must comply
with national and local codes.
Wiring
Important Safeguards:
- Check the unit nameplate for
electrical rating. Be sure wiring is
according to local codes and wiring
system diagram.
- A power supply disconnect and a
circuit breaker for overcurrent
protection should be provided in
the exclusive line.
- Connect all units electrically with
ground.
- Wiring should not touch refrigerant
tubing, compressor or moving
parts.
- The manufacturer will have no
responsibility for the problems
caused by unauthorized change in
the internal wiring.
- Connect wiring firmly.
- Use recommended wire length
and size.
Note
- Each country has their own field
wiring rules and regulations. Be
sure the installation complies with
local electrical codes.
- Nameplate ratings on indoor units
are for “one-to-one” system
installations only.
Checking the system before start up
Once the unit is installed, a check of
the system is recommended before
starting the units.
- Check that field connections are
correctly made.
- Check that units are correctly
installed and there is no tool or
debris near or on top of the unit.
- Check the tubing and the
connections for leaks.
- Check that unit has a proper
ground wiring.
- Check for proper voltage and fuse
size.
- Check electrical wire size used is as
specified.
- Check all field wiring for tight
connection.
- Make sure that electrical wires
inside the unit do not contact with
refrigerant pipes.
- Start the system and carefully
observe operation.
MS-SVN005-EN.indd 10 1/10/08 11:03:34 AM

MS-SVN005-EN 11

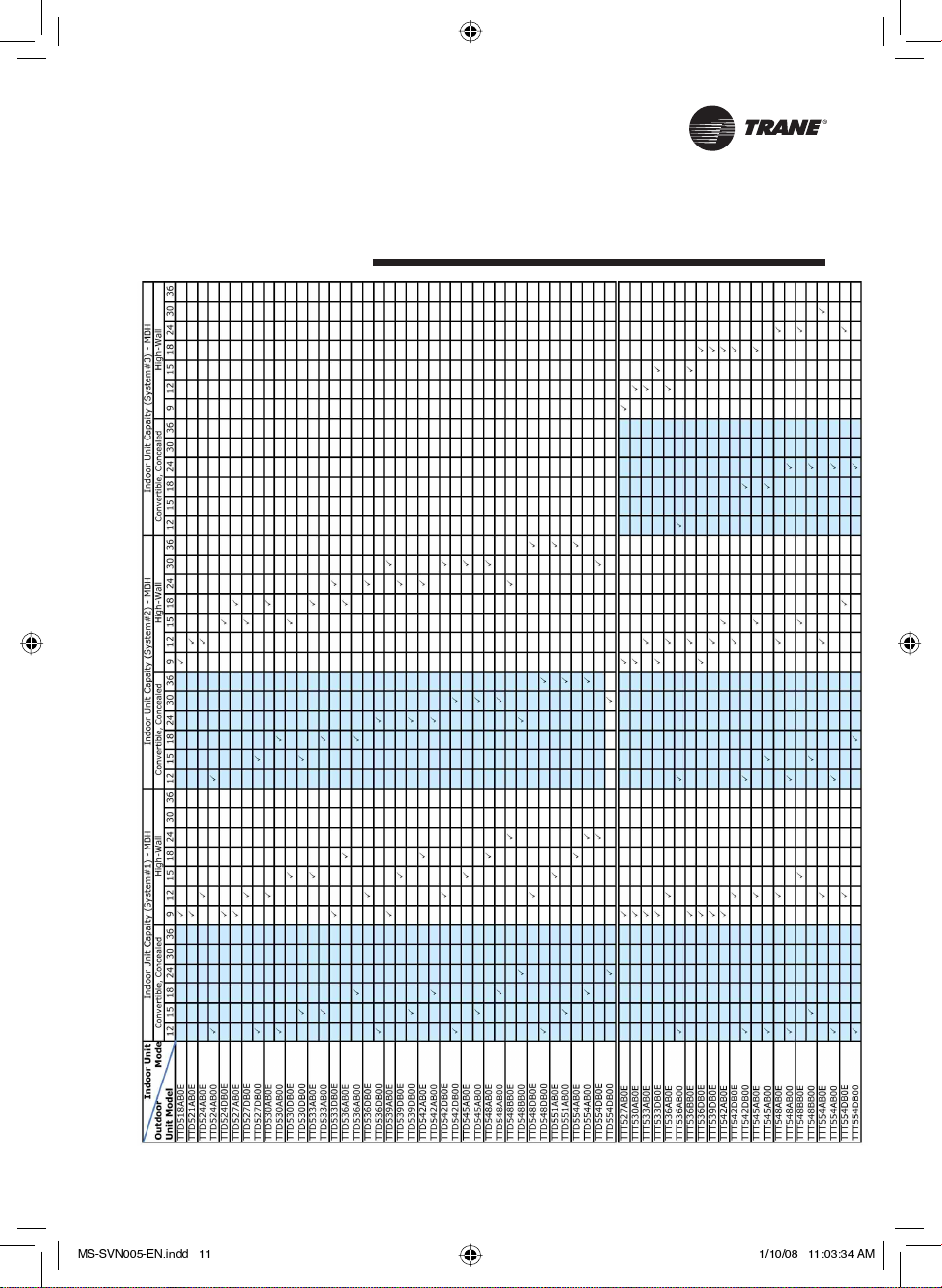

Matching Table
MS-SVN005-EN.indd 11 1/10/08 11:03:34 AM

12 MS-SVN005-EN

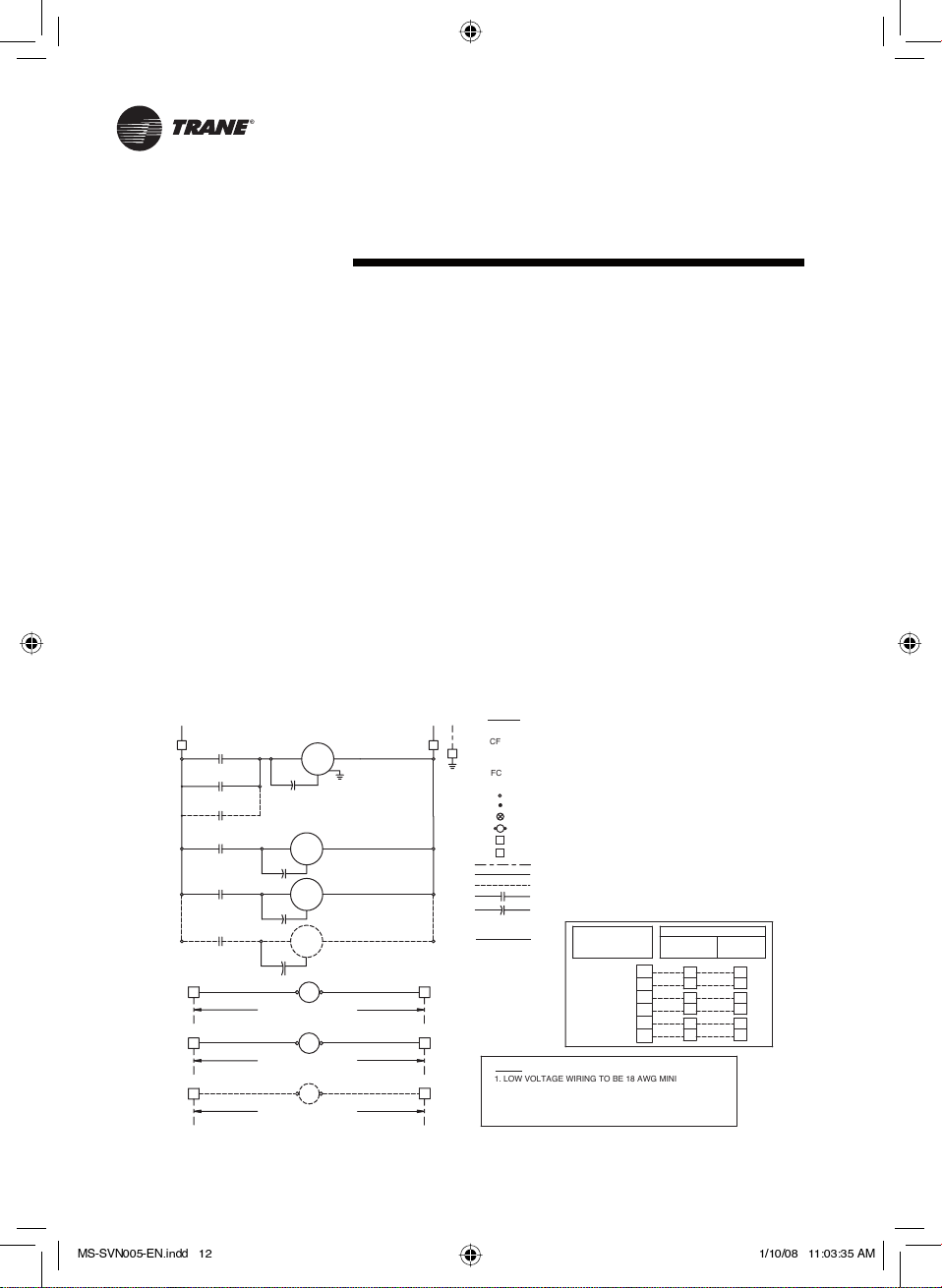

Wiring Diagram
Models
50 Hz
TTD518-542/TTT527-542 CONDENSING UNIT
220-240/1/50 Hz, 200-240/1/60 Hz
WIRING DIAGRAM
MS-SVN005-EN.indd 12 1/10/08 11:03:35 AM
CF
FC
1. LOW VOLTAGE WIRING TO BE 18 AWG MINIMUM
2. POWER WIRING AND GROUDING OF EQUIPMENT
3. USE COPPER CONDUCTORS ONLY
NOTES
CPR1,2,3
FAN MTR
MS1,2
CR1,2,3
LEGEND
COLOR CODE
MUST COMPLY WITH LOCAL CODES
INDOOR UNIT
APPLIES TO UNIT WITH 3 COMPRESSORS
COMPRESSOR MOTOR CONTACTOR # 1,2,3
COMPRESSOR RUN CAPACITOR # 1,2,3
HI-WALL
1
2
1
2
1
2
RELAY CONTACT NORMALLY OPEN
FACTORY WIRING
FIELD WIRING
IDENTIFIED TERMINAL
TERMINAL BOARD BY OTHER
TERMINAL BOARD BY FACTORY
OUTDOOR UNIT
INDOOR UNIT 2
INDOOR UNIT 1
INDOOR UNIT 3
CONCEALED
C1
C2
C1
C2
C1
C2
E
F
B
A
C
D
CONVERTIBLE,
BLACK
BROWN
GRAY
ORANGE
RED
WHITE
YELLOW
CAPACITOR
COIL
BLUE
FAN MOTOR
FAN CONTACTOR
FAN CAPACITOR
COMPRESSOR # 1,2,3
JUNCTION
TERMINAL
EMS3 F
220-240V/1ph/50Hz
200-240V/1ph/60Hz
GR
BR
BLK
OR
RD
YL
WH
D
B
BL
BLK
BLK
BLK
CR3
220-240V/1ph/50Hz
200-240V/1ph/60Hz
200-240V/1ph/60Hz
220-240V/1ph/50Hz
MS2
BL
RD
MS1
CPR2
CPR3
RD
CR2
RD
BL
RD
CPR1
BL
RD
CR1
RD
G
BLK
N
MTR
FAN
RD
BRRD
CF
RD RD
C
A
RD
RD
RD
MS2-1
MS3-1
MS1-1
RD
RD
MS1-2 RD
MS2-2
MS3-2
RD
L
FROM INDOOR UNIT 3
FROM INDOOR UNIT 2
FROM INDOOR UNIT 1
[
[
[
POWER SUPPLY
220-240V/1ph/50Hz
200-240V/1ph/60Hz
TTD518AB
TTD521AB
TTD524AB
TTD524DB
TTD527AB
TTD527DB
TTD530AB
TTD530DB
TTD533AB
TTD533DB
TTD536AB
TTD536DB
TTD542AB
TTD542DB
TTT527AB
TTT530AB
TTT533AB
TTT536AB
TTT536DB
TTT542AB
TTT542DB
Models
60 Hz
TTD518A1
TTD521A1
TTD524A1
TTD524D1
TTD527A1
TTD527D1
TTD530A1
TTD530D1
TTD533A1
TTD533D1
TTD536A1
TTD536D1
TTD542A1
TTD542D1
TTT527A1
TTT530A1
TTT533A1
TTT536A1
TTT536D1
TTT542A1
TTT542D1
TTT521AB TTT521A1

MS-SVN005-EN 13
Wiring Diagram
CF
FC
1. LOW VOLTAGE WIRING TO BE 18 AWG MINIMUM
2. POWER WIRING AND GROUDING OF EQUIPMENT
3. USE COPPER CONDUCTORS ONLY
NOTES
CPR1,2,3
FAN MTR
MS1,2
CR1,2,3
LEGEND
COLOR CODE
WIRING DIAGRAM
220-240/1/50 Hz, 200-240/1/60 Hz
TTD545-554/TTT545-554 CONDENSING UNIT
MUST COMPLY WITH LOCAL CODES
INDOOR UNIT
APPLIES TO UNIT WITH 3 COMPRESSORS
COMPRESSOR MOTOR CONTACTOR # 1,2,3
COMPRESSOR RUN CAPACITOR # 1,2,3
HI-WALL
1
2
1
2
1
2
RELAY CONTACT NORMALLY OPEN
FACTORY WIRING
FIELD WIRING
IDENTIFIED TERMINAL
TERMINAL BOARD BY OTHER
TERMINAL BOARD BY FACTORY
OUTDOOR UNIT
INDOOR UNIT 2
INDOOR UNIT 1
INDOOR UNIT 3
CONCEALED
C1
C2
C1
C2
C1
C2
E
F
B
A
C
D
CONVERTIBLE,
BLACK
BROWN
GRAY
ORANGE
RED
WHITE
YELLOW
CAPACITOR
COIL
BLUE
FAN MOTOR
FAN CONTACTOR
FAN CAPACITOR
COMPRESSOR # 1,2,3
JUNCTION
TERMINAL
EMS3 F
220-240V/1ph/50Hz
200-240V/1ph/60Hz
GR
BR
BLK
OR
RD
YL
WH
D
B
BL
220-240V/1ph/50Hz
200-240V/1ph/60Hz
200-240V/1ph/60Hz
220-240V/1ph/50Hz
MS2
MS1
C
A
FROM INDOOR UNIT 3
FROM INDOOR UNIT 2
FROM INDOOR UNIT 1
[
[
[
MS-SVN005-EN.indd 13 1/10/08 11:03:35 AM
Models
50 Hz
TTD545AB
TTD548AB
TTD548BB
TTD548DB
TTD551AB
TTD554AB
TTT545AB
TTT548AB
TTT548DB
TTT554AB
TTT554DB
Models
60 Hz
TTD545A1
TTD548A1
TTD548B1
TTD548D1
TTD554A1
TTD554D1
TTT545A1
TTT548A1
TTT548D1
TTT554A1
TTT554D1
TTD554DB

14 MS-SVN005-EN
Dimensional Data
MS-SVN005-EN.indd 14 1/10/08 11:03:35 AM
Model
TTT521

DIMENSIONAL DATA
14.17
13.0
14.17
14.17
1.93
13.0
(360.0)
(330.0)
(49.0)
0.78 (20.0)
1.93 (49.0)
SLOTS 10.0 x 25.0
(MM.)
(360.0)
(330.0) (360.0)
POWER SUPPLY
Ø1-3/16 (30.0 MM.)
(82.0)
1.85 (47)
1.18 (30.0)
42.0 (1068.0)
SYSTEM 1
SYSTEM 2
SYSTEM 3
15.11 (384.00)
3.59 (91.0)
5.95 (151.0)
10.67 (271.0)
13.03 (331.0)
15.39 (391.0)
17.87 (454.0)
31.3 (795.0)
8.30 (211.0)
3.22
13.66 (347.00)
42.0 (1068.0)
44.41 (1128.00)
SUCTION
REFRIG. LINE DIA.
MODEL
LIQUID
SYSTEM # 1
LIQUID
REFRIG. LINE DIA.
SYSTEM # 2
REFRIG. LINE DIA.
LIQUID SUCTION SUCTION
SYSTEM # 3
1/2 (12)
1/2 (12)
TTT536D10E
TTT536A10E
TTT536AB0E
TTT536A100
TTT536AB00
1/4 (6)
1/4 (6)
TTT533A10E
TTT533AB0E
TTT527A10E
TTT530AB0E
TTT530A10E
TTT527AB0E
1/4 (6)
1/4 (6)
1/4 (6) 3/8 (9)
3/8 (9)
3/8 (9)
1/4 (6)
1/4 (6)
1/2 (12)
3/8 (9)1/4 (6)
1/4 (6) 1/2 (12)
3/8 (9)
1/4 (6)
1/4 (6)
1/4 (6)3/8 (9)
3/8 (9)
1/2 (12)
1/4 (6)
1/4 (6)
1/4 (6)
1/2 (12)
1/2 (12)
3/8 (9)
TTD527AB0E
TTD527A10E
1/2 (12)
TTD536AB0E
TTD530AB00
TTD536A100
TTD536A10E
1/4 (6) - 1/2 (12)1/4 (6) -
1/2 (12)
TTD536AB0E
TTD536AB00
TTD536A100
TTD536A10E
1/4 (6) - 1/2 (12)1/4 (6) -
5/8 (16)
TTD536D10E
TTD536D100
3/8 (9) -
1/2 (12)1/4 (6) -
1/2 (12)1/4 (6) 1/2 (12)1/4 (6) --
TTD536D100
TTD536D10E
TTT536D10E
2) DIMENSIONS : INCHES (MILIMETERS) 1 IN. = 25.40 MM.
NOTE
3) THE ABOVE MODELS UTILIZE ROTARY COMPRESSORS.
MAR 8,04 REV : C
OUTDOOR UNIT
LIQUID VALVE
SUCTION VALVE
AIR FLOW DIRECTION
MOUNTING DETAIL
OUTLINE DRAWING
TM
1) SUCTION AND LIQUID VALVES ARE FLARE TYPE CONNECTIONS

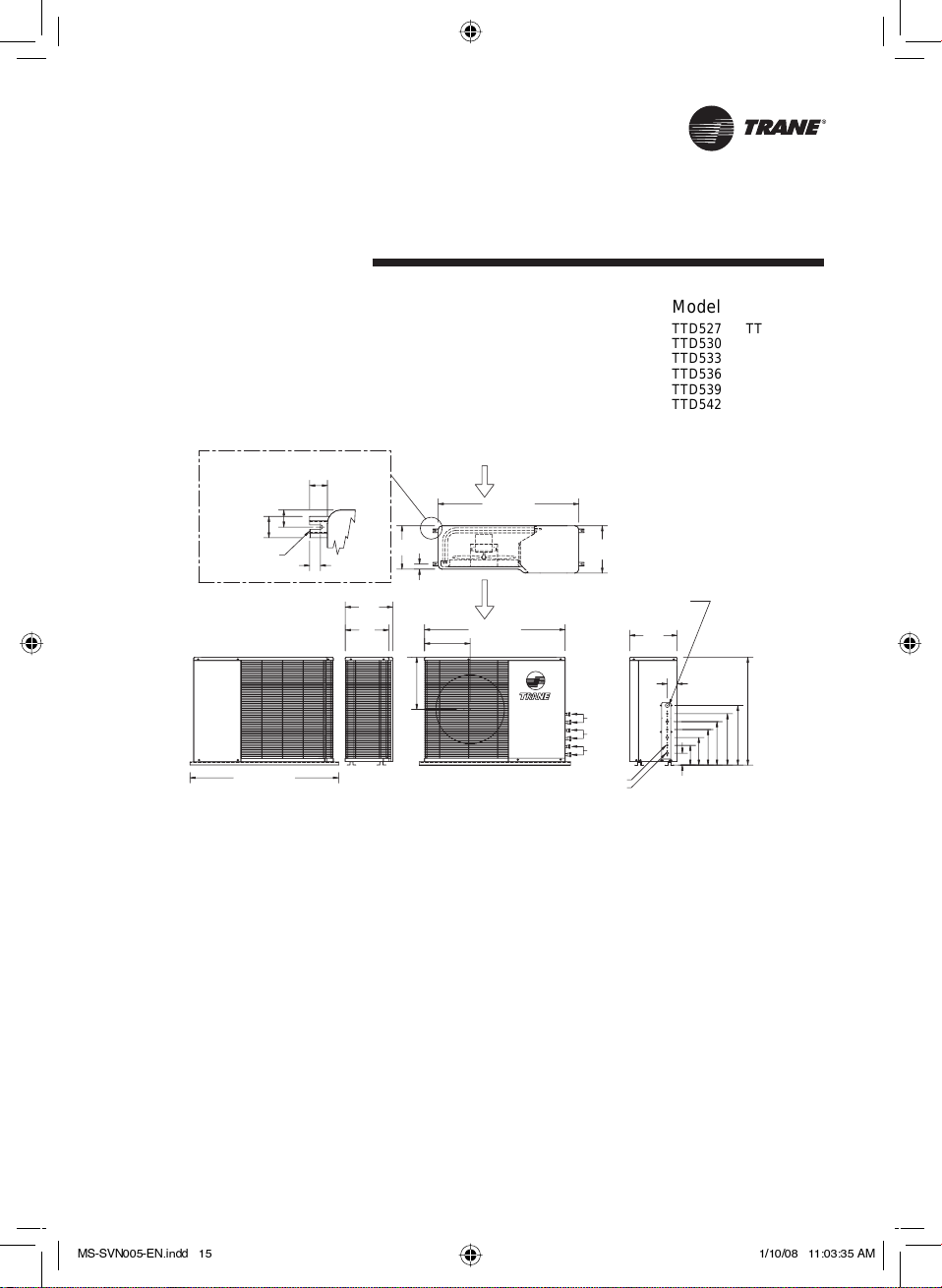

MS-SVN005-EN 15
Dimensional Data
MS-SVN005-EN.indd 15 1/10/08 11:03:35 AM
Model
TTD527
TTD530
TTD533
TTD536
TTD539
TTD542
TTT527
TTT530
TTT533
TTT536
TTT539
TTT542

16 MS-SVN005-EN
Dimensional Data
MS-SVN005-EN.indd 16 1/10/08 11:03:36 AM
Model
TTD518
TTD521
TTD524

MS-SVN005-EN 17
MS-SVN005-EN.indd 17 1/10/08 11:03:36 AM
Dimensional Data
Model
TTD545
TTD548
TTD551
TTD554
TTT545
TTT548
TTT554

18 MS-SVN005-EN
Note
MS-SVN005-EN.indd 18 1/10/08 11:03:36 AM

MS-SVN005-EN 19
Note
MS-SVN005-EN.indd 19 1/10/08 11:03:36 AM

MS-SVN005-EN.indd 20 1/10/08 11:03:37 AM
Oct 2007
Oct 2012
