Transcend Heated Humidifier User manual

®
Transcend Heated Humidifier™
Quick Guide
ESPAÑOL
ENGLISH FRANÇAIS DEUTSCH ITALIANO NEDERLANDS PORTUGUÊS

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 2
INTRODUCTION
Thank you for choosing the Transcend Heated HumidifierTM, designed for use with the Transcend
sleep apnea flow generator products.
Please read all instructions in this Quick Guide prior to use. To download the complete Transcend
Heated Humidifier User Guide, please go to www.mytranscend.com/resources, or obtain a copy
by calling Transcend Customer Service at 877-621-9626. Begin by inspecting all items shipped
to you. Please report any damaged or missing items to the home healthcare provider where you
obtained your device.
GENERAL WARNINGS
• UsethehumidifieronlyforitsintendeduseasdefinedinthisQuickGuide.
•Onlyusethe Transcend Sleep Apnea Starter System (Model 503042) positive
airway pressure device and a 6 foot air supply tube with the Humidifier.
• Ifthehumidifierisdamagedbywater,disconnectthepowercordimmediately,
discontinue use, and contact your homecare equipment service provider.
• TheHumidifierisforsinglepatientuseandmustnotbereusedonanotherperson.
This is to avoid the risk of cross-infection.
• AlwaysplacetheHumidifierlowerthanthelevelofthepatient.Ifitisplacedator
above the level of the patient, heated water may flow down the air tubing and into
the mask.
• TakecarewhenhandlingtheHumidifier.Thewaterinthereservoirmaybehot.
• Donotmodifythisequipmentwithoutauthorizationofthemanufacturer.
• TheHumidifierWaterReservoirmustbecompletelydrainedofwaterpriortotransport.
WaterremainingintheWaterReservoirmayleakduringtransport,damagetheelectrical
circuitryofthedevice,andcreateapotentialelectricalshockhazard.
• DonotusetheHumidifierinthepresenceofflammableorexplosivematerials.
• Medicalelectricalequipment,includingthisdevice,requirespecialprecautions
regarding electromagnetic compatibility (EMC) and need to be installed, placed,
and used according to EMC information.
• Radiofrequency(RF)communicationsequipmentcaneffectmedicalelectricalequipment,
including this device.
• OthercablesandaccessoriesmayaffectEMCperformance.
• Becarefulwhenplacingorstackingthishumidifiercloseto,orontopof,
other equipment.
ENGLISH

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 3
TRANSCEND HEATED HUMIDIFIER COMPONENTS
ITEM
NUMBER DESCRIPTION
WATER RESERVOR
HUMIDIFIER BODY
SETTINGS KNOB
POWER INPUT
FILL CAP
2-PRONG POWER CORD
RESERVOIR DRAIN PLUG
1
2
3
4
5
6
7
ENGLISH

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 4
GETTING STARTED
Important: It is important to place the Humidifier on a firm, level surface near your bed. It is
recommended that you not place the Humidifier on a surface that could be damaged by water.
The Humidifier should be on a level that is lower than your sleeping position to help prevent
condensation in the mask.
FILLING THE WATER RESERVOIR

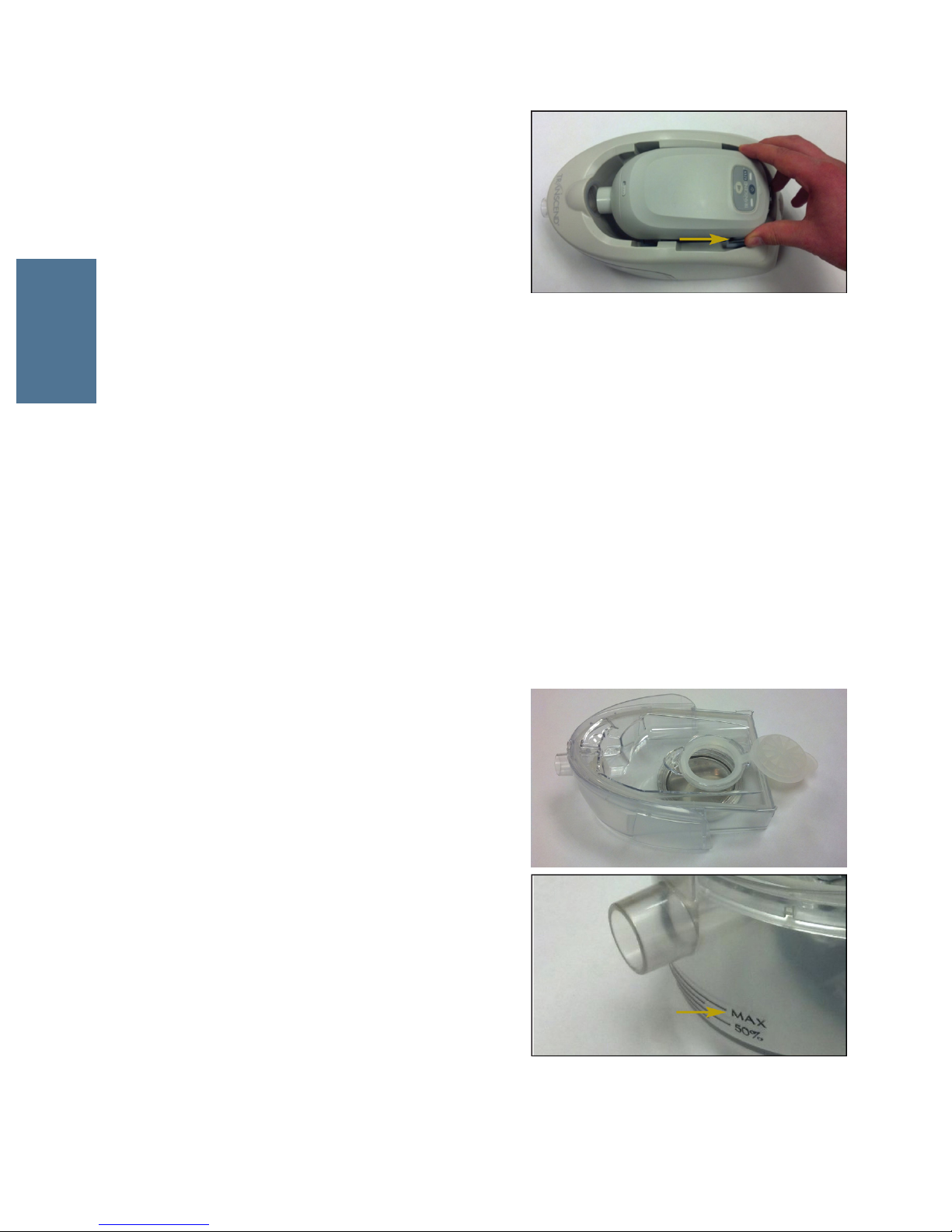

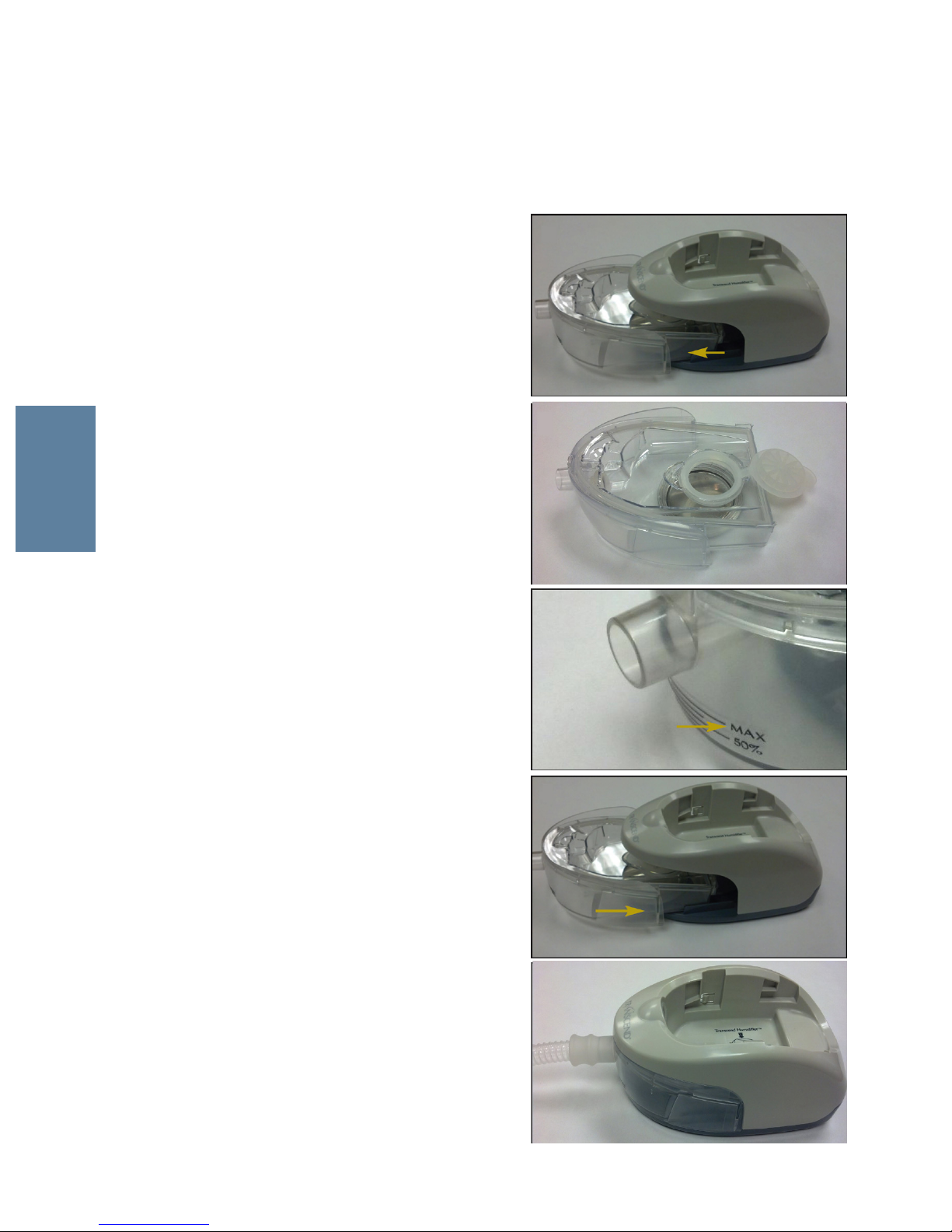

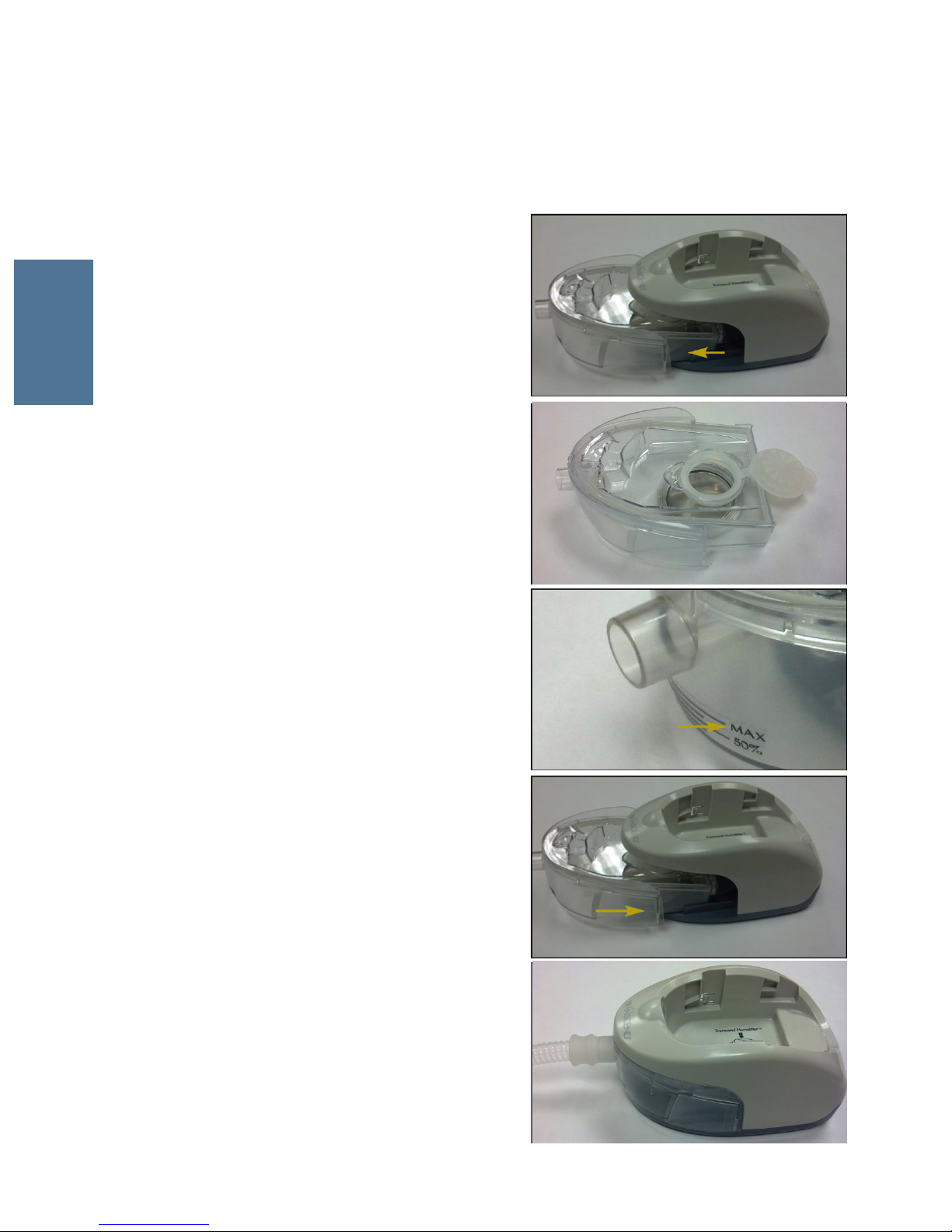

1. RemovetheWaterReservoirfromthe
Humidifier by pulling outward (Image a).
2. Remove the Fill Cap (Image b) and carefully
filltheWaterReservoirtotheMAXfillline
with distilled water (Image c).
3. Replace the Fill Cap and carefully return
theWaterReservoirtotheHumidifierbody
(Image d).
STARTING AND ENDING THERAPY
1. Attach the air supply tubing (hose) to the
Humidifier. Be sure your mask is securely
attached to the opposite end of the air
supply tubing (Image e).
Note: Standard 6 foot air tubing is supplied
with the Transcend Sleep Apnea Starter
System. If you have been using the PAP device
without the Humidifier, the universal hose
adapter must be removed from the 6 foot air
tubing prior to use.
a
b
c
d
e
ENGLISH

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 5
f
g
h

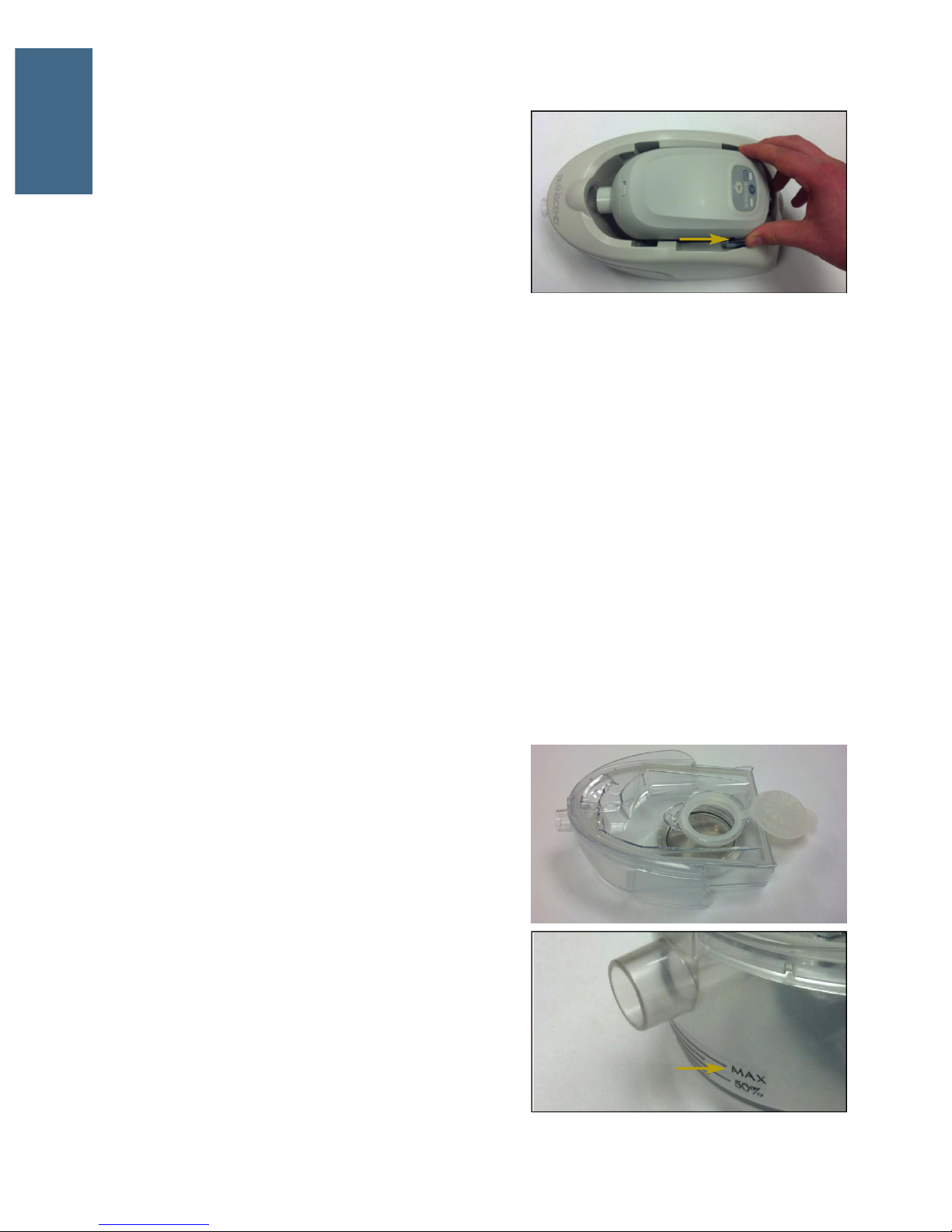

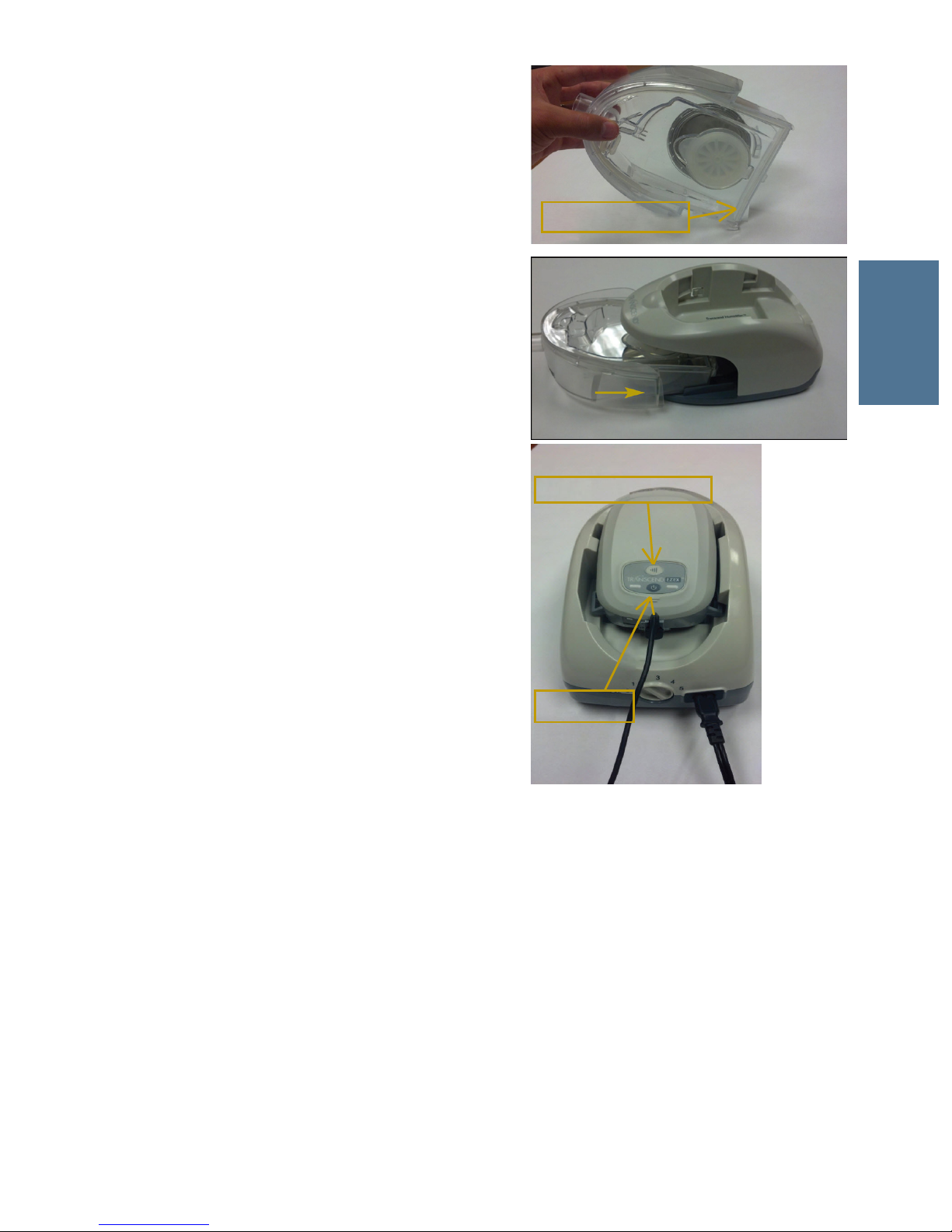

2. Place the PAP device into the
corresponding slots at the top of the
Humidifier and slide the PAP device
forward until the nose cone is inside the
humidifier body (Image f).

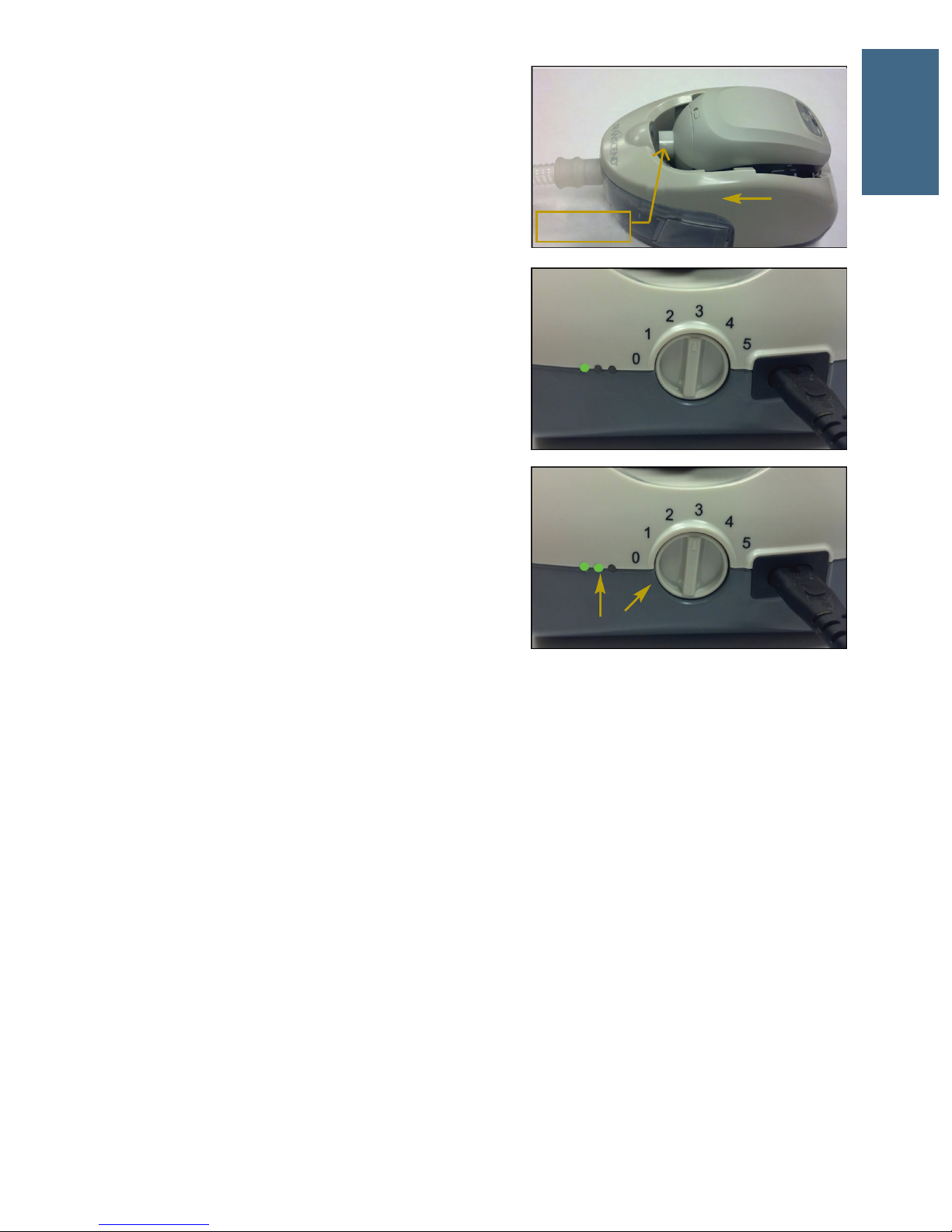

3. To power the Humidifier, plug the power
supply cord into the back of the device,
then connect the power supply to a wall
outlet. The leftmost LED will turn solid
green indicating power to the Humidifier
(Image g)*
4. Separately power the PAP device as
described in its User Manual. The PAP
device may be powered via wall (main)
power, Transcend battery, or Transcend
Mobile Power Adaptor.
5. Start therapy by pressing the Power button
on the PAP device. Air flow from the PAP
device will automatically turn on the
Humidifier.
6. The Humidifier will begin warming
automatically. The middle green LED will
turnonindicatingthattheHumidifieriswarming.Itwilltakeapproximately60minutes
fortheHumidifiertoreachitsmaximumheatingtemperature(Imageh).
Note: If a fault has occurred with the Humidifier, all three LEDs will begin to flash. Please
refer to the Transcend Heated Humidifier User Manual for more information.
Note: WhenthereservoirisemptyorhasbeendetachedfromtheHumidifier,thethirdLED
will turn red.
7. Adjust the heat setting of the Humidifier by using the Settings Knob located on the back
of the Humidifier. If a heat setting has been recommended by your healthcare provider,
begin at that setting and adjust the dial up or down to reach your desired comfort level
(Image h).
8. The0settingwillturntheHumidifierheatingfunctionoff.Ifyouturntheheatsettingtothe
0setting,itmustbereturnedtoahighersettingtoresumeheatedhumidification.
9. To stop PAP therapy, simply press the Power button on the Transcend PAP device. The
Humidifier will stop automatically.
*The Humidifier may only be powered by the AC power supply.

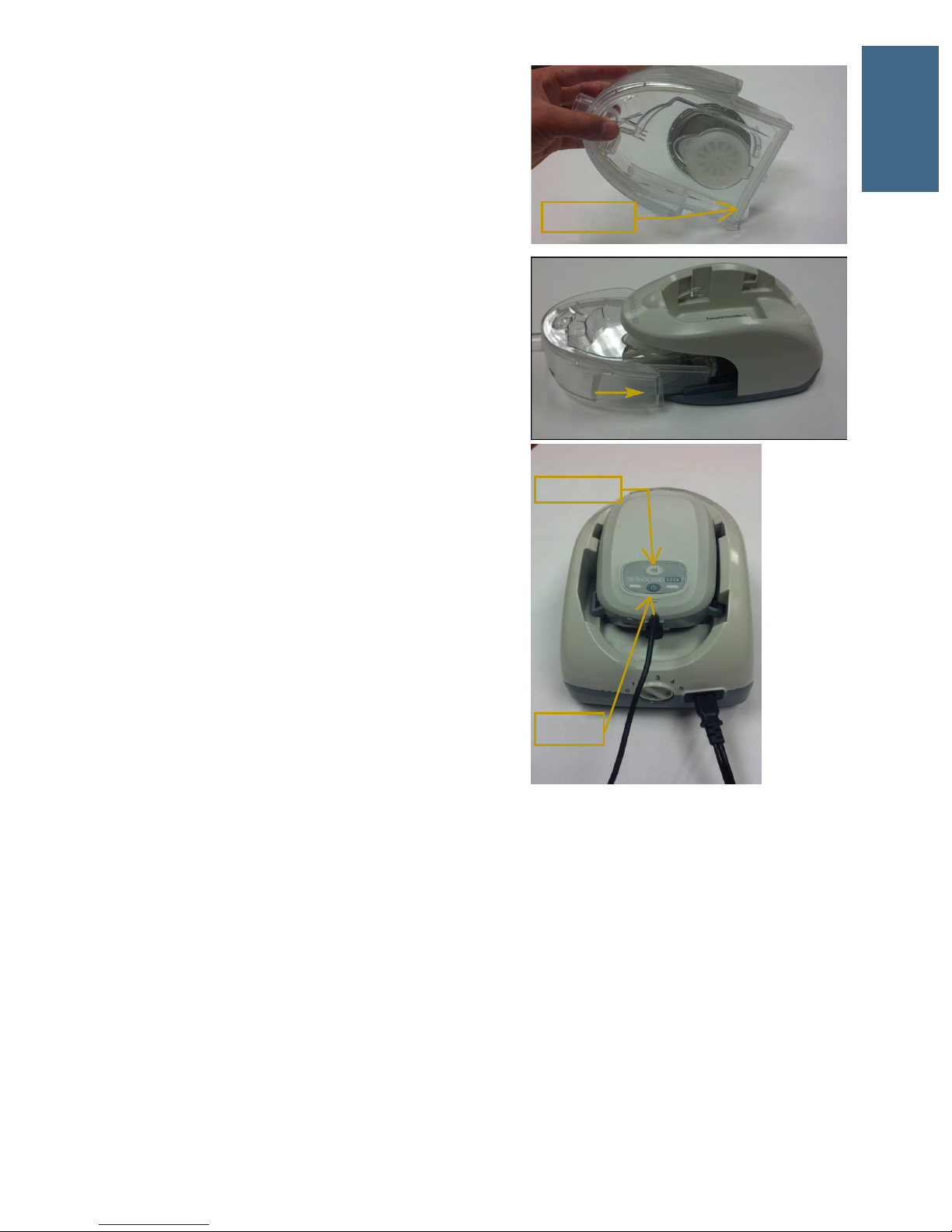

Nose Cone
ENGLISH

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 6
CLEANING AND MAINTENANCE
1. Unplug the Humidifier from the wall outlet
and allow it to cool to the touch.
2. Remove the PAP device by pulling it
backward, sliding it out of the guide slots of
the Humidifier (Image i).
i
a. Periodic Cleaning:CleantheexterioroftheHumidifierasneeded.Useamixof5%mild
liquiddetergentindistilledwater(1.6floz.liquiddetergentperquartofdistilledwater).This
will clean away surface residue.
• Submergealint-freecottonclothintothedetergentsolution.
• WipetheexterioroftheHumidifierusingagentle,backandforthwipingmotion
from
the front to back of the device.
• Rinsetheclothinclearwatertoremoveresidualcleaningsolution.
• WringexcesswaterfromthecloththenwipetheHumidifierusingagentlefrontto
back wiping motion to remove any detergent solution remaining on its surface.
• Wipethedevicewithadry,lint-freecottonclothuntilthedeviceisfullydry
b. Daily Cleaning: Follow the instructions
belowtocleantheWaterReservoir.
•RemoveWaterReserviorfromthe
Humidifier Body and open the Fill
Cap (Image j).
• FilltheReservoirtothemaximum
watermarkwithasolutionof5%mild
liquid detergent in distilled water. (1.6
floz.liquiddetergentperquartof
distilled water) (Image k).
• ReplaceFillCap.
• Covertheoutputportwithyourhand
and gently shake the Reservoir back
and forth
for10seconds.
j
k
ENGLISH

TRANSCEND HEATED HUMIDIFIER QUICK GUIDE •ENGLISH •PAGE 7
• RemovetheDrainPluganddrainthe
solution (Image l).
• ReplacetheDrainPlug.
• OpentheFillCapandrinsetheinside
of the Reservoir thoroughly with clean
water.
• RemovetheDrainPlugtoemptythe
Reservoir.
Note: Repeat steps as needed to remove
excesssolution.
• ReturnthereservoirtotheHumidifier
Body (Image m).
• TofullydrytheReservoir,turnon
“Drying mode” by pressing and
holding the ramp button then the
power button on the Transcend PAP
device.Dryingmodewilllastfor30
minutes and turn off automatically
(Image n).
Note: Ensure that power is supplied to the
Transcend PAP device and Humidifier.
• RefilltheReservoirwithdistilled
waterbeforethenextuse.
l
m
n
c. Weekly Maintenance:InspecttheWaterReservoirandFillCapforwearor
deterioration.IftheWaterReservoirbeginstoleak,replaceitimmediatelywithanew
Reservoir. Contact your home medical equipment provider or call Somnetics customer
service at 1-877-621-9626 for assitance.
Drain Plug
Ramp
Power
ENGLISH

®
Guide rapide de l'humidicateur chauffant
Transcend Heated Humidier™
FRANÇAIS

GUIDE RAPIDE DE L’HUMIDIFICATEUR CHAUFFANT TRANSCEND •FRANÇAIS •PAGE 10
INTRODUCTION
Nous vous remercions d'avoir choisi le Transcend Heated Humidier™, conçu pour une utilisation avec
les produits de génération de ux Transcend pour l'apnée du sommeil.
Veuillez lire toutes les instructions de ce guide rapide avant d’utiliser l’appareil. Pour télécharger la
version complète du manuel d'utilisation de l'humidicateur chauffant Transcend, rendez-vous sur
le site www.mytranscend.com/resources. Vous pouvez également en obtenir une copie en appelant
le service client Transcend au 877-621-9626. Commencez par inspecter tous les éléments envoyés.
Veuillez signaler tout élément endommagé ou manquant au prestataire de soins médicaux auprès duquel
vous avez obtenu l’appareil.
AVERTISSEMENTS GÉNÉRAUX
• Utilisezl’humidicateuruniquementpourl’usageprévu,commeindiquédansleprésentguide
rapide.
• Utilisez uniquement le Transcend apnée du sommeil Démarreur (modèle 503042) Dispositif de
pression positive et un tube d'alimentation en air de 6 pieds avec l'humidificateur.
• Sil’humidicateurestendommagépardel’eau,débranchezimmédiatementlecordond’alimentation,
n’utilisez plus le produit et contactez votre fournisseur d’équipement de soins à domicile.
• L’humidicateurestconçupourêtreutiliséparunseuletmêmepatientetnedoitpasêtreutilisépar
une autre personne. Ceci pour éviter les risques d'infection croisée.
• Placeztoujoursl’humidicateuràunniveauinférieuràceluidupatient.S’ilestplacéaumême
niveau ou à un niveau supérieur à celui du patient, la vapeur de l’eau chauffée se diffusera dans
le tuyau d’alimentation et dans le masque.
• Faitesattentionlorsquevousmanipulezl'humidicateur,carl'eausetrouvantdansleréservoir
risqued'êtrechaude.
• Nemodiezpascetappareilsansl’autorisationdufabricant.
• Avanttouttransport,leréservoird’eaudel’humidicateurdoitêtreentièrementvidé.Sidel'eau
reste dans le réservoir, elle pourrait se renverser lors du transport, endommager le circuit électrique
de l'appareil et créer une situation de décharge électrique potentielle.
• N'utilisezpasl'humidicateurenprésencedesubstancesinammablesouexplosives.
• L’équipementélectromédical,ycompriscetappareil,nécessitedesprécautionsparticulières
encequiconcernelacompatibilitéélectromagnétique(CEM).Ildoitêtreinstallé,placé et utilisé
conformément aux informations CEM.
• Leséquipementsdecommunicationparradiofréquence(RF)peuventaffecterl’équipement
électromédical, y compris cet appareil.
• D’autrescâblesetaccessoirespeuventaffecterlesperformancesCEM.
• Soyezvigilantlorsquevousplacezcethumidicateuràproximitédeousurunautreéquipement.
FRANÇAIS
