Transcend DrivePro Body 30 User manual

User’s Manual
2023/06 (v6.0)
Body Camera DrivePro Body 30

Table of Contents
1. Package Contents
2. Getting Started
2-1 Function Buttons
2-2 Function Button Description
2-3 LED Indicators
2-4 Charging the DrivePro Body
3. Recording Videos
3-1 Buffering Mode
3-2 Recording Mode
3-3 Recording Videos with Infrared LEDs
4. Taking Photos
5. Audio Recording
6. Advanced Feature
6-1 Bluetooth Team Sync
7. Using the DrivePro Body App
7-1 Downloading and Installing the App

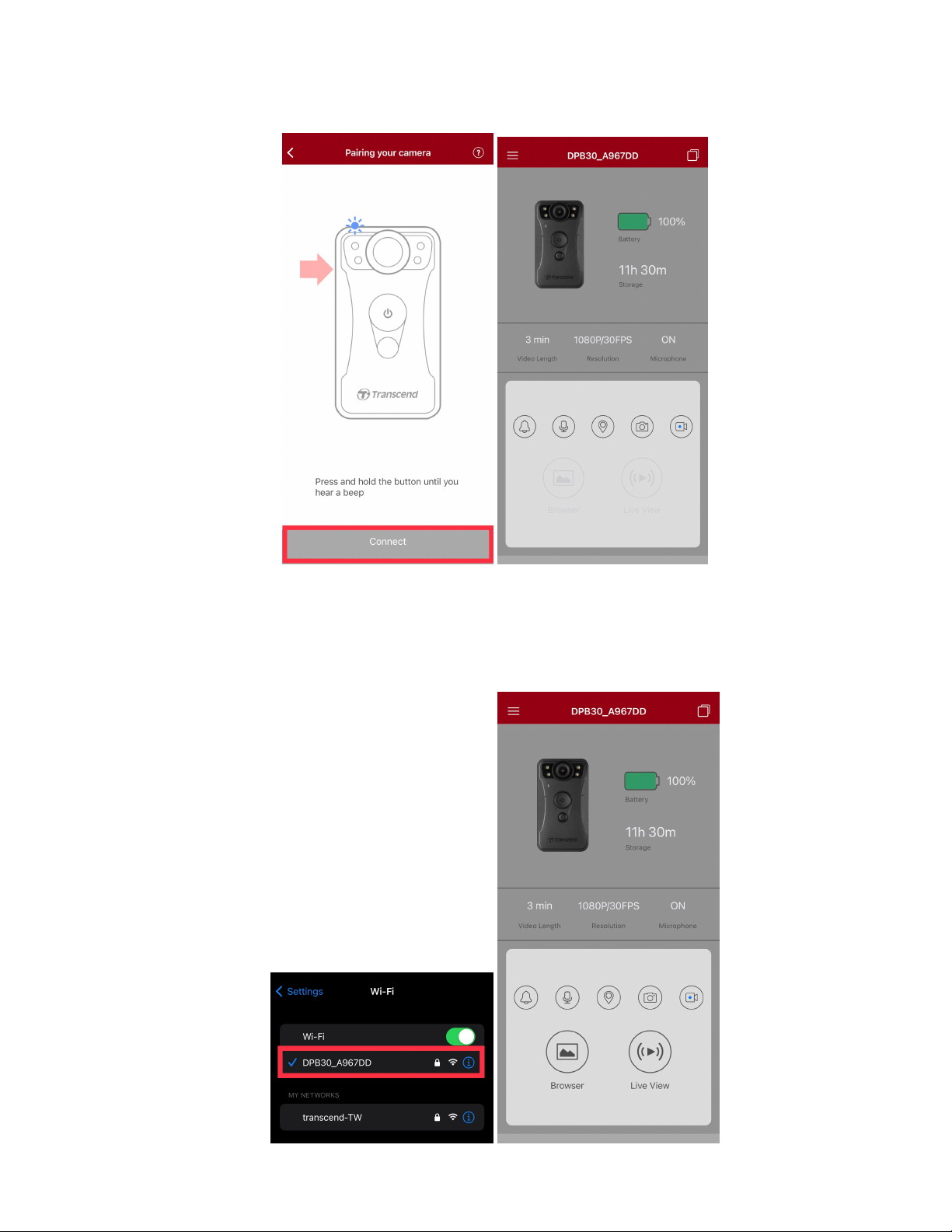

7-2 Connecting to the DrivePro Body App
7-3 DrivePro Body App Homepage
7-4 Playing Videos and Browsing Photos
7-5 Settings
8. Using the DrivePro Body Toolbox Software
8-1 System Requirements
8-2 Status
8-3 Settings
8-4 Tools
8-5 File Manager
8-6 Preference
9. Transferring Files to a Computer
10. Docking Station (Optional)
11. Cautions
12. IP67 Protection
13. Specifications
14. Frequently Asked Questions
15. EU Compliance Statement
16. Recycling and Environmental Protection

17. Warranty Policy
18. GNU General Public License (GPL) Disclosure
19. End-User License Agreement (EULA)
20. Federal Communications Commission (FCC) Statement
21. Eurasian Conformity Mark (EAC)

1. Package Contents
DrivePro Body 30 Adapter 3.5 mm to USB cable
Velcro 360° rotating clip & Velcro
holder Quick Start Guide
"Note"
When removing the DrivePro Body from the holder, please pull from the left and to the right side.
When reassembling, ensure the DrivePro Body is securely attached to the holder.


2. Getting Started
2-1 Function Buttons

2-2 Function Button Description
Button Instruction Description
Power
Button
Long press once Power on/off
Short press twice Switch between Buffering mode and Recording mode.
(Default: Buffering mode)
Snapshot
Button
Long press once
Turn on/off Infrared LEDs.
Note: The default setting for long-pressing the snapshot
button is enabling or disabling the "infrared LEDs." However,
you can change it to the "audio recording function" through the
DrivePro Body Toolbox.
Short press once Take a snapshot.
＋Press for 5+ seconds
Reset, format and power off the device.
Note: This function is disabled by default and can be enabled
using the DrivePro Body Toolbox.
Warning: All data will be permanently erased.
Status
Button Press for 5 seconds Pair and connect to Bluetooth.
Short press once Check the battery and recording status.
Assistive
Button Long press once Turn on/off the light indicators and the buzzer (Stealth
Mode)
Short press twice Turn on/off the microphone (Silent Mode)

2-3 LED Indicators
Top View 1
Recording
LED Status Definition
Flashing Low battery
Connected to a computer / power source
LED Status Definition
Solid Charging
Checking the battery status
LED Status Definition
Solid > 67% remaining
Solid 31% to 67% remaining
Solid < 31% remaining

Top View 2
Recording
LED Status Definition
Flashing Memory almost full
Flashing Bluetooth pairing
Solid Checking status
in Buffering mode
Flashing Checking status
in Recording mode
Solid Silent mode (Microphone off)
Connected to a computer
LED Status Definition
Flashing Transferring data

Front View
LED Status Definition
Flashing Powering on
Solid Buffering mode
Flashing Recording mode
Solid Browser /
Connected to a computer
2-4 Charging the DrivePro Body
Before use, please ensure that the battery is fully charged. Charge the DrivePro Body via the
adapter or by connecting the USB cable to the computer. A solid orange light of the battery
indicator is visible while charging and will turn off when fully charged.
To charge the DrivePro Body, you can either:
Connect the 3.5 mm to USB cable to the body camera and a wall outlet with the included
adapter.
Connect the 3.5 mm to USB cable to the body camera and a computer.
Connect the DrivePro Body to Transcend’s Docking Station (Optional).
"WARNING"
Do not use a non-original 3.5 mm to USB cable to charge.


3. Recording Videos
3-1 Buffering Mode
Recording in Buffering mode can significantly save storage space as the files are not recorded
to the internal storage.
To power on and start Buffering mode, long press the power button ; you will hear a beep.
The recording indicator will flash blue when powering on and then turn solid blue in Buffering
mode. To stop recording and power off, long press the power button ; you will hear a beep.
The LED light and the device will turn off.
To switch between Buffering mode and Recording mode, double-press the power button .
You will hear two beeps.
"Note"
Buffered video length is adjustable via the DrivePro Body Toolbox.

