Translux Fair-Play User manual

OUTDOOR LED CLOCK
INSTRUCTION MANUAL
REVISION DATE: 09-14-06
PART#: 98-0023-04

SERVICE & CUSTOMER INFORMATION
CUSTOMER MUST HAVE PART NUMBER WHEN ORDERING ITEMS THROUGH THE SERVICE DEPARTMENT.
IF FURTHER HELP IS NEEDED CONTACT A FAIR-PLAY SERVICE REP IN YOUR FAIR-PLAY DEALER
ORGANIZATION OR PHONE THE FAIR-PLAY HELP DESK AT [phone].
TO AID YOU IN YOUR DISCUSSIONS WITH SERVICE REPS, WE SUGGEST THAT YOU RECORD THE
FOLLOWING:
MODEL NUMBER:_______________________________________________________________________________
FAIR-PLAY SALES ORDER NUMBER:_______________________________________________________________
(THIS NUMBER IS FOUND IN THE UPPER RIGHT HAND CORNER OF THE PACKING SLIP AND INVOICE.)
INSTALLATION DATE:____________________________________________________________________________
WARRANTY: A COPY OF THE FIVE-YEAR LIMITED WARRANTY IS ENCLOSED.

FAIR-PLAY SCOREBOARDS
DES MOINES, IOWA
INSTRUCTION DRAWING LIST
STANDARD OUTDOOR LED CLOCKS
TABLE OF CONTENTS
DESCRIPTION DRAWING
NUMBER
OUTDOOR LED CLOCK FACE VIEWS.........................................................................…........…………….. 01-0015-03

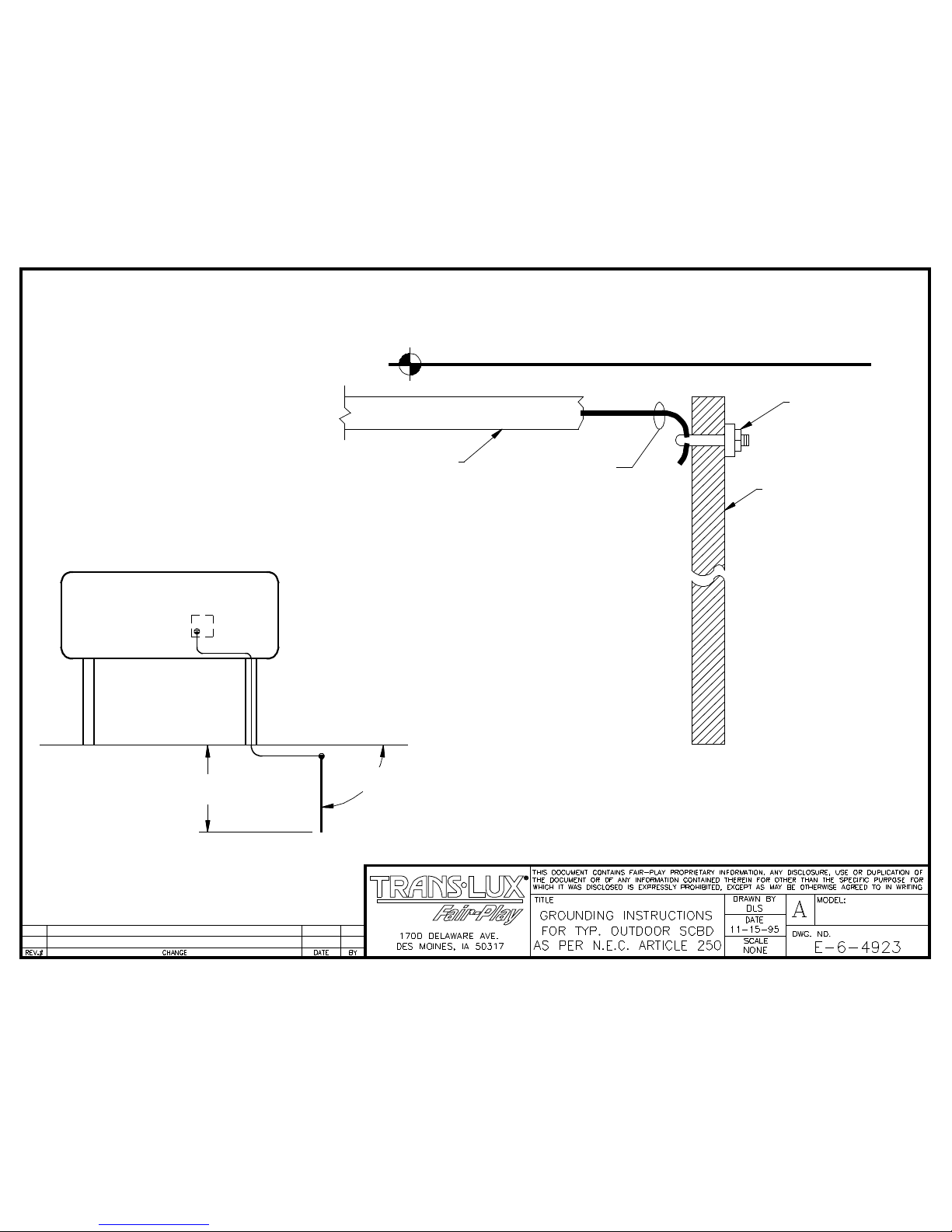

GROUNDING INSTRUCTIONS...................................................................................……………………… E-6-4923
TYPICAL OUTDOOR LED 4-DIGIT CLOCK WIRING……………………………………………………………… 12-0003-11

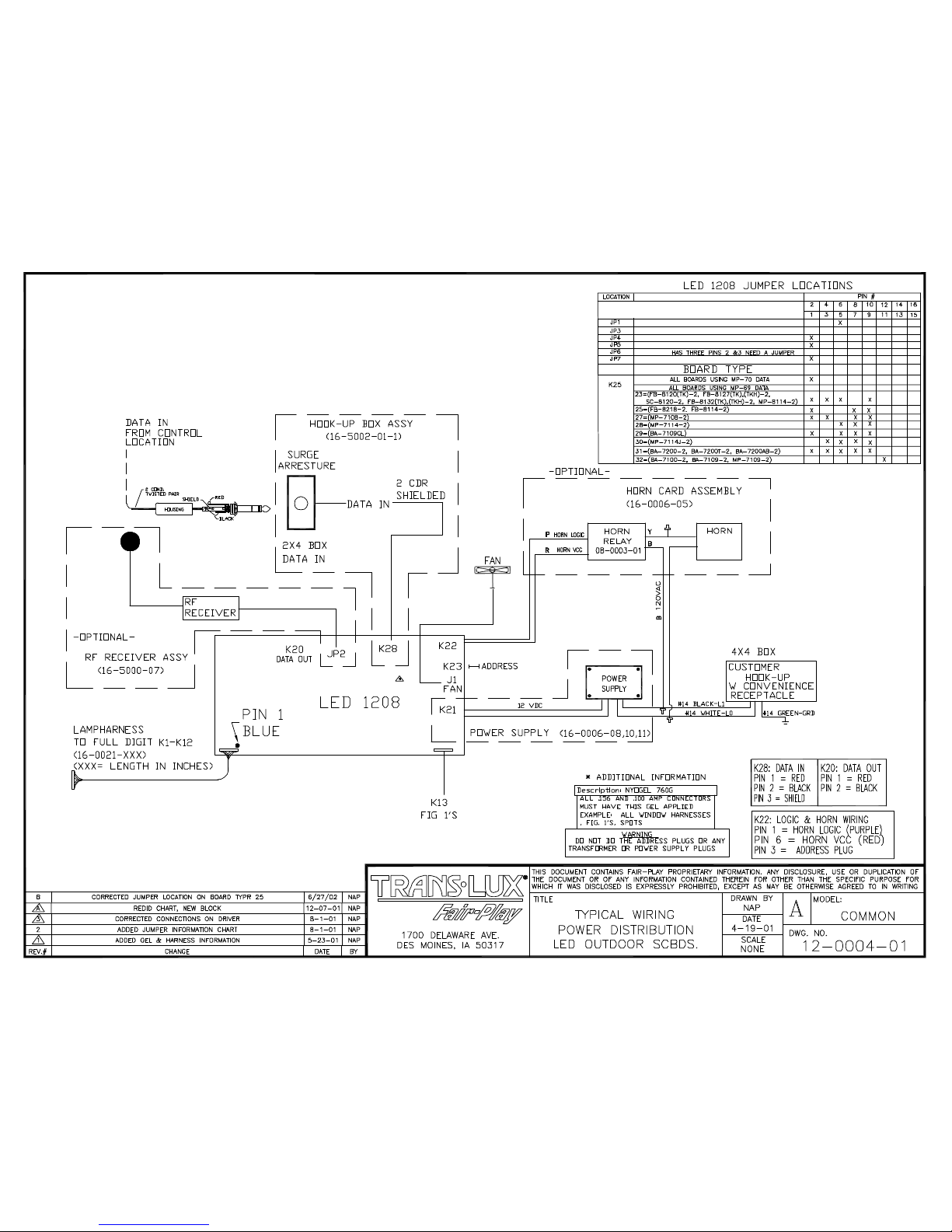

TYPICAL OUTDOOR PROCESSOR WIRING........................................................................................… 12-0004-01

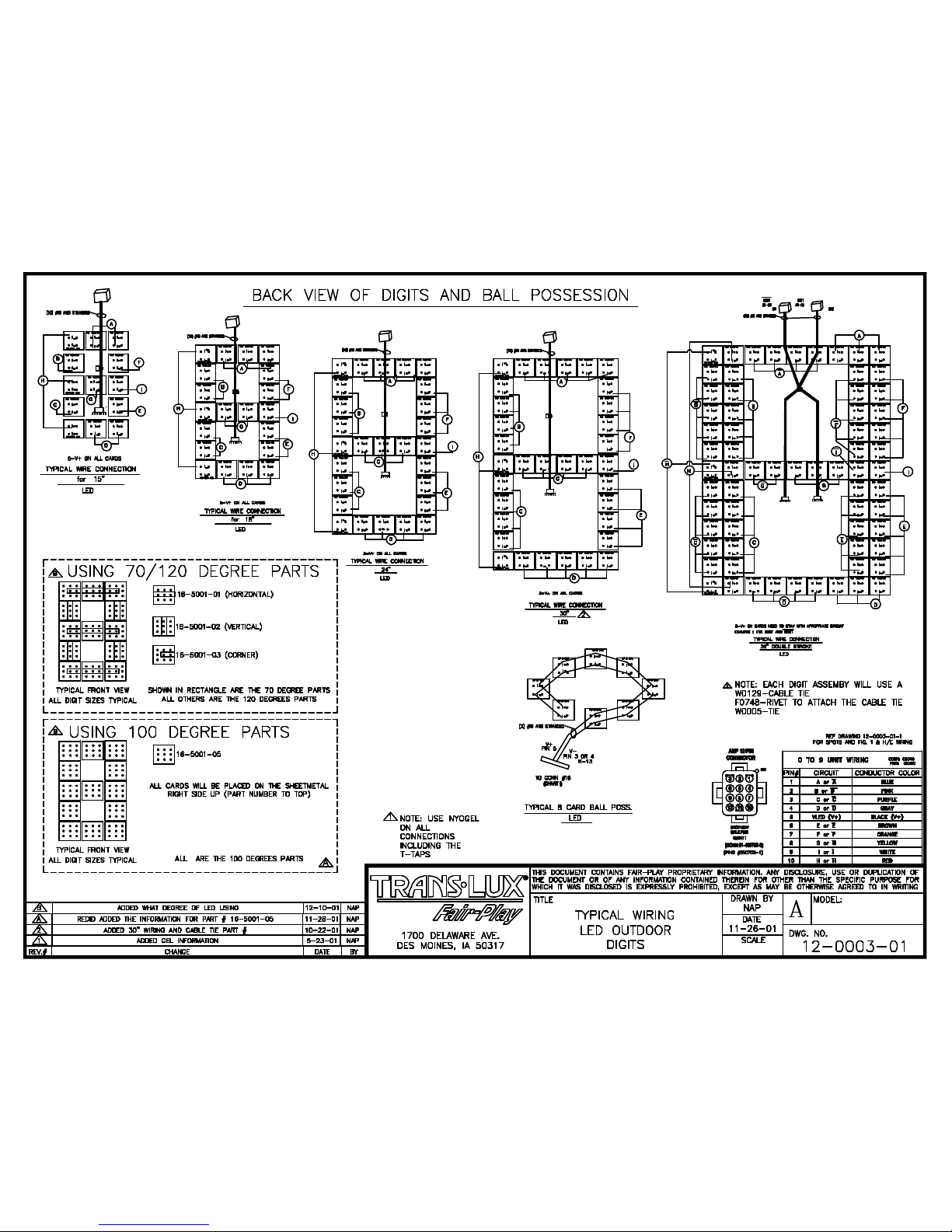

TYPICAL LED OUTDOOR DIGITS & BALL POSSESSION WIRING.....................................................……. 12-0003-01
WIRING AND COMPONENT LOCATION FOR CL-1312…………………………………………………………. 92-1312-01
OUTDOOR HOOK-UP BOX ASSEMBLY WITH SURGE ARRESTOR……………………………………………16-5002-01
COLUMNS AND FOOTINGS CHARTS……………………………………………………………………………….98-0029-01
CHART FOR OUTDOOR LED CLOCK DETAILS

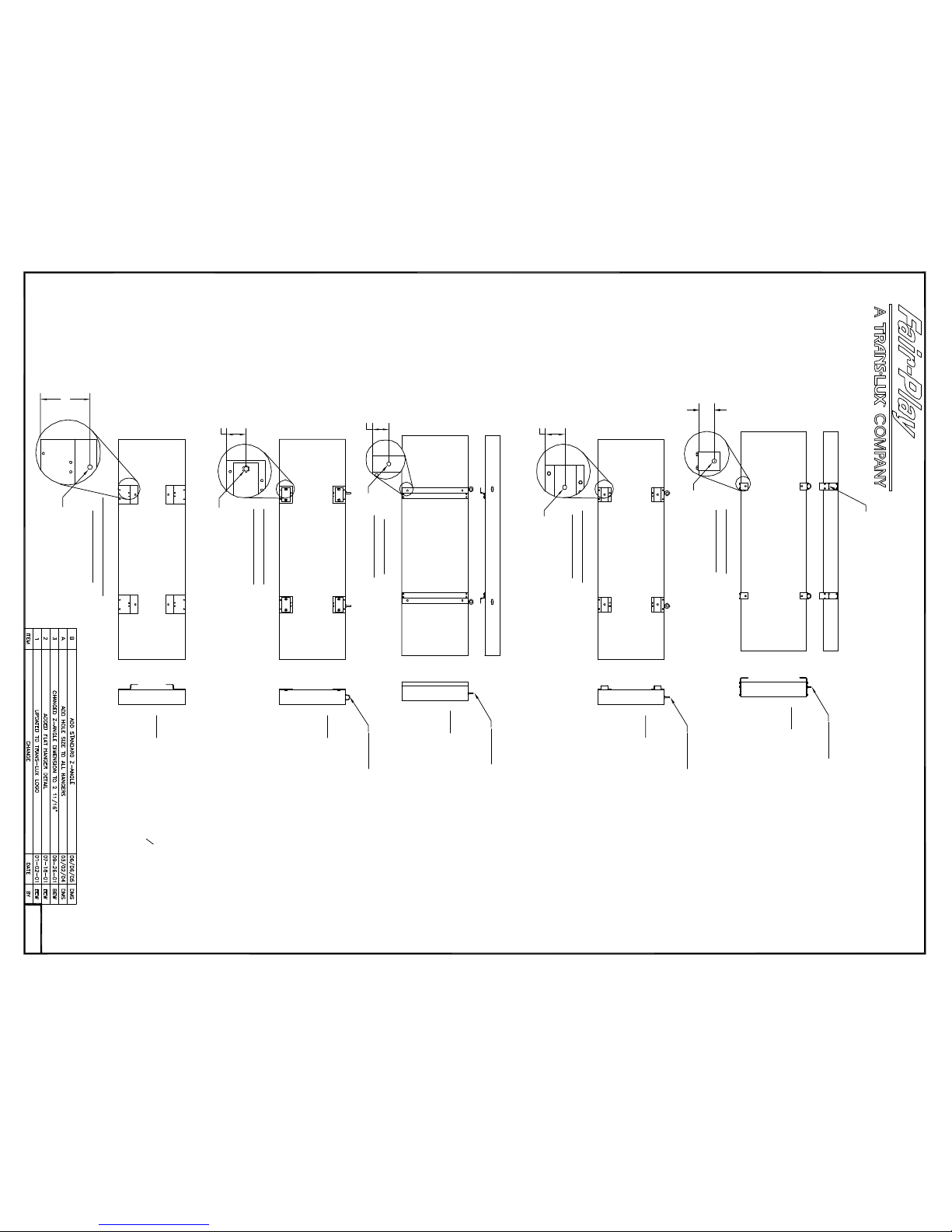

OUTDOOR HANGING SYSTEMS.....................................................………...........................................… 01-0008-02
TROUBLE SHOOTING FOR OUTDOOR SCOREBOARDS......................………......................................…. 01-0008-03
WARRANTY

8 FT MIN.
(REF. 250-52)
45°-90°
SCOREBOARD
SUGGEST 1/2'' CONDUIT
(REF. 250-64B)
FLUSH WITH OR BELOW GROUND
LEVEL UNLESS PROTECTED.
SOLID OR STRAND
CORROSION PROTECTED
CONTINUOUS FROM
TERMINAL BLOCK
(REF. 250-64B)
USE LISTED CLAMP
(REF. 250-70)
ROD 8 FT. LONG MIN.
FREE OF NON-CONDUCTIVE
COATINGS.
(REF. 250-52)
GROUND LEVEL
SUGGEST SECURING
CONDUIT TO ROD.
NOTE: ALL R EFERANCES ARE TO
THE NATIONAL ELECTRICAL
CODE, 1999 EDITION.
FOR PROPER
(REF. 250-66)
CONDUCTOR SIZING
1UPDATED CODE INFORMATION FROM 1999 EDITION 05-19-99 BEW
UPDATED TITLE BLOCKA9-06-02 DLS
