TREBLAB Z7 PRO User manual

User’s Manual
Please read this manual
before using the product
HYBRID ACTIVE NOISE
CANCELLATION

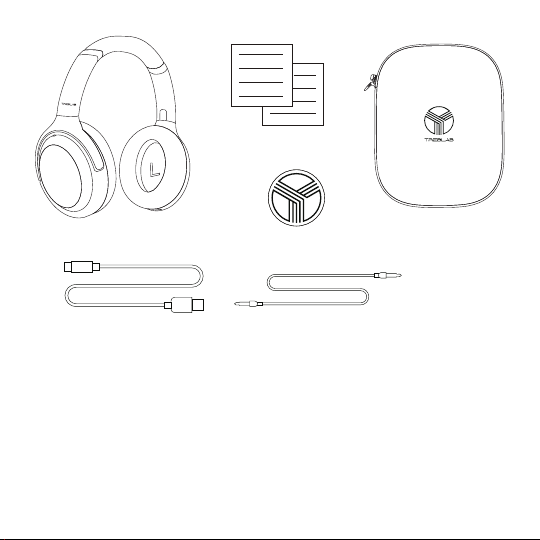

IN THE BOX
1. TREBLAB Z7 Pro headphones
2. User's manual
3. Round TREBLAB sticker
4. Carrying case
5. Charging USB Type-C cable
6. 3.5 mm audio cable
1.
5.
2.
3.
4.
6.
Z7 Pro

Thank you for choosing TREBLAB Z7 Pro!
The over-ear headphones with Bluetooth® 5.0 Aptx™ HD and
Hybrid Active Noise Cancellation technology provide superior
sound quality and the convenience of hands-free operation.
POWER
BUTTON
ANC
BUTTON
CHARGING
LED
TYPE-C
CHARGING PORT
BLUETOOTH
BUTTON
AUX LINE-IN
PORT
STATUS
LED
MAIN
MICROPHONE

ANC
MICROPHONES
2X
ENC
MICROPHONES
RIGHT SIDE
TOUCH PANEL

Function
Power on
Power off
Battery level
Discon-
nect/Pairing
Play/Pause
Volume +
Volume -
Next track
Previous track
Answer
a phone call
Reject a phone
call
End a phone
call (Hang up)
Voice assistant
activation
Operation
Press and hold the POWER button for 3 sec.
Press and hold the POWER button for 4 sec.
Press the POWER button while the headset is on.
Press and hold the Bluetooth button for 3 sec.
Double tap on the Touch panel.
Swipe up on the Touch panel.
Swipe down on the Touch panel.
Swipe forward on the Touch panel.
Swipe backward on the Touch panel.
Double tap on the Touch panel during the
incoming call.
Tap and hold on the Touch panel for 3 sec
during the incoming call.
Double tap on the Touch panel during the
conversation.
Tap and hold on the Touch panel for 3 sec
(not during a call).

SETTING UP YOUR TREBLAB Z7 Pro
Turn ON
Press the POWER button for 3 sec. You will hear the sound
prompt and, a few seconds later, the “Bluetooth pairing on”
voice prompt. The LED on the right earcup will turn blue and
then will start flashing blue/red. In case the headphones have
been previously connected to the smart device, instead of
“Bluetooth pairing on”, you will hear the “Connected” voice
prompt and the LED will start flashing blue/green slowly.
Turn off
Press and hold the POWER button for 4 sec. You will hear the “Power
off” voice prompt. The blue LED will light up for a second and will go off.
Function
Enable Ambient
Sound mode
Enable ANC
Disable
Ambient Sound
and ANC modes
Awareness
mode
Operation
When ANC mode is on, press the ANC button
once.
When the ANC and Ambient Sound modes
are off, press the ANC button once.
When the Ambient Sound mode is on, press
the ANC button once.
When the headphones are turned on, close
the right earcup with a palm.

PAIRING
Make sure the TREBLAB Z7 Pro are charged and the 3.5 mm
audio cable is not plugged in.
Press the POWER button for 3 sec. You will hear the sound
prompt and, a few seconds later, the “Bluetooth pairing on”
voice prompt. The LED on the right earcup will turn blue and
then start flashing blue/red indicating that Z7 Pro are in the
pairing mode.
Activate the Bluetooth option on your smart device and
keep it within 3 feet/1 meter from the TREBLAB Z7 Pro
while pairing.
Scan/search for available devices in your smart device.
Select TREBLAB Z7 Pro from the device list.
If the password is prompted, enter "0000”.
Once the Z7 Pro are successfully paired and connected,
you will hear the “Connected” voice prompt, and the LED
will start flashing blue/green slowly.
You can unpair with the current device and enter the pairing
mode manually at any time by pressing and holding the
Bluetooth button for 3 sec.
1.
2.
3.
4.
5.
6.

1.
2.
3.
MULTIPOINT CONNECTION
The TREBLAB Z7 Pro headphones have a multipoint connec-
tion. It allows two devices to be connected at the same time.
While you won't receive the input from both devices at the
same time, you'll be able to switch from one device to another
seamlessly.
To connect the Z7 Pro to the second device:
Switch off temporarily the wireless mode on the first device
the headphones are connected to.
Repeat pairing steps 2-6 to connect the second device.
Turn on the Bluetooth mode back for the first device and
connect the Z7 Pro again.
When you turn the headphones on, they will try to reconnect
to the recently connected device/devices. If the reconnection
does not happen automatically, the headphones will try to find
the next device in the pairing list. The headphones can save
the last 8 devices.
ANC/AMBIENT SOUND MODES
The TREBLAB Z7 Pro headphones feature Hybrid Active Noise
Cancellation technology. This technology provides the ability
not only to decrease the surrounding noise in the ANC mode

but also to amplify some frequencies in the Ambient Sound
mode to hear voices when using the Z7 Pro headphones.
When the Z7 Pro are turned on, the ANC mode is enabled
automatically. In the ANC mode the green LED on the right
earcup is lit up. To switch to the Ambient Sound mode, press
the ANC button once. You will hear the “Ambient sound” voice
prompt and the LED on the right earcup will change to white.
To disable both ANC and Ambient Sound modes, press the
ANC button once again. You will hear the “Ambient sound and
noise cancelling off” voice prompt and the white LED light on
the right earcup will go off.
NOTE:
Keep the dedicated ANC microphone holes on both earcups
unblocked when using the ANC/Ambient Sound functions.
AWARENESS MODE
When you listen to music and some person approaches you to
talk, you can fastly lower the music volume to the minimum and
activate the Ambient Sound feature to keep the conversation
going. To do so, cover the right earcup with a palm. Once you re-
lease the earcup, the music will go back to the previous volume
level and the Ambient Sound feature will be disabled.

AUX LINE-IN CONNECTION
You can connect the TREBLAB Z7 Pro to compatible devices
using the supplied 3.5 mm audio cable.
Plug one end of the 3.5 mm audio cable into the AUX LINE-IN
port on the right earphone and plug the other end into the AUX
LINE-IN port on your device.
In the AUX mode, you can also use the ANC/Ambient sound
features + adjust the volume. To do so, turn on the headphones
by pressing and holding the POWER button for 3 sec. Keep in
mind that in such case the inbuilt battery will still be drained.
NOTE:
NEXT, PREVIOUS, PLAY/PAUSE controls are not supported in
the AUX mode. You will need to make these adjustments using
your smart device.
AUDIO PLAYBACK
The TREBLAB Z7 Pro headphones are equipped with a highly
responsive Touch panel on the right earcup.
To pause and resume the playback when connected wirelessly,
double-tap on the Touch panel.
To adjust the volume, swipe up on the Touch panel to raise
the volume and swipe down to lower the volume.
To change tracks on the Z7 Pro headphones, swipe forward on
the Touch panel to play the next track and swipe backward
to play the previous track.

NOTE:
The Z7 Pro headphones are equipped with the proximity
sensor in the right earcup. When you take the headphones off,
the playback will be paused automatically. When you put the
headphones on, the playback will be automatically resumed.
PHONE CALLS
The TREBLAB Z7 Pro have 2 dedicated microphones and
support ENC (Environmental Noise Cancelling) technology to
provide the best calling experience. Audio playback will be
paused during the calls.
To answer a call:
To reject a call:
To end a call:
NOTE:
When you are on a call and the second one is incoming, you can
accept it but in such case the first call will be hung up.
VOICE ASSISTANT ACTIVATION
The TREBLAB Z7 Pro headphones support the voice
assistant activation command. To use any of the voice
assistants (SIRI®, Google Voice Assistant® and others) while
Double tap on the Touch panel during the
incoming call.
Tap and hold on the Touch panel for 3 sec
during the incoming call.
Double tap on the Touch panel during the
conversation.

in Bluetooth mode, tap on the touch panel and hold it for 3
sec. After the sound notification, you can transmit your voice
commands using an inbuilt mic.
CHARGING AND BATTERY
One full battery charge provides up to 45 hours of playtime
with ANC disabled and up to 30 hours with the ANC function
activated. To check the current battery level, press the POWER
button when the headphones are turned on. You will hear the
voice prompt saying the current percentage of the battery left.
When the battery is running low, you will hear the “Battery Low”
voice prompt. To charge the headphones, plug the supplied
charging cable into the Type-C charging port on the left earcup
and the other end of the charging cord into a standard USB
port. The LED light will turn RED. It takes up to 2.5 hours to fully
charge the Z7 Pro. The RED light will turn GREEN when the
headphones are fully charged.
Be sure to use a 5V DC, 1A adapter or charger. Using a power
source with lower power will increase the overall charging time.
Unplug Z7 Pro from the charging cable and the cable from the
power source when not in use. If left unused, a fully charged
battery will lose its charge over time. We recommend charging
TREBLAB Z7 Pro fully at least twice a month to maintain the
sufficient battery life.

Problem
Doesn't turn on
Music is not
playing
Solution
Make sure the headphones are charged.
Charge up to 2.5 hours until the battery is
fully charged, if necessary. Press and hold
the POWER button again for 3 sec.
Make sure the headphones are charged.
Make sure the 3.5 mm audio cable is
correctly and firmly connected to the
headphones if you are using the AUX mode.
Make sure the 3.5 mm audio cable has been
removed from the headphones if you are
using the Bluetooth connection.
Make sure the volume level is not set to a
0 level on both the headphones and the
device.
Make sure that the distance between your
device and the headphones is less than
RESET TO THE FACTORY SETTINGS
You can reset the Z7 Pro headphones to the factory default
settings by cleaning up the pairing list with the last 8 connected
to Z7 Pro devices.
Turn on the TREBLAB Z7 Pro headphones. Press and hold
the Bluetooth button for 5 seconds. You will hear the “Factory
reset compete” and “Bluetooth pairing on” voice prompts. The
device memory is now returned to the factory settings.
TROUBLESHOOTING

Headphones
don’t pair with
my Bluetooth
device
Headphones
are visible on
my device, but
do not connect
30 feet/10 meters.
Make sure your smart device’s Bluetooth
mode is on and the device is not plugged
into any kind of wired connection.
Make sure the 3.5 mm audio cable is not
plugged in.
Make sure the headphones are not paired
with any other two devices, as it can pair
only with two devices at a time.
Make sure that the distance between your
device and the headphones is less than
30 feet /10 meters.
Make sure your smart device’s Bluetooth
mode is on and not plugged into any kind
of wired connection.
Reset your headphones to the factory
settings by following the steps from the
previous section. Try to pair again.
Make sure the headphones are not paired
with any other two devices, as it can pair
only with two devices at a time.
Make sure that the distance between your
device and the headphones is less than
30 feet/10 meters.
Disconnect the device from your headphones
and remove Z7 Pro from your device’s pairing list.
Reset your headphones to the factory
settings by following the steps from the
previous section. Try to pair again.

I cannot find a
wireless driver
for on my
laptop
Frequent
disconnection
and noise
Make sure your laptop supports wireless
connection. If it doesn’t, you will need an
external wireless USB adapter compatible
with your laptop. For further details,
consult with your laptop manufacturer.
Make sure that the distance between your
device and the headphones is less than
30 feet/10 meters.
Make sure that nothing is blocking the
signal between your device and Z7 Pro.
Check if the music is pausedCheck if the
volume level is set on both th e source
device and the headphones.
Check if the headphones are running out
of power.
SAFETY RULES
•Don’t disassemble or modify your headphones for any reason.
Doing this may cause the headphones to malfunction or
become combustible. The damage to your device can void your
manufacturer’s warranty.
•Do not let your device get wet - liquids can cause serious
damage. Damage to your device caused by water can void
your manufacturer’s warranty.
• Make sure the headset is completely dry before charging.

1.
2.
•Avoid exposing the TREBLAB Z7 Pro to extreme temperatures
(below 37°F 13°C or above 112°F / 45°C). Extreme temperatures
can cause the deformation of the Z7 Pro components, reduce
the battery life and the lifespan of your new headset.
•Don’t put the device's LED lights close to humans’ or animals’
eyes
•Do not use your Z7 Pro during a thunderstorm.
Thunderstorms can cause serious malfunction and increase
the risk of electric shock.
RECYCLING
The earphones can be recycled, and they should be in order
to keep our planet clean. Where should you bring them?
In the US, there are a couple of options:
Best Buy has a recycling program. Just take the broken
headphones with you next time you visit a Best Buy store.
This link will help you find the best location:
https://www.bestbuy.com/site/store-locator/
Check for other possible locations next to you on these
websites Oust enter your ZIP to find a location):
https://www.call2recycle.org
https://search.earth911.com

https://recyclenation.com/find
https://www.cta.tech/Consumer-Resources/Greener-Gadgets
In Canada, please visit the links below:
https://thinkreuse.net
https://www.call2recycle.ca
In the UK, please visit the links below:
https://www.recycle-more.co.uk/
https://www.recyclenow.com/local-recycling

Battery:
Charging time:
ANC type:
Calling:
Voice assistant
activation:
Bluetooth version:
Profiles:
Audio playback
support:
Signal Range:
Frequency
response:
Charging port:
Dimensions:
Weight:
Up to 45 hours play-time without ANC
Up to 30 hours play-time with ANC
900mAh 3.7V, rechargeable Li-Ion
Input 5V/1A
Up to 2.5 hours
Hybrid (4 microphones)
2 microphone with ENC technology
Supported by tapping on the touch
panel and holding for 3 sec.
BT5.0
A2DP, AVRCP, HFP, HSP, SPP, GATT,
HOGP, PBAP
Qualcomm®aptX™ HD, AAC, SBC.
33ft/10m
20Hz - 20KHz
Type-C
200 x 165 x 80mm / 7.87 x 6.5 x 3.14in
244g / 8.60OZ / 0.53lb
SPECIFICATIONS

THANK YOU
We truly appreciate that you chose TREBLAB as your trusted
brand of wireless ANC headphones. Our team sincerely hopes
that you enjoy the great sound and seamless usability that the
TREBLAB Z7 Pro provide. We love making our customers
happy by providing true value with our products. If for any
reason you are not completely satisfied with your purchase or
have any questions, please let us know by contacting us at
http://treblab.com/contact_us. We care about our customers
most of all and are always here to serve you.

1 YEAR WARRANTY
Parts and Labor Warranty.
Please visit www.treblab.com
to register YOUR product.
Manufactured by Productech
Z7 Pro
WIRELESS HEADPHONES
