Trenton JXT6966 Use and care manual

JXT6966 / JXTS6966
6966-xxx
No. 87-006969-000 Revision A
HARDWARE
TECHNICAL REFERENCE
Intel® Xeon® C5500-series
Quad Core
PROCESSOR-BASED
SHB

WARRANTY
The following is an abbreviated version of Trenton Technology’s warranty policy for PICMG®1.3
products. For a complete warranty statement, contact Trenton or visit our website at
www.TrentonTechnology.com.
Trenton PICMG®1.3 products are warranted against material and manufacturing defects for five years from
date of delivery to the original purchaser. Buyer agrees that if this product proves defective Trenton
Technology Inc. is only obligated to repair, replace or refund the purchase price of this product at Trenton
Technology’s discretion. The warranty is void if the product has been subjected to alteration, neglect,
misuse or abuse; if any repairs have been attempted by anyone other than Trenton Technology Inc.; or if
failure is caused by accident, acts of God, or other causes beyond the control of Trenton Technology Inc.
Trenton Technology Inc. reserves the right to make changes or improvements in any product without
incurring any obligation to similarly alter products previously purchased.
In no event shall Trenton Technology Inc. be liable for any defect in hardware or software or loss or
inadequacy of data of any kind, or for any direct, indirect, incidental or consequential damages arising out
of or in connection with the performance or use of the product or information provided. Trenton
Technology Inc.’s liability shall in no event exceed the purchase price of the product purchased hereunder.
The foregoing limitation of liability shall be equally applicable to any service provided by Trenton
Technology Inc.
RETURN POLICY
Products returned for repair must be accompanied by a Return Material Authorization (RMA) number,
obtained from Trenton Technology prior to return. Freight on all returned items must be prepaid by the
customer, and the customer is responsible for any loss or damage caused by common carrier in transit.
Items will be returned from Trenton Technology via Ground, unless prior arrangements are made by the
customer for an alternative shipping method
To obtain an RMA number, call us at [phone] or [phone]. We will need the following
information:
Return company address and contact
Model name and model # from the label on the back of the product
Serial number from the label on the back of the product
Description of the failure
An RMA number will be issued. Mark the RMA number clearly on the outside of each box, include a
failure report for each board and return the product(s) to our Utica, NY facility:
TRENTON Technology Inc.
1001 Broad Street
Utica, NY 13501
Attn: Repair Department
Contact Trenton for our complete service and repair policy.

TRADEMARKS
IBM, PC/AT, VGA, EGA, OS/2 and PS/2 are trademarks or registered trademarks
of International Business Machines Corp.
AMI and AMIBIOS are trademarks of American Megatrends Inc.
Intel, Xeon, Intel Quick Path Interconnect, Intel Hyper-Threading Technology and Intel Virtualization
Technology are trademarks or registered trademarks of Intel Corporation.
MS-DOS and Microsoft are registered trademarks of Microsoft Corp.
PICMG, SHB Express and the PICMG logo are trademarks or registered trademarks
of the PCI Industrial Computer Manufacturers Group.
PCI Express is a trademark of the PCI-SIG
All other brand and product names may be trademarks or registered trademarks
of their respective companies.
LIABILITY DISCLAIMER
This manual is as complete and factual as possible at the time of printing; however, the information in this
manual may have been updated since that time. Trenton Technology Inc. reserves the right to change the
functions, features or specifications of their products at any time, without notice.
Copyright ©2010 by Trenton Technology Inc. All rights reserved.
E-mail: [e-mail]
Web: www.TrentonTechnology.com
TRENTON Technology Inc.
2350 Centennial Drive • Gainesville, Georgia 30504
Sales: [phone] • Phone: [phone] • Fax: [phone]

This page intentionally left blank

Table of Contents
CHAPTER 1 SPECIFICATIONS........................................................................................................... 1-1
Introduction....................................................................................................................................................... 1-1
Dual-Processor Models.................................................................................................................................... 1-1
Single-Processor Models................................................................................................................................. 1-2
Features............................................................................................................................................................. 1-2

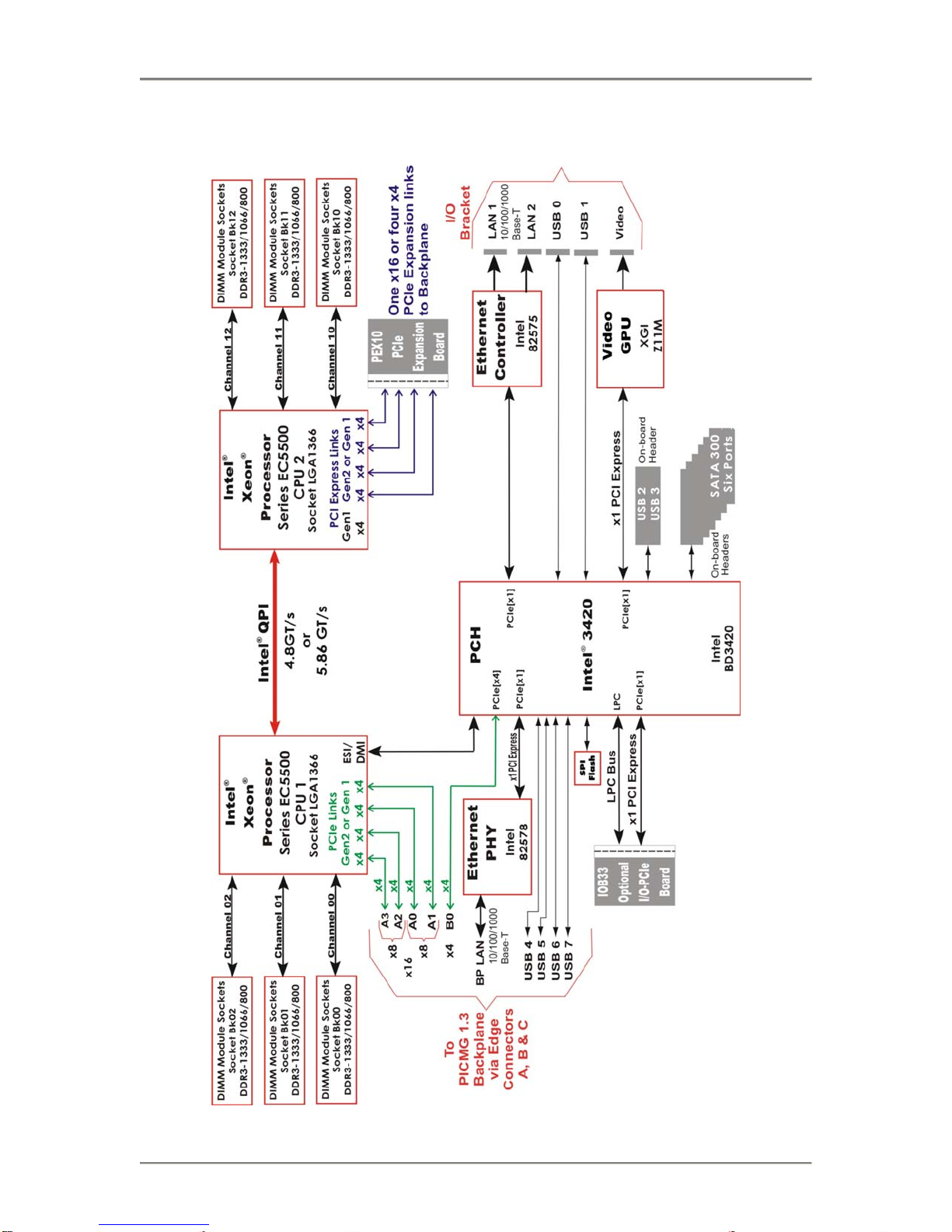

JXT6966 (6966-xxx) – Dual-Processor SHB Block Diagram......................................................................... 1-3
JXT6966 (6966-xxx) – Dual-Processor SHB Layout Diagram....................................................................... 1-4
JXTS6966 (6966-xxx) – Single-Processor SHB Block Diagram.................................................................... 1-5
JXTS6966 (6966-xxx) – Single-Processor SHB Layout Diagram.................................................................. 1-6
Processor.......................................................................................................................................................... 1-7
Serial Interconnect Interface........................................................................................................................... 1-7
Data Path........................................................................................................................................................... 1-7
Serial Interconnect Speeds ............................................................................................................................. 1-7
Intel® Quick Path Iinterconnect Supported Speeds Between CPUs........................................................... 1-7
Intel® Direct Media Iinterface (DMI)Speed Between Processor and Intel® 3420 PCH............................... 1-7
Memory Interface.............................................................................................................................................. 1-7
DMA Channels .................................................................................................................................................. 1-7
Interrupts........................................................................................................................................................... 1-7
Bios (Flash)....................................................................................................................................................... 1-7
Cache Memory.................................................................................................................................................. 1-7
DDR3-1333 Memory.......................................................................................................................................... 1-8
Universal Serial Bus (USB)..............................................................................................................................1-8
Video Interface.................................................................................................................................................. 1-8
PCI Express Interfaces..................................................................................................................................... 1-9
Ethernet Interfaces........................................................................................................................................... 1-9
Serial ATA/300 Ports ........................................................................................................................................ 1-9
Power Fail Detection ...................................................................................................................................... 1-10
Battery ............................................................................................................................................................. 1-10
Power Requirements...................................................................................................................................... 1-10
Temperature/Environment............................................................................................................................. 1-11
Mechanical ...................................................................................................................................................... 1-11
Board Stiffener Bars....................................................................................................................................... 1-11
UL Recognition............................................................................................................................................... 1-11
Configuration Jumpers.................................................................................................................................. 1-12
P4A/P4B Ethernet LEDs and Connectors .................................................................................................... 1-13
Status LEDs..................................................................................................................................................... 1-13
System BIOS Setup Utility............................................................................................................................. 1-14
Connectors...................................................................................................................................................... 1-15
CHAPTER 2 PCI EXPRESS® REFERENCE........................................................................................ 2-1
Introduction....................................................................................................................................................... 2-1
PCI Express Links ............................................................................................................................................ 2-1
SHB Configurations.......................................................................................................................................... 2-2
PCI Express Edge Connector Pin Assignments............................................................................................ 2-3
PCI Express Signals Overview........................................................................................................................ 2-5
Optional PCI Express Link Expansion ........................................................................................................... 2-5
CHAPTER 3 JXT6966 / JXTS6966 SYSTEM POWER CONNECTIONS............................................. 3-1
Introduction....................................................................................................................................................... 3-1
Power Supply and SHB Interaction ................................................................................................................ 3-1
Electrical Connection Configurations ............................................................................................................ 3-2
CHAPTER 4 PCI EXPRESS BACKPLANE USAGE............................................................................ 4-1
Introduction....................................................................................................................................................... 4-1
SHB Edge Connectors ..................................................................................................................................... 4-1
Off-Board Video Card Usage........................................................................................................................... 4-3
JXT6966 & JXTS6966 and Compatible Trenton Backplanes........................................................................ 4-3
2U Butterfly Backplanes .................................................................................................................................. 4-3
Multi-Segment Backplanes.............................................................................................................................. 4-3
Combo Backplanes .......................................................................................................................................... 4-3
Server-Class Backplanes................................................................................................................................. 4-3
Graphics-Class Backplanes ............................................................................................................................ 4-3
TRENTON Technology Inc. i

JXT6966 / JXTS6966 Technical Reference
CHAPTER 5 I/O EXPANSION BOARDS – IOB33 & PEX10................................................................ 5-1
IOB33 Overview ................................................................................................................................................ 5-1
.................................................................................................................................................... 5-1IOB33 M lsode
Model # Model Name Description.............................................................................................................. 5-1
IOB33 Features ................................................................................................................................................. 5-2
IOB33 Temperature/Environment ................................................................................................................... 5-2
IOB33 (7015-xxx) Block Diagram .................................................................................................................... 5-2
IOB33 (7015-xxx) Layout Diagram .................................................................................................................. 5-3
IOB33 (7015-xxx) I/O Plate Diagram................................................................................................................ 5-3
IOB33 Connectors ............................................................................................................................................ 5-4
IOB33 Connectors (continued)........................................................................................................................ 5-5
PEX10 Overview................................................................................................................................................ 5-7
APPENDIX A BIOS MESSAGES...........................................................................................................A-1
Introduction.......................................................................................................................................................A-1
Aptio Boot Flow................................................................................................................................................A-1
BIOS Beep Codes.............................................................................................................................................A-1
PEI Beep Codes................................................................................................................................................A-1
DXE Beep Codes...............................................................................................................................................A-2
BIOS Status Codes...........................................................................................................................................A-3
BIOS Status POST Code LEDs........................................................................................................................A-3
Status Code Ranges.........................................................................................................................................A-4
SEC Status Codes ............................................................................................................................................A-4
SEC Beep Codes...............................................................................................................................................A-4
PEI Beep Codes................................................................................................................................................A-7
DXE Status Codes ............................................................................................................................................A-7
DXE Beep Codes...............................................................................................................................................A-9
ACPI/ASL Status Codes.................................................................................................................................A-10
OEM-Reserved Status Code Ranges............................................................................................................A-10
ii TRENTON Technology Inc.

JXT6966 / JXTS6966 Technical Reference
HANDLING PRECAUTIONS
WARNING: This product has components which may be damaged by electrostatic discharge.
To protect your system host board (SHB) from electrostatic damage, be sure to observe the following
precautions when handling or storing the board:
 Keep the SHB in its static-shielded bag until you are ready to perform your installation.
 Handle the SHB by its edges.
 Do not touch the I/O connector pins.
 Do not apply pressure or attach labels to the SHB.
 Use a grounded wrist strap at your workstation or ground yourself frequently by touching the
metal chassis of the system before handling any components. The system must be plugged into an
outlet that is connected to an earth ground.
 Use antistatic padding on all work surfaces.
 Avoid static-inducing carpeted areas.
RECOMMENDED BOARD HANDLING PRECAUTIONS
This SHB has components on both sides of the PCB. Some of these components are extremely small and
subject to damage if the board is not handled properly. It is important for you to observe the following
precautions when handling or storing the board to prevent components from being damaged or broken off:
 Handle the board only by its edges.
 Store the board in padded shipping material or in an anti-static board rack.
 Do not place an unprotected board on a flat surface.
TRENTON Technology Inc. iii

JXT6966 / JXTS6966 Technical Reference
Before You Begin
INTRODUCTION
It is important to be aware of the system considerations listed below before installing your JXT6966 or
JXTS6966 (6966-xxx) SHB. Overall system performance may be affected by incorrect usage of these
features.
MOUSE/KEYBOARD “Y” CABLE
If you have an IOB33 I/O board in your system and you are using a “Y” cable attached to the bracket
mounted mouse/keyboard mini Din connector, be sure to use Trenton’s “Y” cable, part number 5886-000.
Using a non-Trenton cable may result in improper SHB operation.
DDR3-1333 MEMORY
Trenton recommends ECC registered DDR3 memory modules for use on the JXT6966/JXTS6966 SHBs
and these ECC registered (72-bit) DDR3 Mini-DIMMs must be PC3-10600 or PC3-8500 compliant.
Unbuffered ECC DDR3 Mini-DIMMs are also supported on the JXT boards, but you cannot mix the two
different memory types on the same SHB.
NOTES:
• To maximize system performance and reliability, Trenton recommends populating each
memory channel with DDR3 Mini-DIMMs with the same interface speed.
• All memory modules must have gold contacts.
• Low voltage (DDR3L) Mini-DIMMs are not supported.
• The SHB supports the following memory module memory latency timings:
o 6-6-6 for 800MHz DDR3 Mini-DIMMs
o 7-7-7 and 8-8-8 for 1066MHz DDR3 Mini-DIMMs
o 9-9-9 for 1333MHz DDR3 Mini-DIMMs
• Populating the memory sockets with Mini-DIMMs having different speeds is supported
on the SHB; however, the overall memory interface speed will run at the speed of the
slowest Mini-DIMM.
• Populate the memory sockets starting with the Mini-DIMM socket closest to the CPU
and work your way toward the edges of the SHB as illustrated in the chart below:
Population order CPU1 CPU2*
1 BK00 BK10
2 BK01 BK11
3 BK02 BK12
*CPU2 is available on the JXT6966 dual-processor board version only
*Using a balanced memory population approach ensures maximum memory interface
performance. A “balance approach” means using an equal number of Mini-DMMs
for each processor on a dual-processor JXT6966 SHB whenever possible.
The memory DIMMs on the SHB connect directly to the CPU and at least one memory module must be
installed on the board. The JXTS6966 SHB versions feature one processor; however, memory sockets
BK10, BK11 and BK12 are installed on the SHB but are not active in this single-processor board version.
SATA RAID OPERATION
The Intel®3420 Platform Controller Hub (PCH) used on the SHB features Intel® Rapid Storage
Technology (Intel®RST), which allows the PCH’s SATA controller to be configured as a RAID controller
supporting RAID 0, 1, 5 and 10 implementations. To configure the SATA ports as RAID drives or to use
advanced features of the PCH, you must install the Intel® RST driver software. A link to the software is
also located on Trenton’s website by accessing the Downloads tab of the JXT6966 product detail page or
the RAID Drivers section of the Technical Support page.
iv TRENTON Technology Inc.

JXT6966 / JXTS6966 Technical Reference
POWER CONNECTION
The PICMG®1.3 specification supports soft power control signals via the Advanced Configuration and
Power Interface (ACPI). The JXT6966/JXTS6966 supports these signals, controlled by the ACPI and are
used to implement various sleep modes. When control signals are implemented, the type of ATX or EPS
power supply used and the operating system software will dictate how system power should connect to the
SHB. It is critical that the correct method be used. Refer to - Power Connection section in the JXT manual
to determine the method that will work with your specific system design. The Advanced Setup chapter in
the manual contains the ACPI BIOS settings.
PCI EXPRESS 2.0 LINKS AND PICMG® 1.3 BACKPLANES
The PCI Express® links on the JXT6966 connect directly to the processors. These links can operate as
either PCI Express 2.0 or PCI Express 1.1 links based on the end-point devices on the backplane that are
connected to the SHB. In addition to automatically configuring themselves for either PCIe 2.0 or PCIe 1.1
operations, the links also configure themselves for either graphics or server-class operations. In other
words, the multiple x4 links from the processors (links A0, A1, A2 and A3) can be combined into a single
x16 PCIe electrical link or multiple x8 links on a backplane. The CPU’s x4 links can train down to x1
links, but cannot bifurcate into multiple x1 links. The PCIe link (B0) from the board’s PCH has a x4
default configuration and can be made to bifurcate into four, x1 PCIe links with a factory modification to
the JXT board. Contact Trenton if you require this B0 link configuration change. An optional PEX10
module connected to a dual-processor JXT6966 provides more backplane links than are currently supported
in the PICMG 1.3 specification. This JXT6966 capability provides additional PCI Express bandwidth and
option card support in the system design. Refer to the PCI Express®Reference chapter and to Appendix C
- PCI Express Backplane Usage of this manual for more information.
PICMG 1.3 BACKPLANE I/O
The JXT6966 and JXTS6966 enable the following PICMG 1.3 backplane I/O connectivity via the SBC’s
edge connector C:
• Four USB 2.0 interfaces
• One 10/100Base-T Ethernet interface
PICMG 1.3 BACKPLANE CLASSIFICATION
The JXT6966 and JXTS6966 are system host boards that can operate as either a Server or Graphics-Class
PICMG 1.3 SHB. The JXT SHBs are essentially combo-class boards because of the capabilities of the PCI
Express links built into the SHB’s processors. Trenton recommends using a combo-class PICMG 1.3
backplane such as the Trenton BPC7009 or BPC7041 with the SHBs in order to ensure the use of all
available backplane option card slots. See Appendix C, PCI Express Backplane Usage for more details.
OFF-BOARD VIDEO CARD USAGE
If the system design requires an off-board video card, then the card must be placed in a backplane slot
driven with PCI Express links from the JXT6966’s first processor. This is an Aptio® 4.x BIOS limitation
that may be corrected in future software revisions. Listed below are the acceptable BPC7009 and BPC7041
backplane slots for use with an off-board video card:
BPC7009 - Card slot PCIe1, PCIe2 or PCIe3
BPC7041 - Card slot PCIe6, PCIe7, PCIe8, PCIe9 or PCIe10
BIOS
The JXT6966 and JXTS6966 feature the Aptio® 4.x BIOS from American Megatrends, Inc. (AMI) with a
ROM-resident setup utility called the Aptio Text Setup Environment or TSE. Details of the Aptio TSE are
provided in the separate JXT6966 / JXTS6966 BIOS Technical Reference manual.
FOR MORE INFORMATION
For more information on any of these features, refer to the appropriate sections JXT6966 / JXTS6966
Hardware Technical Reference Manual. The BIOS and hardware technical reference manuals are available
under the Downloads tab on the JXT6966 or JXTS6966 web pages.
TRENTON Technology Inc. v
