Trianco Greenflame User manual

Greenflame Wood Pellet Boiler 15kW
1
Greenflame Indoor & Outdoor Wood
Pellet Boiler 15kW
Installation, Operation and Servicing Instructions
PLEASE NOTE:
This product MUST be commissioned by a Trianco representative.
Please contact Trianco to arrange the commission immediately after install.
Please read these instructions carefully before installing
and operating this appliance.
TO BE RETAINED BY THE HOUSEHOLDER

Greenflame Wood Pellet Boiler 15kW
2
1. Introduction
3
2. Warnings and Guarantee & Warranty Information
3
2.2 Safety Instructions
3
2.3 Operating Warnings
4
2.4 Guarantee & Warranty Information
4
2.5 Limitations
4
2.6 Exclusions
5
3. Pre-Installation Considerations
5
3.1 Pellets
5
3.2 Considerations for Installation
6
3.3 Operating Area
6
3.4 Connection to the Flue
6
3.5 Operating Problems Caused Draught defects in the Flue
7
3.6 Plumbing Problems
8
4. Installation and Assembly
8
4.1 Unpacking
8
4.2 Preparing the Base
8
4.3 Electrical Connections
9

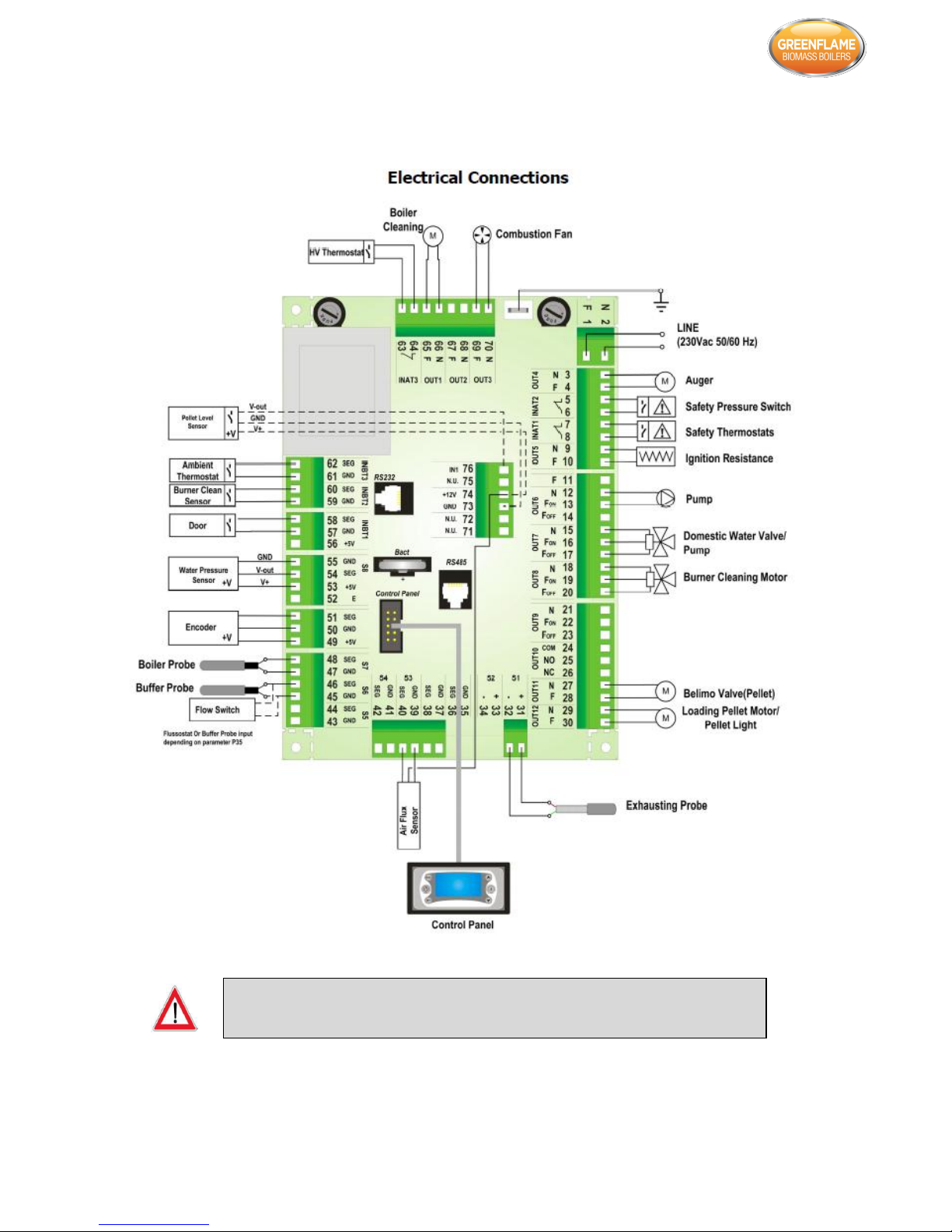

4.4 Control Panel Schematic
10
4.5 Water Connections
11
5. Control System
12
5.1 Error Codes
12
6. Boiler Operation and Maintenance
13
6.1 Turning the boiler ON/OFF
13
6.2 Emptying the Ash pan
13
6.3 Filling the Hopper with Fuel
15
7. Boiler Handling
15
8. Technical Data
16
9. Service Log
18
10. Maintenance Schedule
20
Contents

Greenflame Wood Pellet Boiler 15kW
3
1. Introduction
Dear Customer,
We wish to thank you for choosing this Greenflame pellet
boiler product from T R Engineering Ltd.
In order to get the best performance from your appliance we
recommend that you read this booklet carefully before
lighting the appliance for the first time.
While thanking you again, may we remind you that the
appliance MUST NOT be used by children, and that they
must always be kept at a safe distance from it!
Revisions to the publication
In order to improve the product, to keep this publication up
to date the manufacturer reserves the right to make
modifications without any advance notice. Any reproduction,
even in part, of this manual without the consent of the
manufacturer is prohibited.
Care of the manual and how to consult it
Take good care of this manual and keep it in a place
which can easily and quickly be reached.
If this manual should be lost or destroyed, or if it is in
poor condition, ask for a copy from your retailer or
directly from the manufacturer, providing product
identification data.
Information which is essential or that requires special
attention is shown in bold text.
Italic text is used to call your attention to other
paragraphs in the manual or for any additional
clarifications.
ATTENTION
This warning sign indicates that the message to
which it refers should be carefully read and
understood, because failure to comply with what
these notices say can cause serious damage to
the boiler and put the user’s safety at risk.
INFORMATION
This symbol is used to highlight information
which is important for proper boiler operation.
Failure to comply with these provisions will
compromise use of the boiler and its operation
will not be satisfactory.
OPERATING SEQUENCES
Indicates a sequence of buttons to be pushed to
access menus or to make adjustments.
MANUAL
Indicates that you should carefully read this
manual or he related instructions.
2. Warnings and Guarantee / Warranty
Information
2.2 Safety Instructions
Installation of the boiler, making the electrical connections,
checking its operation and maintenance are all tasks which
should be carried out by qualified and authorised
personnel.
Install the boiler in accordance with the regulations in force
in your local area, region and country.
For the correct use of the appliance and to prevent
accidents, the instructions given in this booklet must always
be followed.
Use, adjustment and programming must be carried out by
adults. Errors or incorrect settings may cause hazardous
conditions and/or poor operation.
Before beginning any operation, the user, or whoever is
preparing to operate on the appliance, must have read and
understood the entire contents of this instruction booklet.
All responsibility for improper use is taken entirely by the
user and such use relieves T R Engineering Ltd of any civil or
criminal responsibility.
Any kind of tampering or unauthorised substation of non-
original spare parts can be hazardous for the safety of the
operator and relieves T R Engineering Ltd of any civil or
criminal responsibility.
Most of the surfaces of the appliance are extremely hot (the
boiler door, the handle, smoke discharge pipes, etc.). Avoid
coming into contact with these parts, without adequate
protective clothing or suitable implements which keeps the
hands cool.
Carefully explain this hazard to elderly people, disabled
people and particularly to all children, keeping them away
from the appliance while it is running.
Under no circumstances should the appliance be run with
the door open.
Do not touch the appliance with wet hands, in view of the
fact that it is an electrical appliance.
Before carrying out any cleaning or maintenance operation,
make sure in advance that the appliance is isolated from the
mains electricity supply, by removing the mains isolator fuse.
The appliance must be connected to an electrical system
which is equipped with an earth conductor, as laid down in
directives 73/23 EEC and 93/98 EEC.
The fuse must be of adequate rated capacity for the stated
electrical power of the appliance.
Incorrect installation or faulty maintenance (not conforming
to the requirements set out in this booklet) can cause harm
to people, animals or property. In such cases T R Engineering

Greenflame Wood Pellet Boiler 15kW
4
Ltd is absolved from any civil or criminal responsibility.
Adhesives sealants and paints used in the manufacture of
the product are cured and present no hazards when used in
the manner for which they were intended. The appliance
contains no asbestos.
2.3 Operating Warnings
Shut the appliance down in the event of a breakdown or bad
running.
Pellets must not be fed manually into the burner.
Accumulated un-burnt pellets in the burner after repeated
filed ignitions must be removed before re-lighting.
Do not wash the inside of the heat exchanger with water.
Do not wash the appliance with water. The water could get
into the unit and damage the electrical installation and cause
electric shocks.
Do not put any fuel, other than wood pellets, in the hopper.
Install the appliance in a location which is suitable for fire
fighting, and equipped with all services such as air and
electricity supply and provision for discharging combustion
gases.
If there is a fire in the flue pipe, extinguish the appliance,
disconnect it from the power supply and never open the
door. Then contact the competent authorities.
If the appliance is in storage, it should be in a place that is
free of damp, and it should not be exposed to extremes of
temperature.
It is inadvisable to base the appliance directly on a floor (if
located indoors), and if the floor is made of flammable
material, it must be suitably insulated.
Do not light the appliance with flammable materials if the
ignition system breaks down.
2.4 Guarantee and Warranty Information
In case of any problems, get in touch with your dealer, or a
qualified engineer authorised by T R Engineering Ltd, and if a
repair is necessary, insist on the use of original spare parts.
Use only the fuel recommended by T R Engineering Ltd
(Enplus-A1) may be used with this appliance.
Periodically check and clean the smoke outlet ducts
(connection to the flue pipe).
Accumulated un-burnt pellets in the burner after repeated
failed ignitions must be removed before lighting.
Always keep the cover of the fuel hopper closed.
Keep this instruction manual carefully because it must stay
with the appliance throughout its working life. If the
appliance is sold or transferred to another user, always make
sure that the booklet goes with the product.
If it gets lost, ask T R Engineering Ltd or your authorised
dealer for another copy.
Guarantee Conditions
T R Engineering Ltd offers the following warranties on this
appliance:
Leaks in the heat exchanger –5 years
Faulty electrical components (motors, fan, controller) –1
year
Pump, Ignition Element –1 year.
From the date of first ignition of the appliance as proved by a
valid commissioning report which gives the name of the
installer/commissioning engineer and the date on which the
commissioning took place. The guarantee is conditional on
the commissioning report being filled in and returned to the
manufacturer within 10 days, and requires that the product
be installed and commissioned by an approved T R
Engineering installer according to the detailed instructions
given in the instruction booklet supplied with the product.
The term ‘guarantee’ is to be understood to denote the free
of charge replacement or repair of parts recognised to have
been defective at the start by reason of manufacturing
defects.
2.5 Limitations
The above guarantee does not cover parts subject to normal
wear such as gaskets, fibre board on doors and parts which
can be removed from the firebox such as burner pot, baffles
and ash box. The replacement parts will be guaranteed for
the remainder of the guarantee period starting from the date
of commissioning of the product.

Greenflame Wood Pellet Boiler 15kW
5
2.6 Exclusions
The warranty excludes all ancillary products associated with
the system (e.g. flue pipes, external circulation pumps, bulk
hoppers and augers, plumbing and electrical system). The
warranty does not cover Third Party damage to the product
or damage caused by the plumbing (an example would be an
inappropriately sized expansion vessel) or electrical system.
Warranty does not cover issues arising from pellets that do
not conform to ENplus-A1.
Recommendations advised to the Customer to be carried out
during commissioning must be completed and advised to
your local dealer in order to validate the warranty.
The requirements for the flue installation, particularly in
relation to draught, are the responsibility of the system
owner. Compliance with Local Building Regulations must be
adhered to. The warranty does not cover misuse of the
product or sabotage.
Any consequential loss or damage caused by the failure of a
component on this product is not covered.
T R Engineering Ltd refuses to accept any responsibility for
any damage which may be caused, directly or indirectly, by
persons, animals or things in consequence of the failure to
observe all the prescriptions laid down in the instruction
booklet, especially those concerning warnings on the subject
of installation, use and maintenance of the appliance.
Damage caused by transport and/or handling is excluded
from the guarantee.
The guarantee will be invalidated in the event of damage
caused by tampering with the appliance, atmospheric
agents, natural disasters, electrical discharges, fire, defects in
the electrical system, and caused by lack of, or incorrect,
maintenance in terms of the manufacturer’s instructions.
Claims under the Guarantee
The request for action under the guarantee must be
addressed to the Dealer/Retailer, who will forward the
claim to T R Engineering Ltd’s technical assistance service. T
R ENGINEERING LTD DECLARES THAT THE APPLIANCE
WHICH YOU HAVE PURCHASED COMPLIES WITH EEC
DIRECTIVE 2004/108 EC AND 200/95/EC AND SUCCESSIVE
AMENDMENTS.
T R Engineering refuses to accept any responsibility in the
event that the appliance or any other accessory has been
improperly used or modified without authorisation. For all
replacement of parts, only original T R Engineering Ltd
spare parts must be used.
3. Pre-Installation Considerations
3.1 Pellets
Wood pellets are manufactured by hot-extruding
compressed sawdust which is produced during the working
of natural dried wood. The compactness of the material
comes from the lignin which is contained in the wood itself,
and allows the production of pellets without the use of glues
or binders.
The market offers different types of pellet with
characteristics which vary depending on what mixture of
wood is used. The diameter varies between 6mm and 8mm,
with a standard length in the range 5mm to 30mm. Good
quality pellets have a density which varies between
600kg/m3and 750kg/m3, with a moisture content which
varies from 5% to 8% by weight.
Besides being an ecological fuel (exploiting timber residues
to the maximum and achieving cleaner combustion than is
possible with fossil fuels), pellets also have technical
advantages. While good-quality timber has a calorific power
of 4.4kW/kg (with 15% moisture, therefore after about 18
months’ seasoning), the equivalent figure for pellets is
4.9kW/kg.
To ensure good combustion, the pellets must be stored in an
area that is free of humidity and protected from dirt. The
pellets are usually supplied in 10kg bags, so storing them is
very convenient. Good quality pellets ensure good
combustion, thus lowering the emission of harmful agents
into the atmosphere.
The poorer the quality of fuel, the more frequently
intervention will be necessary for cleaning the internal
parts, such as the grate and the combustion chamber.
The main certification of quality for pellets in the European
market is Enplus-A1 there ensure respect of:
Calorific power: 4.9kW/kg
Water content: max 10% of weight
Diameter: 6mm
Length: max 30mm
Contents: 100% untreated wood, with no added bonding
substances (bark percentage 5% max)
Packaging: in sacks made from ecologically compatible or
biologically decomposing material.
T R Engineering Ltd recommends using certified fuel in its
appliances to Enplus-A1. The use of fuel of inferior quality
or not conforming to the specification given above
compromises the running of your appliance and can

Greenflame Wood Pellet Boiler 15kW
6
therefore lead to the termination of the guarantee and of
the manufacturer’s responsibility for the product.
T R Engineering Ltd domestic pellet appliances run
exclusively on pellets with a diameter of 6mm.
3.2 Considerations for Installation
IMPORTANT!
Installation and assembly of the appliance must be carried
out by qualified personnel.
The appliance must be installed in a suitable position to
allow the normal operations of opening and ordinary
maintenance.
The site must be:
Capable of providing the environmental conditions for
operation.
Equipped with power supply 230V 50Hz (EN73-23).
Capable of taking an adequate system for smoke discharge.
Provided with external ventilation complying with CEI 64-8.
The appliance must be connected to a flue pipe or an
internal or external vertical duct conforming to current
standards UNI7129 –7131 9615.
The boiler must be positioned in such a way that the power
isolation fuse is accessible.
IMPORTANT!
The boiler must be connected to a flue pipe or a vertical
duct which can discharge the fumes at the highest point of
the building.
The fumes are however derived from the combustion of
wood products, and if they come into contact with or close
to walls, they can cause smoke staining.
Also take care because the fumes are very hot and almost
invisible, and can cause burns on contact.
3.3 Operating Area
For proper functioning, the appliance should be positioned in
a location where it is able to take in the air necessary for
combustion of the pellets (about 40m3/h must be available),
as laid down in the standard governing the installation and in
accordance with local national standards. All louvers on the
external casing of the boiler must be un-obstructed at all
times as these allow air for combustion and for cooling to
enter the appliance enclosure. Heavy snowfall can also
obstruct the air in-take louvers and cause the appliance to
not burn clean. Smoke emanating from the flue is a symptom
of this. Snow must be cleared from around the appliance at
the earliest opportunity.
Where the appliance is to be installed indoors it is not
permissible to install the appliance where another heating
appliance is installed (fireplace, stove, etc.) which does not
have its own independent air intake. Locating the appliance
in a room with an explosive atmosphere, e.g. workshop or
tool shed, is prohibited. The floor of the room where the
appliance is to be installed must be strong enough to take
its weight.
If the walls are flammable, position the appliance with a
clearance to the rear of at least 45cm. For flammable walls,
keep a minimum distance of 450mm at the rear, 300mm on
the sides and 1500mm at the front.
If the flooring is made of wood, provide a floor protection
surface in compliance with current national standards.
Service Clearances
The minimum service clearances around the appliance are as
follows:
Rear –600mm
Side (lid hinge side) –600mm
Side lid open side) –900mm
Front –1200mm
3.4 Connection of the Flue
A full range of straight, offset, elbow and ‘T’ elements is
available to overcome any obstruction which the flue should
avoid. The proper draught conditions in the flue are critical
for the efficient working of wood pellet boilers. The flue can
exit the boiler house/garage through the roof or through the
wall by using a bend on the flue. The combustion works in
negative pressure. The smoke duct for the discharge of
fumes will also be under negative pressure when connected
to an efficient flue pipe as directed.
900mm
600mm
600mm
1200mm

Greenflame Wood Pellet Boiler 15kW
7
All sections of the flue must be capable of inspection and
removable to enable periodic internal cleaning.
Position the appliance bearing in mind all the instructions
and considerations above.
Important!
All 90 degree changes of direction in the flue pipe must be
either removable or capable of inspection.
THE FLUE PIPE RUN MUST NOT INCLUDE MORE THAN 2-3
METRES OF HORIZONTAL PIPE MUST BE AND NOT MORE
THAN THREE 90° ELBOWS (INCLUDING T’s). IT IS ALSO
ADVISABLE NOT TO EXCEED 8 METRES IN LENGTH WITH THE
PIPE Ø 80mm.
The flue connection on the boiler is 80mm. T R Engineering
Ltd recommends the use of 100mm flue for use with this
appliance, so a 80mm to 100mm adaptor is needed.
3.5 Operating Problems Caused by
Draught Defects in the Flue
Of all the weather and geographical conditions which affect
the operation of a flue pipe (rain, fog, snow, altitude a.s.l.,
exposure to sunlight, direction of facing), the wind is
unquestionably the most decisive. In fact, along with thermal
depression caused by the difference in temperature inside
and outside of the chimney, there is another type of
depression or over-pressure: dynamic pressure caused by
the wind. An up draught always increases depression and
hence draught. A crosswind increases depression provided
the cowl has been installed properly. A down draught always
decreases depression, at times inverting it.
Besides the direction and force of the wind, the position of
the flue and the cowl with respect to the roof of the building
and the surrounding landscape is important. The wind also
influences the operation of the chimney indirectly by
creating high-pressure and low-pressure zones, not only
outside the building but inside as well. In rooms directly
exposed to the wind (2), an indoor high-pressure area can be
created which can augment the draught in boilers, stoves
and fireplaces, but it can be counteracted by the external
high pressure if the cowl I situated on the side exposed to
the wind (1). On the other hand, in the rooms on the
opposite side from the direction of the wind (3), a dynamic
depression can be created which competes with the natural
thermal depression developed by the chimney, but this can
be compensated for (sometimes) by locating the flue on the
opposite side from the direction of the wind (4).
IMPORTANT!
The operation of the pellet boiler is noticeable sensitive to
the conformation and position of the flue which is adopted.
Hazardous conditions can only be overcome by suitable
setting-up of the boiler carried out by qualified T R
Engineering Ltd personnel.
Least favourable points
Most favourable position
High-pressure zone
Low-pressure zone
Downdraught
E.g. Down draught at 45°
of 8m/sec. Over-pressure
of 17Pa
E.g. Crosswind
2: 8m/sec.
Depression of
30Pa
WIND
1-2 = High-pressure zones
3-4 = Low-pressure zones
1
2
3
4

Greenflame Wood Pellet Boiler 15kW
8
3.6 Plumbing Connection
IMPORTANT!
The connection of the boiler to the plumbing system must
be carried out ONLY by specialised personnel who are
capable of carrying out installation properly, in compliance
with current standards in the country of installation.
If installation of the boiler will involve interaction with
another, pre-existing system complete with heating
equipment (gas boiler, methane boiler, fuel oil boiler, etc.),
it is even more advisable to call in qualified personnel, who
subsequently will be responsible for conformity of the
system with current applicable law.
T R Engineering Ltd will not be held responsible for damage
to persons or things in the event of failed or incorrect
operation if the aforementioned warnings are not complied
with.
For connection of the plumbing system to the appliance, the
user should refer to chapter 4, INSTALLATION AND
ASSEMBLY; specifically, paragraph 4.5, CONNECTION TO
PLUMBING SYSTEM.
Installation and Assembly
Unpacking
The Greenflame 15kW pellet boiler will come packaged on a
single pallet. The flue will be packaged separately.
The materials which make up the packaging are 100%
recyclable. Their storage or recycling is therefore the
responsibility of the final user, in compliance with local
regulations. Do not store the boiler without its packaging.
Remove the nylon strapping, cardboard packaging and
bubble wrap and recycle in the appropriate manner.
When unpacking the boiler use the checklist below to ensure
that all the required components to complete the kit have
been supplied. In the unlikely event of an omission you must
notify the manufacturer within 48 hrs of delivery. The
manufacturer reserves the right to charge for items deemed
lost after 48 hrs.
ITEM
LOCATION
RECEIVED
(YES/NO)
Baffle Set –3 pieces
Combustion Chamber
Burner pot
Combustion Chamber
User Manual Pack *
Combustion Chamber
Boiler Flue Support
Brackets x 2
Hopper
Stainless Flue Support
Brackets x 2
Hopper
Single –Twin Wall Flue
Adaptor
Hopper
Flue 90° Elbow
Hopper
Rain Cap
Hopper
Flue Straight Lengths 1m
x 2
Supplied in separate
packaging
*The user manual pack includes a user manual, quick step
user instructions, commissioning report, keys for lockable
doors and a heat proof glove.
Preparing the Base
Careful planning at an early stage will greatly help the
installation process and make sure that all the required
clearances are adhered to for servicing and that any
potential issues with the routing of the flue can be resolved.
The Greenflame pellet boiler should be positioned on a
concrete plinth at least 50mm high and should project a
minimum of 100mm beyond the sides and the rear of the
appliance and at least 600mm to the front. The plinth must
be capable of supporting the weight of the appliance when
full with fuel and the plumbing system has been filled with
water.
Use the template below for constructing the plinth and for
positioning the flow and return pipe work and electrical
supply.
Refer to service and access clearances around the appliance
on page 6.

Greenflame Wood Pellet Boiler 15kW
9
Electrical Connections
Electrical installations should only be carried out by suitably
qualified and certified electricians. If in doubt on any issue
relating to the electrical connections on the appliance
contact T R Engineering Ltd Technical Support or your local
dealer for guidance before carrying out any connections.
The Greenflame boiler must be supplied with a 230V 50Hz
electrical supply via a two pole isolation switch rated for
overvoltage category III and protected with a 6A circuit
breaker. Also, the unit shall have a 30mA RCD installed into
the mains supply. It is recommended that a power isolation
switch is located adjacent to the boiler to isolate the power
during servicing and maintenance but also out of the reach
of children and to prevent accidental turning off of the mains
power.
Room thermostats shall be supplied/controlled by safety
extra low voltage.
Brown –Time Clock Control Live
Black –Permanent Live
Blue –Neutral
Green/Yellow –Earth
Only authorised T R Engineering Ltd personnel may open
the control panel on the boiler. Any interference with the
wiring in the control panel will invalidate the warranty. The
boiler and complete plumbing system must be adequately
earthed and bonded in accordance with Local Building
Regulations and Bye-Laws.

Greenflame Wood Pellet Boiler 15kW
10
4.4 Boiler Control Panel Schematic
Only authorised T R Engineering Ltd personnel may open the control board.
Any tampering with the PCB will immediately invalidate the warranty.

Greenflame Wood Pellet Boiler 15kW
11
Greenflame Auto Fill Motor Set-Up for Long Straight Auger
(Optional)
Relay/Contactor
Motor Supply
(MCB Sized to Suit Motor)
Neutral
Live
Configure Controller to Operate Motor
-In System Menu > Default Settings > set P50 = 2 to
activate the Loading Motor Function.
-In System Menu > Timers > Set: T24 to time duration to
reach the min. level sensor 300 seconds.
-T23 is pre-set to 1200 for the amount of time to fill
hopper.
-Run load to prime auger. (Greenflame 25 waits 30
seconds for Belimo valve).
-Collect pellet in a suitable container –DO NOT FILL
BOILER HOPPER.
-Once primed press ESC from load.
-Re-set Er18 if showing on the display.
-Time how long it takes to fill hopper and
increase/decrease T23 if required.

Greenflame Wood Pellet Boiler 15kW
12
4.5 Water Connections
The diagram below indicates the plumbing connections at
the rear of the boiler. The return connection is factory fitted
with a 25/6 standard pump.
Incorrectly sized expansion vessel will invalidate the
warranty. A minimum 18 litre expansion vessel is
recommended for the boiler PLUS additional expansion for
the heating and domestic hot water system.
The boiler can be plumbed into either an open vented
system (the maximum static head of water permissible is 90
ft. (27.44 metres) or a sealed system. If plumbed into a
sealed system an appropriately sized expansion vessel should
be used and installed as per manufacturer’s instructions. The
expansion vessel should be sized based on the water
capacity in the boiler and the water in the entire heating
system.
The pump is on the return pipe work just before the boiler. It
is recommended that a by-pass pipe between the flow and
return is used with a valve to regulate the temperature of
the water returning to the boiler. Also, the system designer
should ensure that there is adequate provision in the system
for heat dissipation from the boiler during the shut-down /
extinguishing phase. An automatic air vent and pressure
relief valve should be piped to a drain to prevent injury to
the User or Service Technicians if it is activated. All unused
connections should be sealed with blanking plugs.
A non-return valve should be fitted to prevent back-
siphonage.
Once the plumbing has been completed the system should
be fully flushed to clear any debris which may have become
lodged in the pipe work. The system should generally be
filled from the lowest point on the system to force any air to
the highest point where it can be vented. The flow pipe on
the boiler is fitted with a manual air vent for venting air from
the boiler. The system must then be filled and the pump can
be run continuously for a few hours to completely de-aerate
the system. Hold the ESC button on the controller for 3
seconds to activate the pump. Repeat the procedure to turn
it off. Only when the system has been fully vented can the
boiler be commissioned.
The installation and the design of the central heating system
must be in accordance with BS EN 14336:2004: Heating
systems in Buildings. Installation and commissioning of water
based systems. BS EN 12828:2003; Heating Systems in
Buildings. Design of water based heating systems. BS EN
12831:2003: Heating Systems in Buildings. Method for
calculation of the design heat load.
Always ensure that all connections are making a watertight
seal.
If a buffer probe is being used to control the boiler then no
other external controls can be used and P35 should set to 5
in the system menu under default settings.
If the system is a Y plan or S plan and external controls will
be used to control the boiler then P35 should be set to 1.
¾” Flow
Water pressure
sensor
Pre-fitted pump
on return
Drain
Always check that
fittings are tight and
sealed when filling the
boiler
½” BSP
Connections for PRV
and optional extras.
Black tappings not
being used.
Manual air vent on
flow

Greenflame Wood Pellet Boiler 15kW
13
5. Control System
FUNCTION
DESCRIPTION
BUTTON
ON/OFF
Function: Ignition,
Extinguishing by pushing the
button for 3 seconds until the
acoustic signal.
P2
UNBLOCK
Function: Unblock. When the
system is in block by pushing
the button for 3 seconds until
the acoustic signal.
MODIFY VALUES
INTO MENU
In modify mode change menus
and submenus values.
P4
P6
RUN ON MENU
AND SUBMENU
In menu run on submenu and
menu
ESC
Function: Exit managed
pushing the button if in a menu
or a submenu. Out of menu
“Pump Test”
P1
MENU
Function: Enter in a menu or in
a submenu
P3
MODIFY
Enter in modify mode into a
menu
SET
Save data in a menu
ENABLE CHRONO
PROGRAMMING
In Chrono menu –Chrono
program: enables the selected
program.
P5
KEYBOARD LOCK
To lock keyboard keys keep this
button pressed for 3 seconds.
To unlock repeat the same
procedure.
ERRORS
DESCRIPTION
DISPLAY
Error activation safety thermostat high voltage
Er01
Error activation pressure switch (only with the
exhaust fan on)
Er14
Accidental extinguishing for low exhaust
temperature
Er03
Water over-temperature
Er04
Exhaust over-temperature
Er05
Encoder error.
Error can occur for lack of encoder signal.
Er07*
Encoder error.
Error can occur in case of adjustment problems of
rounds number
Er08*
Water pressure low
Er09
Water pressure high
Er10
Real time clock error
Er11
Ignition failed
Er12
Lack of voltage
Er15
Air flow regulator error
Er17
Extinguishing from lack of pellets
Er18
Burner cleaning system fault
Er33
*Only for product with encoder.

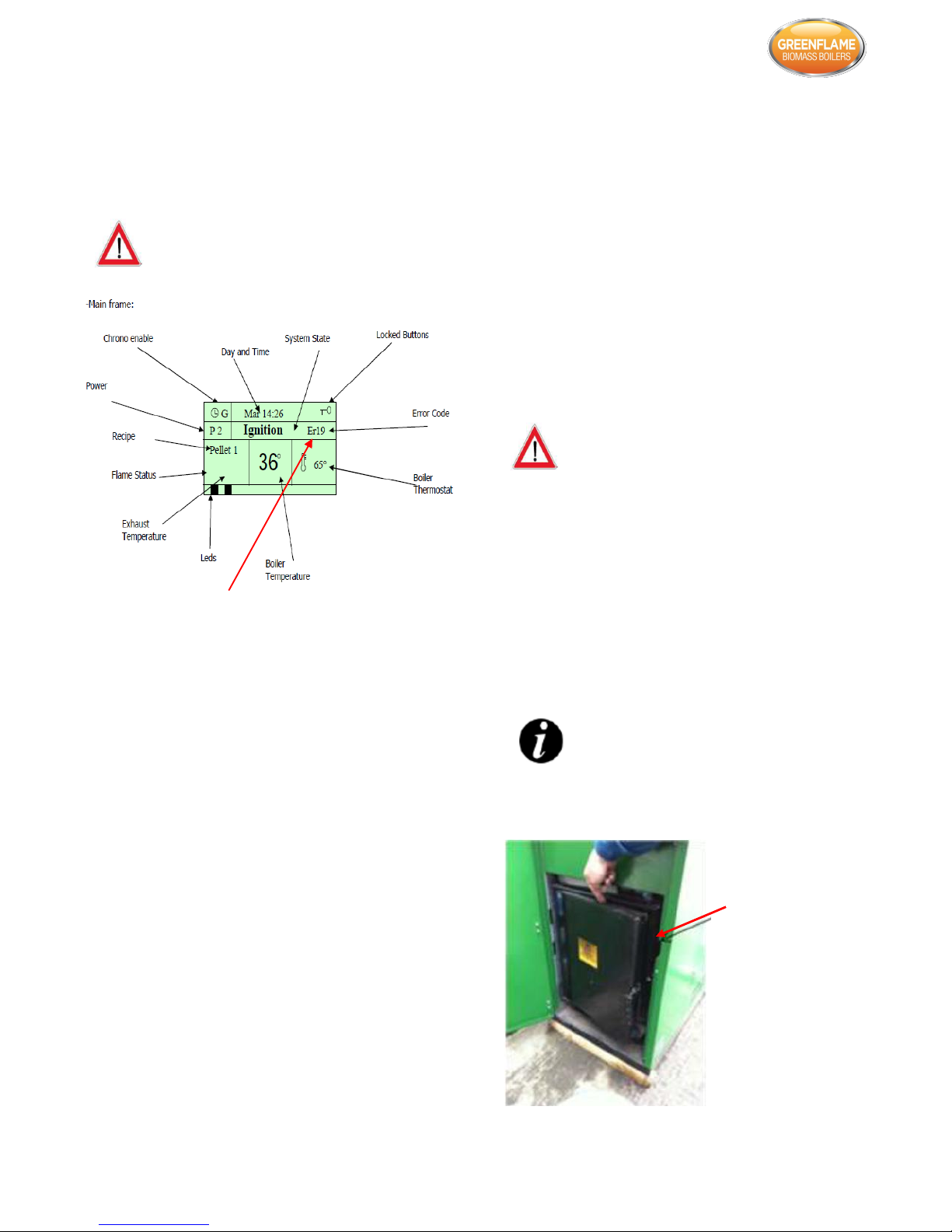

5.1 Error Codes
In the unlikely event that the appliance fails to start or shuts
down unexpectedly, then the error code shown on the
display will give an indication as to the potential cause of the
problem. Some of the errors can be cleared by the house
holder and they are.
Er01 –Water Safety Thermostat –Press the reset button A
and then hold button B for three seconds to clear the error
from the controller.
Er03 –Accidental Extinguishing for Low Exhaust
Temperature –Empty any un-burnt pellets from the burner
pot and hold button B for three seconds.
Er04 –Water over temperature –Hold button B for three
seconds. If the problem persists contact your service agent.
Er12 –Failed Ignition –Empty any un-burnt pellets from the
burner pot and hold button B for 3 seconds.
Er15 –Loss of Voltage –Usually occurs after a power-cut.
A
B

Greenflame Wood Pellet Boiler 15kW
14
Empty any un-burnt pellet from the burner pot and hold
button B for three seconds.
Er18 –Lack of Pellet –When the pellets reach the pellet
sensor in the hopper the system extinguishes to prevent
having to re-prime the auger.
Other errors can appear on the display but these may only
be cleared by service personnel.
6. Boiler Operation & Maintenance
The Greenflame has been developed to ensure that the user
is able to carry out the most basic functions in a safe and
convenient manner. Once the installation has been
successfully carried out the user interaction is quite simple
from a regular inspection of the combustion chamber to
remove ash to filling the hopper with pellets.
6.1 Turning the Boiler ON/OFF
It is recommended that your boiler is controlled by an
external time clock. The time programs should be set to the
times that heat is required at different periods throughout
the day. You should also make allowance for the ignition
time of the appliance, i.e. the time it takes from when the
time clock signals the boiler to start until the flame has fully
developed in the appliance (usually approx. 10-20 minutes).
When choosing your programs on your time clock it is
recommended that you program the clock for long runs
instead of short runs. This gives the boiler time to settle and
match the heat demand of the property. It is also when the
boiler is most efficient.
If the boiler is not being controlled by a time clock then it can
be turned on and off locally at the display on the boiler
control panel. Hold the ON/OFF button for 3 seconds to start
the boiler. Hold the ON/OFF button for 3 seconds to turn off
the boiler.
If a buffer sensor is being used to control the boiler then no
other external controls can be used.
6.2 Emptying the Ash Pan
The boiler contains two areas where ash needs to be
removed at regular intervals.
The primary ash pan is located in the main combustion
chamber. The frequency of emptying the ash pan is
determined by the length of time the boiler has been
running and under what load conditions. Once the ash in the
ash pan has reached the top then it should be emptied. A
daily check during the first few days of operation will give an
indication as to when it needs to be emptied.
Always make sure that before you open the main
combustion chamber door that the boiler has been
switched off as has been allowed to cool down sufficiently
so as not to cause injury.
Always empty ash into a metal container as ash which may
appear cool but could be hot in the centre.
Never use plastic brushes or dust pans to clean ash from
the boiler.
Always use heat resistant gloves when handling the ash pan
or cleaning the boiler.
When the combustion chamber door is opened, even with
the boiler in the OFF position, the combustion fan will run
at full power.
Error codes must be notified to
the service personnel in order
to diagnose the problem.
Always allow boiler to cool
down before opening the
combustion chamber door.

Greenflame Wood Pellet Boiler 15kW
15
Remove the slider plate
under the grate before
removing the ash pan.
Remove the burner pot.
Always replace the slider
plate once the ash pan
has been emptied.
Ash pan full. Carefully
remove ash and empty
into a metal container.
Carefully remove the ash
pan and dispose of the
ash into a metal
container.
Remove any ash from pot
using the tool provided.
Secondary ash pan area.
Carefully remove secondary
ash pan and dispose of ash
into a metal container.
The secondary ash pan is located under the main combustion
chamber. This needs to be emptied less frequently.
Secondary ash pan area.

Greenflame Wood Pellet Boiler 15kW
16
Never allow any foreign material to enter the hopper. This
will lead to the malfunction of the auger system and could
cause damage to the appliance and invalidate your
warranty.
Always close the lid to the hopper once it has been filled
with pellets.
Never leave the hopper lid open for prolonged periods as
rain or moisture can affect the pellet.
Always supervise children when the hopper lid is open in
case foreign material is placed into the hopper or children
climb into the hopper.
7. Boiler Handling
One of the key features of the Greenflame 15 is its size and
ability to be transported to and located in confined spaces.
Care should also be exercised when manoeuvring the
appliance into position. The illustration below indicates the
weight distribution of the appliance.
Always protect the appliance when transporting on trolleys
or hand carts.
Only persons who have been trained in manual handling
techniques should attempt to move the appliance.
Incorrect lifting techniques can cause serious injury.
Unscrew locking nuts
Carefully remove secondary
ash pan and dispose of ash
into a metal container.
6.3 Filling with Fuel
The boiler will indicate when the level of pellets reaches a
low level. The system will shut down and will wait for the
hopper to be refilled.
Open the pellet hopper lid and carefully pour approved
pellets into the hopper.
Never fill the hopper above the guard mesh across the
opening of the hopper.
Total Dry Weight = 160kg
2/3 dry weight in this area.

Greenflame Wood Pellet Boiler 15kW
17
8. Technical Data
Technical Data
Greenflame 15kW
Nominal output
kW
4.8 –16.1
Nominal Fuel Input
Kg/hr
1 –3.5
Efficiency nominal output (EN 303-5)
%
90.7
Smoke temperature at Nominal power
°C
130 –150
Smoke temperature at reduced power
°C
70 –90
Minimum required draught
Pa
10
Exhaust gas mass flow
g/s
6 –11
CO2at reduced and nominal power
%
6 –12
Water operating temperature range
°C
50 –85
Maximum operating pressure
Bar/kPa
3 / 269
Recommended operating pressure
Bar
1.5
Water flow connection
mm
22mm
Water return connection
mm
22mm
Boiler drain
Inch
½”
Boiler safety thermostat setting
°C
105
Frost thermostat adjustable between 4 & 10
°C
Factory set at 4
Boiler class
Class
Class 3
Boiler electrical power requirement
230V 50Hz
Maximum electrical consumption
Watts
<500
Average electrical consumption in normal running
Watts
164
Line voltage fuse protection
Amp
6
PCB fuse protection
Amp
1
Width
mm
600
Height
mm
1100
Length (excluding flue)
mm
920
Fuel hopper capacity
Kg
110
Boiler flue diameter (I.D)
mm
80
Boiler dry weight
kg
160
Water content
litres
18

Greenflame Wood Pellet Boiler 15kW
18
600mm
920mm
1100mm
Flue height to be
determined on site
as per building
regulations

Greenflame Wood Pellet Boiler 15kW
19
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER
DATE
SERVICE PROVIDED
SERVICE ENGINEER

Greenflame Wood Pellet Boiler 15kW
20
10. Maintenance Schedule
To ensure that your Greenflame wood pellet boiler appliance operates at its highest efficiency and trouble free
operation it is essential that the following maintenance schedule is adhered to by a QUALIFIED SERVICE
ENGINEER:-
Full System Service –by Service Provider –Every 12 months or 1200 running hours, whichever comes first.
(Recommended just before the heating season i.e. October).
Heat Exchanger Clean –by Service Provider - six months after a full service (recommended march after
winter season).
Emptying of ash containers –by Operator –Weekly.
Clean down of boiler surfaces –by Operator –every 2 weeks.
Full Service
Remove baffles from main combustion chambers and clean down all heat exchanger surfaces.
Remove turbulator cleaning mechanism from the boiler and clean heat exchanger tubes.
Empty ash containers.
Remove exhaust fan motor and clean flue gas passageways to the flue outlet.
Remove and clean the flue gas thermocouple.
Remove and clean the photocell (commercial boilers only).
Remove the air flow sensor (Greenflame 15kW only) and check for dust on the filament wires. Never
touch the wires and only clean with an air blow.
Remove the fans and check for dust. Never touch the wires and only clean with an air blow.
Completely clean the flue through the inspection door.
Remove burner pot and remove any loose ash in the pot holder.
Ensure all the air-holes in the burner pot are clear and check the rope seal that it maintains a seal when
replaced in the holder.
Replace the Ignitor and adjust accordingly.
Check sealing rope and tape on the lower ash pan door and main combustion chamber door that it
maintains a good seal. Replace if necessary.
Check the ceramic board on the combustion door and replace if necessary.
Disconnect and remove the auger motor.
Remove the auger and clear out any debris. Refill with fuel and re-prime the auger.
Check auger calibration.
Check all outputs tests (as per commissioning guide).
Heat Exchanger Clean
Remove and empty both ash containers.
Remove baffles and completely clean down heat exchanger surfaces.
Remove burner pot and remove any loose ash in the pot holder.
Ensure all the air-holes in the burner pot are clear and check the rope seal that it maintains a seal when
replaced in the holder.
Check sealing tape and rope on the lower ash pan door and main combustion chamber door respectively
and check that it maintains a good seal. Replace if necessary.
Emptying of Ash Containers and Clean Down of Boiler Surfaces
Remove and empty the main ash container every week or more frequently if required.
Clean down boiler surfaces when emptying main ash container.
Remove and empty the secondary ash container every 2 weeks or more frequently if required. Ensure that
the secondary ash pan door is fully secured and air tight.
